ViewSonic PG707X Business/Education Projector
4000 Lumens, 4:3 XGA
OVERVIEW
ViewSonic PG707X is a practical 4,000 ANSI Lumens XGA business/education projector. With a throw ratio match for mainstream installation conditions and 1.3x optical zoom, it serves as a hassle-free upgrade choice for users to easily get bright and large images with low cost-per-inch in small-to-medium meeting/training rooms. Adding on to that are the energy-efficient 20,000 hours long lamp life and comprehensive LAN control compatibility, making it even more favorable to cost-effective and efficient management.
Bright Images in Business/Education Environments
Packed with 4,000 ANSI Lumens and a 22,000:1 contrast ratio, this projector can deliver bright and detailed images.
4,000 ANSI Lumens
Larger Screen Size with Lower Cost-per-inch
The projector allows for an up-to-300” image size, which is much larger and also easier to install than commercial displays.
Hassle-free Equipment Upgrade
With a throw ratio matching mainstream installation conditions, the projector can be fitted to an existing ceiling mount and projection screen without changing the setup completely.
1.51-1.97 throw ratio
Adaptable to Any Environment
Equipped with a 1.3x optical zoom lens, the projector empowers users to choose the most ideal set-up location within a wider throw distance range that doesn’t interfere with existing interior design while still getting the desired image size.
1.3x Optical Zoom
Reliable Long-term Performance
The latest SuperEco+ mode technology greatly extends the lamp life of the projector from 15,000 hours to 20,000 hours – meaning 4 hours a day for more than 13 years – saving you maintenance cost and effort.
Centralized Control for Management Efficiency
This projector is compatible with Crestron, AMX, PJ Link, ATEN and Extron systems and comes equipped with ViewSonic vController, an easy-to-use network management tool.
Easy Image Adjustment
Horizontal and Vertical Keystone correction along with 4 corner adjustment features eliminate crooked or distorted images for a perfectly proportioned picture every time.
A Simpler Way to Update Projector Software
ViewSonic Projector Software Update is available online and enables you to keep your projector firmware up to date easily and conveniently; no need to take your projector in to a service center for software updates.
*The latest projector software update can be found in the download section at the bottom of the page when available.
SuperColor™ Accuracy
ViewSonic’s proprietary SuperColor™ Technology displays a wide color range, ensuring that users enjoy a true-to-life color performance in both bright and dark environments without sacrificing image quality.
Satisfying Audio Performance
The projector is embedded with a 10W speaker to deliver satisfying audio performance right out of the box.
Sufficient Connectivity
The projector provides dual HDMI ports to connect to your multimedia devices, ready for expanding your audiovisual experience.
USB Type-A Power Supply
A built-in USB power output (5V/1.5A) can be used to supply power to HDMI dongles, eliminating the need for separate power adapters for connected dongles.

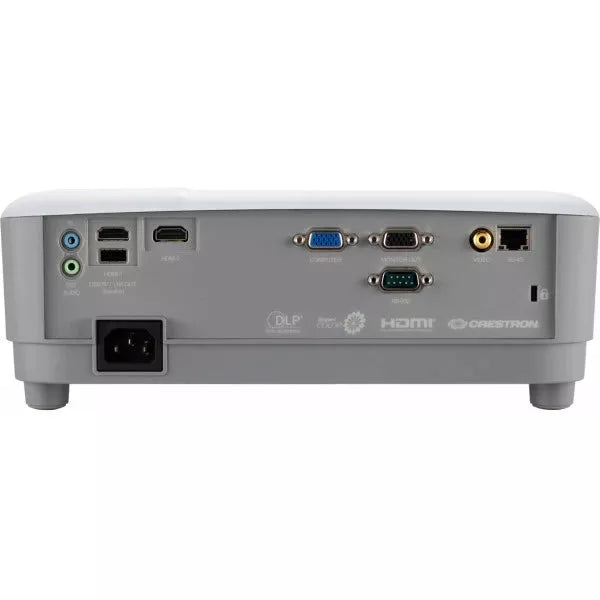

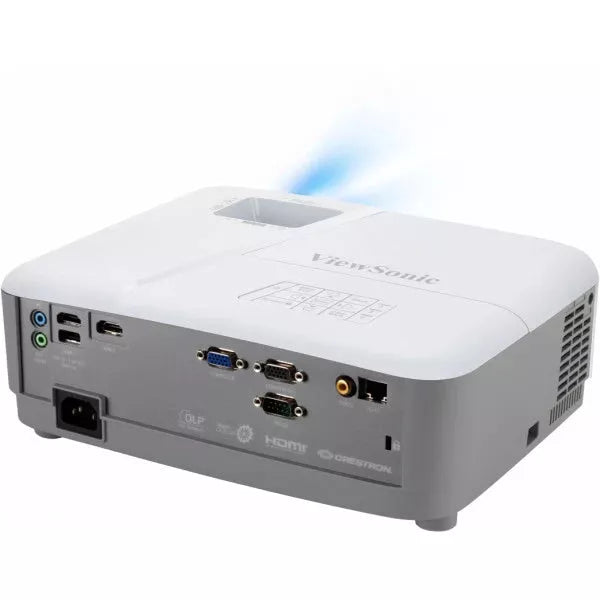

Exterior & Rear I/O Connectors
| Specification | Value |
|---|---|
| Projection System | 0.55" XGA |
| Native Resolution | 1024x768 |
| Brightness | 4000 (ANSI Lumens) |
| Contrast Ratio (SuperEco Mode) | 22000:1 |
| Display Color | 1.07 Billion Colors |
| Light Source Type | Lamp |
| Light Source Life (Normal) | 6000 hours |
| Light Source Life (SuperEco) | 20000 hours |
| Lamp Watt | 203W |
| Lens | F=2.59-2.87, f=16.88-21.88mm |
| Projection Offset | 115%+/-5% |
| Throw Ratio | 1.51-1.97 |
| Optical Zoom | 1.3x |
| Digital Zoom | 0.8x-2.0x |
| Image Size | 30"-300" |
| Throw Distance | 0.9m-12m, (100"@3.1m) |
| Keystone | H:+/-40°, V:+/-40° |
| Audible Noise (Normal) | 32dB |
| Audible Noise (Eco) | 28dB |
| Input Lag | 16ms |
| Resolution Support | VGA(640 x 480) to FullHD(1920 x 1080) |
| HDTV Compatibility | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| Video Compatibility | NTSC, PAL, SECAM |
| Horizontal Frequency | 15K-102KHz |
| Vertical Scan Rate | 23-120Hz |
| Input | |
| Computer in (share with component) | 1 |
| Composite | 1 |
| HDMI | 2 (HDMI 1.4/ HDCP 1.4) |
| Audio-in (3.5mm) | 1 |
| Output | |
| Monitor out | 1 |
| Audio out (3.5mm) | 1 |
| Speaker | 10W |
| USB Type A (Power) | 1 (5V/1.5A) |
| Control | |
| RS232 (DB 9-pin male) | 1 |
| RJ45 (LAN control) | 1 |
| Others | |
| Power Supply Voltage | 100-240V+/- 10%, 50/60Hz, (AC in) |
| Power Consumption | Normal: 280W, Standby: <0.5W |
| Operating Temperature | 0~40℃ |
| Net Weight | 2.35kg |
| Dimensions (WxDxH) with Adjustment Foot | 294x218x110mm |
| OSD Language | English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese, Japanese, Turkish, Portuguese, Finnish, Indonesian, India, Arabic, Vietnamese, Greek, Total 23 languages |
| Standard Accessory | |
| Power Cord | 1 |
| VGA Cable | 1 |

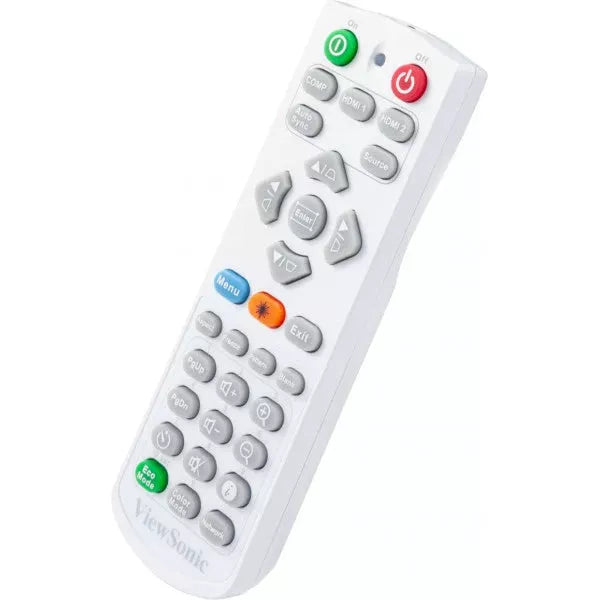

| Remote Control | 1 (w/ laser pointer) |
| QSG | 1 |
| Category | Download |
|---|---|
| Datasheets | Download |
| User Guides |
Download |
| Quick Start Guide | Download |
| Driver & Software | Download |
| Technical Document | Download |
