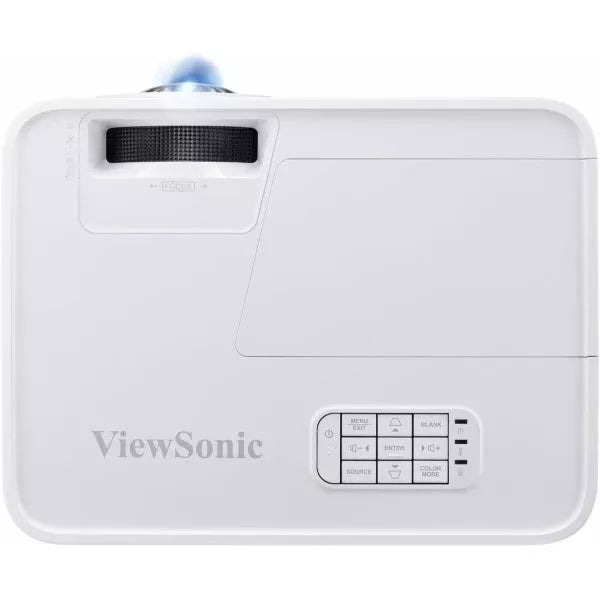

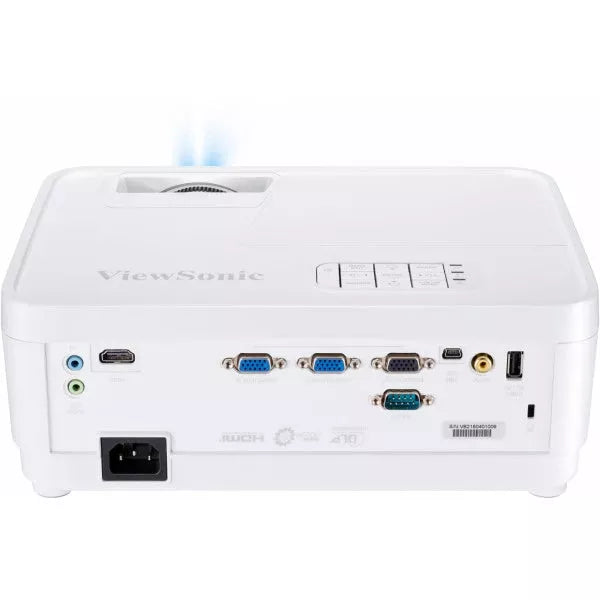

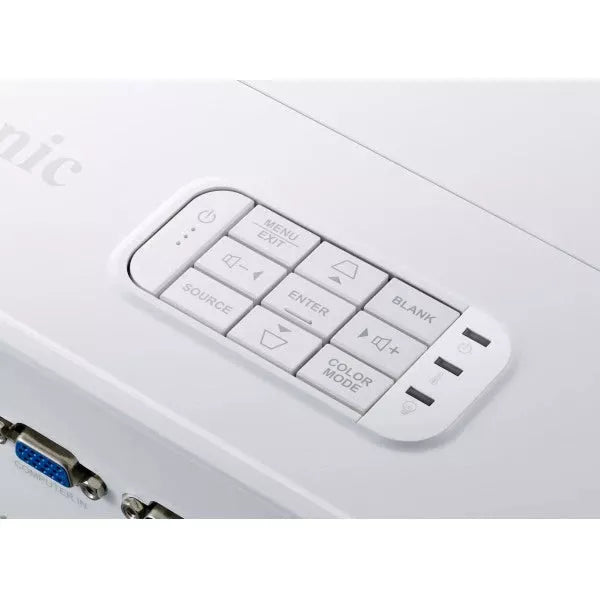

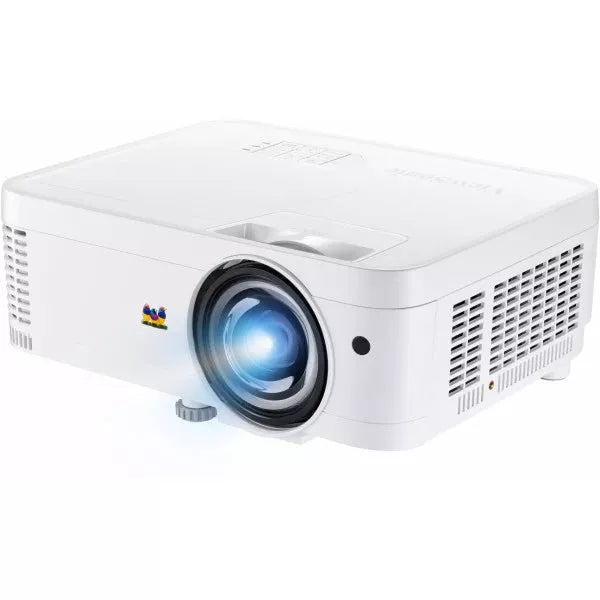

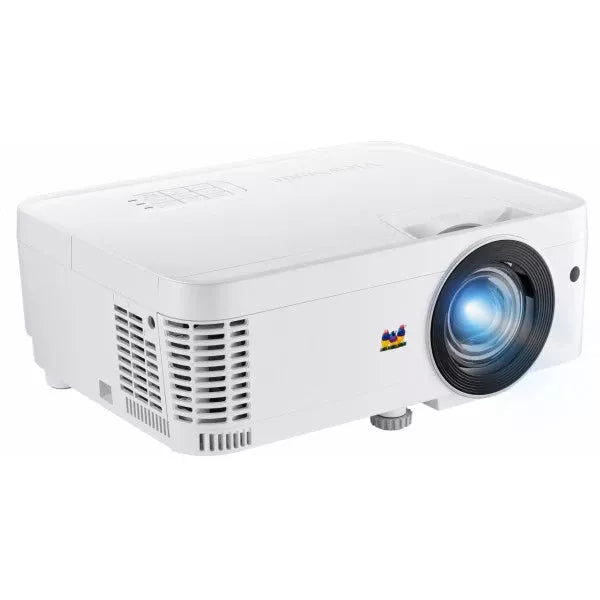

ViewSonic PS501X+ 3,400 Lumens 4:3 XGA Education Projector
The PS501X+ is a high brightness XGA short throw projector for education. With the ability to project 100” images from a distance of 124cm from any projection surface, the projector is flexible enough to fit any classroom design and keeps the presenter clear of the projection beam. For times when lights in the classroom must be kept on, a high brightness of 3,400 ANSI Lumens ensures that images remain clear and detailed. ViewSonic exclusive SuperColor™ technology offers a true-to-life color accuracy for projected images. The energy-saving SuperEco mode reduces power consumption and extends lamp life to a lengthy 15,000 hours. In addition, PS501X+ is compatible with the optional PJ-vTouch-10S interactive module, which allows you to use a stylus or finger touch to annotate on projected images – turning class into an engaging interactive teaching environment.| Specification | Details |
|---|---|
| Native Resolution | 1024x768 |
| DC type | DC3 |
| Brightness | 3400 ANSI Lumens |
| Contrast Ratio (SuperEco mode) | 20000:1 |
| Display Color | 1.07 Billion Colors |
| Light Source | Lamp |
| Light Source Life (Nor/SuperEco) | 5000/15000 hours |
| Lamp Watt | 190W |
| Lens | F=2.6, f=6.9mm |
| Projection Offset | 130%+/-5% |
| Throw Ratio | 0.61 |
| Image Size | 40" - 300" |
| Throw Distance | 0.74m - 3.72m (100"@1.24m) |
| Keystone | ±40° (Vertical) |
| Optical Zoom | Fixed |
| Audible Noise (Eco) | 27dB |
| Resolution Support | VGA(640x480) to FullHD(1920x1080) |
| HDTV Compatibility | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| Video Compatibility | NTSC, PAL, SECAM |
| Horizontal Frequency | 15K~102KHz |
| Vertical Scan Rate | 23~120Hz |
| Input | |
| Computer in (D-SUB 15 pin) | 2 |
| Composite | 1 |
| Audio-in (3.5mm) | 1 |
| HDMI/HDCP | 1 (HDMI 1.4/HDCP 1.4) |
| Output | |
| Monitor out (D-SUB 15 pin) | 1 |
| Audio out (3.5mm) | 1 |
| Speaker | 2W |
| USB type A (Power) | 1 (5V/1.5A) |
| Control | |
| RS232 | 1 |
| USB type mini B (Services) | 1 |
| Others | |
| Power Supply Voltage | 100-240V+/- 10%, 50/60Hz AC |
| Power Consumption | Normal: 260W |
| Standby | <0.5W |
| Operating Temperature | 0~40℃ |
| Carton | Brown |
| Net Weight | 3.6kg |
| Dimensions (WxDxH) w/adjustment foot | 292x236x115mm |
| Language | English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese, Japanese, Turkish, Portuguese, Finnish, Indonesian, India, Arabic, Vietnamese |
| Warranty | *5 Year Pick Up, Repair and Return [Light source 5 Years or 5,000 hours] |
| Standard Accessory | |
| Power Cord | 1 |
| VGA cable | 1 |
| Remote Control | 1 |
| QSG | 1 |
| Lens Cover | 1 |
| Optional Accessory | |
| Lamp/Light Source | RLC-108 |
