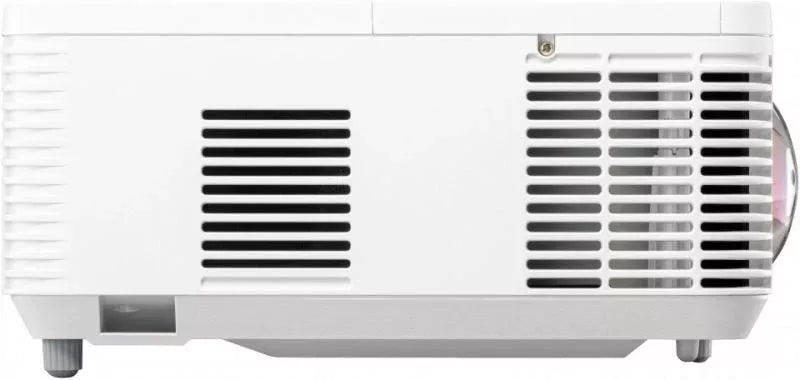

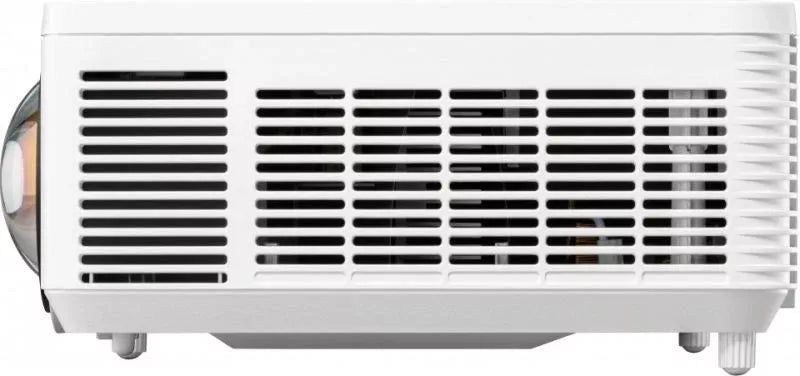

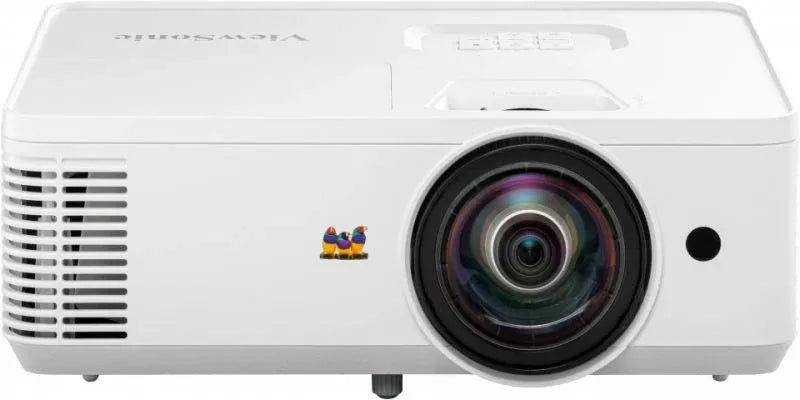

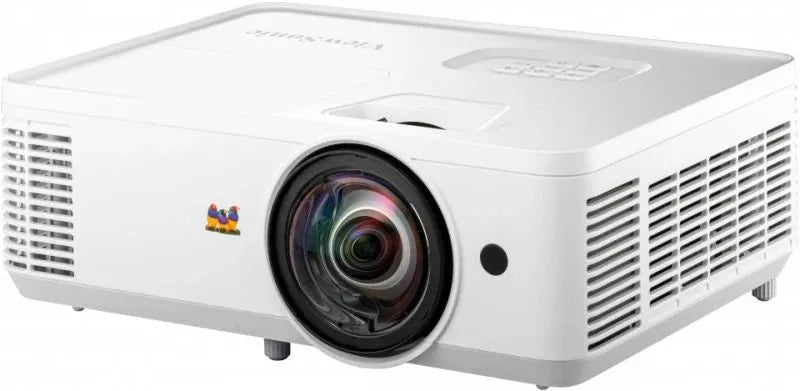

ViewSonic PS502X Business & Education Projector

4000 Lumens, 4:3 XGA

• Description
• Specifications
• Downloads

• OVERVIEW
  The PS502X is ViewSonic’s high brightness XGA short throw business/education projector. Boasting 4,000 ANSILumens of high brightness, the projector offers clear images of up-to-300” large screen in meeting rooms,classrooms, or any other bright environment. With 0.616 short throw ratio, the projector can provide 100”large screen size from only 1.3m away without being obstructed by shadows, allowing for a large screen even in smallspaces. The dual HDMI ports allow you to flexibly connect to multiple devices, easily switching between contentsources. The USB Type-A port can supply power to HDMI wireless dongles, making wireless content streaming moreconvenient. The projector also allows software updates via USB cable connection with simply your laptops,skipping trips to service centers.

  High Brightness for Business & Education Environments​
  Thanks to 4,000 ANSI Lumens brightness, you're guaranteed clear visuals of vibrancy, which areperfectly suitable for spaces with a lot of ambient light.
  4,000 ANSI Lumens

  Big Screen for Small Spaces
  The PS502X’s 0.616 short throw projection gives you 100” from only 1.3m away whenpositioning the projector. Presenters will stay clear of the projector beam, eliminating eye glare andshadows on the projection screen.
  0.616 Short Throw

  Ultra-Large Screen with Lower Cost-per-inch​​
  The projector allows for an up-to-300” image size, which is much larger and easier to install thancommercial displays.
  Up to 300"

  Easy and Flexible Connection​
  The dual HDMI ports offer ample connectivity to accommodate all your HDMI-enabled multimedia devices.You no longer have to unplug your existing device to switch to a new one. Simply use the on-screendisplay to select and change the input source.​
  Dual HDMI Ports

  Vibrant Colors for Captivating Presentations​
  Impress any audience with ViewSonic’s exclusive color technology and elevate your presentationwith a true-to-life color experience.

  A Simpler Way to Update Projector Software​
  Skip trips to the service center by keeping software up to date easily and onsite via USB cableconnection with your laptop.​​​
  Learn more: https://youtu.be/irlhJLpDHas
  ​​​*The latest projector softwareupdate can be found in the download section at the bottom of the page when available.​

  USB Type A Power Supply​
  A built-in 5V/1.5A USB power output can be used to supply power to HDMI wireless dongles, eliminatingthe need for separate power adapters when streaming your multimedia content.

  Audio Right Out of the Box
  The projector comes equipped with a 16W speaker, allowing for audio to be delivered during presentationswithout the need for external speakers.
  Built-in 16W Speakers

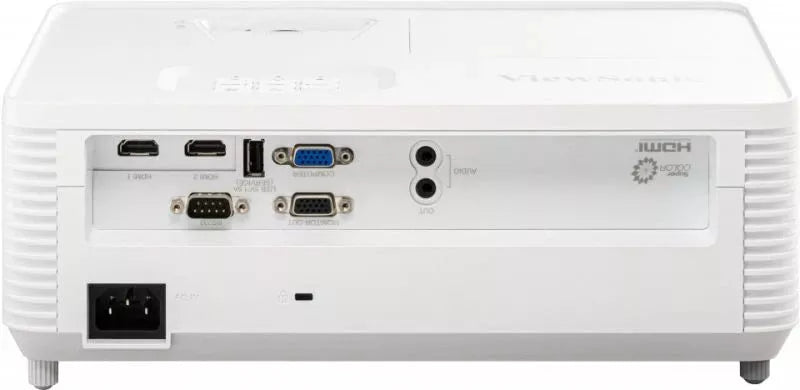

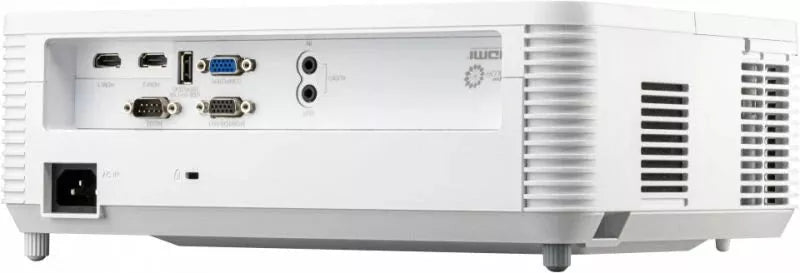

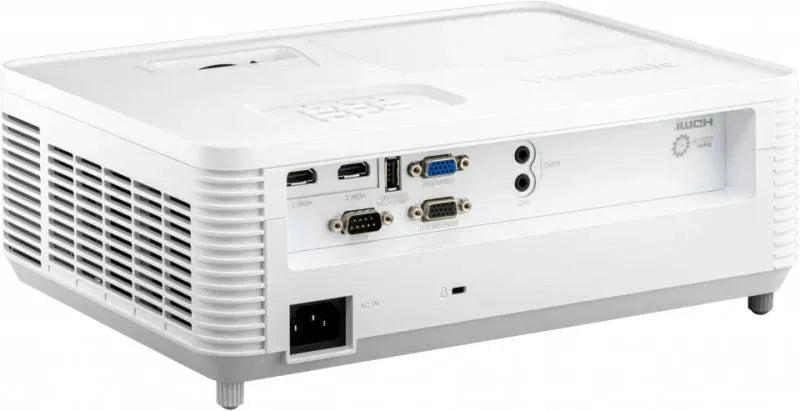

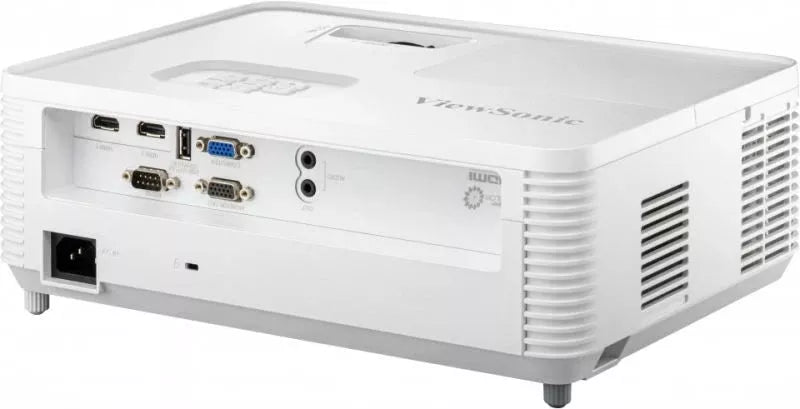

  Dimensions & I/O Ports


• Specification	Details
  Projection System	0.55" XGA
  Native Resolution	1024x768
  Brightness	4000 (ANSI Lumens)
  Contrast Ratio (SuperEco Mode)	15000:1
  Display Color	1.07 Billion Colors
  Light Source Type	240W UHP Lamp
  Light Source Life (Normal Mode)	4000 hours
  Light Source Life (SuperEco Mode)	12000 hours
  Lens	F=2.7, f=7.15mm
  Projection Offset	115%+/-4%
  Throw Ratio	0.616
  Optical Zoom	Fixed
  Digital Zoom	0.8x-2.0x
  Image Size	60"-300"
  Throw Distance	0.75m-3.76m (77"@0.96m)
  Keystone	+19°/-19° (V)
  Audible Noise (Normal)	34dB
  Audible Noise (Eco)	25dB
  Input Lag	33.2ms
  Resolution Support	VGA(640 x 480) to FullHD(1920 x 1080)
  HDTV Compatibility	480i, 480p, 576i, 576p, 720p, 1080i, 1080p
  Horizontal Frequency	15K-102KHz
  Vertical Scan Rate	23-120Hz
  Input
  Computer in (share with component)	1
  HDMI	2 (HDMI 1.4/ HDCP 1.4)
  Audio-in (3.5mm)	1
  Output
  Monitor out	1
  Audio-out (3.5mm)	1
  Speaker	16W
  USB Type A (Power)	1 (5V/1.5A)
  Control
  RS232 (DB 9-pin male)	1
  USB Type A (Services)	1 (share with USB A Output)
  Others
  Power Supply Voltage	100-240V+/- 10%, 50/60Hz (AC in)
  Power Consumption	Normal: 295W
  Standby	<0.5W
  Operating Temperature	0~40℃
  Carton	Brown
  Net Weight	2.87kg
  Gross Weight	4.08Kg
  Dimensions (WxDxH) with Adjustment Foot	309x234x115mm
  Packing Dimensions	400x337x168mm
  OSD Language	Total 22 languages
  User Guide Language	Total 15 languages
  Standard Accessory
  Power Cord	1
  VGA Cable	1

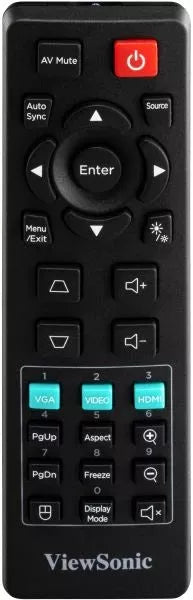

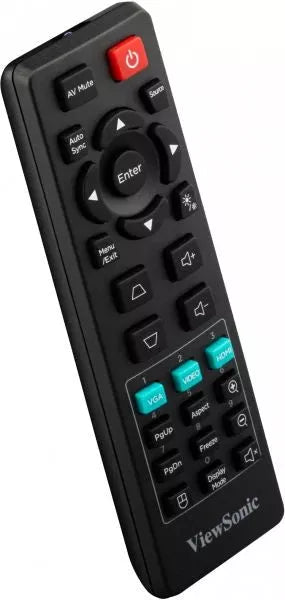

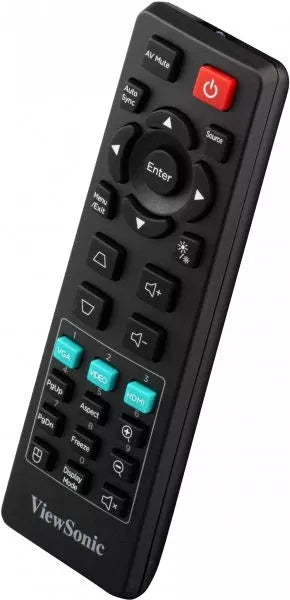

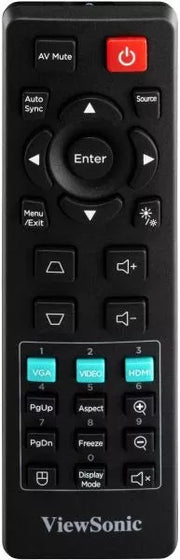

  Remote Control	1
  QSG	Yes
  Lens Cover	Yes
  Air Filter	Yes (CN Only)
  Warranty Card	Yes (CN Only)
  Optional Accessory
  Lamp/Light Source	RLC-128
  Air Filter	RSPL
  Wall/Ceiling Mount	PJ-WMK-305, PJ-WMK-007
  Carry Bag	PJ-CASE-008
