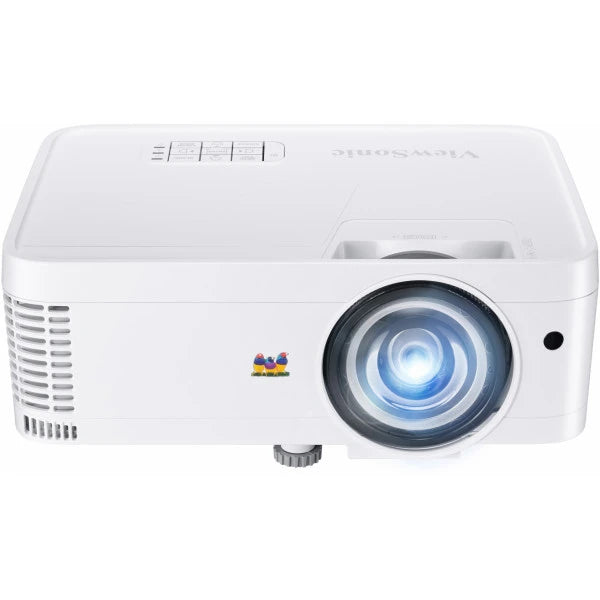

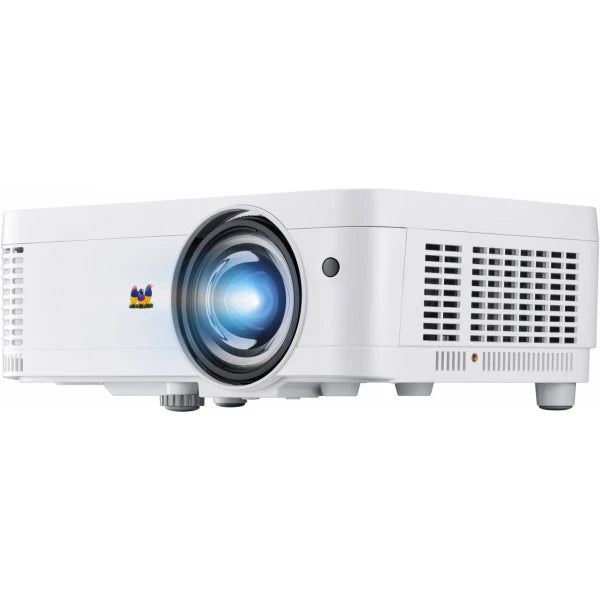

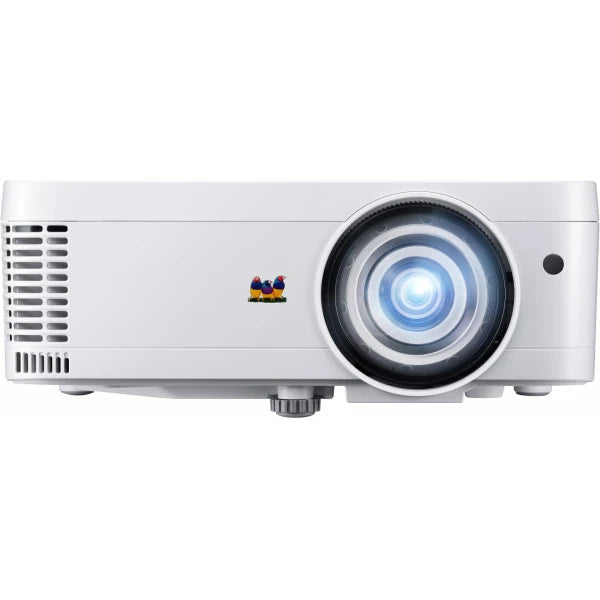

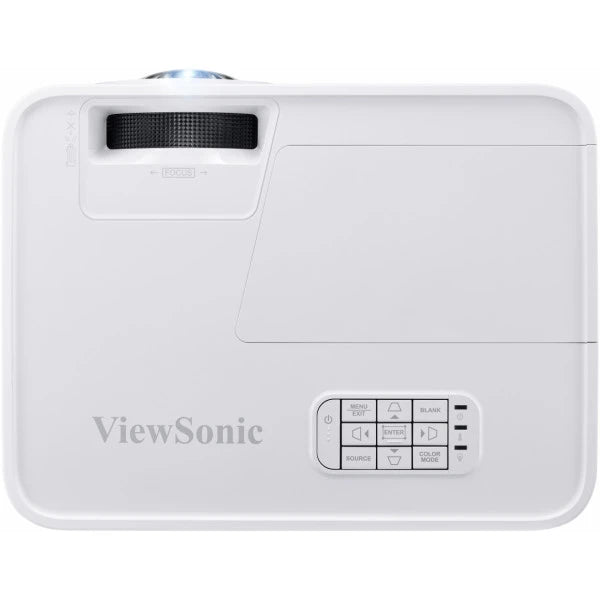

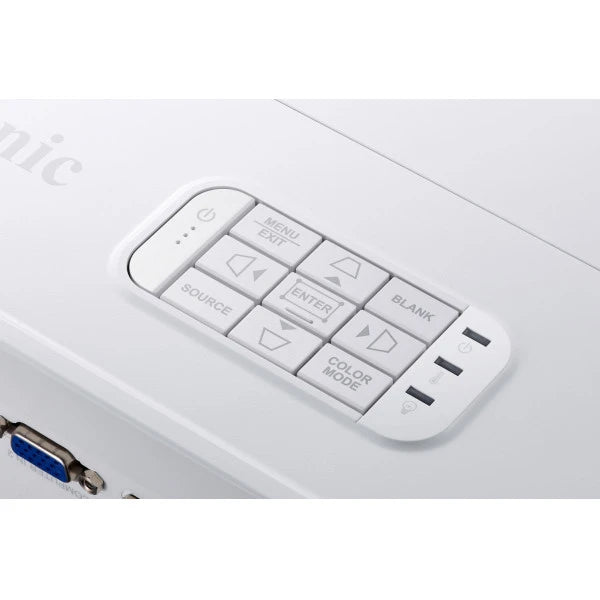

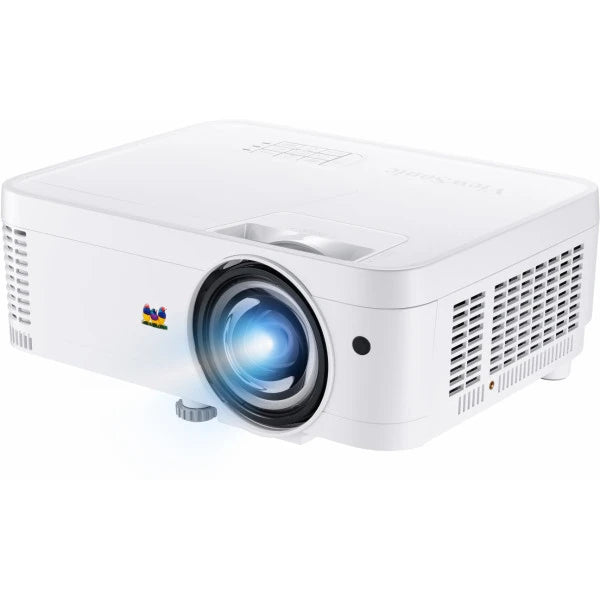

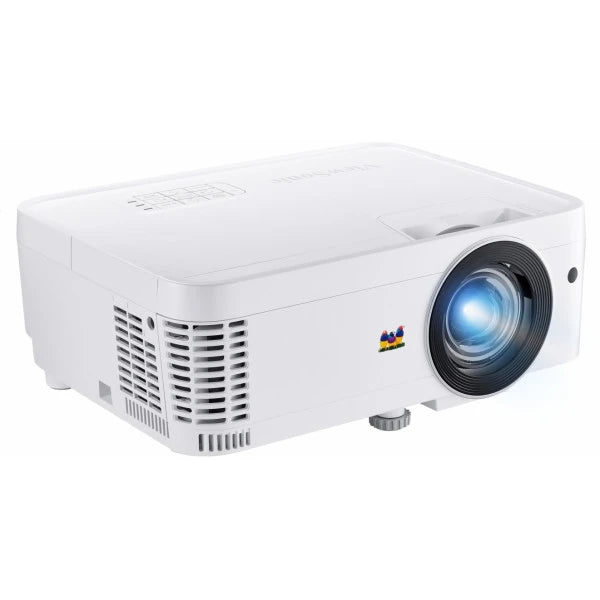

ViewSonic PS600X Networking Projector for the Classroom

3700 Lumens, 4:3 XGA

• Description
• Specifications
• Downloads

• OVERVIEW
  The PS600X is a high brightness XGA short throw projector for education. With the ability to project 100” images from a distance of 124cm from the projection surface, PS600X is flexible enough to fit any classroom design while keeping the presenter clear of the projection beam. A brightness of 3700 ANSI Lumens allows the projector to project clear, detailed images with the lights kept on so students can more easily take notes and maintain focus. The energy-saving SuperEco mode reduces power consumption and extends lamp life to a lengthy 15,000 hours. PS600X is compatible with PJ-vTouch-10S, the optional interactive module that turns class into an engaging interactive teaching environment. In addition, users can easily control and manage PS600X remotely via the LAN network solution for maximum efficiency.

  Effortless Installation
  Fit For Classrooms of All Sizes
  0.61 short throw projection gives you room to work with when positioning the projector. With the flexibility to be placed within inches of a screen, users will be able to project big images in any space, while also keeping presenters clear of the projection beam and avoid image shadows.

  Easy Central Management
  The projector is Creston, AMX and PJ Link certified and Extron and vContorller compatible can be easily controlled and monitored remotely from a PC. IT personnel can manage up to 256 projectors at one time and control operations including scheduling through a LAN IP with an advanced, real-time alert system that sends status updates about power, lamp life, and unit location for simplified maintenance.

  More Connectivity
  Equipped with dual HDMI inputs, PS600W allows multiple users to connect laptops or mobile devices for a high-definition experience without taking time to take turns.

  Dual HDMI
  Inputs

  Integrated Power Source
  A built in USB power output (5V/1A) can be used to supply power to HDMI dongles, eliminating the need for separate power adapters for connected dongles.

  USB 5V/1A

  Interactive module compatible
  With the optional interactive package, (PJ-vTouch-10S), this projector becomes an interactive tool that transforms any surface into an interactive whiteboard. With the multi-touch capability, users can simultaneously annotate, write, or draw on the projected image to interact with the content and share ideas.

  Easy Image Adjustment
  Horizontal and Vertical Keystone correction along with 4 corner adjustment features eliminate crooked or distorted images for a perfectly proportioned picture every time.

  Advanced
  Image Correction


  Instant Activation Upon Signal Detection
  Get your projector up and running with ease two simple settings.

  Signal Power On: The projector will power on automatically upon detection of a VGA cable connection and HDMI cable.
  Direct Power On: Simply connect the power cord and begin; the projector will power itself on automatically.
  Instant Activate

  Immersive Visual Performance
  Bright Images in Any Environment
  Packed with 3,700 ANSI lumens of brightness and a 22,000:1 high contrast ratio, this projector is guaranteed to produce bright images in any setting, even in spaces with high ambient lighting.

  3,700 ANSI Lumens

  SuperColor™: Best in Class Color Accuracy
  ViewSonic’s proprietary SuperColor™ Technology offers a wider color range, ensuring users enjoy true-to-life color projection in both bright and dark environments.

  SuperColor™
  Technology

  Fantastic 3D Viewing
  The HDMI port allows users to display 3D imagery directly from 3D Blu-Ray players and connect to HDMI-enabled devices such as laptops, tablets, and media players.

  3D Blu-ray

  Low Total Cost of Ownership
  Extended Lifespan
  When the Power Saving setting is turned on and no signal input is detected, the projector will automatically switch into Eco Mode and SuperEco Mode.

  Eco Mode: The projector will automatically switch from Normal to Eco Mode whenever it has been left idle for 5 minutes.
  SuperEco Mode: When the projector has not received an input signal for 20 minutes, projected images are dimmed to 30%, extending the lamp’s lifespan to 15,000 hours on average.
  15,000 hours
  Lifespan

  Reminder for Time Management
  The Presenter Timer is an embedded on-screen timer and a great time management tool for helping presentations run on schedule.

  Presenter Timer

  Sleep Timer
  The sleep timer allows the projector to automatically power down after no signal has been detected. An easy way to save energy and extend the projector’s lifespan.

  Sleep Timer

  Reduced Energy Consumption
  When no signal has been detected, the projector will automatically power off to conserve energy and lamp life.

  Auto Power Off

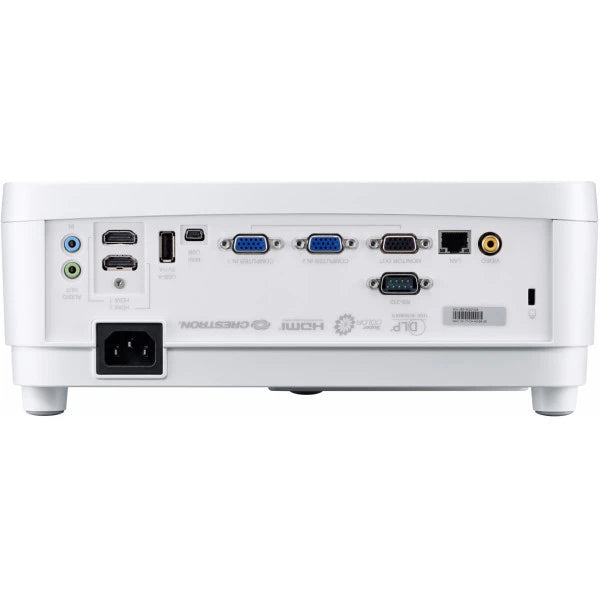

  Exterior & Rear I/O Connectors




• Specification	Value
  Projection System	0.55" XGA
  Native Resolution	1024x768
  DC Type	DC3
  Brightness	3700 ANSI Lumens
  Contrast Ratio (SuperEco mode)	22000:1
  Display Color	1.07 Billion Colors
  Light Source	Lamp
  Light Source Life (Nor/SuperEco)	5000/15000 hours
  Lamp Watt	190W
  Lens	F=2.6, f=6.9mm
  Projection Offset	130%+/-5%
  Throw Ratio	0.61
  Image Size	60" - 300"
  Throw Distance	0.74m-3.72m (100" @ 1.06m)
  Keystone	HV
  Optical Zoom	Fixed
  Audible Noise (Eco)	27dB
  Resolution Support	VGA(640 x 480) to FullHD(1920 x 1080)
  HDTV Compatibility	480i, 480p, 576i, 576p, 720p, 1080i, 1080p
  Video Compatibility	NTSC, PAL, SECAM
  Horizontal Frequency	15K~102KHz
  Vertical Scan Rate	23~120Hz
  Input
  Computer in (D-SUB 15 pin)	2
  Composite	1
  Audio-in (3.5mm)	1
  HDMI/HDCP	2 (HDMI 1.4/ HDCP 1.4)
  Output
  Monitor out (D-SUB 15 pin)	1
  Audio out (3.5mm)	1
  Speaker	10W
  USB type A (Power)	1 (5V/1A)
  Control
  RS232	1
  RJ45	1
  USB type mini B (Services)	1
  Others
  Power Supply Voltage	100-240V+/- 10%, 50/60Hz AC
  Power Consumption	Normal: 260W
  Standby	<0.5W
  Operating Temperature	0~40℃
  Carton	Brown
  Net Weight	2.6kg
  Dimensions (WxDxH) w/adjustment foot	292x236x115mm
  Language	English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese, Japanese, Turkish, Portuguese, Finnish, Indonesian, India, Arabic, Vietnamese
  Standard Accessory
  Power Cord	1
  VGA Cable	1
  Remote Control (w/Laser pointer)	1
  QSG (Quick Start Guide)	1
  Lens Cover	1
  Optional Accessory
  Lamp/Light Source	RLC-108
