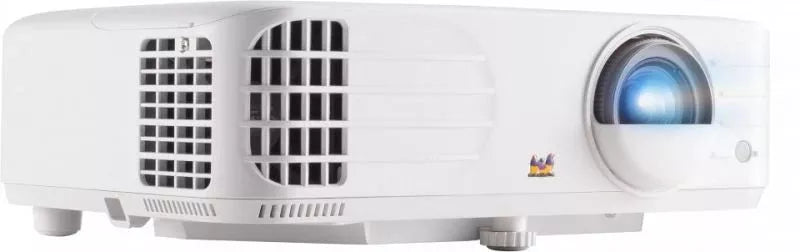

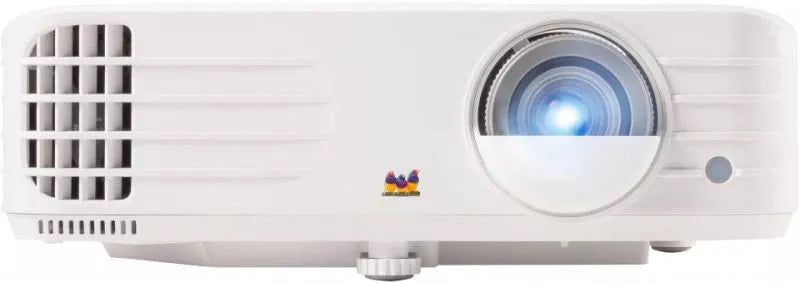

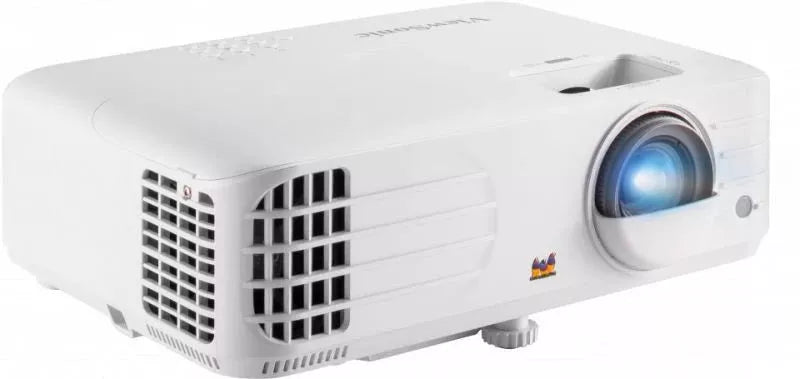

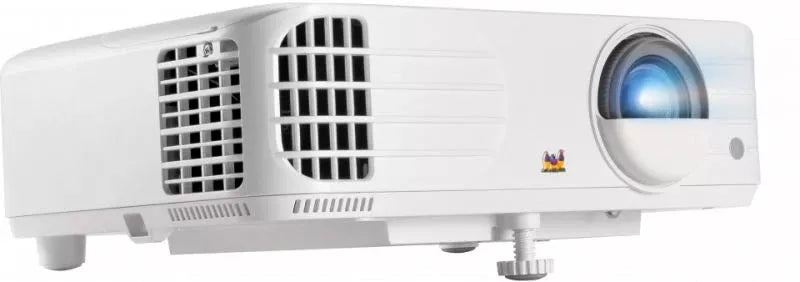

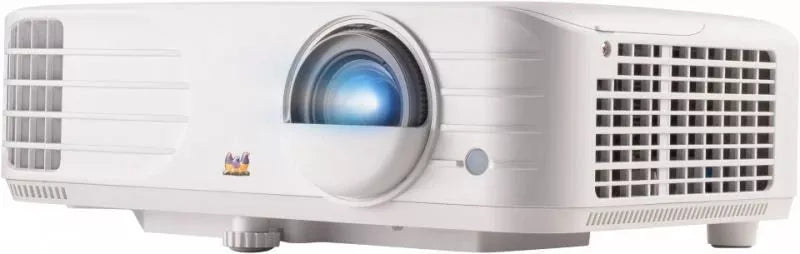

ViewSonic PX703HDH Home and Business Projector
3,500 ANSI Lumens 1080p
OVERVIEW
The ViewSonic PX703HDH is a practical Home Cinema Projector, featuring 3500 ANSI lumens, 1080p Full HD resolution, and ViewSonic’s exclusive SuperColor™ technology, which together produce the finest of details and stunning colour in any medium-sized space. The projector comes with an energy-saving SuperEco+ mode that reduces power consumption and extends lamp life to up to 20,000 hours, reducing the frequency of lamp replacement and lowering maintenance costs. Digital lens shift and H/V keystone help users easily set up the projector at any angle. Dual HDMI input and USB power supply further increase the flexibility of the user’s entertainment experience.
Bright Images Every Time
Images on the PX703HDH look bright under any lighting condition. Thanks to a high brightness of 3,500 ANSI Lumens, your images won’t get washed out when watching movies or playing games during the day or with the lights on.
3,500 ANSI Lumens
Fine Detail and Clarity
Full HD 1080p (1920 x 1080) resolution projection delivers clearly displayed information and ultra-sharp image quality.
1080p Full HD
Adaptable to Any Environment

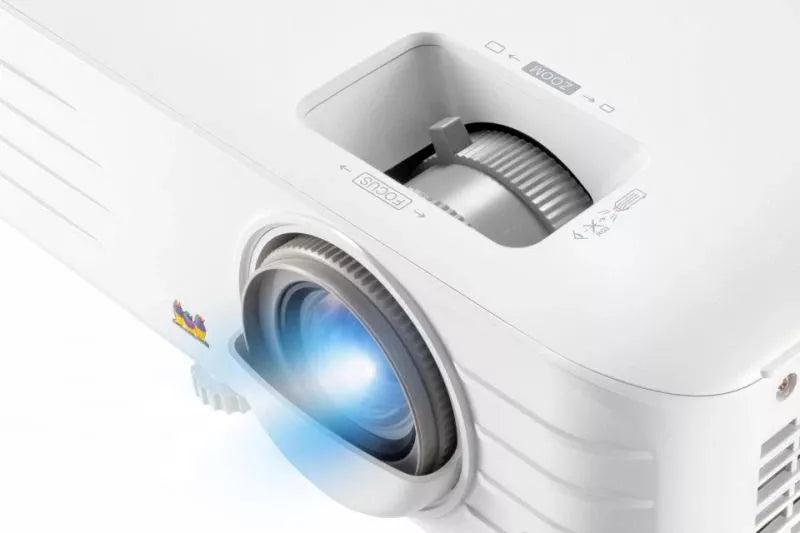

Equipped with a 1.3x optical zoom lens, the projector empowers users to choose the most ideal set-up location that doesn’t interfere with existing interior design while still getting the desired image size.
1.3x Optical Zoom
Flexibility in Image Projection
The projector offers 10% flexibility of vertical image adjustment, so the users can shift the image up or down without distorting the image with remote control, making the installation quicker and easier.
Lens Shift
True-to-life Colour Performance
ViewSonic’s proprietary SuperColor™ Technology offers a wider colour range, ensuring users enjoy true-to-life colour projection in both bright and dark environments.
SuperColor™ Technology
A More Comfortable Viewing Experience
Utilising reflective light, which bounces off the wall or projector screen before hitting your eyes, the projector makes the viewing experience virtually blue light free, less invasive to your sight and reduces eyestrain over prolonged viewing periods.
Eye Care
Colour Profile Preference with vColorTuner
By using a cloud-based colour profile exchange, users can create their own colour profile to fit their preferences and share with others. Also, users can download other profiles from their projectors and fine-tune them as their own.
vColorTuner
A Simpler Way to Update Projector Software
ViewSonic Projector Software Update is available online and gives you the ability to keep your projector firmware up to date easily and conveniently; no need to take your projector into a service centre for software updates.
Enhanced Gaming Experience
3X fast input allows you to deliver attacks right when you want to with virtually no delay*, giving you a competitive advantage when gaming and taking the experience to the next level. Find out more: https://youtu.be/sPlpJrFcbg4
3X Fast Input
Powerful Sound
The projector is equipped with a 10W speaker, delivering satisfying audio performance right out of the box.
10W Speaker
Extensive Connectivity
Dual HDMI ports provide enough connectivity to support any of your HDMI multimedia devices, delivering a big-screen experience for any occasion.
Dual HDMI
Integrated Power Source
A built-in 5V/1.5A USB power output can be used to supply power to HDMI wireless dongles, eliminating the need for separate power adaptors when streaming your favourite multimedia content.
USB Power Supply
Energy-Efficient SuperEco+ Mode for a Lamp Life of up to 20,000 Hours
The latest SuperEco+ mode technology greatly extends the lamp life of the projector from 15,000 hours to 20,000 hours of use with an input signal. That means it could be used 4 hours a day for more than 13 years with no degradation in brightness.
Immersive 3D Viewing
Project 3D content directly from 3D Blu-Ray players and HDMI-enabled devices such as laptops, tablets, and media players via HDMI connection.
HDMI 3D Blu-Ray

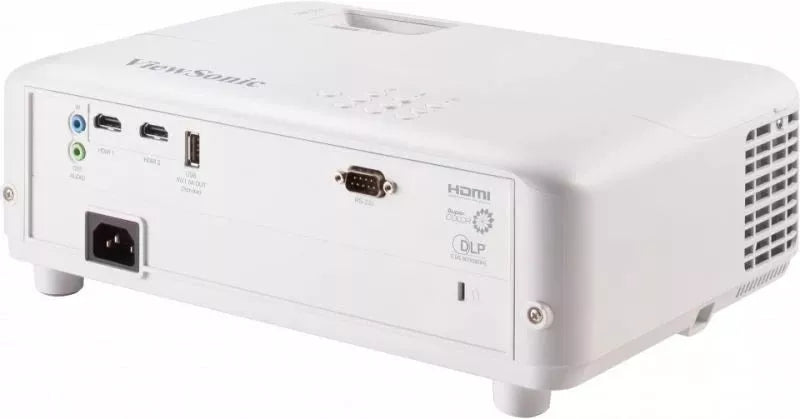

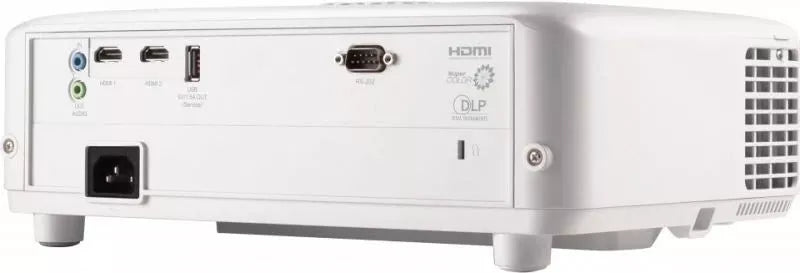

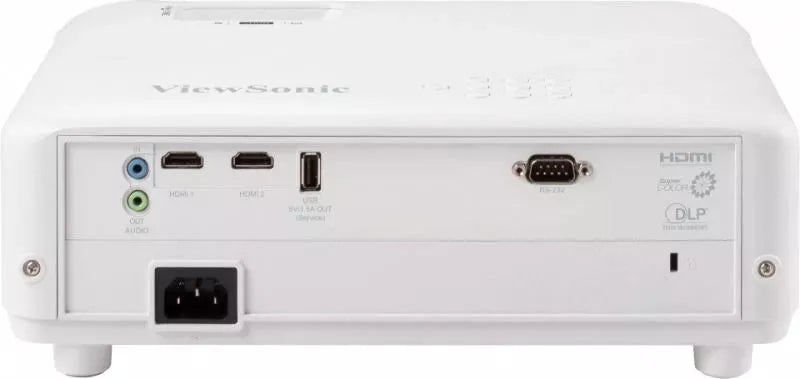

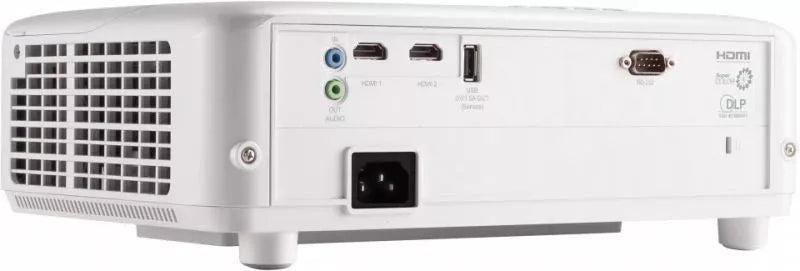

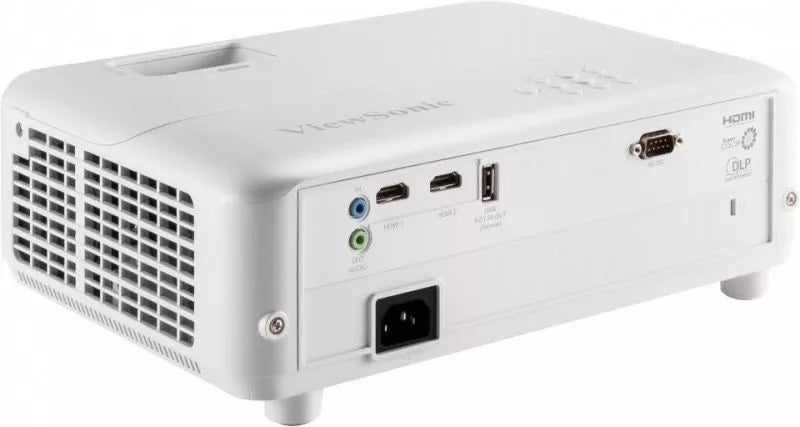

Dimension & I/O Ports
| Specification | Value |
|---|---|
| Projection System | |
| Projection System | 0.47" 1080p |
| Native Resolution | 1920x1080 |
| Brightness | 3500 (ANSI Lumens) |
| Contrast Ratio (SuperEco Mode) | 12000:1 |
| Display Color | 1.07 Billion Colors |
| Light Source Type | Lamp |
| Light Source Life (Normal) | 5000 hours |
| Light Source Life (SuperEco) | 20000 hours |
| Lamp Watt | 203W |
| Lens | |
| Lens | F=1.9-2.47, f=12-15.6mm |
| Projection Offset | 110%+/-6% |
| Throw Ratio | 1.13-1.47 |
| Optical Zoom | 1.3x |
| Digital Zoom | 0.8x-2.0x |
| Image Size | 30"-300" |
| Throw Distance | 0.75m-9.76m, (100"@2.5m) |
| Keystone | +/- 40° (V) |
| Lens Shift V. Range | +/- 5% (Digital) |
| Audible Noise | |
| Audible Noise (Normal) | 31dB |
| Audible Noise (Eco) | 27dB |
| Input Lag | |
| Input Lag | 16ms |
| Resolution Support | |
| Resolution Support | VGA(640 x 480) to WUXGA_RB(1920 x 1200) |
| HDTV Compatibility | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| Input | |
| HDMI | 2 (HDMI 1.4/ HDCP 1.4) |
| Audio-in (3.5mm) | 1 |
| Output | |
| Audio-out (3.5mm) | 1 |
| Speaker | 10W |
| USB Type A (Power) | 1 (5V/1.5A) |
| Control | |
| RS232 (DB 9-pin male) | 1 |
| USB Type A (Services) | 1 (share with USB A Output) |
| Others | |
| Power Supply Voltage | 100-240V+/- 10%, 50/60Hz (AC in) |
| Power Consumption | Normal: 300W |
| Standby | <0.5W |
| Operating Temperature | |
| Operating Temperature | 0~40℃ |
| Carton | |
| Carton | Brown |
| Net and Gross Weight | |
| Net Weight | 2.62kg |
| Gross Weight | 3.78kg |
| Dimensions | |
| Dimensions (WxDxH) | 312x222x108mm |
| Packing Dimensions | 415x168x297mm |
| OSD Language | |
| OSD Language | Total 23 languages (English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese, Japanese, Turkish, Portuguese, Finnish, Indonesian, India, Arabic, Vietnamese, Greek) |
| User Guide Language | |
| User Guide Language | Total 20 languages (English, S-Chinese, T-Chinese, Indonesian, Finnish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Swedish, Turkish, Arabic, Czech, Thai, Vietnamese) |
| Standard Accessory | |
| Power Cord | 1 |
| Remote Control | 1 |
| Quick Start Guide | Yes |
| Warranty Card | Yes (CN Only) |
| Optional Accessory | |
| Lamp/Light Source | RLC-123 |
| Wall/Ceiling Mount | PJ-WMK-007 |
| Carry Bag | PJ-CASE-008 |
| Category | Download |
|---|---|
| Datasheets | Download |
| User Guides | Download |
| Quick Start Guide | Download |
| Driver & Software | Download |
| Technical Document | Download |
| Safety Compliance | Download |
