OVERVIEW

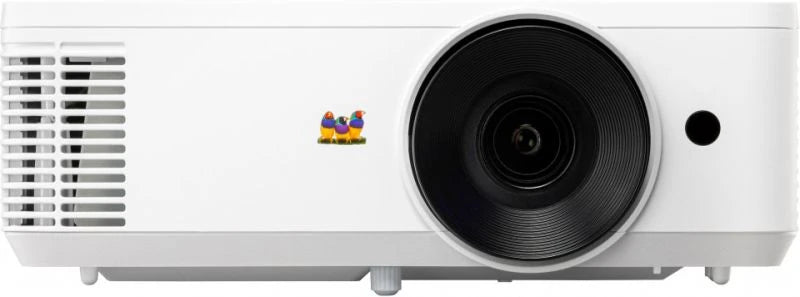

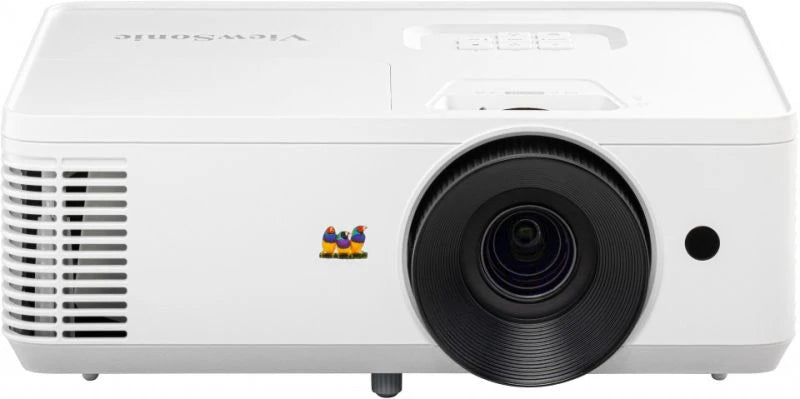

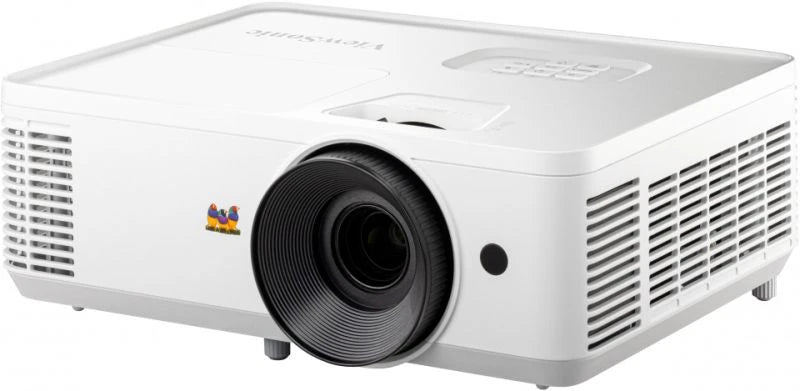

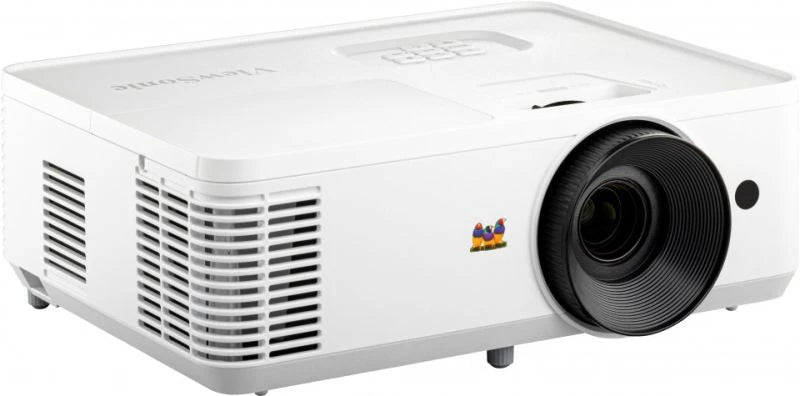

The PX704HD is a 4,000 ANSI Lumens lamp projector ideal for home and business use. Featuring a 1080p FHD resolution and up to 300” ultra-large projection, it showcases clear and vivid visuals for home entertainment and presentations. With a high native contrast ratio achieved through its 0.65” DMD chip, this projector showcases captivating visuals even with low-light movie scenes. It offers two HDMI ports for easy multimedia connectivity. Designed for enhanced functionality, it includes a USB-A output to power HDMI wireless dongles, eliminating the need for extra adapters. Whether tilted up or down, the auto V keystone feature ensures automatic image correction, keeping perfectly-aligned visuals. Maintenance is hassle-free – simply use a laptop and USB cable for software updates.
Bright Images Anytime
Featuring 4,000 ANSI Lumens of brightness, you're guaranteed clear and vibrant visuals, making the PX704HD a perfect fit for both home spaces and business environments with ambient light.
4,000 ANSI Lumens
Immerse in Crystal Clear Visuals
Experience every detail with ultra-sharp image quality delivered in Full HD 1080p resolution for a visual spectacle wherever you are.
Full HD 1080p
Unveil Hidden Details
Immerse in a new realm of visual depth and vibrancy with the high native contrast ratio delivered by the Texas Instrument 0.65" DMD chip. Every dark and brightly colored scene is displayed with unparalleled clarity, ensuring that no detail goes unnoticed.
High Native Contrast Ratio
Captivating Larger-than-Life Images
The PX704HD delivers images up to 300" in size, surpassing the capabilities of TVs, laptops, and phones, and delivering an immersive viewing experience in the comfort of your home.
Up to 300”
Easy and Flexible Connection
The dual HDMI ports offer ample connectivity to accommodate all your HDMI-enabled multimedia devices. You no longer have to unplug your existing device to switch to a new one. Simply use the on-screen display to select and change the input source.
Dual HDMI Ports
Seamless Content Streaming
Enjoy a seamless streaming experience compatible with HDMI wireless dongles, such as Chromecast, Apple TV, Fire TV, and Roku. The built-in 5V/1.5A USB port serves as a charging hub for your device, eliminating the need for separate power adapters when streaming multimedia content.
*The Product's aforesaid compatibility with streaming devices of brands not stated herein may vary based on specifications. Please verify before purchasing the Product.
**The ability to power external devices via USB-A depends on the specific power requirements of the connected device.
USB-A Power Supply
Perfectly Proportioned Images Every Time
Say goodbye to distorted images for good. Thanks to the auto vertical keystone feature that corrects images automatically, the PX704HD projects perfectly proportioned images, even if you tilt the projector up or down.
Auto V Keystone
A Simpler Way to Update Projector Software
Skip trips to the service center by keeping software up to date easily via USB cable connection with your laptop.
Learn more:https://youtu.be/irlhJLpDHas
*The latest projector software update can be found in the download section at the bottom of the page when available.
Jazz it Up with Dynamic Colors
ViewSonic’s SuperColor™ Technology offers a wide color gamut for a dynamic, true-to-life color performance without sacrificing image quality.

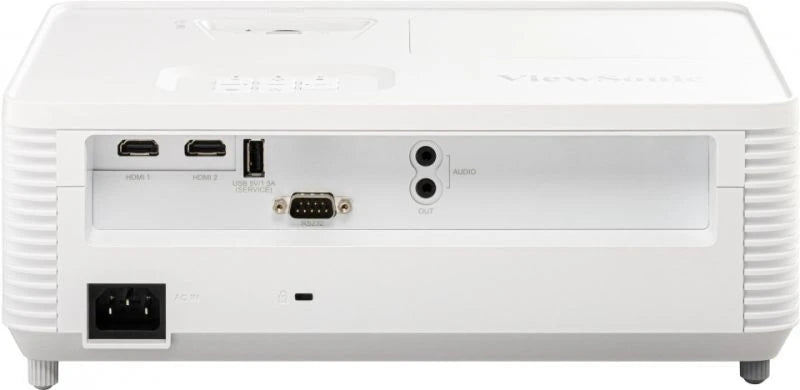

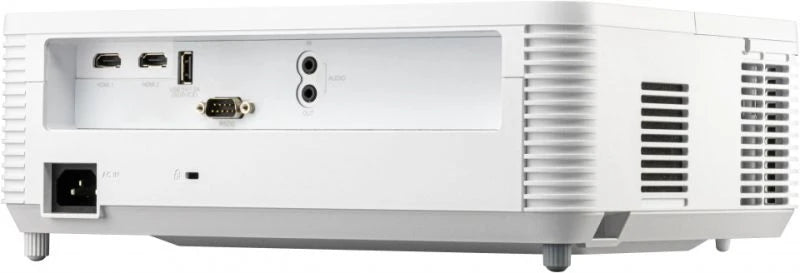

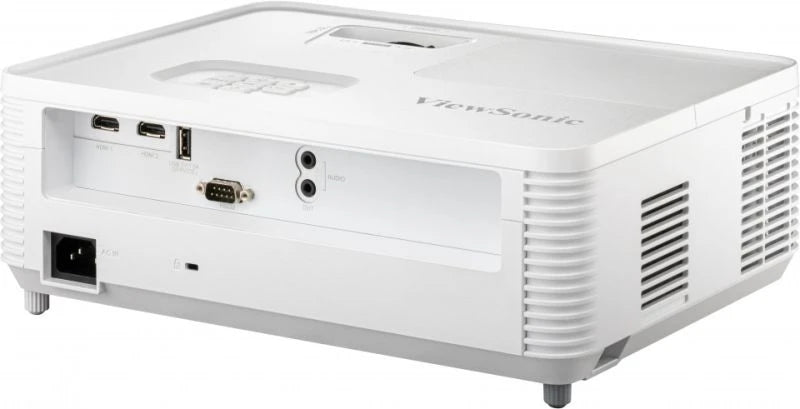

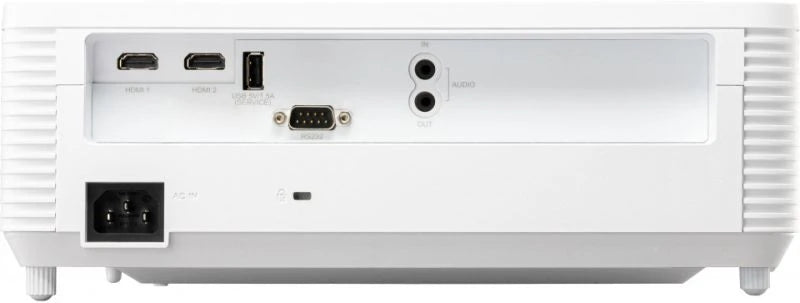

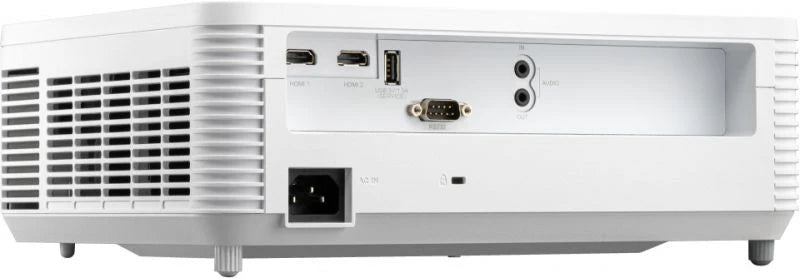

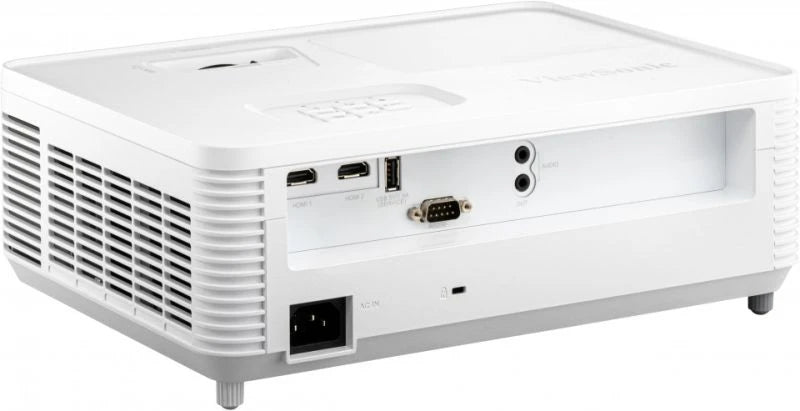

Dimensions & I/O Ports
-
| Specification |
Details |
| Projection System |
0.65" 1080p |
| Native Resolution |
1920x1080 |
| Brightness |
4000 (ANSI Lumens) |
| Contrast Ratio with SuperEco Mode |
22000:1 |
| Display Color |
1.07 Billion Colors |
| Light Source Type |
240W UHP Lamp |
| Light Source Life (hours) with Normal Mode |
4000 |
| Light Source Life (hours) with SuperEco Mode |
15000 |
| Lens |
F=2.5-2.67, f=21.8-24.0mm |
| Projection Offset |
132%+/-10% |
| Throw Ratio |
1.48-1.62 |
| Optical Zoom |
1.1x |
| Digital Zoom |
0.8x-2.0x |
| Image Size |
30"-300" |
| Throw Distance |
1m-10m (100”@3.28m) |
| Keystone |
+/- 40° (V) |
| Audible Noise (Normal) |
34dB |
| Audible Noise (Eco) |
25dB |
| Input Lag |
16ms |
| Resolution Support |
VGA(640 x 480) to WUXGA_RB(1920 x 1200) |
| HDTV Compatibility |
480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| Horizontal Frequency |
15K-102KHz |
| Vertical Scan Rate |
23-120Hz |
| Input |
|
| HDMI |
2 (HDMI 1.4/ HDCP 1.4) |
| Audio-in (3.5mm) |
1 |
| Output |
|
| Audio-out (3.5mm) |
1 |
| Speaker |
3W |
| USB Type A (Power) |
1 (5V/1.5A) |
| Control |
|
| RS232 (DB 9-pin male) |
1 |
| USB Type A (Services) |
1 (share with USB A Output) |
| Others |
|
| Power Supply Voltage |
100-240V+/- 10%, 50/60Hz (AC in) |
| Power Consumption |
Normal: 295W |
| Standby |
<0.5W |
| Operating Temperature |
0~40℃ |
| Carton |
Brown |
| Net Weight |
2.70kg |
| Gross Weight |
3.80Kg |
| Dimensions (WxDxH) with Adjustment Foot |
309x234x115mm |
| Packing Dimensions |
400x337x168mm |
| OSD Language |
|
| Supported Languages |
English, German, French, and more (Total 23) |
| User Guide Language |
|
| Supported Languages |
English, S-Chinese, T-Chinese, and more (Total 20) |
| Standard Accessory |
|
| Power Cord |
1 |

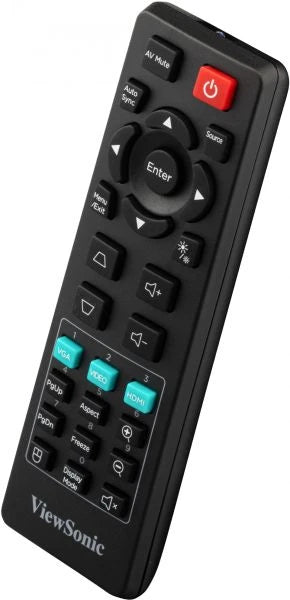

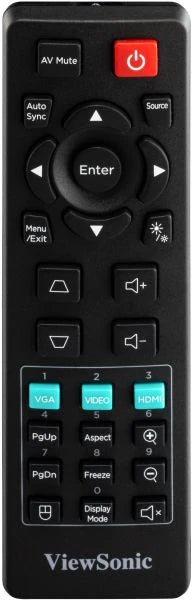

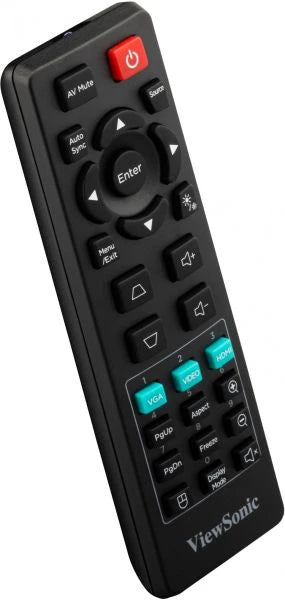

| Remote Control |
1 |
| QSG |
Yes |
| Air Filter (CN Only) |
Yes |
| Warranty Card (CN Only) |
Yes |
| Optional Accessory |
|
| Lamp/Light Source |
RLC-129 |
| Air Filter |
RSPL |
| Wall/Ceiling Mount |
PJ-WMK-007 |
| Carry Bag |
PJ-CASE-008 |
-
