OVERVIEW

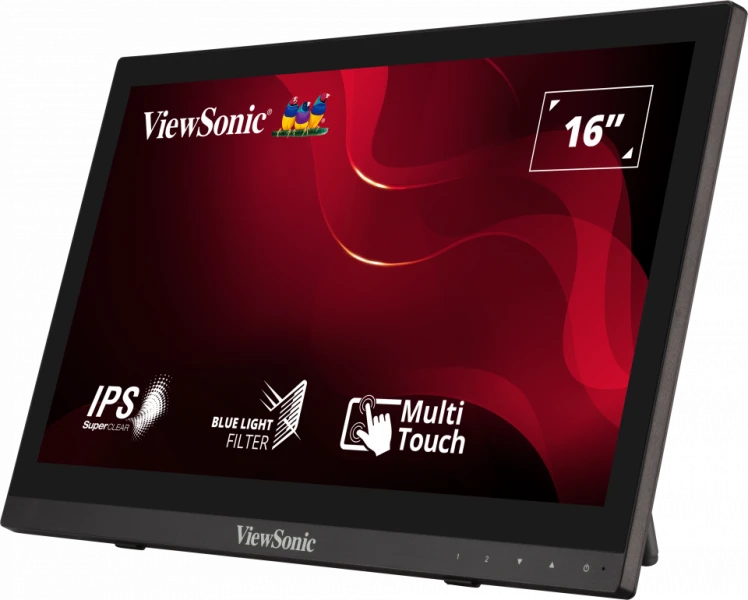

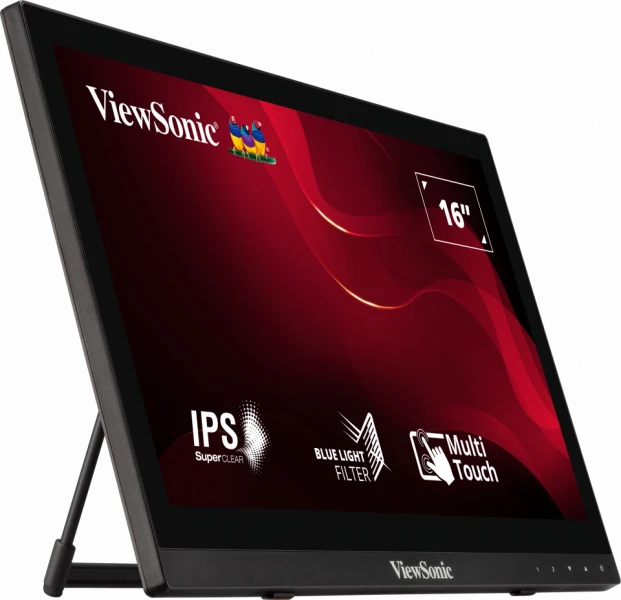

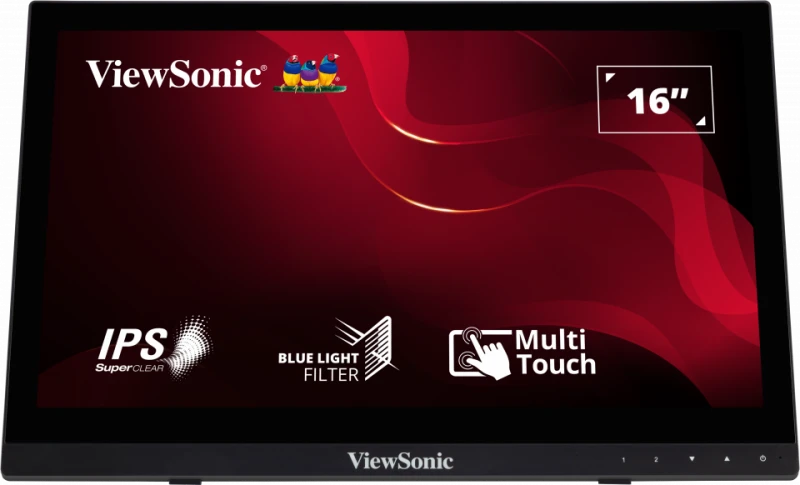

The ViewSonic TD1630-3 is a 16” (15.6” viewable) display with 10-point multi-touch functionality. With an advanced ergonomic design, the TD1630-3 can tilt or lay flat to give users maximum comfort. Delivering touchscreen versatility, this display offers fantastic flexibility for retail or business settings, while VGA and HDMI inputs provide ample connectivity. Compatibility with a wide range of operating systems, including Windows 10/11 and Linux versions*, along with dual integrated speakers, make this intuitive touchscreen a highly accurate, ultra-responsive touch experience that is ideal for interactivity in a retail or business settings.
*Supports Windows 7/8/10/11, Linux Kernel 4.X/3.X
10-Point Projected Capacitive Touch
Touch screens with projected capacitive touch can recognise up to 10 points of simultaneous contact, allowing for a highly accurate and ultra-responsive touch experience. With smooth and responsive touch capabilities, this touch display is ideal for home entertainment, office work, education, and commercial use.

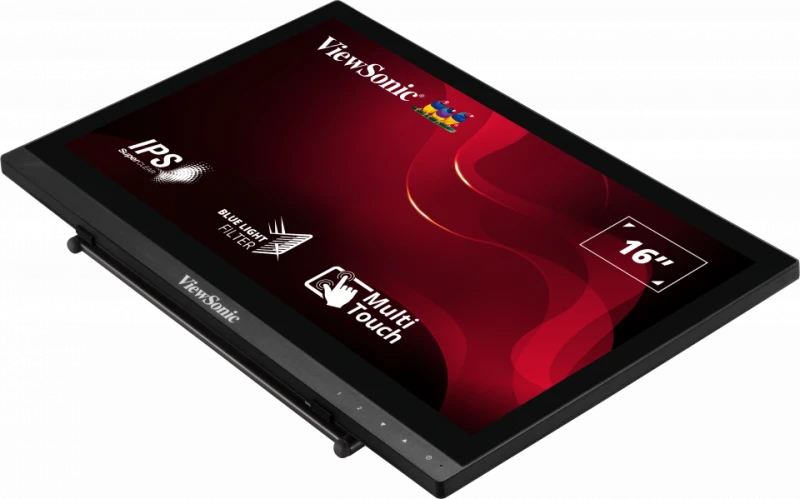

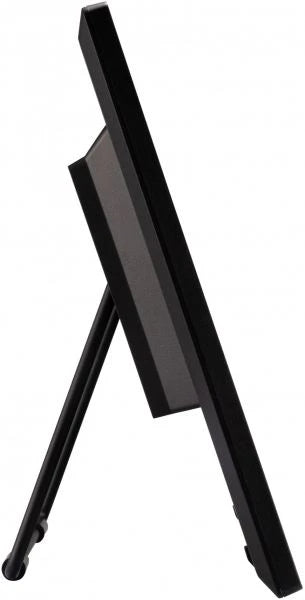

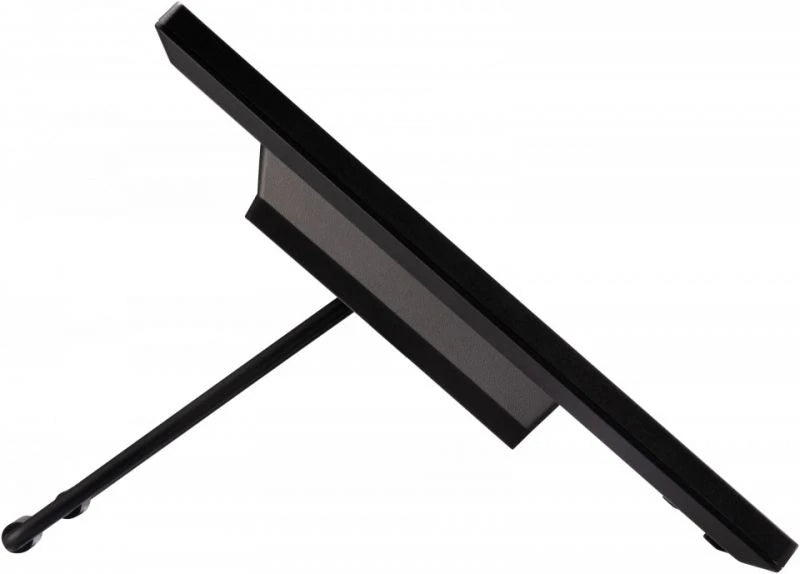

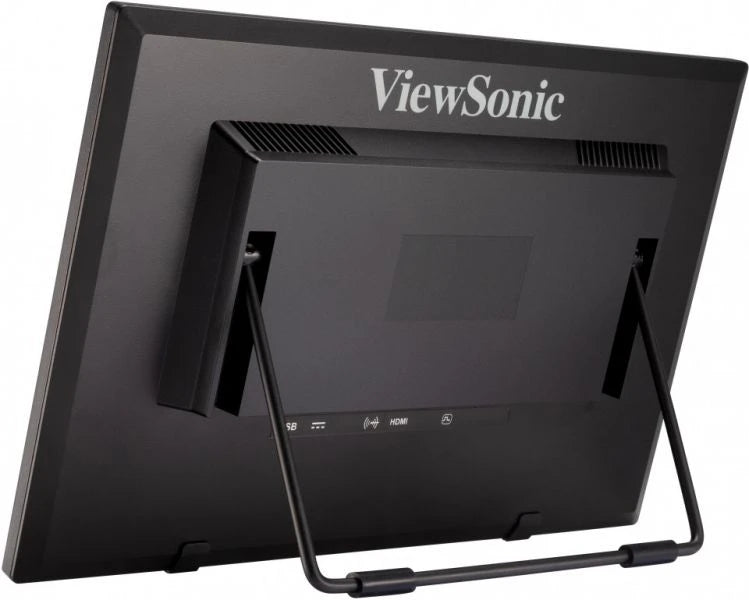

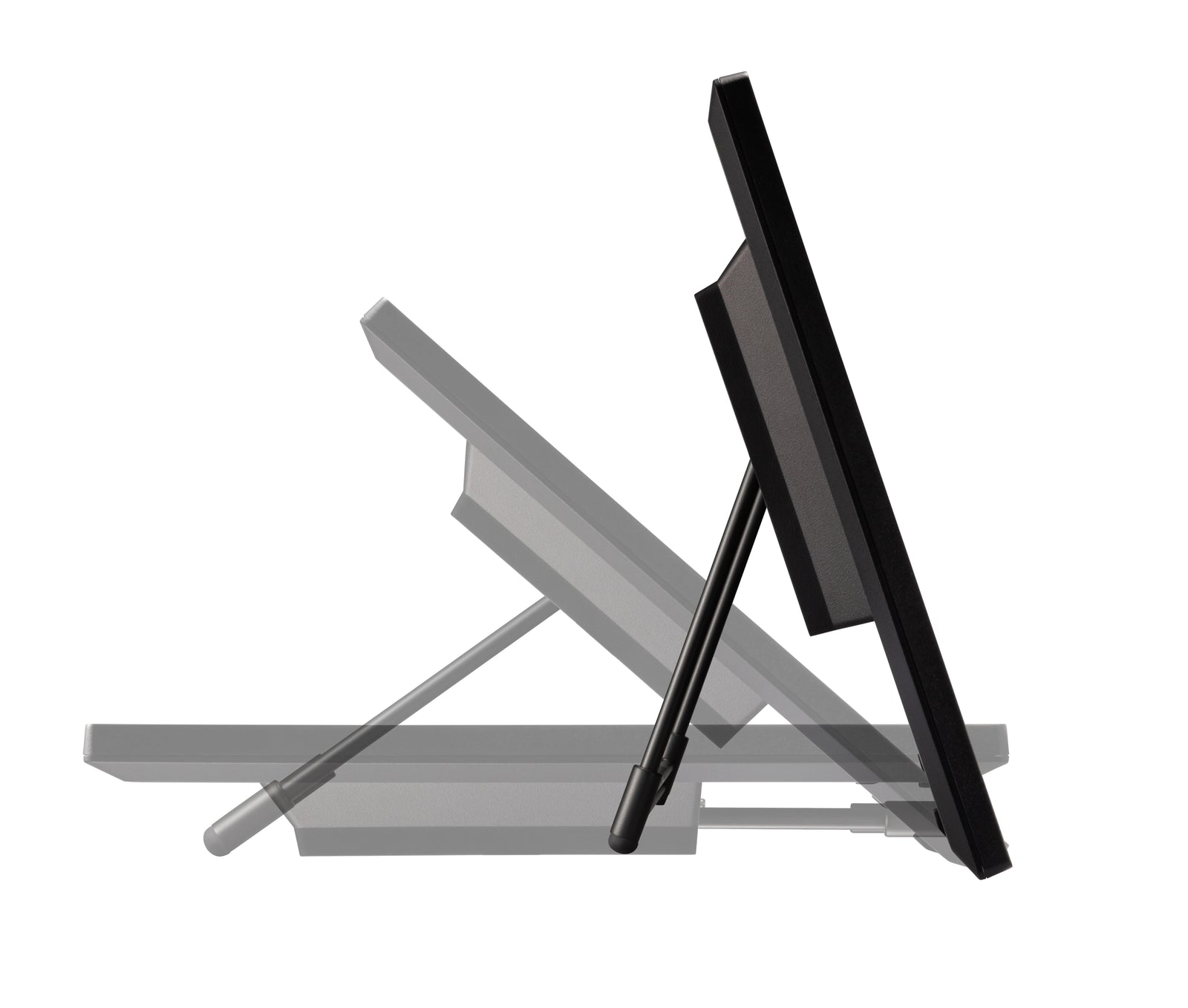

Advanced Ergonomic Stand Design
A stable, integrated bookstand design makes it easy to adjust the angle of this display for a better user experience. The display can tilt or lay completely flat on a tabletop for a more comfortable work environment.

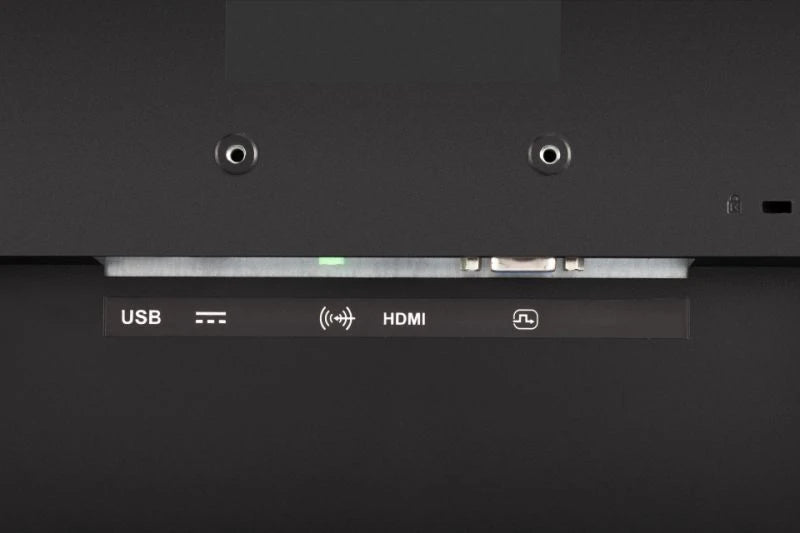

Versatile Connectivity
HDMI and VGA inputs give you the freedom to connect your monitor to a variety of devices.
Cross-platform Compatibility
"Cross compatibility with a wide range of operating systems including Windows 10/11 and certain Linux versions*.
*Supports Windows 7/8/10/11, Linux Kernel 4.X/3.X
Durable, Scratch-resistant Screen
This touch display is equipped with a durable, protective glass faceplate, resulting in increased durability with scratch protection; as well as a consistent, high-quality touch experience in high-traffic areas like public spaces where the touch display can be used as a kiosk.
Dual Integrated Speakers
Designed with dual integrated speakers, this monitor combines incredible screen performance with stereo sound for an immersive multimedia experience.
Enhanced Viewing Comfort
Blue Light Filter helps to eliminate eye strain from extended viewing periods.

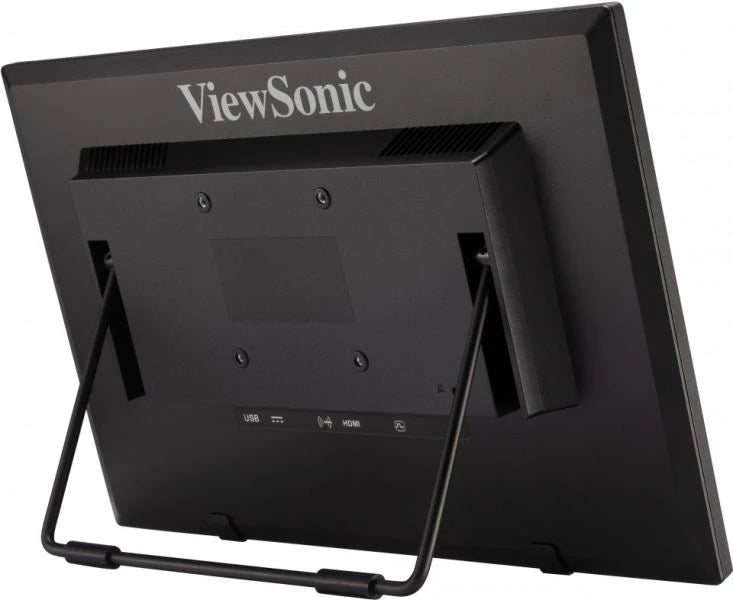

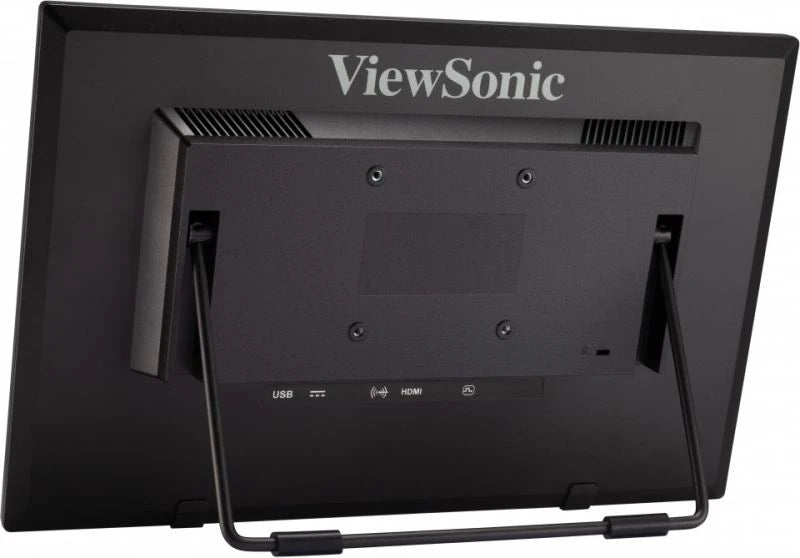

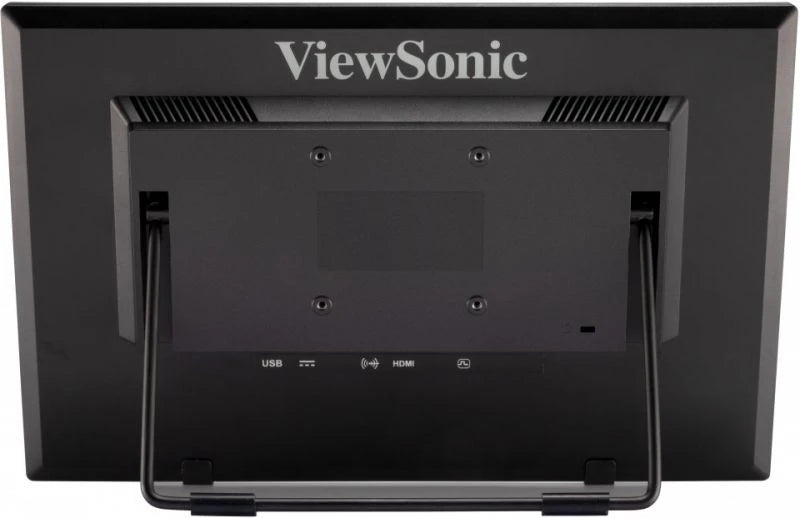

VESA-compatible mount
Conveniently mount the monitor to your liking by utilising its VESA compatible mount design.
75mm x 75mm
| Display | Details |
|---|---|
| Display Size (in.) | 16 |
| Viewable Area (in.) | 15.6 |
| Panel Type | TN Technology |
| Resolution | 1366 x 768 |
| Resolution Type | WXGA (Wide XGA) |
| Static Contrast Ratio | 500:1 (typ) |
| Dynamic Contrast Ratio | 10M:1 |
| Light Source | LED |
| Brightness (typ) | 190 cd/m² |
| Colors | 262K |
| Color Space Support | 6 bit true |
| Aspect Ratio | 16:9 |
| Response Time (Typical Tr+Tf) | 12ms |
| Viewing Angles | 90º horizontal, 60º vertical |
| Backlight Life (Hours) | 15000 Hrs (Min) |
| Curvature | Flat |
| Refresh Rate (Hz) | 60 |
| Blue Light Filter | Yes |
| Color Gamut | NTSC: 45% size (Typ), sRGB: 67% size (Typ) |
| Pixel Size | 0.252 mm (H) x 0.252 mm (V) |
| Touch Screen | Projected Capacitive, 10-point multi-touch |
| Surface Treatment | Glossy, Hard Coating (7H) |
| Cover Glass Thickness | 0.83mm |
| Compatibility | |
| PC Resolution (max) | 1366x768 |
| Mac® Resolution (max) | 1366x768 |
| PC Operating System | Windows 7/8/8.1/10/11 certified; macOS tested |
| Mac® Resolution (min) | 1366x768 |
| Connector | |
| VGA | 1 |
| USB 2.0 Type B | 1 |
| 3.5mm Audio In | 1 |
| HDMI 1.4 | 1 |
| Power in | DC Socket (Center Positive) |
| Audio | |
| Internal Speakers | 1Watts x2 |
| Power | |
| Eco Mode (Conserve) | 4.3W |
| Eco Mode (optimized) | 4.9W |
| Consumption (typical) | 5.5W |
| Consumption (max) | 6W |
| Voltage | AC 100-240V |
| Stand-by | 0.5W |
| Power Supply | External Power Adaptor |
| Additional Hardware | |
| Kensington Lock Slot | 1 |
| Controls | |
| Physical Controls | 1, 2, Up, Down, Power |
| On Screen Display | Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Setup Menu, Memory Recall |
| Operating Conditions | |
| Temperature | 32°F to 104°F (0°C to 40°C) |
| Humidity (non-condensing) | 20% to 90% |
| Wall Mount | |
| VESA Compatible | 75 x 75 mm |
| Input Signal | |
| Frequency Horizontal | 30 ~ 61KHz |
| Frequency Vertical | 56 ~ 75Hz |
| Video Input | |
| Digital Sync | TMDS - HDMI (v1.4) |
| Analog Sync | Separate - RGB Analog |
| Ergonomics | |
| Tilt (Forward/Back) | 15º / 50º |
| Weight (imperial) | |
| Net (lbs) | 2.9 |
| Net Without Stand (lbs) | 2.9 |
| Gross (lbs) | 5.5 |
| Weight (metric) | |
| Net (kg) | 1.3 |
| Net Without Stand (kg) | 1.3 |
| Gross (kg) | 2.5 |
| Dimensions (imperial) (wxhxd) | |
| Packaging (in.) | 17.8 x 15.3 x 3.4 |
| Physical (in.) | 14.9 x 9.7 x 1.5 |
| Physical Without Stand (in.) | 14.9 x 9.7 x 1.5 |
| Dimensions (metric) (wxhxd) | |
| Packaging (mm) | 453 x 389 x 86 |
| Physical (mm) | 379 x 247 x 37 |
| Physical Without Stand (mm) | 379 x 247 x 37 |
| General | |
| Regulations | CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, UKCA, RCM, GEMS, BIS |
| PACKAGE CONTENTS | TD1630-3 x1, 3-pin Plug (IEC C13 / CEE22) x1, VGA Cable (Male-Male) x1, USB A/B Cable (v2.0; Male-Male) x1, Audio Cable (Male-Male) x1, AC/DC Adapter x1, Quick Start Guide x1 |
| Recycle/Disposal | Please dispose of in accordance with local, state or federal laws. |
| Warranty | *Warranty offered may differ from market to market |
