ViewSonic TD2223 22" IR Touch Screen Monitor
SKU: TD2223
£153.52 (Excl. VAT)
- Display Size22"
- Touch Capabilities10pt multi-touch
- Net Weight5 kg
- Operating SystemNone
- VESA Patterns100x100
- Panel TypeTN Panel
- ResolutionFull HD (1080p)
- Screen TypeFlat
- Response Time5ms
- Screen Ratio16:9
- Brightness250 cd/m2
- Operating Hours24/7
Book a Free Product Demo
Remote or on-site. No obligation.
Integrator or Installer?
Trade pricing, volume discounts, same-day collection.
Education & Public Sector Solutions
Exclusive pricing, flexible terms, and dedicated support for schools, universities, NHS, and government organisations.
- Description
- Specifications
- Warranty
- Download
-
ViewSonic TD2223
22" IR Touch Screen Monitor
OVERVIEW
The ViewSonic® TD2223 is a 22”IR touch display designed for intuitive multi-touch use. Infrared (IR) touchscreen can detect up to 10 points of contact compared to optical touchscreens and can be operated by a stylus, fingers and gloved hands. The multi-touch input is more accurate, and the display is faster. Coupled with an adjustable tilt, you can easily interact with the TD2223 at an ideal position. This monitor features Full HD resolution to give you clear images and is built with a scratch-resistant 7H hardness screen to reduce surface damage. To support your work, the TD2223 is equipped with VGA, HDMI, DVI and USB connectivity.
Intuitive Multi-touch Experience
An infrared touchscreen that can detect up to 10 points of contact under Windows compared to optical touchscreens, the TD2223 delivers an intuitive multi-touch experience with every tap, pinch, and swipe.
IR Touch Technology
Operating System Support
This monitor supports the main operating systems being Windows, macOS, Android, Chrome OS, Linux and Raspberry Pi.
*Learn more about multi touch for macOS
Simple and Safer Way to Interact
This monitor can be operated by stylus* and gloved hands, which improves hygiene and is effective for selection, dragging, and drawing. What’s more, there is a magnetic pen placeholder on the base.
*The stylus is an optional accessory. The minimum diameter of the stylus pen tip must be at least 6mm or above.
Anti-scratch Touchscreen
With a built-in 7H hardness screen, it’s resistant to surface damage caused by sharp objects.
7H Hardness Screen
Adjustable Tilt

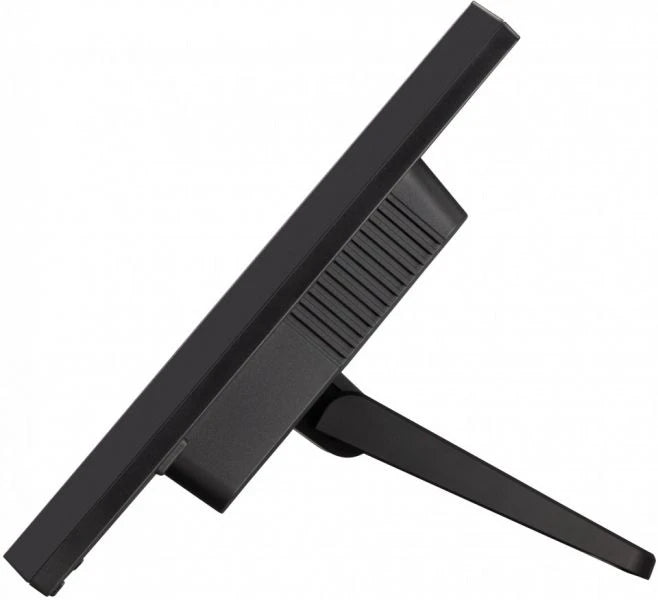

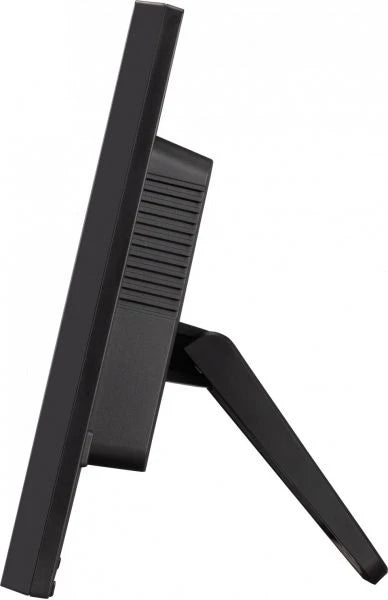

This monitor includes an adjustable tilt, which allows you to easily tilt back up to 40-degrees, making it a good fit for anyone.
Clear Images
This monitor features Full HD 1920x1080 resolution to benefit you with greater image details and more displayable on-screen contents.
Full HD 1080p Resolution
Dual Integrated Speakers
With built-in 2-watt speakers, this monitor provides you a better audiovisual experience.
Enhanced Viewing Comfort
This monitor is built with Flicker-Free technology and a Blue Light Filter to reduce eye fatigue after a long day of use.
Dimension & I/O Ports
-
Display Display Size (in.): 22 Viewable Area (in.): 21.5 Panel Type: TN Technology Resolution: 1920 x 1080 Resolution Type: FHD Static Contrast Ratio: 1,000:1 (typ) Dynamic Contrast Ratio: 20M:1 Light Source: LED Brightness: 250 cd/m² (typ) Colors: 16.7M Colour Space Support: 8 bit (6 bit + Hi-FRC) Aspect Ratio: 16:9 Response Time (Typical GTG): 5ms Response Time (GTG w/OD): 5ms Response Time (Typical Tr+Tf): 5ms Viewing Angles: 170º horizontal, 160º vertical Backlight Life (Hours): 30000 Hrs (Min) Curvature: Flat Refresh Rate (Hz): 75 Blue Light Filter: Yes Flicker-Free: Yes Colour Gamut: NTSC: 72% size (Typ), sRGB: 103% size (Typ) Pixel Size: 0.248 mm (H) x 0.248 mm (V) Touch Screen Touch Screen: IR, 10-point multi-touch Surface Treatment: Glossy, Hard Coating (7H) Cover Glass Thickness: 2mm Compatibility PC Resolution (max): 1920x1080 Mac® Resolution (max): 1920x1080 PC Operating System: Windows 10/11 certified; macOS tested Mac® Resolution (min): 1920x1080 Connector VGA: 1 USB 2.0 Type A: 2 USB 2.0 Type B: 1 3.5mm Audio In: 1 3.5mm Audio Out: 1 HDMI 1.4: 1 DVI-D: 1 Power in: 3-pin Socket (IEC C14 / CEE22) Audio Internal Speakers: 2Watts x2 Power Eco Mode (Conserve): 8.5W Eco Mode (optimised): 10.5W Consumption (typical): 12.5W Consumption (max): 14W Voltage: AC 100-240V, 50/60 Hz Stand-by: 0.5W Power Supply: Internal Additional Hardware Kensington Lock Slot: 1 Cable Organisation: Yes Controls Physical Controls: 1, 2, Up, Down, Power On Screen Display: Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Colour Adjust, Information, Manual Image Adjust, Setup Menu, Memory Recall Operating Conditions Temperature: 32°F to 104°F (0°C to 40°C) Humidity (non-condensing): 20% to 90% Wall Mount VESA Compatible: 100 x 100 mm Input Signal Frequency Horizontal: 24 ~ 82KHz Frequency Vertical: 50 ~ 75Hz Video Input Digital Sync: TMDS - DVI-D, TMDS - HDMI (v1.4) Analog Sync: Separate/Composite/SOG - RGB Analog Ergonomics Tilt (Forward/Back): 22º / 38º Weight (imperial) Net (lbs): 9.9 Net Without Stand (lbs): 8.6 Gross (lbs): 13.2 Weight (metric) Net (kg): 4.5 Net Without Stand (kg): 3.9 Gross (kg): 6 Dimensions (imperial) Packaging (in.): 22.8 x 15.9 x 6.5 Physical (in.): 20.5 x 13.1 x 4 Physical Without Stand (in.): 20.5 x 12.5 x 2.4 Dimensions (metric) Packaging (mm): 580 x 405 x 164 Physical (mm): 521 x 334 x 101 Physical Without Stand (mm): 521 x 318 x 61 General Regulations: cTUVus, FCC-B, ICES003, Energy Star, EPEAT, CEC, MX-CoC, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, UKCA, BSMI, VCCI, PSE, BIS, CCC, China RoHS, China Energy Label, CECP PACKAGE CONTENTS: TD2223 x1, 3-pin Plug (IEC C13 / CEE22) x1, HDMI Cable (v1.4; Male-Male) x1, USB A/B Cable (v2.0; Male-Male) x1, Audio Cable (Male-Male) x1, Quick Start Guide x1 Recycle/Disposal: Please dispose of in accordance with local, state or federal laws. Warranty: *Warranty offered may differ from market to market Power Management: Energy Star standards, EPEAT -
Warranty
ViewSonic provides customers with the security of a manufacturer’s warranty against defected products. We are keen to provide our customers with great peace of mind and confidence in our product. With that in mind, we are now providing 3 years limited warranty on selected*
ViewSonic Interactive ViewBoards.
-
