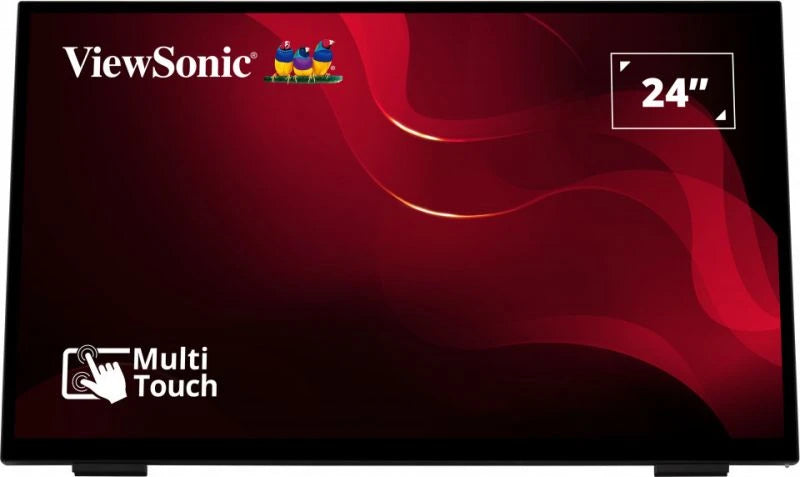

ViewSonic TD2465 24" Frameless PCAP Touch Screen Monitor

SKU: TD2465
Part Number: TD2465
Condition: Brand New
Purchase Orders Accepted
Sold out
Original price £299.99
Original price £299.99 - Original price £299.99
Original price £299.99
Current price £241.35
£241.35 - £241.35
Current price £241.35
Ex. VAT
Availability:
Out of stock
Send an enquiryExpress delivery UKTrustpilot rated

payment-icons

Bulk Price & Price Match Request

Contact our expert sales team on 020 8191 9223 for best price and dedicated assistance.

Educational & Public Sector Prices Available

For more details, please call us at 020 8191 9223 or email us at info@screenmoove.com

ViewSonic TD2465

24" Frameless PCAP Touch Screen Monitor

  • Description
  • Specifications
  • Warranty
  • Downloads
  • OVERVIEW
    The ViewSonic's TD2465 is the ideal solution for commercial and industrial spaces. Designed for wet hands touch, glove touch, and for any conductive stylus’ tip touch including pencil. The TD2465 delivers an intuitive 10-point PCAP touch technology for maximum interactivity. Featuring ViewSonic Touch Controller software, allowing you to control the device intuitively. Connection options include HDMI and DisplayPort inputs for effortless sharing capabilities. Equipped with VESA mounting design for any surface and Kiosk, the touch screen is the perfect display for various.

    Designed For Versatile Installation Options
    The 24" touch monitor is your one-stop solution for industrial, retail, and commercial applications. Whether a self-ordering kiosk or industrial automation control unit, the TD2465 delivers versatile installation options and an intuitive 10-point touch response technology.



    Intuitive and Responsive Touch
    Experience a smooth, and responsive touchscreen with the high-sensitive Projective Capacitive (PCAP) Touch Technology. With up to 10 touch point simultaneous input, each touch response is read with accuracy and precision.
    *Single point touch option is also available, as well as Pen Touch Mode, Glove Touch Mode, and Water-Resistant Touch Mode.
    10-Point PCAP Touch

    Made for tough conditions
    The TD2465 is able to register fingerprints even when your hands are wet. Ideal for those situations where you often get your hands wet, and you need your equipment to keep up.
    Wet Hand Touch

    Glove Touch Mode
    Different tasks require different accessories, and gloves are no exception. Glove touch successfully eliminates the hassle of removing your gloves every time you need to perform an action onscreen.
    *If gloves do not meet material design specifications this may not apply.
    *Water-Resistant Touch and Pen Touch modes cannot be used at the same time as Glove Touch.
    *Glove Touch Mode does not support palm rejection.
    *With up to 5 points touch points. Even single point touch option is also available, as well as Pen Touch Mode, Glove Touch Mode, and Water-Resistant Touch Mode.
    Functional with Multiple Glove Types

    Water Tolerant Surface
    Designed to work when you need it. Work in humid conditions without an issue with the TD2465’s Water-Resistant Touch mode.
    *Panels are not designed for environments exposed to full sun or rain.
    *Glove Touch and Pen Touch Modes cannot be used at the same time as Water-Resistant Touch.
    *Water-resistant touch mode does not support Palm Rejection.*With up to 5 points touch points. Even single point touch option is also available, as well as Pen Touch Mode, Glove Touch Mode, and Water-Resistant Touch Mode.
    Water-Resistant Touch

    Stylus Compatibility
    The TD2465 is equipped with palm rejection and full support for multiple types of pen. Passive, active pen can be used without the hassle of installing drivers. Click functions are even enabled for pencils.
    *TD2465 does not support pressure sensitivity and tilt functions for pen writing.
    *When hand and pen are in contact with the screen simultaneously, only the pen's signal will register.
    *Water-Resistant Touch and Glove Touch Modes cannot be used at the same time as Pen Touch.
    Pen Compatibility & Palm Rejection


    Advanced Ergonomics

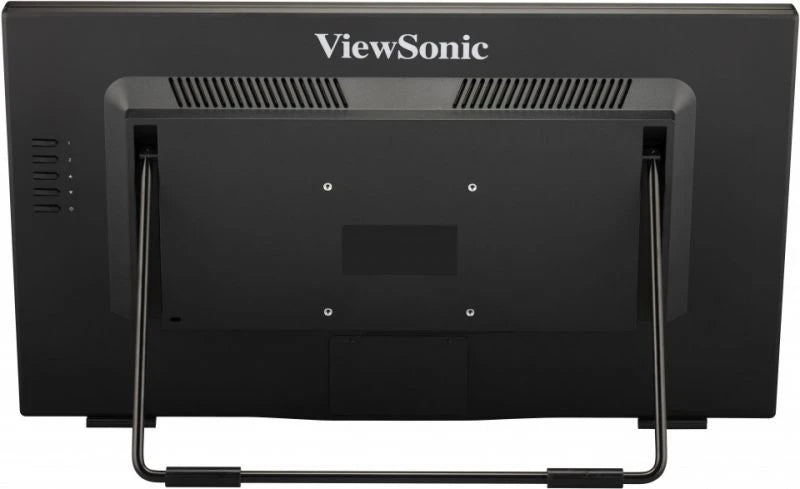

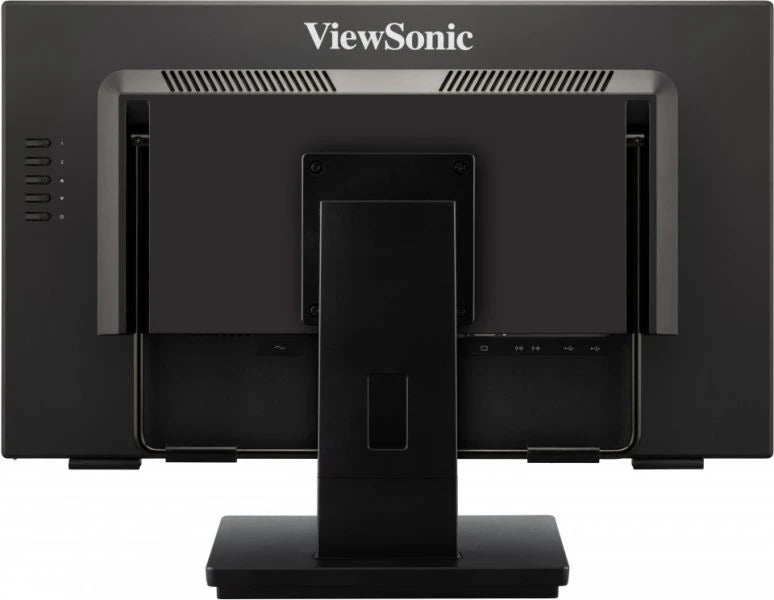

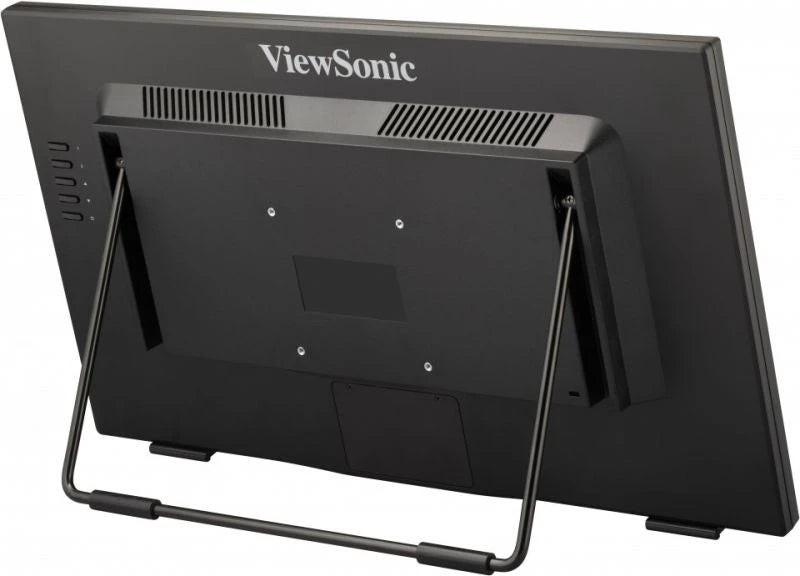

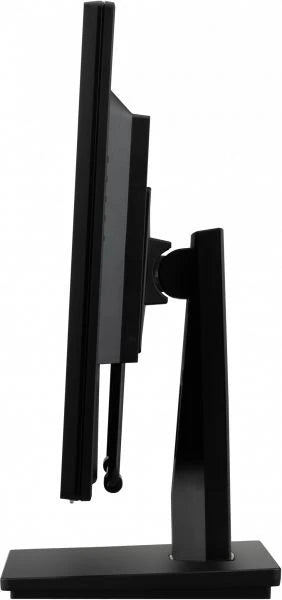

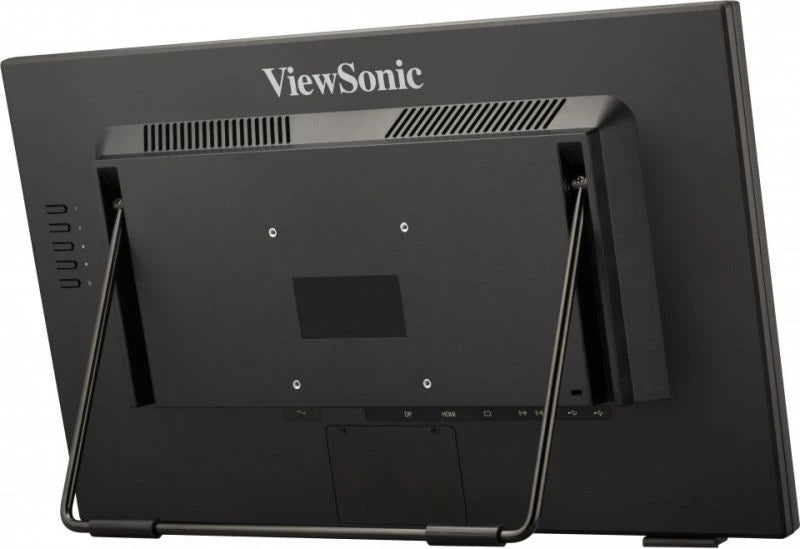

    The TD2465 comes complete with two types of monitor stands to ensure you have the setup you need no matter the situation. The book stand is designed with an advanced hinge, allowing the display to be tilted and adjusted between 15 ° ~70°, making it great for diverse applications. The classic stand is perfect for more conventional uses, with a tilt angle of up to 20°.

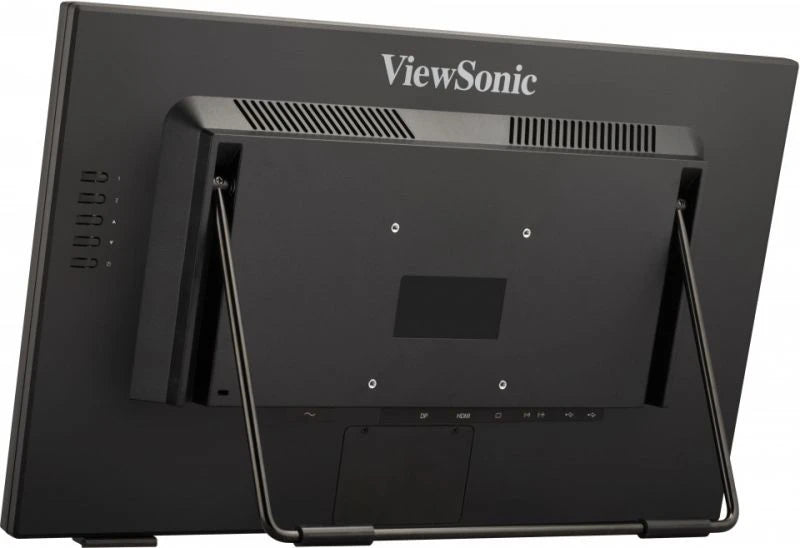

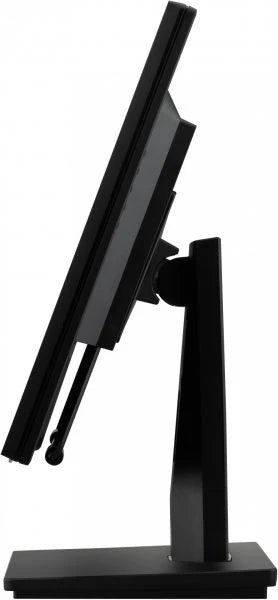

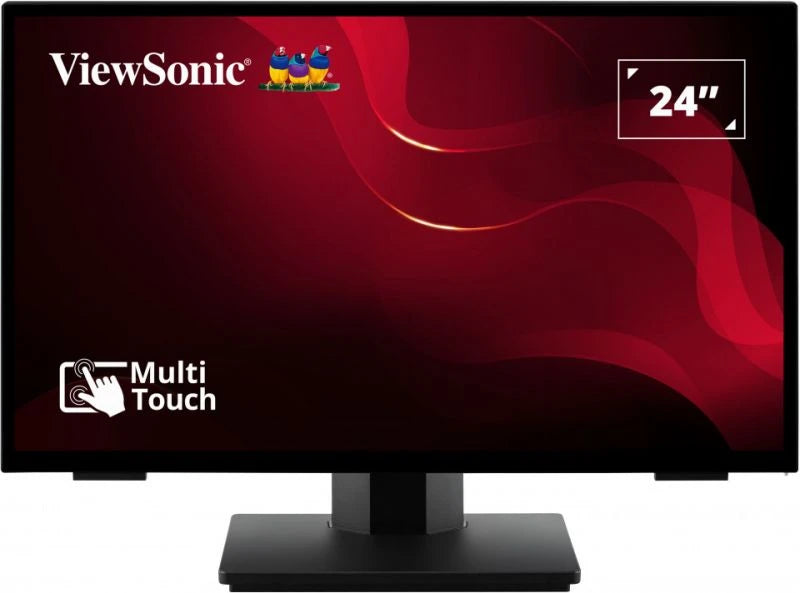

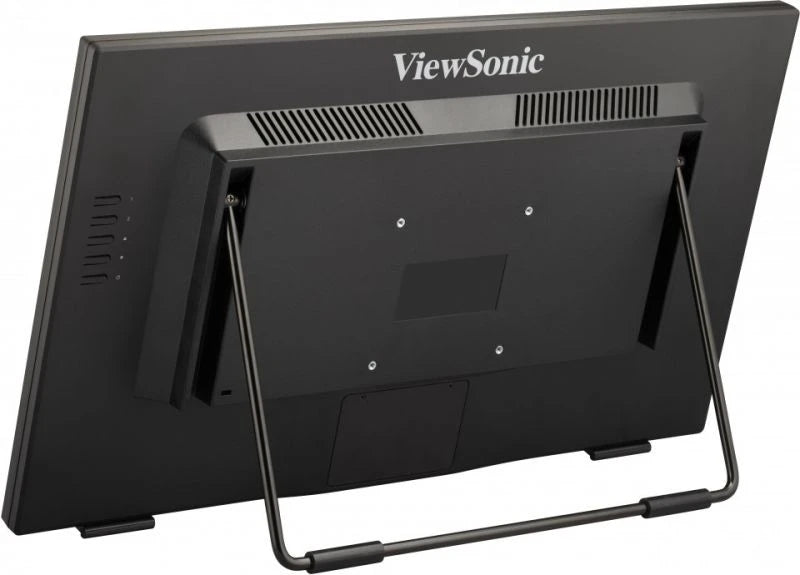

    Book Stand & Standard Stand

    Easy Kiosk Integration

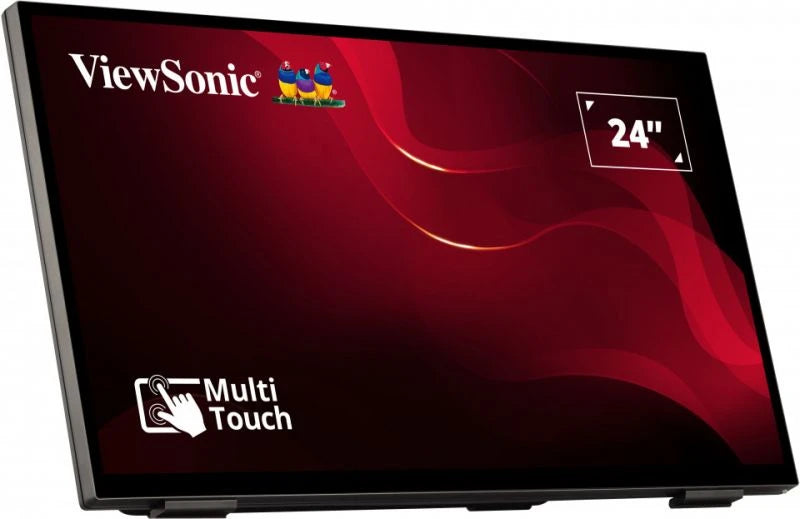

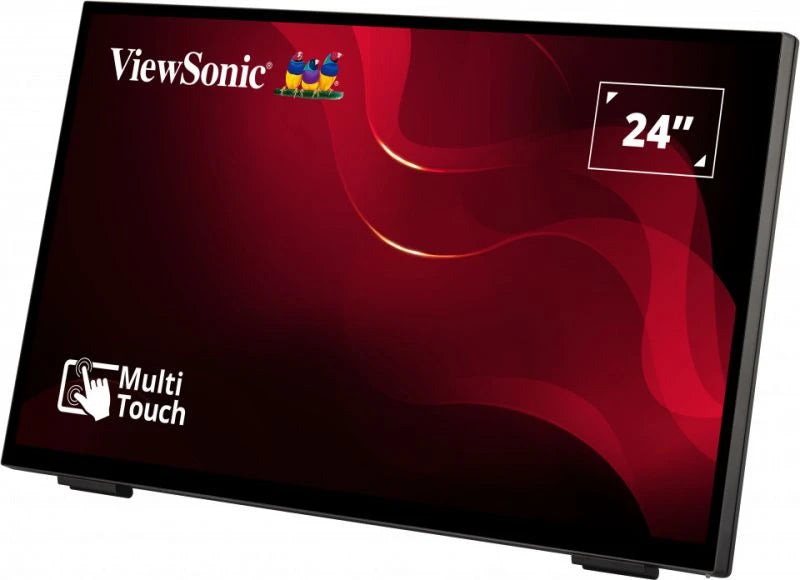

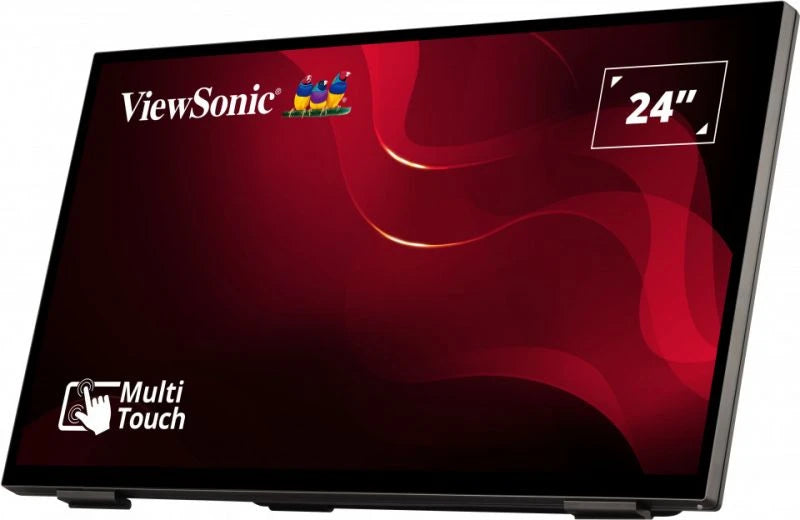

    The 4-sides frameless design of the TD2465 display allows for seamless and secure attachment to your preferred kiosk design, allowing it to be installed and integrated to best suit any application you require.

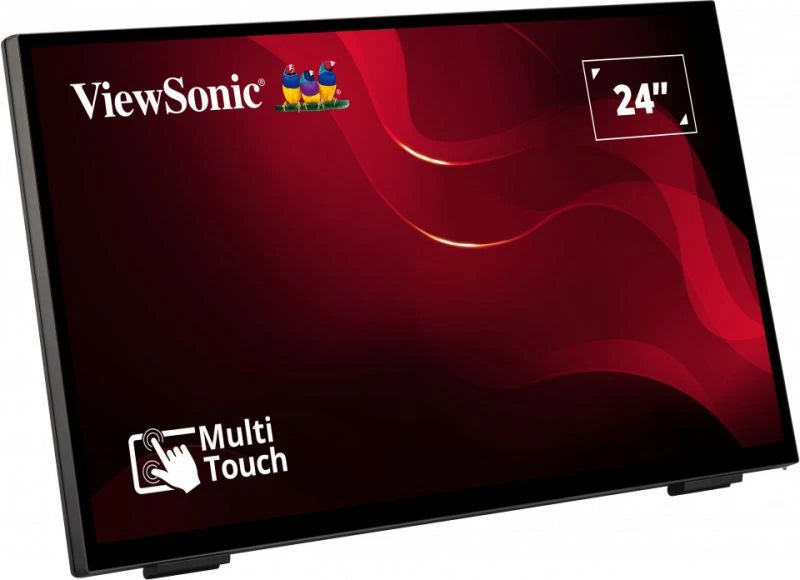

    4-Sides Frameless

    Touch Controller Software
    Intuitive interface design offers shortcuts for an easy way to adjust volume, brightness, contrast, and touch modes.
    *The software is compatible with Windows, Linux Fedora 37 and Ubuntu 20.04 platform. Download the software in the download section.
    *Please keep screen surface clean from water droplets and oil stains when switching between different touch modes or touch disable.
    *During the Touch Controller SW update process, if the network disconnects the Touch Controller SW will not be able to launch. Users will need to uninstall, then reinstall the software.

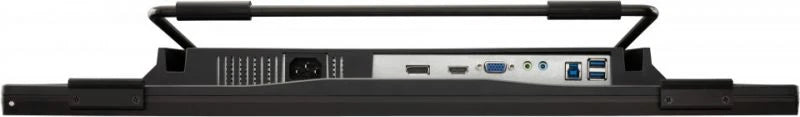

    Dimension & I/O Ports

  • Display
    Display Size (in.) 24
    Viewable Area (in.) 23.8
    Panel Type VA Technology
    Resolution 1920 x 1080
    Resolution Type FHD (Full HD)
    Static Contrast Ratio 3,000:1 (typ)
    Dynamic Contrast Ratio 20M:1
    Light Source LED
    Brightness 250 cd/m² (typ)
    Colors 16.7M
    Color Space Support 8 bit (6 bit + Hi-FRC)
    Aspect Ratio 16:9
    Response Time (Typical GTG) 7ms
    Response Time (GTG w/OD) 6.969ms
    Response Time (Typical Tr+Tf) 16ms
    Viewing Angles 178º horizontal, 178º vertical
    Backlight Life (Hours) 30000 Hrs (Min)
    Curvature Flat
    Refresh Rate (Hz) 60
    Blue Light Filter Yes
    Flicker-Free Yes
    Color Gamut NTSC: 72% size (Typ), sRGB: 102% size (Typ)
    Pixel Size 0.275 mm (H) x 0.275 mm (V)
    Touch Screen
    Touch Screen Projected Capacitive, 10-point multi-touch
    Surface Treatment Glossy, Hard Coating (7H)
    Cover Glass Thickness 1.2mm
    Compatibility
    PC Resolution (max) 1920x1080
    Mac® Resolution (max) 1920x1080
    PC Operating System Windows 10/11 certified; macOS tested
    Mac® Resolution (min) 1920x1080
    Connector
    VGA 1
    USB 3.2 Type A Down Stream 2
    USB 3.2 Type B Up Stream 1
    3.5mm Audio In 1
    3.5mm Audio Out 1
    HDMI 1.4 1
    DisplayPort 1
    Power in 3-pin Socket (IEC C14 / CEE22)
    Audio
    Internal Speakers 2 Watts x 2
    Power
    Eco Mode (Conserve) 20W
    Eco Mode (optimized) 22W
    Consumption (typical) 24W
    Consumption (max) 26W
    Voltage AC 100-240V
    Stand-by 0.5W
    Power Supply Internal Power Supply
    Additional Hardware
    Kensington Lock Slot 1
    Cable Organization Yes
    Controls
    Physical Controls 1, 2, Up, Down, Power
    On Screen Display Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Setup Menu, Memory Recall
    Operating Conditions
    Temperature 32°F to 104°F (0°C to 40°C)
    Humidity (non-condensing) 20% to 90%
    Wall Mount
    VESA Compatible 100 x 100 mm
    Input Signal
    Frequency Horizontal RGB Analog: 24 ~ 82KHz, HDMI (v1.4): 15 ~ 82KHz, DisplayPort (v1.2): 15 ~ 82KHz
    Frequency Vertical RGB Analog: 50 ~ 75Hz, HDMI (v1.4): 24 ~ 75Hz, DisplayPort (v1.2): 24 ~ 75Hz
    Video Input
    Digital Sync TMDS - HDMI (v1.4), PCI-E - DisplayPort (v1.2)
    Analog Sync Separate/Composite/SOG - RGB Analog
    Ergonomics
    Tilt (Forward/Back) -5º / 20º
    Weight (imperial)
    Net (lbs) 12.5
    Net Without Stand (lbs) 10.4
    Gross (lbs) 15.8
    Weight (metric)
    Net (kg) 5.7
    Net Without Stand (kg) 4.7
    Gross (kg) 7.2
    Dimensions (imperial) (wxhxd)
    Packaging (in.) 25.5 x 16.8 x 5.4
    Physical (in.) 21.6 x 15.8 x 7.8
    Physical Without Stand (in.) 21.6 x 12.8 x 1.9
    Dimensions (metric) (wxhxd)
    Packaging (mm) 647 x 426 x 138
    Physical (mm) 550 x 401 x 198
    Physical Without Stand (mm) 550 x 326 x 49
    General
    Regulations cTUVus, FCC-B, ICES003, Energy Star, EPEAT, CEC, NOM, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, UKCA, BSMI, RCM
    PACKAGE CONTENTS TD2465 x1, 3-pin Plug (IEC C13 / CEE22) x1, HDMI Cable (v1.4; Male-Male) x1, USB A/B Cable (v3.2; Male-Male) x1, Quick Start Guide x1
    Recycle/Disposal Please dispose of in accordance with local, state or federal laws.
    Warranty *Warranty offered may differ from market to market
    Power Management Energy Star standards, EPEAT
