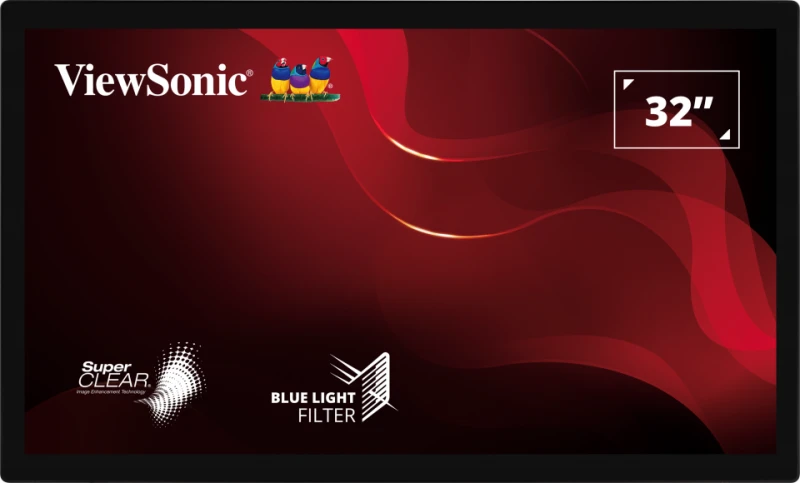

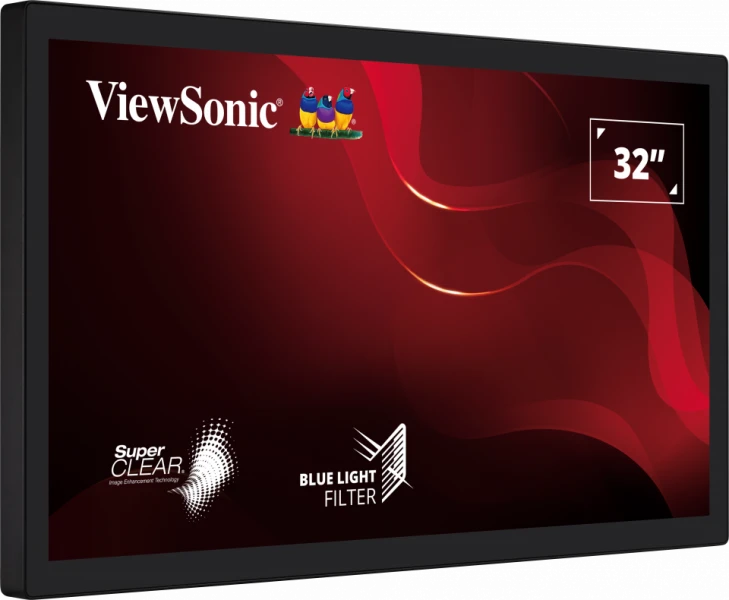

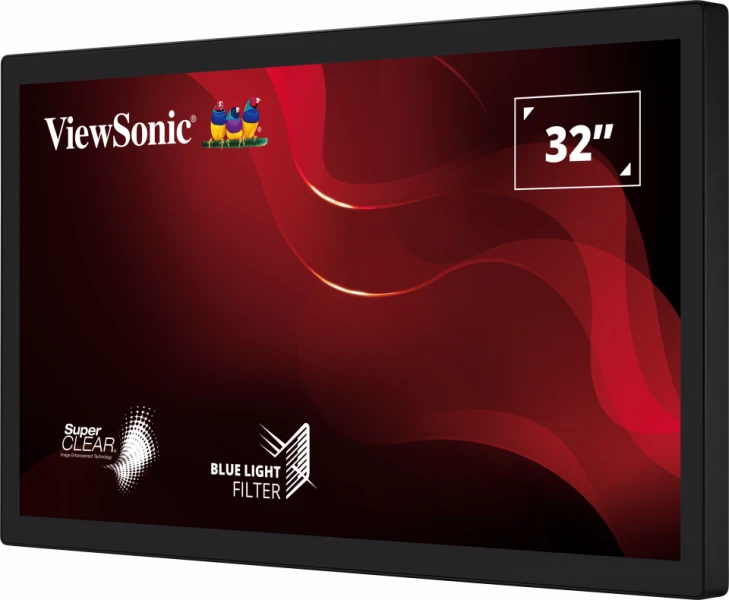

ViewSonic TD3207

32" Open Frame Touch Screen Monitor

Description
Specifications
Warranty
Downloads

OVERVIEW
The ViewSonic's TD3207 is the ideal solution for commercial and industrial spaces. Designed for heavy, continuous usage, the open frame series TD3207 delivers a 24/7 long-life. Resistant to moisture and scratches, the 3mm thick glass screen features an intuitive 10-point PCAP touch technology for maximum interactivity. Featuring SuperClear® AMVA panel technology, the device delivers lifelike imagery, vivid color, and constant brightness of up to 450 nits. Connection options include HDMI and DisplayPort inputs for effortless sharing capabilities and an RS232 allows you to control the device remotely. Equipped with VESA mounting design for any surface and screen orientation, the touch screen is the perfect display for various environments.

Why you should use ViewSonic's TD3207 ?
Accessible, durable, and contamination resistant, the 32" touch monitor is your one-stop solution for industrial, retail, and commercial applications. Whether it is a self-ordering kiosk or an industrial control automation, the device delivers stunning image quality, versatile installation modes and an intuitive 10-point touch response technology.
*Note:The TD3207 touch monitor works with latex gloves.

Supreme reliability and durability
Hard knocks, water splashes or sudden drops, ViewSonic’s TD3207 is a durable, rugged device built to endure heavy activity and unpredictable weather conditions. Featuring a 3mm thick glass with 7H hardness, the scratch and water-resistant surface will capture the smallest touch to the biggest swipe with ease.
Robust IP54 front waterproof screen

Intuitive and responsive touch
Experience a smooth, responsive interactive touchscreen at your fingertips with the hyper-sensitive Projective Capacitive (PCAP) Touch Technology. With up to 10 touch points at a time, each touch response is read accurately and with precision.
PCAP 10 point touch

Long-lasting usage
Capable of 24/7 continuous operation, the TD3207 is the ideal device to run graphics-rich content in high-traffic spaces for long days and evenings.
24/7 Operation

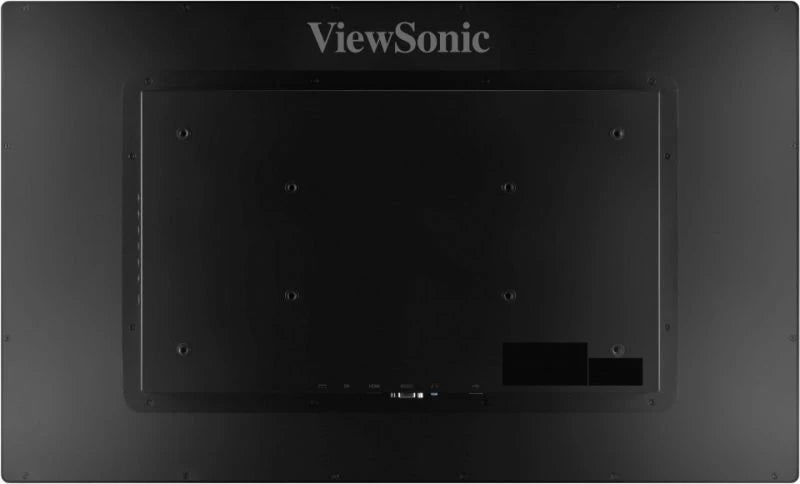

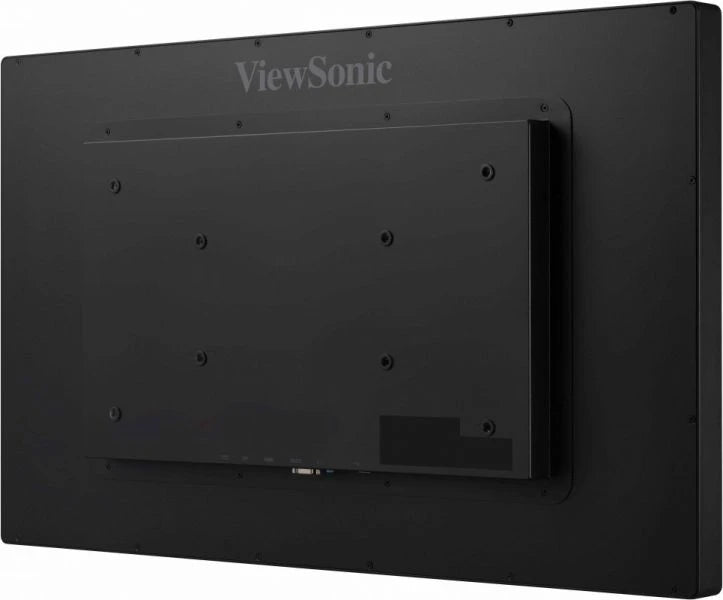

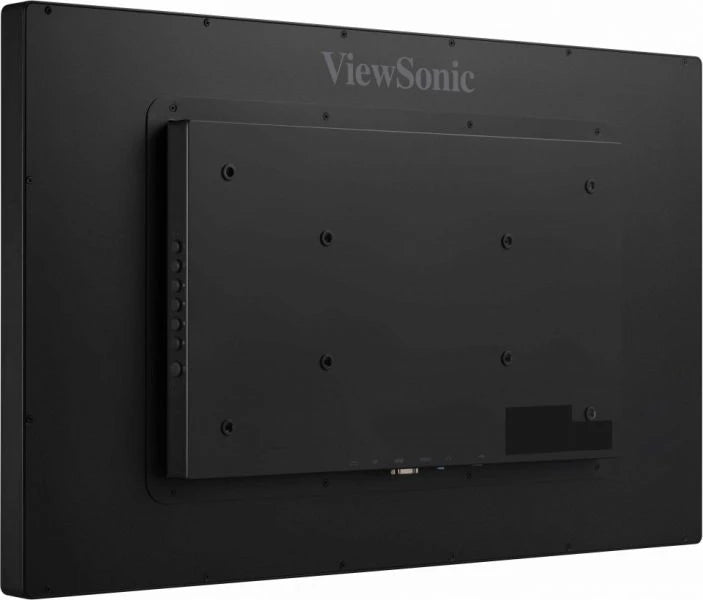

VESA-mountable design in any space and direction
Equipped with 200x100mm & 400x200mm VESA-mountable designs, the open-framed display can be attached to any surface seamlessly and securely. Horizontal, vertical or face-up, it can be installed in various orientations to suit your preferred venue and viewing angle.
Dual Versatile mounting methods

Viewing Clarity from Wide Angles
Enjoy superb performance and better viewing quality from horizontal to vertical angles. With SuperClear® Vertical Alignment panel technology, the monitor remains clear and in good contrast color from 178° all around, whether you are looking at the screen from above, below, the front, or the side.
SuperClear® 178°/178°

Brilliance at its brightest
With up to 450 nits of brightness, the screen delivers greater clarity to the tiniest detail and constant visuals in a brighter environment. Group collaborations and presentations to larger audiences are now elevated into an immersive visual experience.
High brightness 450nits

Real time at your disposal
Maximize efficiency with the smart time-bound system that allows real-time scheduling and allocated programming down to your preferred second. It runs smooth and tight like clockwork, so you don’t have to.

Connectivity at your command
Streamline your workflow with unmatched device-sharing capabilities. Using an array of cable inputs like HDMI and DisplayPort, connect to external consoles, laptops, or high-definition devices, and share your content effortlessly. And an RS232 In connection allows you can control the device remotely.

Dimension & I/O Ports

Feature	Specifications
Display Size (in.)	32
Viewable Area (in.)	31.5
Panel Type	VA Technology
Resolution	1920 x 1080
Resolution Type	FHD (Full HD)
Static Contrast Ratio	3,000:1 (typ)
Dynamic Contrast Ratio	50M:1
Light Source	LED
Brightness (cd/m²)	450 (typ)
Colors	16.7M
Color Space Support	8 bit true
Aspect Ratio	16:9
Response Time (GTG)	5ms
Viewing Angles (H/V)	178° horizontal, 178° vertical
Backlight Life (Hours)	50,000 Hrs (Min)
Curvature	Flat
Refresh Rate (Hz)	60
Blue Light Filter	Yes
Color Gamut	NTSC: 72% size (Typ), sRGB: 104% size (Typ)
Pixel Size (mm HxV)	0.364 x 0.364
Touch Screen	Projected Capacitive, 10-point multi-touch
Surface Treatment	Glossy, Hard Coating (7H)
Cover Glass Thickness	3mm
Compatibility	Windows 10/11 certified; macOS tested
Connector	USB 2.0 Type B: 1, 3.5mm Audio Out: 1, HDMI 1.4: 1, DisplayPort: 1, DC Socket (Center Positive): 1, RS232 In: 1
Audio	Internal Speakers: 2Watts x2
Power	Eco Mode (Conserve): 27W, Eco Mode (optimized): 35W, Consumption (typical): 43W, Consumption (max): 45.5W, Voltage: AC 100-240V, Stand-by: 0.5W, Power Supply: External Power Adaptor
Controls	Physical Controls: 1, 2, Up, Down, Left, Right, Power, On Screen Display: Contrast/Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Setup Menu, Memory Recall
Operating Conditions	Temperature: 32°F to 104°F (0°C to 40°C), Humidity (non-condensing): 20% to 90%
Wall Mount	VESA Compatible: 400 x 200; 200 x 100 mm
Input Signal	Frequency Horizontal: 15 ~ 73KHz, Frequency Vertical: 47 ~ 75Hz
Video Input	Digital Sync: TMDS - HDMI (v1.4), PCI-E - DisplayPort (v1.2)
Ergonomics	Tilt (Forward/Back): N/Aº / N/Aº
Weight (imperial)	Net (lbs): 28.2, Net Without Stand (lbs): 28.2, Gross (lbs): 34.2
Weight (metric)	Net (kg): 12.8, Net Without Stand (kg): 12.8, Gross (kg): 15.5
Dimensions (imperial) (WxHxD)	Packaging (in.): 34 x 22.7 x 6.4, Physical (in.): 29.4 x 17.8 x 2.5, Physical Without Stand (in.): 29.4 x 17.8 x 2.5
Dimensions (metric) (WxHxD)	Packaging (mm): 863 x 577 x 163, Physical (mm): 747 x 451 x 64, Physical Without Stand (mm): 747 x 451 x 64
General Regulations	CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, UKCA
Package Contents	TD3207 x1, 3-pin Plug (IEC C13 / CEE22) x1, HDMI Cable (v1.4; Male-Male) x1, USB A/B Cable (v2.0; Male-Male) x1, AC/DC Adapter x1, Quick Start Guide x1
Recycle/Disposal	Please dispose of in accordance with local, state or federal laws.
Warranty	*Warranty offered may differ from market to market

ViewSonic Warranty page - United Kingdom

ViewSonic Product Family	UK
Monitors [VA / VX Series]	2 Year Pickup, Repair and Return
Monitors [VG, VP ,TD and XG Series]	3 Year Pickup, Repair and Return
Projector [PA5, PA7, PJD5 Series – except short throw models]	2 Year Pickup, Repair and Return [Lamp 1 Year or 1,000 hours]
Projector [PJD5 Series short throw models, PJD6, PJD7, PJD8, Pro, PX, PS and PG Series]	3 Year Pickup, Repair and Return [Lamp 1 Year or 1,000 hours]
Projector [Pro8 series]	3 Year Pickup, Repair and Return [Lamp 3 Years or 2,000 hours]
Projector [PA503XB & PS501X+]	5 Year Swap [Light source 5 Years or 5,000 hours]
Projector [M]	2 Year Pickup, Repair and Return [Light source 2 Years or 20,000 hours]
Projector [X / LS5 / LS60&61 Series]	5 Year Pickup, Repair and Return [Light source 5 Years or 20,000 hours]
Projector [Laser Series]	5 Year Swap [Light source 5 Years or 20,000 hours]
Smart Display [VSD] / NMP	2 Year Pickup, Repair and Return
Digital Pen WhiteBoard	2 Year Swap
Included Accessories [Battery, Power Supplies, Cables, Remotes, 3D Glasses etc]	Same as Product Warranty
Peripherals [LFD/IFP stands, Projector Screens/Mounts/Cases etc.]	1 Year Swap
Peripherals [Wifi Modules, VB-Series and all other electronic peripherals]	2 Year Swap
Large Format Display [Up to and including 55”]	3 Year Pickup, Repair and Return
Large Format Display [Larger than 55”]	3 Year Onsite Repair
Interactive Flat Panel [<55”]	3 Year Pickup, Repair and Return
LED Display / Interactive Flat Panel [55” and above]	5 Year Onsite Repair or Replacement
ePosters [10”]	2 Year Pickup, Repair and Return
ePosters [Up to and including 55”]	3 Year Pickup, Repair and Return
Slot-In PC (for LFD and IFP)	3 Year Pickup, Repair and Return
All product groups	14 Days DOA Replacement

Customer Service For All Countries - Please click here to find the correct contact details of your respective Call Desk or Service Centre.

ViewSonic^® Limited Warranty

ViewSonic warrants its products to be free from defects in material and workmanship during the warranty period. If a product proves to be defective in material or workmanship during the warranty period, ViewSonic will, at its sole option, repair or replace the product with a similar product. Replacement Product or parts may include remanufactured or refurbished parts or components.

For more terms and conditions and on what the warranty does not cover please refer to our Standard Limited Warranty Summary.

How to get service:

For information on obtaining warranty service, call your ViewSonic dealer or ViewSonic Call Desk / Service Provider or ViewSonic; refer to the Contact Us page located in each country's corresponding web site:
To obtain warranty service, you will be required to provide.
1. The original dated sales slip. (Invoice or Proof of purchase)
2. Your name.
3. Your address.
4. The serial number, IMEI number and the model number of the product.
5. A description of the problem.
6. Mobile and wireless products and All-in-One, customers should provide the user name and the password in order to access the device and perform warranty service.
For DOA cases apart from above the followings are also required.
1. A photo showing the defect symptom.
2. A photo of the unit serial number with the bar code.
3. A photo showing the condition of the original container.
For additional information or the name of the nearest ViewSonic service centre, contact your ViewSonic dealer or ViewSonic.

If the warranty on your product has already expired:

In case your product is no longer within its warranty period, but you'd like to have it repaired, you can still contact our Call Desk or Repair Center in your country of residence, but you will be charged directly by our Repair Center on the service.

Accessories:

For enquiries on accessories/spare parts please either contact your local dealer or contact us directly at info@screenmoove.com
Lamp warranty is based either on the lamp usage hour or on the age of the projector unit, and depending on which ever one that expires first.

Pixel Policy:

At ViewSonic we offer some of the most competitive pixel policy in the market.

DATASHEETS Download

TD3207 Datasheet (short version)
Download

USER GUIDE Download

TD3207 User Guide (English)
Download
