OVERVIEW

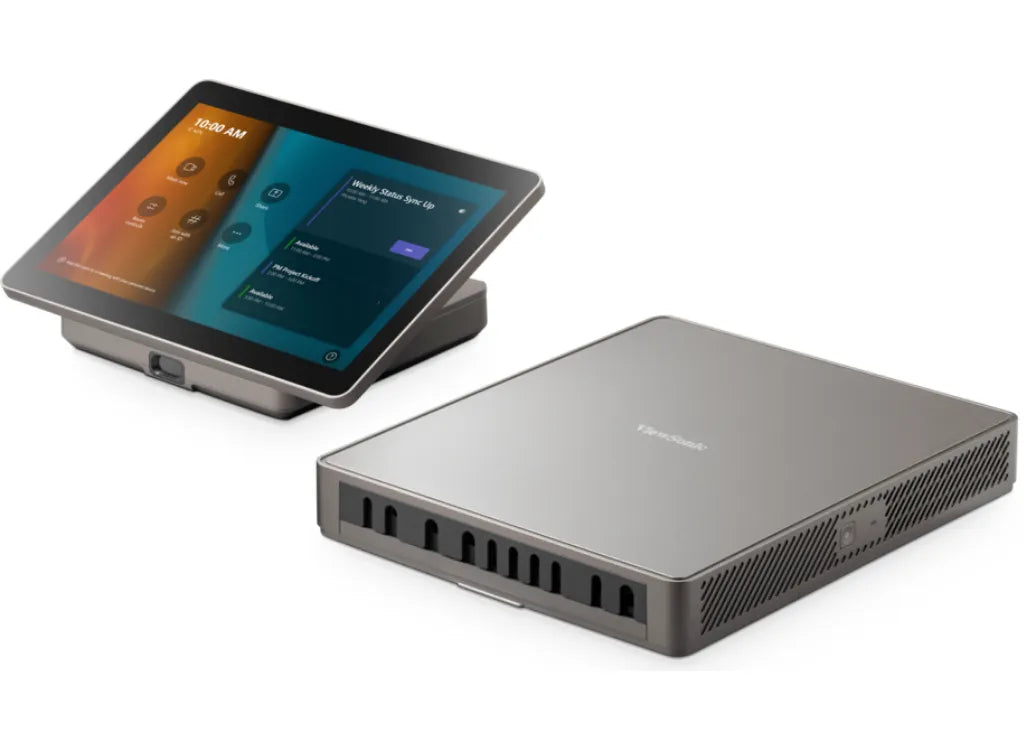

Designed to deliver instant and intuitive collaboration without a complicated setup, ViewSonic® TeamJoin™ solutions for Microsoft Teams Rooms enhance communication, foster collaboration, and promote inclusivity for teams of all sizes, regardless of location. The TeamJoin™ TRS10 bundle, featuring a Computing Engine (MPC310-W31-TU) and Touch Console (MRC1010-TN), offers a complete, one-stop solution that can easily scale to meet your needs and adapt to any meeting space size.
Easy-to-Deploy Microsoft Teams Rooms Solution
Featuring a nimble Computing Engine and intuitive Touch Console, the TRS10 bundle simplifies deployment and enables instant collaboration in meeting rooms of any size. Tailored for those seeking a reliable, secure, and cost-effective Microsoft Teams Rooms experience, this solution ensures seamless communication.
Enterprise-grade Security
An integrated Trusted Platform Module (TPM) 2.0 ensures safer, more secure computing with hardware-based authentication and tamper detection. Additionally, the 12th generation Intel processor delivers advanced security features, including Intel Threat Detection Technology and Control-Flow Enforcement. These are further complemented by the Windows 11 IoT Enterprise operating system with Smart App Control (SAC), enhancing overall device security.
Seamless Collaboration Control Hub

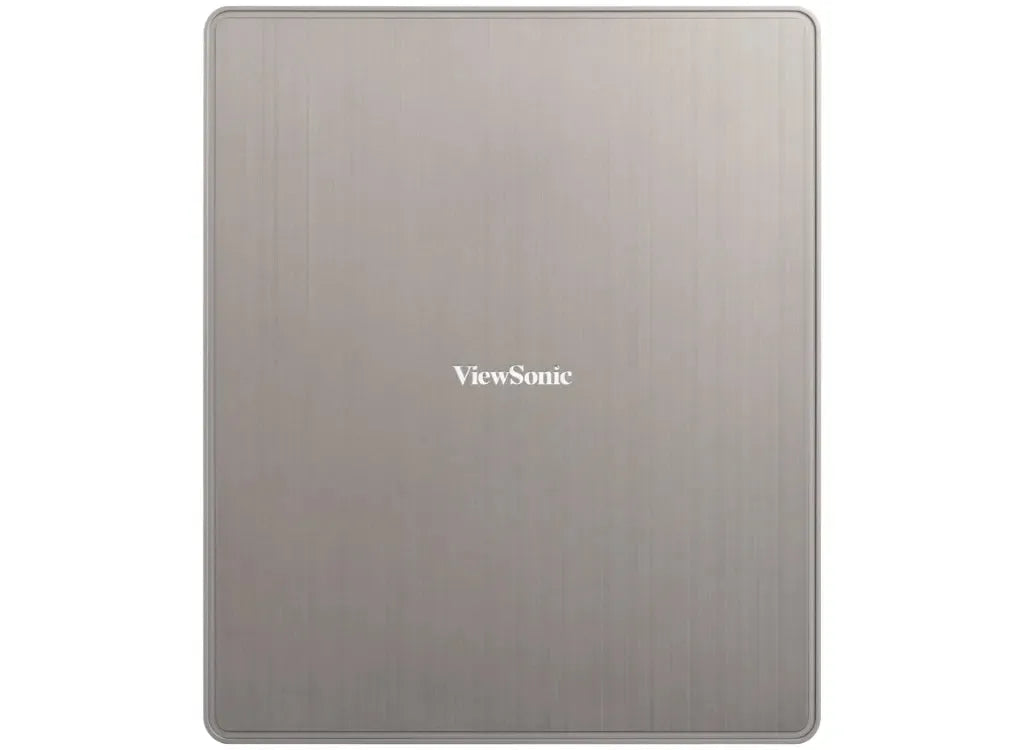

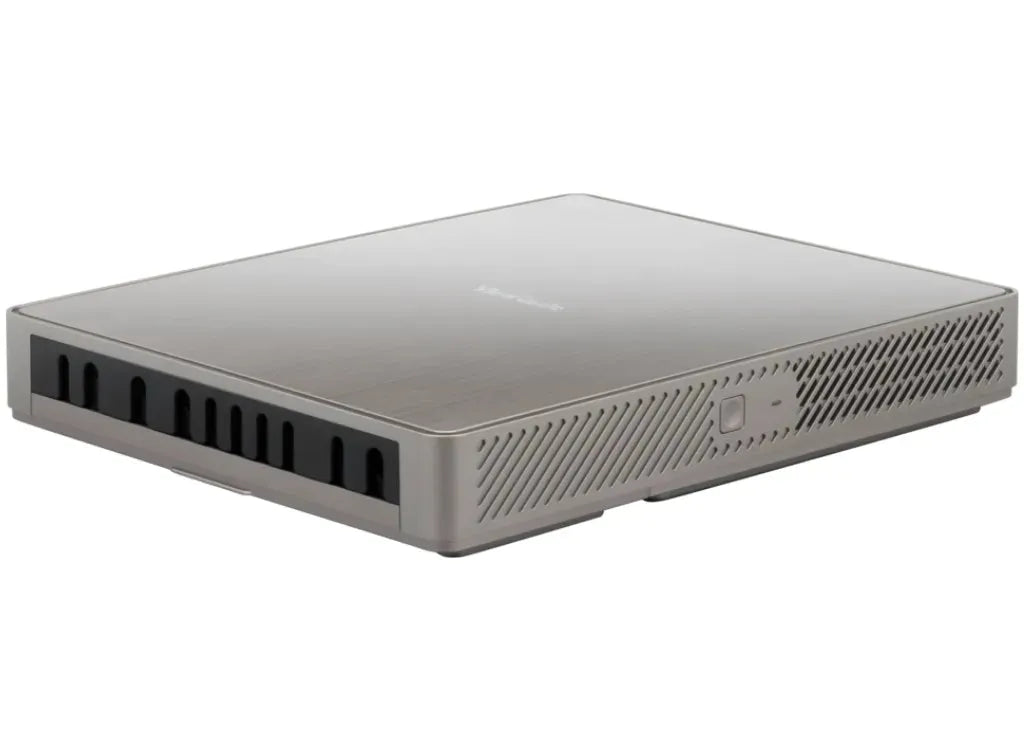

The MPC310-W31-TU TeamJoin Computing Engine powered by a 12th Gen Intel® Core™ processor, optimises hybrid collaboration. With built-in Microsoft Teams Rooms software on the latest Windows 11 IoT Enterprise, it facilitates easy connection, content sharing, and collaboration in calls and meetings. The integrated cable management streamlines the setup, simplifying maintenance for IT staff.
Full Meeting Control at Your Fingertips

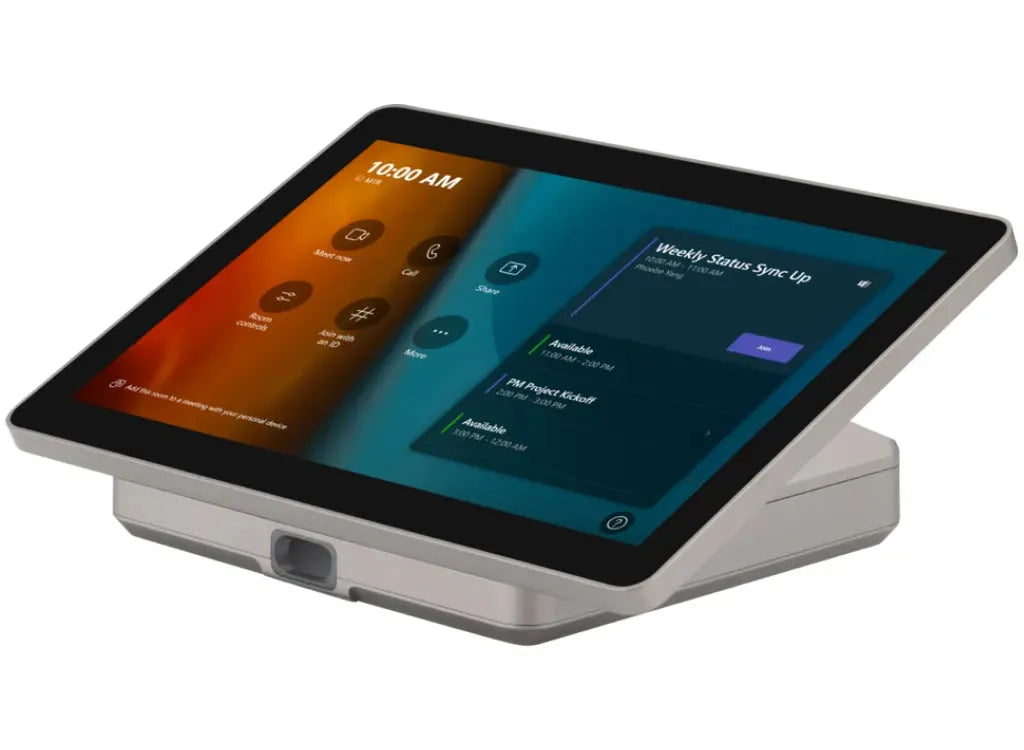

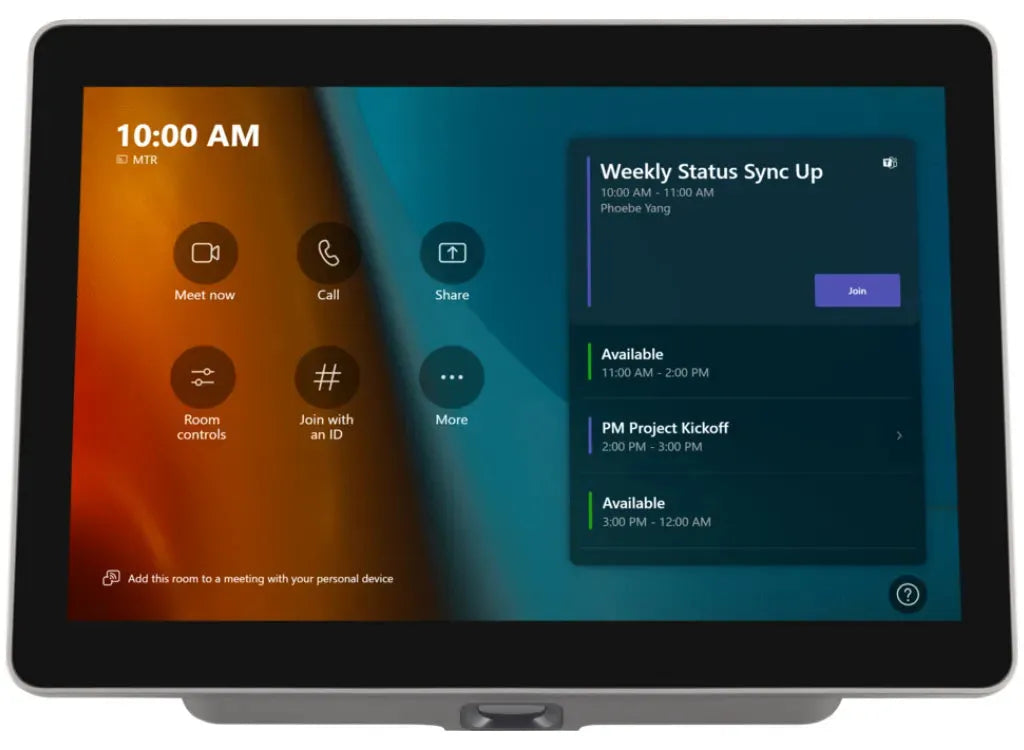

Enjoy intuitive touch control with the MRC1010-TN TeamJoin Touch Console. Featuring Direct HDMI Ingest connectivity for BYOD presentations, this 10.1” Full HD anti-glare touch display offers an easy-to-use Microsoft Teams interface that allows you to start, join and manage meetings—all from your fingertips.
Start Meetings with a Simple Move
The MRC1010-TN TeamJoin Touch Console automatically activates the computing engine and ViewSonic display upon detecting human presence, ensuring the meeting is ready to start the moment you are.
Dimension & I/O Ports
| Category | Specifications (Computing Engine MPC310-W31-TU) | Specifications (Touch Console MRC1010-TN) |
|---|---|---|
| CPU | Intel i3-1220P (1.5G), Turbo boost 4.4G | |
| GPU | Intel UHD | |
| Memory | Dual Channel DDR4, DDR4 SODIMM, 8GB (4x2) | |
| Storage | M.2 2280 SSD, SATA, 128GB | |
| Interfaces | USB-A: 4x USB3.0, USB-C: 1x USB3.0, HDMI out, Ethernet RJ45, Audio Combo Jack | USB 2.0, HDMI Ingest, Audio out 3.5mm, TYPE-C |
| Power | Internal power supply, Max consumption: 111.9W, Standby: ≤0.5W | |
| Operating System | Windows 11 IoT Enterprise (x64) | Non-OS |
| Software | Microsoft Teams Rooms | |
| Physical Specs | Dimension: 9.01 x 10.85 x 1.69 in, Weight: 4.10 lb | Dimension: 9.63 x 6.3 x 3.85 in, Weight: 2.05 lb |
| Display | 10.1 inch, 1920*1200, 300 cd/m² | |
| Touch System | Capacitance touch, 10 points, <25 ms latency | |
| Accessories | VESA mounting bracket, Power cord | HDMI cable, Type-C cable |
