ViewSonic TeamJoin TRS10-UB Teams Rooms Video Bar System
SKU: TRS10-UB
£1,346.50 (Excl. VAT)
- Description
- Specifications
- Downloads
-
Complete Microsoft Teams Rooms Bundle with 4K Video Bar and Touch Console
Designed to deliver instant and intuitive collaboration without a complicated setup, ViewSonic® TeamJoin™ solutions for Microsoft Teams Rooms enhance communication, foster collaboration, and promote inclusivity for teams of all sizes, regardless of location. The TeamJoin™ TRS10-UB bundle, featuring a Computing Engine (MPC310-W31-TU), Touch Console (MRC1010-TN), and 4K Video Bar System (UMB202), offers a complete, one-stop solution that can easily scale to meet your needs and adapt to any meeting space size.

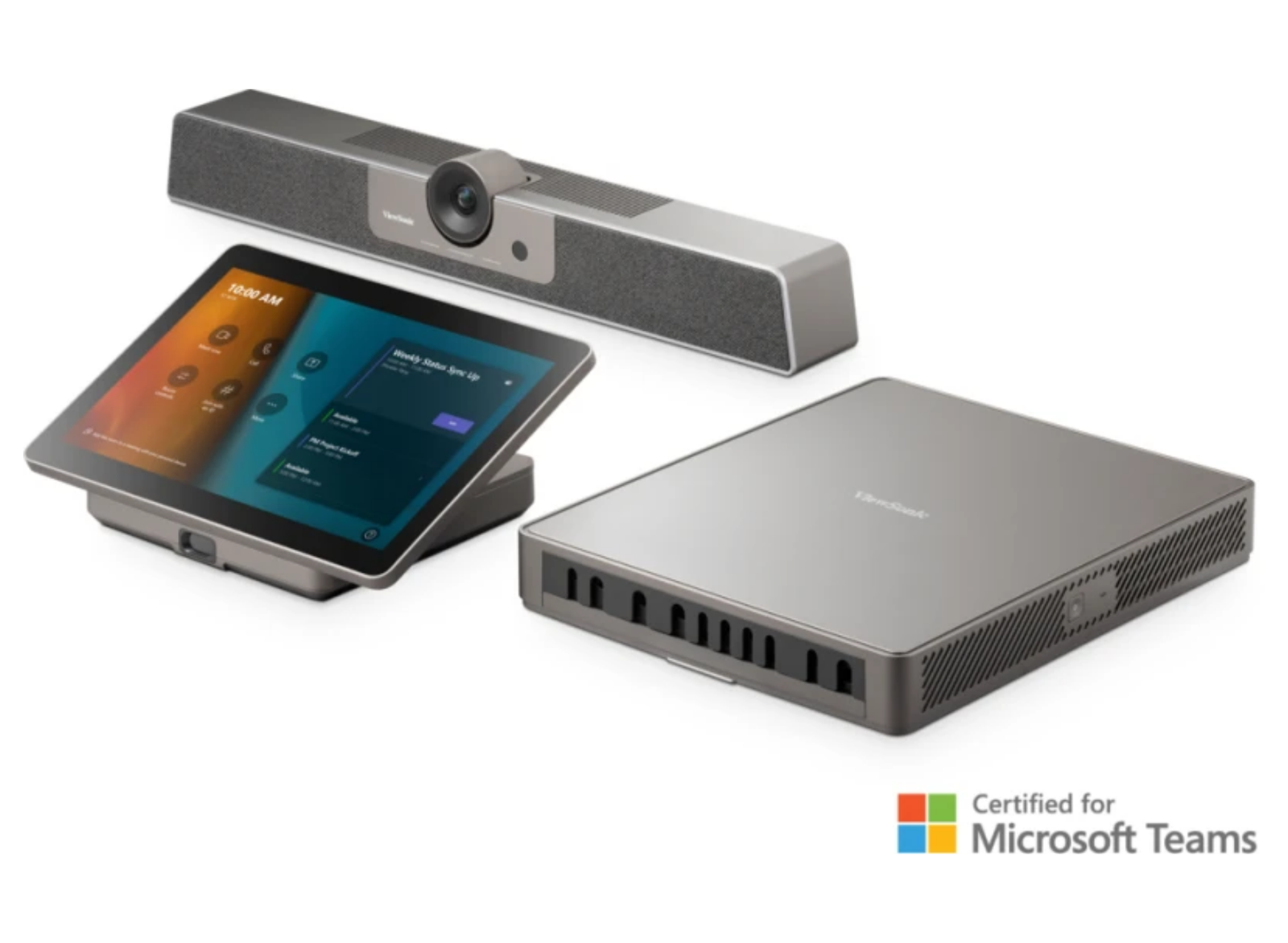

One-stop Microsoft Teams Rooms Solution
Featuring a nimble Computing Engine, intuitive Touch Console and 4K Video Bar System, this TRS10-UB bundle includes everything needed for a comprehensive Microsoft Teams Rooms experience. Ideal for enterprises looking to completely upgrade and transform their meeting spaces, this bundle delivers optimized setup, enhanced security, crisp audio and crystal-clear video performance for instant collaboration in meeting rooms of any size.
Enterprise-grade Security
An integrated Trusted Platform Module (TPM) 2.0 ensures safer, more secure computing with hardware-based authentication and tamper detection. Additionally, the 12th generation Intel processor delivers advanced security features, including Intel Threat Detection Technology and Control-Flow Enforcement. These are further complemented by the Windows 11 IoT Enterprise operating system with Smart App Control (SAC), enhancing overall device security.
Seamless Collaboration Control Hub

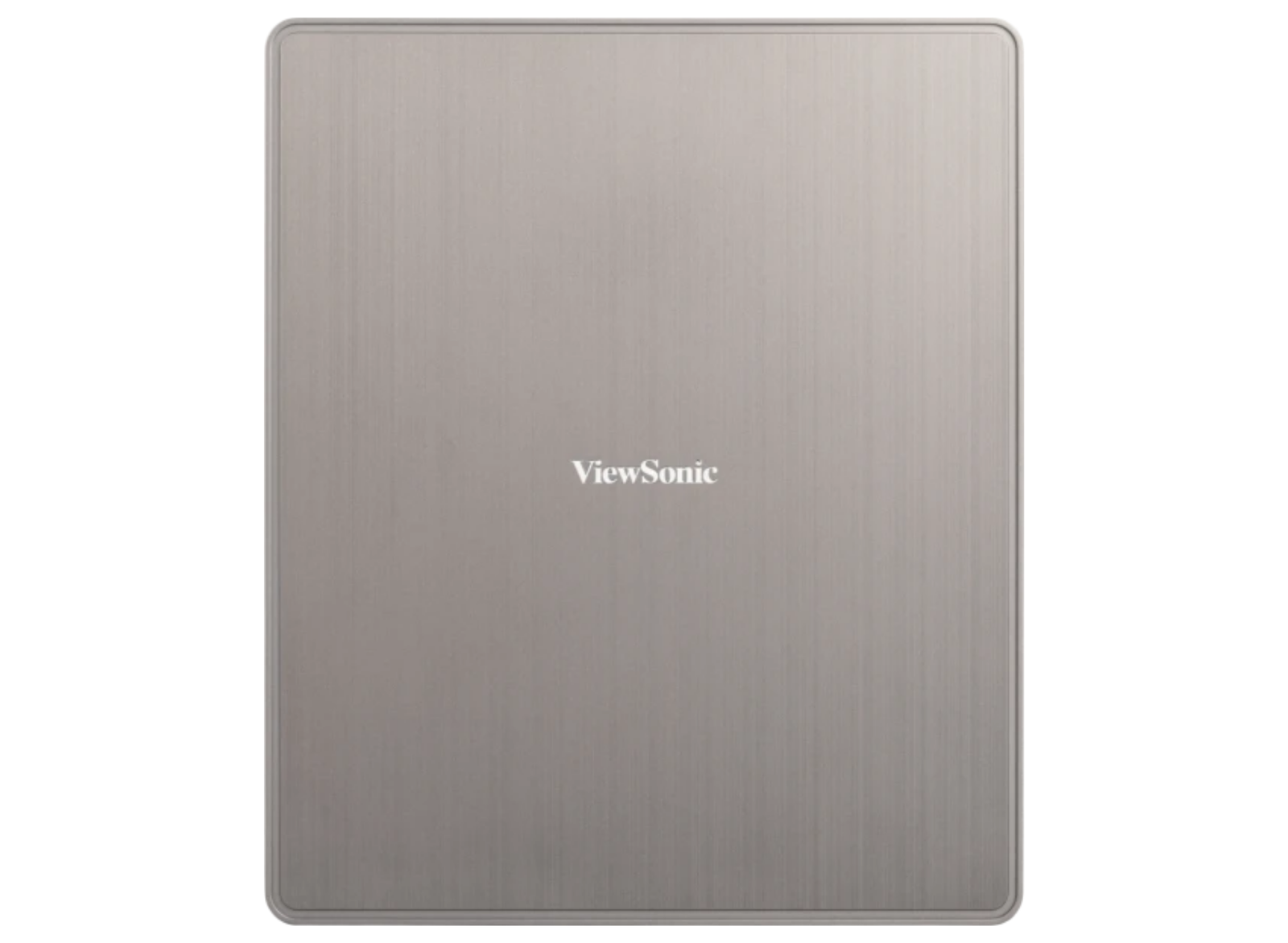

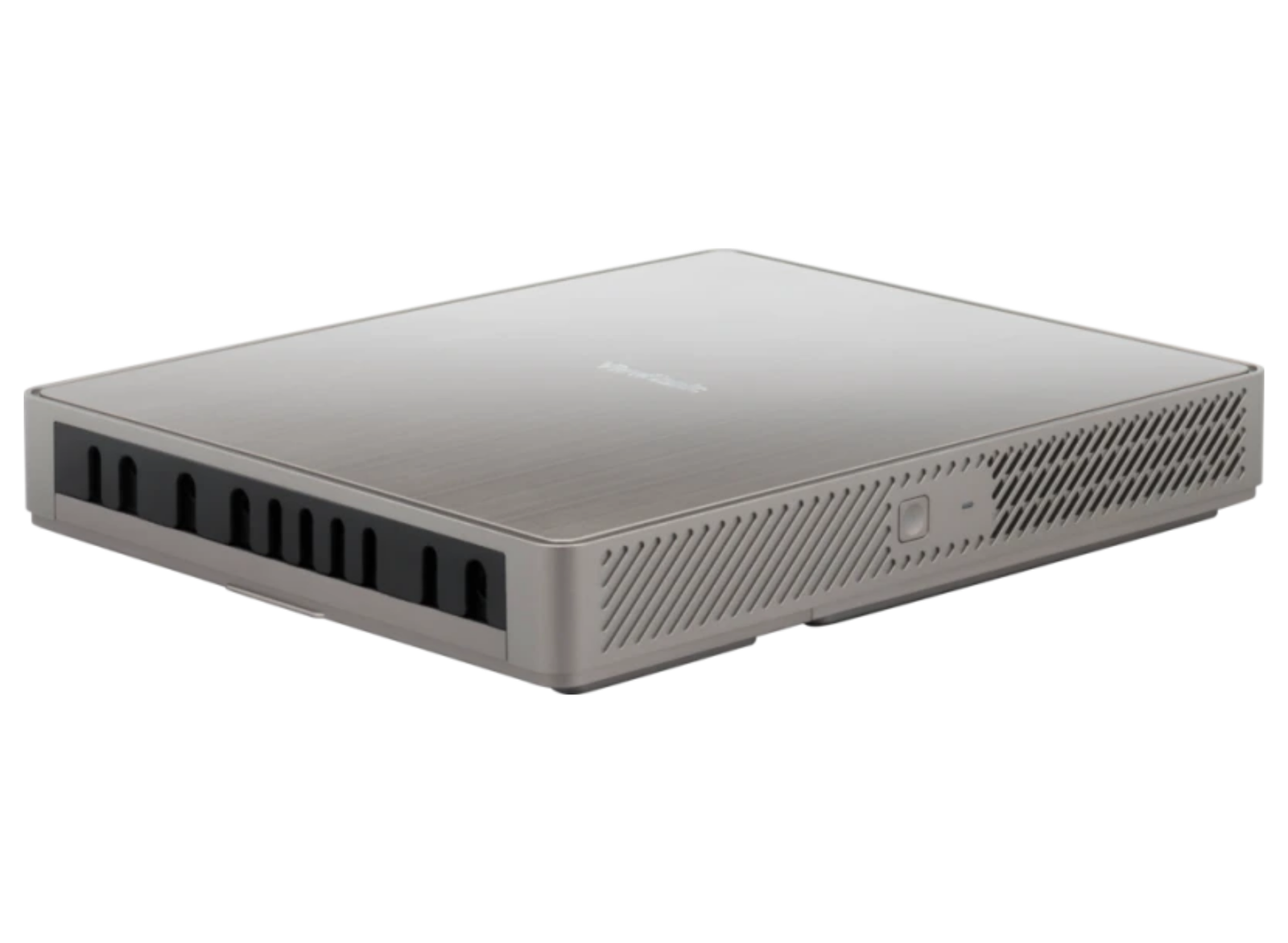

The MPC310-W31-TU TeamJoin Computing Engine powered by a 12th Gen Intel® Core™ processor, optimises hybrid collaboration. With built-in Microsoft Teams Rooms software on the latest Windows 11 IoT Enterprise, it facilitates easy connection, content sharing, and collaboration in calls and meetings. The integrated cable management streamlines the setup, simplifying maintenance for IT staff.
Full Meeting Control at Your Fingertips

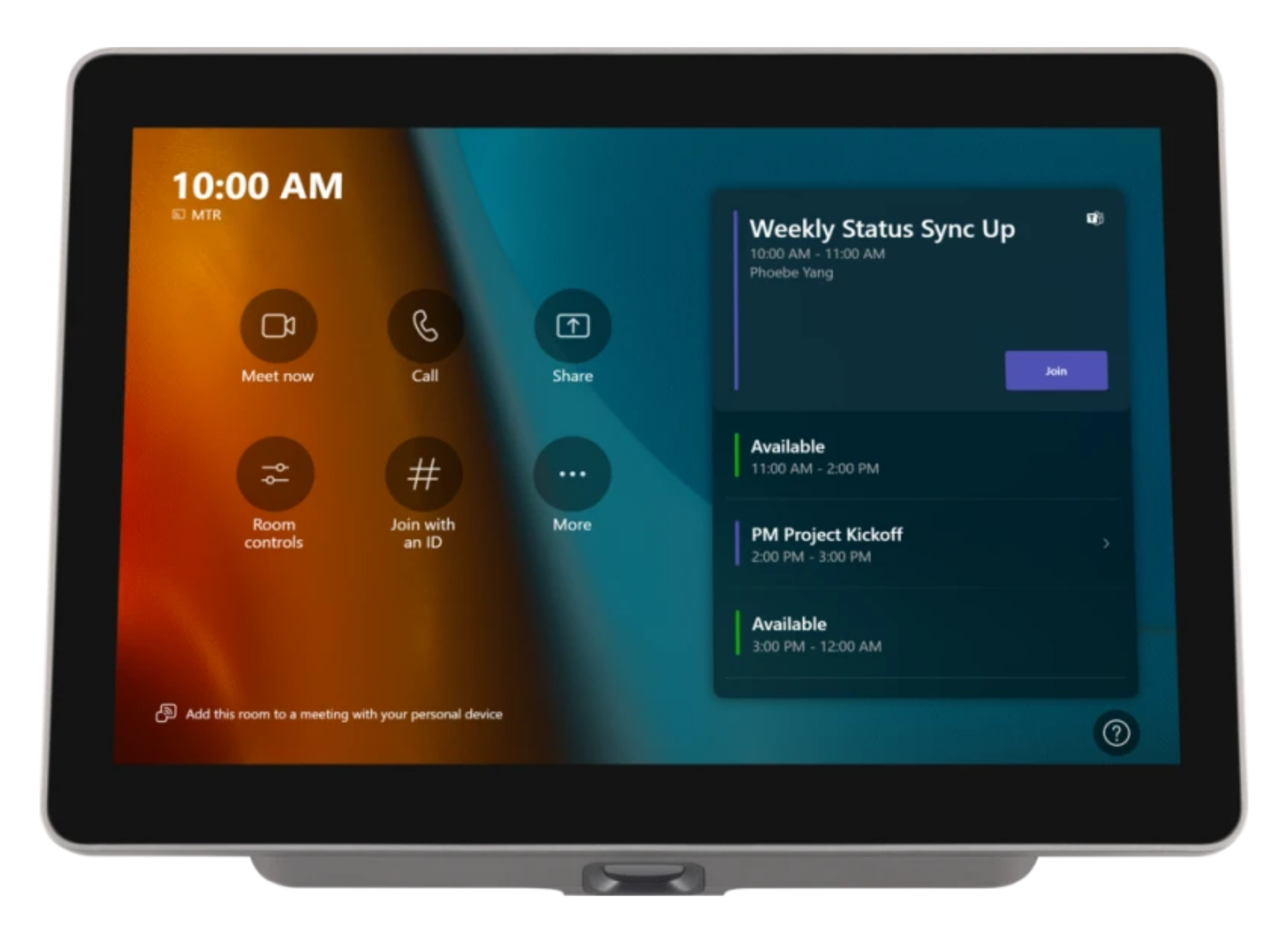

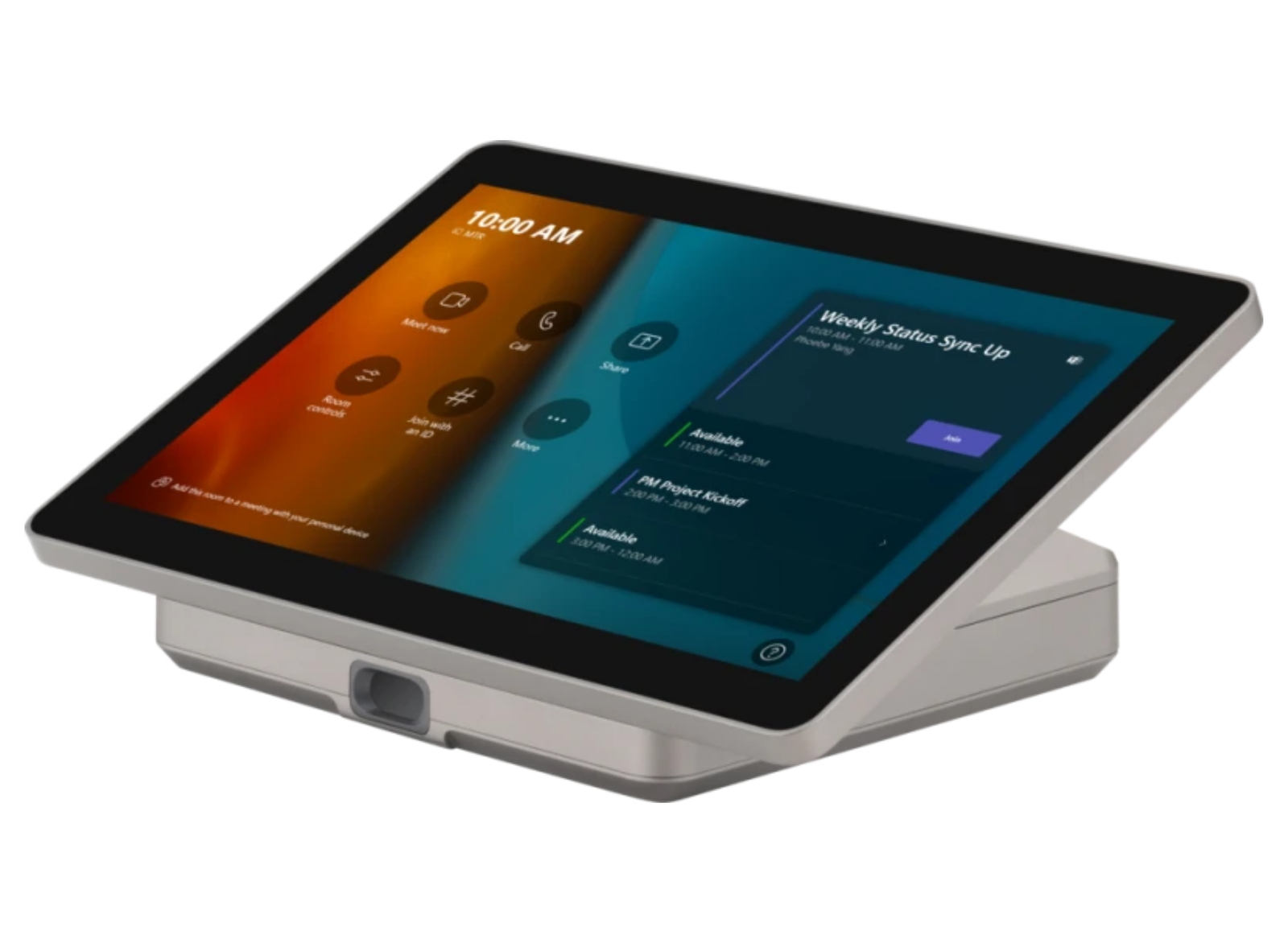

Enjoy intuitive touch control with the MRC1010-TN TeamJoin Touch Console. Featuring Direct HDMI Ingest connectivity for BYOD presentations, this 10.1” Full HD anti-glare touch display offers an easy-to-use Microsoft Teams interface that allows you to start, join and manage meetings—all from your fingertips.
Start Meetings with a Simple Move
The MRC1010-TN TeamJoin Touch Console automatically activates the computing engine and ViewSonic display upon detecting human presence, ensuring the meeting is ready to start the moment you are.Elevate Your Presence in Every Interaction

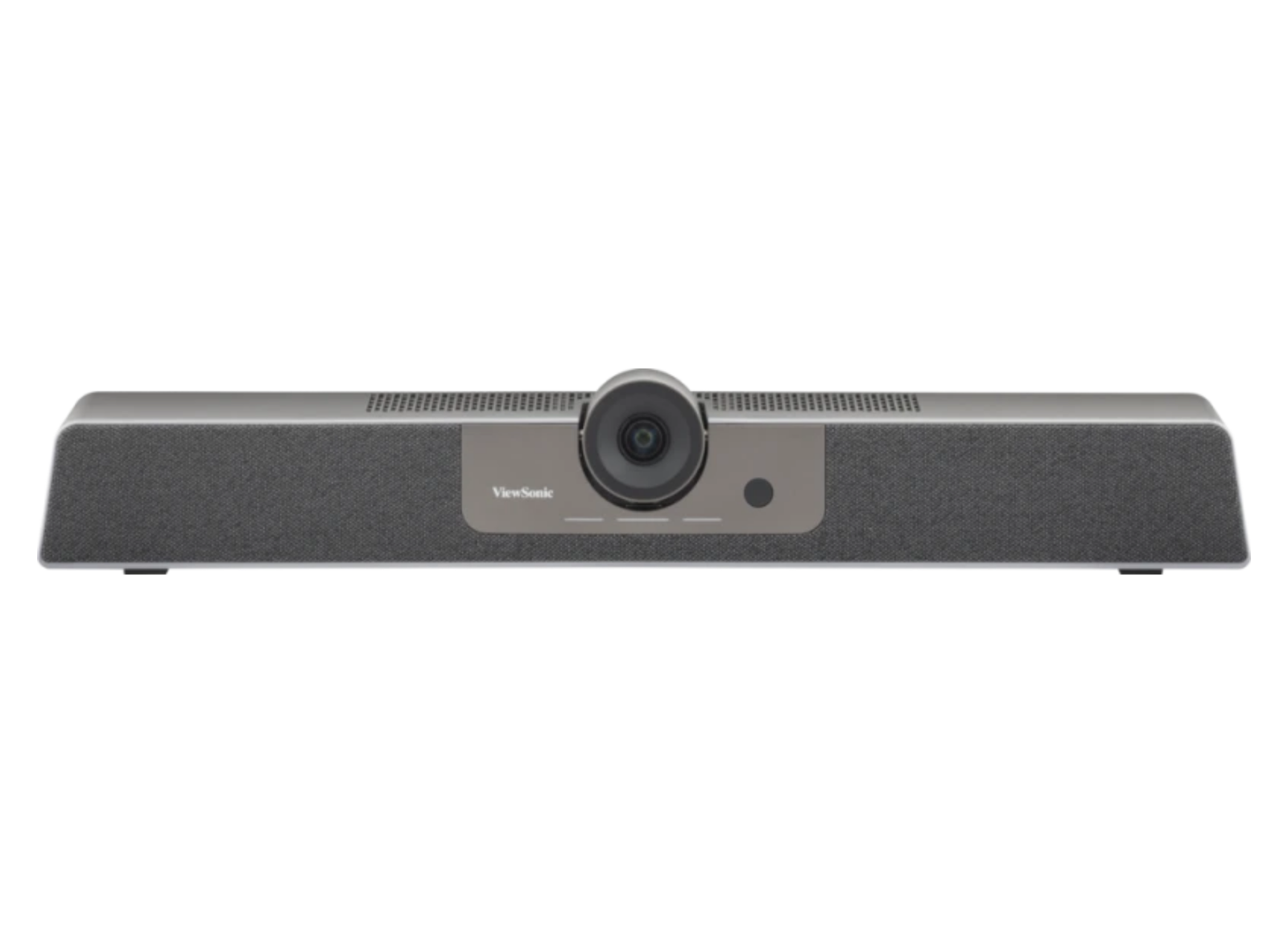

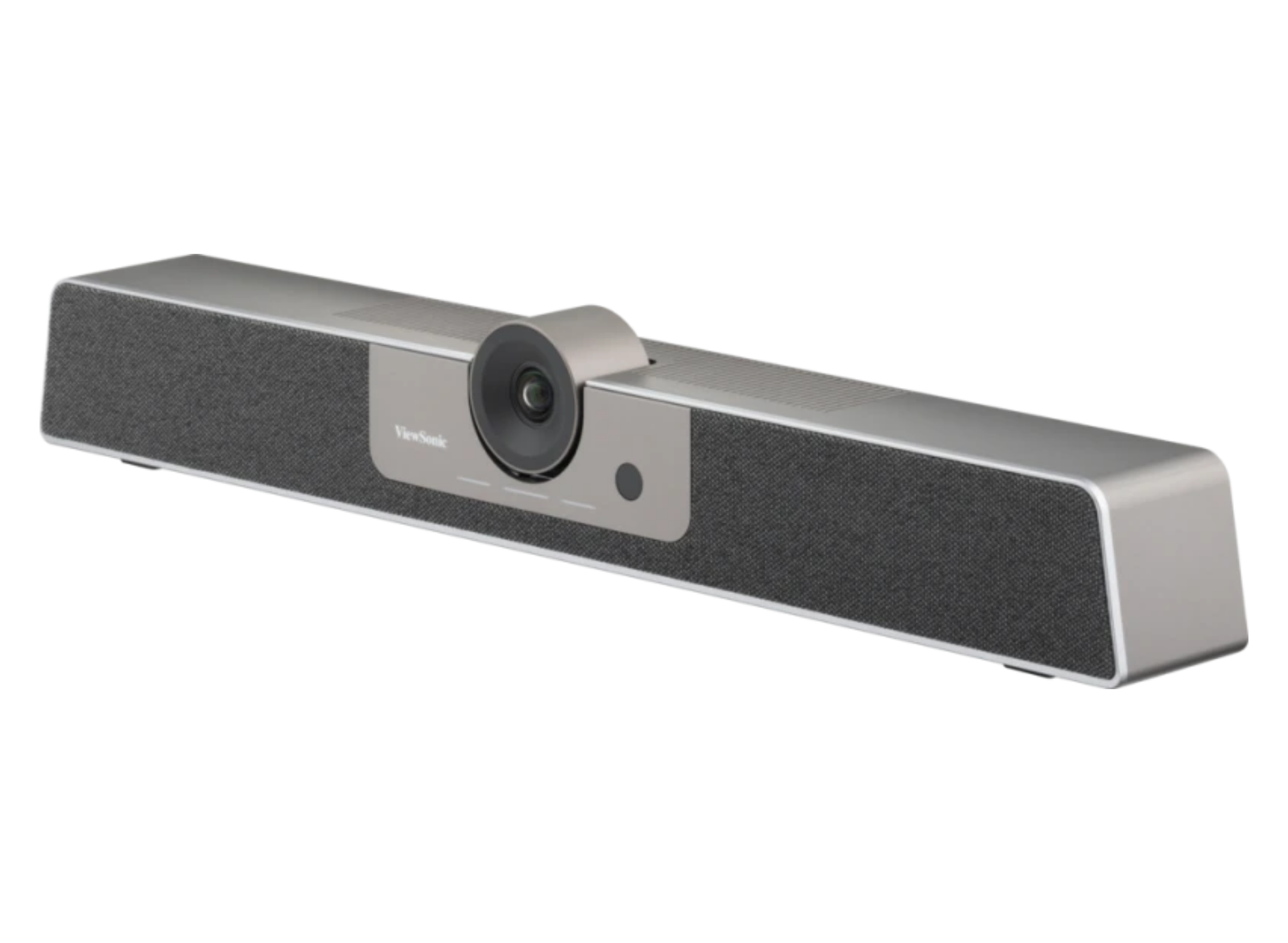

The UMB202 TeamJoin 4K Video Bar System's intelligent auto-framing and Direction-of-Arrival (DOA) voice tracking technology accurately detect individuals and their voices, while the 5x digital zoom with electronic pan and tilt ensures your presence is felt in every interaction, fostering inclusivity and collaboration in every meeting.
See and Hear Everyone Clearly
Ensure everyone is seen and heard with the UMB202 TeamJoin 4K Video Bar System, equipped with a built-in 6-microphone array, an 8W+3W front-facing speaker, and an Ultra HD 4K camera featuring an advanced Sony sensor..Dimension & I/O Ports
-
Computing Engine MPC310-W31-TU CPU Intel i3-1220P (1.5G), Turbo boost 4.4G GPU Intel UHD Memory Type Dual Channel DDR4 Memory Interface DDR4 SODIMM Memory Size 8GB (4x2) Storage Type M.2 2280 SSD Storage Interface SATA Storage Size 128GB USB Type-A 4 x USB3.0 USB Type-C 1 x USB3.0 (DP out 4K@30Hz, USB3.0 upstream In), 12V/2A PD Audio 1 x Audio Combo Jack Ethernet 1 x RJ45 (10M/100M/1000M) HDMI Out 1 x HDMI Video Out, supports 4K@60Hz, CEC control screen power on/off Antenna Built-in (BT) Power Button 1 x Power button Power LED 1 x Power LED (Power on: Blue) OS Recovery 1 x OS recovery Kensington Security Lock 1 x Security slot WLAN Spec No Wi-Fi, BT5.3 Operating System Windows 11 IoT Enterprise (x64) Bundled Software Microsoft Teams Rooms Power Supply Mode Internal power supply module Input Power AC 100-240V 50/60Hz Maximum Power Consumption 111.9W (19V/5.89A) Standby Power Consumption 1.5W Power Requirements 12V/1.5A (Via TYPE-C) Overall Power (Max.) 18W Standby Power ≤0.5W Quick Start Guide x1 VESA Mounting Bracket x1 Power Cord 1.8M x1 USB Type-C Cable 1.8m Type-C x1, includes Type-C to A plug adaptor Remote Control Yes Power Adapter 1 Wall Mount Components 1 Screws Yes Lens Cover 1 QSG Yes Compliance Statement Yes Computing Engine Dimensions 9.01 x 10.85 x 1.69 in / 230 x 275.5 x 43 mm Computing Engine Package Dimensions 14.53 x 11.85 x 4.76 in / 369 x 301 x 121 mm Computing Engine Net Weight 1.86kg (4.10lb) Computing Engine Gross Weight 3.70kg (8.16lb) Additional Dimensions 9.63 x 6.3 x 3.85 in / 245 x 160 x 98 mm Additional Package Dimensions 14.53 x 9.65 x 4.76 in / 369 x 245 x 121 mm Additional Net Weight 0.93kg (2.05lb) Additional Gross Weight 1.95kg (4.3lb) Touch Console MRC1010-TN Display Size 10.1 inch Display Resolution 1920 x 1200 Refreshing Frequency 60Hz NTSC 72% Back Light Unit ELED Brightness with Glass (Typ) 300cd/m² Life Time 20000Hrs System Version Non-OS Touch Sensing Type Capacitance touch recognition Touch Tool Finger Touch Accuracy Middle: ±1 mm; Edge: ≤2.5mm Touch Point 10 points touch Touch Down Latency <25 ms USB 2.0 1 HDMI Ingest 1 Audio Out 1, 3.5mm interface Type-C 1 (DP in, USB downstream 3.0: HDMI signal, 2.0: Touch signal) Motion Sensor PIR x1, supports 24/7 continuous working when screen is off Touch Console Quick Start Guide 1 HDMI Cable 1 x 1.5M Type-C Cable 1 x 5M Video Bar System UMB202 Camera Resolution H.264/MJ @30FPS: 3840×2160, 2560×1440, 1920×1080, 1280×720, 1024×576, 960×540, 800×600, 640×480, 640×360, 480×270, 352×288, 320×240 Camera Resolution NV12 / YUY2 @30FPS: 1920×1080, 1280×720, 640×360 Camera Sensor IMX577 1/2.3 inch, CMOS, 12M pixel Field of View 117.8° DFOV, 109° HFOV, 74.4° VFOV PTZ EPTZ, 5X digital zoom Digital Noise Reduction Yes White Balance Yes Exposure Yes Microphone Array 6 element, 8 meters pickup range Speaker Mid-bass module x1, treble module x1 in one box, maximum output 8W + 3W Output Power 80 dBA @ 1000 Hz @ 1 meter at maximum volume Video Bar USB Type-C 1 Video Bar Audio Out 1 DC 2.0 Power 1 RJ45 1, only for power supply, IEEE 802.3 at, 25.50W max Power Button Function In startup mode, press the power button to mute. In standby mode, press the power button to power on. MIC Mute Button Yes USB Connection Type USB 3.0, downward compatible with USB2.0 Video Compression MJPEG / YUY2 / H.264 / NV12 USB Audio 16K sampling rate, supports UAC2.0 USB Video Communication Protocol UVC 1.1 UVC PTZ Control Support, control via remote controller Auto Framing Yes Voice Tracking Yes Windows Compatibility Windows 7 / 8.1 / 10 / 11 or higher macOS Compatibility macOS 10.10 or higher Google Chromebook Compatibility Google Chromebook Version 29.0.1547.70 or higher Android Compatibility Android -
Description Downloads Datasheet Download
