ViewSonic UMB202 TeamJoin™ 4K Video Bar System
SKU: UMB202
£269.00 (Excl. VAT)
- Description
- Specifications
- Downloads
-
ViewSonic UMB202 TeamJoin™ 4K Video Bar System
The UMB202 TeamJoin™ 4K Video Bar System is part of the ViewSonic TeamJoin™ solutions for Microsoft Teams Rooms, optimizing collaboration in meeting rooms of diverse sizes. Boasting a 4K Sony camera sensor, 5x digital zoom, auto-framing, and DOA voice tracking, it delivers a premium visual experience. Complemented by six beamforming microphones, which cover an expansive 8-meter range, and an 11W speaker, the camera ensures crystal-clear audiovisual quality for seamless communication.
TeamJoin
From Boardroom to Every Room. Videoconferencing for All.
Elevate Your Presence in Every Interaction
The UMB202 TeamJoin 4K Video Bar System's intelligent auto-framing and Direction-of-Arrival (DOA) voice tracking technology accurately detect individuals and their voices, while the 5x digital zoom with electronic pan and tilt ensures your presence is felt in every interaction, fostering inclusivity and collaboration in every meeting.
See and Hear Everyone Clearly

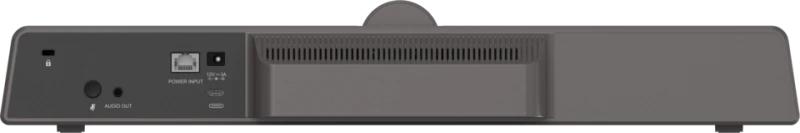

Ensure everyone is seen and heard with the UMB202 TeamJoin 4K Video Bar System, equipped with a built-in 6-microphone array, an 8W+3W front-facing speaker, and an Ultra HD 4K camera featuring an advanced Sony sensor..Dimension & I/O Ports
1. K-Slot
2. Mic Mute
3. Audio Out
4. DC in
5. C-type USB Port
6. Power input via RJ45 -
Category Specification Camera Resolution (H.264/MJ @30FPS) 3840×2160, 2560×1440, 1920×1080, 1280×720, 1024×576, 960×540, 800×600, 640×480, 640×360, 480×270, 352×288, 320×240 Resolution (NV12/YUY2 @30FPS) 1920×1080, 1280×720, 640×360 Sensor IMX577 1/2.3 inch, CMOS, 12M pixel FOV 117.8° (DFOV), 109° (HFOV), 74.4° (VFOV) PTZ EPTZ (5X digital Zoom) Digital Noise Reduction Yes White Balance Yes Exposure Yes Audio Microphone Array 6 element, 8 meters pickup range Speaker Mid-bass module x1, treble module x1 in one box (Maximum output 8W + 3W) Output Power 80 dBA @ 1000 Hz @ 1 meter at maximum volume I/O USB-TypeC 1 Audio Out 1 DC 2.0 Power 1 RJ45 1 (Only for power supply) IEEE 802.3 at 25.50W (max) Power Button In startup mode, press the power button to mute. In standby mode, press the power button to power on. MIC Mute Button Yes USB Feature Connection Type USB 3.0, downward compatible with USB2.0 Video Compression MJPEG / YUY2 / H.264 / NV12 USB Audio 16K sampling rate, support UAC2.0 USB Video Communication Protocol UVC 1.1 UVC PTZ Control Support (Control Via Remote controller) Intelligent Function Auto Framing Yes Voice Tracking Yes System Compatibility OS Windows 7 / 8.1 / 10 / 11 or higher, macOS® 10.10 or higher, Google ChromebookTM Version 29.0.1547.70 or higher, Android Accessory (Inbox) USB Type-C Cable 1.8m Type-C x1 (include Type-C to A Plug adaptor) Remote Control Yes Power Adapter 1 Wall Mount Components 1 Screws Yes Lens Cover 1 QSG Yes Compliance Statement Yes -
Description Downloads Datasheet Downloads User Guide Downloads
