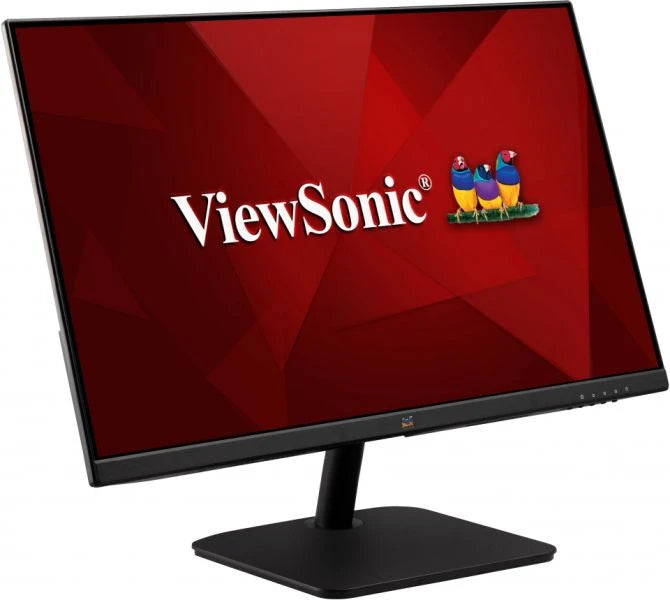

ViewSonic VA2432-MHD

24” IPS Monitor Featuring Display Port, HDMI and Speakers

Description
Specifications
Warranty

OVERVIEW
The ViewSonic VA2432-MHD is a 24” (23.8” viewable) Full HD Monitor with IPS technology and flexible connectivity for use in the office or at home. With SuperClear® IPS technology and Full HD resolution, images are clear and detailed from a wide range of viewing angles. Integrated speakers ensure a crisp and clear sound while Display Port, HDMI, and VGA inputs allow for increased setup flexibility when connecting with other devices. The VA2432-MHD’s three-sided frameless bezel delivers a seamless viewing experience and comes equipped with Eye Care technology to help eliminate eye strain resulting from extended viewing periods. VESA compatibility guarantees easy adaption to both multi-monitor or wall-mount set ups.

Extraordinary Wide-angle Vision
Enjoy vivid colours with consistent brightness and amazing accuracy no matter the vantage point. Enjoy vivid colours with consistent brightness and amazing accuracy no matter the vantage point. SuperClear® IPS monitor features ultra-wide 178-degree vertical and horizontal viewing angles that deliver the same image quality with true-colour accuracy and consistency from screen to print.
SuperClear® IPS

Full HD 1080p Resolution
This monitor features Full HD 1920x1080 resolution for unbelievable pixel-by-pixel image performance. You’ll experience amazing clarity and detail whether working, gaming, or enjoying the latest in multimedia entertainment.
1080p

AMD FreeSync™ Delivers Smooth, Continuous Visuals
With AMD FreeSync™ technology, it eliminates screen tearing and choppy frame rates to provide seamless, flawlessly smooth visuals in every scene.
100Hz FreeSync

React Instantly
Experience better performance and smooth pixel transitions with a fast 1ms (MPRT) response time. React faster and work with precision.
1ms Response Time

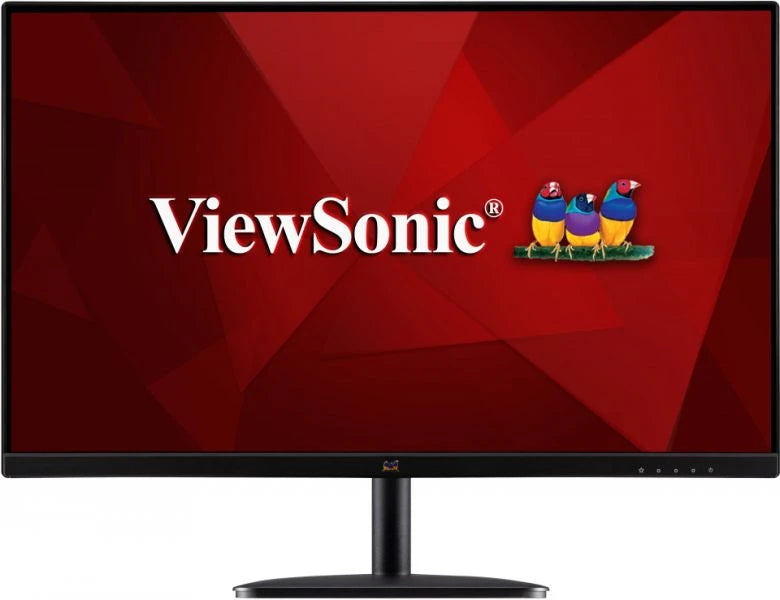

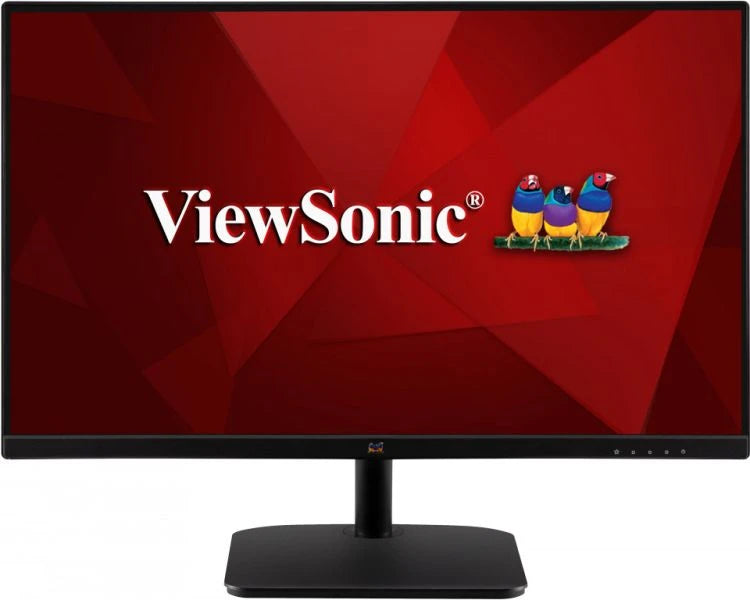

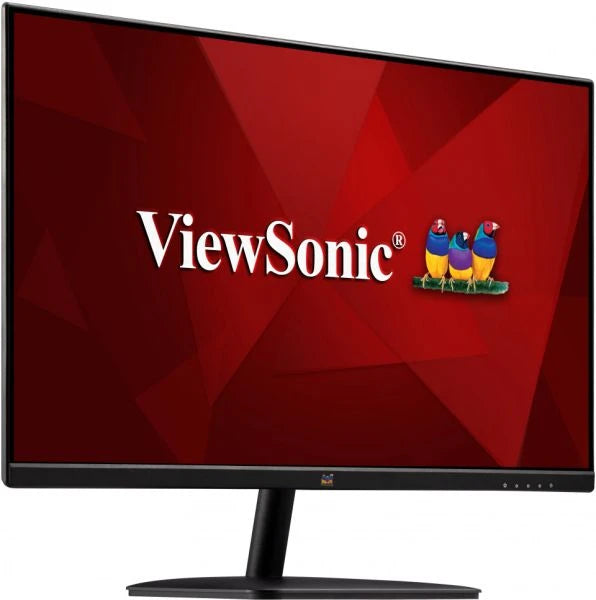

Three-sided frameless design for seamless viewing
With a three-sided frameless bezel, the monitor delivers clean and seamless multi-monitor setup capabilities.
Three-Sided Frameless

Dual Integrated Speakers
Designed with dual integrated speakers, this monitor combines impressive screen performance with big stereo sound for an immersive multimedia experience.
2W Speakers

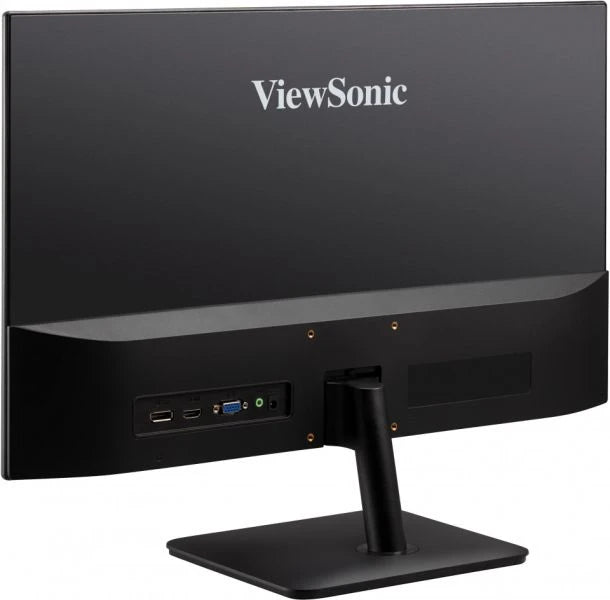

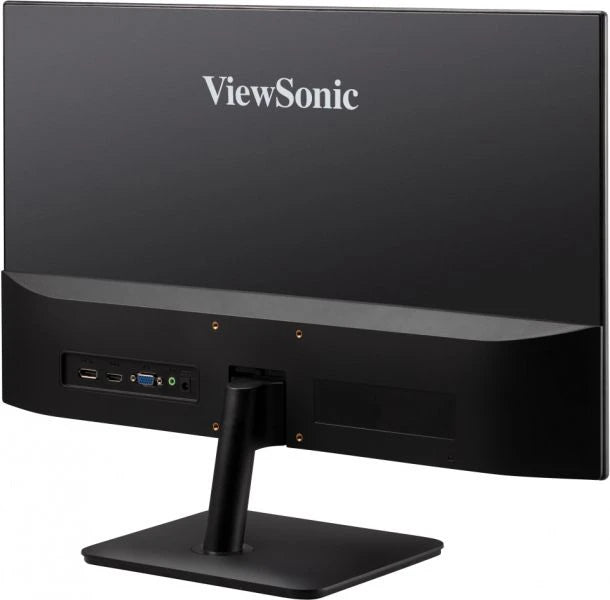

Flexible Connectivity
Display Port, HDMI and VGA inputs give you the freedom to connect your monitor to a wide range of devices.
Display Port, HDMI, VGA

Colour Rendering Options
ViewSonic’s ViewMode offers “Game”, “Movie”, “Web”, “Text”, and “Mono” presets. These presets’ enhance gamma curve, colour temperature, contrast, and brightness to deliver an optimised, satisfactory viewing experience for different uses.
ViewMode: Game/Movie/Web/Text/Mono

Relieve your Eyes from Strain
Comfortable viewing without compromising colour with Flicker-Free technology and Built-in Low Blue Light (LBL) Screen that always eliminates screen flickering and reduces more than 50% of potentially harmful blue light emissions from extended viewing periods.
Flicker Free
Built-in Low Blue Light Screen

Low Energy Consumption
VA2432-MHD’s energy-saving Eco mode takes energy efficiency into consideration while at the same time offering stunning screen performance.
Eco mode

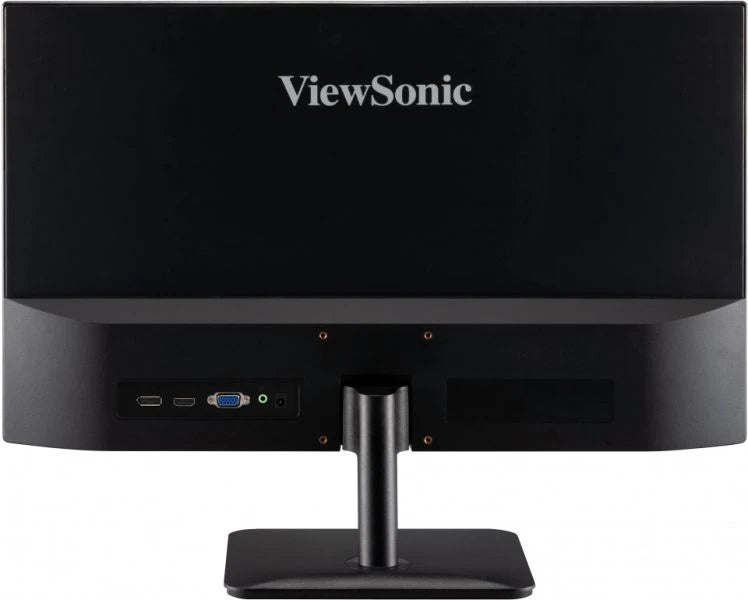

VESA-compatible Mount
75mm x 75mm

Display
Display Size (in.)	24
Viewable Area (in.)	23.8
Panel Type	IPS Technology
Resolution	1920 x 1080
Resolution Type	FHD (Full HD)
Static Contrast Ratio	1,300:1 (typ)
Dynamic Contrast Ratio	50M:1
Light Source	LED
Brightness	250 cd/m² (typ)
Colors	16.7M
Color Space Support	8 bit (6 bit + FRC)
Aspect Ratio	16:9
Response Time (MPRT)	1ms
Viewing Angles	178º horizontal, 178º vertical
Backlight Life (Hours)	30,000 Hrs (Min)
Curvature	Flat
Refresh Rate (Hz)	100
Variable Refresh Rate Technology	FreeSync
Blue Light Filter	Yes
Flicker-Free	Yes
Color Gamut	NTSC: 75% size (Typ) <br> sRGB: 105% size / 99% coverage (Typ)
Pixel Size	0.275 mm (H) x 0.275 mm (V)
Surface Treatment	Anti-Glare, Hard Coating (3H)

Compatibility
PC Resolution (max)	1920x1080
Mac® Resolution (max)	1920x1080
PC Operating System	Windows 10/11 certified; macOS tested
Mac® Resolution (min)	1920x1080

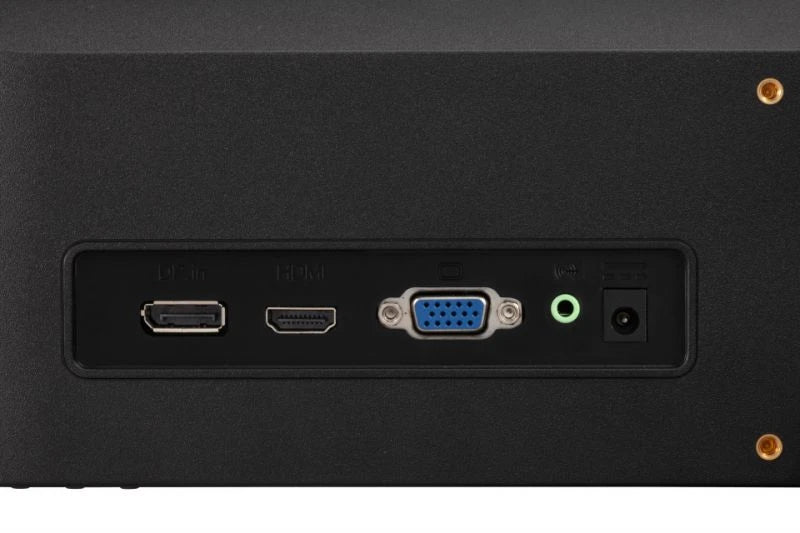

Connector
VGA	1
3.5mm Audio Out	1
HDMI 1.4	1
DisplayPort	1
Power in	DC Socket (Center Positive)

Audio
Internal Speakers	2 Watts x 2

Power
Eco Mode (Conserve)	15W
Eco Mode (optimized)	18W
Consumption (typical)	22W
Consumption (max)	25W
Voltage	AC 100-240V
Stand-by	0.3W
Power Supply	External Power Adaptor

Additional Hardware
Kensington Lock Slot	1

Controls
Physical Controls	Key 1 (favorite), Key 2, Key 3, Key 4, Key 5 (power)
On Screen Display	Input Select, Audio Adjust, ViewMode, Color Adjust, Manual Image Adjust, Setup Menu

Operating Conditions
Temperature	32°F to 104°F (0°C to 40°C)
Humidity (non-condensing)	20% to 90%

Wall Mount
VESA Compatible	75 x 75 mm

Input Signal
Frequency Horizontal	RGB Analog: 24 ~ 86KHz <br> HDMI (v1.4): 30 ~ 115KHz <br> DisplayPort (v1.2): 30 ~ 115KHz
Frequency Vertical	RGB Analog: 48 ~ 75Hz <br> HDMI (v1.4): 48 ~ 100Hz <br> DisplayPort (v1.2): 48 ~ 100Hz

Video Input
Digital Sync	TMDS - HDMI (v1.4), PCI-E - DisplayPort (v1.2)
Analog Sync	Separate - RGB Analog

Ergonomics
Tilt (Forward/Back)	-3º / 20º

Weight
Net (lbs)	6
Net Without Stand (lbs)	5.3
Gross (lbs)	8.2

Weight (metric)
Net (kg)	2.7
Net Without Stand (kg)	2.4
Gross (kg)	3.7

Dimensions (imperial) (wxhxd)
Packaging (in.)	23.6 x 15.6 x 4.4
Physical (in.)	21.3 x 16 x 7.3
Physical Without Stand (in.)	21.3 x 12.7 x 1.4

Dimensions (metric) (wxhxd)
Packaging (mm)	600 x 395 x 112
Physical (mm)	540 x 406 x 185
Physical Without Stand (mm)	540 x 322 x 36

General
Regulations	CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, UKCA, BSMI, RCM, GEMS, KC, e-Standby, BIS
Package Contents	VA2432-MHD x1, HDMI Cable (v1.4; Male-Male) x1, AC/DC Adapter x1, Quick Start Guide x1, Power plug x1 or 2 (by country)
Recycle/Disposal	Please dispose of in accordance with local, state, or federal laws.
Warranty	*Warranty offered may differ from market to market
