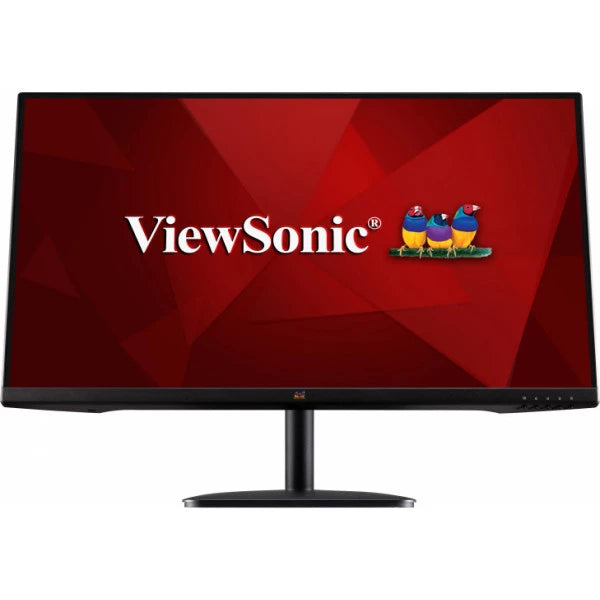

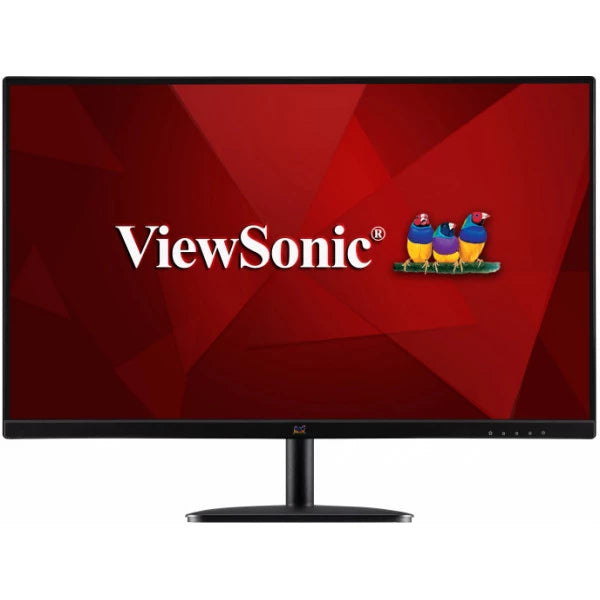

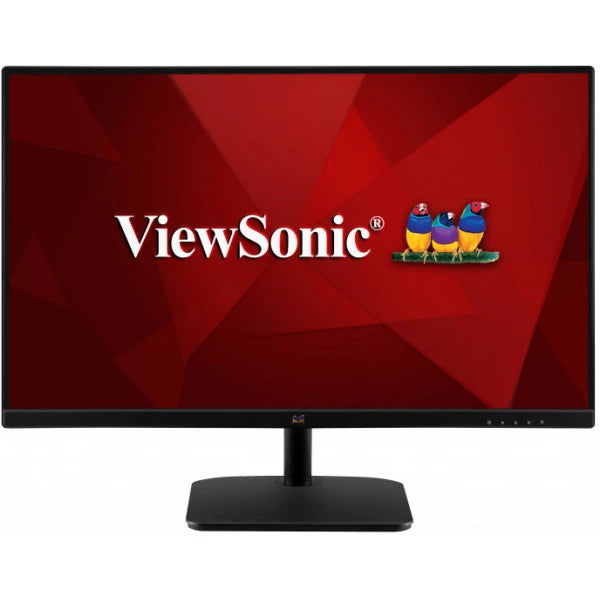

ViewSonic VA2732-H

27” Full HD IPS Monitor Featuring HDMI

Description
Specifications
Warranty

OVERVIEW
The ViewSonic VA2732-H is a 27” (27” viewable) Full HD Monitor with IPS technology and flexible connectivity for use in the office or at home. With SuperClear® IPS technology and Full HD resolution, images are clear and detailed from a wide range of viewing angles. HDMI and VGA inputs allow for increased setup flexibility when connecting with other devices. The VA2732-H’s three-sided frameless bezel delivers a seamless viewing experience and comes equipped with Eye Care technology to help eliminate eye strain resulting from extended viewing periods. VESA compatibility guarantees easy adaption to both multi-monitor or wall-mount set ups.

SuperClear® IPS
Enjoy rich vivid color and consistent brightness no matter the vantage point. With SuperClear® IPS panel technology, the monitor delivers consistent image quality weather you are looking from above, below, the side, or in front of the display.
178°/178°

Full HD 1080p Resolution
This monitor features Full HD 1920x1080 resolution for unbelievable pixel-by-pixel image performance. You’ll experience amazing clarity and detail whether working, gaming, or enjoying the latest in multimedia entertainment.
1080p

75Hz Refresh Rate
With 75Hz refresh rate, this monitor delivers great visual fluidity and flawless graphics no matter how quickly the in-game action unfolds.
75Hz

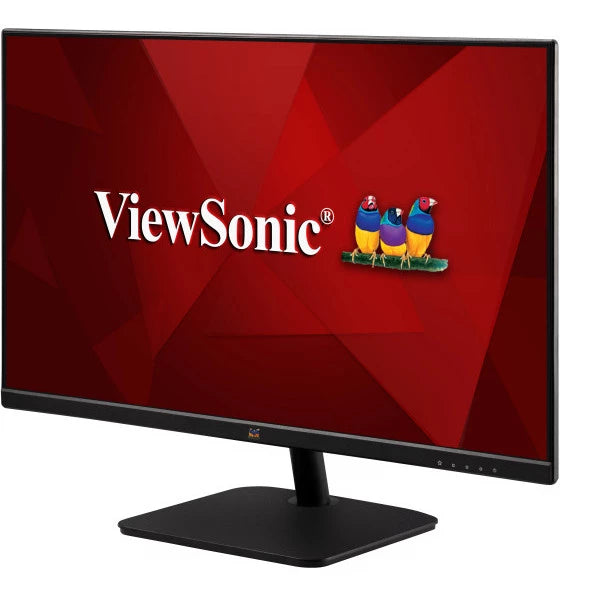

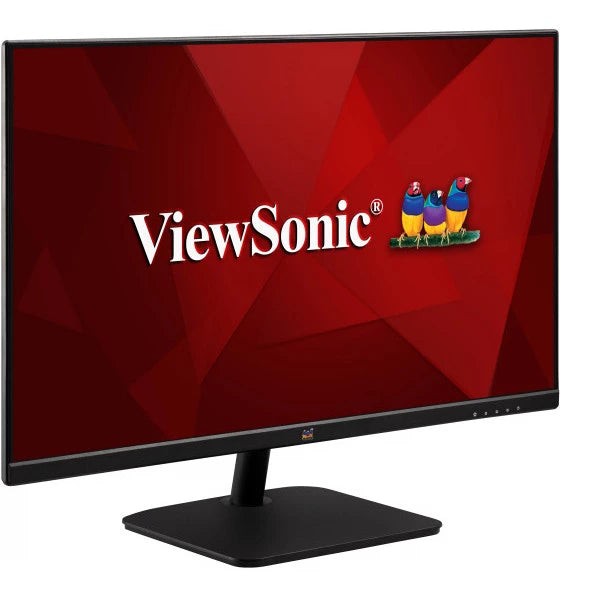

Three-sided Frameless Design for Seamless Viewing
With a three-sided frameless bezel, the monitor delivers clean and seamless multi-monitor setup capabilities.
Three-Sided Frameless

Flexible Connectivity
HDMI and VGA inputs give you the freedom to connect your monitor to a wide range of devices.
HDMI, VGA

ViewMode: Superior Color Rendering & Intuitive Settings
ViewSonic’s unique ViewMode feature offers “Game,” “Movie,” “Web,” “Text,” and “Mono” presets. These presets enhance gamma curve, color temperature, contrast, and brightness to deliver an optimized viewing experience for different screen applications.
“Game,” “Movie,” “Web,” “Text,” “Mono”, and “Mac”

Comfortable Viewing
Flicker-Free technology and Blue Light Filter help to eliminate eyestrain from extended viewing periods.
Flicker-Free & Blue Light Filter

Low Energy Consumption
VA2732-H’s energy-saving Eco mode takes energy efficiency into consideration while at the same time offering stunning screen performance.
Eco Mode

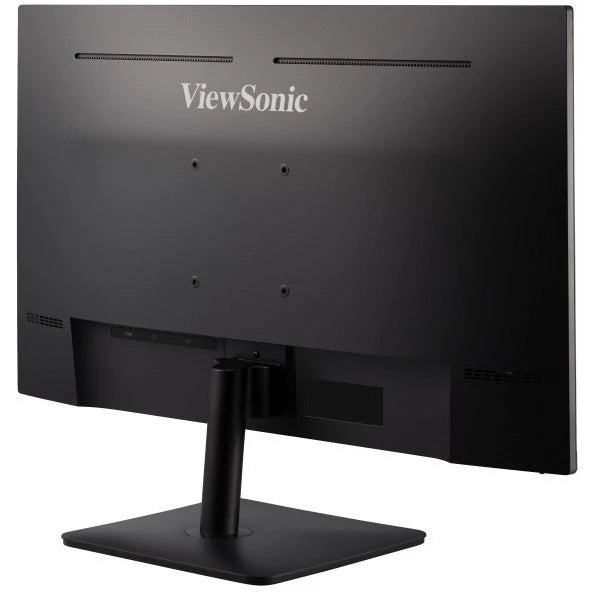

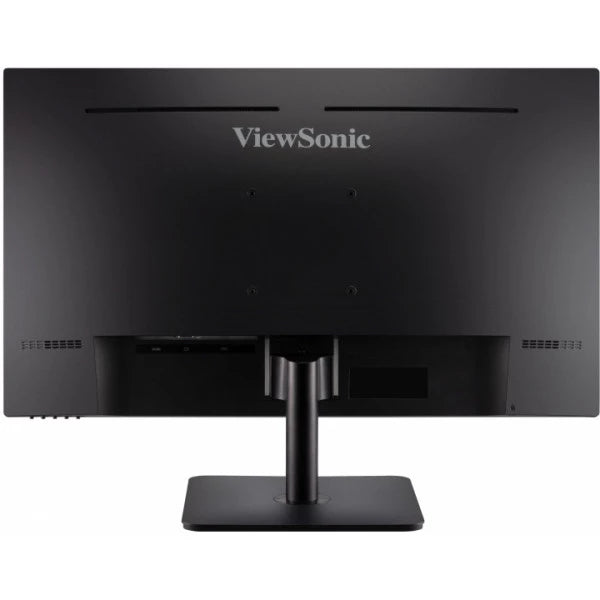

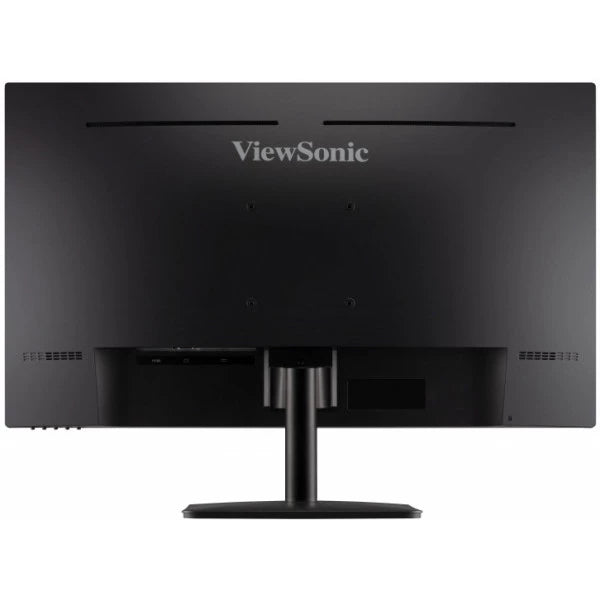

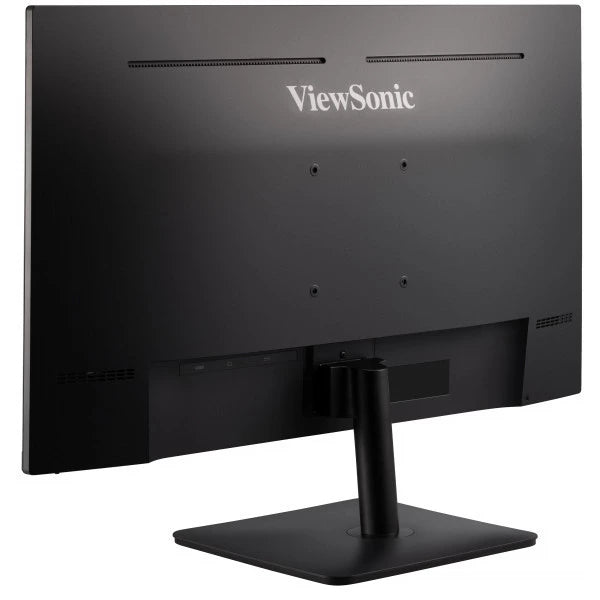

VESA-Compatibility
Mount the monitor where you see fit by using its VESA-compatible mount.
100 mm x 100 mm

Specification	Details
Display Size (in.)	27
Viewable Area (in.)	27
Panel Type	IPS Technology
Resolution	1920 x 1080
Resolution Type	FHD
Static Contrast Ratio	1,000:1 (typ)
Dynamic Contrast Ratio	50M:1
Light Source	LED
Brightness	250 cd/m² (typ)
Colors	16.7M
Color Space Support	8 bit (6 bit + Hi-FRC)
Aspect Ratio	16:9
Response Time (Typical GTG)	4ms
Viewing Angles	178º horizontal, 178º vertical
Backlight Life (Hours)	30000 Hrs (Min)
Curvature	Flat
Refresh Rate (Hz)	75
Blue Light Filter	Yes
Flicker-Free	Yes
Color Gamut	NTSC: 72% size (Typ), sRGB: 104% size (Typ)
Pixel Size	0.311 mm (H) x 0.311 mm (V)
Surface Treatment	Anti-Glare, Hard Coating (3H)
Compatibility
PC Resolution (max)	1920x1080
Mac® Resolution (max)	1920x1080
PC Operating System	Windows 10 certified; macOS tested
Mac® Resolution (min)	1920x1080
Connector
VGA	1
HDMI 1.4	1
Power in	External power adapter
Power
Eco Mode (Conserve)	20W
Eco Mode (optimized)	24W
Consumption (typical)	28W
Consumption (max)	30W
Voltage	AC 100-240V, 50/60 Hz
Stand-by	0.3W
Power Supply	External
Additional Hardware
Kensington Lock Slot	1
Controls
Physical Controls	Key 1 (favorite), Key 2, Key 3, Key 4, Key 5 (power)
On Screen Display	Input Select, ViewMode, Color Adjust, Manual Image Adjust, Setup Menu
Operating Conditions
Temperature	32°F to 104°F (0°C to 40°C)
Humidity (non-condensing)	20% to 90%
Wall Mount
VESA Compatible	100 x 100 mm
Input Signal
Frequency Horizontal	24 ~ 86KHz
Frequency Vertical	48 ~ 75Hz
Video Input
Digital Sync	TMDS - HDMI (v1.4)
Analog Sync	Separate - RGB Analog
Ergonomics
Tilt (Forward/Back)	-5º / 20º
Weight (imperial)
Net (lbs)	9
Net Without Stand (lbs)	7.9
Gross (lbs)	13.2
Weight (metric)
Net (kg)	4.1
Net Without Stand (kg)	3.6
Gross (kg)	6
Dimensions (imperial)
Packaging (in.)	27.4 x 18.1 x 5.7
Physical (in.)	24.2 x 18 x 8.9
Physical Without Stand (in.)	24.2 x 14.3 x 1.8
Dimensions (metric)
Packaging (mm)	695 x 460 x 145
Physical (mm)	615 x 458 x 225
Physical Without Stand (mm)	615 x 364 x 46
General
Regulations	CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, UKCA, BSMI, KC, e-Standby, BIS
PACKAGE CONTENTS	VA2732-H x1, 3-pin Plug (IEC C13 / CEE22) x1, HDMI Cable (v1.4; Male-Male) x1, AC/DC Adapter x1, Quick Start Guide x1
Recycle/Disposal	Please dispose of in accordance with local, state, or federal laws.
Warranty	*Warranty offered may differ from market to market

Warranty

ViewSonic provides customers with the security of a manufacturer’s warranty against defected products. We are keen to provide our customers with great peace of mind and confidence in our product. With that in mind, we are now providing 3 years limited warranty on selected*
