The 6-in-1 Smart Sensor VB-SEN-001 is an accessory module for the ViewBoard IFP50-5 and IFP33 Series that provides smart classrooms with comprehensive conditions monitoring tools. Equipped with multiple sensors, it measures the CO2 and PM2.5 levels, temperature, and humidity to ensure optimal learning conditions at all times. The device provides extended interactive whiteboard access possibilities with advanced detectors and PIR technology that automatically wakes up the interactive whiteboard when people are in the room, and an NFC chip reader to restrict access to authorized personnel. The 6-in-1 Smart Sensor is powered by the ViewBoard via USB, eliminating the need for an additional adapter and maintaining a clutter-free learning space.
Maintain the Best Learning Conditions

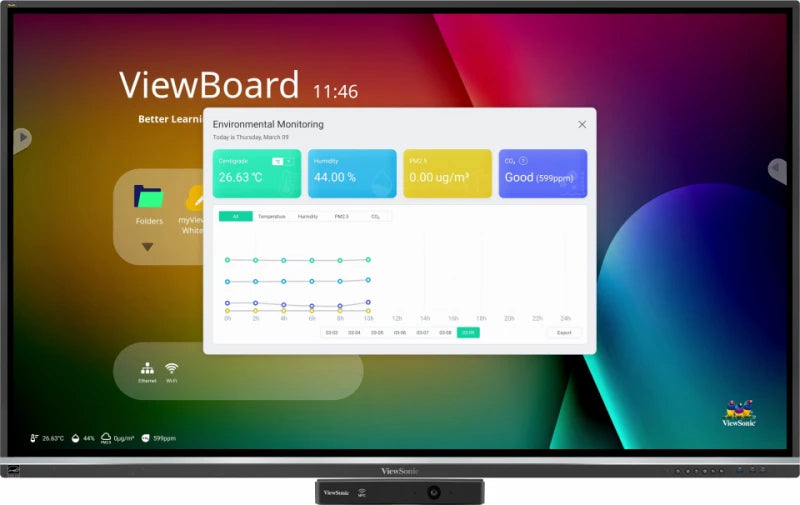

The VB-SEN-001 Smart Sensor measures the room's humidity, temperature, particulate matter, and CO2 levels in real-time. This information is displayed on-screen and can be accessed and exported via the dedicated dashboard for further analysis, enabling educators to maintain an optimal learning environment at all times.
Save Energy with Smart Sensor and PIR Technology
Start your lesson immediately after entering the classroom. The Smart Sensor's advanced detectors and PIR technology wake up the ViewBoard when detecting movement within a 7-meter radius, allowing the teacher to focus on their class while being more energy-efficient.
Manage Access Securely
Improve access management and ensure that the ViewBoard is not used inappropriately. The VB-SEN-001 Smart Sensor allows you to unlock the interactive whiteboard by swiping a work badge or any registered NFC card, enhancing security and preventing unauthorized use.
| PIR Sensor | |||
| Detection Range | 0–7 m | Detection Angle | 0–5 m: -40° to +40° (80°) 5–7 m: -10° to +10° (20°) |
| Humidity Sensor | |||
| Humidity Accuracy | ±5% | Humidity Range | 5% RH to 95% RH |
| Temperature Sensor | |||
| Temperature Accuracy | ±2°C | Temperature Range | -20°C to 85°C |
| NFC Technology | |||
| Operation Mode | Reader / Writer | Detection Distance | 3–5 cm |
| Supported ISO Standards | ISO 15693 @ 13.56 MHz and ISO 14443 @ 13.56 MHz | ||
| Air Quality Sensors | |||
| PM2.5 Detection Range | 0–1000 μg/m³ | VOCs Response Time | < 2 seconds |
| VOCs Detection Range | 400–29000 ppm | ||
| Connectivity & Power | |||
| USB Connection | USB Type-B (2.0) | Power Voltage | 5V / 0.5A |
| Supported Operating System | Android 11 | ||
| Dimensions & Weight | |||
| Physical Dimensions (L x W x H) | 206 x 69 x 31.7 mm / 8.1 x 2.7 x 1.24 in | Net Weight | 0.183 kg / 0.4 lb |
| Operating Conditions | |||
| Operating Temperature | 0°C to 40°C | Operating Humidity | 10%–90% RH (non-condensing) |
| Storage Conditions | |||
| Storage Temperature | -20°C to 60°C | Storage Humidity | 10%–90% RH |
| Package Contents | |||
| USB Cable | USB Type-B to Type-A cable | Mounting Screws | Included |
| Cable Clips | Included | Quick Start Guide | Included |
| Description | Downloads |
|---|---|
| Datasheet | Download |
