Enter your screen SKU and we will instantly check whether this mount is suitable for your display based on VESA pattern compatibility.

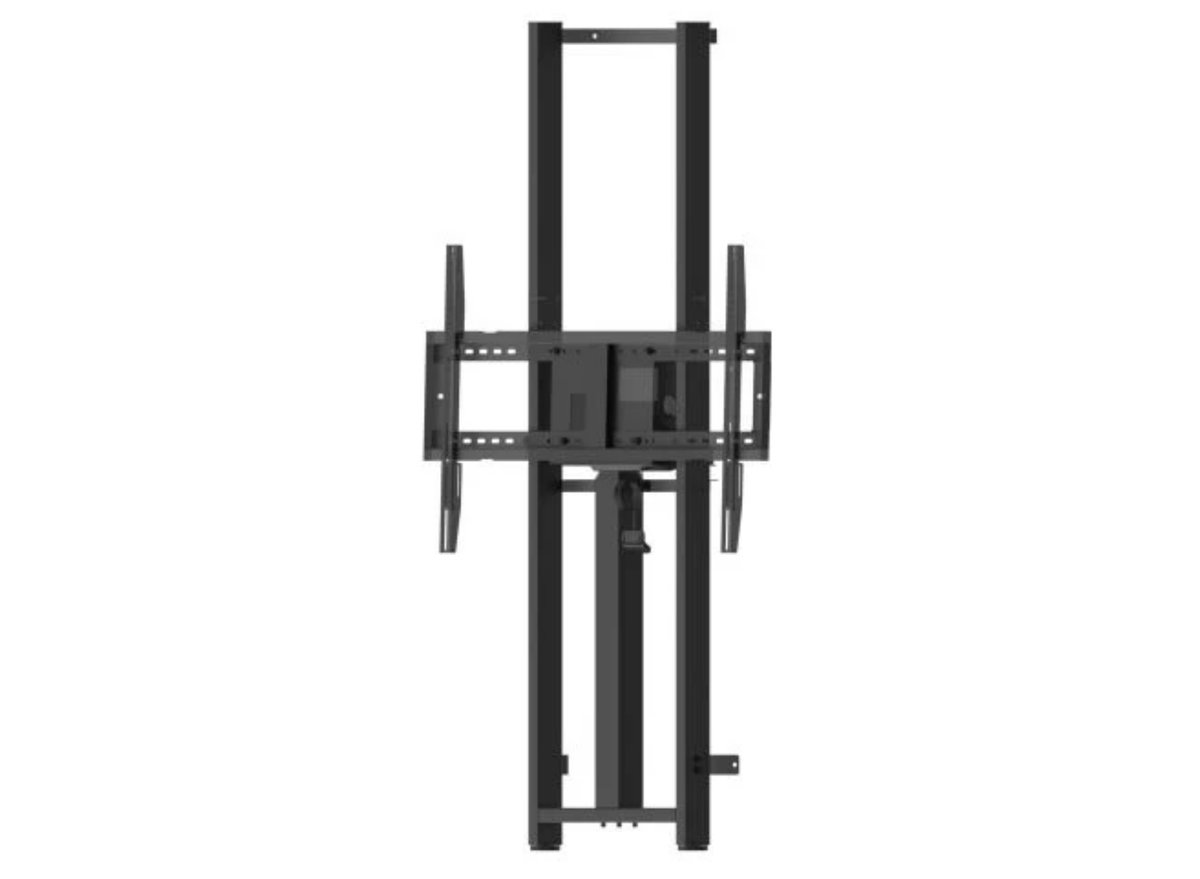

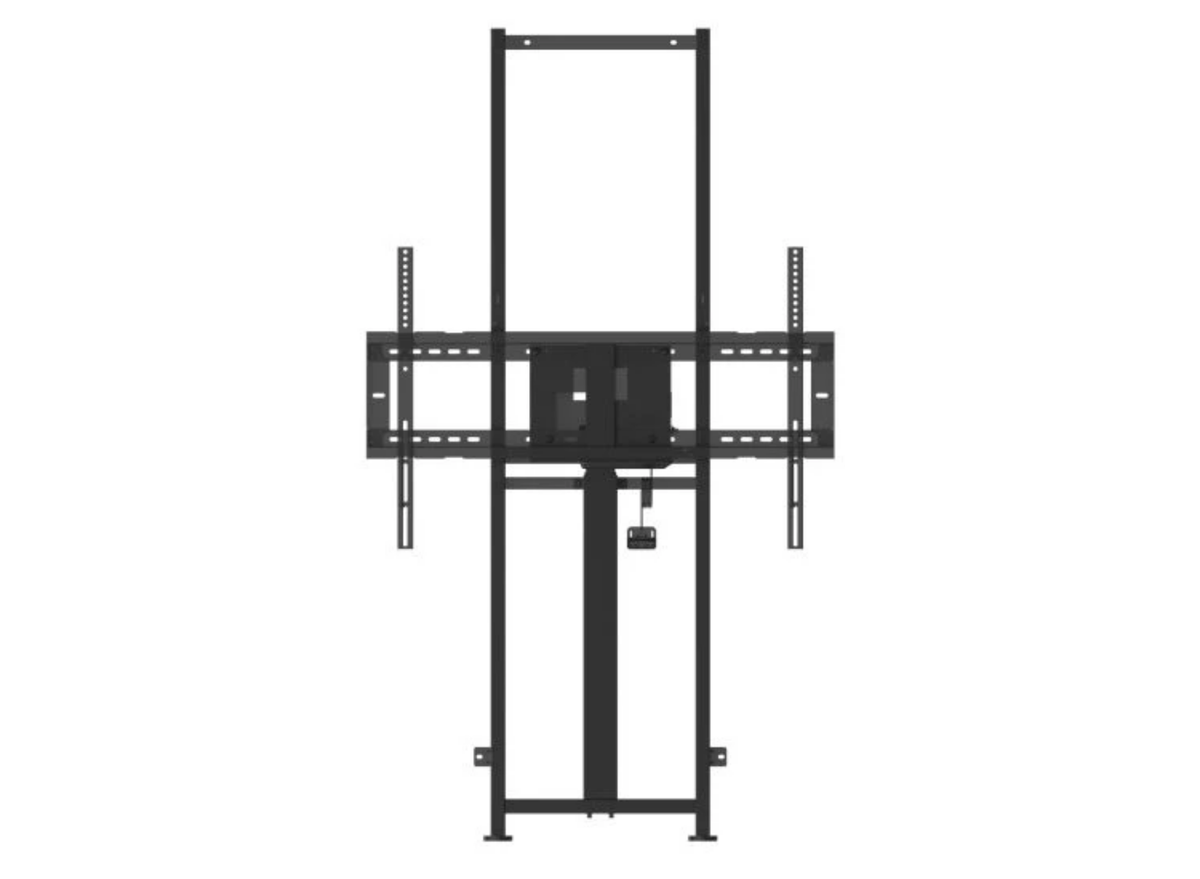

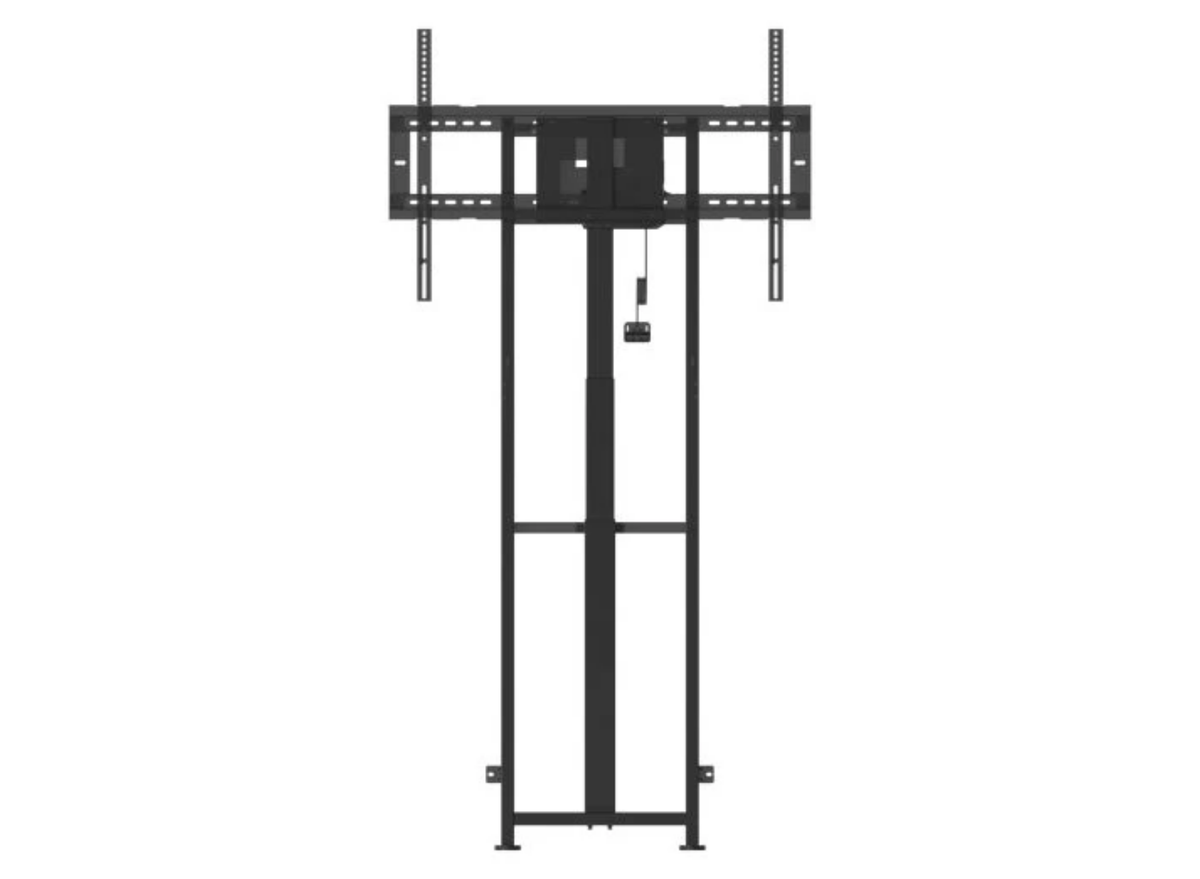

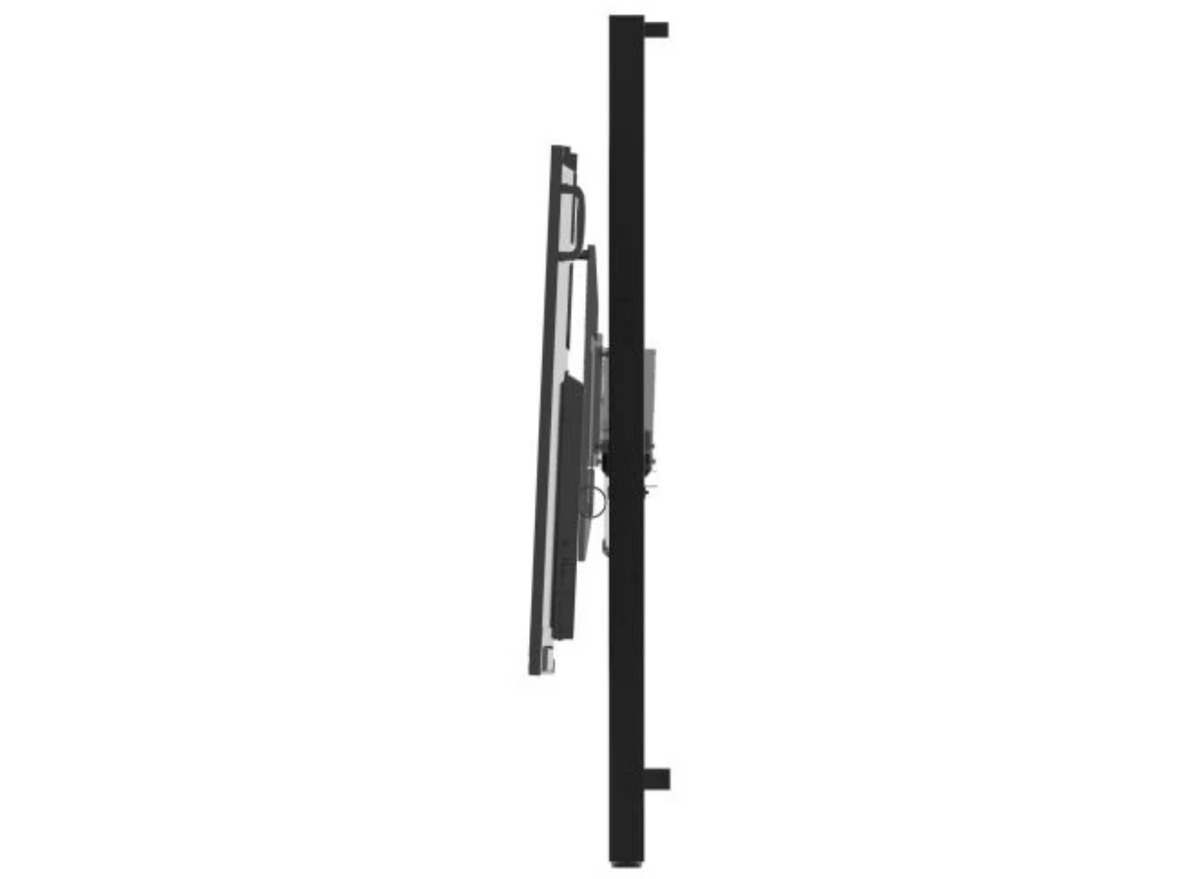

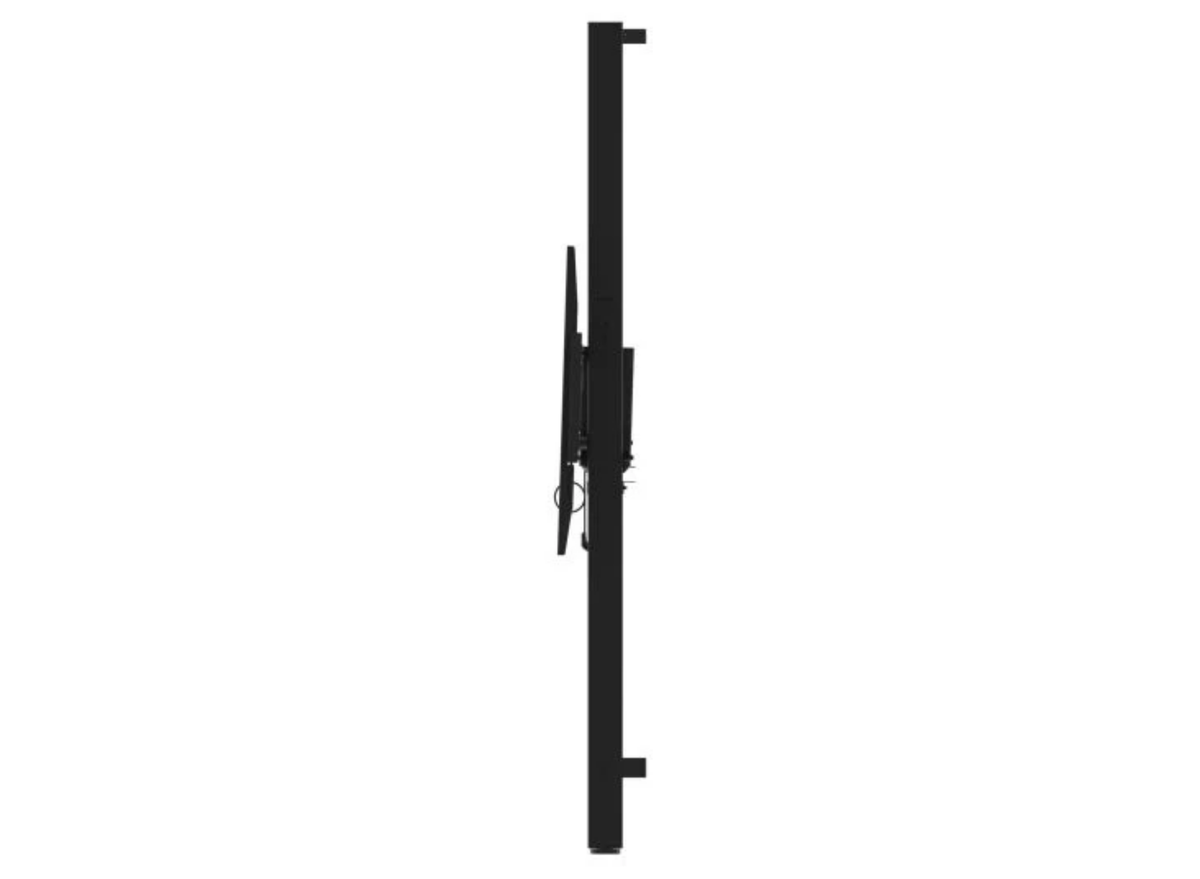

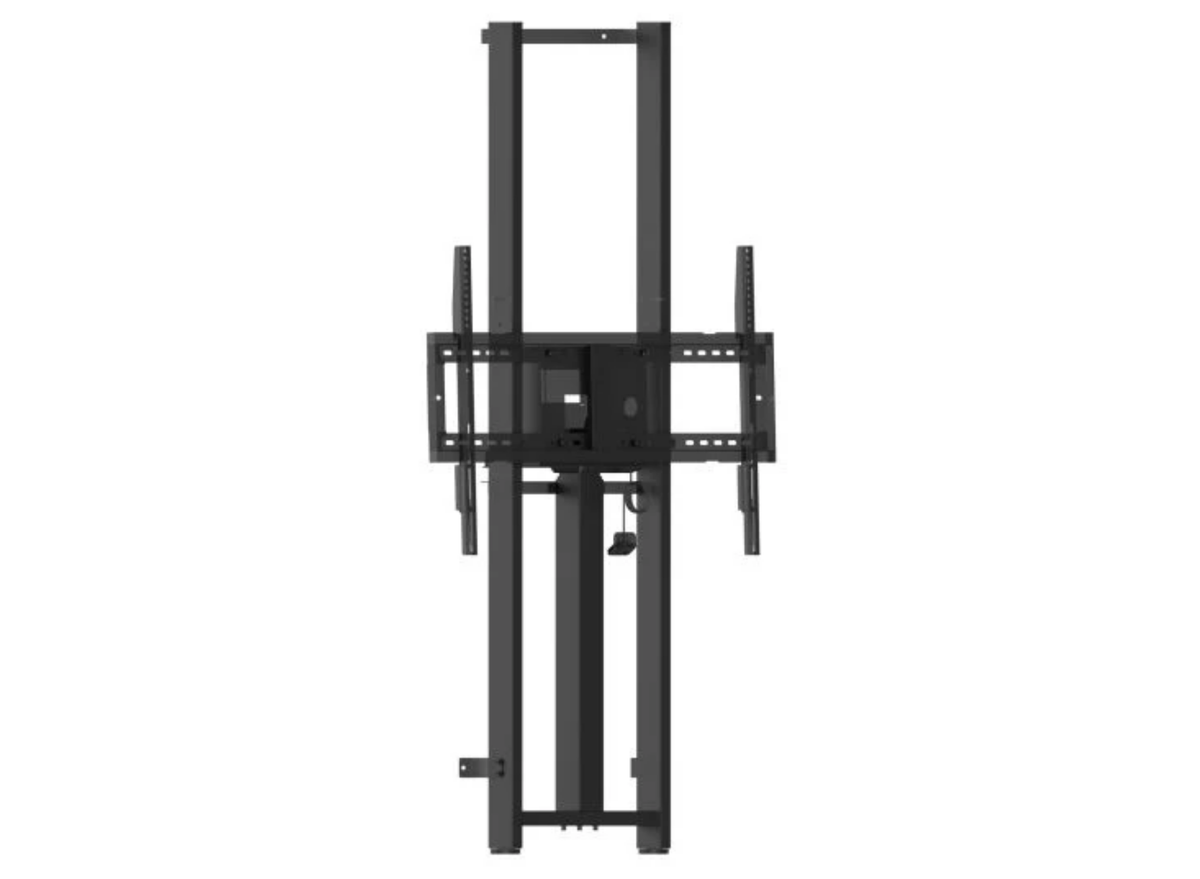

The ViewSonic® VB-STND-104 is a motorised wall mount stand that enables smooth and quiet height adjustment with up to 650mm of vertical travel. Designed to support ViewSonic 55”, 65”, 75”, and 86” ViewBoard® interactive flat panel displays—or any display up to 75 kg—it offers a simple and practical solution for fixed installations. A user-friendly control pad allows one-touch adjustment for improved accessibility and convenience.
*With the optional VE-MT-001 mobile kit, the VB-STND-104 can be converted into a mobile trolley for added flexibility.
| Ergonomics & Mounting Specifications | |||

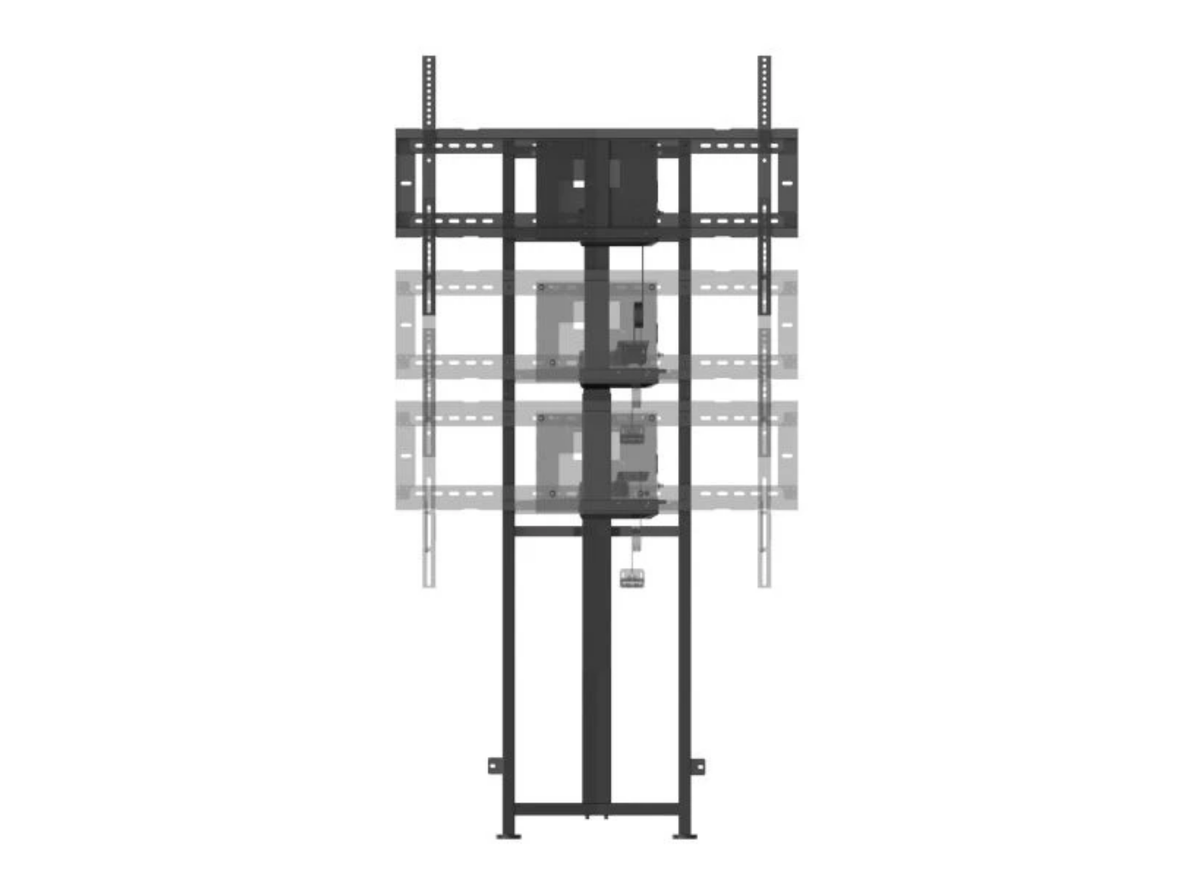

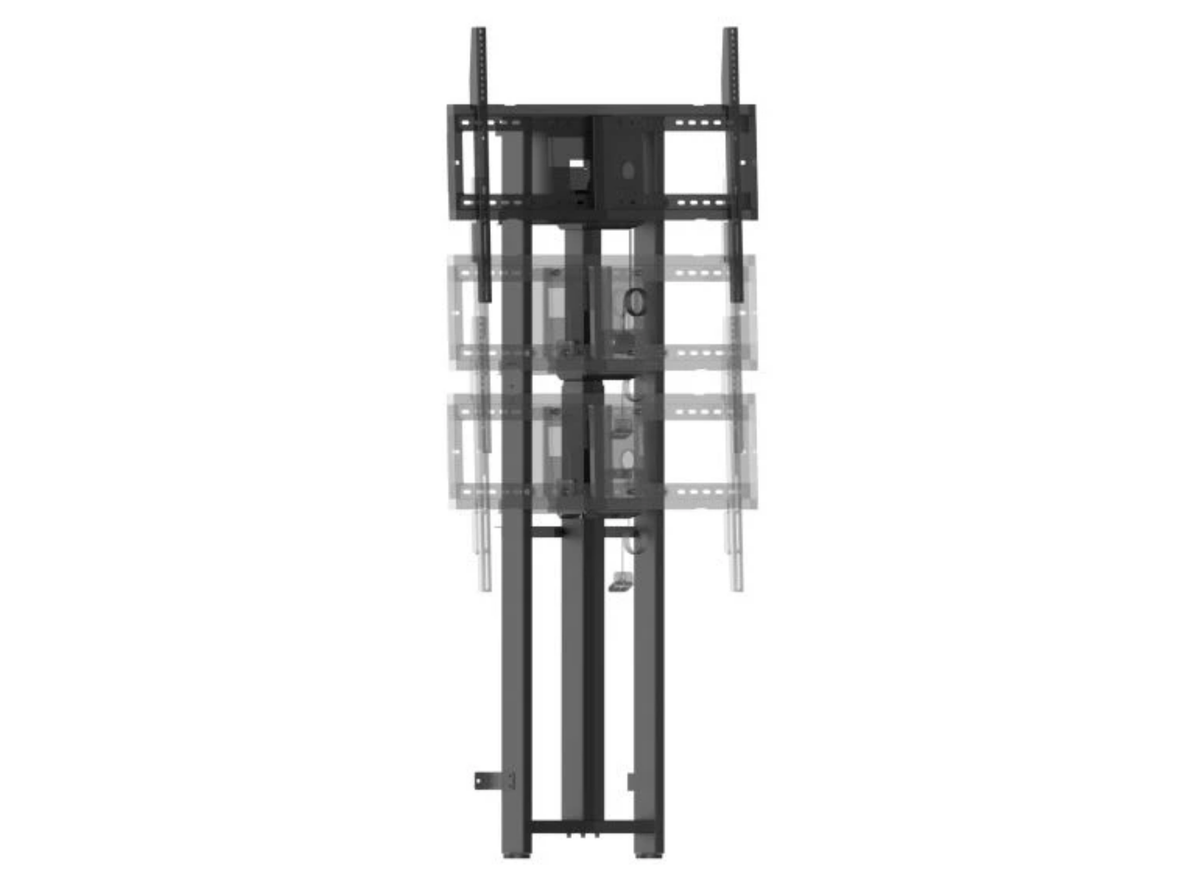

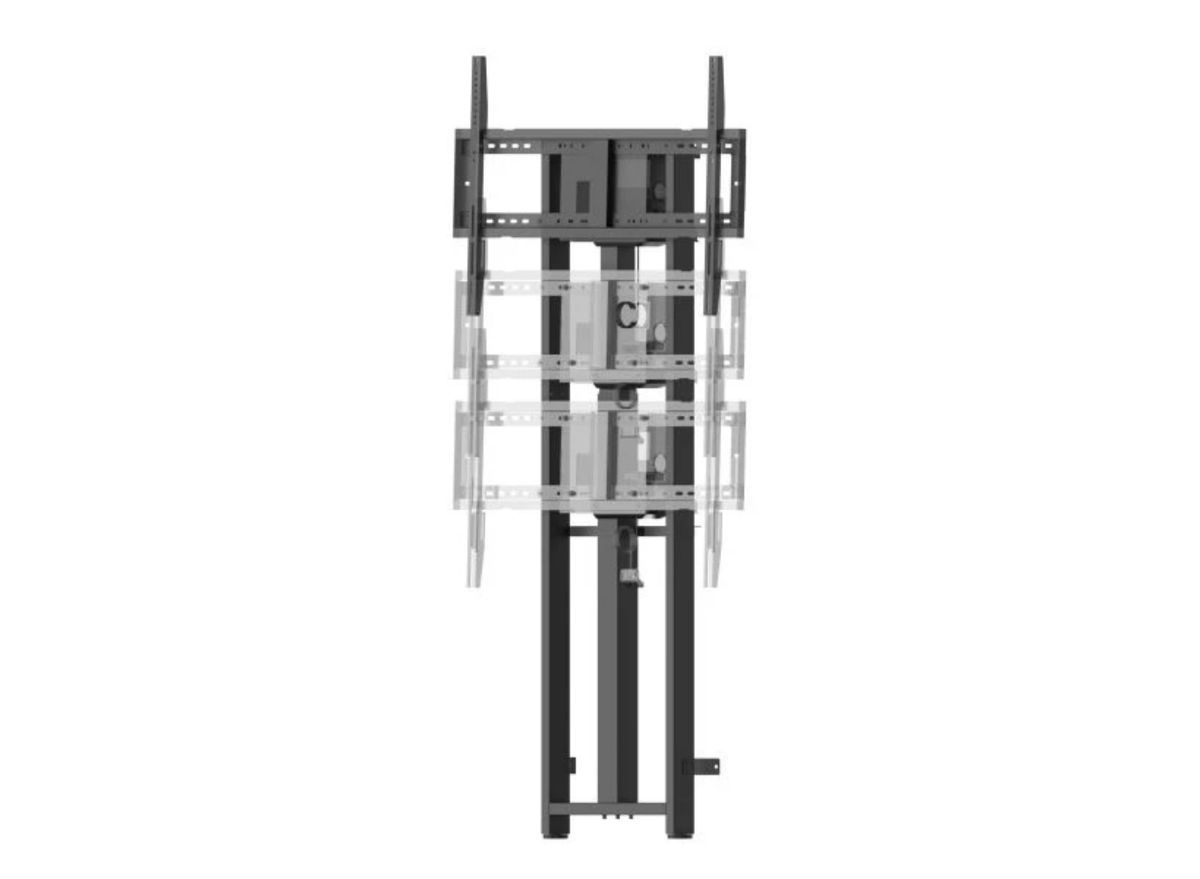

| Height Adjustment | 650 mm (25.59") | Lifting Speed | 22 mm/s |
| Wall Mount Bracket | Up to 800 x 600 mm | Material | SPCC |
| Maximum Wall Mount Load | 75 kg / 165 lb | ||
| Dimensions & Weight | |||
| Physical Dimensions (W x H x D) | 960 x 1667 x 172 mm / 37.80 x 65.63 x 6.77 in | Packaging Dimensions (W x H x D) | 1188 x 172 x 711 mm / 46.77 x 6.77 x 27.99 in |
| Net Weight | 27.3 kg / 60.19 lb | Gross Weight | 31.8 kg / 70.11 lb |
| Power Specifications | |||
| Input Voltage | AC 100–240V, 50/60Hz, 1.5A | Power Consumption | 150W |
| Operating Conditions | |||
| Operating Temperature | 0°C to 40°C | Operating Humidity | 10%–90% RH (non-condensing) |
| Compliance & Certifications | |||
| Certifications & Compliance | CE, CB, RoHS, ErP, REACH, WEEE | ||
| Package Contents | |||
| Power Cord | Included | Wall Mount | Included |
| Mounting Bracket | Included | Fixed Frame Bracket | Included |
| Vertical Beam | Included | Top Beam | Included |
| Locking Wall Bracket | Included | Screw Kit | Included |
| Control Pad | Included | User Guide | Included |
| Description | Downloads |
|---|---|
| Datasheet | Download |
