Official Partner

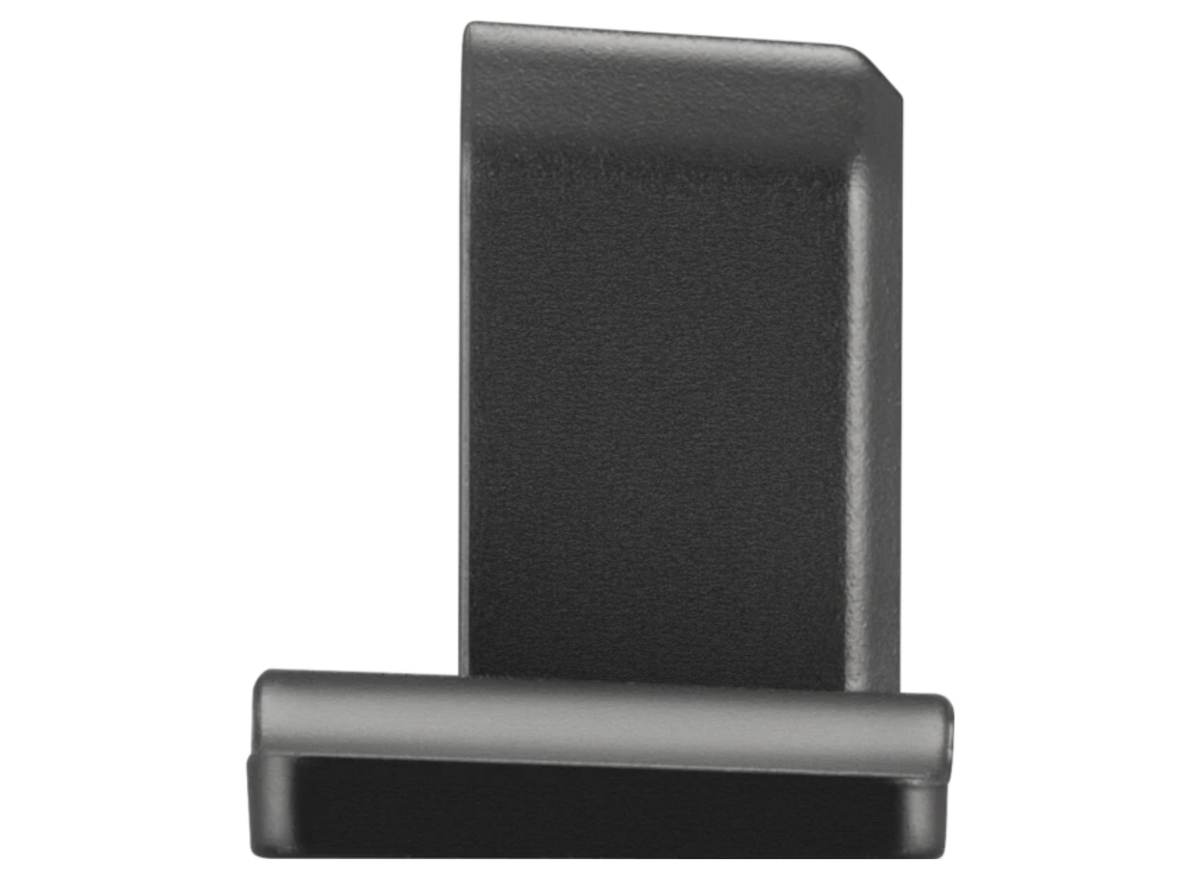

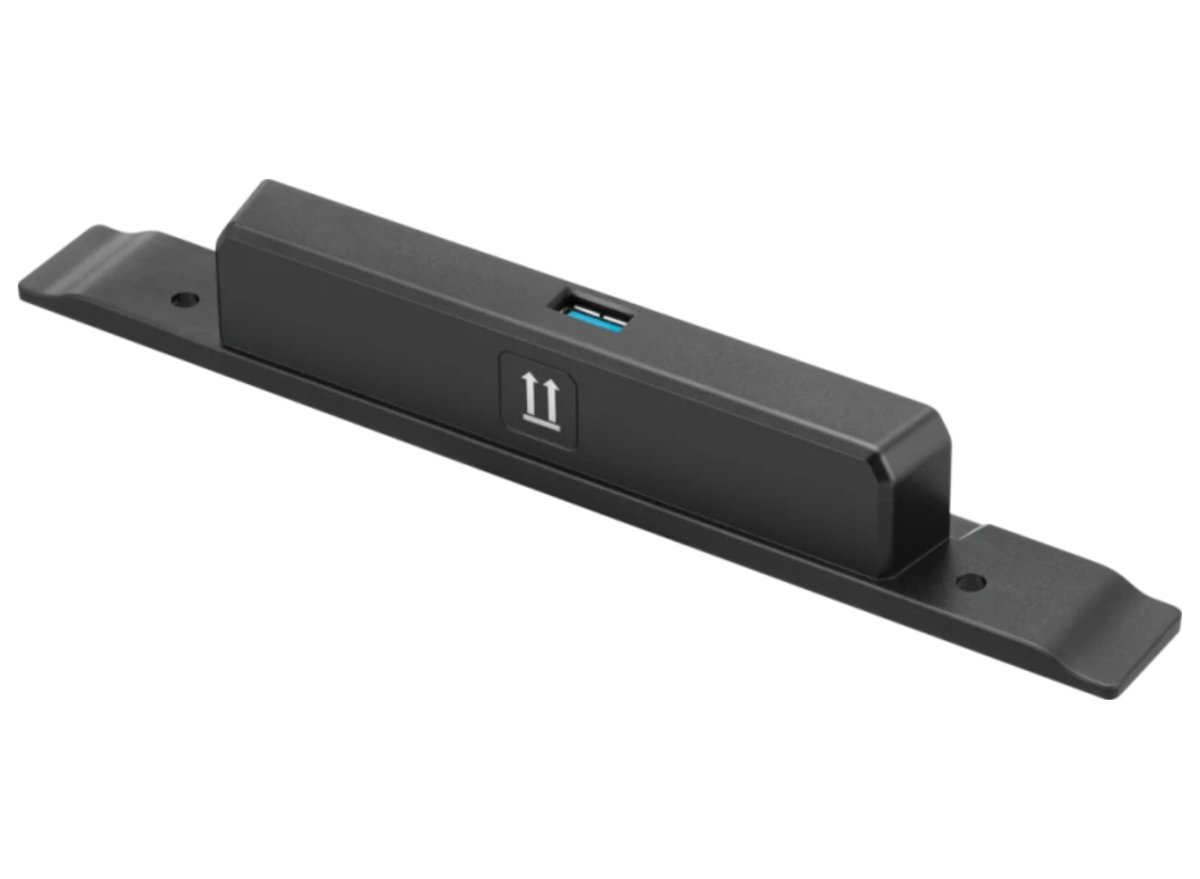

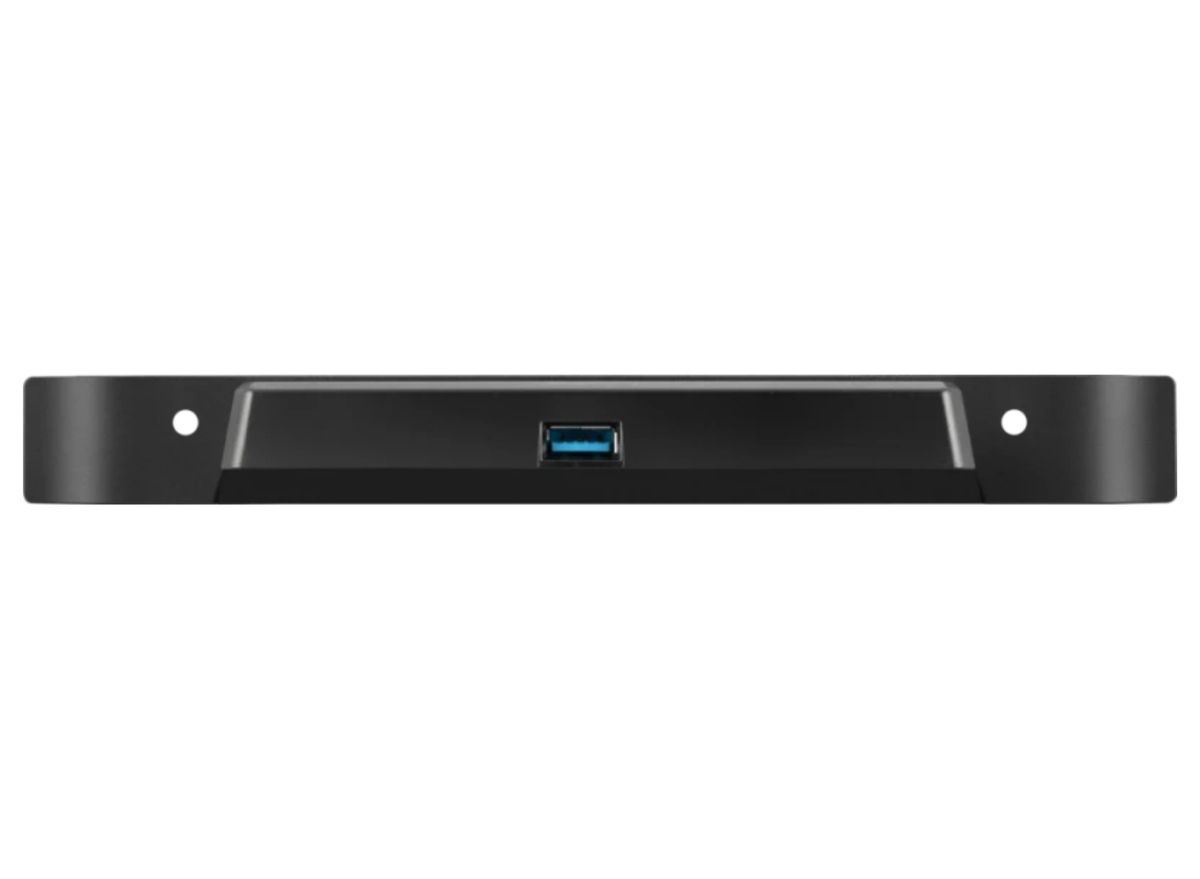

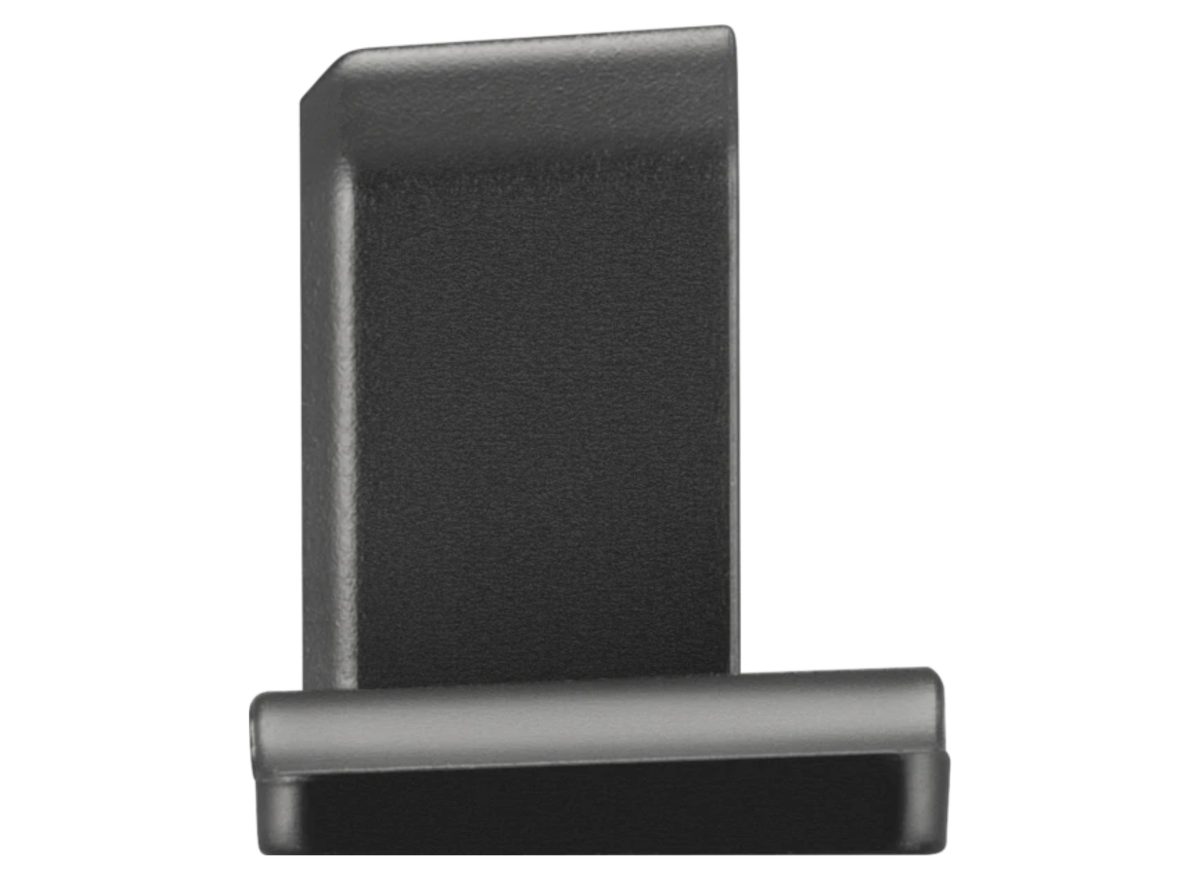

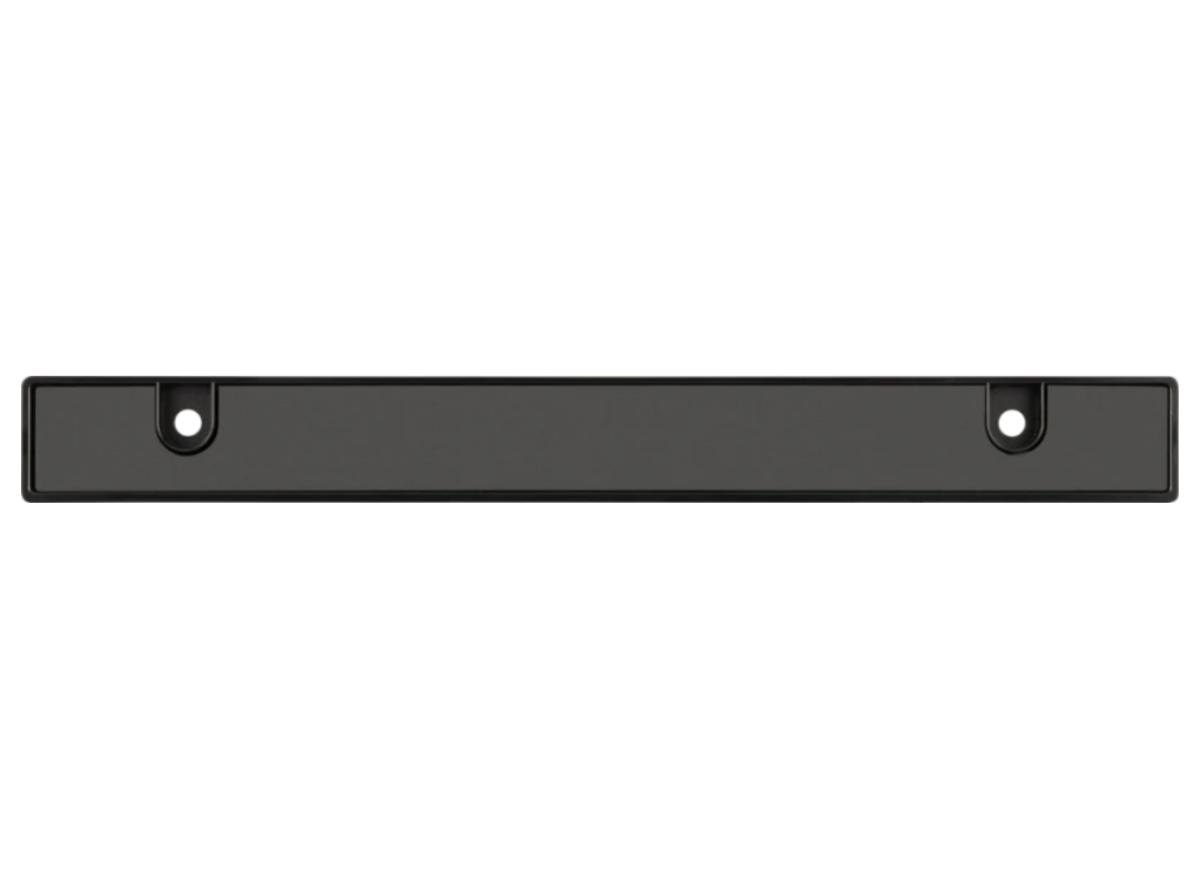

The ViewSonic® VB-WIFI-006 Wireless Module delivers a faster and more reliable wireless internet connection for ViewBoard and Presentation Display*. It supports tri-frequency bands—2.4GHz, 5GHz, and 6GHz—along with Wi-Fi 6E (802.11ax standard). Ideal for high-bandwidth applications such as video streaming, videoconferencing, and voice calls, it ensures each connected device performs at an optimal level.*Compatible with selected models, please check with your local sales representatives.
Stay Connected Anywhere with Enhanced Mobility
Enhance the mobility of your ViewBoard® and Presentation Displays with the ViewSonic VB-WIFI-006 Wi-Fi module. This high-speed connectivity solution not only delivers reliable internet access but also functions as a hotspot, ensuring seamless video conferencing and dynamic media streaming wherever you need it. Experience faster downloads, smoother streaming, and more responsive browsing, perfect for both educational and professional environments.
Tri-Band Support for Optimal Wireless Performance
Unlock versatile wireless capabilities with the ViewSonic VB-WIFI-006's tri-band wireless support. Covering the 6GHz, 5GHz, and 2.4GHz bands, this module offers the flexibility to choose the optimal frequency based on your environment’s congestion and interference. Designed to maintain robust connections in densely populated settings, it ensures peak performance for your ViewBoard® and presentation displays.
| Wireless Specifications | |||
| Wi-Fi Standard | IEEE 802.11a/b/g/n/ac/ax | Wi-Fi Operating Frequency | 2.4GHz, 5GHz, 6GHz |
| Bluetooth Frequency | 2.4GHz | Access Point Frequency | 2.4GHz, 5GHz |
| Frequency & Modulation | |||
| 2.4GHz Wi-Fi Frequency | 2412–2484MHz (18.98 dBm) | 5GHz Wi-Fi Frequency | 5180–5825MHz (13.93 dBm) |
| 6GHz Wi-Fi Frequency | 5930–7110MHz (15 dBm) | Bluetooth Support | Bluetooth 2.1 / 3.0 / 4.0 / 5.3 BLE |
| 6GHz Band Availability | Wi-Fi 6E frequency availability varies according to national regulations governing permitted frequency bands. | ||
| Power Specifications | |||
| Power Requirements | 5V / 1A | Power Consumption | Less than 5W |
| Dimensions (L x H x D) | |||
| Physical Dimensions | 224 x 32 x 25 mm (8.82 x 1.26 x 0.98 in) | Packaging Dimensions | 447 x 300 x 382 mm (17.6 x 11.81 x 15.04 in) |
| Weight | |||
| Net Weight | 93g (0.21lb) | Gross Weight | 113g (0.25lb) |
| Operating Conditions | |||
| Operating Temperature | 32°F to 104°F (0°C to 40°C) | Operating Humidity | 10%–90% (non-condensing) |
| Storage & Shipping Conditions | |||
| Storage Temperature | -4°F to 140°F (-20°C to 60°C) | Storage Humidity | 10%–90% (non-condensing) |
| Compliance & Certifications | |||
| Compliance Certifications | NCC, RoHS, DoC | ||
| Package Contents | |||
| Wireless Module | 1 x ViewSonic VB-WIFI-006 | Quick Start Guide | 1 x QSG |
| Description | Downloads |
|---|---|
| Datasheet | Download |
