Enter your screen SKU and we will instantly check whether this mount is suitable for your display based on VESA pattern compatibility.

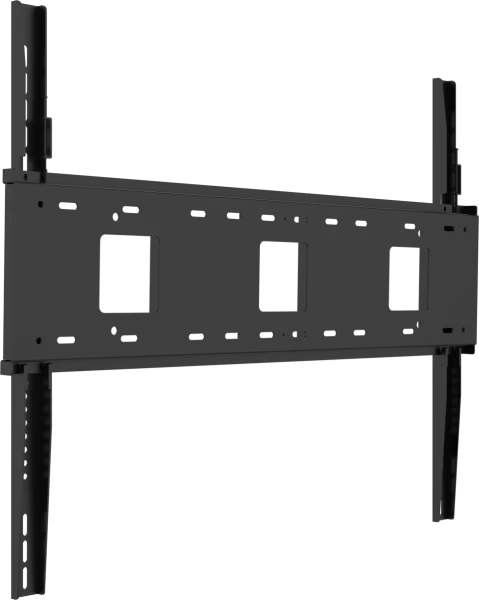

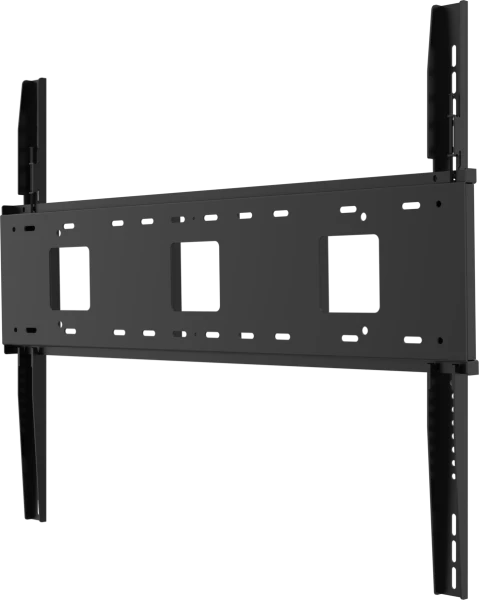

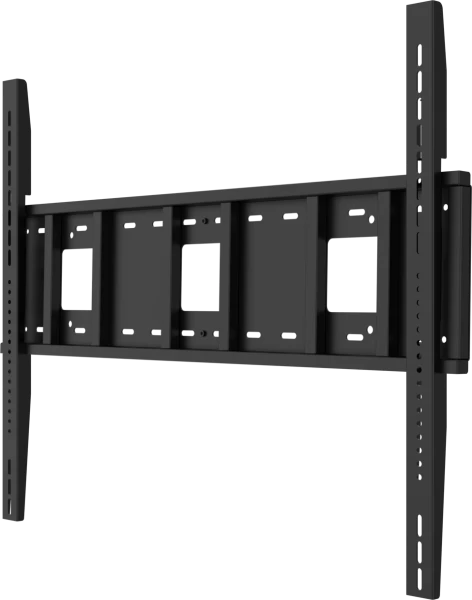

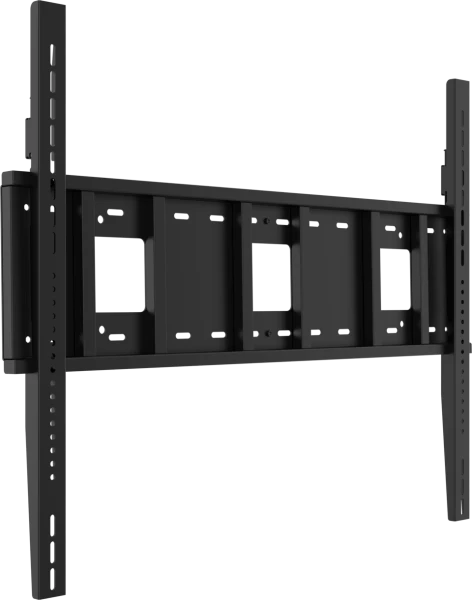

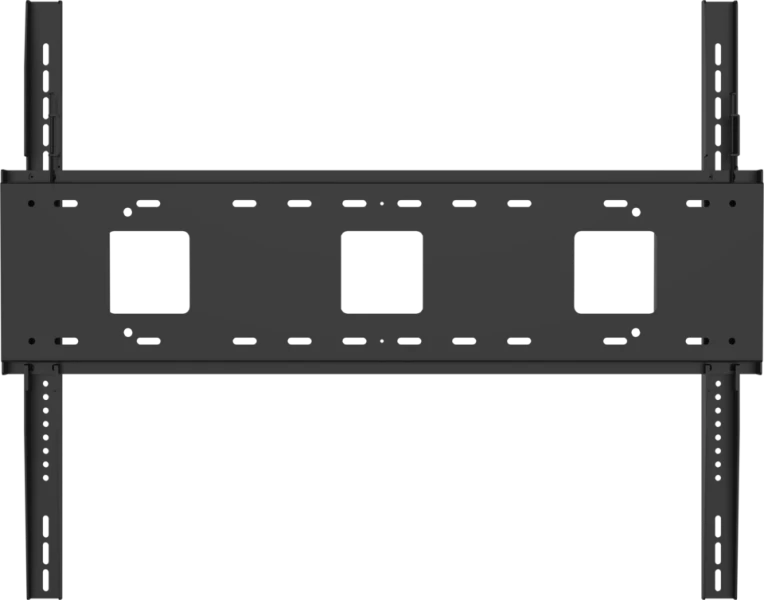

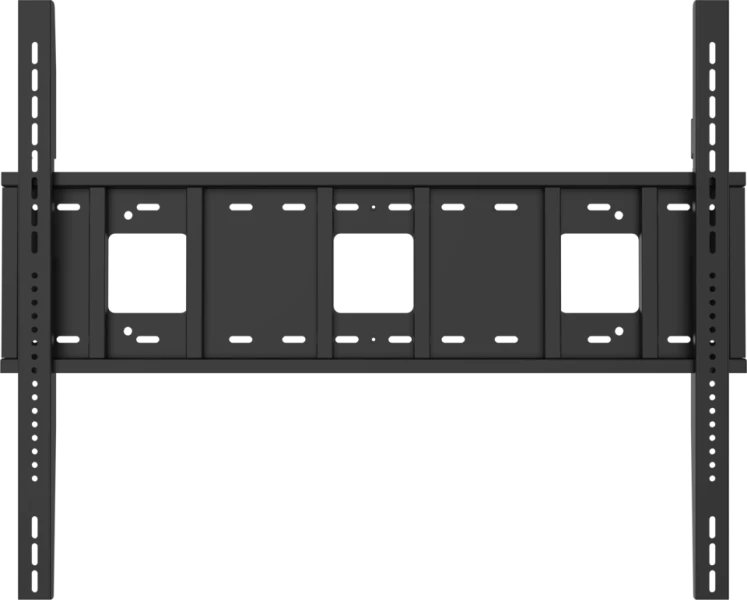

The VB-WMK-004 is designed to mount 75" to 110" ViewBoard and Presentation Display
| Mounting Specifications | |||
| Maximum VESA Mounting Pattern | Up to 1000 x 800 mm | Screw Type | M8 |
| Material | Iron | Supported Flat Panel Size | 65"–110" |
| Maximum Supported Weight | 360 kg / 793.66 lb | Minimum Distance to Wall | 43.5 mm |
| Dimensions & Weight | |||
| Physical Dimensions (W x H x D) | 1110 x 885.8 x 43.5 mm / 43.7 x 34.87 x 1.71 in | Packaging Dimensions (W x H x D) | 1195 x 340 x 150 mm / 47.05 x 13.39 x 5.91 in |
| Net Weight | 13.5 kg / 29.76 lb | Gross Weight | 14.7 kg / 32.41 lb |
| Included Accessories | |||
| 110" Vertical Beams | 2 x Included | 110" Cross Beam | 1 x Included |
| M8 x 20 mm P Head Flat Tail Screws | 6 x Included | M5 x 130 mm Crossed Screws | 2 x Included |
| M4 x 10 mm Round Head Flat Tail Screws | 2 x Included | 80 mm Expansion Screws | 8 x Included |
| Installation Guide | 1 x Included | PE Bags | 1 x Included |
