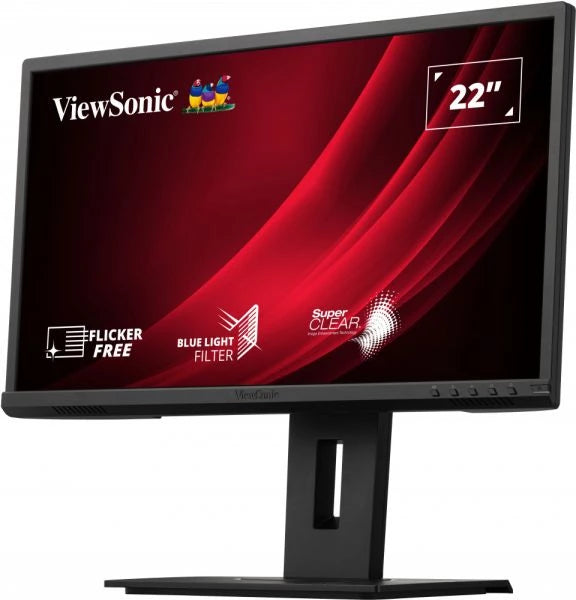

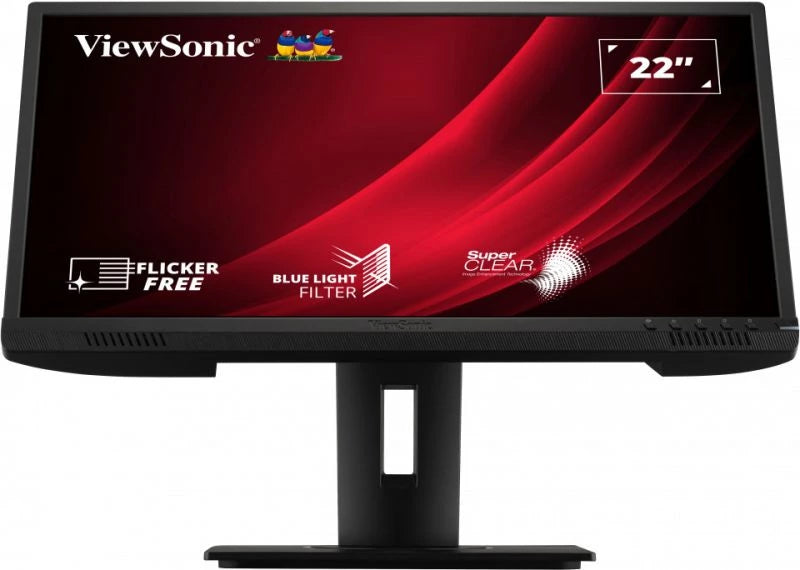

OVERVIEW

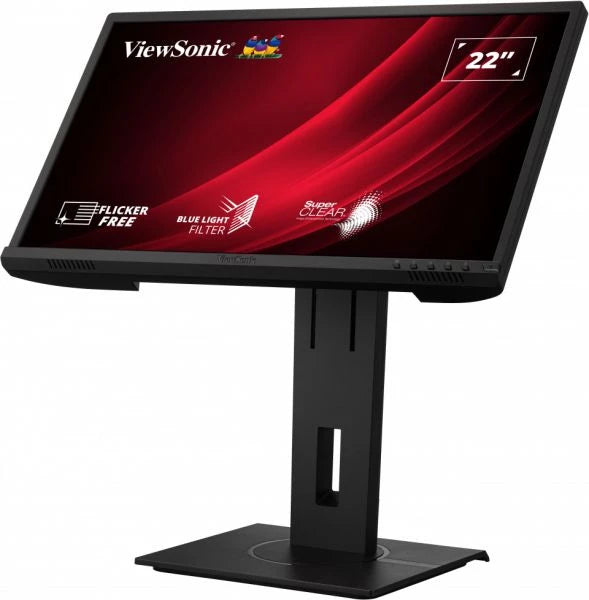

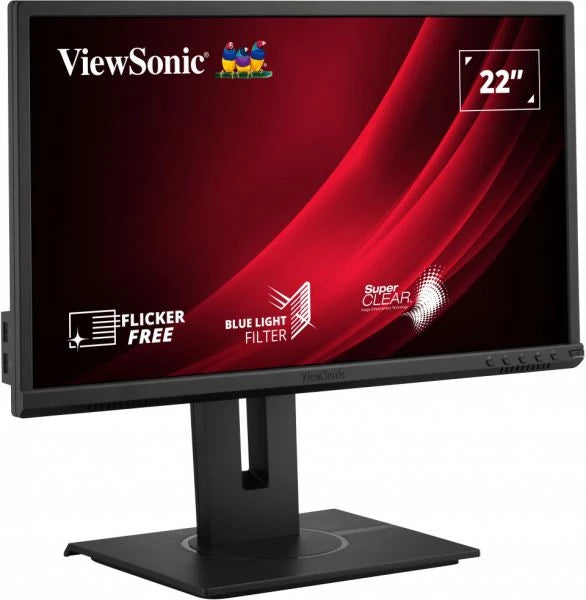

The ViewSonic VG2240 is a 22” Full HD ergonomic business monitor designed to increase productivity and efficiency within the home and office workspace. Providing the full spectrum of ergonomic flexibility, the VG2240 can tilt, swivel, pivot, and height adjustment to adapt to any setup or workflow, while the built-in vDisplay Manager productivity software delivers efficient multi-tasking ability and streamlined display control. Dual front-facing speakers ensure a perfect audio-visual experience to provide teams with quality remote communication and collaboration. The beautifully designed display includes a 3-sided narrow bezel for uninterrupted viewing in multi-monitor display setups as well HDMI. DisplayPort, VGA, and USB3.2 connectivity. Complete with an easy-to-install quick release stand that reduces setup time to only a few minutes, the VG2240 offers a high-performance, purpose-built display solution designed for workspace productivity.
Ergonomic Workstation
Discover a monitor that has been designed to address the challenges of the modern work setup.

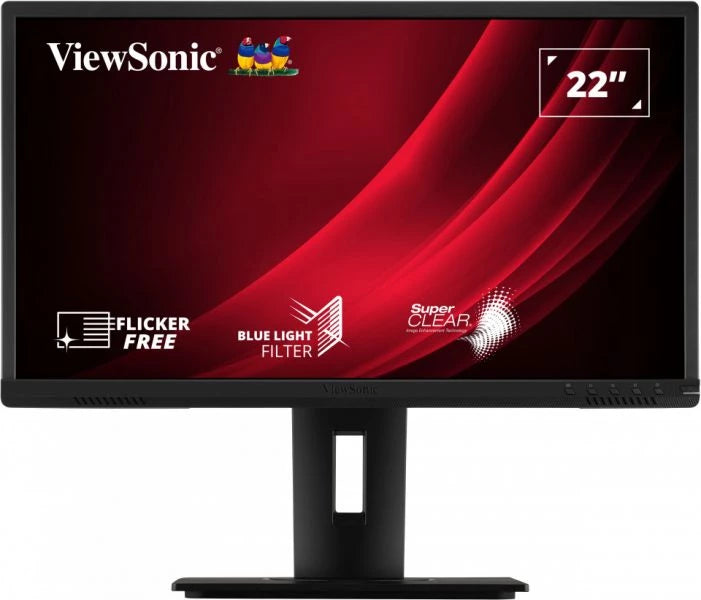

Uninterrupted Viewing
The narrow three-sided bezel gives the monitor a stylish feel and delivers uninterrupted viewing in multi-monitor setups.
Minimalistic Bezel Design
Viewing Clarity from Wide Angles
Enjoy superb performance and better viewing quality from horizontal to vertical angles. With SuperClear® Vertical Alignment panel technology, the monitor remains clear and in good contrast colour from 178° all around, whether you are looking at the screen from above, below, the front, or the side.
SuperClear® VA 178°/178°
Clear Audio
Designed with a dual 2W front-firing speaker, the VG2240 delivers a clear sound to provide complete multi-sensory immersion.
Dual Front-Facing Speakers
Complete Ergonomic Flexibility

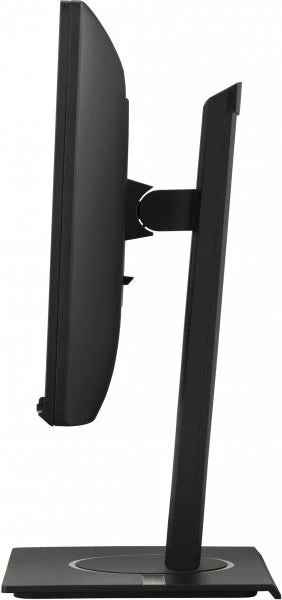

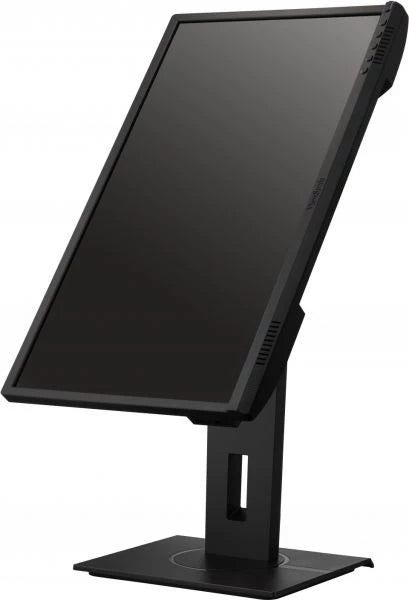

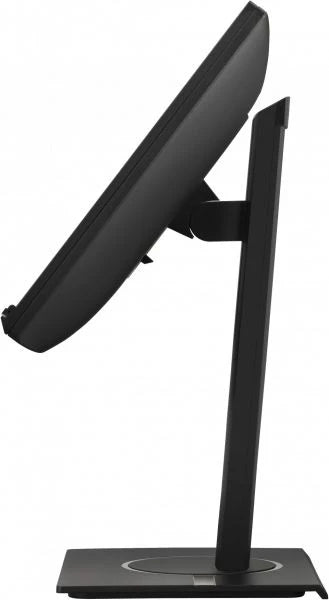

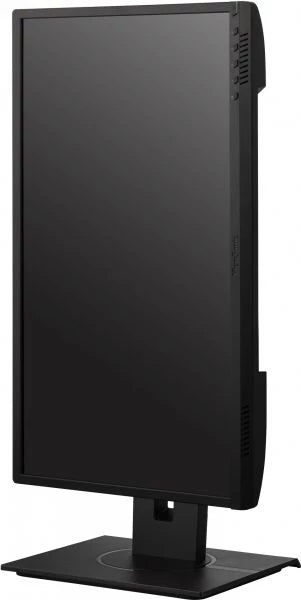

Effortlessly swivel the display up to 120° degrees, tilt up to -5° to 40° degrees, raise the display up to 130mm, and pivot 90° degrees for portrait viewing. The VG2240 offers the full range of convenient flexibility for every task and workflow.
More Convenient Workspace
Inbuilt Multi-tasking and Efficiency Software
Work smart with efficient OSD command and control through vDisplay Manager. Personalize split-screen displays, auto-launch applications, and customize display settings to maximize multi-tasking abilities and overall efficiency.
vDisplay Manager Software
Advanced Eye-Care Technology
Eliminate eye strain and fatigue after long periods of use with Flicker-Free technology and a Blue Light Filter. Easily access the settings via vDisplay Manager and preset personalized brightness and contrast levels for different times of the day.
Flicker-Free & Blue Light Filter

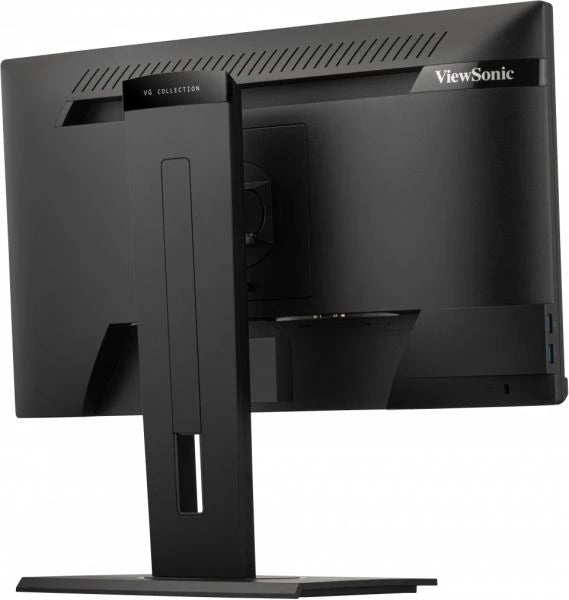

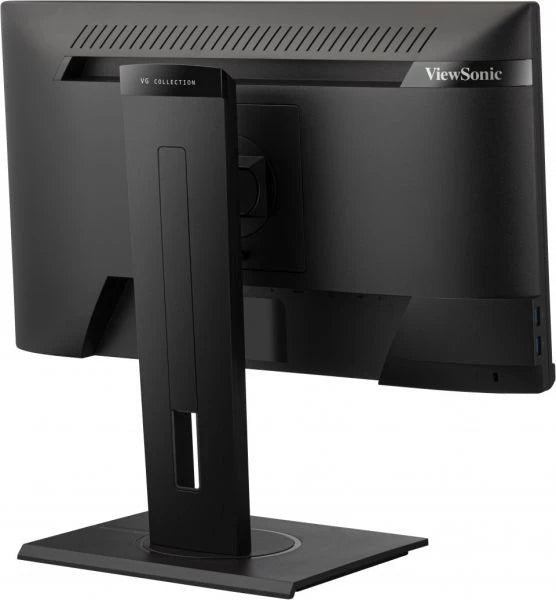

Extended Connectivity for External Devices
The VG2240 provides built-in HDMI, DisplayPort, VGA, and USB3.2 ports to easily connect additional devices to further support your workflow.
VGA, DisplayPort, HDMI, USB3.2 (1 up stream/ 4 down stream)
Effortless Installation in 4 Easy Steps
Instant assembly with no expertise required. Simply open the box, connect the base to the quick release stand, snap the stand into place using the slots, and lift the fully assembled display out of the box within minutes.
Quick Release Stand
Eco-friendly, biodegradable packaging
The packaging of the VG2240 has been designed with the environment in mind. Paper-based packaging allows for easy disposal through recycling, while hand holes and mono colour printing eliminates the use of plastics and pollutants.
Paper-based, Biodegradable Packaging
Certified Environmental Sustainability
The VG2240 is an ENERGY STAR certified product that can save on energy costs* while reducing greenhouse gases. The display is also registered as an EPEAT Silver product and achieved TCO certified displays 9.0 recognition for sustainability.
EPEAT Silver & ES 8.0 &TCO9.0
Minimized Total Cost of Ownership
Designed for modern offices, the VG2240 helps reduce hidden business costs and delivers an efficient end-to-end enterprise experience. From installation time and recycling concerns to user experience and screen performance, every feature of this monitor has been carefully designed to meet the demands of modern-day work and reduce the TCO for business owners.
Dimension & I/O Ports
-
| Display |
|
| Display Size (in.) |
22 |
| Viewable Area (in.) |
21.5 |
| Panel Type |
VA Technology |
| Resolution |
1920 x 1080 |
| Resolution Type |
FHD (Full HD) |
| Static Contrast Ratio |
3,000:1 (typ) |
| Dynamic Contrast Ratio |
80M:1 |
| Light Source |
LED |
| Brightness |
250 cd/m² (typ) |
| Colours |
16.7M |
| Colour Space Support |
8 bit true |
| Aspect Ratio |
16:9 |
| Response Time (Typical GTG) |
5ms |
| Response Time (GTG w/OD) |
5ms |
| Viewing Angles |
178º horizontal, 178º vertical |
| Backlight Life (Hours) |
30,000 Hrs (Min) |
| Curvature |
Flat |
| Refresh Rate (Hz) |
60 |
| Blue Light Filter |
Yes |
| Flicker-Free |
Yes |
| Colour Gamut |
NTSC: 72% size (Typ) <br> sRGB: 103% size (Typ) |
| Pixel Size |
0.249 mm (H) x 0.241 mm (V) |
| Surface Treatment |
Anti-Glare, Hard Coating (3H) |
| Compatibility |
|
| PC Resolution (max) |
1920x1080 |
| Mac® Resolution (max) |
1920x1080 |
| PC Operating System |
Windows 10/11 certified; macOS tested |
| Mac® Resolution (min) |
1920x1080 |
| Connector |
|
| VGA |
1 |
| USB 3.2 Type A Down Stream |
4 |
| USB 3.2 Type B Up Stream |
1 |
| 3.5mm Audio In |
1 |
| 3.5mm Audio Out |
1 |
| HDMI 1.4 |
1 |
| DisplayPort |
1 |
| Power in |
3-pin Socket (IEC C14 / CEE22) |
| Audio |
|
| Internal Speakers |
2 Watts x 2 |
| Power |
|
| Eco Mode (Conserve) |
12.35W |
| Eco Mode (optimized) |
14.43W |
| Consumption (typical) |
17.18W |
| Consumption (max) |
18.89W |
| Voltage |
AC 100-240V |
| Stand-by |
0.5W |
| Power Supply |
Internal Power Supply |
| Additional Hardware |
|
| Kensington Lock Slot |
1 |
| Cable Organization |
Yes |
| Controls |
|
| Physical Controls |
Key 1 (eye), Key 2, Key 3, Key 4, Key 5, Key 6 (power) |
| On Screen Display |
Input Select, Audio Adjust, ViewMode, Colour Adjust, Manual Image Adjust, Setup Menu |
| Operating Conditions |
|
| Temperature |
32°F to 104°F (0°C to 40°C) |
| Humidity (non-condensing) |
20% to 90% |
| Wall Mount |
|
| VESA Compatible |
100 x 100 mm |
| Input Signal |
|
| Frequency Horizontal |
24 ~ 82KHz |
| Frequency Vertical |
50 ~ 75Hz |
| Video Input |
|
| Digital Sync |
TMDS - HDMI (v1.4), PCI-E - DisplayPort (v1.2) |
| Analog Sync |
Separate/Composite/SOG - RGB Analog |
| Ergonomics |
|
| Height Adjust (mm) |
130 |
| Swivel |
120º |
| Tilt (Forward/Back) |
-5º / 40º |
| Pivot (Right/Left) |
90º / 90º |
| Weight |
|
| Net (lbs) |
11.5 |
| Net Without Stand (lbs) |
6.2 |
| Gross (lbs) |
16.8 |
| Weight (metric) |
|
| Net (kg) |
5.2 |
| Net Without Stand (kg) |
2.8 |
| Gross (kg) |
7.6 |
| Dimensions (imperial) (wxhxd) |
|
| Packaging (in.) |
21.9 x 14.9 x 8.3 |
| Physical (in.) |
19.7 x 15.23~19.56 x 8.1 |
| Physical Without Stand (in.) |
19.7 x 11.6 x 2 |
| Dimensions (metric) (wxhxd) |
|
| Packaging (mm) |
556 x 379 x 210 |
| Physical (mm) |
501 x 386.85~496.96 x 206 |
| Physical Without Stand (mm) |
501 x 294 x 51 |
| General |
|
| Regulations |
cTUVus, FCC-B, ICES003, Energy Star, EPEAT, CEC, NOM, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, TCO 9.0, EAC, UkrSEPRO, UKCA |
| Package Contents |
VG2240 x1, 3-pin Plug (IEC C13 / CEE22) x1, HDMI Cable (v1.4; Male-Male) x1, USB A/B Cable (v3.2; Male-Male) x1, Audio Cable (Male-Male) x1, Quick Start Guide x1 |
| Recycle/Disposal |
Please dispose of in accordance with local, state, or federal laws. |
| Warranty |
*Warranty offered may differ from market to market |
| Power Management |
Energy Star standards, EPEAT22 |
-
