Ergonomic Workstation
Discover a monitor designed to overcome the challenges of the modern work setup
Integrated Docking Station with Daisy Chain
The docking capability of the VG2409U-2 streamlines workflows by eliminating the need for dongles and adapters. USB-C ensures seamless data, video, audio, and delivers 65W charging, complemented by a built-in ethernet port (RJ45) for stable, high-speed connectivity. The DisplayPort output can be easily daisy-chained to another monitor for a productivity-boosting workstation setup.
USB Type-C, 65W Power Charge, Audiovisual and Data Transfer
Extraordinary Wide-angle Vision
Enjoy vivid colors with consistent brightness and amazing accuracy no matter the vantage point. SuperClear® IPS monitor features ultra-wide 178-degree vertical and horizontal viewing angles that deliver the same image quality with true color accuracy and consistency from screen to print.
SuperClear® IPS
Full HD 1080p
Full HD 1920x1080 resolution creates unbelievably clear pixel-by-pixel image performance. Experience mind-blowing clarity and detail while working, gaming, or enjoying the latest show premieres.
Full HD 1080P
Smooth Visuals With 100Hz Variable Refresh Rate
With a fast 100Hz screen variable refresh rate, you can experience a truly fluid visual display. This results in improved viewing clarity, reduced screen stutter during fast-moving action scenes, and benefits work-related tasks, reducing eye strain and increasing productivity.
100Hz Variable Refresh Rate
Connection Flexibility
HDMI, DisplayPort(DP), and DisplayPort(DP) Out inputs give you the freedom to connect your monitor to a wide range of devices. Simplify your workspace, expand your connectivity options, and streamline data transfer with our monitor's integrated USB hub featuring a built-in RJ45 port for ethernet (RJ45).
HDMI / DisplayPort/ DisplayPort Out
USB-B upstream / USB-A downstream / USB-C / RJ45

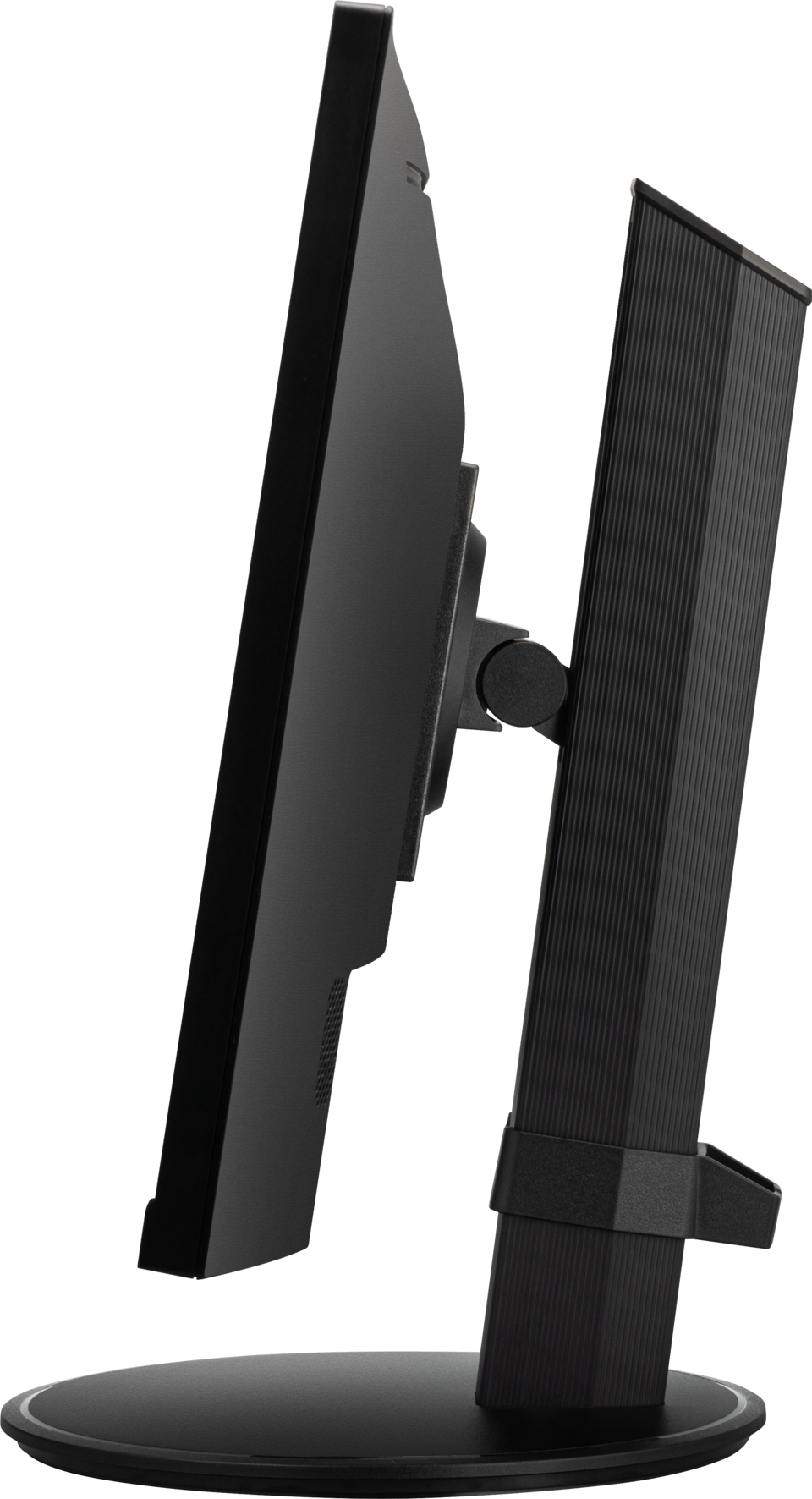

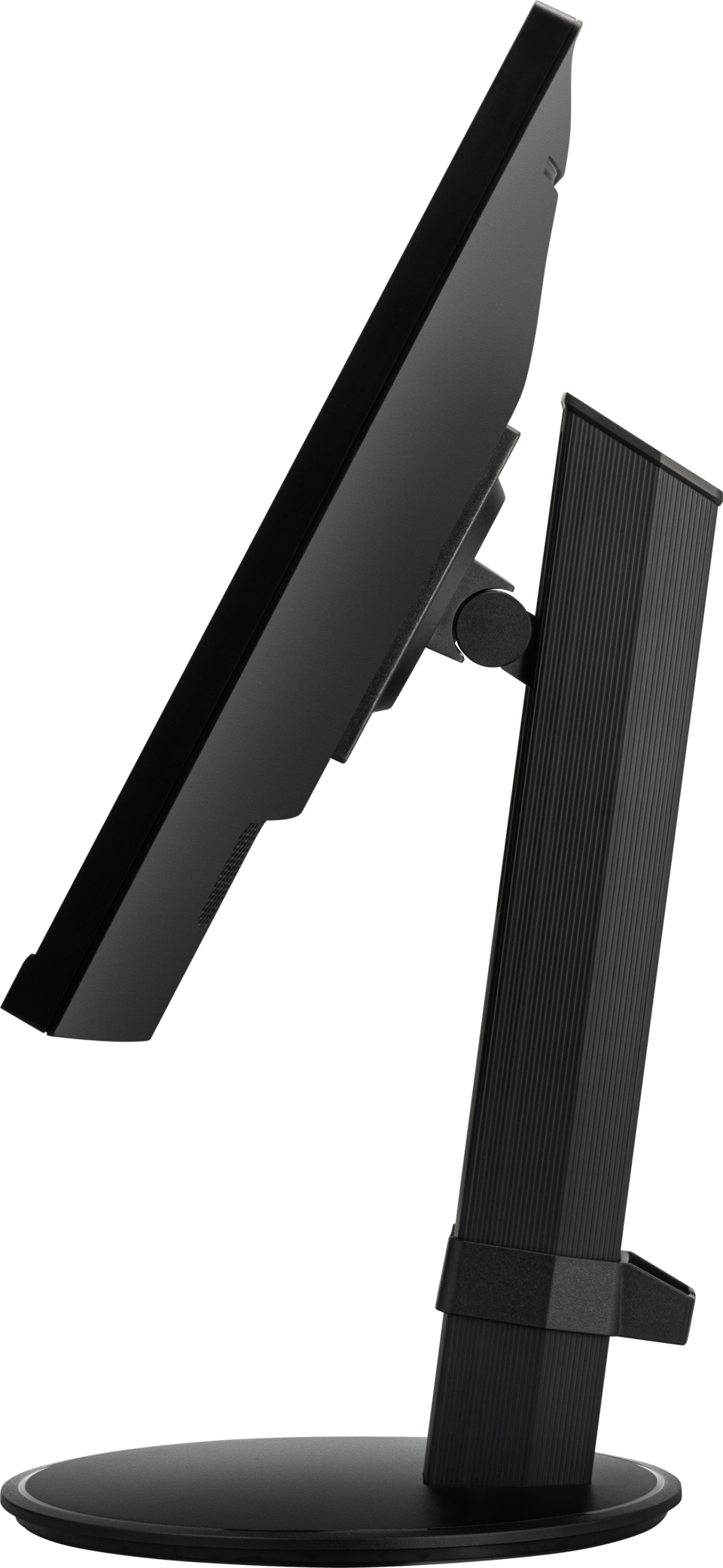

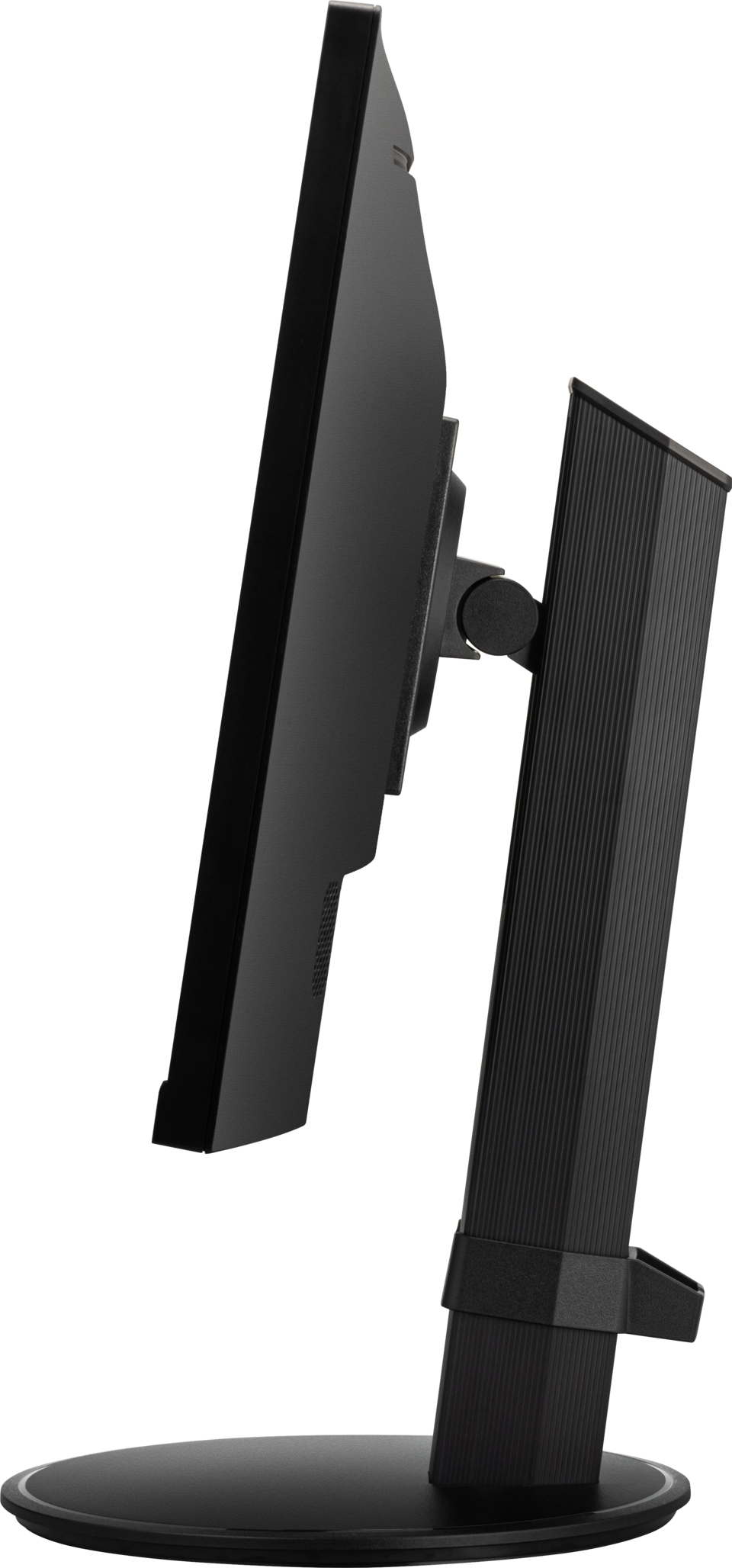

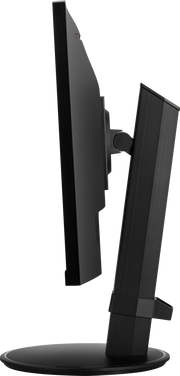

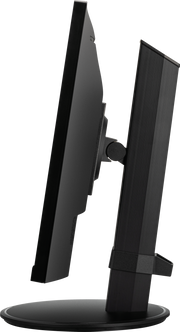

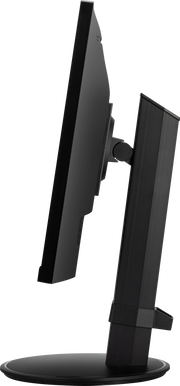

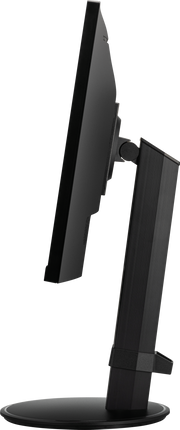

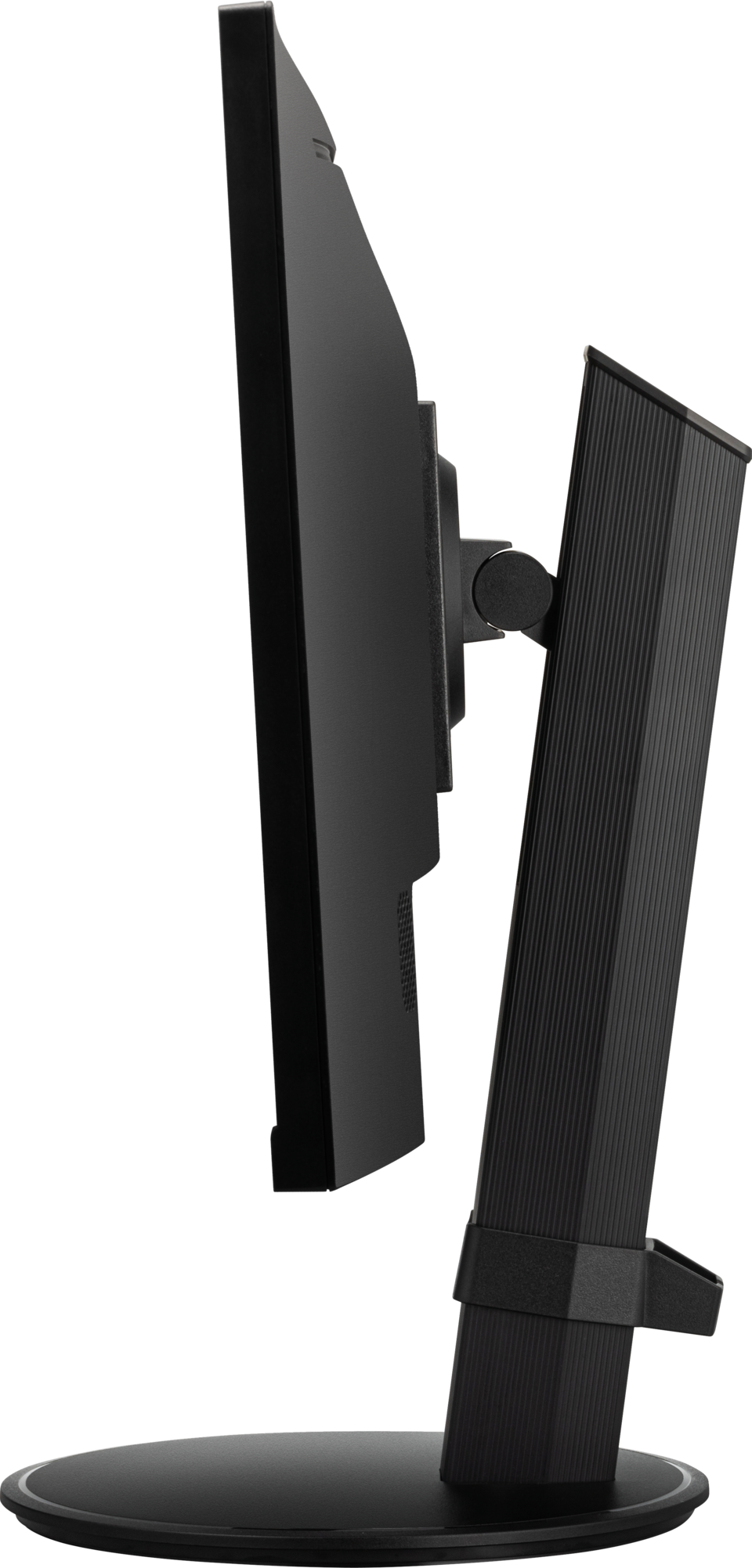

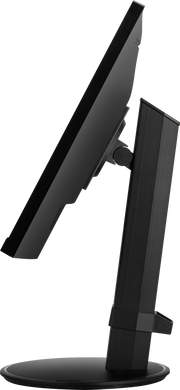

Complete Ergonomic Flexibility

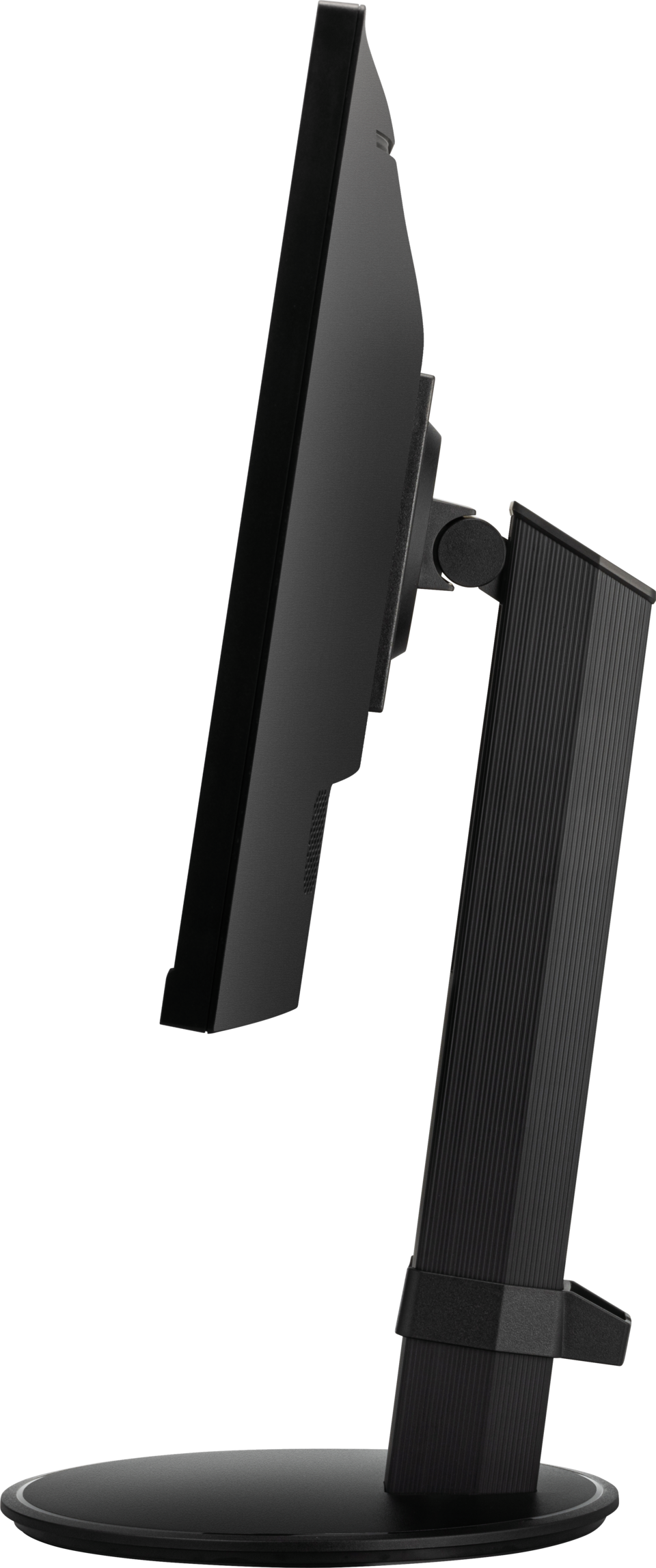

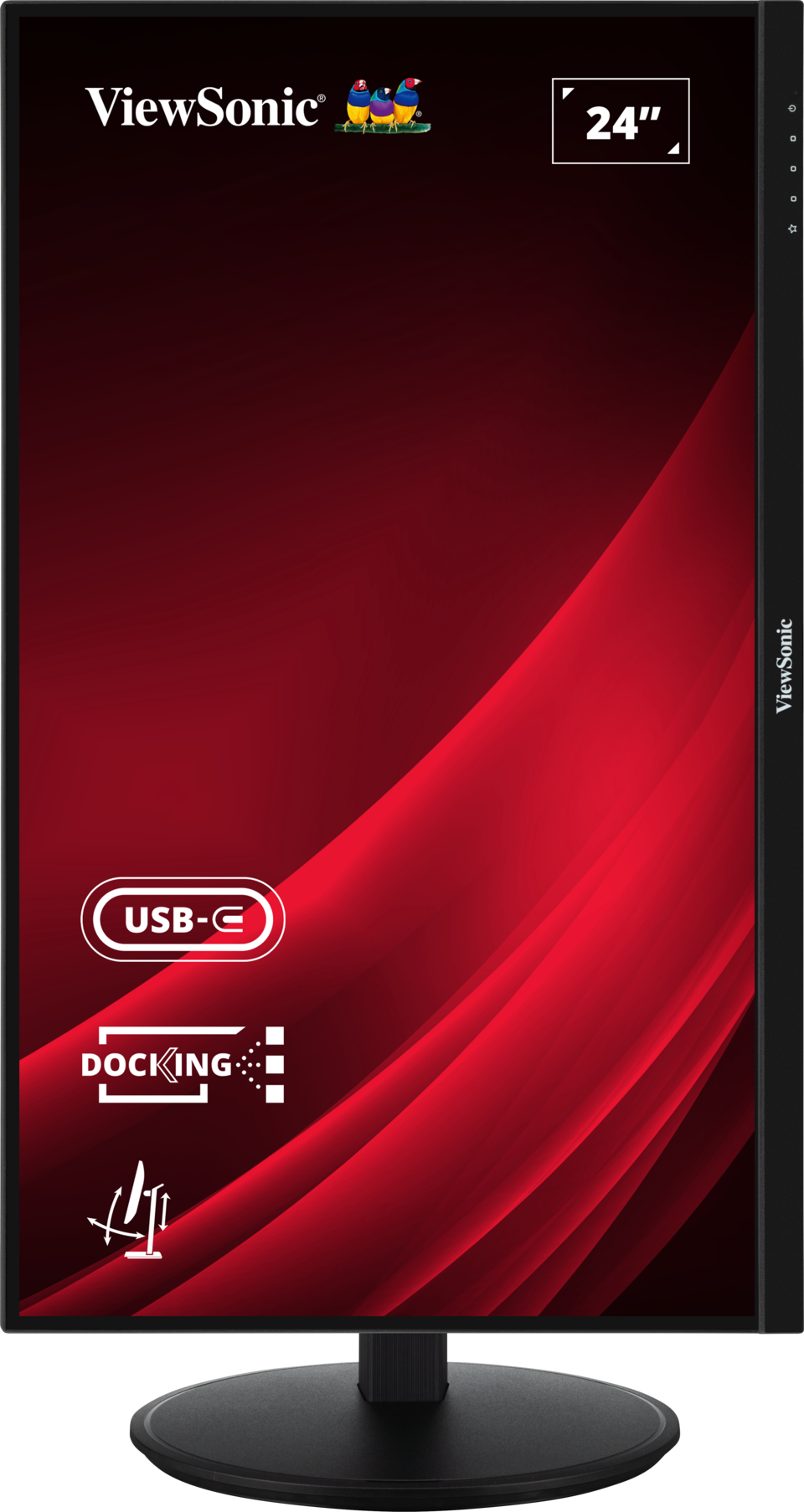

Effortlessly swivel the display up to 360° degrees, tilt up to -3.5°~28° degrees, raise up to 130 mm, and pivot up to 180° degrees for portrait viewing. The VG2409U-2 offers a full range of convenient flexibility for all tasks and workflows.
Swivel, Tilt, Pivot and Height Adjustment
Built-in Speakers
Integrated with dual 2.5-watt stereo speakers as well as incredible screen performance, this monitor provides complete multi-sensory immersion.
Eye ProTech for Comfortable Viewing
Reduce your eye strain and maintain fresh-feeling eyes with ViewSonic Eye ProTech. The Flicker-Free technology eliminates screen flickering, while the Blue Light Filter minimizes harmful blue light from extended viewing periods, ensuring comfortable screen viewing.
Flicker-Free & Blue Light Filter
Color Rendering Options
ViewSonic’s ViewMode offers “Game”, “Movie”, “Web”, “Text”, and “Mono” presets. These presets enhance gamma curve, color temperature, contrast, and brightness to deliver optimized, satisfactory viewing.
ViewMode: Game/Movie/Web/Text/Mono
Certified Environmental Sustainability
The VG2409U-2 is an ENERGY STAR-certified product that can save on energy costs while reducing greenhouse gases. The display is also TCO-certified for sustainability and registered as an EPEAT product.
*Energy savings may vary based on actual usage and other factors.
*Certifications and safety regulations dependent on the purchase area.
TCO, EPEAT, Energy Star

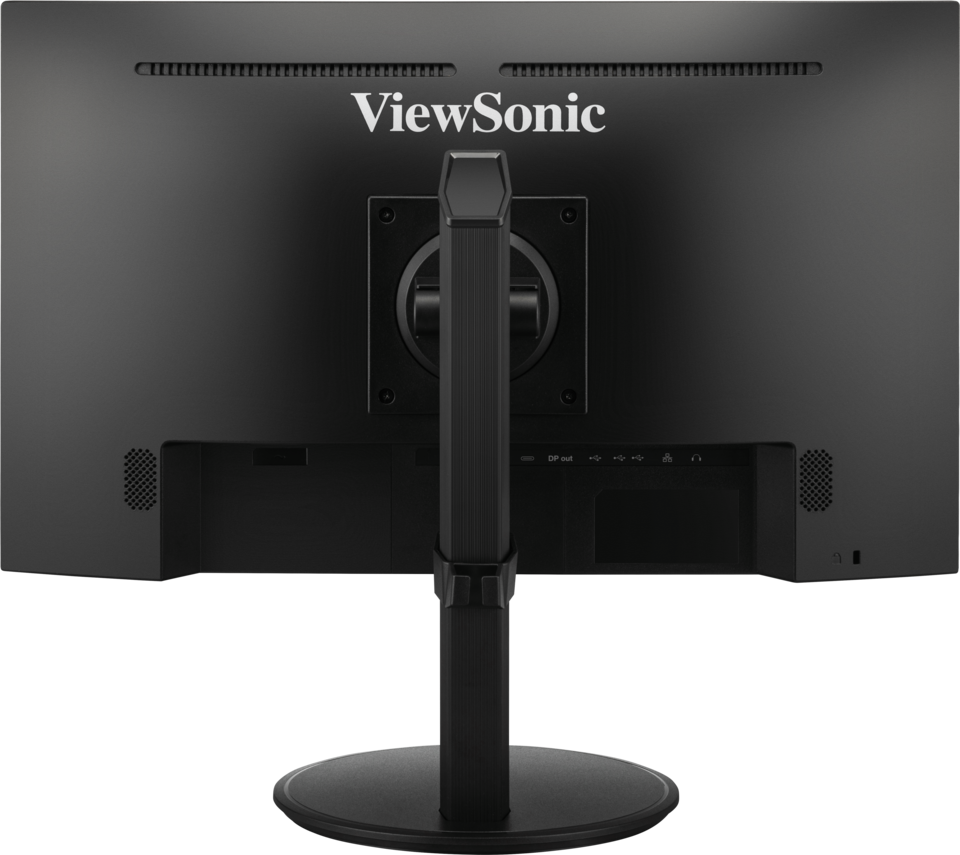

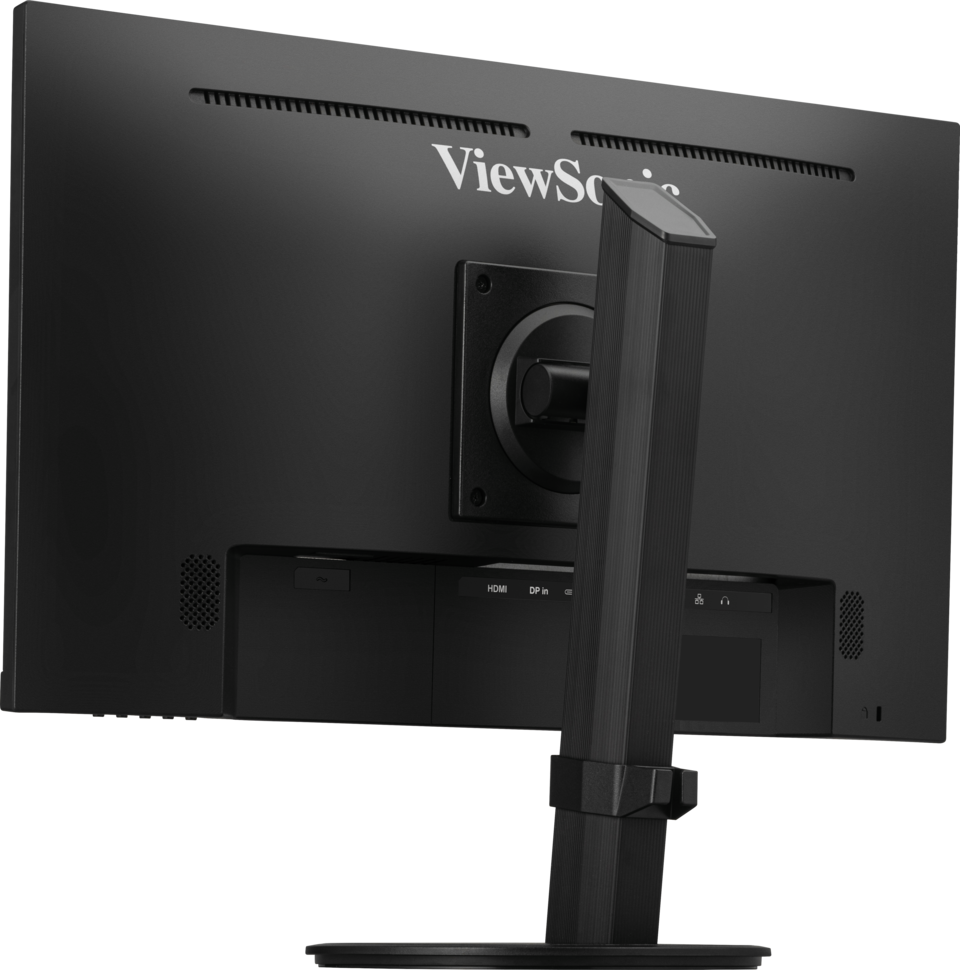

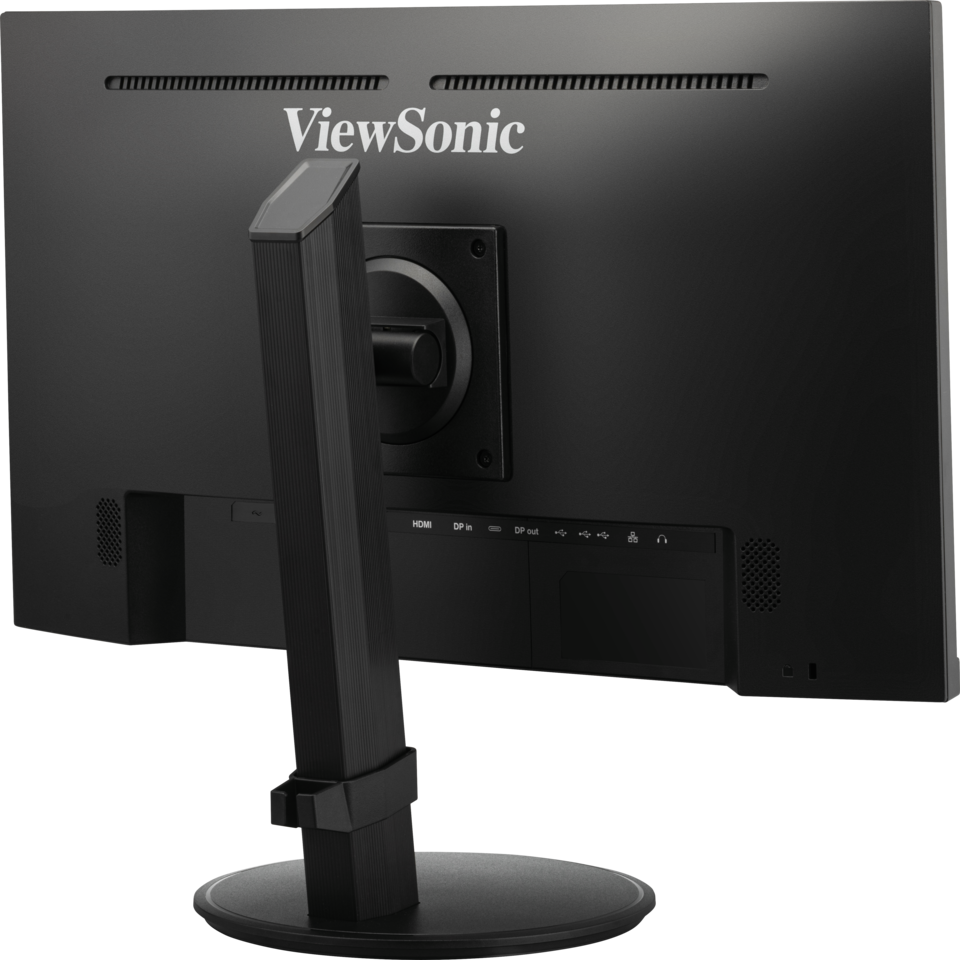

Dimension & I/O Ports
Conveniently mount the monitor to your preference by utilizing the 100mm x 100mm VESA-compatible mount design.
100mm x 100mm VESA mount
1-Menu Control Panel
2-Power In
3-VESA Compatible
(Wall Mount 100 x 100 mm)
4-HDMI
5-Display Port
6-USB Type-C
7-Display Port Out
8-USB Type-B Upstream
9-USB Type-A Downstream*2
10-Ethernet(RJ45)
11-Audio Out
12-Speakers
| Display Size (in.) | 24 | Viewable Area (in.) | 23.8 |
| Panel Type | IPS Technology | Resolution | 1920 x 1080 |
| Resolution Type | FHD (Full HD) | Static Contrast Ratio | 1,300:1 (typ) |
| Dynamic Contrast Ratio | 50M:1 | High Dynamic Range | HDR10 |
| Light Source | LED | Brightness | 350 cd/m² (typ) |
| Colors | 16.7M | Color Space Support | 8 bit (6 bit + FRC) |
| Aspect Ratio | 16:9 | Response Time (Typical GTG) | 4ms |
| Response Time (GTG w/OD) | 4ms | Viewing Angles | 178º horizontal, 178º vertical |
| Backlight Life (Hours) | 30000 Hrs (Min) | Curvature | Flat |
| Refresh Rate (Hz) | 100 | Variable Refresh Rate Technology | Yes |
| Low Blue Light | Software solution | Flicker-Free | Yes |
| Color Gamut | NTSC: 72% size (Typ) | sRGB | 104% size (Typ) |
| Pixel Size | 0.275 mm (H) x 0.275 mm (V) | Surface Treatment | Anti-Glare, Hard Coating (3H) |
| PC Resolution (max) | 1920x1080 | Mac® Resolution (max) | 1920x1080 |
| PC Operating System | Windows 10/11 certified; macOS tested | Mac® Resolution (min) | 1920x1080 |
| USB 3.2 Type A Down Stream | 2 | USB 3.2 Type B Up Stream | 1 |
| USB 3.2 Type C Up Stream | DisplayPort Alt mode : 1 (65W power charger) | 3.5mm Audio Out | 1 |
| HDMI 1.4 | 1 | DisplayPort | 1 |
| DisplayPort Out | 1 | Ethernet LAN (RJ45) | 1 |
| Internal Speakers | 2.5Watts x2 | Eco Mode (Conserve) | 12W |
| Eco Mode (optimized) | 13.5W | Consumption (typical) | 15.5W |
| Consumption (max) | 19.5W | Voltage | AC 100-240V |
| Stand-by | 0.5W | Power Supply | Internal Power Supply |
| Kensington Lock Slot | 1 | Cable Organization | Yes |
| Temperature | 32°F to 104°F (0°C to 40°C) | Humidity (non-condensing) | 20% to 90% |
| VESA Compatible | 100 x 100 mm | Frequency Horizontal | 30 ~ 112KHz |
| Frequency Vertical | 48 ~ 100Hz | Digital Sync | TMDS - HDMI (v1.4), PCI-E - DisplayPort (v1.4), Micro-Packet - Type C |
| Height Adjust (mm) | 130 | Swivel | 360º |
| Tilt (Forward/Back) | -3.5º / 28º | Pivot (Right/Left) | 90º / 90º |
| Net (lbs) | 12.3 | Net Without Stand (lbs) | 7.7 |
| Gross (lbs) | 15.9 | Net (kg) | 5.6 |
| Net Without Stand (kg) | 3.5 | Gross (kg) | 7.2 |
| Packaging (in.) | 24.5 x 20.5 x 5.7 | Physical (in.) | 21.25 x 15.35~20.47 x 9.18 |
| Physical Without Stand (in.) | 21.25 x 12.72 x 2 | Packaging (mm) | 622 x 520 x 144 |
| Physical (mm) | 539.7 x 389.89~519.89 x 233.29 | Physical Without Stand (mm) | 539.7 x 323.18 x 50.9 |
| Regulations | Energy Star, EPEAT, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, TCO 9.0, EAC, UkrSEPRO, BIS | PACKAGE CONTENTS | VG2409U-2 x1, 3-pin Plug x1, HDMI Cable (v1.4) x1, USB Type-C Cable x1, USB A/B Cable x1, Quick Start Guide x1 |
| Recycle/Disposal | Dispose in accordance with local, state or federal laws. | Warranty | *Warranty offered may differ from market to market |
| Power Management | Energy Star standards, EPEAT |
| Description | Downloads |
|---|---|
| ViewSonic VG2409U-2 24” Full HD Ergonomic Docking Monitor with USB-C Hub Datasheet | Download |
