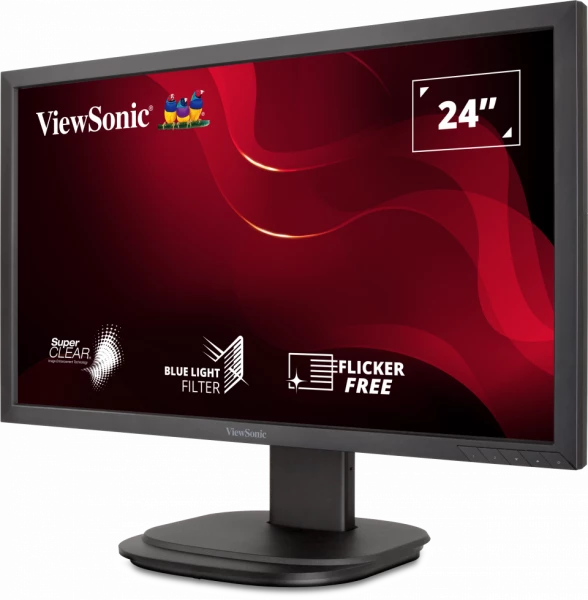

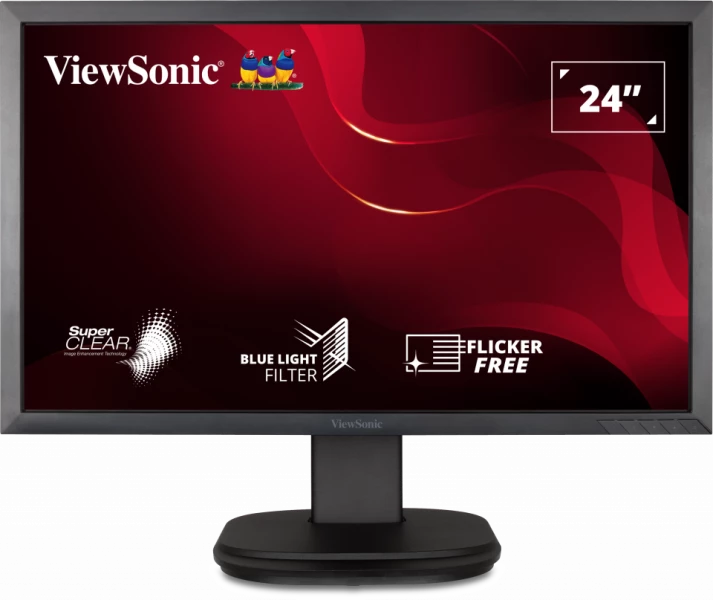

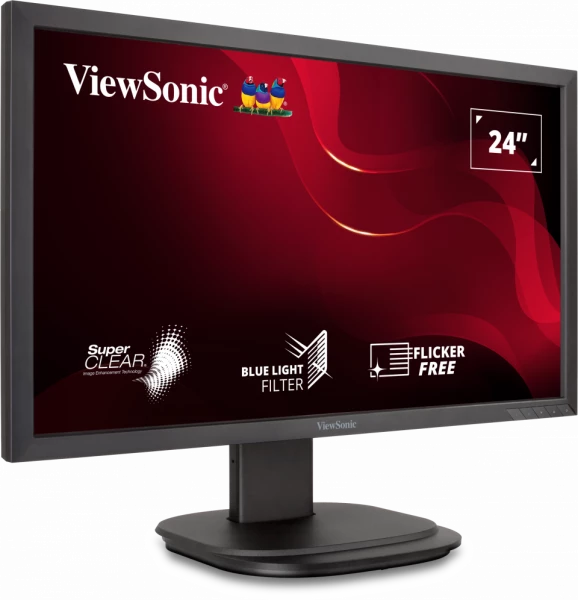

ViewSonic VG2439SMH-2

24” Full HD Ergonomic LED Monitor

Description
Specifications
Warranty

OVERVIEW
The ViewSonic VG2439Smh-2 is a 24" Full HD LED multimedia monitor with future-proof connectivity and full ergonomic functionality ideal for use in the company or at home. With SuperClear® Technology for wide-angle viewing, and dynamic contrast ratio, this monitor delivers incredibly sharp images and video playback. Integrated with HDMI, DisplayPort, VGA and 2 USB ports, the VG2439Smh allows flexible connection to PC systems, laptops and other multimedia peripheral devices. ViewSonic's exclusive ViewMode provides intuitive presets to deliver optimized screen performance in different applications. In addition, Flicker-Free and Blue Light Filter technology help to eliminate eye strain from extended viewing periods.

HDMI, DisplayPort, and VGA inputs for flexible connectivity
HDMI, DVI and VGA inputs, enable users to connect to game consoles, Blu-ray players, digital cameras, laptops, satellite boxes, and other high-definition devices.
HDMI, DisplayPort, VGA

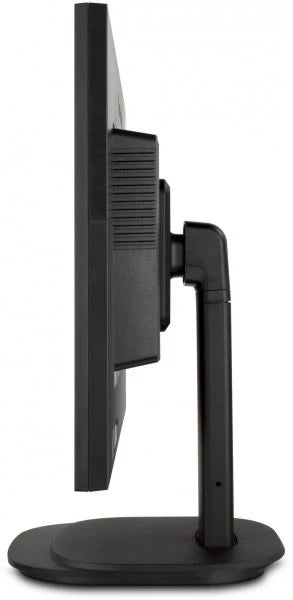

Comfort Ergonomics
Advanced ergonomic features allow VG2439smh-2 to provide a greater range of adjustments for increased comfort and productivity. Users are able to reduce eyestrain and physical fatigue via swivel, pivot, tilt, and height adjustment options.
Tilt: 20〫~-5〫
Swivel: 360〫
Rotation: 90〫
Height adjustment: 0~135mm

Lower Energy Consumption
An energy-saving Eco-mode incorporates power savings into its stunning screen performance.
Eco-mode

Full HD 1080p
The VG2439-smh-2 features Full HD 1920x1080 resolution for unbelievably clear pixel-by-pixel image performance. You’ll experience amazing clarity and detail whether working, gaming, or enjoying the latest entertainment.
Full HD 1080P

ViewMode Optimized Settings
ViewSonic’s ViewMode includes optimized “Game,” “Movie,” “Web,” “Text,” “Mono”, and “Mac” presets. Each preset offers specialized enhancements to gamma curve, color temperature, contrast, and brightness to deliver the optimal viewing experience for that specific application.
“Game,” “Movie,” “Web,” “Text,” “Mono”, and “Mac”

Powerful Sound
VG2439-smh-2’s dual integrated stereo speakers deliver room-filling surround sound. When paired with incredible screen performance, the combination provides complete multi-sensory immersion.
Dual Speakers

Comfortable Viewing
Flicker-Free technology and a Blue Light Filter eye care technologies help to eliminate eye strain from extended viewing periods.
Flicker Free & Blue Light Filter

Certified Environmental Sustainability
VG2439smh-2 has been designed with energy efficiency in mind. With EPEATt registry and certification from Energy Star,VG2455’s Eco Mode consumes less power, resulting in a smaller carbon footprint and reduced office overhead costs.
EPEAT & ES 8.0 & TCO8.0

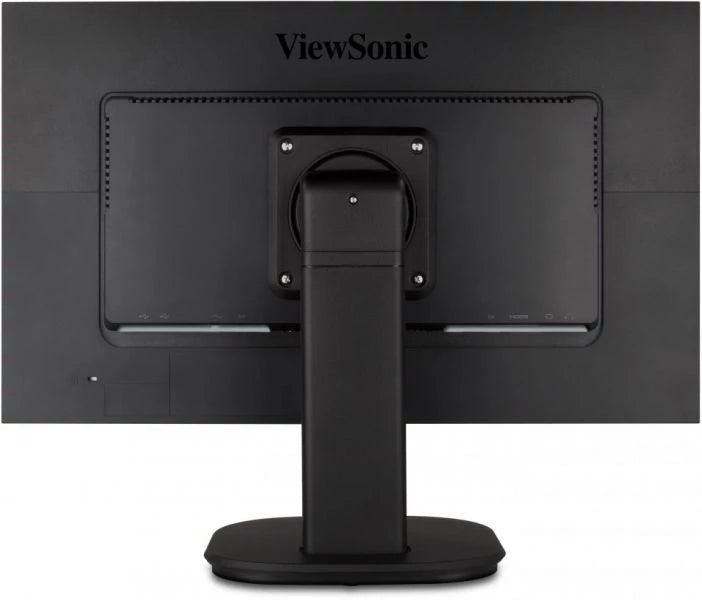

VESA-Compatibility
Conveniently mount the monitor to suit your preference by utilising the 100mm x 100mm VESA-compatible mount design.

DISPLAY
Monitor Size	24”W (23.6” Viewable)
Panel Technology	VA Technology TFT LCD
Resolution	Full HD 1920 x 1080
Display Area	521.28mm (H) x 293.22mm (V)
Aspect Ratio	16:9
Brightness	250 cd/m² (Typ)
Contrast Ratio	3000:1 (Typ)
Dynamic Contrast Ratio	20,000,000:1
Viewing Angles	178 degrees / 178 degrees (Typ)
Response Time	5ms (GtG)

INPUT SIGNAL
Frequency	Analog: Fh = 24 ~ 82KHz ; Fv = 50 ~ 75Hz, Digital: Fh = 15 ~ 82KHz ; Fv = 50 ~ 75Hz
Sync	Separate Sync / Composite Sync / Sync on Green, TMDS, PCI-E

COMPATIBILITY
PC Compatibility	Windows 7 / 8 / 10 certified
Mac Compatibility	Power Mac tested

CONNECTOR
Input	VGA x 1, HDMI x 1 (v1.4 compatible), DisplayPort x 1 (v1.2a compatible)
Audio Input	3.5mm plug x 1
Output	Earphone out 3.5mm plug x 1

AUDIO
Speaker	2W x 2

USB
Upstream	Type B x 1
Downstream	Type A x 2

POWER
Power	3-pin plug (CEE22) x 1
Voltage	AC 100-240V (Universal); 50/60Hz
Consumption	18.7W (Power), 15.3W (Optimize), 12.1W (Conserve)

ERGONOMICS
Tilt	20 ~ -5 degrees
Swivel	360 degrees
Pivot	90 degrees
Height Adjustment	0 ~ 135mm

SPECIAL FEATURES
Eye Care	Blue light filter, Flicker Free

WALL MOUNT
VESA	100 mm x 100 mm

OPERATING CONDITIONS
Temperature	32°F to 104°F (0°C to 40°C)
Humidity	20% to 90% (no condensation)

DIMENSIONS (mm)
Physical with stand	560.3mm (W) x 435.2mm~570.2mm (H) x 239.6mm (D)
Physical without stand	560.3mm (W) x 332.7mm (H) x 58.2mm (D)
Packaging	652mm (W) x 420mm (H) x 195mm (D)

WEIGHT
Net with stand	4.99kg (11lbs)
Net without stand	3.53kg (7.79lbs)
Gross	6.5kg (14.33lbs)

REGULATIONS
Certifications	cULus, FCC-B, ICES003, Energy Star, EPEAT, CEC, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, UKCA, VCCI, PSE, CCC, China RoHS, China Energy Label

PACKAGE CONTENTS
Included	LCD Display, Power Cable (1.8m), DisplayPort Cable (1.8m), Audio Cable (1.8m), USB2.0 Cable (1.8m), Quick Start Guide

Warranty

ViewSonic provides customers with the security of a manufacturer’s warranty against defected products. We are keen to provide our customers with great peace of mind and confidence in our product. With that in mind, we are now providing 3 years limited warranty on selected*
ViewSonic Interactive ViewBoards.
