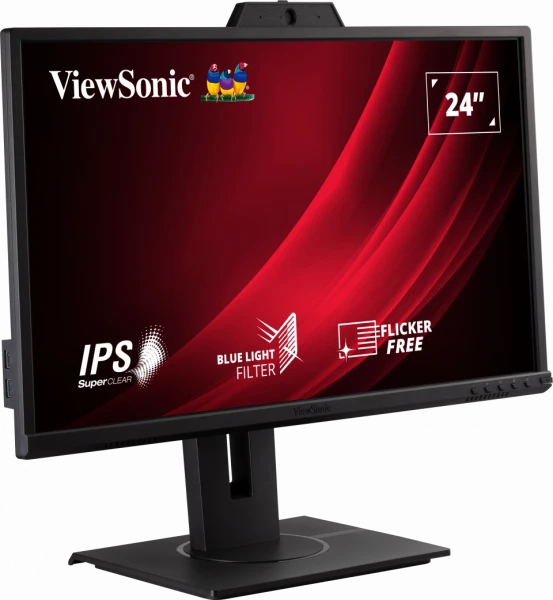

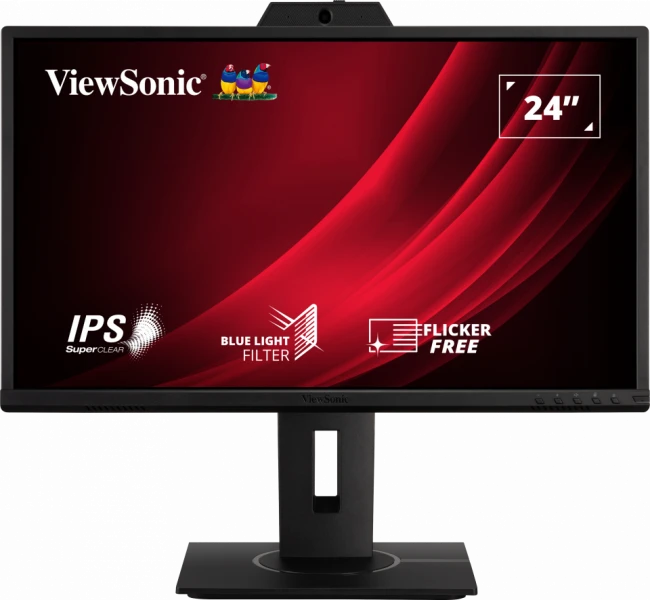

ViewSonic VG2440V

24” IPS Full HD Video Conferencing Monitor

Description
Specifications
Warranty

OVERVIEW
The ViewSonic VG2440V is a 24” Full HD video conferencing monitor designed to deliver out-of-the-box video conferencing and high-quality live streaming capabilities. The built-in Full HD webcam allows you to easily adjust the vertical angles to better frame yourself during VC calls and create more engaging content through varied camera angles, while the easy-to-use webcam slide cover ensures total privacy and security when not in use. Providing the full spectrum of ergonomic flexibility, the VG2440V can tilt, swivel, pivot, and height adjust to adapt to any setup or workflow, and the exceptional built-in microphones and dual front-facing speakers ensure you can hear and be heard with absolute clarity and professionalism. Combined with the vDisplay Manager productivity software for efficient multi-tasking and streamlined on-screen display control, the VG2440V is the complete solution for anybody looking for a professional live streaming or video communication experience.

An All-in-one Video Conferencing and Live Streaming Setup
Complete with a built-in Full HD webcam, microphone, dual front-facing speakers, and supporting software, the VG2440V delivers high-quality, out-of-the-box video conferencing and streaming capability.

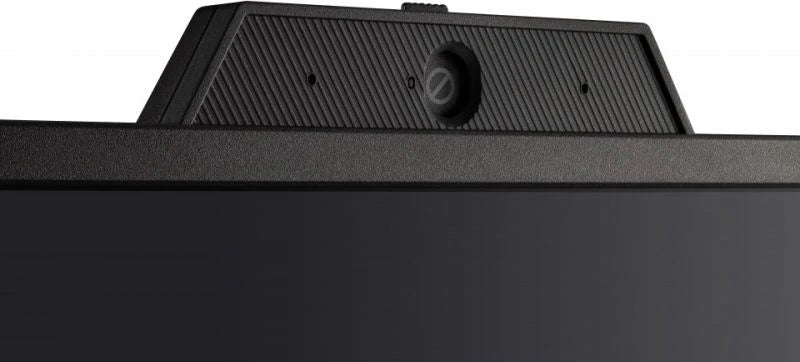

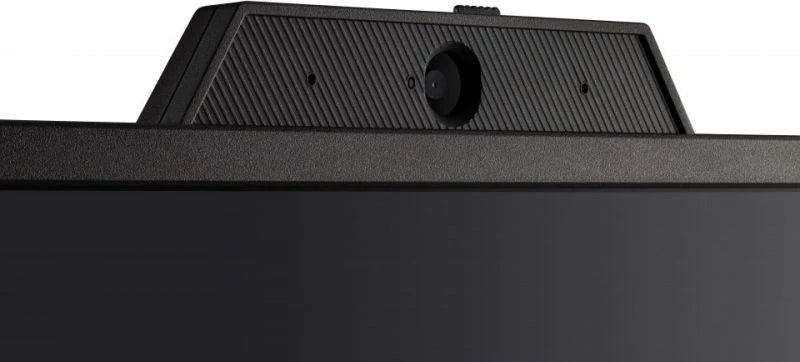

Built-in Full HD Webcam

More Control Over How You’re Seen
Easily adjust the vertical angles of the webcam up to 5 degrees both ways, to ensure you, your team, or your content is perfectly framed every time.
Adjustable Vertical Angle

Simple Slide Cover Ensures Privacy and Security
The built-in webcam includes an easy-to-use slide cover to ensure complete privacy and security when not in use. Slide it open when the camera is on and simply slide it shut when you’re done.
Webcam Cover Slide

Crisp Audio for All Through Built-in Speakers and Microphone
Ensure quality audio in all video calls and live streams with exceptional inbuilt microphones and dual front-facing speakers designed to deliver crystal clear sound for you and your listeners.
Front-facing Speakers

Easy Multi-tasking for Increased Efficiency
Work smart with efficient OSD command and control through vDisplay Manager. Personalise split-screen displays, auto-launch applications, and customize display settings to maximise multi-tasking abilities and overall efficiency.
vDisplay Manager Software

Complete Ergonomic Flexibility

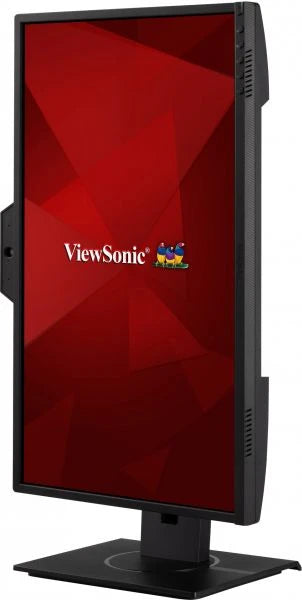

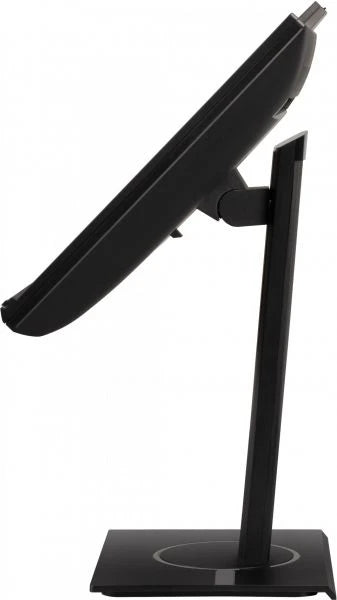

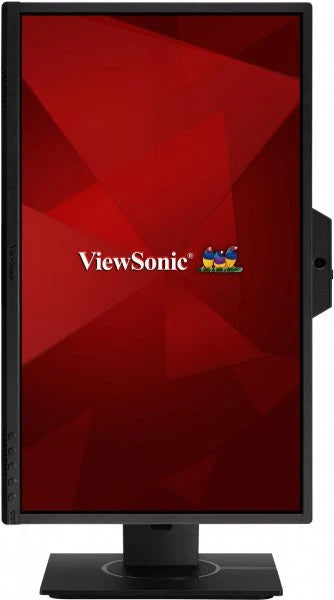

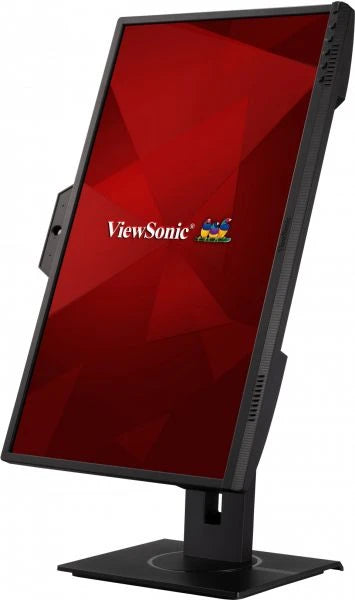

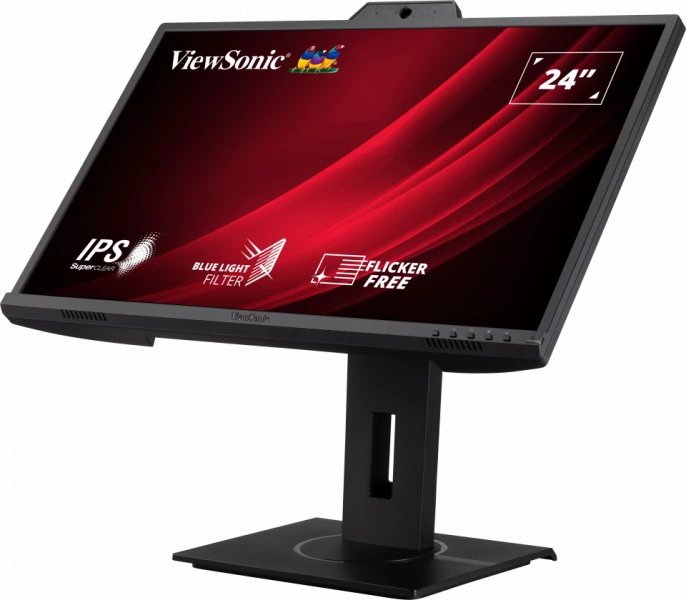

Effortlessly swivel the display up to 120 degrees, tilt up to 40 degrees, raise the display up to 130mm, or pivot 90 degrees for portrait viewing. The VG2440V offers the full range of ergonomic flexibility for every task and workflow.
Swivel, Tilt, Pivot and Height

Consistently Impressive from All Angles
SuperClear® IPS panel technology delivers the same top-class image quality from above, below, front, and side for accurate and vivid colours with consistent brightness from any angle.
IPS Panel

Advanced Eye-Care Technology
Eliminate eye strain and fatigue after long periods of use with Flicker-Free technology and a Blue Light Filter. Easily access the settings via vDisplay Manager and preset personalised brightness and contrast levels for different times of the day.
Flicker-Free & Blue Light Filter

Effortless Installation in 4 Easy Steps
Instant assembly with no expertise required. Simply open the box, screw the base to the quick release stand, snap the stand into place using the slots, and lift the fully assembled display out the box.

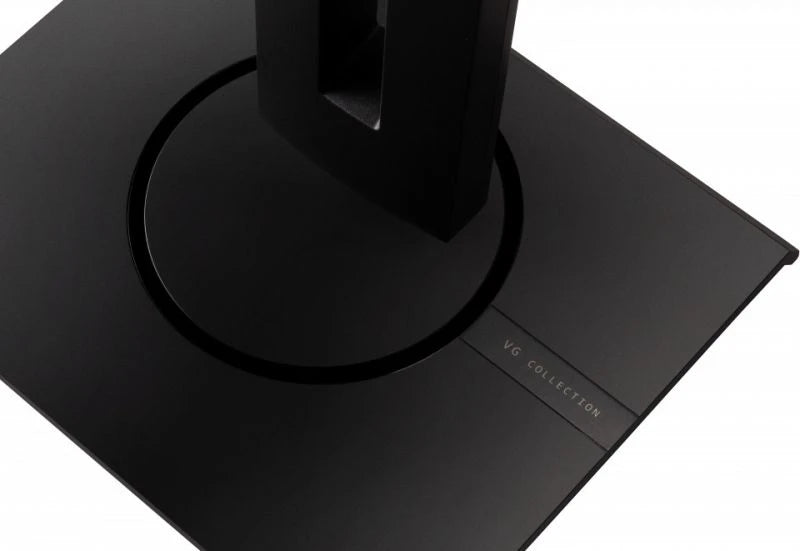

Quick Release Stand

Eco-friendly, biodegradable packaging
The VG2440V is shipped in paper-based packaging for easy disposal through recycling. The green thinking is reinforced with hand holes and mono colour printing to avoid any plastics and pollutants.
Paper-based

Certified Environmental Sustainability
This is an ENERGY STAR certified product that can save on energy costs* while reducing greenhouse gases. Achieved TCO certified displays 8.0 recognition for sustainability and registered as an EPEAT Silver product, the VG2440V delivers a reduced environmental impact over the course of its lifecycle. *Energy savings may vary based on actual usage and other factors.
EPEAT Silver & ES 8.0 & TCO8.0

Minimised Total Cost of Ownership
Designed for modern offices, the VG2440V helps reduce hidden business costs and delivers an efficient end-to-end enterprise experience. From installation time and recycling concerns to user experience and screen performance, every feature of this monitor has been carefully designed to meet the demands of modern-day work and reduce the TCO for business owners.

Dimension & I/O Ports

Display
Display Size (in.)	24
Viewable Area (in.)	23.8
Panel Type	IPS Technology
Resolution	1920 x 1080
Resolution Type	FHD (Full HD)
Static Contrast Ratio	1,000:1 (typ)
Dynamic Contrast Ratio	80M:1
Light Source	LED
Brightness	250 cd/m² (typ)
Colors	16.7M
Color Space Support	8 bit (6 bit + Hi-FRC)
Aspect Ratio	16:9
Response Time (Typical GTG)	5ms
Response Time (GTG w/OD)	5ms
Viewing Angles	178° horizontal, 178° vertical
Backlight Life (Hours)	30000 Hrs (Min)
Curvature	Flat
Refresh Rate (Hz)	60
Blue Light Filter	Yes
Flicker-Free	Yes
Color Gamut	NTSC: 72% size (Typ), sRGB: 104% size (Typ)
Pixel Size	0.275 mm (H) x 0.275 mm (V)
Surface Treatment	Anti-Glare, Hard Coating (3H)

Compatibility
PC Resolution (max)	1920x1080
Mac® Resolution (max)	1920x1080
PC Operating System	Windows 7/8/8.1/10/11 certified; macOS tested
Mac® Resolution (min)	1920x1080

Connector
VGA	1
USB 3.2 Type A Down Stream	3
USB 3.2 Type B Up Stream	1
3.5mm Audio In	1
3.5mm Audio Out	1
HDMI 1.4	1
DisplayPort	1
Power in	3-pin Socket (IEC C14 / CEE22)

Audio
Internal Speakers	2Watts x2

Power
Eco Mode (Conserve)	10.3W
Eco Mode (optimized)	11.71W
Consumption (typical)	13.68W
Consumption (max)	16.52W
Voltage	AC 100-240V
Stand-by	0.5W
Power Supply	Internal Power Supply

Additional Hardware
Kensington Lock Slot	1
Webcam	2.0M pixel
Cable Organization	Yes
Microphone	Yes

Controls
Physical Controls	Key 1 (volume down), Key 2, Key 3, Key 4, Key 5, Key 6 (power)
On Screen Display	Input Select, Audio/Mic, ViewMode, Color Adjust, Manual Image Adjust, Setup Menu

Operating Conditions
Temperature	32°F to 104°F (0°C to 40°C)
Humidity (non-condensing)	20% to 90%

Wall Mount
VESA Compatible	100 x 100 mm

Input Signal
Frequency Horizontal	RGB Analog: 16 ~ 83KHz, HDMI (v1.4): 15 ~ 90KHz, DisplayPort (v1.2): 15 ~ 90KHz
Frequency Vertical	RGB Analog: 50 ~ 75Hz, HDMI (v1.4): 49 ~ 75Hz, DisplayPort (v1.2): 49 ~ 75Hz

Video Input
Digital Sync	TMDS - HDMI (v1.4), PCI-E - DisplayPort (v1.2)
Analog Sync	Separate/Composite/SOG - RGB Analog

Ergonomics
Height Adjust (mm)	130
Swivel	120º
Tilt (Forward/Back)	-5º / 40º
Pivot (Right/Left)	90º / 90º

Weight (imperial)
Net (lbs)	13.3
Net Without Stand (lbs)	7.9
Gross (lbs)	19.2

Weight (metric)
Net (kg)	6
Net Without Stand (kg)	3.6
Gross (kg)	8.7

Dimensions (imperial) (wxhxd)
Packaging (in.)	24 x 15.9 x 8.3
Physical (in.)	21.6 x 16.02~21.13 x 8.1
Physical Without Stand (in.)	21.6 x 13.8 x 2

Dimensions (metric) (wxhxd)
Packaging (mm)	609 x 405 x 210
Physical (mm)	549 x 406.78~536.78 x 206
Physical Without Stand (mm)	549 x 352 x 50

General
Regulations	cTUVus, FCC-B, ICES003, Energy Star, EPEAT, CEC, MX-CoC, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, TCO 9.0, EAC, UkrSEPRO, UKCA, RCM, GEMS, BIS

PACKAGE CONTENTS
PACKAGE CONTENTS	VG2440V x1, 3-pin Plug (IEC C13 / CEE22) x1, HDMI Cable (v1.4; Male-Male) x1, USB A/B Cable (v3.2; Male-Male) x1, Audio Cable (Male-Male) x1, Quick Start Guide x1

Recycle/Disposal
Recycle/Disposal	Please dispose of in accordance with local, state or federal laws.
