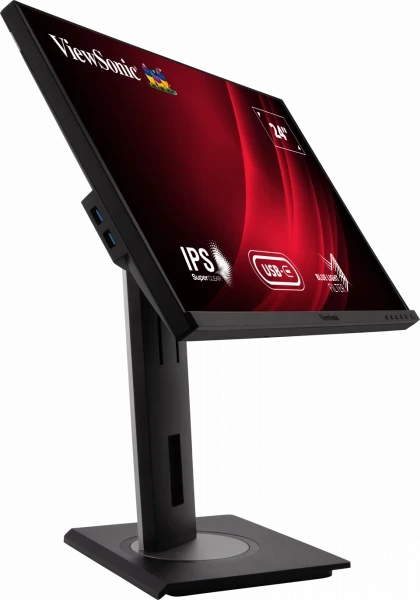

ViewSonic VG2455

24" 75Hz Advanced Ergonomics Business Monitor

Description
Specifications
Warranty

OVERVIEW

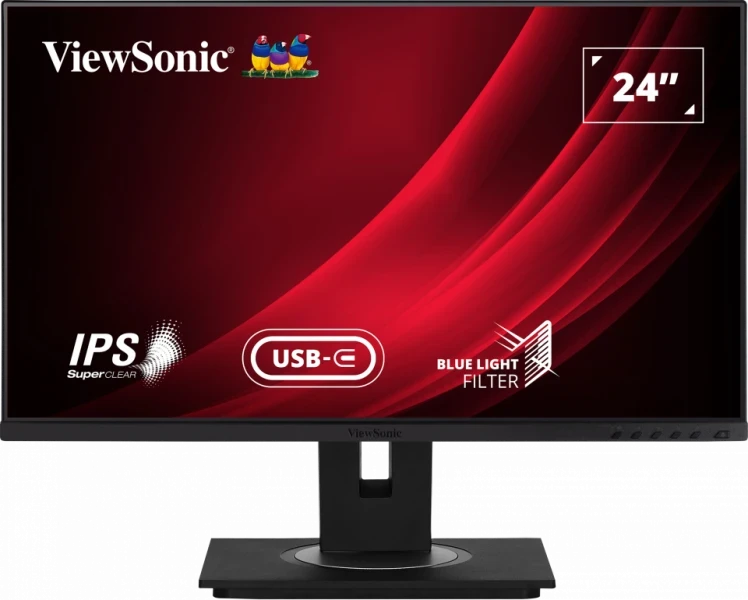

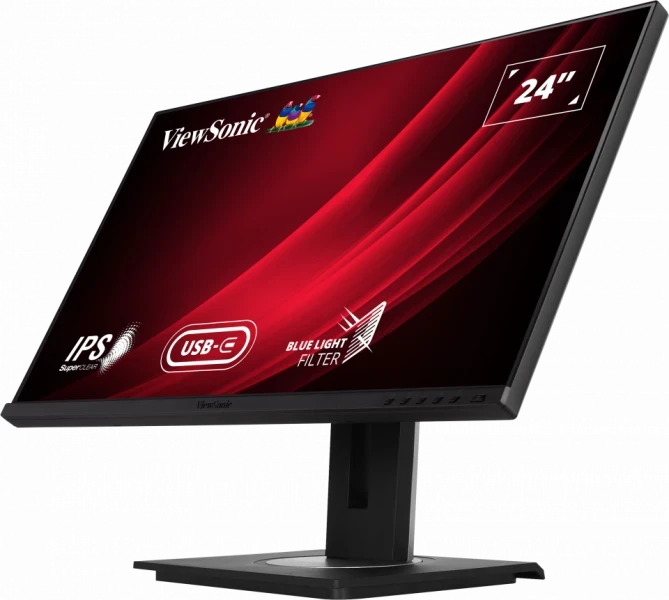

The ViewSonic VG2455 is a 24" (23.8" viewable) 1080P IPS monitor designed to fit the modern office space. The monitor comes with a built-in USB Type-C port and a complimentary USB Type-C cable. Charge and display content simply via a single cable from your device, enabling connection to your laptop through a single USB cable and keeping your workstation neat while also functioning as a docking monitor. In addition, the monitor is equipped with DisplayPort, HDMI, VGA, and three USB Type-A ports to expand your efficiency. The three-sided frameless bezel design lets you enjoy an uninterrupted view of content across multiple monitors. An advanced ergonomic design offers the widest range of adjustments available for maximum comfort; including pivot, swivel, height adjustment, and an impressive 40° tilt, allowing you to use the monitor while standing or have strategic group discussions around the screen. The packaging is environmentally friendly and offers quick and easy setup, making the VG2455 monitor perfect for business environments.

Big Convenience in a Single Cable
A built-in USB Type-C port provides unparalleled compatibility with most peripherals. Get an easy charge for a variety of devices with up to 60W of power, and transmit audio and video simply with one cable.
*Only available for devices that support USB Type-C video streaming. Check to see if your device is compatible for USB Type-C video transmission
**All VG55 Series monitors come with a complimentary USB Type-C cable.
USB Type-C
60W power charge
Transmit data, video, and audio

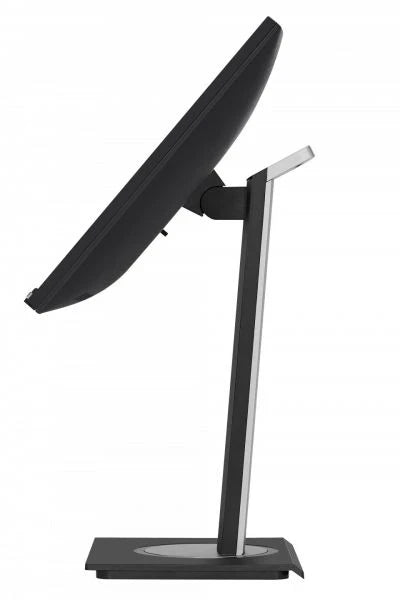

A New Angle on Workplace Ergonomics
Enjoy every detail with advanced ergonomics including pivot, swivel, and height adjustment to provide maximum comfort. The VG2455 features a 40° ergonomic tilt angle, enabling you to use the monitor while standing or have strategic group discussions around the screen.
Pivot +/-90°
Swivel +/-60°
Tilt 40°~-5°
Height adjustment 0~130mm

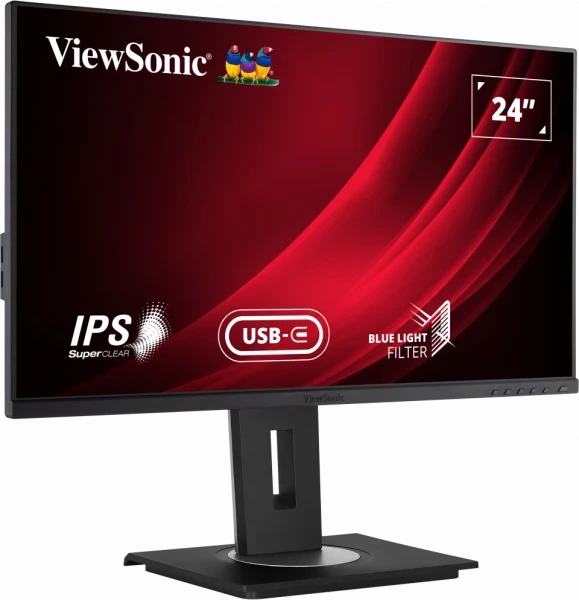

Uninterrupted Viewing
The VG2455 is designed with a frameless bezel on three sides, giving the monitor a clean look and an uninterrupted view when used in a multi-monitor setup.
Three-sided frameless bezel

Clarity from Any Angle
Indulge in accurate and vivid colours with consistent levels of brightness from any vantage point. With SuperClear® IPS panel technology, the monitor delivers the same image quality whether you are looking at the screen from above, below, the front, or the side.
SuperClear IPS
178°/178°

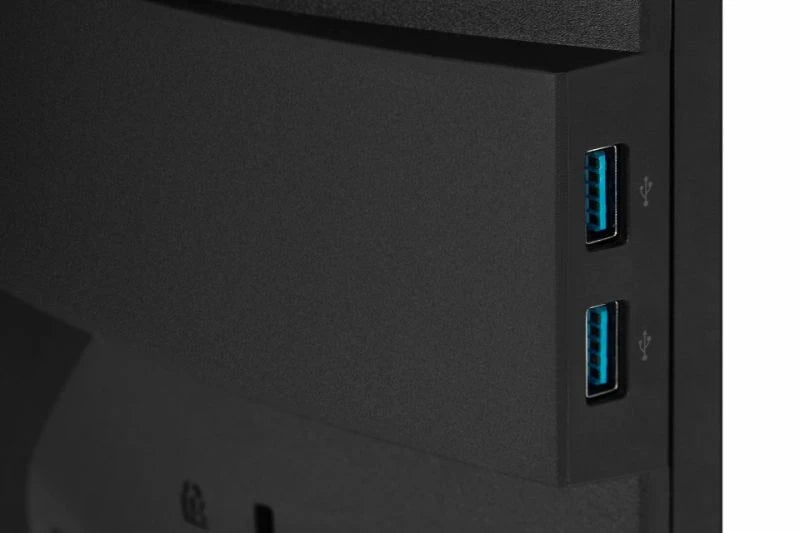

Connection Flexibility
In addition to the USB Type-C connection, the monitor comes with built-in HDMI, DisplayPort, VGA, and USB 3.2 inputs enable you to connect to an array of devices to VG2455.
HDMI
DisplayPort
VGA
USB Type-C
USB 3.2 x 4 (1 upstream, 3 downstreams)

vDisplay Manager
ViewSonic’s proprietary vDisplay Manager software is available for free and allows users to organise and divide their screen into multiple segments. The software also enables users to adjust their monitor settings via the software directly for a more efficient workflow.
Spilt screen
Monitor settings

Low Energy Consumption
The VG2455 has been designed with energy efficiency in mind. With certification from Energy Star and EPEAT, the VG2455’s Eco Mode consumes less power, resulting in a smaller carbon footprint and reduced office overhead costs.
Energy Star
EPEAT

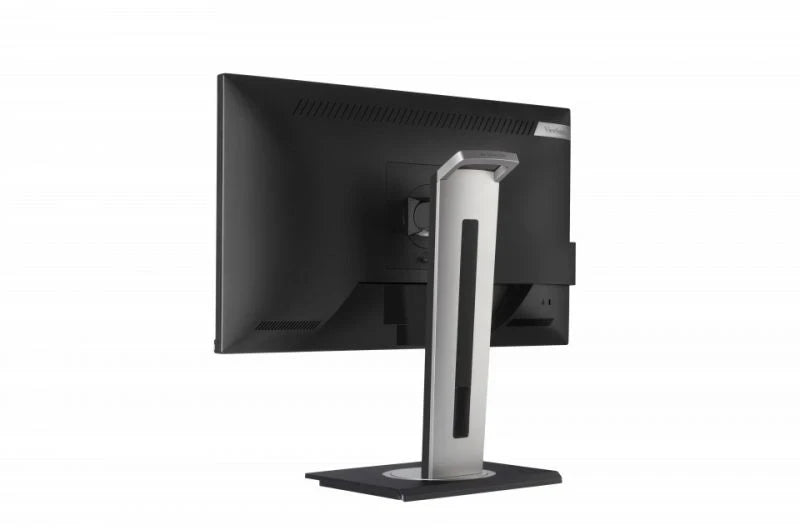

Versatile Stand Design

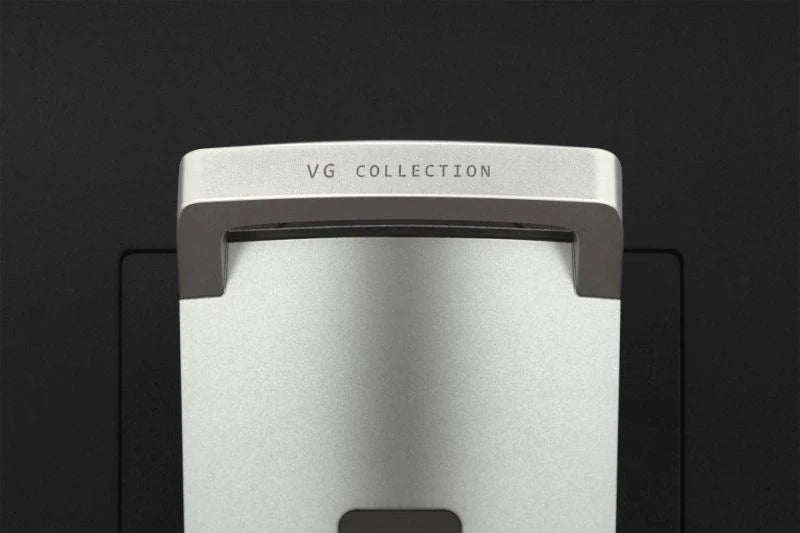

The VG2455's versatile stand is client mount compatible and features in-built cable management to keep your workstation neat and free of cable clutter. A carrying handle sits at the top of the stand for portability and stability when relocating the monitor. *Client Mount Kit must be used to attach a mini PC. Client mount kit is sold separately.
Client mount compatible
Cable management
Carrying handle

Environmentally Friendly Packaging
Designed with the environment in mind, the packaging for the VG48/VG55/VG55-2K series is made with up to 80% recyclable and paper based materials instead of hazardous EPS (polystyrene). Additional plastic materials, such as handles, have been replaced with hand holes and the exterior of the package uses mono colour printing.

Paper-based packaging

VESA Compatible
Mount the monitor exactly to your liking by utilising the monitor’s 100 x 100mm VESA compatible design.

100 x 100mm

Optimised Viewing Presets
The VG2455 monitor features ViewSonic’s exclusive ViewMode, including Text, Web, Movie, Mono, Mac, and Game presets. Depending on the occasion, a corresponding preset helps to enhance gamma curve, colour temperature, contrast, and brightness to deliver an optimised viewing experience.
Text
Web
Movie
Mono
Mac
Game

Advanced Eye Care Technology
Flicker-Free technology and a Blue Light Filter help to eliminate eyestrain caused by harmful light rays and periods of extended viewing.
Flicker Free
Blue Light Filter

DISPLAY
Monitor Size	24’’ (23.8’’ viewable)
Panel Technology	IPS Technology
Resolution	1920 x 1080
Display Area	527 mm x 296.5 mm
Aspect Ratio	16:9
Brightness	250 cd/m² (Typ)
Contrast Ratio	1000:1 (Typ)
Dynamic Contrast Ratio	50,000,000:1
Viewing Angles	178° horizontal / 178° vertical (Typ)
Response Time	GtG (Recommend; typ; ms): 5ms
Pixel Size	0.275mm (H) x 0.275mm (V)

INPUT SIGNAL
Frequency	24 ~ 82KHz (H); 50 ~ 75Hz (V)
Sync	Separate/Composite/SOG, TMDS, PCI-E, Micro-Packet

COMPATIBILITY
PC	Windows 7/8/8.1/10 certified
Mac®	macOS tested

CONNECTOR
Input	VGA In x1, HDMI In(1.4) x1, DisplayPort In(1.2) x1, USB Type C (Up Stream; DisplayPort Alt mode)(3.1) x1, USB Type B (Up Stream)(3.1) x1, USB Type A (Down Stream; 900mA)(3.1) x3

AUDIO
Speaker	2W x 2

USB
Upstream	USB Type C (Up Stream; DisplayPort Alt mode) (v 3.1) x 1, USB Type B (Up Stream) (v 3.1) x 1
Downstream	USB Type A (Down Stream; 900mA) (v 3.1) x 3

POWER
Power	3-pin Socket (IEC C14 / CEE22)
Voltage	AC 100-240V (Universal); 50/60Hz
Consumption	Power: 17.8W, Optimise: 14.4W, Conserve: 11.9W

ERGONOMICS
Tilt	40 ~ -5 degrees
Swivel	60 ~ -60 degrees
Pivot	90 ~ -90 degrees
Height Adjustment	130mm

WALL MOUNT
VESA®	100mm x 100mm

OPERATING CONDITIONS
Temperature	32°F to 104°F (0°C to 40°C)
Humidity	20% to 90% (no condensation)

DIMENSIONS (W x H x D) (mm)
Physical with stand	539mm (W) x 406~503mm (H) x 202mm (D)
Physical without stand	539mm (W) x 320mm (H) x 52mm (D)
Packaging	595mm (W) x 210mm (H) x 396mm (D)

WEIGHT
Net with stand	6.4kg
Net without stand	4kg
Gross	9.4kg

REGULATIONS
Regulations	cTUVus, FCC-B, ICES003, Energy Star, EPEAT, CEC, MX-CoC, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, UKCA, RCM, GEMS, BIS

WARRANTY
Warranty	Warranty offered may differ from market to market

PACKAGE CONTENTS
PACKAGE CONTENTS	VG2455 x1, 3-pin Plug (IEC C13 / CEE22) x1, USB A/B Cable (v3.0; Male-Male) x1, Quick Start Guide x1, USB Type-C Cable x1

Warranty

ViewSonic provides customers with the security of a manufacturer’s warranty against defected products. We are keen to provide our customers with great peace of mind and confidence in our product. With that in mind, we are now providing 3 years limited warranty on selected*
ViewSonic Interactive ViewBoards.
