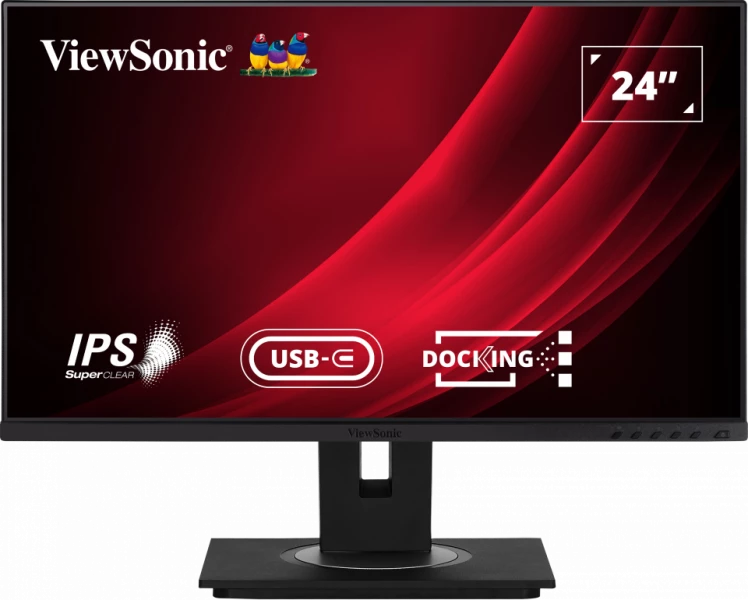

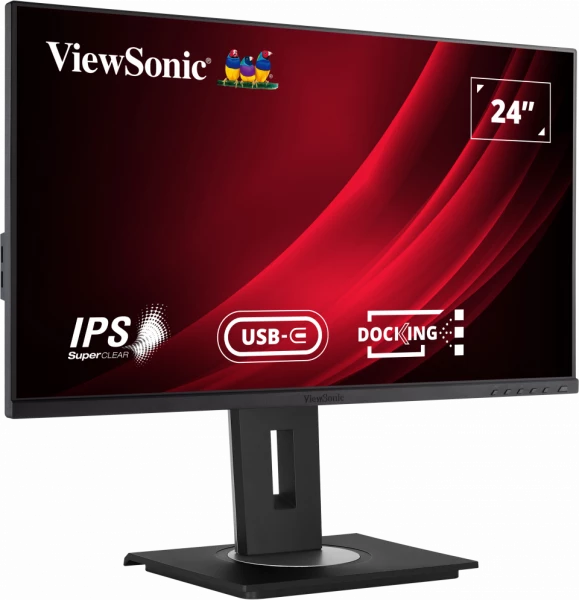

ViewSonic VG2456

24” Docking Monitor featuring USB Type-C and Ethernet

• Description
• Specifications
• Warranty

• OVERVIEW

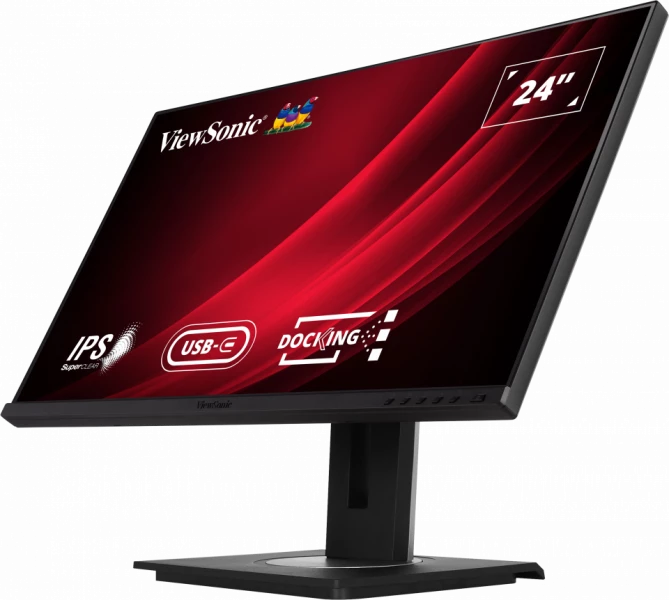

  The ViewSonic VG2456 monitor is a 24” (23.8” viewable) 1080p IPS Docking monitor featuring USB Type-C and Ethernet. With the built-in USB Type-C port, you can charge and display content through a single cable from your device, enabling connection with your laptop via a single USB cable to keep the workstation tidy while using it as a docking monitor. Additionally, the Ethernet port can provide a fast and stable network connection. The monitor is also equipped with DisplayPort, HDMI, and three USB Type-A ports to expand your efficiency. You can also daisy chain monitors from the Type-C or DP port. The three-sided frameless bezel design lets you enjoy an uninterrupted view of content across multiple monitors. An advanced ergonomic design offers the widest range of adjustments available for maximum comfort; including pivot, swivel, height adjustment, and an impressive 40° tilt, allowing you to use the monitor while standing or having strategic group discussions around the screen. Packaging is environmentally friendly and offers quick and easy out-of-the-box setup, making the VG2456 monitor perfect for business environments.

  Big convenience with docking monitor
  Expand your laptop functionality and plug all your devices directly into your docking monitor – the VG2456. Get a charge (that transmits power up to 60W), data, video, and audio with a single cable connected to the USB Type-C port. The built-in Ethernet port provides an extra fast and stable network option.
  USB Type-C
  Ethernet

  Daisy chain enabled
  Daisy chain connections allow for better cable management and productivity. For more flexible connectivity, users can daisy chain the VG2456 and other monitors from the Type-C (Type-C in, DP out) and DP port (DP in, DP out).
  Daisy Chain

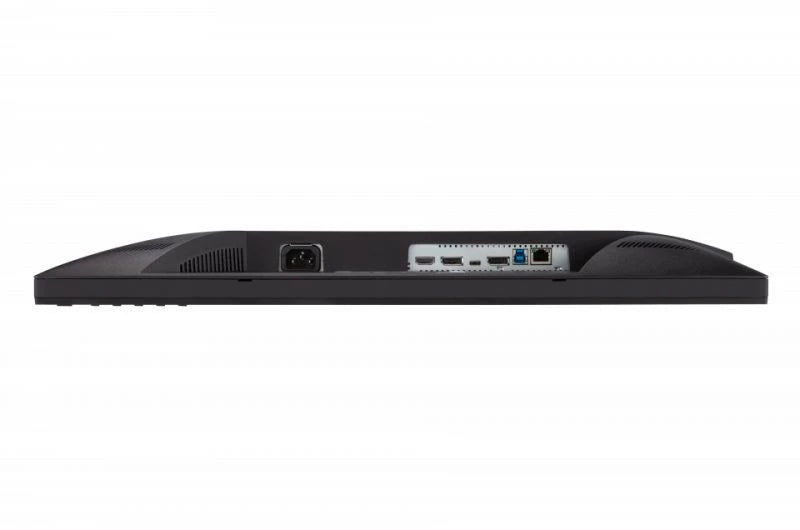

  Connection Flexibility
  HDMI, DP, DP out, Ethernet, USB Type-C and USB 3.2 inputs enable you to connect to an array of devices to the VG2456.
  HDMI
  DP
  DP out
  USB Type-C

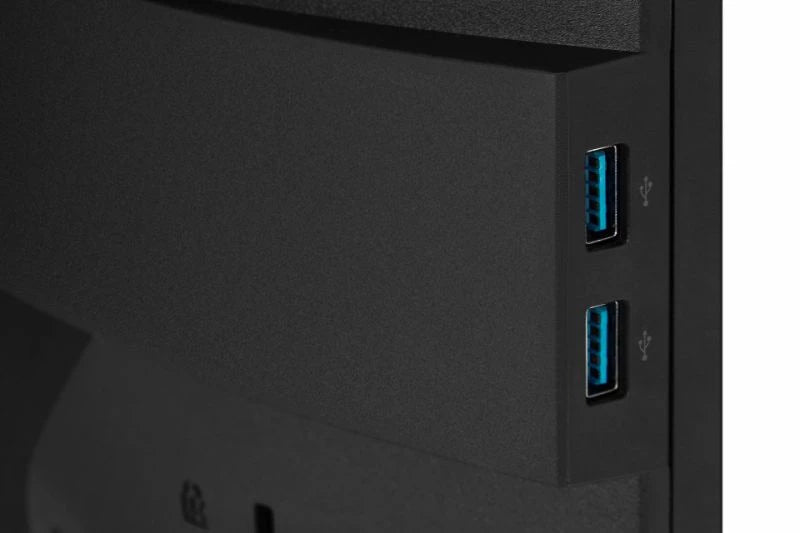

  USB 3.2 x 3 (1 upstream, 2 downstreams)

  Immersive Audio
  Designed with dual integrated speakers, the VG2456 accents its incredible screen performance with immersive stereo sound for a complete multimedia experience.
  Dual Speakers

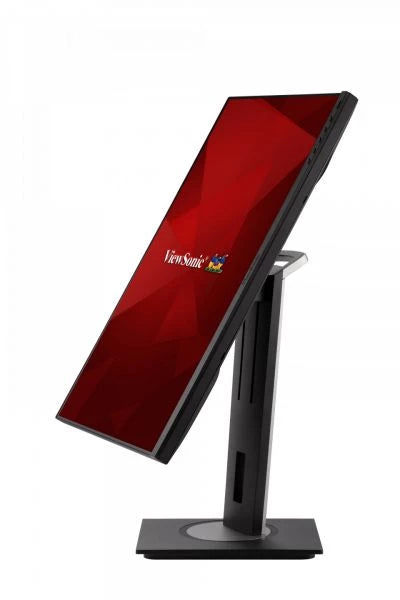

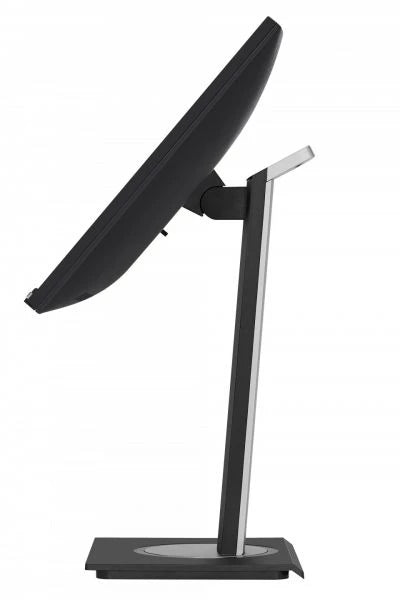

  A New Angle on Workplace Ergonomics
  Enjoy every detail with advanced ergonomics including pivot, swivel, and height adjustment to provide a greater range of customisable adjustment for maximum comfort. The VG2456 features a 40° ergonomic tilt angle, enabling you to use the monitor while standing or having strategic group discussions around the screen.

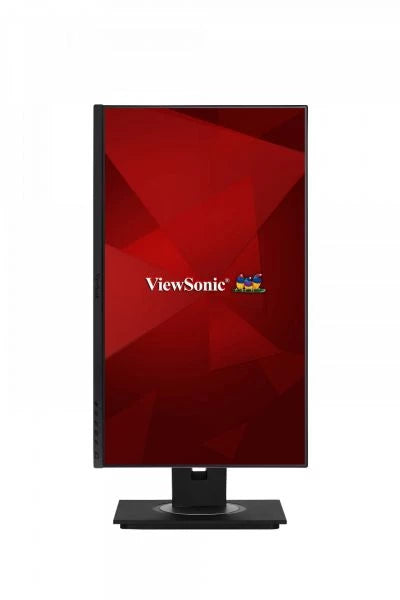

  Pivot +/-90°
  Swivel +/-60°

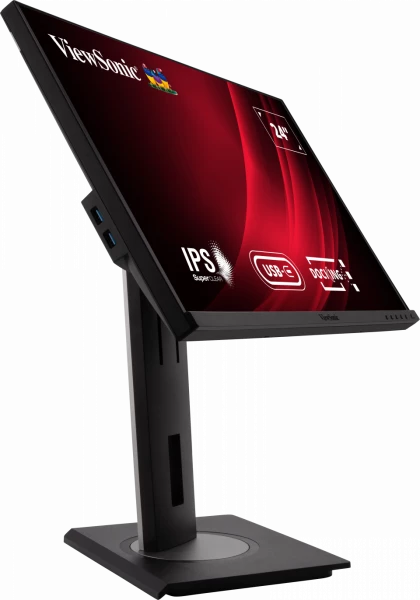

  Tilt 40°~-5°
  Height adjustment 0~130mm

  Clarity from Any Angle
  Indulge in accurate and vivid colours with consistent levels of brightness from any vantage point. With SuperClear® IPS panel technology, the monitor delivers the same image quality whether you are looking at the screen from above, below, the front, or the side.
  SuperClear IPS
  178°/178°

  Uninterrupted Viewing
  The VG2456 is designed with a frameless bezel on three sides, giving the monitor a clean look and an uninterrupted view when used in a multi-monitor setup.
  Three-sided frameless bezel

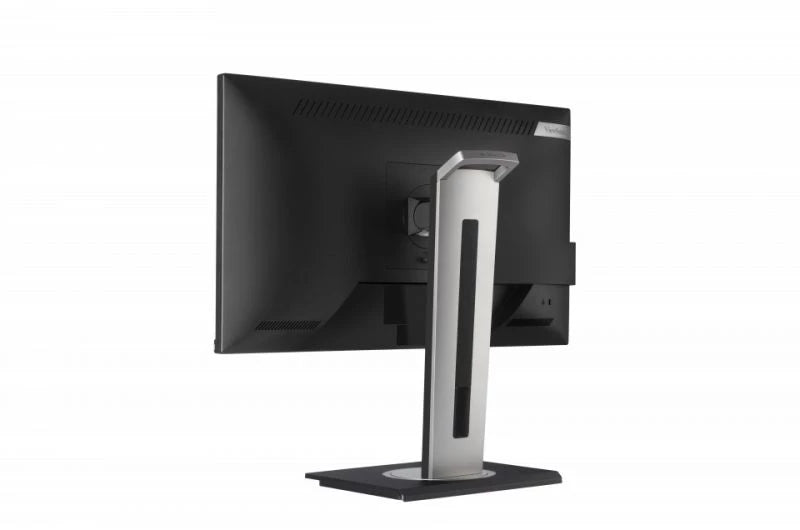

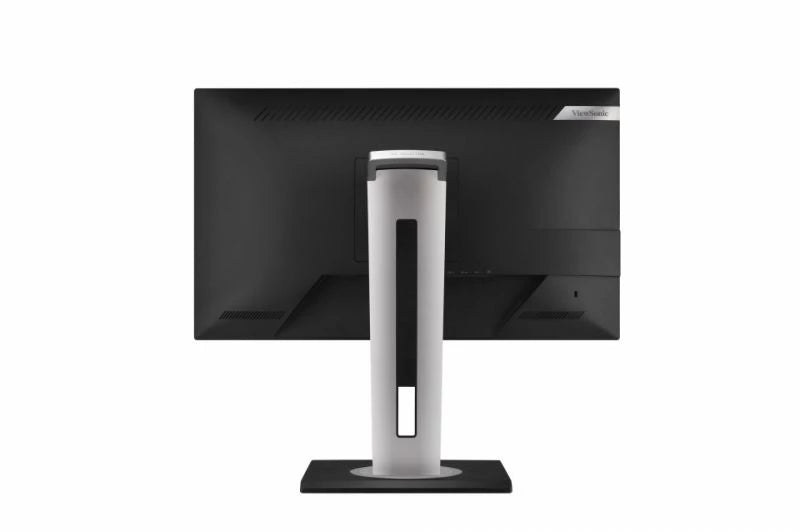

  Versatile Stand Design
  The VG2465’s versatile stand is client mount compatible, along with cable management design to keep your workspace neat and free of cable clutter. A carrying handle sits at the top of the stand for stability when relocating the monitor. *Client Mount Kit must be used to attach a mini PC. Client mount kit is sold separately.
  Client mount compatible
  Cable management

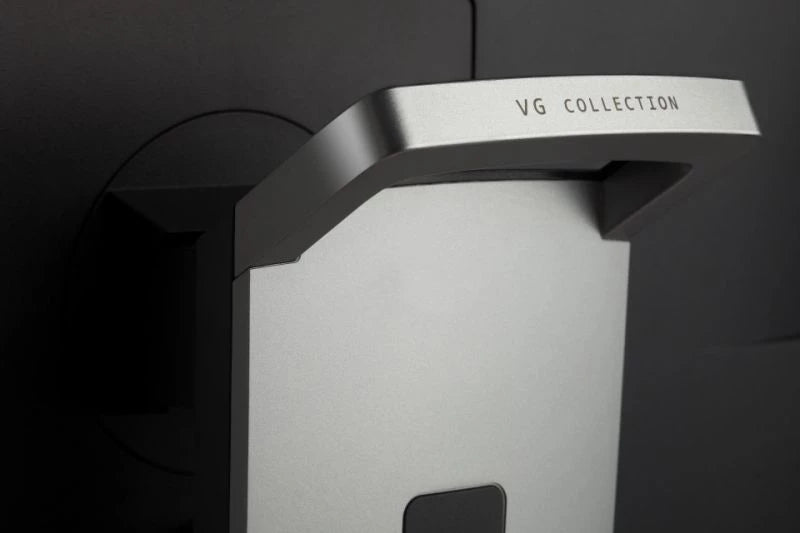

  Carrying handle

  4-step Assembly
  The VG2456 utilises a Quick Release stand design which lets you attach/detach the panel with the push of a button. The monitor can be assembled entirely by hand in four simple steps: 1. Open the box 2. Screw on the monitor base 3. Clip the stand onto the panel with the Quick Release stand 4. Set it up anywhere - it’s ready to go!
  Clever Package Design for Fast Assembly
  Quick Release Stand

  Advanced Eye Care Technology
  Flicker-Free technology and a Blue Light Filter help to eliminate eyestrain caused by harmful light rays and periods of extended viewing.
  Flicker Free
  Blue Light Filter

  vDisplay Manager
  ViewSonic’s proprietary vDisplay Manager software is available for free and allows users to organise and divide their screen into multiple segments. The software also enables users to adjust their monitor settings via the software directly for a more efficient workflow.
  Spilt screen
  Monitor settings

  Environmentally Friendly Packaging
  Designed with the environment in mind, the packaging for the VG2456 is made with up to 80% recyclable and paper based materials instead of hazardous EPS (polystyrene). Additional plastic materials, such as handles, have been replaced with hand holes and the exterior of the package uses mono colour printing.
  Made with 80% Recyclable Materials Paper-based packaging

  Low Energy Consumption
  The VG2456 has been designed with energy efficiency in mind. With certification from Energy Star 8.0 and EPEAT registry, the VG2456’s Eco Mode consumes less power, resulting in a smaller carbon footprint and reduced office overhead costs.
  Energy Star 8.0

  VESA Compatible
  Mount the monitor exactly to your liking by utilising the monitor’s 100 x 100 mm VESA compatible design.
  100 x 100mm





• Display
  Display Size (in.)	24
  Viewable Area (in.)	23.8
  Panel Type	IPS Technology
  Resolution	1920 x 1080
  Resolution Type	FHD
  Static Contrast Ratio	1,000:1 (typ)
  Dynamic Contrast Ratio	50M:1
  Light Source	LED
  Brightness	250 cd/m² (typ)
  Colours	16.7M
  Colour Space Support	8 bit (6 bit + A-FRC)
  Aspect Ratio	16:9
  Response Time (Typical GTG)	5ms
  Viewing Angles	178º horizontal, 178º vertical
  Backlight Life (Hours)	30,000 Hrs (Min)
  Curvature	Flat
  Refresh Rate (Hz)	60
  Blue Light Filter	Yes
  Flicker-Free	Yes
  Colour Gamut	NTSC: 72% size (Typ), sRGB: 102% size (Typ)
  Pixel Size	0.275 mm (H) x 0.275 mm (V)
  Surface Treatment	Anti-Glare, Hard Coating (3H)

  Compatibility
  PC Resolution (max)	1920x1080
  Mac® Resolution (max)	1920x1080
  PC Operating System	Windows 7/8/8.1/10/11 certified; macOS tested
  Mac® Resolution (min)	1920x1080

  Connector
  USB 3.1 Type A	1
  USB 3.1 Type B	1
  USB 3.1 Type C	1
  HDMI 1.4	1
  Display Port	1
  Display Port Out	1
  Power in	3-pin Socket (IEC C14 / CEE22)

  Audio
  Internal Speakers	2 Watts x 2

  Power
  Eco Mode (Conserve)	9.95W
  Eco Mode (optimised)	11.68W
  Consumption (typical)	13.7W
  Consumption (max)	17.4W
  Voltage	AC 100-240V, 50/60 Hz
  Stand-by	0.3W
  Power Supply	Internal

  Additional Hardware
  Kensington Lock Slot	1
  Cable Organisation	Yes

  Controls
  Physical Controls	Key 1 (eye), Key 2, Key 3, Key 4, Key 5, Key 6 (power)
  On Screen Display	Input Select, Audio Adjust, ViewMode, Colour Adjust, Manual Image Adjust, Setup Menu

  Operating Conditions
  Temperature	32°F to 104°F (0°C to 40°C)
  Humidity (non-condensing)	20% to 90%

  Wall Mount
  VESA Compatible	100 x 100 mm

  Input Signal
  Frequency Horizontal	15 ~ 82KHz
  Frequency Vertical	50 ~ 75Hz

  Video Input
  Digital Sync	TMDS - HDMI (v1.4), PCI-E - DisplayPort (v1.2), Micro-Packet - Type C

  Ergonomics
  Height Adjust (mm)	130
  Swivel	120º
  Tilt (Forward/Back)	-5º / 40º
  Pivot (Right/Left)	90º / 90º

  Weight
  Net (lbs)	14.1
  Net Without Stand (lbs)	8.8
  Gross (lbs)	20.7

  Weight (metric)
  Net (kg)	6.4
  Net Without Stand (kg)	4
  Gross (kg)	9.4

  Dimensions (imperial) (wxhxd)
  Packaging (in.)	23.4 x 8.3 x 15.6
  Physical (in.)	21.2 x 15.99~20.15 x 8
  Physical Without Stand (in.)	21.2 x 12.6 x 2

  Dimensions (metric) (wxhxd)
  Packaging (mm)	595 x 210 x 396
  Physical (mm)	539 x 406.19~511.9 x 202
  Physical Without Stand (mm)	539 x 320 x 52

  General
  Regulations	cTUVus, FCC-B, ICES003, Energy Star, EPEAT, CEC, MX-CoC, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, UKCA, PSB, RCM, GEMS, BIS
  Package Contents	VG2456 x1, 3-pin Plug (IEC C13 / CEE22) x1, DisplayPort Cable (v1.2; Male-Male) x1, USB Type-C Cable (Male-Male) x1, USB A/B Cable (v3.2; Male-Male) x1, Quick Start Guide x1
  Recycle/Disposal	Please dispose of in accordance with local, state, or federal laws.
  Warranty	*Warranty offered may differ from market to market
  Power Management	Energy Star standards, EPEAT
