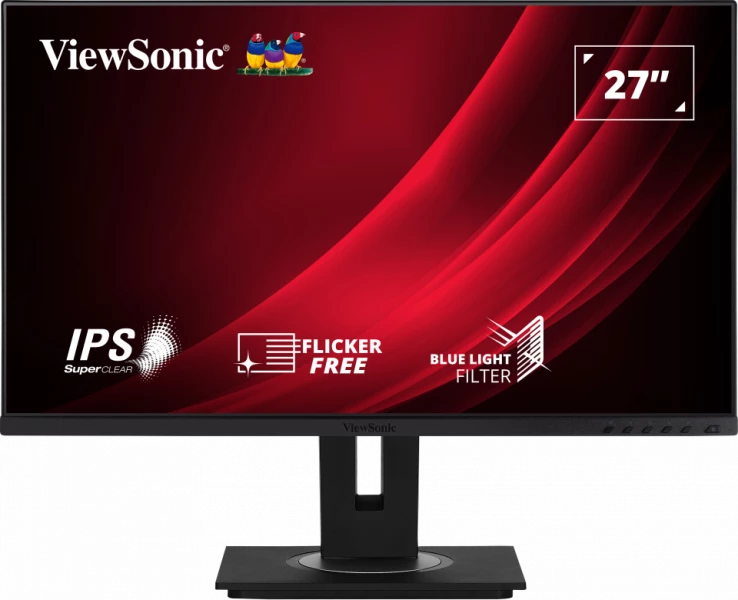

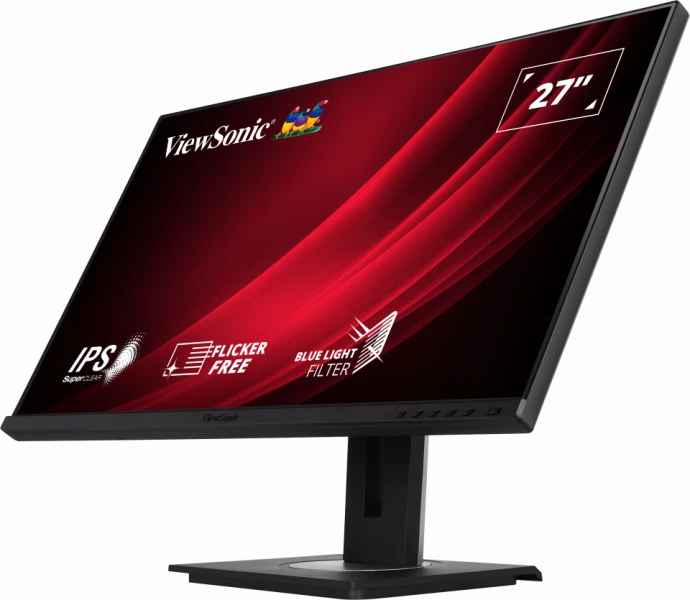

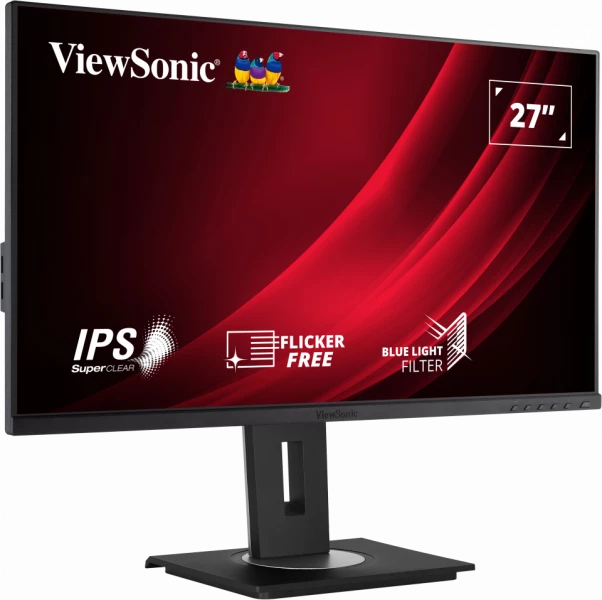

ViewSonic VG2748A-2

27" SuperClear® IPS Frameless Monitor with Advanced Ergonomics

• Description
• Specifications
• Warranty

• OVERVIEW
  ViewSonic VG2748a-2 is a 27" Full HD monitor with productivity-enhancing features including IPS technology and an advanced ergonomic design for the modern-day office. Utilizing SuperClear® IPS panel technology and 1080P resolution, VG2748a-2 delivers a crisp, clear image from any viewing angle. An advanced ergonomic design offers the widest range of customizable adjustments currently available to provide maximum comfort, including pivot, swivel, height adjustment, and an impressive 40° tilt, which enables you to use the monitor while standing and to have strategic group discussions around the screen. VG2748a-2 uses environmentally friendly packaging and offers a quick and easy out-of-the-box set-up via the quick release stand. The cloud client mounts on the back of the monitor stand coupled with cable management design features make VG2748a-2 perfect for deployment in cloud-based environments. Versatile connectivity options include HDMI, DisplayPort, VGA, and USB 3.2 inputs.

  Build Human-Centered Workspace
  Humanize your workspace for work flexibility and efficiency with an advanced ergonomic monitor.

  A New Angle on Workplace Ergonomics

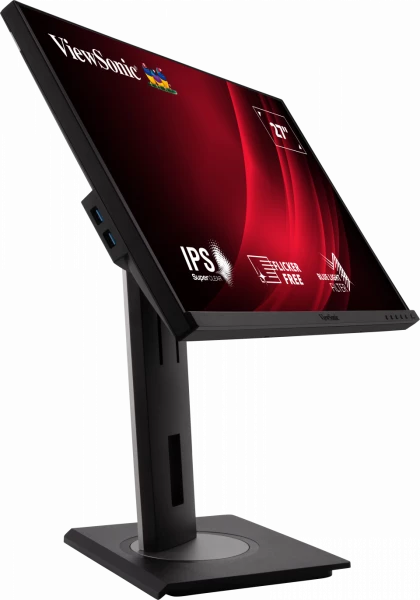

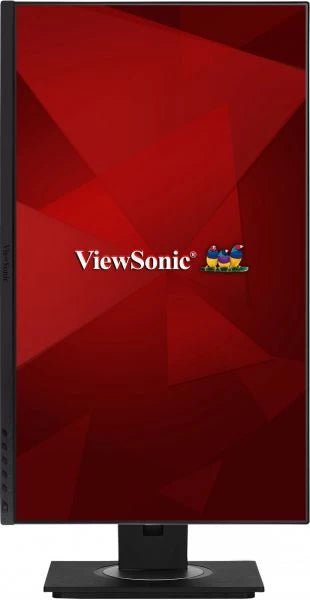

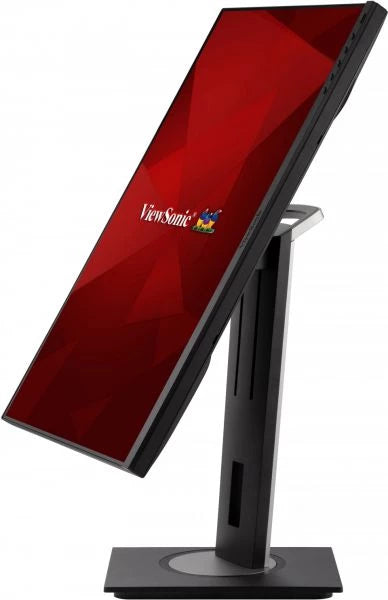

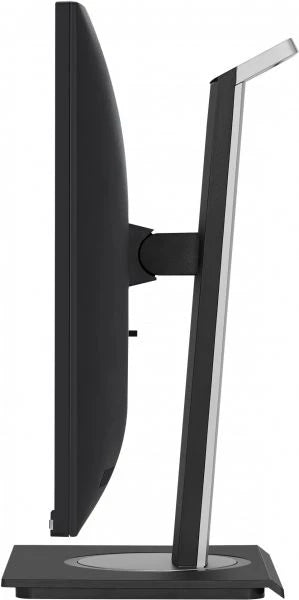

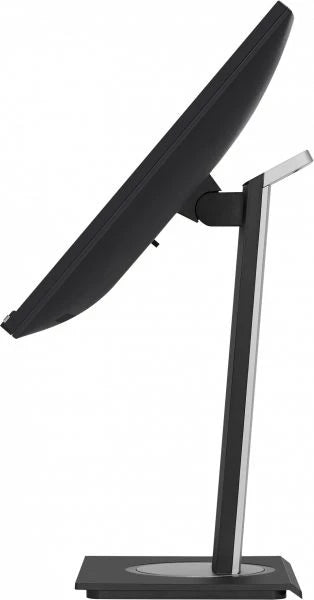

  Effortlessly swivel the display up to +/-60°, tilt up to 40°~-5°, raise the display up to 130mm, or pivot +/-90° for portrait viewing. The VG2748a-2 offers the full range of ergonomic flexibility for every task and workflow.
  More comfortable workspace

  Connection Flexibility
  HDMI, DisplayPort, VGA, and USB 3.2 inputs enable you to connect an array of devices to VG2748a-2.

  HDMI, DisplayPort, VGA, USB 3.2 x 5 (1 up, 4 down)

  Uninterrupted Viewing
  The narrow three-sided bezel gives the monitor a stylish feel and delivers uninterrupted viewing in multi-monitor setups.
  Minimalistic Bezel Design

  Clarity From Any Angle
  Improve group collaboration with high contrast ratio, consistent brightness, and unwavering image quality from every angle with SuperClear® IPS panel technology.
  SuperClear® IPS Technology

  Immersive Audio
  Designed with dual integrated speakers, VG2748a-2 accents its incredible screen performance with immersive stereo sound for a complete multimedia experience.
  Dual Speakers

  Advanced Eye Care Technology
  Eliminate eye strain and fatigue after long periods of use with Flicker-Free technology and a Blue Light Filter. Easily access the settings via vDisplay Manager and preset personalized brightness and contrast levels for different times of the day.
  Flicker-Free & Blue Light Filter

  Versatile Stand Design

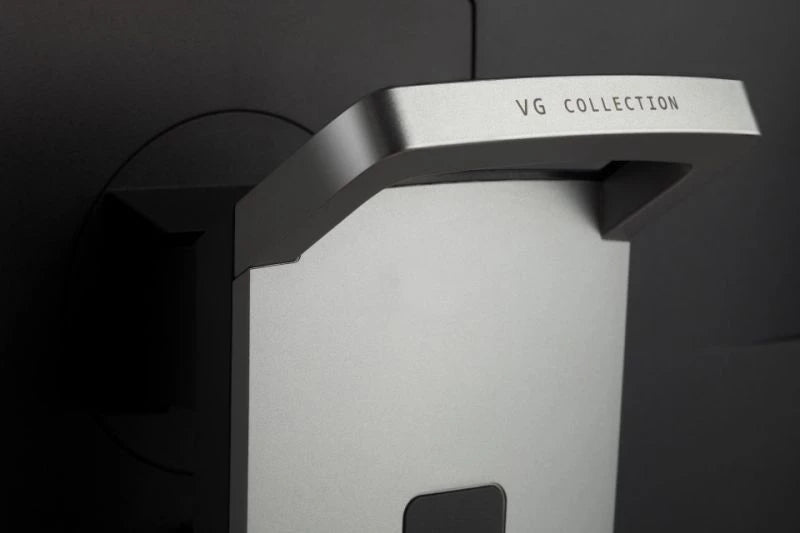

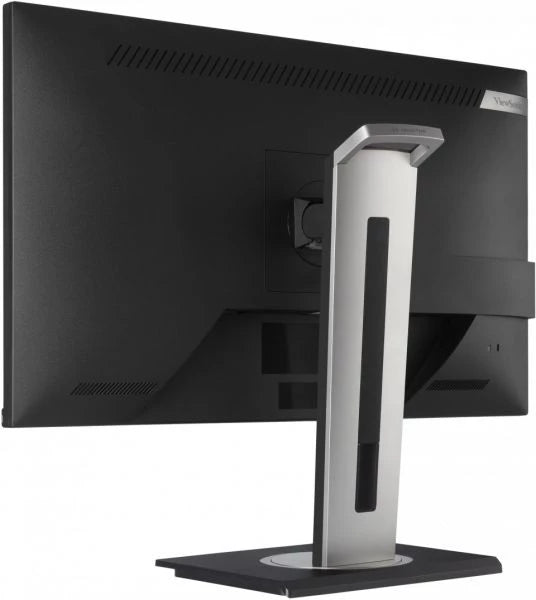

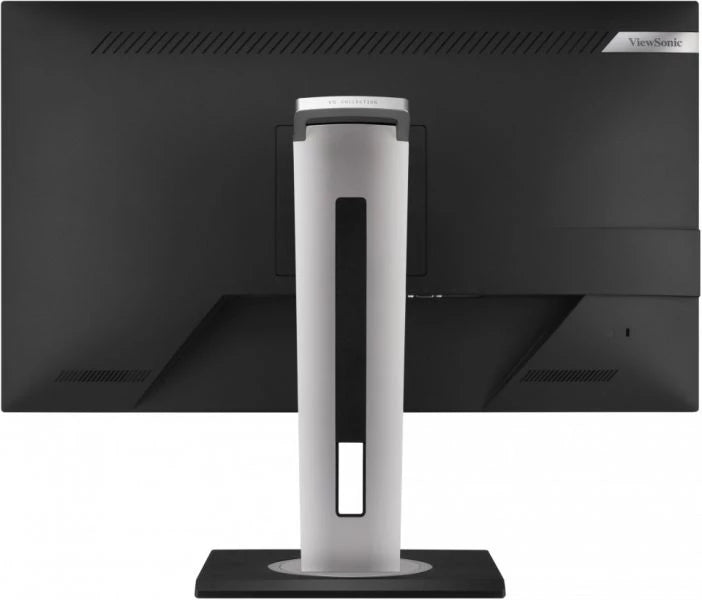

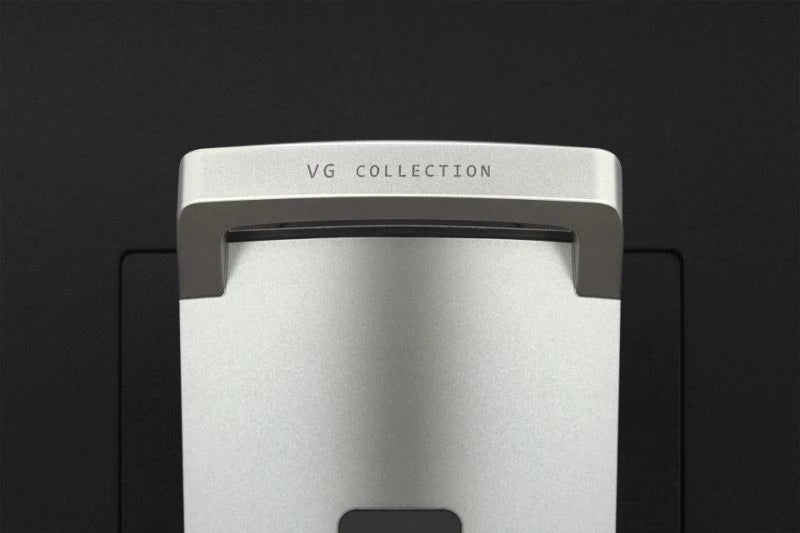

  VG2748a-2's versatile stand is equipped with client mount kit compatibility on the back of the stand along with cable management design features that keep your workspace neat and free of cable clutter. A carrying handle sits at the top of the stand for stability when relocating the monitor.



  *Client Mount Kit must be used to attach a mini PC. Client mount kit sold separately.

  Client Mount Kit Compatibility

  Effortless Installation in 4 Easy Steps
  Instant assembly with no expertise required. Simply open the box, connect the base to the quick release stand, snap the stand into place using the slots, and lift the fully assembled display out of the box within minutes.

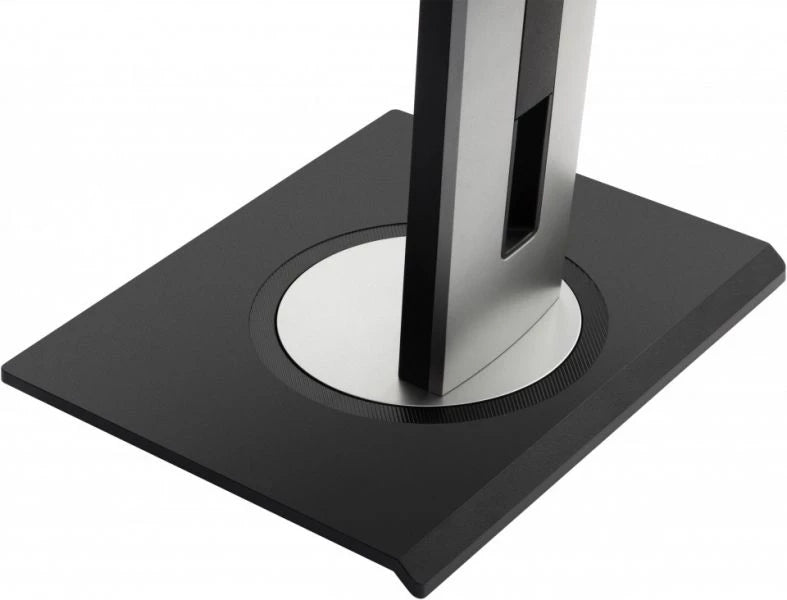

  Quick Release Stand

  Inbuilt Multi-tasking and Efficiency Software
  Work smart with efficient OSD command and control through vDisplay Manager. Personalize split-screen displays, auto-launch applications, and customize display settings to maximize multi-tasking abilities and overall efficiency.
  vDisplay Manager Software

  Eco-friendly, biodegradable packaging
  The VG2748a-2 is shipped in paper-based packaging for easy disposal through recycling. The green thinking is reinforced with hand holes and mono-color printing to avoid any plastics and pollutants.
  Made with 80% Recyclable Materials, Paper Based Packaging

  Certified Environmental Sustainability
  The VG2748a-2 is an ENERGY STAR-certified product that can save on energy costs* while reducing greenhouse gases. The display is also TCO certified for sustainability.
  *Energy savings may vary based on actual usage and other factors.
  *Certifications and safety regulations dependent on the purchase area.
  TCO certified, Energy Star

  Optimized Viewing Presets
  VG2748a-2 features ViewSonic’s exclusive ViewMode, which includes “Game”, “Movie”, “Web”, “Text”, “Mono”, and “Mac” presets.These presets enhance gamma curve, colour temperature, contrast, and brightness to deliver an optimized viewing experience for each specific occasion.
  ViewMode

  Dimensions & I/O Ports





• Display
  Display Size (in.)	27
  Viewable Area (in.)	27
  Panel Type	IPS Technology
  Resolution	1920 x 1080
  Resolution Type	FHD
  Static Contrast Ratio	1,000:1 (typ)
  Dynamic Contrast Ratio	50M:1
  Light Source	LED
  Brightness	250 cd/m² (typ)
  Colors	16.7M
  Color Space Support	8 bit (6 bit + A-FRC)
  Aspect Ratio	16:9
  Response Time (Typical GTG)	5ms
  Response Time (GTG w/OD)	5ms
  Viewing Angles	178° horizontal, 178° vertical
  Backlight Life (Hours)	30000 Hrs (Min)
  Curvature	Flat
  Refresh Rate (Hz)	60
  Blue Light Filter	Yes
  Flicker-Free	Yes
  Color Gamut	NTSC: 72% size (Typ), sRGB: 102% size (Typ)
  Pixel Size	0.311 mm (H) x 0.311 mm (V)
  Surface Treatment	Anti-Glare, Hard Coating (3H)

  Compatibility
  PC Resolution (max)	1920x1080
  Mac® Resolution (max)	1920x1080
  PC Operating System	Windows 10/11 certified; macOS tested
  Mac® Resolution (min)	1920x1080

  Connector
  VGA	1
  USB 3.2 Type A Down Stream	4
  USB 3.2 Type B Up Stream	1
  HDMI 1.4	1
  DisplayPort	1
  Power in	3-pin Socket (IEC C14 / CEE22)

  Audio
  Internal Speakers	2Watts x2

  Power
  Eco Mode (Conserve)	16.2W
  Eco Mode (optimised)	19.2W
  Consumption (typical)	23W
  Consumption (max)	25W
  Voltage	AC 100-240V
  Stand-by	0.5W
  Power Supply	Internal Power Supply

  Additional Hardware
  Kensington Lock Slot	1
  Cable Organization	Yes

  Controls
  Physical Controls	Key 1 (eye), Key 2, Key 3, Key 4, Key 5, Key 6 (power)
  On Screen Display	Input Select, Audio Adjust, ViewMode, Colour Adjust, Manual Image Adjust, Setup Menu

  Operating Conditions
  Temperature	32°F to 104°F (0°C to 40°C)
  Humidity (non-condensing)	20% to 90%

  Wall Mount
  VESA Compatible	100 x 100 mm

  Input Signal
  Frequency Horizontal	24 ~ 82KHz
  Frequency Vertical	50 ~ 75Hz

  Video Input
  Digital Sync	TMDS - HDMI (v1.4), PCI-E - DisplayPort (v1.2)
  Analog Sync	Separate/Composite/SOG - RGB Analog

  Ergonomics
  Height Adjust (mm)	130
  Swivel	120º
  Tilt (Forward/Back)	-5º / 40º
  Pivot (Right/Left)	90º / 90º

  Weight (imperial)
  Net (lbs)	15.5
  Net Without Stand (lbs)	10
  Gross (lbs)	22.2

  Weight (metric)
  Net (kg)	7
  Net Without Stand (kg)	4.6
  Gross (kg)	10.1

  Dimensions (imperial) (wxhxd)
  Packaging (in.)	27.2 x 16.9 x 8.6
  Physical (in.)	24.1 x 15.79~20.99 x 8
  Physical Without Stand (in.)	24.1 x 14.2 x 2

  Dimensions (metric) (wxhxd)
  Packaging (mm)	692 x 430 x 218
  Physical (mm)	612 x 401.19~533.24 x 202
  Physical Without Stand (mm)	612 x 362 x 52

  General
  Regulations	cTUVus, FCC-B, ICES003, Energy Star, EPEAT, CEC, NOM, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, TCO 9.0, EAC, UkrSEPRO, UKCA

  PACKAGE CONTENTS
  PACKAGE CONTENTS	VG2748A-2 x1, 3-pin Plug (IEC C13 / CEE22) x1, DisplayPort Cable (v1.2; Male-Male) x1, USB A/B Cable (v3.2; Male-Male) x1, Quick Start Guide x1
