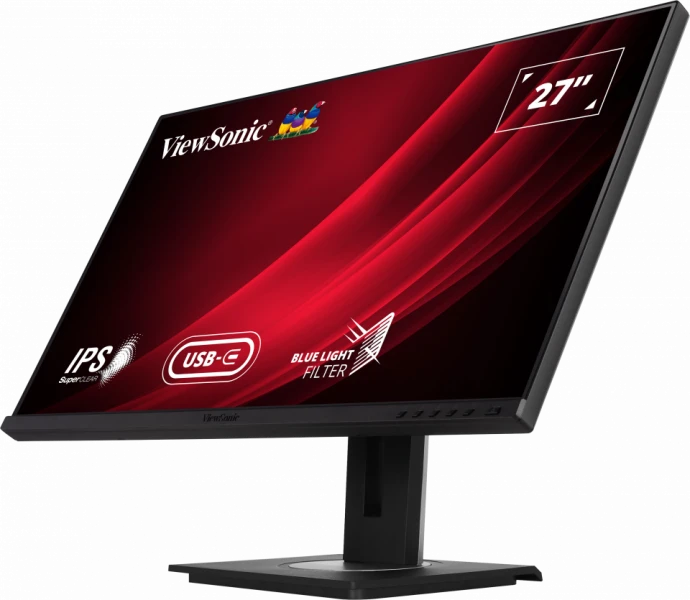

ViewSonic VG2755-2K

27" Advanced Ergonomics Business Monitor

• Description
• Specifications
• Warranty
• Downloads

• OVERVIEW

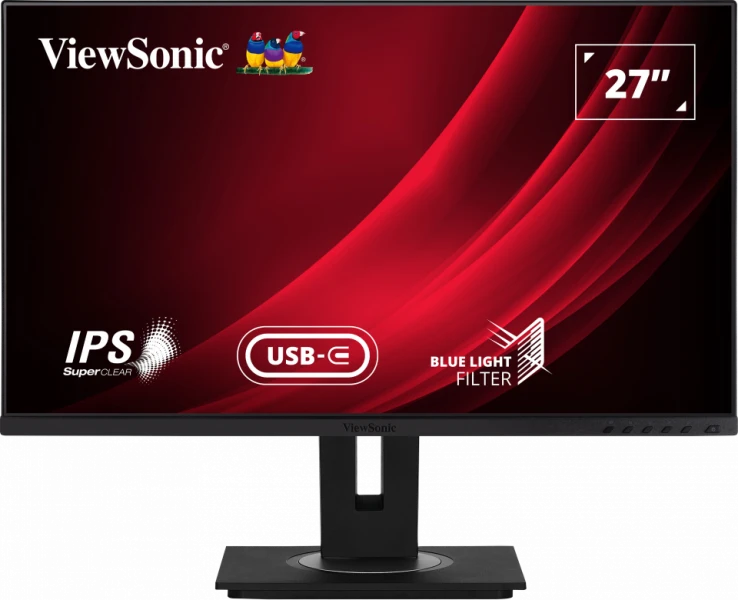

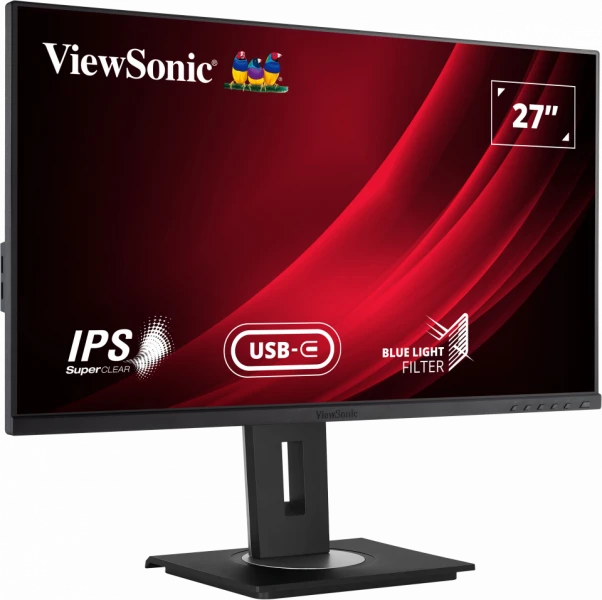

  The ViewSonic VG2755-2K is a 27’’ (27’’ viewable) WQHD IPS monitor designed to fit the modern office space. The monitor comes with a built-in USB Type-C port and a complimentary USB Type-C cable. Charge and display content simply via a single cable from your device, enabling connection to your laptop through a single USB cable and keeping your workstation neat while also functioning as a docking monitor. The monitor utilises a SuperClear® IPS panel with 100% sRGB colour coverage and an upgraded 2560 x 1440 WQHD resolution, giving users a detailed display with amazing colours and sharper image quality from virtually any viewing angle. In addition, the monitor is equipped with DisplayPort, HDMI, and three USB 3.1 Type-A ports to expand your efficiency. The three-sided frameless bezel design lets you enjoy an uninterrupted view of content across multiple monitors. Advanced ergonomic design offers the widest range of adjustments for maximum comfort; including pivot, swivel, height, and an impressive 40° tilt, allowing you to use the monitor while standing or have strategic group discussions around the screen. The packaging is environmentally friendly and facilitates quick and easy setup, making the VG2755-2K a perfect tool for business environments.

  USB Type-C, Your Monitor is Your Docking Station
  A built-in USB Type-C port provides unparalleled compatibility with most peripherals. Being able to charge your devices with up to 60W of power; transmit data, video, and audio simply with one cable, makes the VG2755-2K your ideal docking monitor.
  *Only available for devices that support USB Type-C video streaming. Check to see if your device is compatible for USB Type-C video transmission
  **All VG55 Series monitors come with a complimentary USB Type-C cable.
  USB Type-C
  60W power charge
  Transmit data, video, and audio

  Power in Numbers with WQHD Resolution
  Featuring an upgraded 27” WQHD 2560 x 1440 panel, users will enjoy the benefits of having greater image detail, extra landscape for on-screen content, faster scrolling, and up to 70% more desktop space than Full HD (1920 x 1080).
  WQHD 2560 x 1440

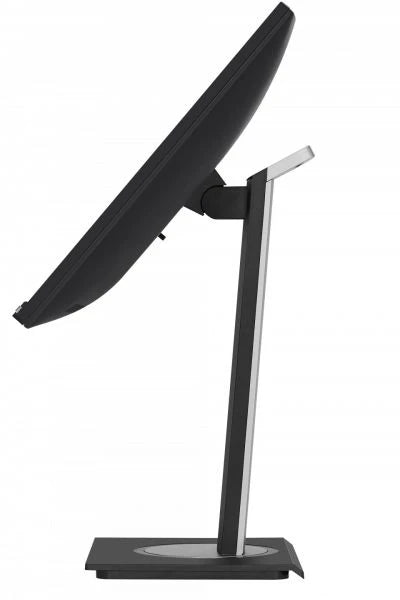

  A New Angle on Workplace Ergonomics

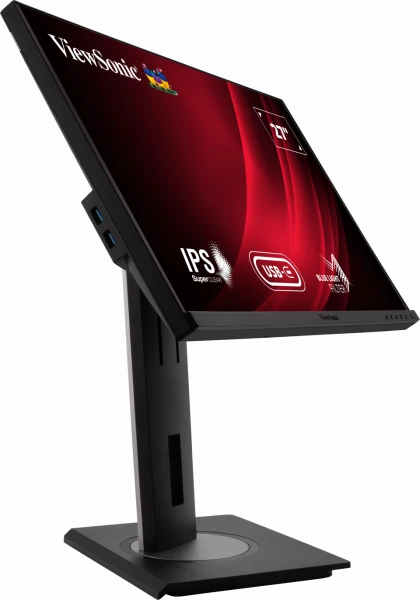

  Enjoy every detail with advanced ergonomics including pivot, swivel, and height adjustment to provide maximum comfort. The VG2755-2K features a 40° ergonomic tilt angle, enabling you to use the monitor while standing or have strategic group discussions around the screen.
  Pivot +/-90°
  Swivel +/-60°
  Tilt 40°~-5°
  Height adjustment 0~130mm

  Uninterrupted Viewing

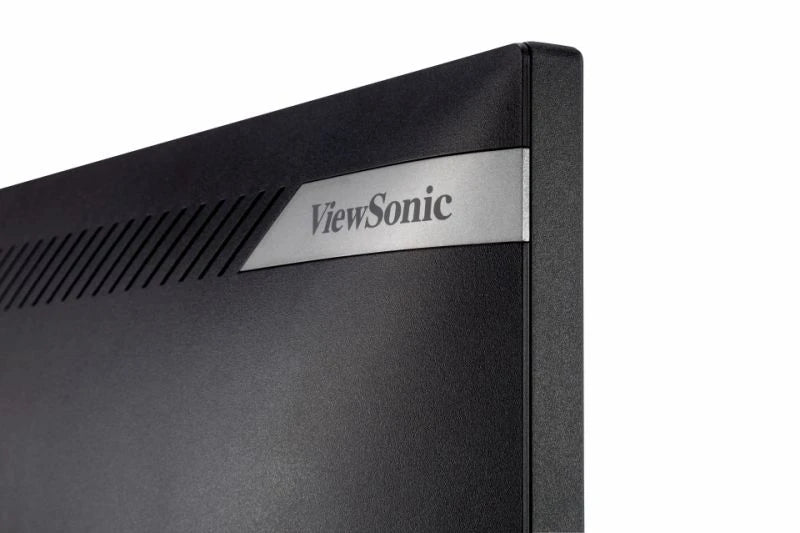

  The VG2755-2K is designed with a frameless bezel on three sides, giving the monitor a clean look and an uninterrupted view when used in a multi-monitor setup.
  Three-sided frameless bezel

  Clarity from Any Angle
  Indulge in accurate and vivid colours with 100% sRGB colour coverage* and consistent levels of brightness from any vantage point. With SuperClear® IPS panel technology, the monitor delivers the same image quality whether you are looking at the screen from above, below, the front, or the side. *Percentages have been rounded to the nearest integer and calculated by using the specifications as provided by the panel makers.
  SuperClear IPS
  178°/178°

  Flexibility in Connectivity

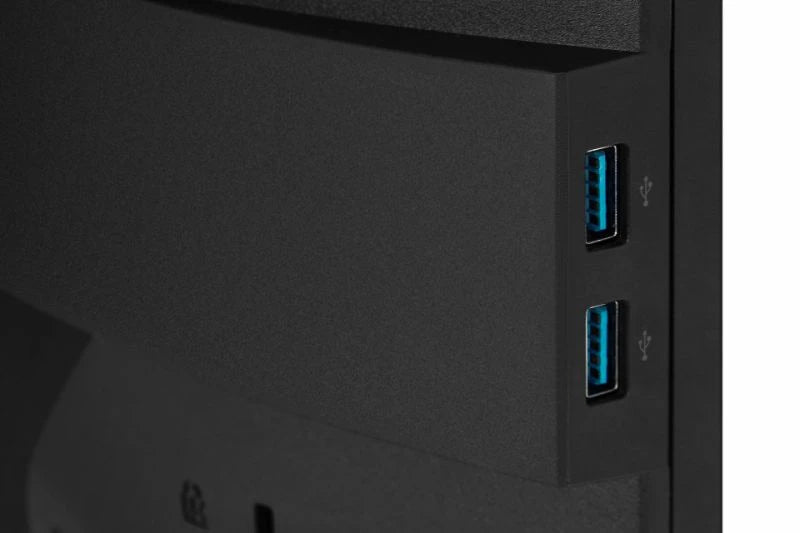

  In addition to the USB Type-C connection, the VG2755-2K comes with built-in HDMI, DisplayPort, and USB 3.2 inputs enabling you to connect to an array of devices.
  HDMI
  DisplayPort
  USB 3.2 x 4 (1 upstream, 3 downstream)

  vDisplay Manager
  ViewSonic’s proprietary vDisplay Manager software is available for free and allows users to organise and divide their screen into multiple segments. The software also enables users to adjust their monitor settings via the software directly for a more efficient workflow.
  Spilt screen
  Monitor settings

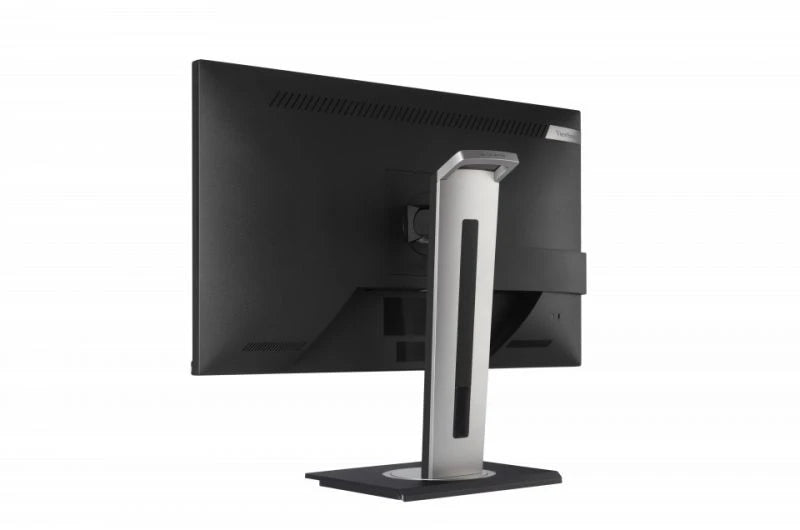

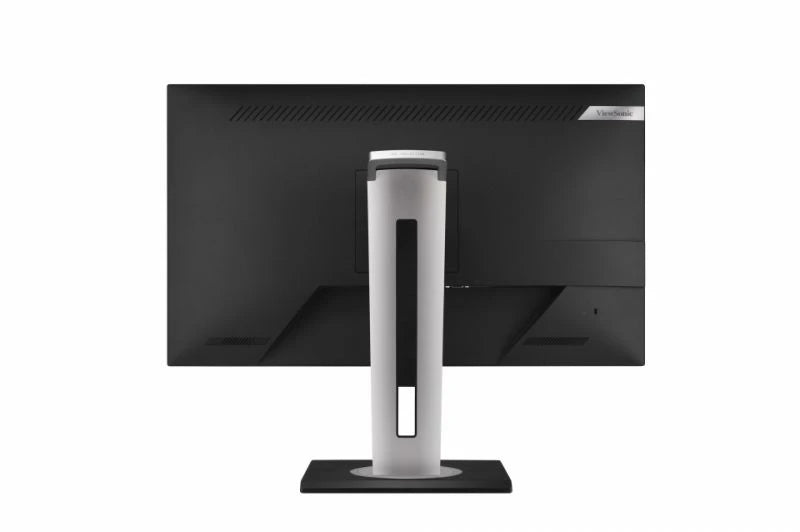

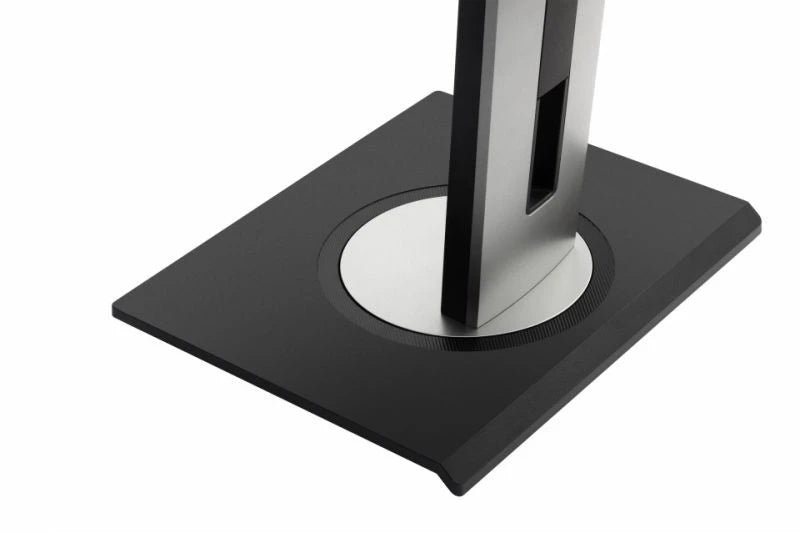

  Versatile Stand Design

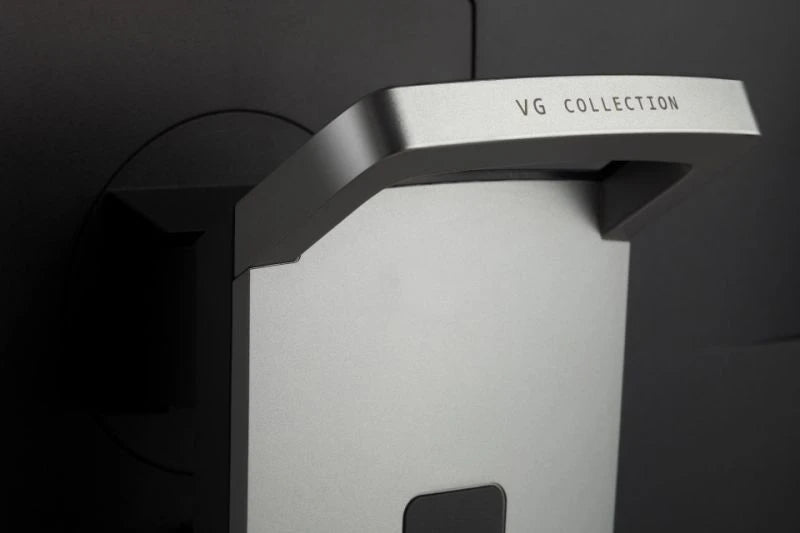

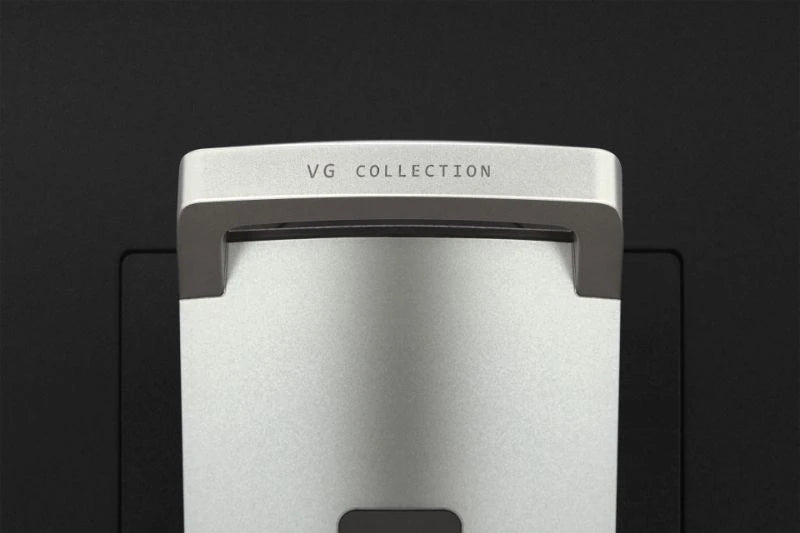

  The VG2755-2K’s versatile stand is client mount compatible and features in-built cable management to keep your workstation neat and free of cable clutter. A carrying handle sits at the top of the stand for portability and stability when relocating the monitor.
  *Client Mount Kit must be used in conjunction with a mini PC and is sold separately.
  Client mount compatible
  Cable management
  Carrying handle

  Environmentally Friendly Packaging
  Designed with the environment in mind, the packaging for the VG48/VG55 series is made with up to 80% recyclable and paper based materials instead of hazardous EPS (polystyrene). Additional plastic materials, such as handles, have been replaced with hand holes and the exterior of the package uses mono-colour printing.
  Paper-based packaging

  VESA Compatible
  Mount the monitor exactly to your liking by utilising the monitor’s 100 x 100mm VESA compatible design.

  100 x 100mm


  Viewing Modes for Different Occasions
  The VG2755-2K monitor features ViewSonic’s exclusive ViewMode, including Text, Web, Movie, Mono, Mac, and Game presets. Depending on the occasion, a corresponding preset helps to enhance gamma curve, colour temperature, contrast, and brightness to deliver the optimal viewing experience.
  Text
  Web
  Movie
  Mono
  Mac
  Game

  Advanced Eye Care Technology
  The Flicker-Free technology and a Blue Light Filter help to eliminate eyestrain caused by harmful light rays and periods of extended viewing.
  Flicker Free
  Blue Light Filter

  Low Energy Consumption
  The VG2755-2K has been designed with energy efficiency in mind. With certification from Energy Star and EPEAT, the VG2755-2K’s Eco Mode consumes less power, resulting in a smaller carbon footprint and reduced overhead costs.
  Energy Star
  EPEAT



• DISPLAY
  Display Size (in.):	27
  Viewable Area (in.):	27
  Panel Type:	IPS Technology
  Resolution:	2560 x 1440
  Resolution Type:	QHD
  Static Contrast Ratio:	1,000:1 (typ)
  Dynamic Contrast Ratio:	80M:1
  Brightness:	350 cd/m² (typ)
  Aspect Ratio:	16:9
  Response Time (Typical):	5ms
  Response Time (GTG w/OD):	5ms
  Viewing Angles:	178º horizontal, 178º vertical
  Refresh Rate (Hz):	60
  Colour Gamut:	sRGB: 100% coverage (Typ)
  Pixel Size:	0.233 mm (H) x 0.233 mm (V)

  COMPATIBILITY
  PC Resolution (max):	2560x1440
  Mac® Resolution (max):	2560x1440
  PC Operating System:	Windows 7/8/8.1/10 certified; macOS tested
  Mac® Resolution (min):	2560x1440

  CONNECTOR
  USB 3.1 Type A:	3
  USB 3.1 Type B:	1
  USB 3.1 Type C:	1
  HDMI 1.4:	1
  Display Port:	1
  Power in:	3-pin Socket (IEC C14 / CEE22)

  AUDIO
  Internal Speakers:	2Watts x2

  POWER
  Eco Mode (Conserve):	17.73W
  Eco Mode (optimized):	21.63W
  Consumption (typical):	26.54W
  Consumption (max):	31.32W
  Voltage:	AC 100-240V, 50/60 Hz
  Stand-by:	0.3W
  Power Supply:	Internal

  ADDITIONAL HARDWARE
  Kensington Lock Slot:	1

  CONTROLS
  Physical Controls:	key 1(eye), key 2, key 3, key 4, key 5, key 6 (power)
  On Screen Display:	Input Select, Audio Adjust, ViewMode, Colour Adjust, Manual Image Adjust, Setup Menu

  OPERATING CONDITIONS
  Temperature:	32°F to 104°F (0°C to 40°C)
  Humidity (non-condensing):	20% to 90%

  WALL MOUNT
  VESA Compatible:	100 x 100 mm

  INPUT SIGNAL
  Frequency Horizontal:	15 ~ 90KHz
  Frequency Vertical:	49 ~ 75Hz

  VIDEO INPUT
  Digital Sync:	TMDS - HDMI (v1.4), PCI-E - DisplayPort (v1.2), Micro-Packet - Type C

  ERGONOMICS
  Height Adjust (mm):	130
  Swivel:	120º
  Tilt (Forward/Back):	-5º / 40º
  Pivot (Right/Left):	90º / 90º

  WEIGHT (METRIC)
  Net (kg):	6.9
  Net Without Stand (kg):	4.5
  Gross (kg):	10.2

  DIMENSIONS (METRIC)
  Packaging (mm):	692 x 218 x 430
  Physical (mm):	613 x 406~534 x 202
  Physical Without Stand (mm):	613 x 363 x 52

  GENERAL
  Regulations:	cTUVus, FCC-B, ICES003, Energy Star, EPEAT, CEC, MX-CoC, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, TCO 8.0, EAC, UkrSEPRO, UKCA, BSMI, PSB, RCM

  PACKAGE CONTENTS
  VG2755-2K x1
  3-pin Plug (IEC C13 / CEE22) x1
  USB A/B Cable (v3.1; Male-Male) x1
  Quick Start Guide x1
  USB Type-C cable x1

  WARRANTY	*Warranty offered may differ from market to market

• ViewSonic Warranty page - United Kingdom

  ViewSonic Product Family	UK
  Monitors [VA / VX Series]	2 Year Pickup, Repair and Return
  Monitors [VG, VP ,TD and XG Series]	3 Year Pickup, Repair and Return
  Projector [PA5, PA7, PJD5 Series – except short throw models]	2 Year Pickup, Repair and Return [Lamp 1 Year or 1,000 hours]
  Projector [PJD5 Series short throw models, PJD6, PJD7, PJD8, Pro, PX, PS and PG Series]	3 Year Pickup, Repair and Return [Lamp 1 Year or 1,000 hours]
  Projector [Pro8 series]	3 Year Pickup, Repair and Return [Lamp 3 Years or 2,000 hours]
  Projector [PA503XB & PS501X+]	5 Year Swap [Light source 5 Years or 5,000 hours]
  Projector [M]	2 Year Pickup, Repair and Return [Light source 2 Years or 20,000 hours]
  Projector [X / LS5 / LS60&61 Series]	5 Year Pickup, Repair and Return [Light source 5 Years or 20,000 hours]
  Projector [Laser Series]	5 Year Swap [Light source 5 Years or 20,000 hours]
  Smart Display [VSD] / NMP	2 Year Pickup, Repair and Return
  Digital Pen WhiteBoard	2 Year Swap
  Included Accessories [Battery, Power Supplies, Cables, Remotes, 3D Glasses etc]	Same as Product Warranty
  Peripherals [LFD/IFP stands, Projector Screens/Mounts/Cases etc.]	1 Year Swap
  Peripherals [Wifi Modules, VB-Series and all other electronic peripherals]	2 Year Swap
  Large Format Display [Up to and including 55”]	3 Year Pickup, Repair and Return
  Large Format Display [Larger than 55”]	3 Year Onsite Repair
  Interactive Flat Panel [<55”]	3 Year Pickup, Repair and Return
  LED Display / Interactive Flat Panel [55” and above]	5 Year Onsite Repair or Replacement
  ePosters [10”]	2 Year Pickup, Repair and Return
  ePosters [Up to and including 55”]	3 Year Pickup, Repair and Return
  Slot-In PC (for LFD and IFP)	3 Year Pickup, Repair and Return
  All product groups	14 Days DOA Replacement




  Customer Service For All Countries - Please click here to find the correct contact details of your respective Call Desk or Service Centre.

  ViewSonic^® Limited Warranty

  ViewSonic warrants its products to be free from defects in material and workmanship during the warranty period. If a product proves to be defective in material or workmanship during the warranty period, ViewSonic will, at its sole option, repair or replace the product with a similar product. Replacement Product or parts may include remanufactured or refurbished parts or components.

  For more terms and conditions and on what the warranty does not cover please refer to our Standard Limited Warranty Summary.

  How to get service:

  • For information on obtaining warranty service, call your ViewSonic dealer or ViewSonic Call Desk / Service Provider or ViewSonic; refer to the Contact Us page located in each country's corresponding web site:
  • To obtain warranty service, you will be required to provide.
    1. The original dated sales slip. (Invoice or Proof of purchase)
    2. Your name.
    3. Your address.
    4. The serial number, IMEI number and the model number of the product.
    5. A description of the problem.
    6. Mobile and wireless products and All-in-One, customers should provide the user name and the password in order to access the device and perform warranty service.
  • For DOA cases apart from above the followings are also required.
    1. A photo showing the defect symptom.
    2. A photo of the unit serial number with the bar code.
    3. A photo showing the condition of the original container.
  • For additional information or the name of the nearest ViewSonic service centre, contact your ViewSonic dealer or ViewSonic.

  If the warranty on your product has already expired:

  In case your product is no longer within its warranty period, but you'd like to have it repaired, you can still contact our Call Desk or Repair Center in your country of residence, but you will be charged directly by our Repair Center on the service.

  Accessories:

  For enquiries on accessories/spare parts please either contact your local dealer or contact us directly at info@screenmoove.com
  Lamp warranty is based either on the lamp usage hour or on the age of the projector unit, and depending on which ever one that expires first.


  Pixel Policy:

  At ViewSonic we offer some of the most competitive pixel policy in the market.




• DATASHEETS	Download
  VG2755-2K Datasheet (short version)	Download




  USER GUIDE	Download
  VG2755-2K User Guide (English)	Download
