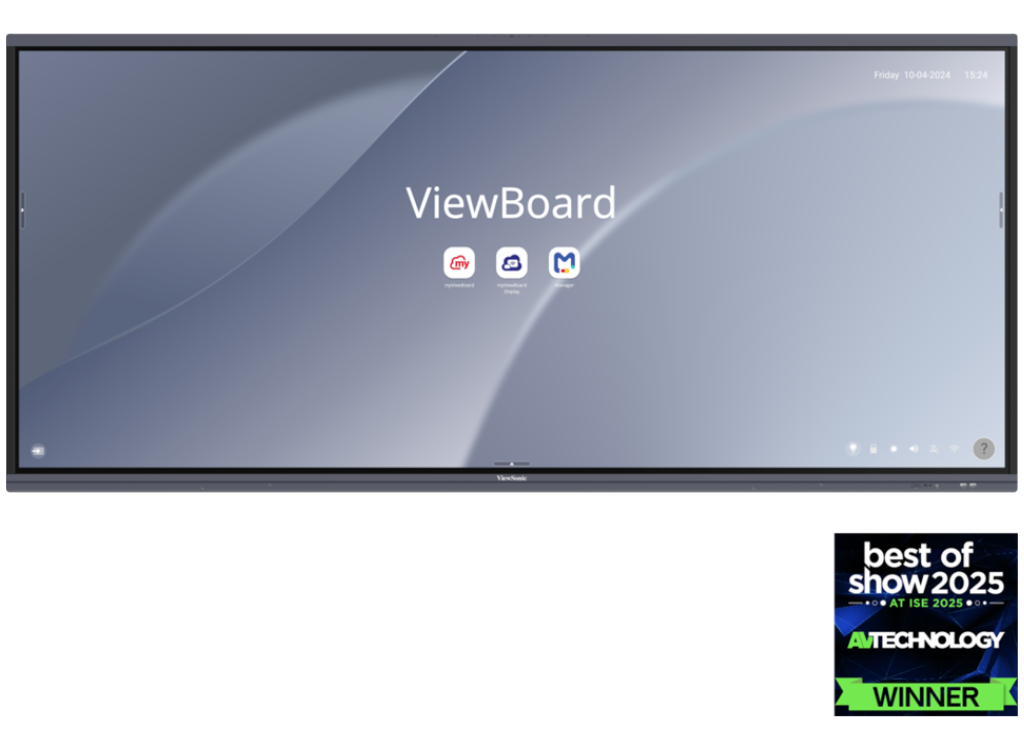

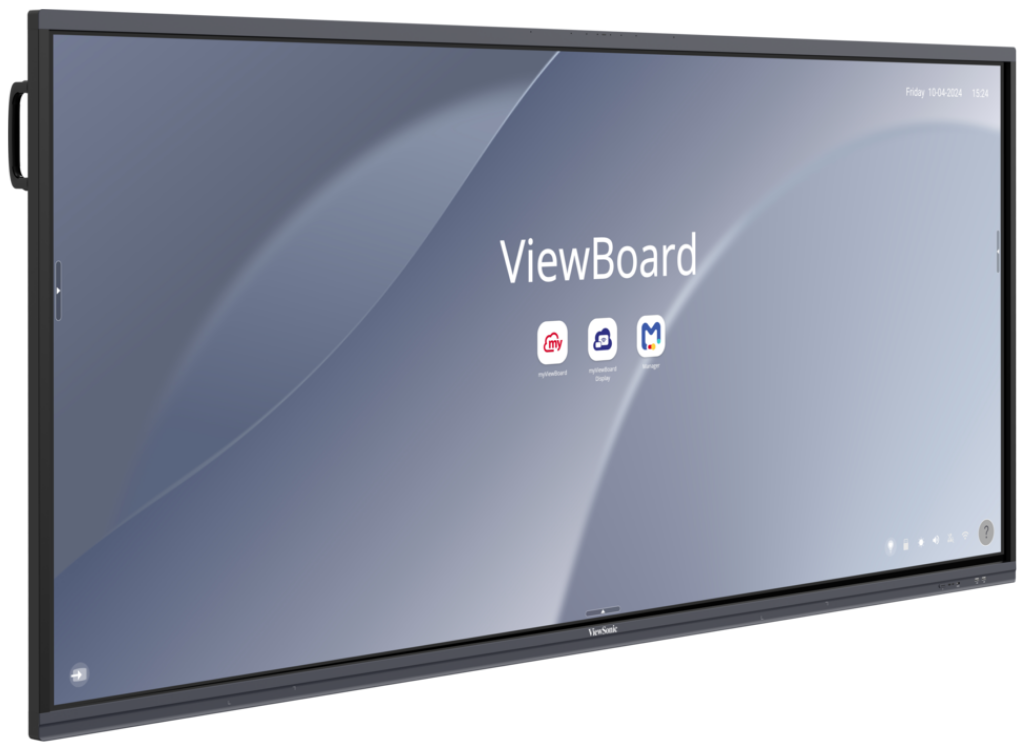

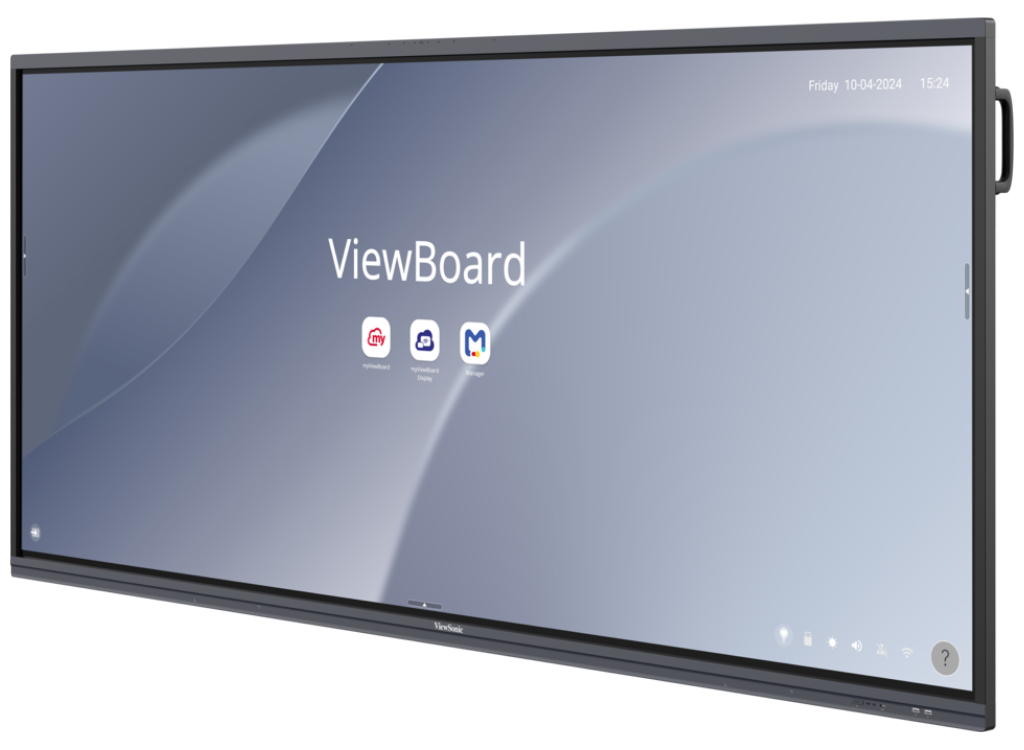

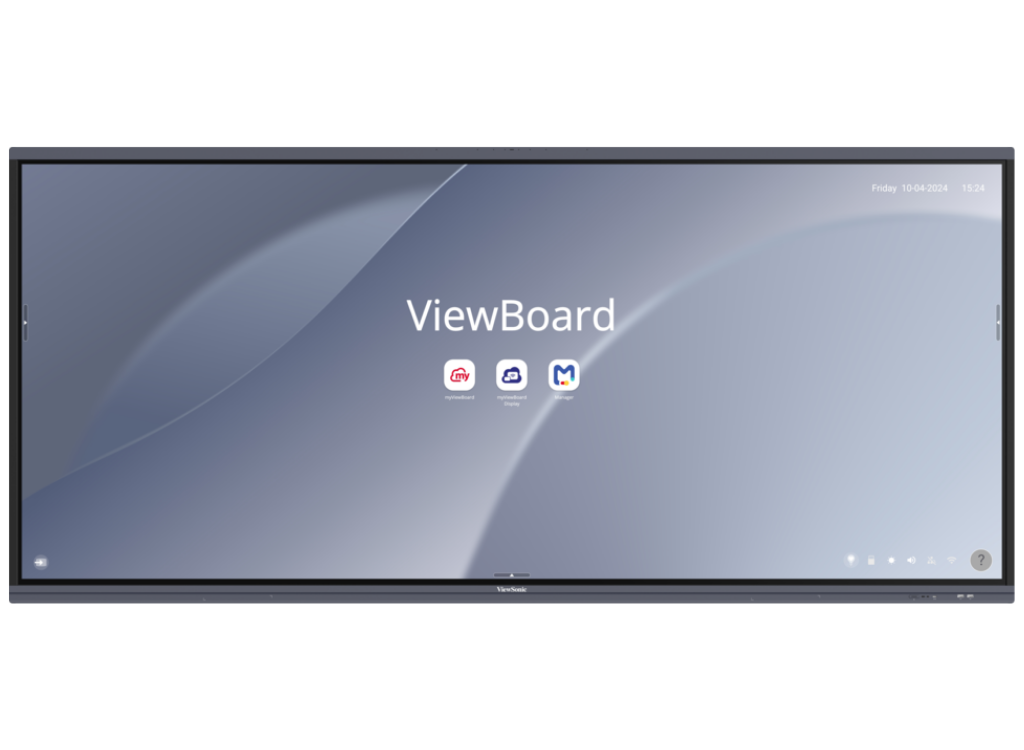

The ViewBoard® IFP92UW delivers an expansive interactive experience with its 21:9 aspect ratio, optimized for Microsoft Teams Rooms and Front Row mode, and stunning 5K resolution. This ultrawide 92” display facilitates multitasking with split-screen functionality, enhancing collaboration and productivity in team huddles, meetings, and brainstorming sessions. It boasts highly responsive 50-point touch capabilities that capture every input naturally and intuitively, offering pen-on-paper precision, complemented by seamless wireless screen casting through vCast. Additionally, an 8-microphone array and 60W soundbar ensure optimal audio clarity for both in-room and remote participants.
Make Space for Collaboration
21:9 Interactive Display for Productive Meetings
Seamless Integration to Any Collaborative Spaces
More Space for Enhanced Collaboration
Offering 33% more screen space than a conventional 16:9 display of the same size, the 21:9 aspect ratio of the ViewBoard IFP92UW enhances multitasking and collaboration by enabling users to view more tools, documents, and information simultaneously during meetings.
Superior Detail, Flawless Visibility
Featuring 5K resolution, the ViewBoard IFP92UW delivers unparalleled image sharpness and detail, complemented by a 178-degree viewing angle that guarantees flawless visibility across the entire room.
Seamless Collaboration
Hybrid Meetings
Enhance inclusivity in hybrid meetings with an ultrawide display optimized for Microsoft Teams Rooms Front Row mode, simultaneously showcasing remote attendees, content, and chat—all on one screen.
Crystal-clear Hybrid Communication
Equipped with powerful speakers and an 8-microphone array that detects and reduces background noise, the ViewBoard IFP92UW ensures seamless communication during all video conferences and presentations.
Seamless Team Collaboration
Supporting up to 50 touch points, the ViewBoard IFP92UW enhances team collaboration by enabling multiple users to interact with the screen simultaneously using their fingers or a stylus, boosting brainstorming sessions and group activities.
Multi-device Wireless Screen Sharing
Enjoy instant, simultaneous wireless screen sharing of up to 9 devices through vCast for effective communication and efficient collaboration during team meetings.
Fast and Reliable Wireless Connectivity
Upgrade the ViewBoard IFP92UW with an optional Wi-Fi module for seamless internet access. Additionally, the device can double as a hotspot to ensure a stable, wireless internet connection for the meeting room.
Enhanced Productivity
Efficient Multitasking
Enhance meetings and collaborative sessions with multi-window and split-screen modes. Utilize multi-window mode to display up to four windows simultaneously for a comprehensive document overview during brainstorming sessions. Sketch on the board or share resources while simultaneously monitoring the ongoing video conference in split-screen mode.
Boost Productivity with Streamlined Connectivity
With dual USB-C ports, simply plug in your laptop to instantly benefit from power charging, fast data transfer, multimedia broadcasting, and Ethernet connectivity—all through a single cable.
Maximize Productivity with Integrated Windows Experience
Unlock new productivity possibilities and work in the familiar Windows OS by coupling the ViewBoard with an optional slot-in PC. Equipped with dual-band Wi-Fi, Bluetooth, a powerful Intel® Core™ CPU, abundant memory, and ample data storage, this module delivers solid computing performance to support even the most demanding applications.
Tailored to Your Needs
Customize your ultrawide display with ViewSonic’s range of accessories, including Microsoft Teams Rooms solutions, web cameras, motorized carts, and presentation pens, to create the ideal setup for your needs.
Centralized Device Control
Powerful Remote Management
The built-in ViewSonic® Manager software empowers IT teams and administrators to centrally manage one or multiple devices. It enables automatic on/off scheduling to reduce power consumption, multimedia message broadcasting, quick troubleshooting, and facilitates issue resolution. Additionally, it allows for remote optimization of device configurations based on real-time usage reports.*
Energy-efficient Solution

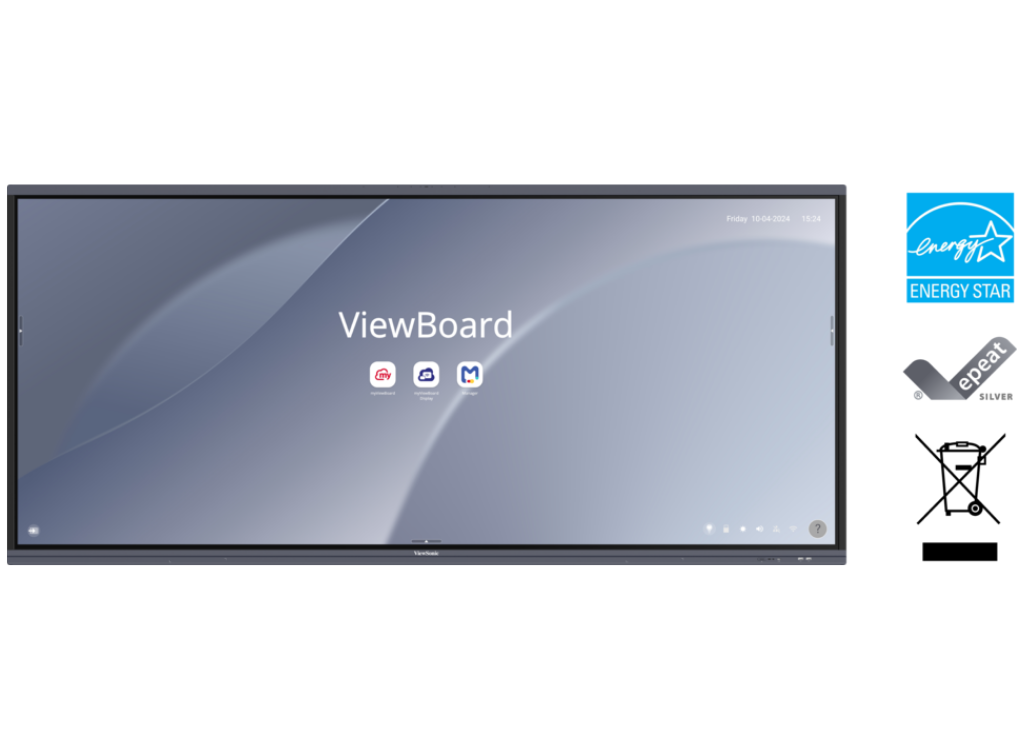

The ViewBoard IFP92UW holds the prestigious EPEAT Silver and Energy Star certification, recognizing its adherence to rigorous energy consumption, supply chain carbon emissions, and end-of-life management standards.

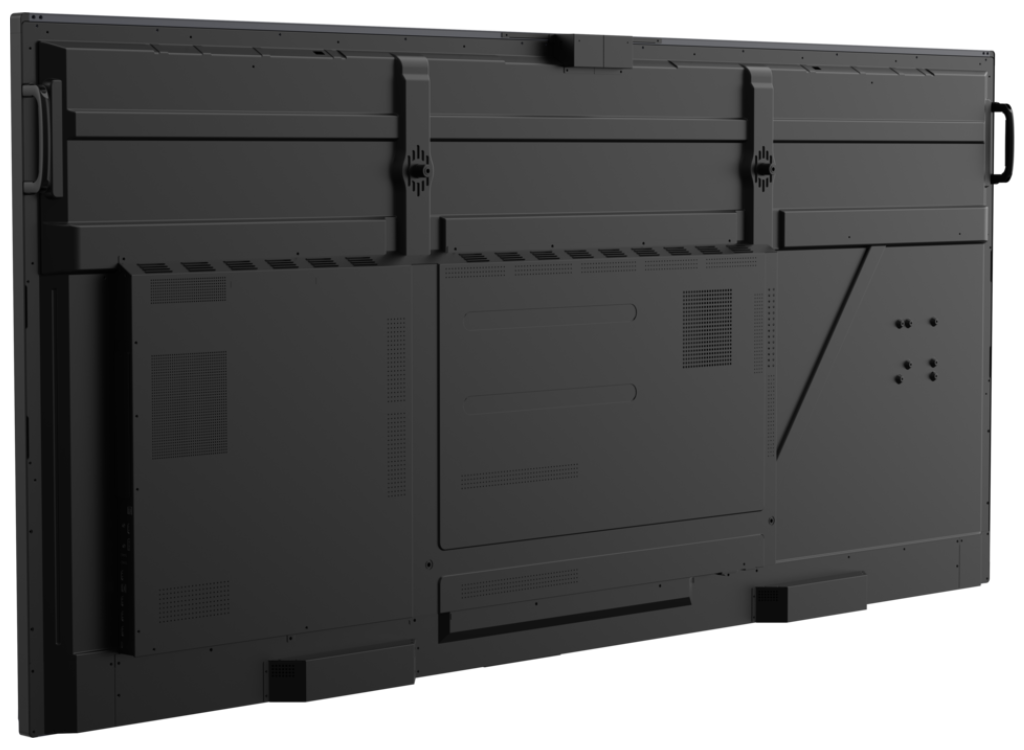

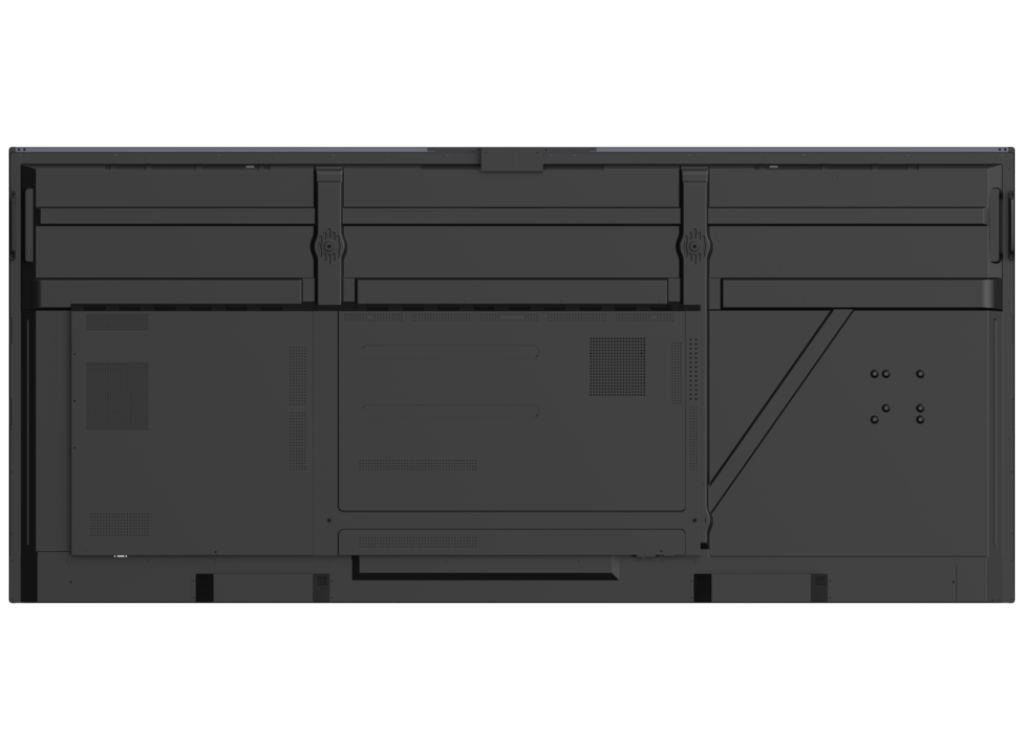

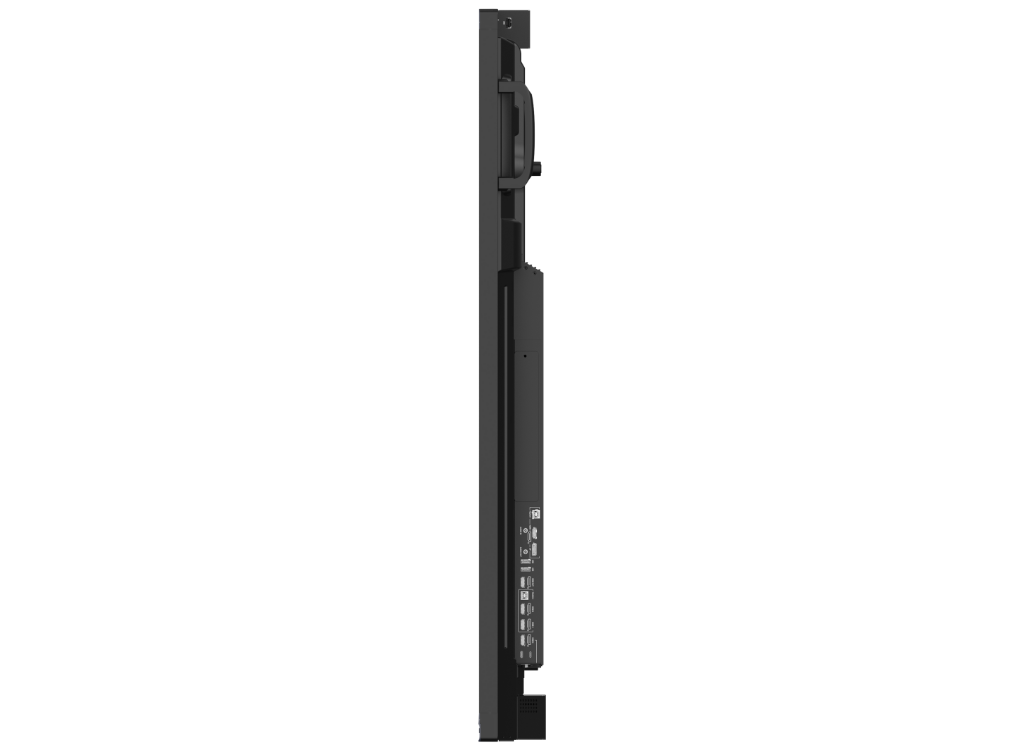

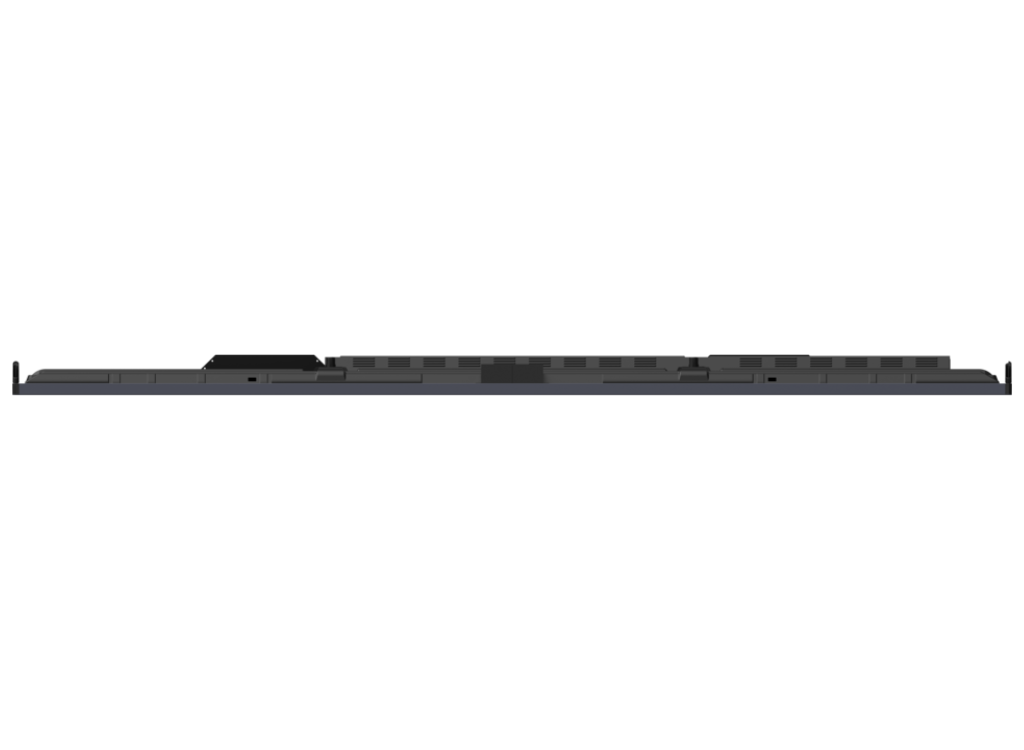

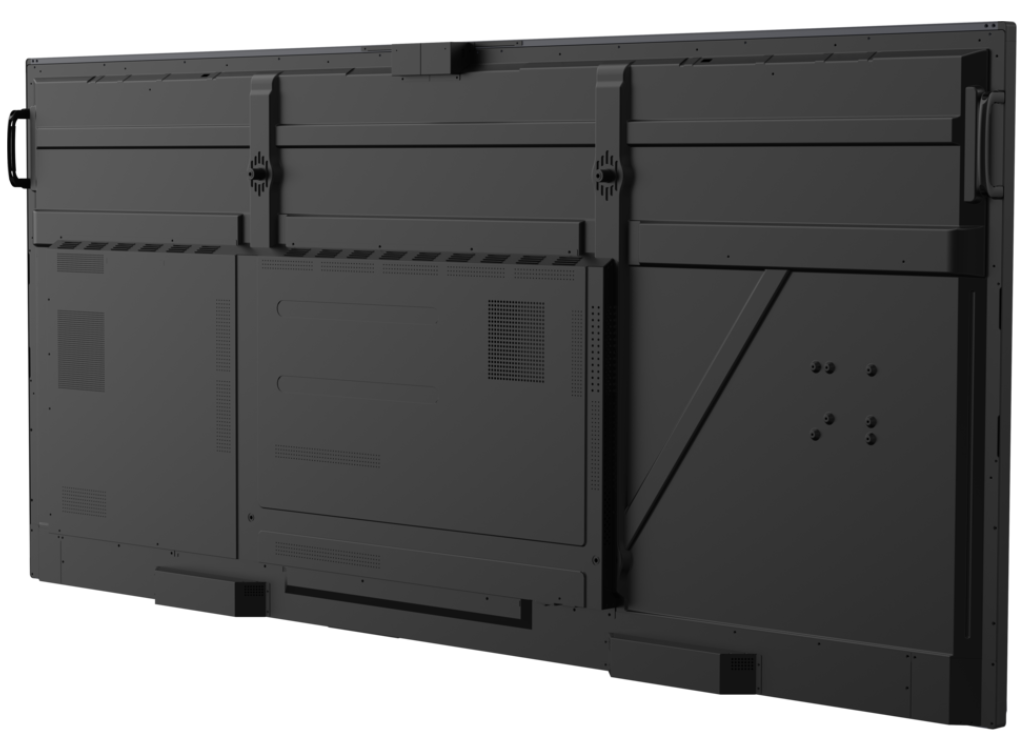

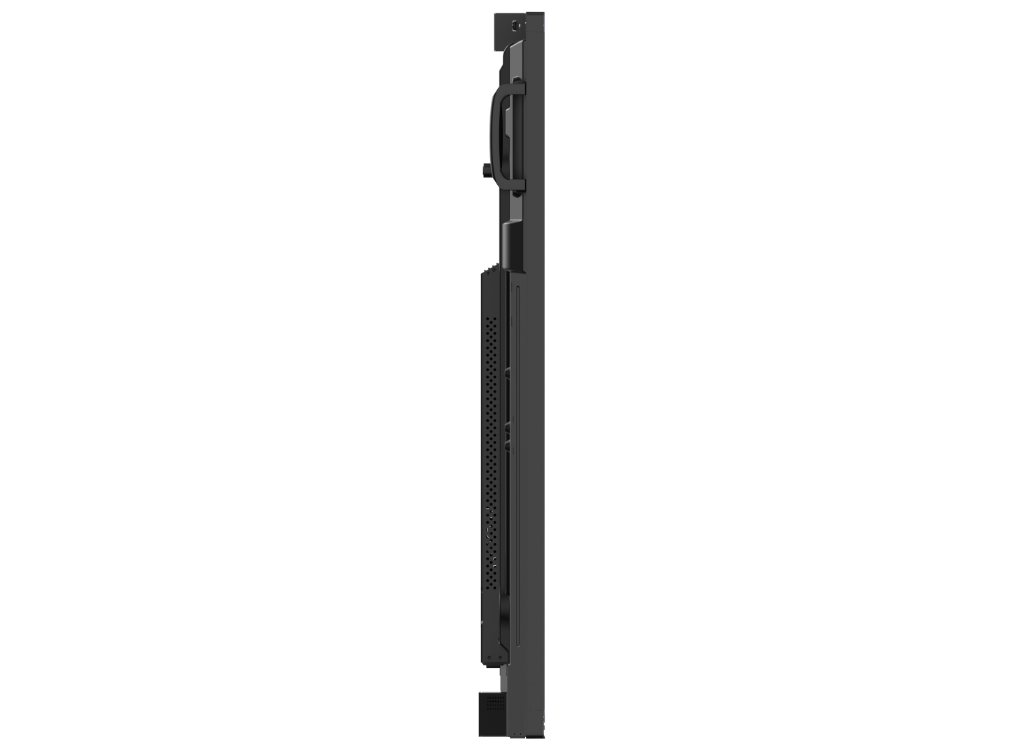

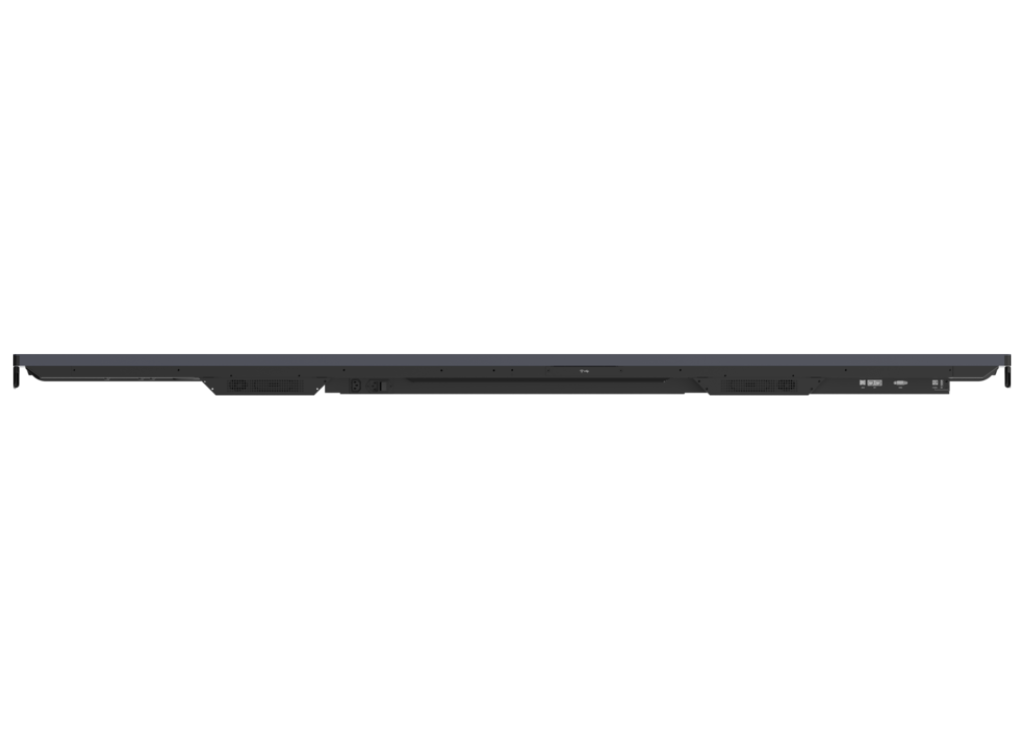

Dimensions & I/O Ports
1-Power
2-USB Type-C 2
3-USB3.2 Gen 1
4-VESA® Wall Mount (800x600 mm)
5-USB3.2 Gen 1
6-USB3.2 Gen 1
7-Slot-in PC
8-AC Power
9-WiFi Slot
10-SPDIF
11-LAN
12-RS232
13-Touch 3
14-USB 2.0
15-Touch 1
16-Audio In
17-HDMI 1
18-DP IN
19-Audio Out
20-USB 3.2 Gen 1 *2
21-HDMI Out
22-Touch 2
23-HDMI 2
24-HDMI 3
25-HDMI 4
26-USB Type-C 1
| Category | Specification |
|---|---|
| Panel Size | 92" |
| Panel Type | TFT LCD Module with DLED Backlight, VA |
| Display Area | 2141.952 (H) × 903.636 (V) (91.52” diagonal) |
| Aspect Ratio | 21:9 |
| Resolution | WUHD 5120x2160 (Pixels) |
| Colors | 1.07B colors (8 bits + 2 bits FRC) |
| Brightness | 500 nits (Typ.) |
| Contrast Ratio | 5000:1 (Typ.) |
| Response Time | <6.5ms |
| Viewing Angles | H = 178, V = 178 (Typ.) |
| Backlight Life | 50,000 hrs (Typ.) |
| Surface Treatment | Panel Hard Coating 3H, Glass Anti-Glare + Anti-Fingerprint |
| Bezel | 19.48/19.48/29.78/41.18 mm |
| Orientation | Landscape |
| Processor | RK3588 Octa-Core CPU (A764 + A554) |
| RAM | DDR4 8GB |
| Storage | 128GB eMMC |
| Touch Technology | IR Recognition |
| Touch Resolution | 32767 x 32767 |
| Touch Points | Windows: 50, Android & all other channels: 32 |
| Inputs | HDMI x4, DisplayPort x1, Audio x1, RS232 x1, OPS x1, WiFi x1 |
| Outputs | HDMI x1, Audio x1, SPDIF x1, LAN x1, USB Type A/B/C |
| Speakers | 20W x 2 + 20W x 1 (Subwoofer) |
| Microphone | Built-in 8 Array Microphone |
| Compatibility | HDMI, DisplayPort, OPS Slot |
| Embedded OS | Android 13 |
| Software | myViewBoard Whiteboard, AirSync, ViewSonic Manager |
| Power Consumption | On: 151.24W, Off: <0.5W |
| VESA Wall Mount | 800 x 600 |
| Operating Temperature | 0°C to 40°C |
| Operating Humidity | 20% ~ 80% RH non-condensing |
| Physical Dimensions | 86.73 x 39.37 x 3.62 in (2203 x 1000 x 92 mm) |
| Weight | Net: 147.7 lb (67 kg), Gross: 183 lb (83 kg) |
| Regulations | cTUVus, FCC, CE/EMC, EPEAT, RoHS, WEEE, REACH |
| Package Contents | Power cord, USB cables, Remote control, Touch pen, HDMI cable, etc. |
| Compatible Slot-in PC | VPC3X series / VPCF5-2A |
