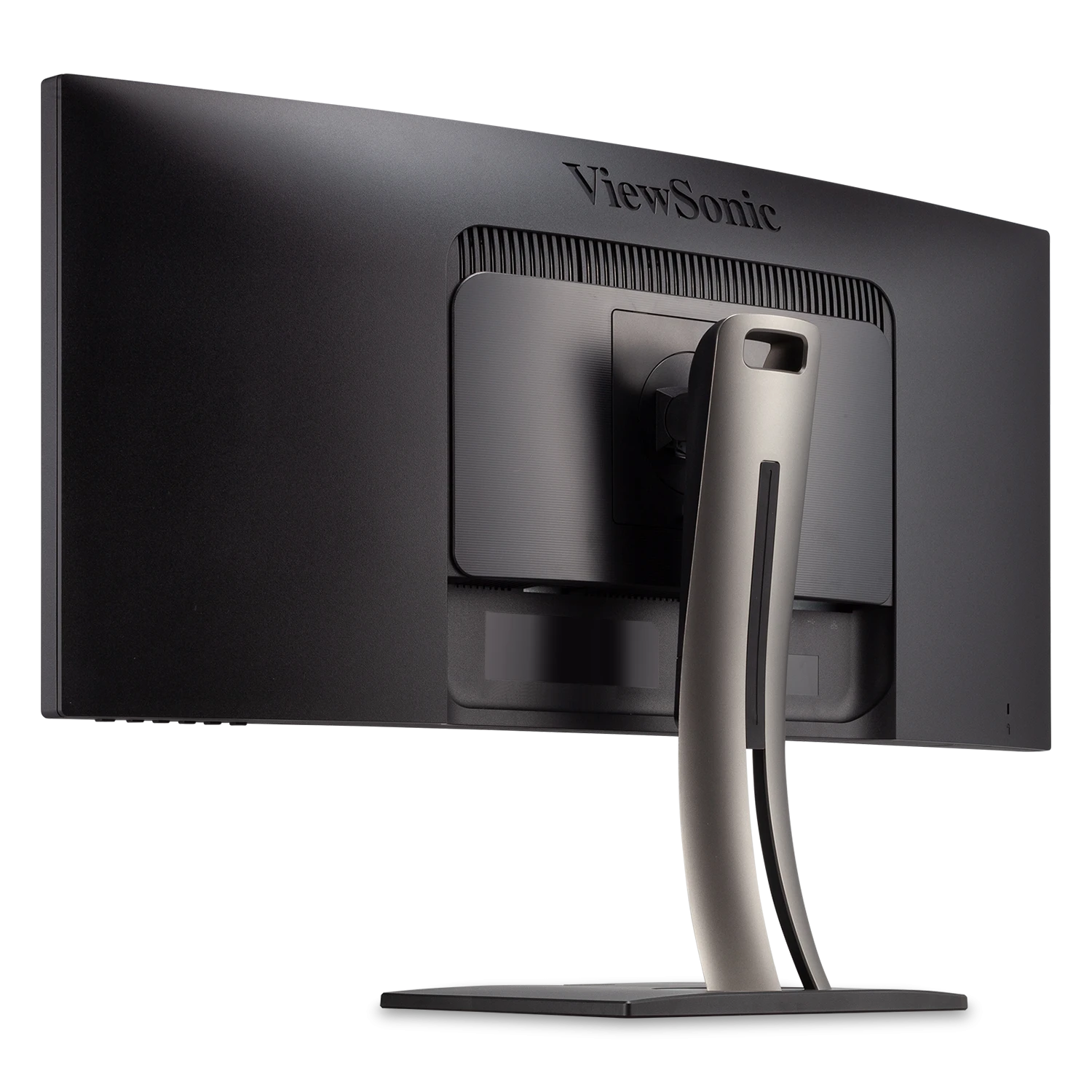

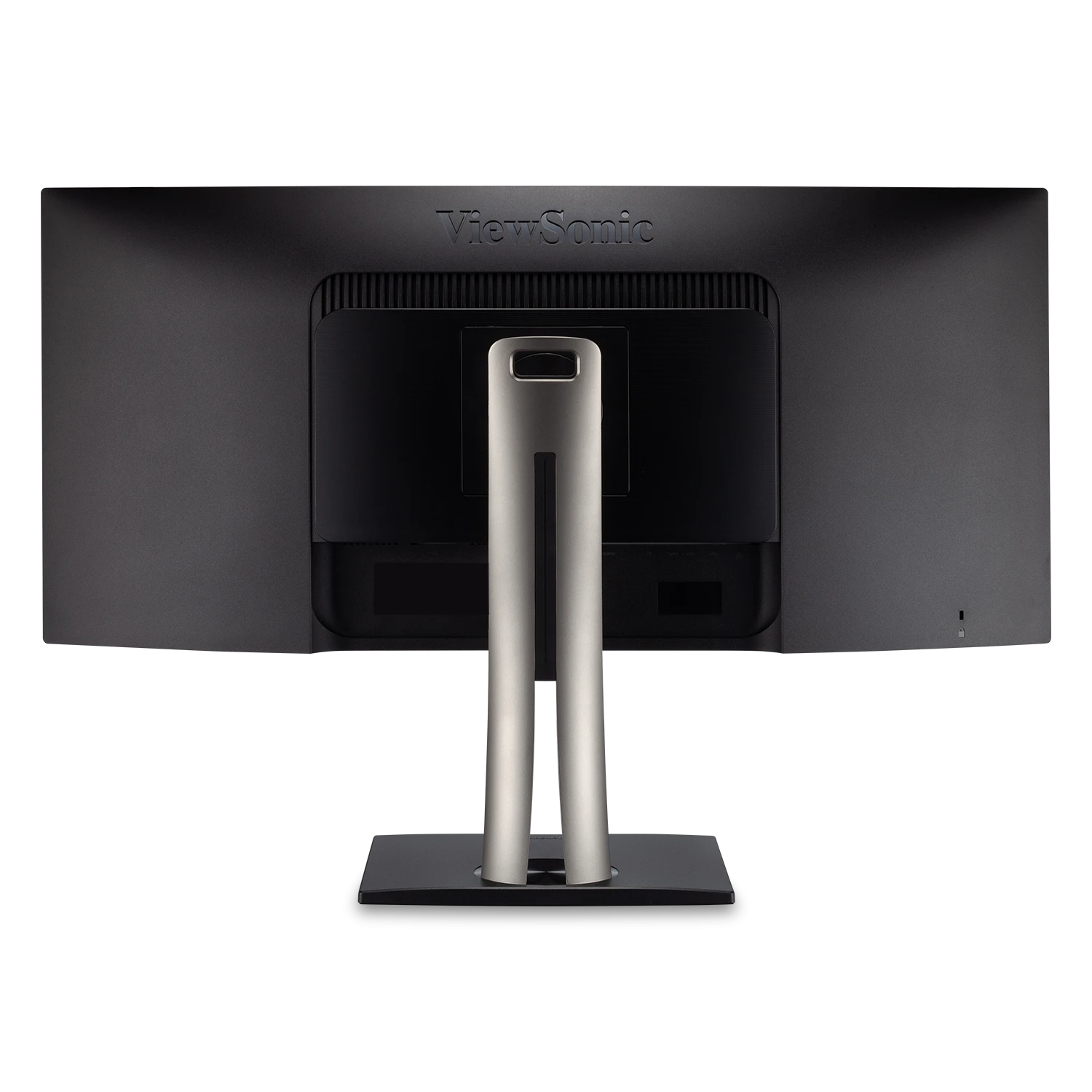

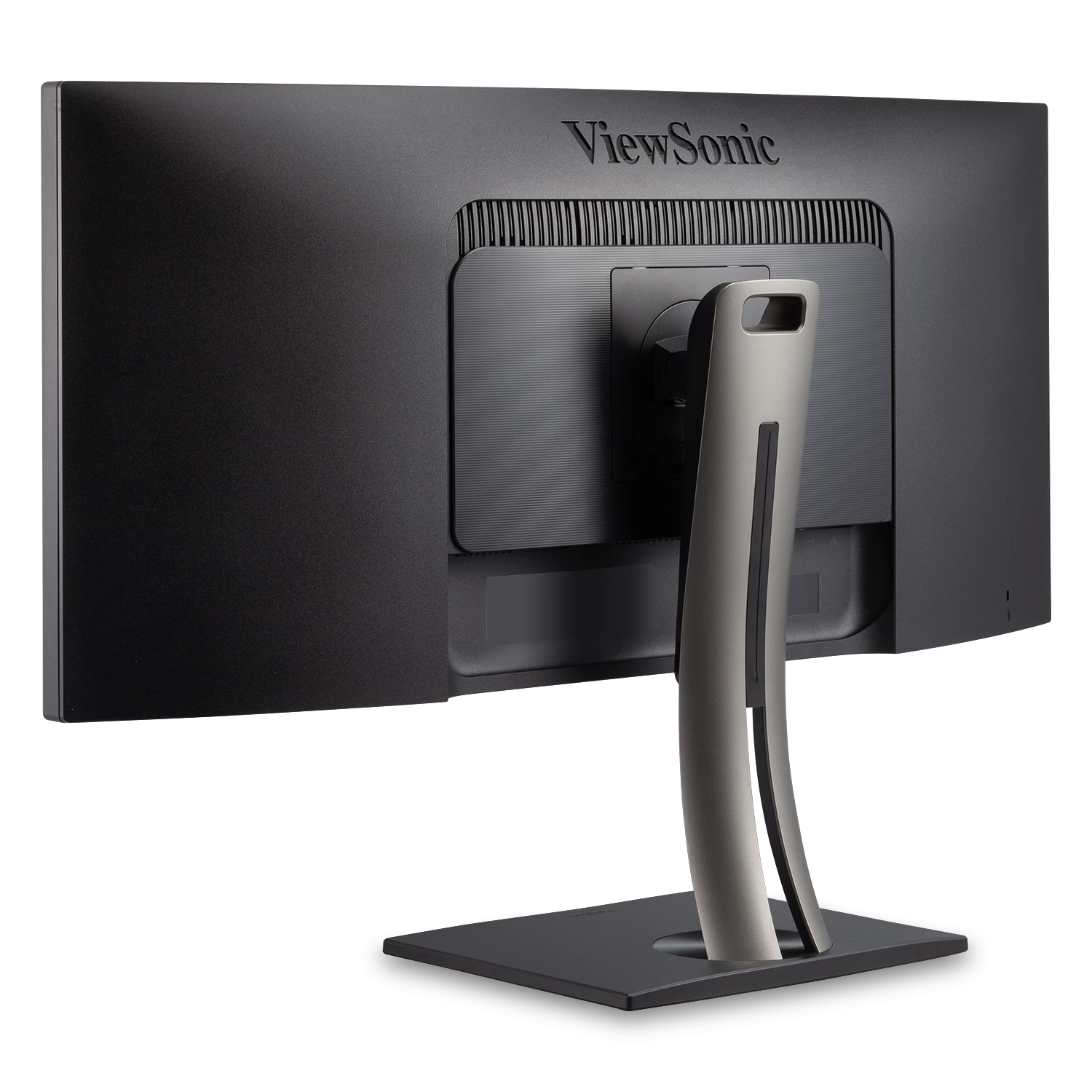

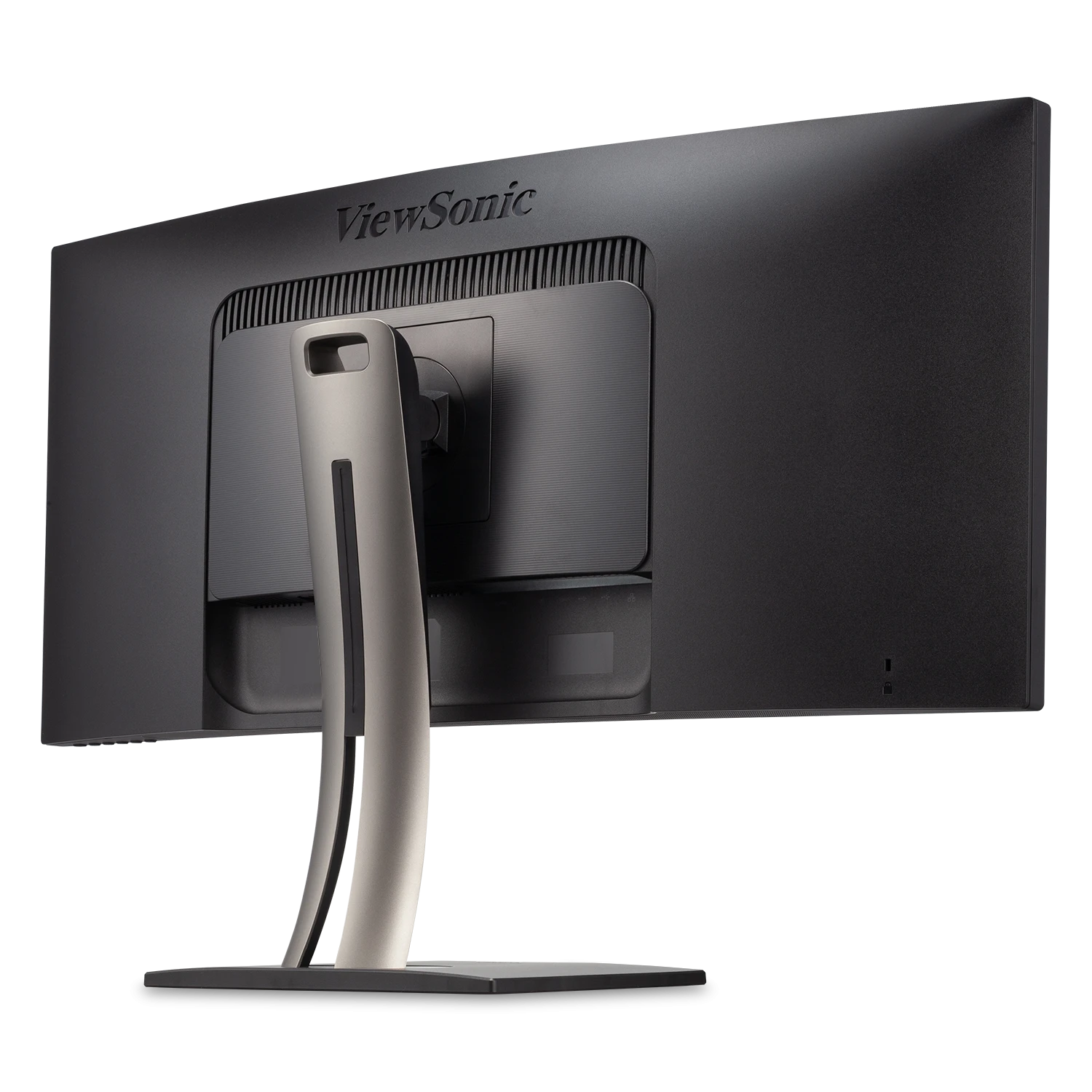

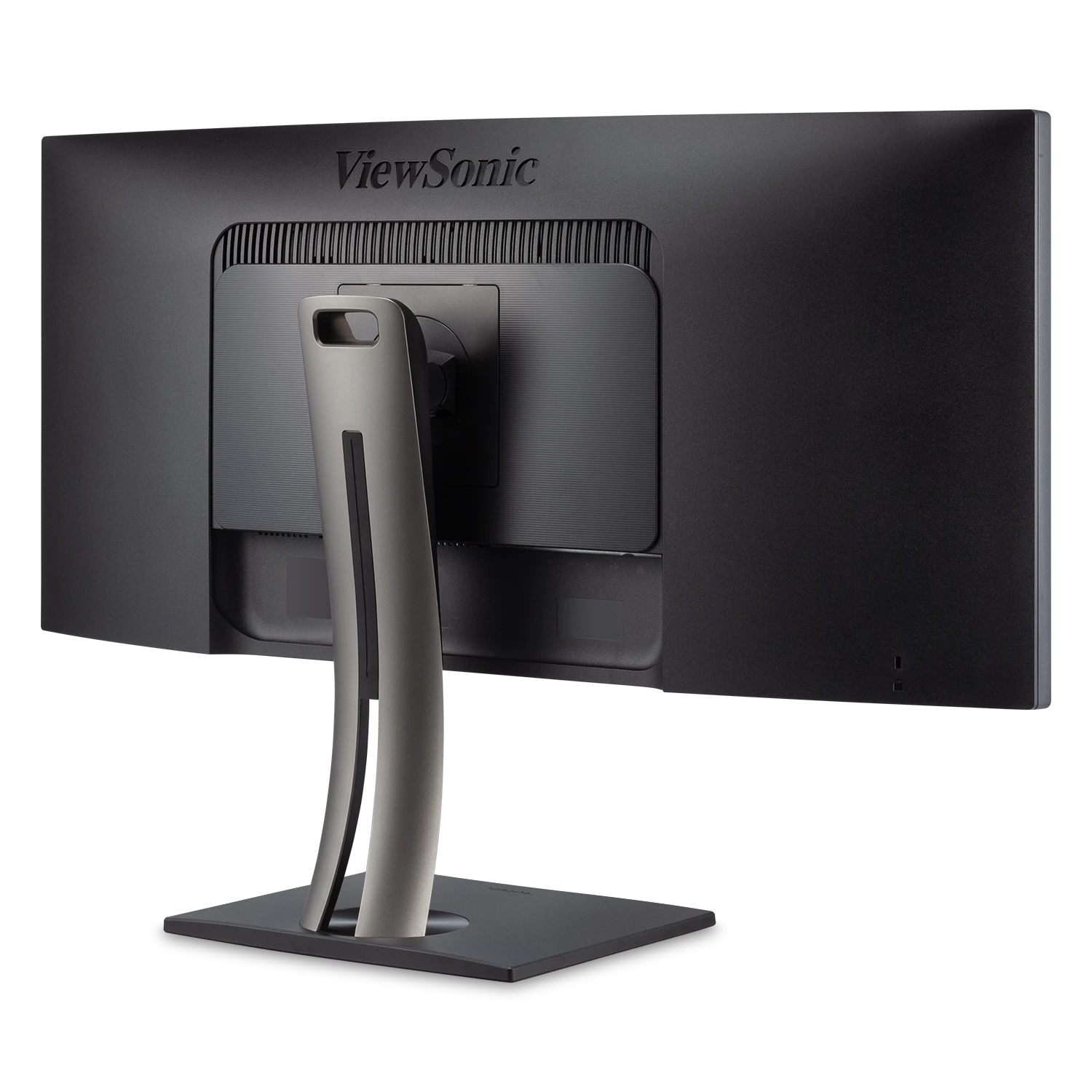

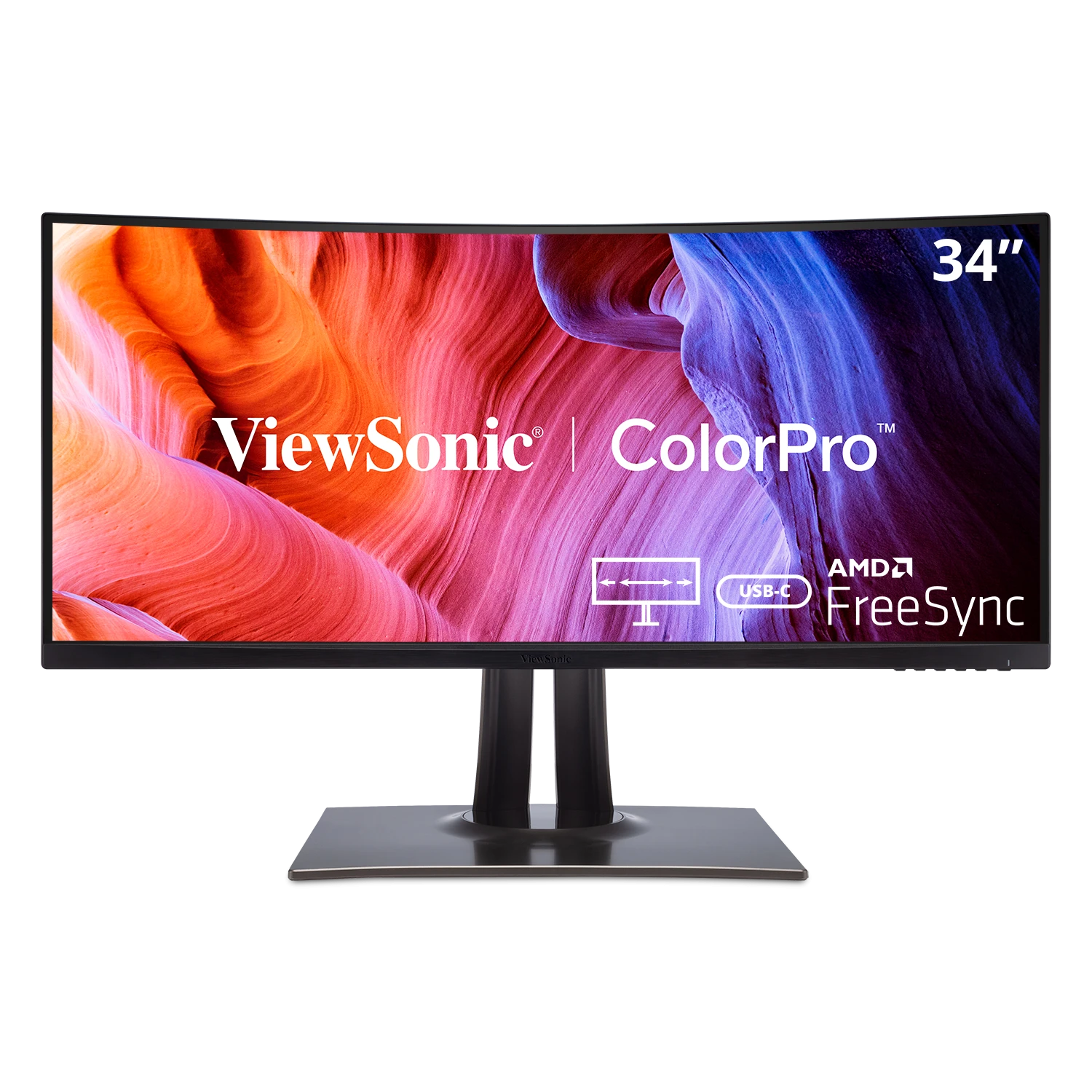

ViewSonic VP3481a

34" ColorPro 21:9 Curved UWQHD Monitor

• Description
• Specifications
• Warranty
• Downloads

• Product Overview
  With an immersive curved screen and stunning WQHD+ 3440x1440 resolution, the ViewSonic VP3481a monitor elevates your viewing experience from flat to panoramic. Delivering incredible detail and vivid colors across wide viewing angles, this monitor is engineered to provide precise color accuracy, while HDR10 compatibility delivers a wider dynamic range of vivid colors and richer contrast. Thanks to an expansive 34” frameless screen, ultra-wide 21:9 aspect ratio, and integrated speakers, this monitor is ideal for video editing, content development, and other color-critical applications. Featuring an incredible 100Hz refresh rate and AMD FreeSync™ technology, this monitor delivers smooth, tear-free playback ideal for video editors and game developers. With a sleek and modern design, the VP3481a features a future-proof USB Type-C port with 90W charging, as well as DisplayPort technology, and HDMI. What’s more, HDCP 2.2 content protection is standard across all ports to provide secure 4K content playback, streaming and gaming. The VP3481a provides an amazing Delta E<2 value and 99%* sRGB color accuracy for incredible and precise color accuracy. An integrated color uniformity function ensures consistent chromaticity across the screen, while a 14-bit 3D look-up table generates a stunningly smooth palette of 4.39 trillion colors. Hardware calibration is also available with the optional ViewSonic Colorbration Kit, which allows you to quickly and easily calibrate the monitor for photography, graphic design, and other professional applications.

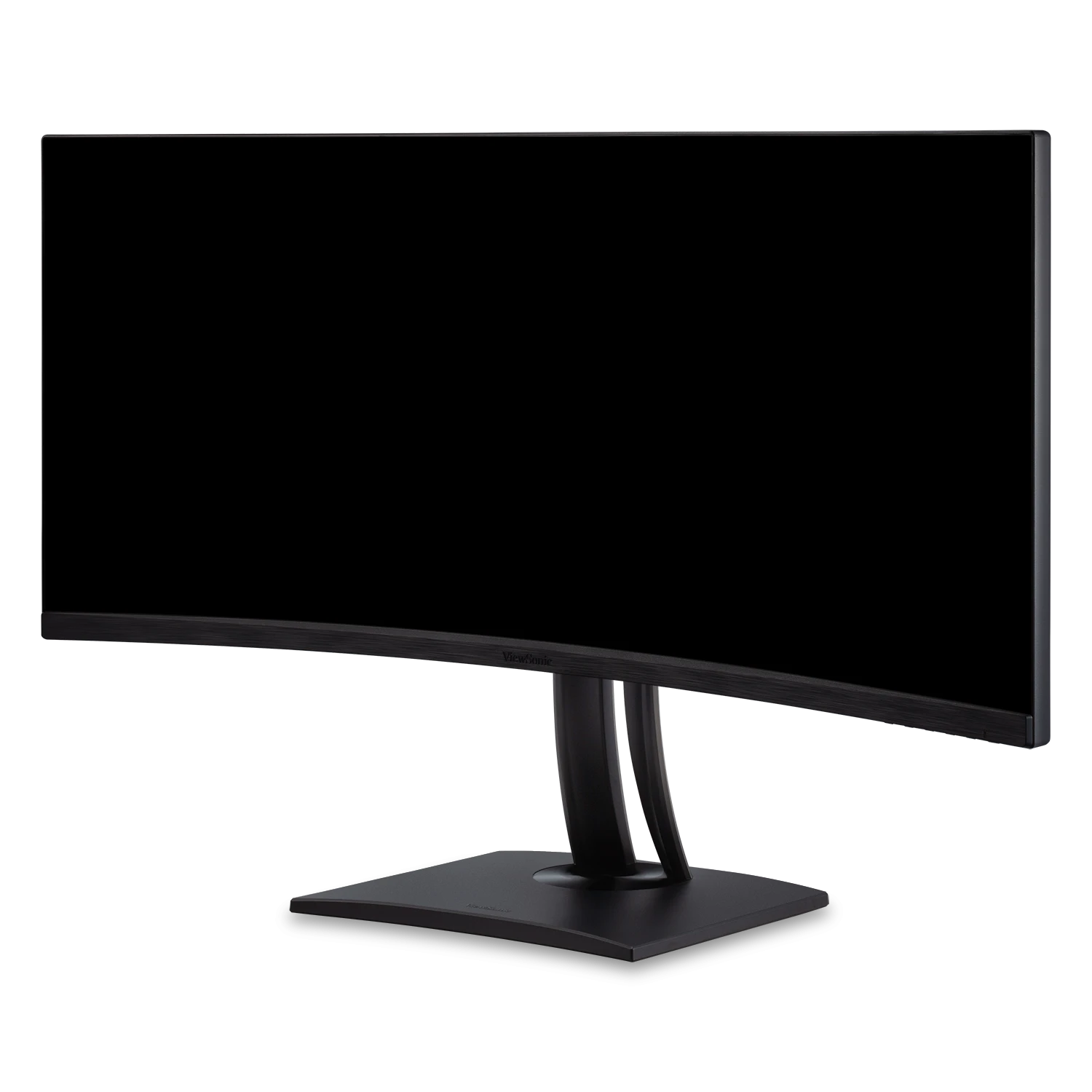

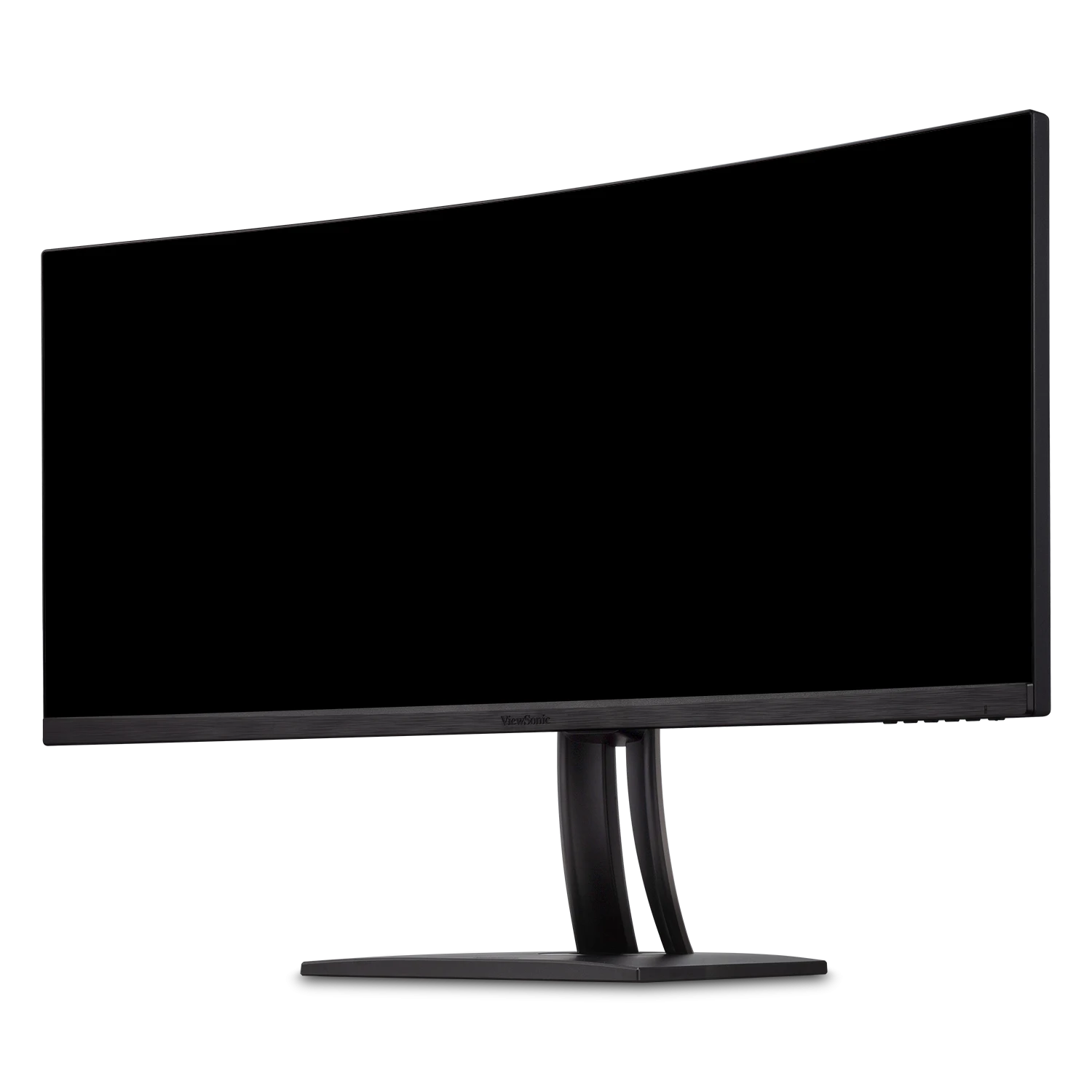

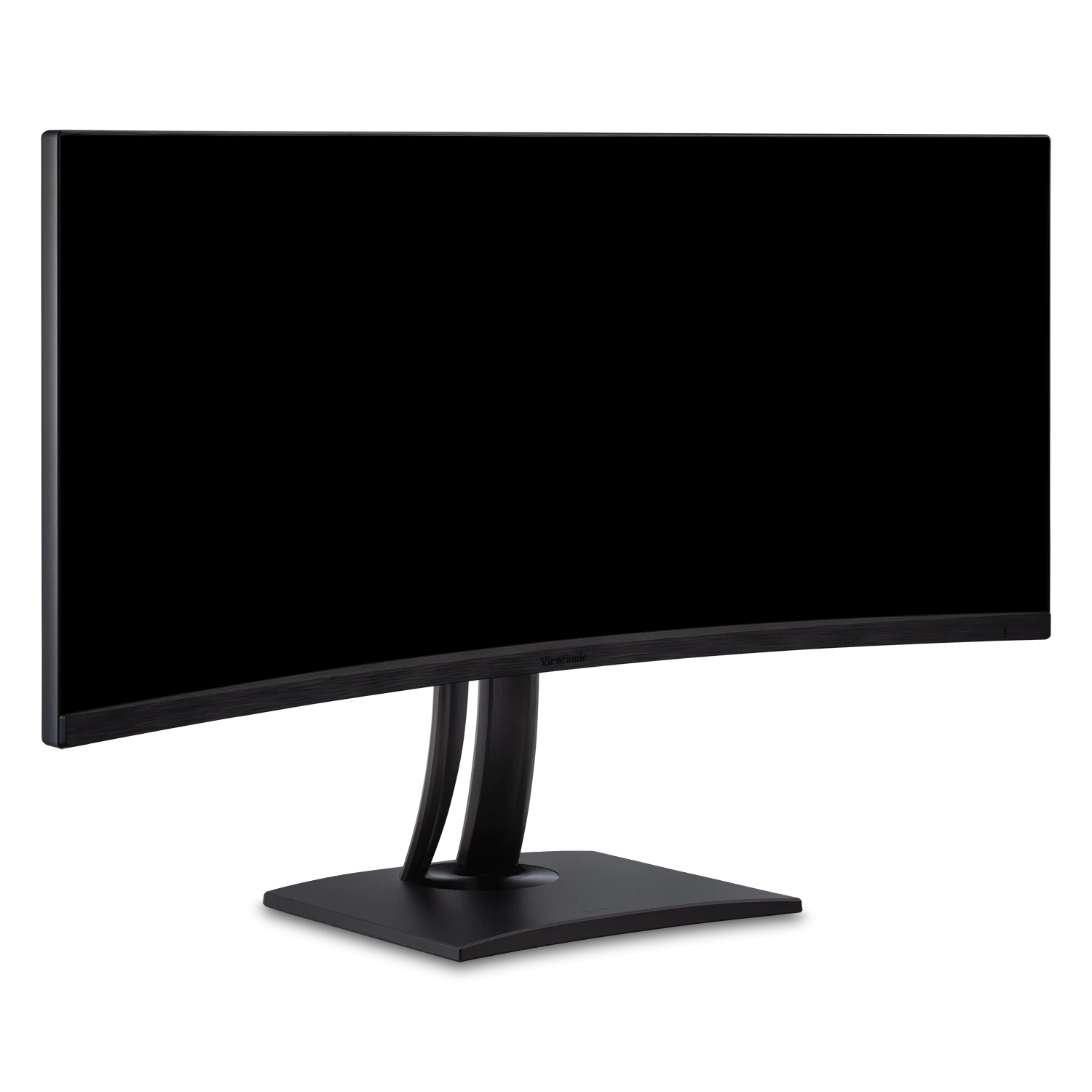

  Immersive Curved Screen Design
  A sleek, concave screen with ultra-thin bezels delivers an incredibly immersive viewing experience with panoramic images, vivid color, and incredible detail.

  Professional Color Processing
  The 14-bit LUT & 3D LUT (Look-Up Tables) generate a stunningly smooth palette of 4.39 trillion colors for amazingly accurate image reproduction crucial in professional applications.

  *The image contained herein is simulated to reflect an image under different resolution (or scheme) for demonstration purposes only, and may not be the actual image displayed from the product.

  vDisplayManager with Color Sensitivity Mode
  Integrated vDisplayManager software enhances productivity by putting the On-Screen Display (OSD) menu controls on your monitor’s screen. This delivers a more comfortable viewing experience by allowing you to quickly and easily adjust display settings such as volume, brightness, contrast, and more. A Color Sensitivity feature allows content creators to simulate various color deficiency modes.

  *The image contained herein is simulated to reflect an image under different resolution (or scheme) for demonstration purposes only, and may not be the actual image displayed from the product.

  USB-C with 90W Charging
  In addition to future-proof DisplayPort and HDMI inputs, a powerful USB-C input delivers 90W charging power, video, and audio over a single connector. What’s more, HDCP 2.2 content protection is standard across all ports to provide secure 4K content playback, streaming and gaming.

  HDR10 Content Support
  With the ability to decode HDR10 video* signals, this monitor delivers incredibly detailed video playback. Colors are brighter and more vivid, and contrast is richer and more detailed. With such amazing image reproduction, this monitor displays videos as they were intended to be seen – giving you a fuller, more immersive viewing experience.

  3-year Limited Warranty
  Have peace of mind in the quality and reliability of your ViewSonic monitor—backed by one of the industry’s best pixel performance policies and a 3-year limited warranty.*

  *Subject to ViewSonic's warranty and on-site service terms and conditions.

  ENERGY STAR Certification
  This is an ENERGY STAR certified product that can save on energy costs* while reducing greenhouse gases.

  *Energy savings may vary based on actual usage and other factors.

  EPEAT Certified
  With EPEAT Certification, this monitor delivers a reduced environmental impact over the complete product lifecycle, making it a great eco-friendly, long-term investment.

• Specifications	Details
  Regulations	cTUVus, FCC-B, ICES003, Energy Star, EPEAT, MX-CoC, Mexico Energy
  Package Contents	VP3481a Display, Power cable, HDMI cable, DP to DP cable, USB Type C cable, USB Type B Uplink cable, Quick Start Guide
  Recycle/Disposal	Please dispose of in accordance with local, state, or federal laws.
  Warranty	Three-year limited warranty on parts, labor, and backlight.
  Packaging (mm)	965.0 x 370.0 x 590.0
  Physical (mm)	809.0 x 480.0 x 299.0
  Physical Without Stand (mm)	809.0 x 366.0 x 105.0
  Packaging (in.)	38.0 x 14.6 x 23.2
  Physical (in.)	31.9 x 18.9 x 11.8
  Physical Without Stand (in.)	31.9 x 14.4 x 4.1
  Net (kg)	12.1
  Net Without Stand (kg)	7.4
  Gross (kg)	17.2
  Net (lbs)	26.7
  Net Without Stand (lbs)	16.2
  Gross (lbs)	37.9
  Frequency Horizontal	15 ~ 135 KHz
  Frequency Vertical	24 ~ 100 Hz
  VESA Compatible	100 x 100 mm
  Temperature	32-104º F (0 - 40º C)
  Humidity (non-condensing)	20-90%
  Physical Controls	1,2,3,4,5,6 (Power)
  On Screen Display	Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Advanced Image Adjust, Setup Menu, Memory Recall (See user guide for complete OSD functionality)
  Cable Organization	No
  Kensington Lock Slot	1
  Eco Mode (Conserve)	53.5W
  Eco Mode (optimized)	62.5W
  Consumption (typical)	74.5W
  Consumption (max)	79.5W
  Voltage	AC 100-240V (universal), 50-60Hz
  Stand-by	0.5W
  Power Supply	Internal
  Internal Speakers	5W (x2)

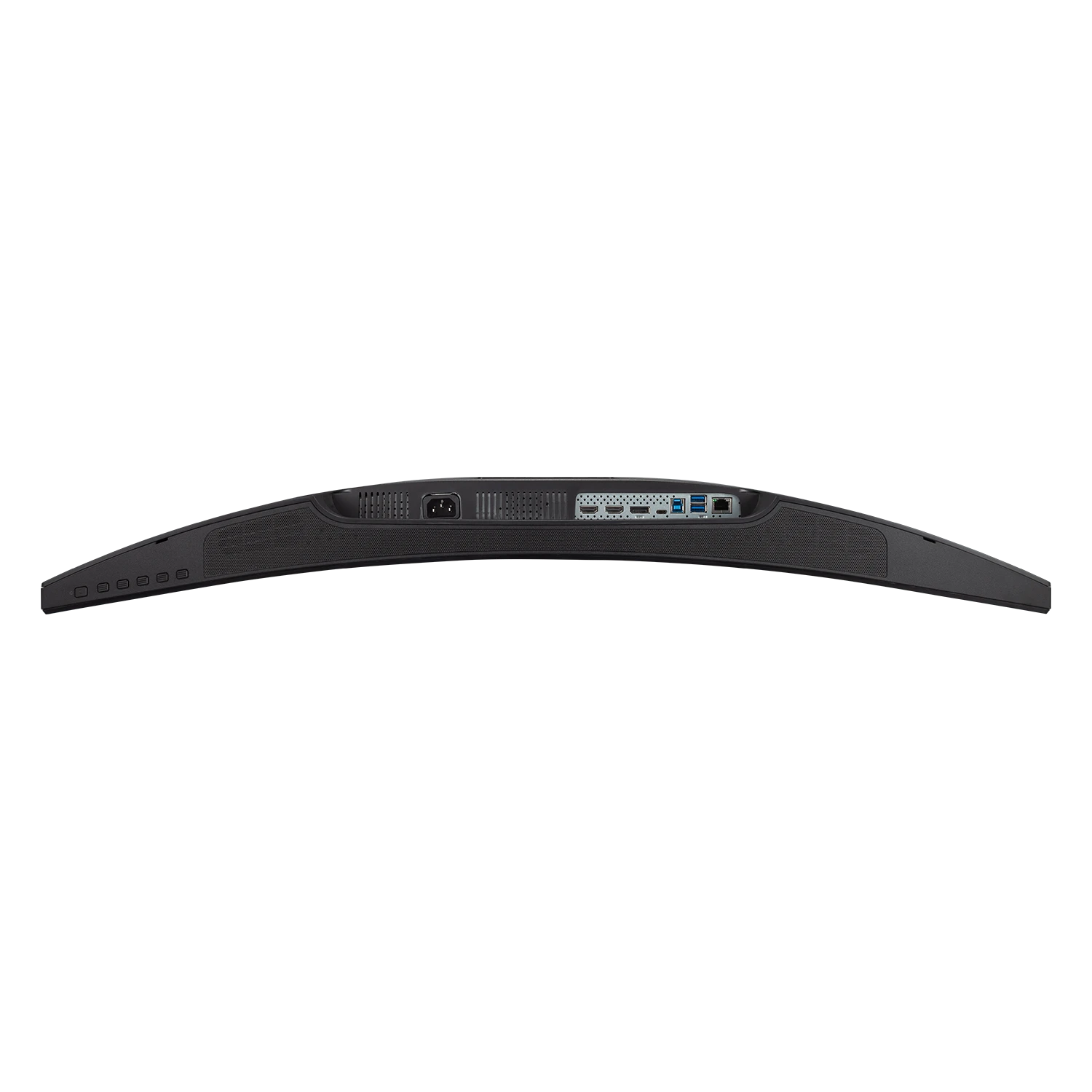

  USB Type A	2
  USB Type B	1
  USB Type C	90W x 1
  Ethernet LAN (RJ45)	1
  HDMI 2.0 In	2
  DisplayPort	1
  PC Resolution (max)	3440 x 1440
  Mac® Resolution (max)	3440 x 1440
  Screen Size	34
  Viewable Area (in.)	34
  Panel Type	MVA
  Display Resolution	3440 x 1440
  Static Contrast Ratio	1,000:1
  Dynamic Contrast Ratio	50,000,000:1
  Light Source	LED
  Brightness	400 cd/m2
  Colors	16.7M
  Color Space Support	8 bits
  Aspect Ratio	21:9
  Response Time (Typical GTG)	5ms
  Viewing Angles	178º horizontal, 178º vertical
  Backlight Life (Hours)	30,000
  Panel Surface	Anti-glare, Hard coating (3H)

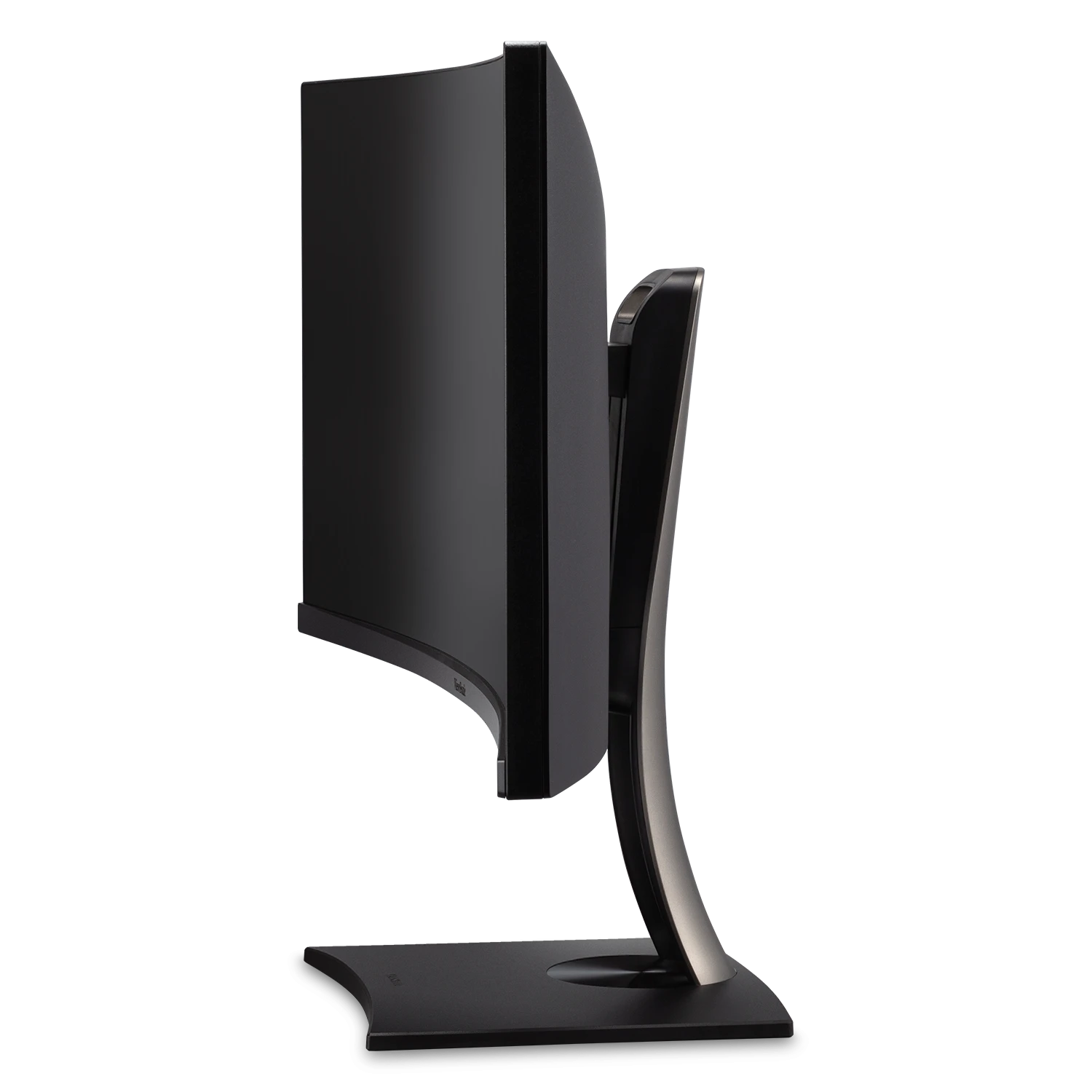

  Curvature	1800R

• ViewSonic Product Family	UK
  Monitors [VA / VX Series]	2 Year Pickup, Repair and Return
  Monitors [VG, VP ,TD and XG Series]	3 Year Pickup, Repair and Return
  Projector [PA5, PA7, PJD5 Series – except short throw models]	2 Year Pickup, Repair and Return [Lamp 1 Year or 1,000 hours]
  Projector [PJD5 Series short throw models, PJD6, PJD7, PJD8, Pro, PX, PS and PG Series]	3 Year Pickup, Repair and Return [Lamp 1 Year or 1,000 hours]
  Projector [Pro8 series]	3 Year Pickup, Repair and Return [Lamp 3 Years or 2,000 hours]
  Projector [PA503XB & PS501X+]	5 Year Swap [Light source 5 Years or 5,000 hours]
  Projector [M]	2 Year Pickup, Repair and Return [Light source 2 Years or 20,000 hours]
  Projector [X / LS5 / LS60&61 Series]	5 Year Pickup, Repair and Return [Light source 5 Years or 20,000 hours]
  Projector [Laser Series]	5 Year Swap [Light source 5 Years or 20,000 hours]
  Smart Display [VSD] / NMP	2 Year Pickup, Repair and Return
  Digital Pen WhiteBoard	2 Year Swap
  Included Accessories [Battery, Power Supplies, Cables, Remotes, 3D Glasses etc]	Same as Product Warranty
  Peripherals [LFD/IFP stands, Projector Screens/Mounts/Cases etc.]	1 Year Swap
  Peripherals [Wifi Modules, VB-Series and all other electronic peripherals]	2 Year Swap
  Large Format Display [Up to and including 55”]	3 Year Pickup, Repair and Return
  Large Format Display [Larger than 55”]	3 Year Onsite Repair
  Interactive Flat Panel [<55”]	3 Year Pickup, Repair and Return
  LED Display / Interactive Flat Panel [55” and above]	5 Year Onsite Repair or Replacement
  ePosters [10”]	2 Year Pickup, Repair and Return
  ePosters [Up to and including 55”]	3 Year Pickup, Repair and Return
  Slot-In PC (for LFD and IFP)	3 Year Pickup, Repair and Return
  All product groups	14 Days DOA Replacement




  Customer Service For All Countries - Please click here to find the correct contact details of your respective Call Desk or Service Centre.

  ViewSonic^® Limited Warranty

  ViewSonic warrants its products to be free from defects in material and workmanship during the warranty period. If a product proves to be defective in material or workmanship during the warranty period, ViewSonic will, at its sole option, repair or replace the product with a similar product. Replacement Product or parts may include remanufactured or refurbished parts or components.

  For more terms and conditions and on what the warranty does not cover please refer to our Standard Limited Warranty Summary.

  How to get service:

  • For information on obtaining warranty service, call your ViewSonic dealer or ViewSonic Call Desk / Service Provider or ViewSonic; refer to the Contact Us page located in each country's corresponding web site:
  • To obtain warranty service, you will be required to provide.
    1. The original dated sales slip. (Invoice or Proof of purchase)
    2. Your name.
    3. Your address.
    4. The serial number, IMEI number and the model number of the product.
    5. A description of the problem.
    6. Mobile and wireless products and All-in-One, customers should provide the user name and the password in order to access the device and perform warranty service.
  • For DOA cases apart from above the followings are also required.
    1. A photo showing the defect symptom.
    2. A photo of the unit serial number with the bar code.
    3. A photo showing the condition of the original container.
  • For additional information or the name of the nearest ViewSonic service centre, contact your ViewSonic dealer or ViewSonic.

  If the warranty on your product has already expired:

  In case your product is no longer within its warranty period, but you'd like to have it repaired, you can still contact our Call Desk or Repair Center in your country of residence, but you will be charged directly by our Repair Center on the service.

  Accessories:

  For enquiries on accessories/spare parts please either contact your local dealer or contact us directly at info@screenmoove.com
  Lamp warranty is based either on the lamp usage hour or on the age of the projector unit, and depending on which ever one that expires first.


  Pixel Policy:

  At ViewSonic we offer some of the most competitive pixel policy in the market.
