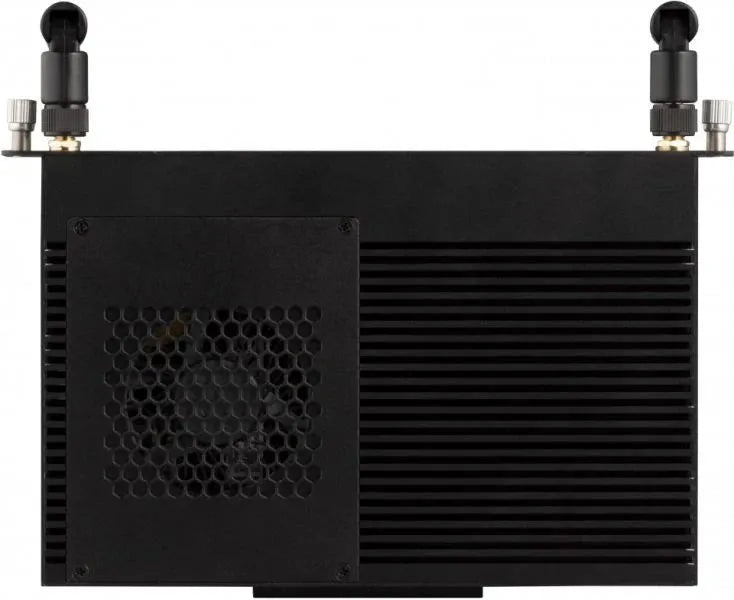

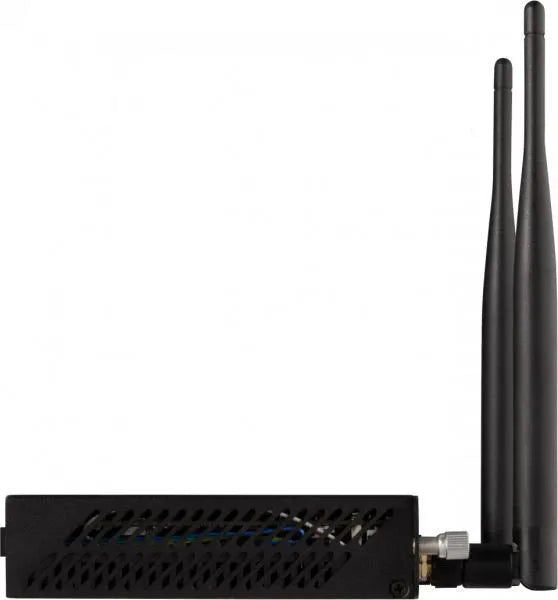

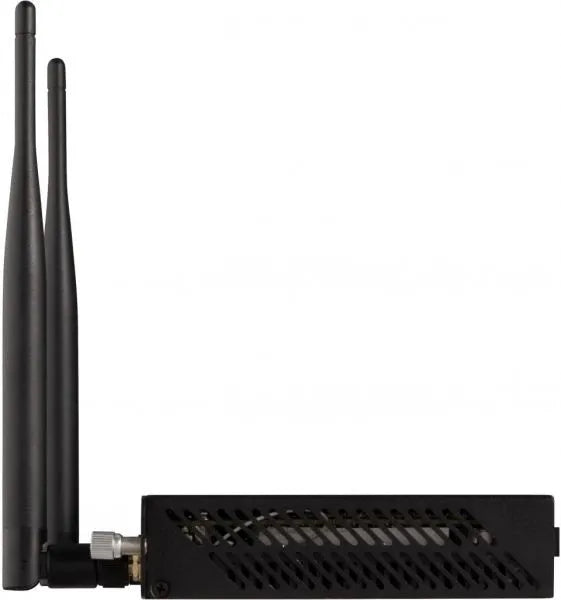

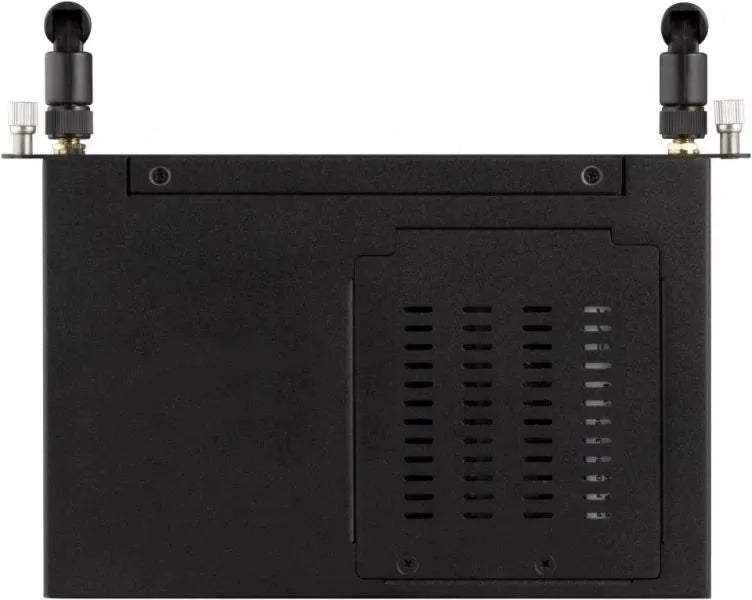

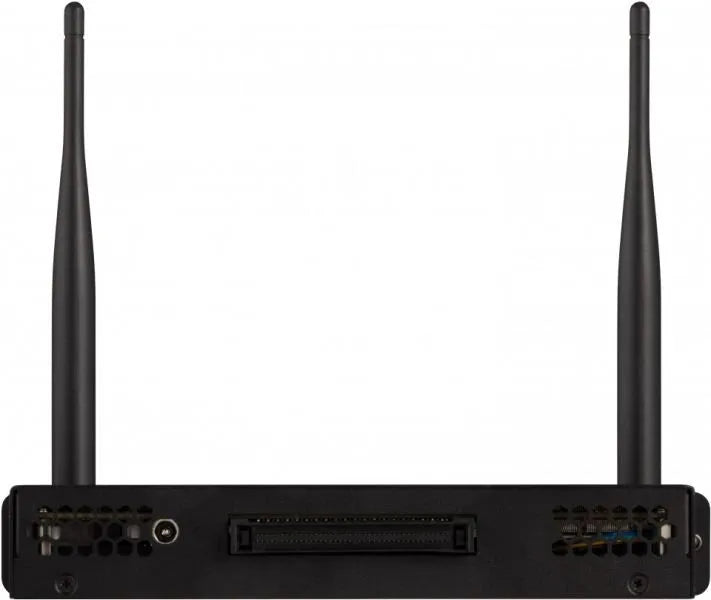

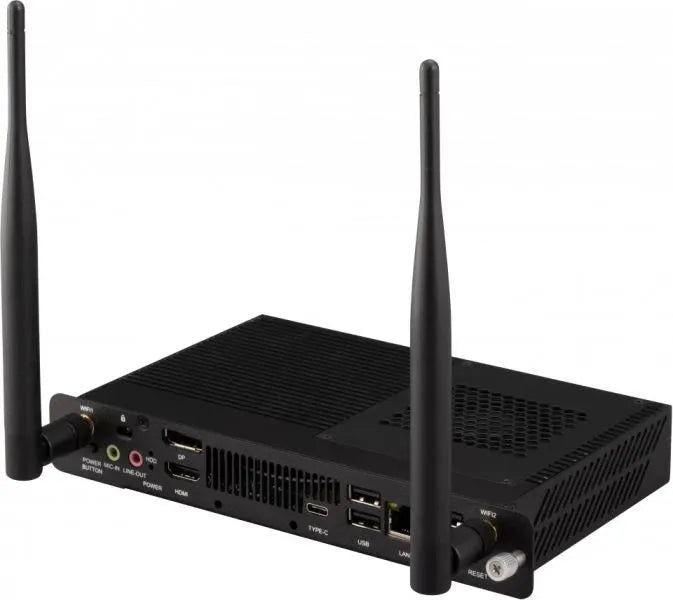

ViewSonic VPC27-W53-O1-1B Slot-in PC for ViewBoard®

Seize power to get more done when you sync your ViewBoard® interactive displays and presentation displays with the ViewSonic VPC27-W53-O1-1B slot-in PC. Integrated with an exceptional performance from Intel® 10th Gen Core™ processors, 16GB DDR4 memory, and 256GB of SSD storage, the experience enhances computing performance to breeze through complex classes and collaborations. Plug into pure productivity with dual-band WiFi, Bluetooth 5.2, and a range of ports, including 4K HDMI, DP1.4, USB 3.2, and Gigabit LAN RJ45 for faster workflows.

Tap into a productivity powerhouse
Boost the interactive whiteboard with remarkable power and lightning-fast speed from Intel® 10th Gen Core™ processors, letting you zip through lessons and tutorials effortlessly. Integrated with Intel® WiFi 6 and Bluetooth 5.2, experience ultra-fast, versatile connectivity to facilitate remote and hybrid classes with ease.

Stability in every lesson
Teach and present without any worry about sudden disruptions. Built with the FinchGuard, a Watchdog timer software, the VPC27-W53-O1-1B intuitively detects and recovers from system malfunctions seamlessly to maximise productivity.

Stay cool and blaze through classes
Equipped with a thermal control circuit and noise reduction capabilities, the fan within the device will dissipate much more heat in quieter acoustics of under 35 decibels for more conducive and longer lessons.

Boot up with total security
Prevent malicious software and unwanted operating systems from loading during start-up with the optional Secure Boot in the BIOS setting. This stops existing errors from loading and keeps unauthorised personnel from accessing PC settings.

Efficient content management
Synced with myViewBoard, an intuitive suite of software applications, the VPC27-W53-O1-1B offers remote content sharing and engaging lesson delivery for enhanced interactivity and maximised productivity.

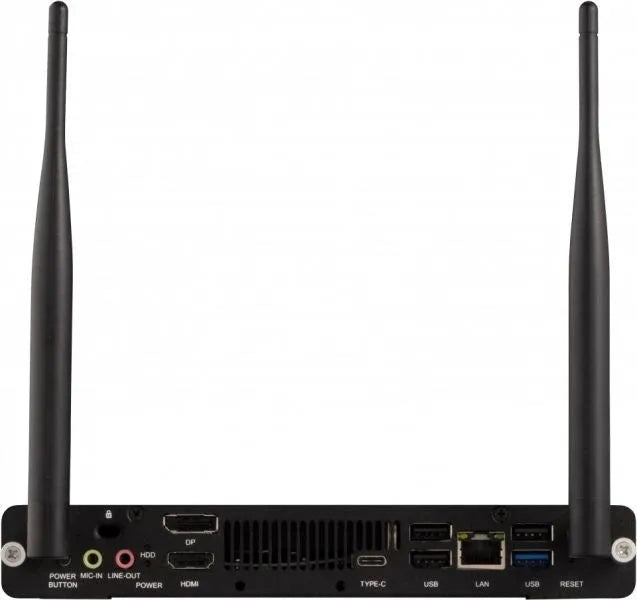

I/O Port

Component	Specification
Operating System	Windows 11 Pro (Windows 10 Pro Downgrade preinstalled)
Core	Intel Core i7-10700T 2.0GHz Turbo boost 4.5GHz
Graphics	Integrated Intel® UHD graphic 630 Intel H510 chipset
Memory	Capacity: 16GB DDR4
Storage	- Dimension: M.2 2280 (22 x 80 mm)
	- Capacity: 256GB SSD
	- Interface: M.2 2280 NVMe PCIe Gen3 SSD
Input	MIC(Microphone): x1
Output	- DisplayPort: x 1 (1.4, resolution 3840x2160@60Hz)
	- HDMI: x 1 (1.4, resolution 3840x2160@60Hz)
	- Audio: x 1 Line out
LAN	RJ45: GbE LAN Port
Wireless / Bluetooth	Intel AX200 WiFi 6 + BT5.2 Module dual band
USB	- Type A: USB x 4 (USB 3.2 x 1, USB 2.0 x 3)
	- Type C: x 1 (data only)
Bundle Software	Adobe Reader / myViewBoard WhiteBoard / WatchDog / Winflash
Power	- Voltage: DC in +12V~+19V @ 3.42A
	- Consumption: 65 W (Typical)
Operating Conditions	- Temperature (º C): -5~45°C
	- Humidity: 20% ~ 80% R.H. Non-Condensing
Dimensions (W x H x D)	- Physical (inch / mm): 7.95” x 4.69” x 1.18” / 202 x 119 x 30 mm
	- Packaging (inch / mm): 10.00” x 7.72” x 3.03”/254 x 196 x 77 mm
Weight	- Net (lb / kg): 2.205 lb/1 kg
	- Gross (lb / kg): 2.646 lb/1.2 kg
Regulations	cTUVus, FCC-B w/ ICES003, FCC ID+SDOC, CA IC, IC VOC, NOM, COFETEL, CE EMC, CE RED, CE LVD, CB, RoHS, REACH, WEEE, BSMI, NCC, BIS, WPC, RCM, MIC, VCCI, VNTA, CCC, SRRC
Package Contents	1. VPC OPS
	2. Quick Start Guide
	3. Screw x 2

ViewSonic Product Family	UK
Monitors [VA / VX Series]	2 Year Pickup, Repair and Return
Monitors [VG, VP ,TD and XG Series]	3 Year Pickup, Repair and Return
Projector [PA5, PA7, PJD5 Series – except short throw models]	2 Year Pickup, Repair and Return [Lamp 1 Year or 1,000 hours]
Projector [PJD5 Series short throw models, PJD6, PJD7, PJD8, Pro, PX, PS and PG Series]	3 Year Pickup, Repair and Return [Lamp 1 Year or 1,000 hours]
Projector [Pro8 series]	3 Year Pickup, Repair and Return [Lamp 3 Years or 2,000 hours]
Projector [PA503XB & PS501X+]	5 Year Swap [Light source 5 Years or 5,000 hours]
Projector [M]	2 Year Pickup, Repair and Return [Light source 2 Years or 20,000 hours]
Projector [X / LS5 / LS60&61 Series]	5 Year Pickup, Repair and Return [Light source 5 Years or 20,000 hours]
Projector [Laser Series]	5 Year Swap [Light source 5 Years or 20,000 hours]
Smart Display [VSD] / NMP	2 Year Pickup, Repair and Return
Digital Pen WhiteBoard	2 Year Swap
Included Accessories [Battery, Power Supplies, Cables, Remotes, 3D Glasses etc]	Same as Product Warranty
Peripherals [LFD/IFP stands, Projector Screens/Mounts/Cases etc.]	1 Year Swap
Peripherals [Wifi Modules, VB-Series and all other electronic peripherals]	2 Year Swap
Large Format Display [Up to and including 55”]	3 Year Pickup, Repair and Return
Large Format Display [Larger than 55”]	3 Year Onsite Repair
Interactive Flat Panel [<55”]	3 Year Pickup, Repair and Return
LED Display / Interactive Flat Panel [55” and above]	5 Year Onsite Repair or Replacement
ePosters [10”]	2 Year Pickup, Repair and Return
ePosters [Up to and including 55”]	3 Year Pickup, Repair and Return
Slot-In PC (for LFD and IFP)	3 Year Pickup, Repair and Return
All product groups	14 Days DOA Replacement

Customer Service For All Countries - Please click here to find the correct contact details of your respective Call Desk or Service Centre.

ViewSonic^® Limited Warranty

ViewSonic warrants its products to be free from defects in material and workmanship during the warranty period. If a product proves to be defective in material or workmanship during the warranty period, ViewSonic will, at its sole option, repair or replace the product with a similar product. Replacement Product or parts may include remanufactured or refurbished parts or components.

For more terms and conditions and on what the warranty does not cover please refer to our Standard Limited Warranty Summary.

How to get service:

For information on obtaining warranty service, call your ViewSonic dealer or ViewSonic Call Desk / Service Provider or ViewSonic; refer to the Contact Us page located in each country's corresponding web site:
To obtain warranty service, you will be required to provide.
1. The original dated sales slip. (Invoice or Proof of purchase)
2. Your name.
3. Your address.
4. The serial number, IMEI number and the model number of the product.
5. A description of the problem.
6. Mobile and wireless products and All-in-One, customers should provide the user name and the password in order to access the device and perform warranty service.
For DOA cases apart from above the followings are also required.
1. A photo showing the defect symptom.
2. A photo of the unit serial number with the bar code.
3. A photo showing the condition of the original container.
For additional information or the name of the nearest ViewSonic service centre, contact your ViewSonic dealer or ViewSonic.

If the warranty on your product has already expired:

In case your product is no longer within its warranty period, but you'd like to have it repaired, you can still contact our Call Desk or Repair Center in your country of residence, but you will be charged directly by our Repair Center on the service.

Accessories:

For enquiries on accessories/spare parts please either contact your local dealer or contact us directly at info@screenmoove.com
Lamp warranty is based either on the lamp usage hour or on the age of the projector unit, and depending on which ever one that expires first.

Pixel Policy:

At ViewSonic we offer some of the most competitive pixel policy in the market.
