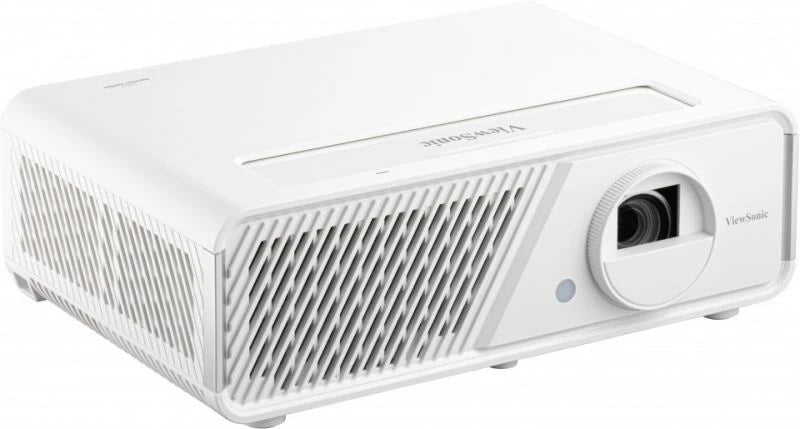

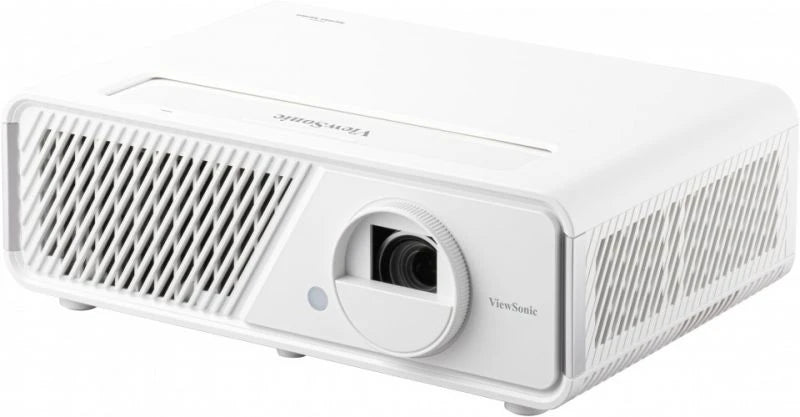

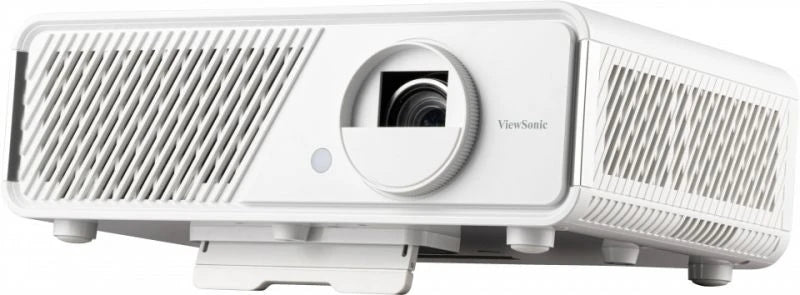

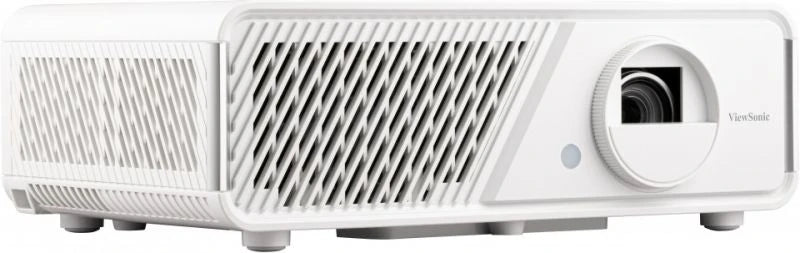

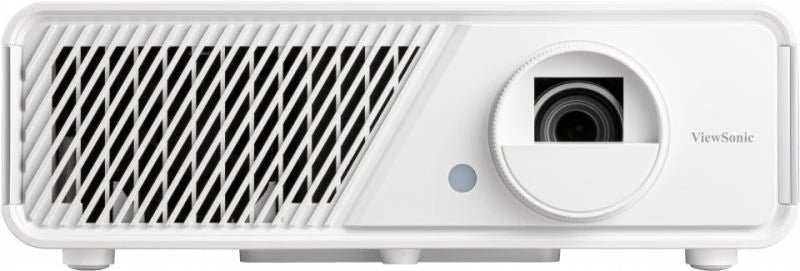

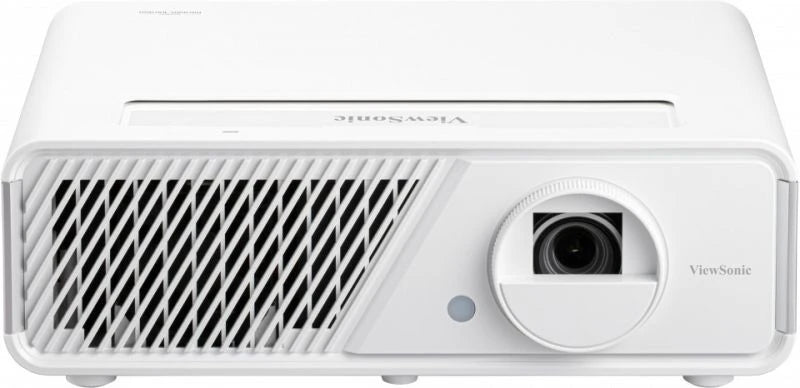

ViewSonic X1 LED Home Projector
3100 LED Lumens, 16:9 Full HD 1080p
OVERVIEW
The X1 is ViewSonic’s first lamp-free high brightness smart projector for home. Powered by 3rd generation LED technology and 3,100 LED Lumens of brightness, the X1 replaces frequent lamp replacement and toxic mercury with immediate and immersive big-screen entertainment through instant on/off capability, cinematic colours covering 125% Rec.709, and an impressive lifespan of 30,000 hours. Dual speakers customised by Harman Kardon deliver powerful, room-filling sound for movie nights or music streamed directly from your smartphone, with the option to connect Bluetooth headphones for personal entertainment. Embedded Wi-Fi connectivity enables screen mirroring directly from smart devices to the big screen, making content streaming easier than ever. And with vertical lens shift, 1.3x optical zoom, H&V keystone, and 4-corner adjustment capabilities, installing this 1080p projector is not only a breeze, but an upgrade to any home cinema.
Brighten Up
Your Home with LED
X1 High Brightness Smart LED Projector
Advanced 3rd Generation LED Technology
Enhanced Brightness
3,100 LED Lumens for brilliant images anytime
Maintenance-Free
30,000 hours lifespan for endless fun
Eco-Friendly
Mercury-free that commits to a greener and safer future
Energy-Saving
Less power consumption with ams OSRAM's Ostar Projection Power
Vibrant Colors
125% Rec.709 wide color gamut
True-to-Life Colors,
Fill You with Wonder
True-to-life colors offered by ViewSonic’s proprietary Cinema SuperColor+™ Technology with 125% Rec.709 give an unparalleled cinematic experience.
Theater-Level Harman Kardon Speakers
The X1 is embedded with theater-level speakers customized by Harman Kardon, delivering an all-around immersive experience for an audiovisual feast.
1080p Full HD for Captivating Details
Experience every detail with ultra-sharp image quality delivered in Full HD 1080p resolution with HDR support for a visual spectacle wherever you are.
Unveil Hidden Details with Higher Contrast Ratio
Take in images with more depth with high native contrast ratio given by Texas Instrument 0.65" DMD. The X1 delivers deeper blacks clearly showing the shades of images, and letting you see more dark scene details and the liveliness of bright scenes.
Live a Smarter Lifestyle
Wireless Screen Mirroring from Your Smart Devices
Create and share amplified enjoyment in an instant.
Thanks to the embedded 5GHz fast speed Wi-Fi connectivity,
you can cast or screen-mirror content from your devices at hand to the big screen without a single cable.
*only work with “smart system” input source
Bluetooth Enabled for Additional Audio Options
Enjoy quality sound on your own terms. Use the X1 as a Bluetooth speaker to get the party started or connect your Bluetooth headphones and immerse yourself in your own world of big-screen entertainment.
*only work with “smart system” input source
Direct Content Streaming via USB Type-C
Project content directly from your phone or other mobile devices via USB Type-C while simultaneously charging it. Stream videos, FaceTime with friends, or play Nintendo® Switch on the big screen without a docking station, all through a single cable.
*Devices must support USB Type-C video streaming.
*Apple-authorized Lightning to HDMI adaptor required for iPhone and iPad users.
Intuitive Touch Control with Your Phone
Now you can turn your mobile device into an alternative powerful remote control – intuitive touch control, easy typing, and simple annotation on the big screen. Simply download the ViewSonic vCastSender app on your phone, make sure your phone and the projector are connected to the same Wi-Fi network, and pair them up in the app to get started.
Instant Power On to Enjoy Your Favorite Shows Right Away
Tired of staring at a blank screen waiting for the display to get started? We revolutionized the stereotypical projector start time allowing you to turn the X1 on in an instant - just like you would with a regular TV.
Get Perfectly-Shaped Images Effortlessly
Central positioning is no more a must. With the comprehensive H/V keystone, 4 corner adjustment and auto V keystone capabilities, the projector is able to deliver perfectly-shaped images from above, below, front or side, making the setup a breeze and allowing you to project from any angle you like.

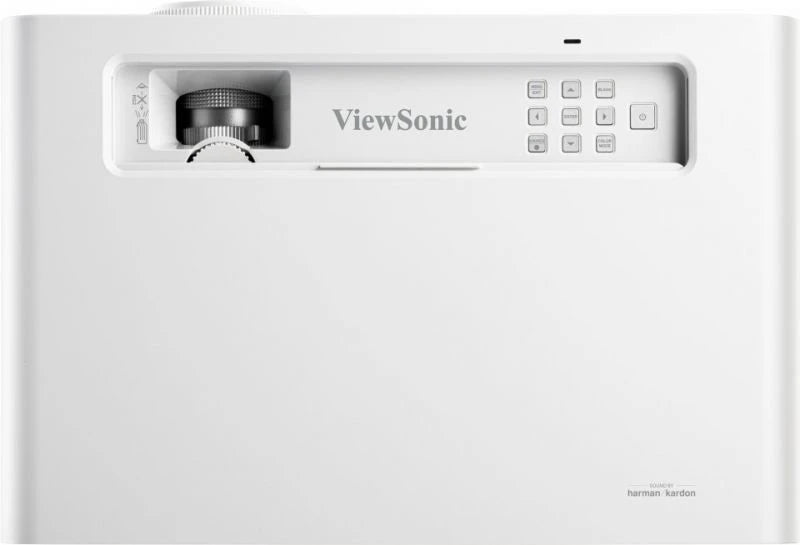

V Lens Shift Offering Flexibility in Installation
The tool-free, lens shift control knobs make the adjusting of the projection lens a piece of cake. The X1 offers the flexibility of vertical image adjustment so that the users can adjust the location of the projected image without moving the projector – no need to renovate the interior design when mounting the projector.
Adaptable to Any Environment with Optical Zoom
Equipped with a 1.3x optical zoom lens, the projector empowers users to choose the most ideal set-up location within a range, assuring the desired image size perfectly fits the existing interior design.
Flexible Multimedia Access with Plug & Play
The X1 has a versatile array of connectivity including USB Type-C, two USB Type-A ports*,
and two HDMI 2.0 / HDCP 2.2 ports that ensure access to original 4K quality content. Additionally, its 11GB of local storage allows you to save your favorite content directly onto the projector.
*only one USB Type-A port can use as source input
Customize Your Own Color Profiles
By using a cloud-based color profile exchange, users can create their own color profile to fit their preferences and share it with others. Also, users can download other profiles from their projectors and fine-tune them as their own.

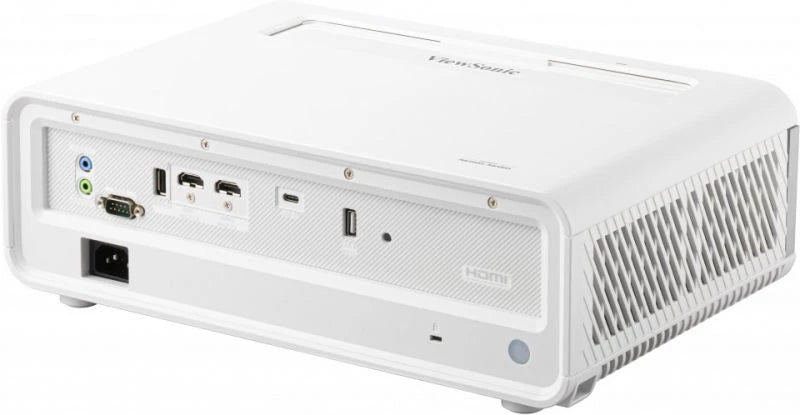

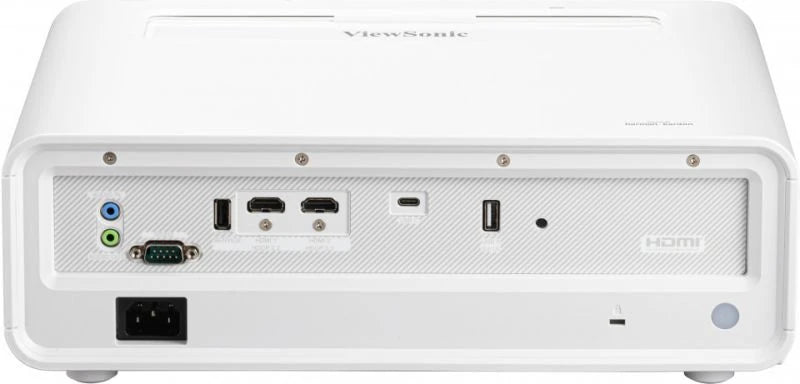

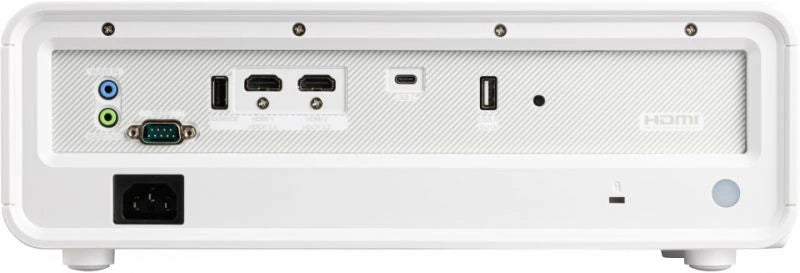

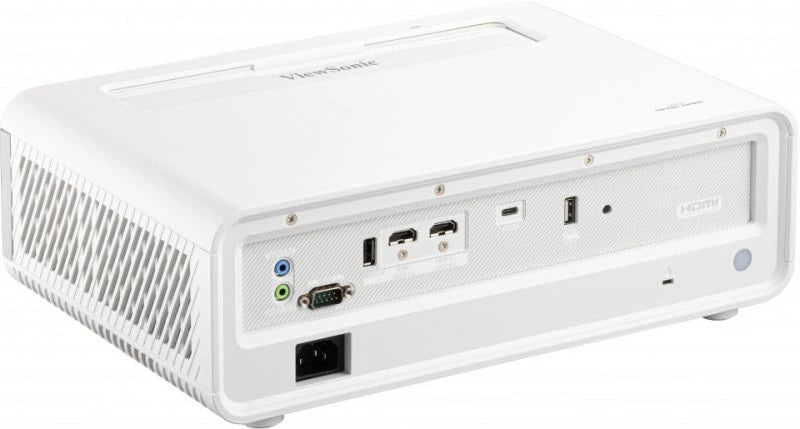

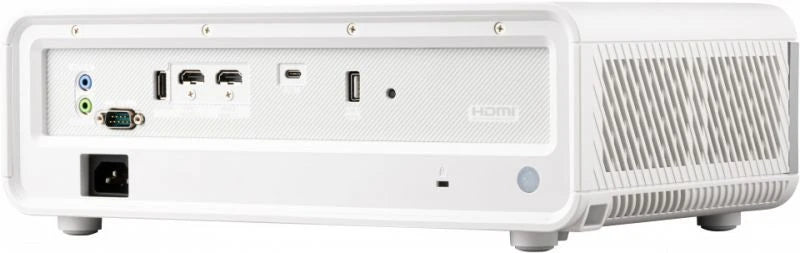

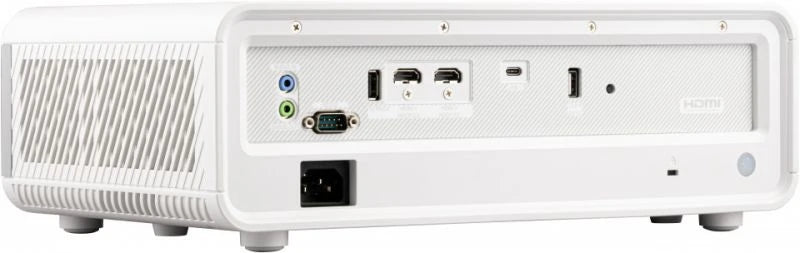

Dimensions & I/O Connectivity
| Specification | Details |
|---|---|
| Projection System | 0.65" 1080p |
| Native Resolution | 1920x1080 |
| Brightness | 3100 (LED Lumens) |
| Contrast Ratio | 3000000:1 |
| Display Color | 1.07 Billion Colors |
| Light Source Type | LED |
| Light Source Life (hours) | Normal Mode: 30000 |
| Lamp Watt | RGBG LED |
| Lens | F=2.59-2.87, f=16.88-21.88mm |
| Projection Offset | 110%+/-5% |
| Throw Ratio | 1.15-1.5 |
| Optical Zoom | 1.3X |
| Digital Zoom | 0.8x-2.0x |
| Image Size | 60"-150" |
| Throw Distance | 1.53m-4.98m (100"@2.55m) |
| Keystone | H:+/-40° , V:+/-40° |
| Lens Shift V. Range | +10%, -0% |
| Audible Noise (Normal) | 31dB |
| Audible Noise (Eco) | 27dB |
| Local Storage | Total 16GB (11GB available storage) |
| Input Lag | 8.3ms |
| Resolution Support | VGA(640 x 480) to 4K(3840 x 2160) |
| HDTV Compatibility | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p |
| Horizontal Frequency | 15K-135KHz |
| Vertical Scan Rate | 23-120Hz |
| Input | |
| HDMI | 2 (HDMI 2.0, HDCP 1.4/2.2) |
| USB Type C | 1 (5V/ 1A) |
| Audio-in (3.5mm) | 1 |
| Audio-in (Bluetooth) | 1 (BT4.2) |
| USB Type A | 1 (USB2.0 Reader x1) |
| Wifi Input | 1 (5Gn) |
| Output | |
| Audio-out (3.5mm) | 1 |
| Audio-out (Bluetooth) | 1 (BT4.2) |
| Speaker | 6W Cube x2 (Full range x2) |
| USB Type A (Power) | 1 (USB2.0 - 5V/1A x1, share with USB A Input) |
| Control | |
| RS232 (DB 9-pin male) | 1 |
| USB Type A (Services) | 1 |
| Others | |
| Power Supply Voltage | 100-240V+/- 10%, 50/60Hz (AC in) |
| Power Consumption | Normal: 218W |
| Standby | <0.5W |
| Operating Temperature | 0~40℃ |
| Carton | Color |
| Net Weight | 3.6kg |
| Gross Weight | 5.5kg |
| Dimensions (WxDxH) with Adjustment Foot | 355x244x121mm |
| Packing Dimensions | 490x376x313mm |
| OSD Language | English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese, Japanese, Turkish, Portuguese, Finnish, Indonesian, India, Arabic, Vietnamese, Greek, Hungarian (Total 24 languages) |
| User Guide Language | English, S-Chinese, T-Chinese, Indonesian, Finish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Swedish, Turkish, Arabic, Czech, Thai, Vietnamese (Total 20 languages) |
| Standard Accessory | |
| Power Cord | 1 |
| USB-C Cable | 1 (1m) |

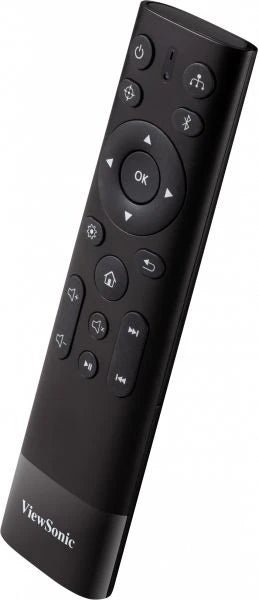

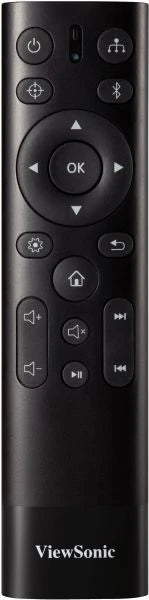

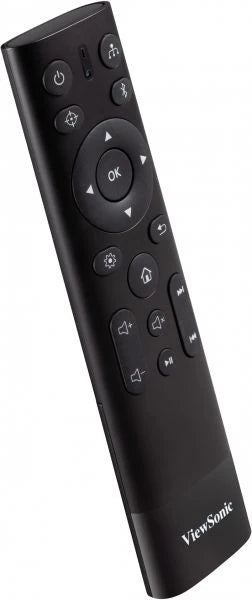

| Remote Control | 1 (w/ backlit) |
| QSG | Yes |
| Warranty Card | Yes (CN Only) |
| Optional Accessory | Wall/Ceiling Mount: PJ-WMK-007 |
| Document Type | Download Link |
|---|---|
| DATASHEETS | Download |
| USER GUIDES | Download |
| QUICK START GUIDE | Download |
| DRIVER & SOFTWARE | Download |
| TECHNICAL DOCUMENT | Download |
