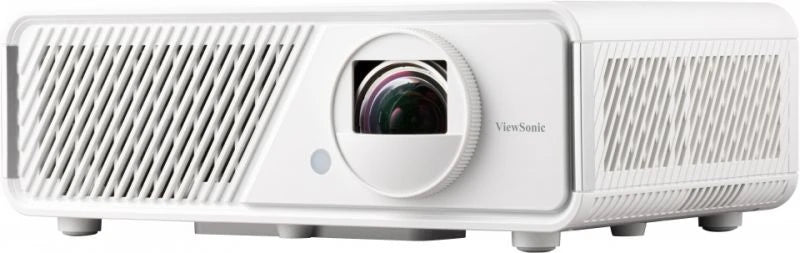

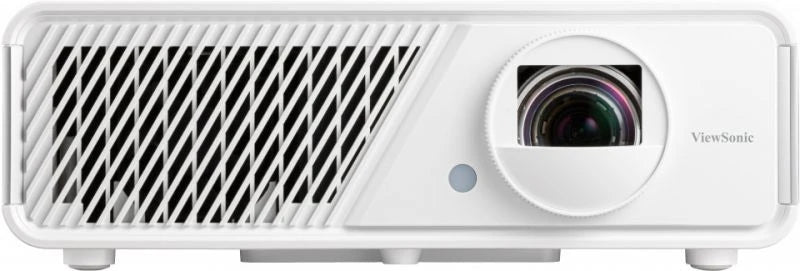

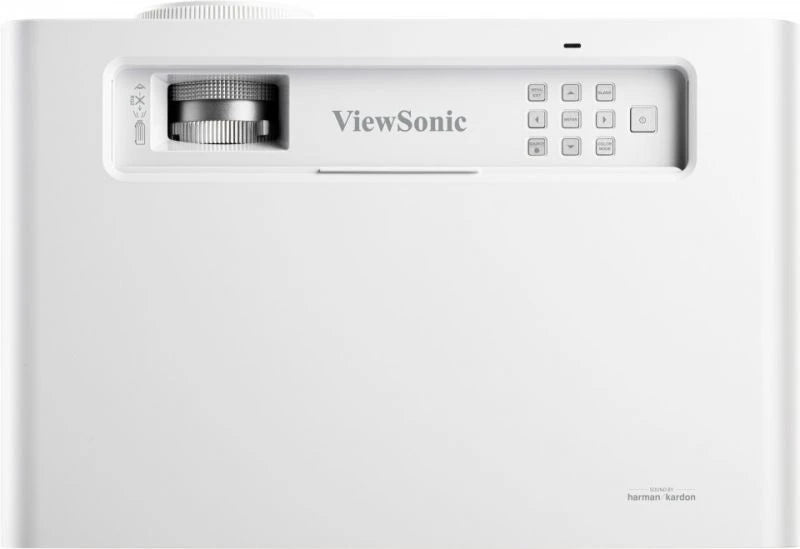

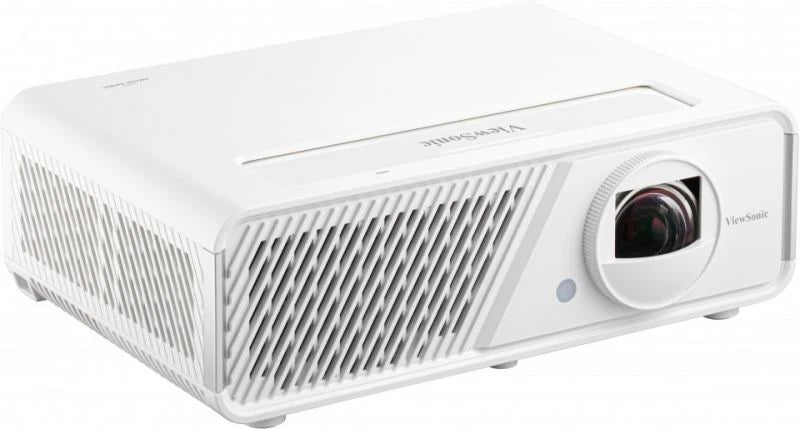

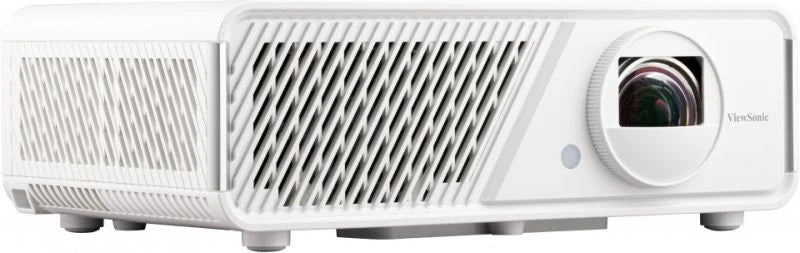

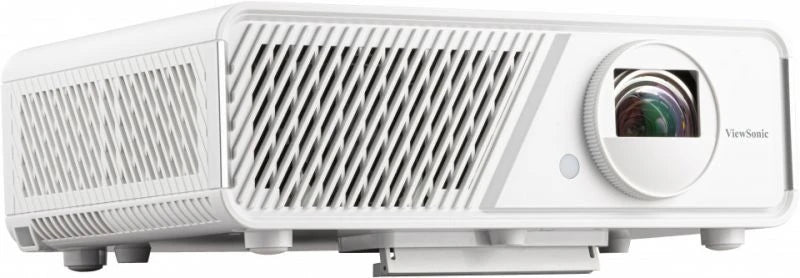

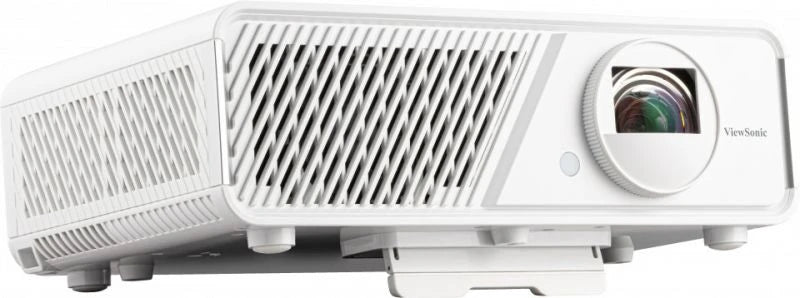

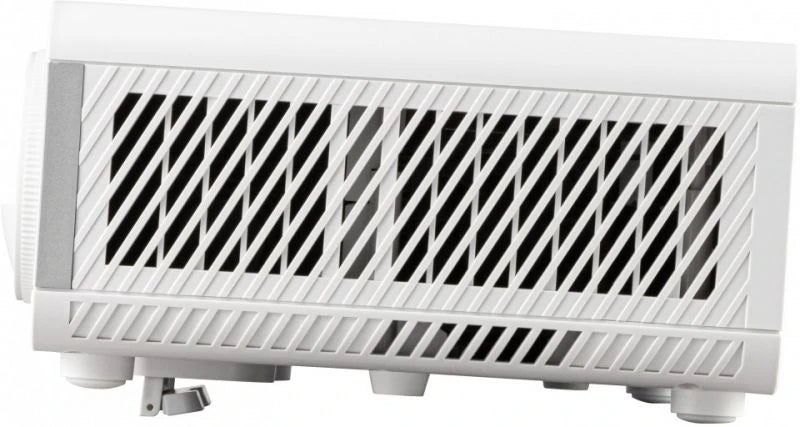

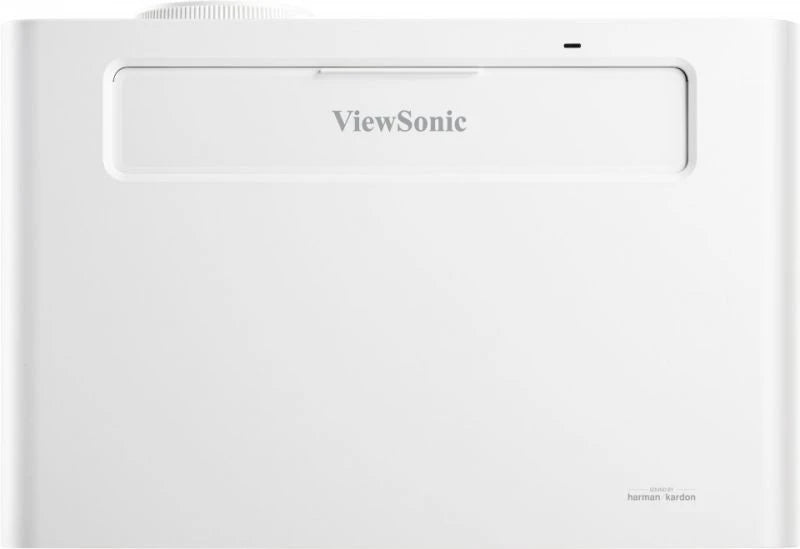

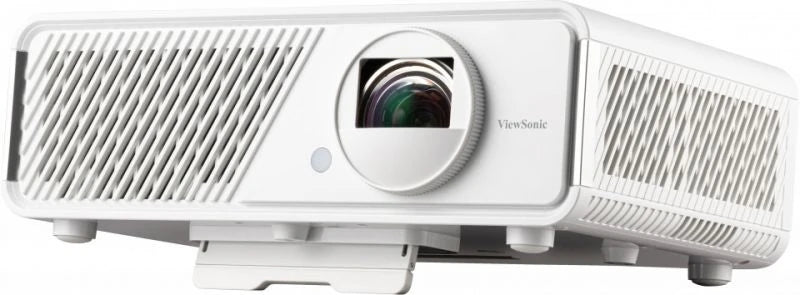

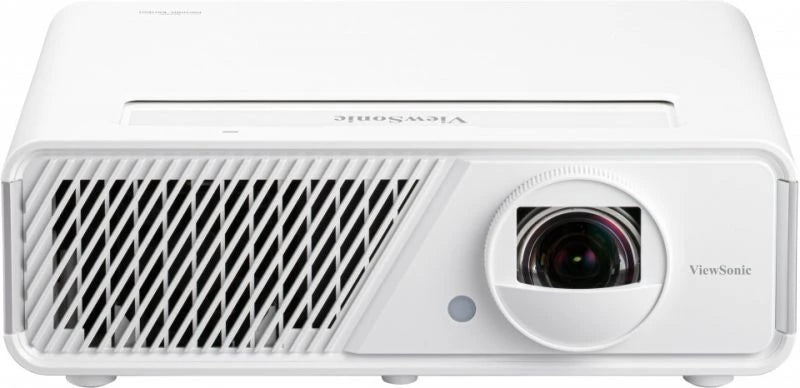

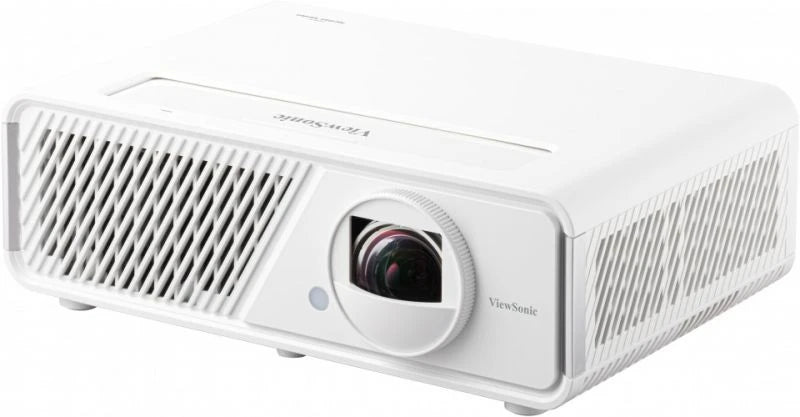

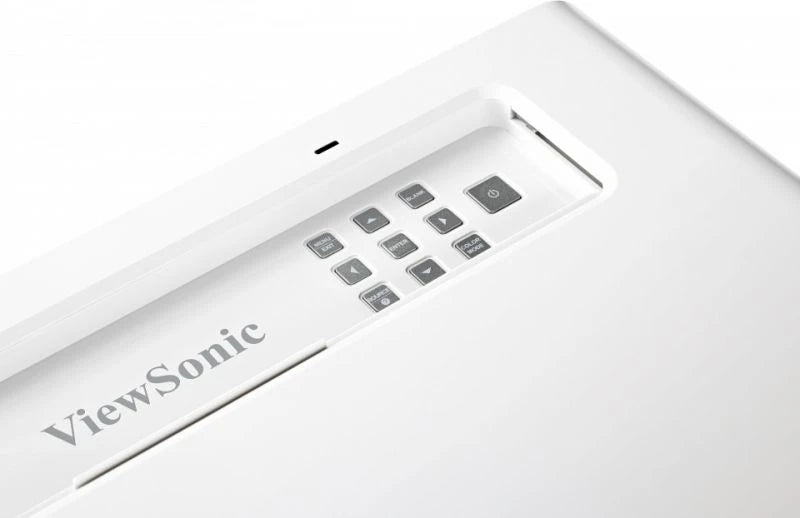

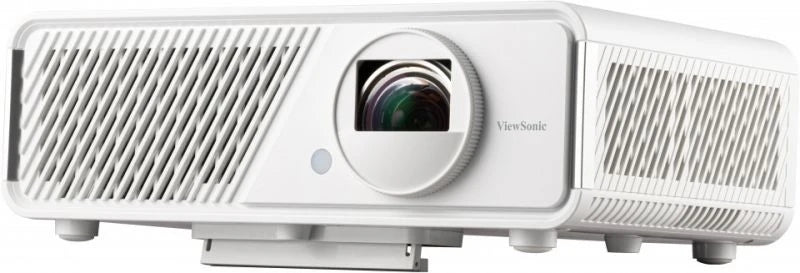

ViewSonic X2 Smart LED Home Projector
3100 LED Lumens, 16:9 Full HD 1080p
OVERVIEW
The X2 is ViewSonic's first lamp-free high brightness short throw smart projector for home. Powered by 3rd generation LED technology and 3,100 LED Lumens of brightness, the X2 replaces frequent lamp replacement and toxic mercury with immediate and immersive big-screen entertainment through instant on/off capability, cinematic colors covering 125% Rec.709, and an impressive lifespan of 30,000 hours. And with a 0.69-0.83 short throw ratio you can go big even in small spaces with a 100” display from only 1.53m away. Dual speakers customized by Harman Kardon deliver powerful, room-filling sound for movie nights or music streamed directly from your smartphone, with the option to connect Bluetooth headphones for personal entertainment. Embedded Wi-Fi connectivity enables screen mirroring directly from smart devices to the big screen, making content streaming easier than ever. And with 1.2x optical zoom, H&V keystone, and 4-corner adjustment capabilities, setting up this 1080p projector is a breeze, even with limited space.
Brighten Up
Your Home with LED
X2 High Brightness Short Throw Smart LED Projector
A Feast for the Eyes and Ears
Advanced 3rd Generation LED Technology
Theater-Level Harman Kardon Speakers
The X2 is embedded with theater-level speakers customized by Harman Kardon, delivering an all-around immersive experience for an audiovisual feast.
1080p Full HD for Captivating Details
Experience every detail with ultra-sharp image quality delivered in Full HD 1080p resolution with HDR support for a visual spectacle wherever you are.
Unveil Hidden Details with Higher Contrast Ratio
Take in images with more depth with high native contrast ratio given by Texas Instrument 0.65" DMD. The X2 delivers deeper blacks clearly showing the shades of images, and letting you see more dark scene details and the liveliness of bright scenes.
Live a Smarter Lifestyle
Wireless Screen Mirroring from Your Smart Devices
Create and share amplified enjoyment in an instant.
Thanks to the embedded 5GHz fast speed Wi-Fi connectivity,
you can cast or screen-mirror content from your devices at hand to the big screen without a single cable.
*only work with “smart system” input source
Bluetooth Enabled for Additional Audio Options
Enjoy quality sound on your own terms. Use the X2 as a Bluetooth speaker to get the party started or connect your Bluetooth headphones and immerse yourself in your own world of big-screen entertainment.
*only work with “smart system” input source
Direct Content Streaming via USB Type-C
Project content directly from your phone or other mobile devices via USB Type-C while simultaneously charging it. Stream videos, FaceTime with friends, or play Nintendo® Switch on the big screen without a docking station, all through a single cable.
*Devices must support USB Type-C video streaming.
*Apple-authorized Lightning to HDMI adaptor required for iPhone and iPad users.
Intuitive Touch Control with Your Phone
Now you can turn your mobile device into an alternative powerful remote control – intuitive touch control, easy typing, and simple annotation on the big screen. Simply download the ViewSonic vCastSender app on your phone, make sure your phone and the projector are connected to the same Wi-Fi network, and pair them up in the app to get started.
Go Big, Even in Small Spaces
Enjoy a full 100" projection from only 1.53m away with a 0.69-0.83 short throw ratio. Unlock immersive viewing with a 1.2x optical zoom that brings a higher level of flexibility and fits any home space.
Instant Power On to Enjoy Your Favorite Shows Right Away
Tired of staring at a blank screen waiting for the display to get started? We revolutionized the stereotypical projector start time allowing you to turn the X2 on in an instant - just like you would with a regular TV.
Get Perfectly-Shaped Images Effortlessly
Central positioning is no more a must. With the comprehensive H/V keystone, 4 corner adjustment and auto V keystone capabilities, the projector is able to deliver perfectly-shaped images from above, below, front or side, making the setup a breeze and allowing you to project from any angle you like.
Flexible Multimedia Access with Plug & Play
The X2 has a versatile array of connectivity including USB Type-C, two USB Type-A ports*, and two HDMI 2.0 / HDCP 2.2 ports that ensure access to original 4K quality content. Additionally, its 11GB of local storage allows you to save your favorite content directly onto the projector.
Customize Your Own Color Profiles
By using a cloud-based color profile exchange, users can create their own color profile to fit their preferences and share it with others. Also, users can download other profiles from their projectors and fine-tune

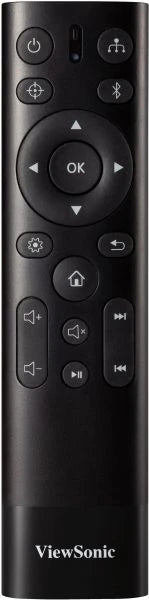

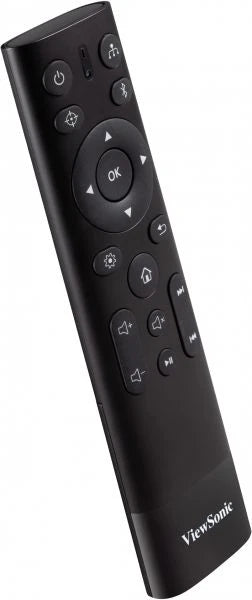

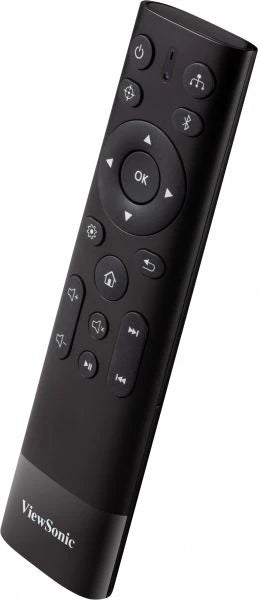

Smart Backlit Remote Control with Antibacterial Capability
Bother no more finding the right command button in the dark cinema. With a built-in G sensor, the smart remote control lights up automatically at your service upon the lift. The special silver ion coating carries antibacterial capability certified by TÜV, protecting your health while being entertained.
Designed with
Eye Care in Mind
The X2 has been certified by TÜV SÜD for a low blue light ratio which contributes to increasing eye protection. The projector utilizes reflective light which bounces off the wall or projector screen before hitting your eyes, allowing you to enjoy prolonged viewing periods with minimized eyestrain.

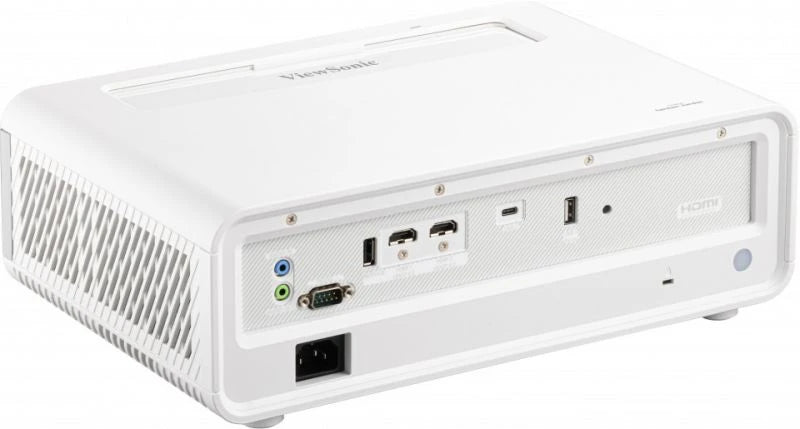

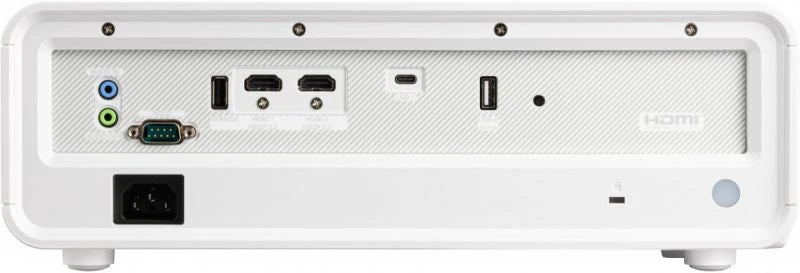

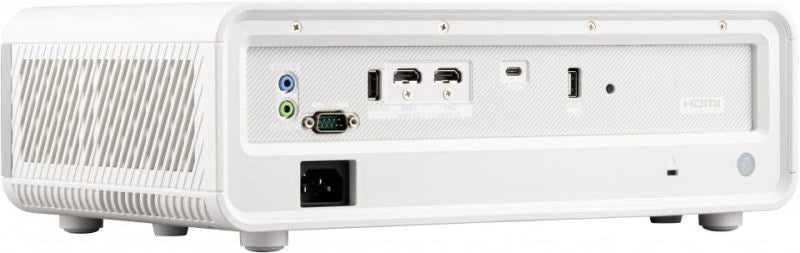

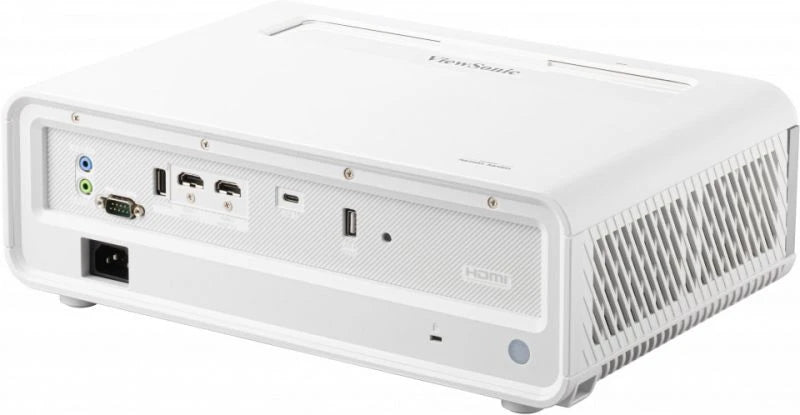

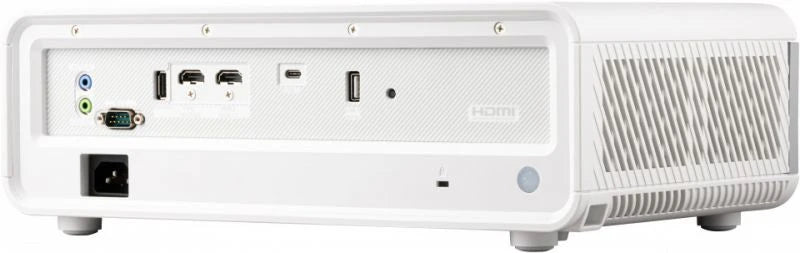

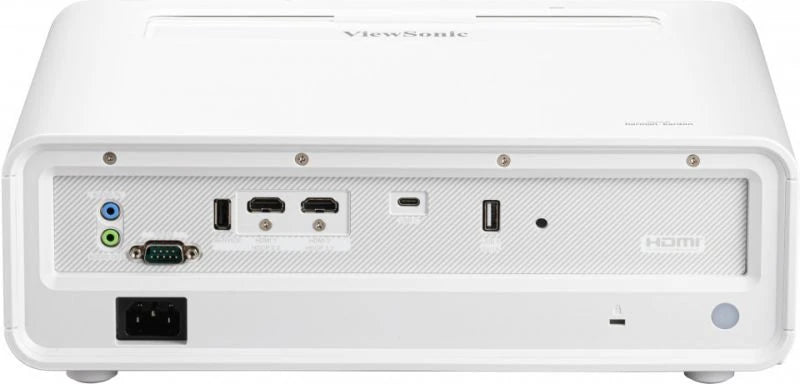

Dimensions & I/O Connectivity
| Specification | Details |
|---|---|
| Projection System | 0.65" 1080p |
| Native Resolution | 1920x1080 |
| Brightness | 3100 (LED Lumens) |
| Contrast Ratio | 3000000:1 |
| Display Color | 1.07 Billion Colors |
| Light Source Type | LED |
| Light Source Life (Normal Mode) | 30,000 hours |
| Lens | F=2.6-2.78, f=10.2-11.22mm |
| Projection Offset | 105%+/-5% |
| Throw Ratio | 0.69-0.83 |
| Optical Zoom | 1.2X |
| Digital Zoom | 0.8x-2.0x |
| Image Size | 60"-120" |
| Throw Distance | 0.92m-2.2m |
| Keystone | H:+/-40°, V:+/-40° |
| Audible Noise (Normal) | 31dB |
| Audible Noise (Eco) | 27dB |
| Local Storage | Total 16GB (11GB available storage) |
| Input Lag | 8.3ms |
| Resolution Support | VGA(640 x 480) to 4K(3840 x 2160) |
| HDTV Compatibility | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p |
| Horizontal Frequency | 15K-135KHz |
| Vertical Scan Rate | 23-120Hz |
| Input | |
| HDMI | 2 (HDMI 2.0, HDCP 1.4/2.2) |
| USB Type C | 1 (5V/1A) |
| Audio-in (3.5mm) | 1 |
| Audio-in (Bluetooth) | 1 (BT4.2) |
| USB Type A | 1 (USB2.0 Reader) |
| Wifi Input | 1 (5Gn) |
| Output | |
| Audio-out (3.5mm) | 1 |
| Audio-out (Bluetooth) | 1 (BT4.2) |
| Speaker | 6W Cube x2 (Full range x2) |
| USB Type A (Power) | 1 (USB2.0 - 5V/1A x1, share with USB A Input) |
| Control | |
| RS232 (DB 9-pin male) | 1 |
| USB Type A (Services) | 1 |
| Others | |
| Power Supply Voltage | 100-240V+/- 10%, 50/60Hz (AC in) |
| Power Consumption | Normal: 218W |
| Standby | <0.5W |
| Operating Temperature | 0~40℃ |
| Carton | Color |
| Net Weight | 3.6kg |
| Gross Weight | 5.5kg |
| Dimensions (WxDxH) with Adjustment Foot | 355x251x121mm |
| Packing Dimensions | 490x376x313mm |
| OSD Language | Total 24 languages (English, French, Spanish, and more) |
| User Guide Language | Total 20 languages (English, S-Chinese, T-Chinese, and more) |
| Standard Accessory | |
| Power Cord | 1 |
| USB-C Cable | 1 (1m) |
| Remote Control | 1 (with backlit) |
| QSG | Yes |
| Warranty Card | Yes (CN Only) |
| Optional Accessory | |
| Wall/Ceiling Mount | PJ-WMK-007 |
