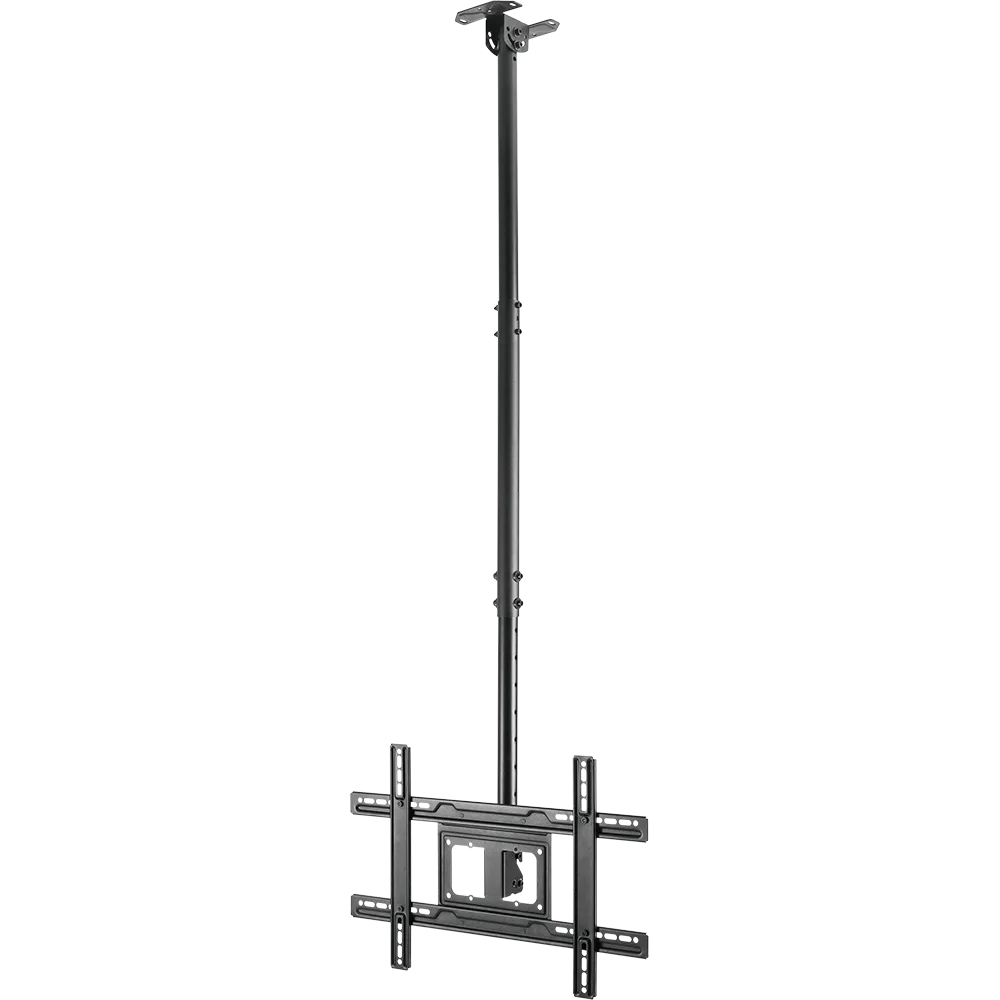

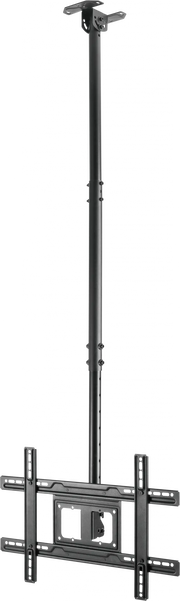

Vision 37" - 75" up to 1.5m Flat-Panel Ceiling Mount | VFM-C6X4/V2
Vision’s VFM-C (Vision Flat-Panel Mount - Ceiling) is functional and flexible. This mount fits any flat-panel display which has rear mounting holes up to 600 wide x 400 mm tall apart. This is a true one-size-fits-all ceiling mount.
VESA
This mount is designed for flat panels which have holes up to 600 wide x 400 mm apart – known as VESA 600x400.
MASSIVE range of drop
This distance from the ceiling to the centre of the display ranges from 707-1577 mm / 27.8-62.1".
Detachable VESA
Vision make the installation process as easy as possible. The universal VESA bracket attaches to the display on the ground, then the assembly hangs in place.
Cable Management
The 38 mm / 1.5" drop pole easily allows cables to drop down inside.
3-Part Pole
The pole can be assembled with either 2 or 3 sections which gives it an incredible range of telescopic adjustment. Installers can turn up to site and get the job done, no matter what they encounter onsite.
MASSIVE VESA range
Fits small monitors from 20" all the way up to 75". If a larger display has the correct mounting points and weighs less than the SWL this mount can support it safely.

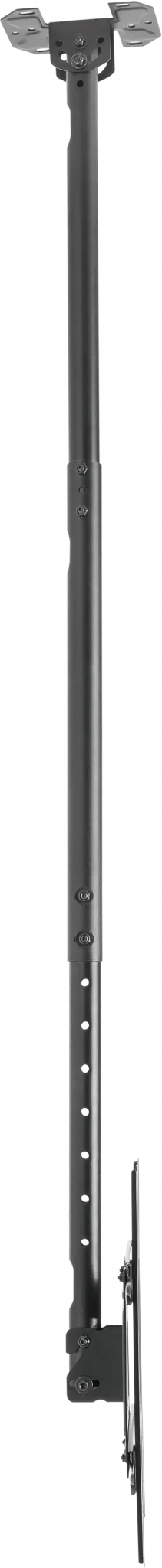

Tilt
The tilt adjustment allows the display to be directed at the audience to avoid glare and optimise the viewing angle. It can tilt 5 degrees up, or 25 degrees down.
Swivel with display in place
60 degrees of swivel range makes it really easy to install. Loosening the swivel adjustment bolts will not drop the display.
Retail Applications
Ideal for doctors waiting rooms, dentist's ceilings, or to deliver digital signage in any retail environment.
Cathedral Ceiling
The ceiling fixture tilts to accommodate sloping ceilings. It can tilt to 90 degrees to fix to the side of a ceiling joist.
| Feature | Specification |
|---|---|

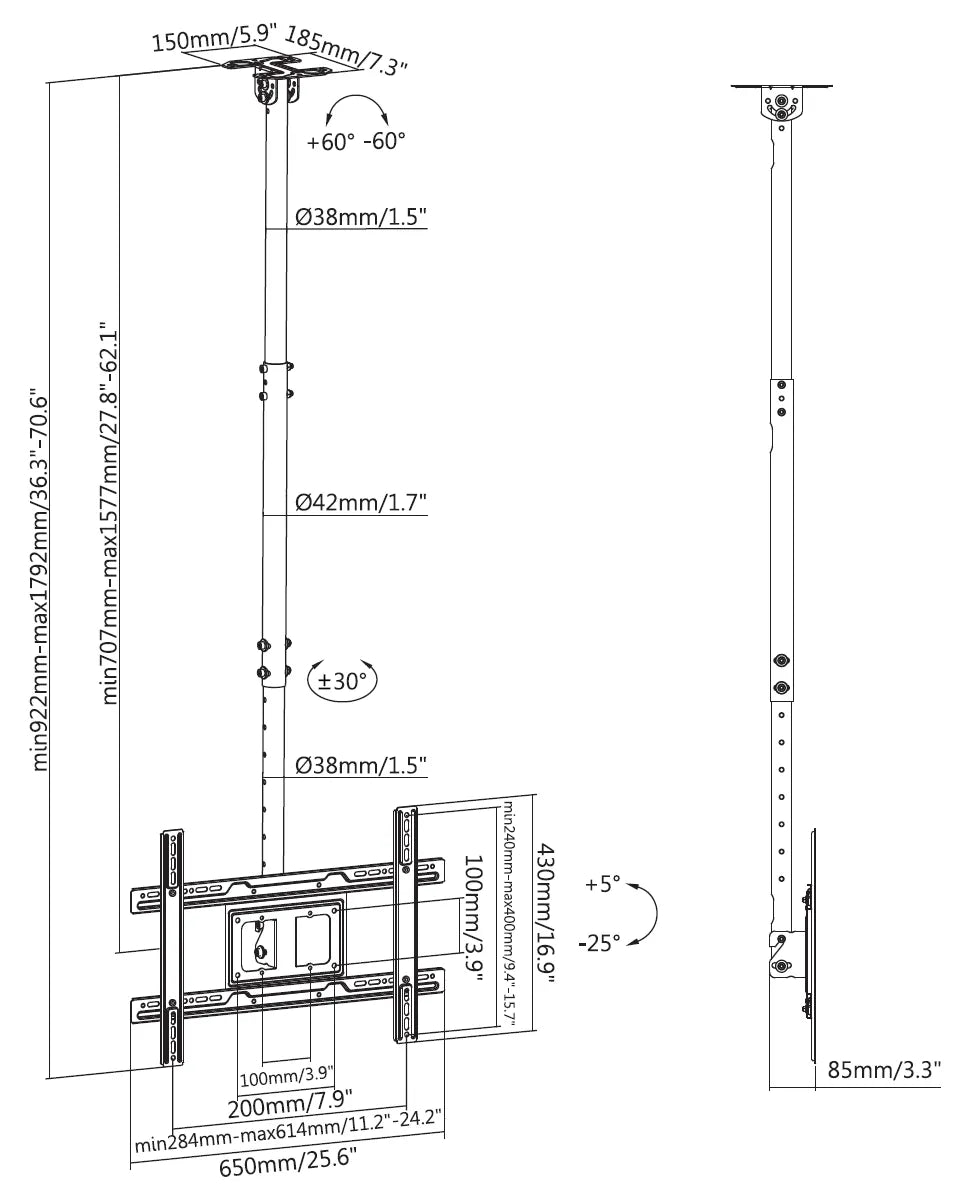

| Product Dimensions | 922-1792 x 650 x 185 mm |
| Ceiling to Display Centre | 707-1577 mm |
| Packaged Dimensions | 780 x 245 x 180 mm |
| Product Weight | 7.3 kg (16 lbs) |
| Packaged Weight | 9.1 kg (20.1 lbs) |
| Safe Working Load | 50 kg (110 lbs), tested to 3x SWL |
| Material | Steel |
| Colour | Powder coated Black |
| VESA Sizes | 600x400, 500x400, 400x400, 300x400, etc. |
| Included Accessories | Multiple screws (M4, M5, M6, M8) |
| Warranty | Lifetime return-to-base |
| Compliances | RoHS, REACH |
| Order Part Code | VFM-C6X4/V2 [SAP: 5370838] |
| Country of Origin | China |
| ISO Certification | ISO 9001:2015 |
| Description | Downloads |
|---|---|
| Vision 37" - 75" Flat-Panel Ceiling Mount | VFM-C6X4/V2 DataSheet | Downloads |
| Vision 37" - 75" Flat-Panel Ceiling Mount | VFM-C6X4/V2 User Manual | Downloads |
