Techconnect is Europe's most popular modular audio-visual faceplate engineered especially for AV installers. It is made up of a “surround” that fits to a backbox - we use a standard UK size, then the modules fix into the surround to complete the installation.

This package includes common modules professional AV installers need for most basic interactive projector or display installations. It is a simple package that contains a basic selection of modules as a starting point, plus input and output cables.

We know from decades of experience that most connectivity issues are caused by using domestic-quality as input patch cables. Using professional-grade Vision cables for input and output eliminates bandwidth bottlenecks.

1/ Introducing joins in an HDMI signal chain reduces signal strength. This faceplate module introduces two joins.
2/ Some laptops output a weaker signal than others, and some displays are more sensitive to weak incoming signal. For this reason there is no guarantee of 4K @ 60 Hz.

In testing we found a 3m input cable and 15m output cable supported 60 Hz with most sources and displays.

If you cannot achieve 60 Hz use the booster module (TC3 HDMI+) which has an active circuit. If that doesn't work the combination of display and source you have is particularly sensitive to weak signal, and you will have to use a brush module (TC3 BRUSH) with one continuous HDMI cable between the source and display.

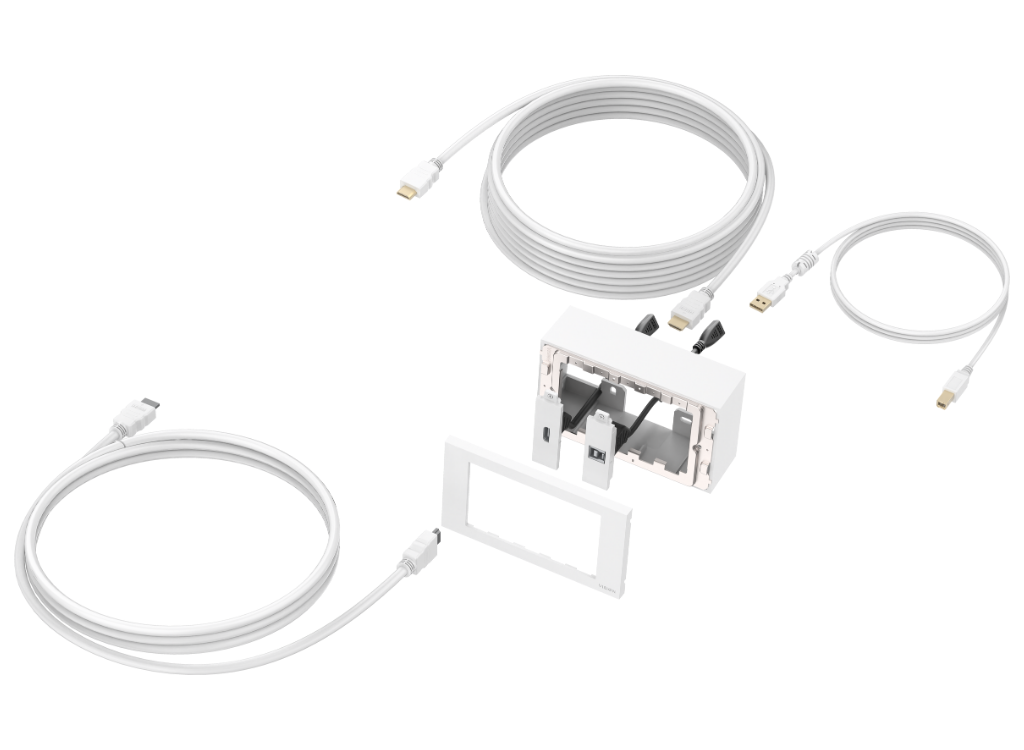

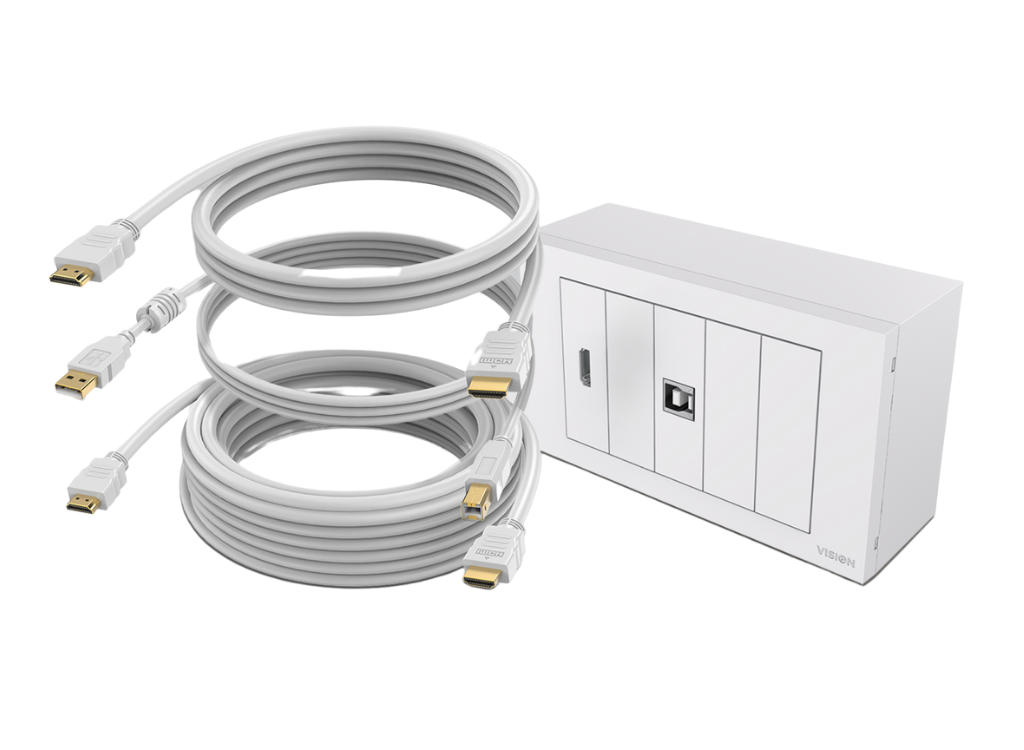

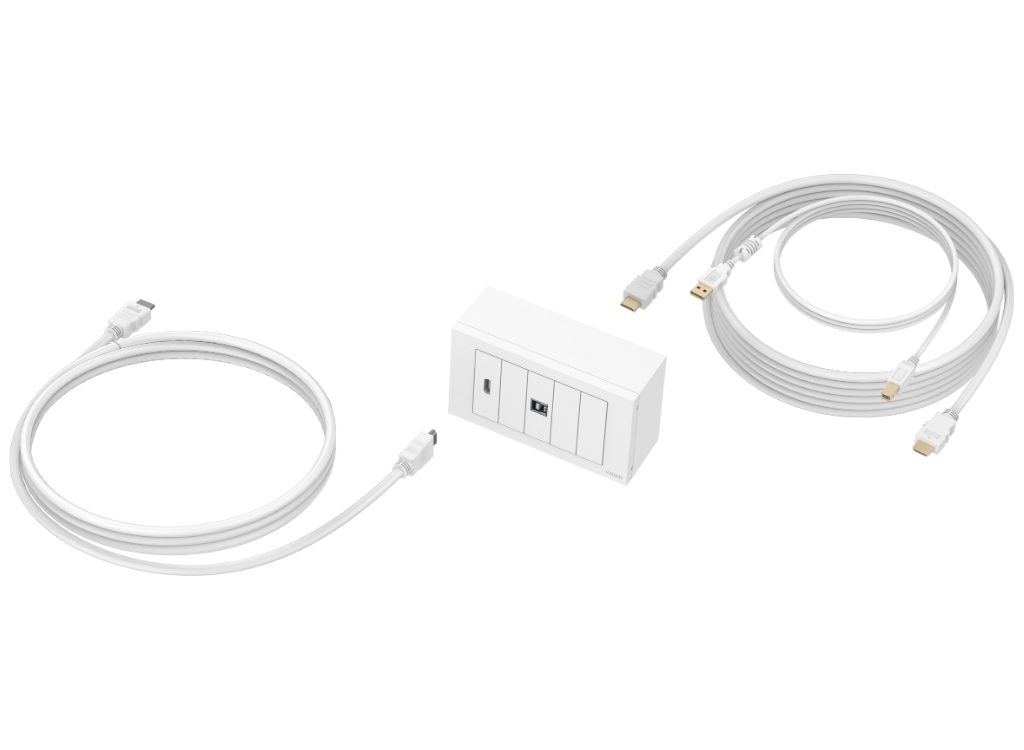

Modules Included
3 x BLANK modules
1 x HDMI with tail on rear
1 x USB USB 3.0 with tail on rear
"A" type socket on the rear (the rectangle shape) / "B" type socket on the front (the square shape)

Cables Included
Input Cable (from source to faceplate)
3 m HDMI
Note: interactive displays include a USB cable which can be used as the input patch cable, so we don't include one with this package. We do offer them as spares if you need them: TC2 3MUSB.

Output Cables: (from faceplate to display)
5 m HDMI
5 m USB

4K @ 60 Hz
For the best chance of success all HDMI parts in this system are individually rated at 8K @ 60 Hz, and collectively at 4K @ 60 Hz.

Easy assembly
Techconnect is easy to install and has more space behind the modules to stash cables.

Space for labelling
The surround is white with a chiselled profile, and it has 11 mm of space above and below the modules for information or company branding stickers.

Stronger
Techconnect has extra ribbing to reduce module flex and the plastic won't go brittle. We have designed them to last a lifetime.

Screw-In Modules
The modules have a tab that hooks into the surround at the bottom, then a couple of turns of the pre-installed screws locks the modules into place.

Future-proof
A family of modules work in the same surround, so if you ever need to change anything it is easy.

Optional DDA Sticker
Laser-cut thin vinyl stickers are available that stick to the front of the surround, making it Disability Discrimination Act (replaced by UK Equalities Act 2010) compliant. Part number: TC3 SURR2G_DDA.
