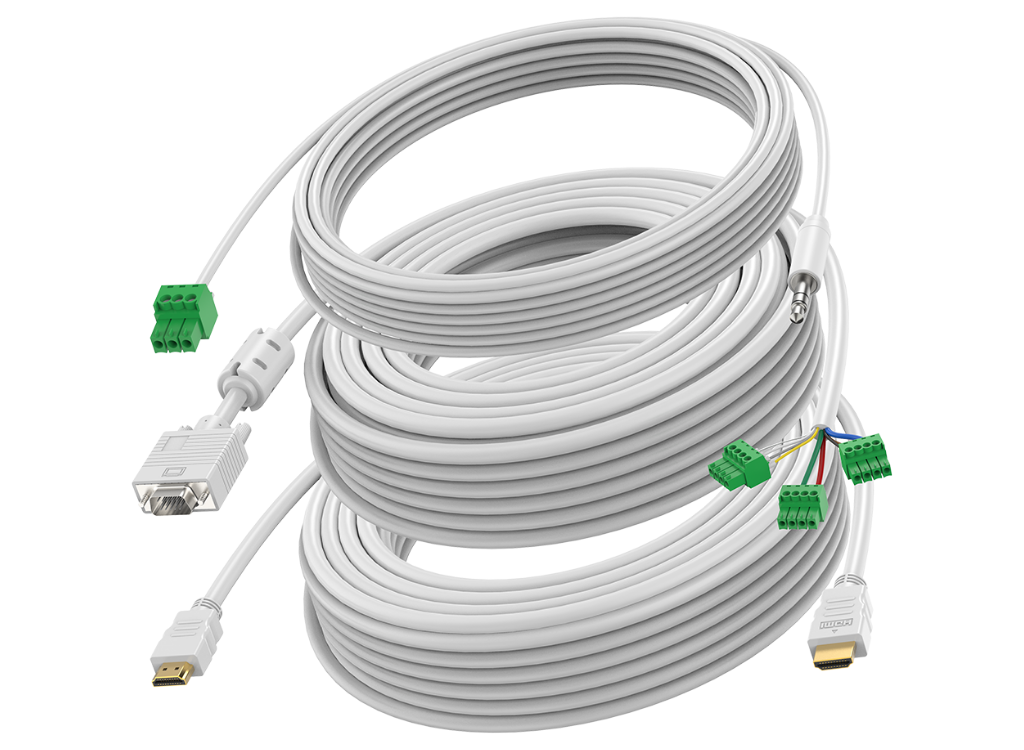

Vision 5m TC3 Cable Pack | TC3-PK5MCABLES
Techconnect is a modular audio-visual faceplate family engineered especially for AV installers.
A “surround” fits to a backbox (or “mudring” if your wall is hollow), then the modules fix in place to complete the installation. Techconnect is based around standard UK backbox sizes, and Vision also offers mounting hardware for other countries.
For 99% of professional AV installations the same set of modules are required, so Vision offer a simple package that contains a basic selection of modules as a starting point. Just select the length of the cable package you need to go with it.
| Feature | Description |
|---|---|
| Country of Origin | China |
| TC3 Cable Pack 3m | Carton: 200 x 200 x 90 mm Weight: 1.0 kg Compliances: RoHS, WEEE, CE/EMC, FCC Order Code: TC3-PK3MCABLES [SAP: 3245686] |
| White HDMI Cable 3m | HDMI v2.0 (4K @ 60Hz), 18 Gbit/s Bandwidth: 340 MHz AWG 28, Ø 7.3 mm Gold-plated connectors, ARC, Double Shielded Dimensions: 160 x 115 x 40 mm Weight: 0.20 kg Order Code: TC2 3MHDMI [SAP: 3000666] |
| TC3 Cable Pack 5m | Carton: 200 x 200 x 90 mm Weight: 1.35 kg Compliances: RoHS, WEEE, CE/EMC, FCC Order Code: TC3-PK5MCABLES [SAP: 3245687] |
| VGA to Phoenix 5m | Sheath: PVC Ø 8.0 mm Conductor: AWG 28 Braid Shielding: >65% Impedance: 75Ω Ferrite core, Nickel-plated connectors Dimensions: 180 x 180 x 70 mm Order Code: TC2 5MVGA [SAP: 2042118] |
| TC3 Cable Pack 10m | Carton: 220 x 220 x 120 mm Weight: 2.2 kg Compliances: RoHS, WEEE, CE/EMC, FCC Order Code: TC3-PK10MCABLES [SAP: 3246135] |
| VGA to Phoenix 10m | Sheath: PVC Ø 8.0 mm Conductor: AWG 28 Braid Shielding: >65% Impedance: 75Ω Ferrite core, Nickel-plated connectors Dimensions: 200 x 200 x 90 mm Order Code: TC2 10MVGA [SAP: 1461166] |
| Minijack to Phoenix 10m | High-grade white installation cable Order Code: TC2 10M3.5MM [SAP: 1461164] |
| White HDMI Cable 10m | HDMI v2.0 (4K @ 60Hz), 18 Gbit/s Bandwidth: 340 MHz AWG 26, Ø 8.0 mm Gold-plated connectors, ARC, Double Shielded Dimensions: 200 x 200 x 90 mm Weight: 0.89 kg Order Code: TC2 10MHDMI [SAP: 2746864] |
| ISO Certification | ISO 9001:2015 |
| Description | Download |
|---|---|
| Datasheet | Download |
