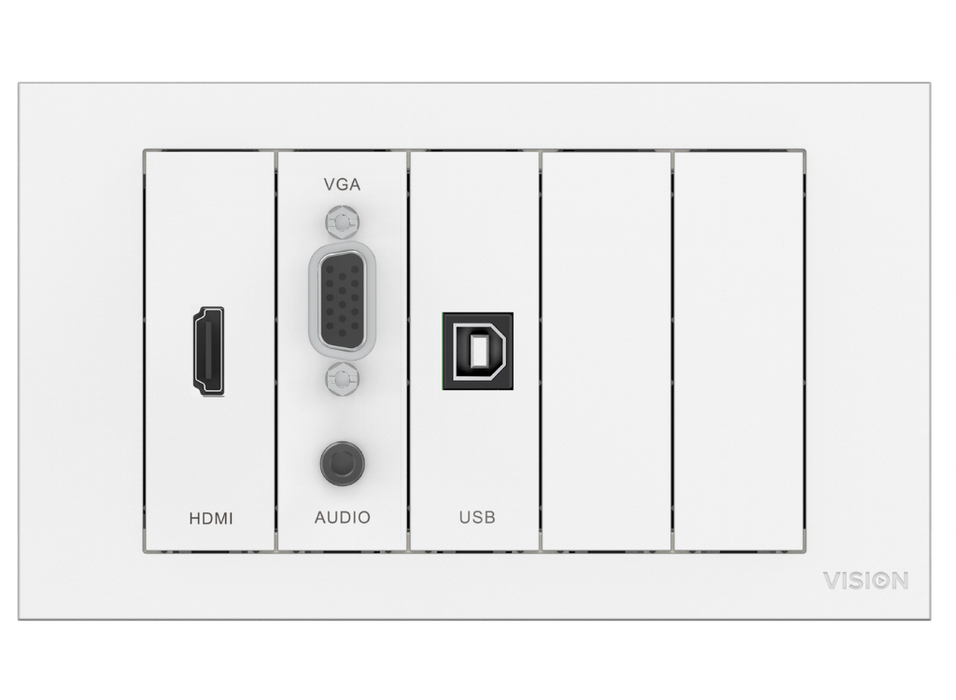

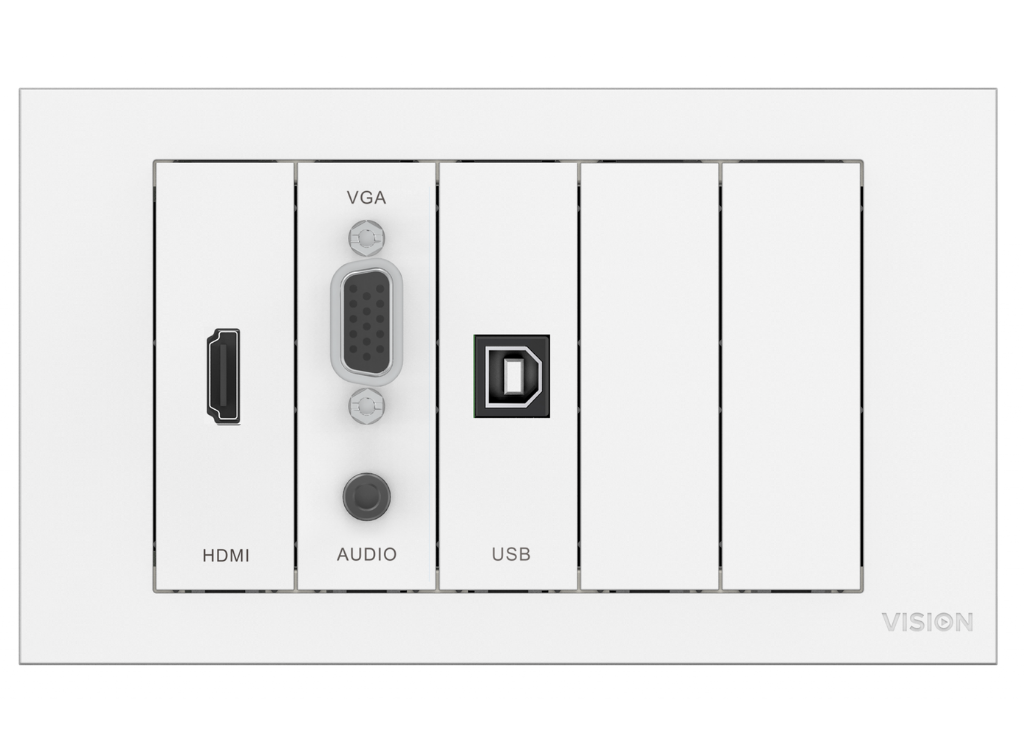

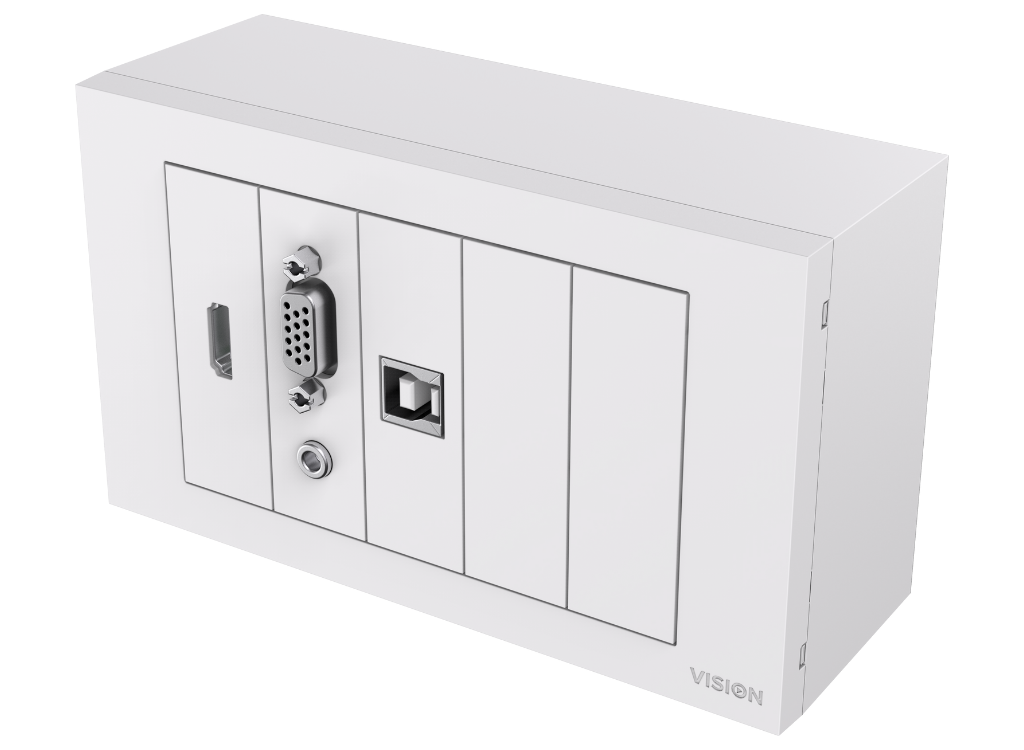

Vision TC3-PK Wall-Mount Faceplate Package
Techconnect is a modular audio-visual faceplate family engineered especially for AV installers.

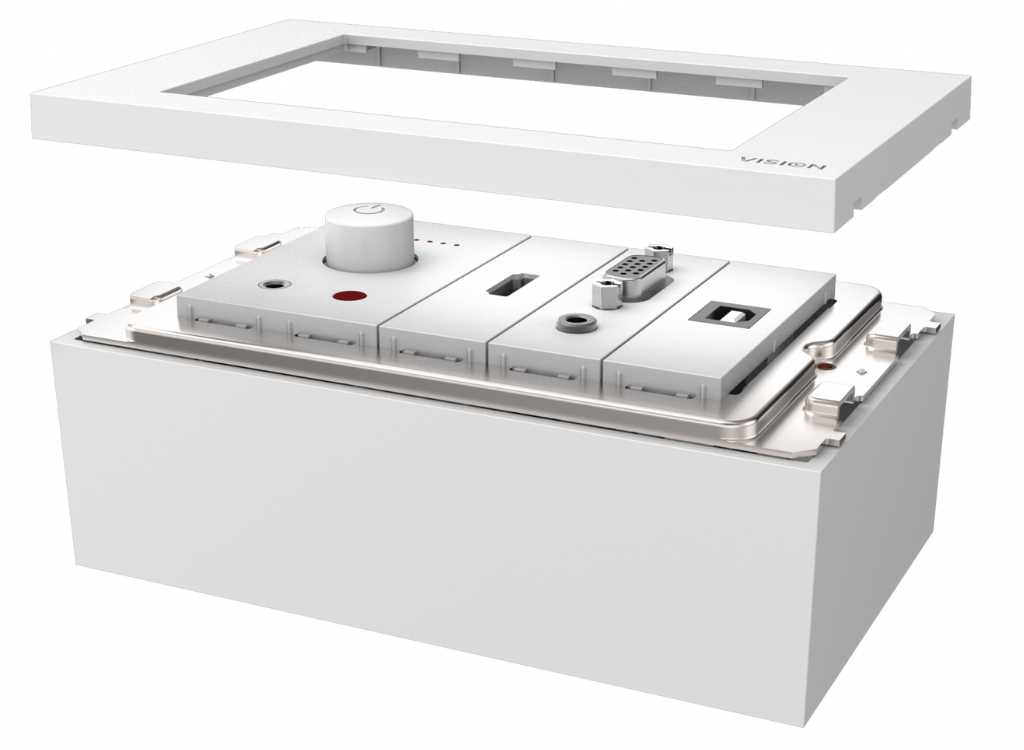

A “surround” fits to a backbox (or “mudring” if your wall is hollow), then the modules fix in place to complete the installation. Techconnect is based around standard UK backbox sizes, and Vision also offers mounting hardware for other countries.
For 99% of professional AV installations the same set of modules are required, so Vision offer a simple package that contains a basic selection of modules as a starting point. Just select the length of the cable package you need to go with it.
Select Length
Choose from these complementary cable packages:
3m (9 ft)
5m (16 ft)
10m (33 ft)
15m (49 ft)
Improved Fit and Finish

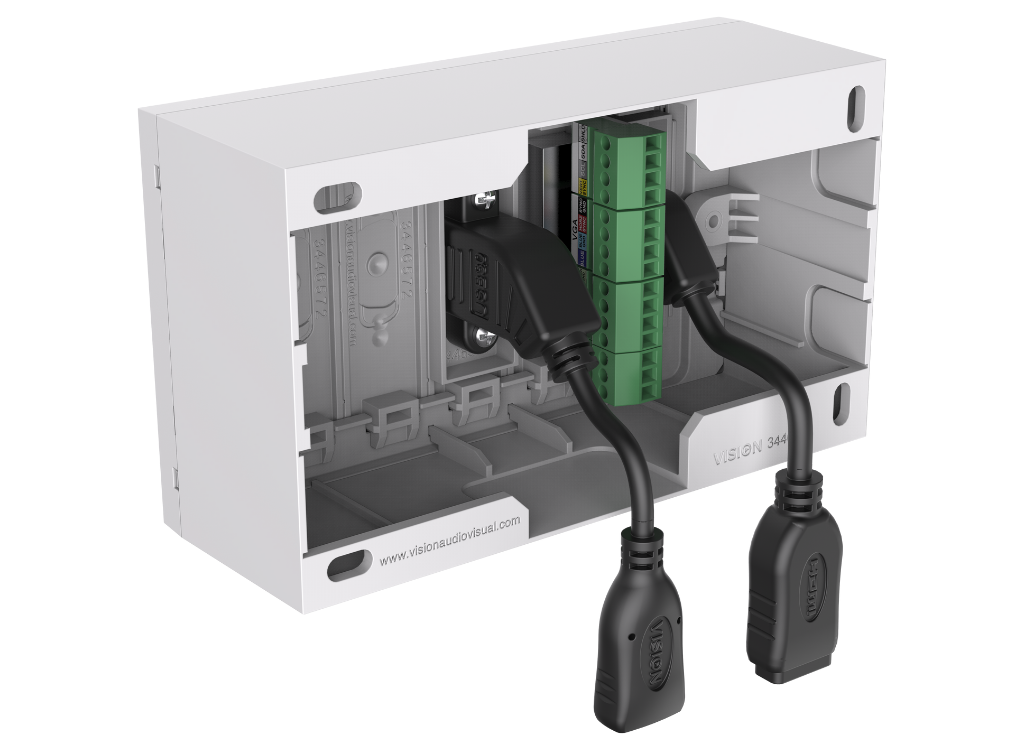

Techconnect3 has more space behind the modules stash cables, and narrower and more even gaps between modules.
Matt White
Pure white with a chiselled profile, Techconnect3 also has 11 mm of flat space above and below the connectors for information or company branding stickers.
Stronger
Techconnect3 has shorter modules and extra ribbing to reduce module flex. On parts where flex is desirable to avoid shattering ABS plastic is used.
Screw-In Modules

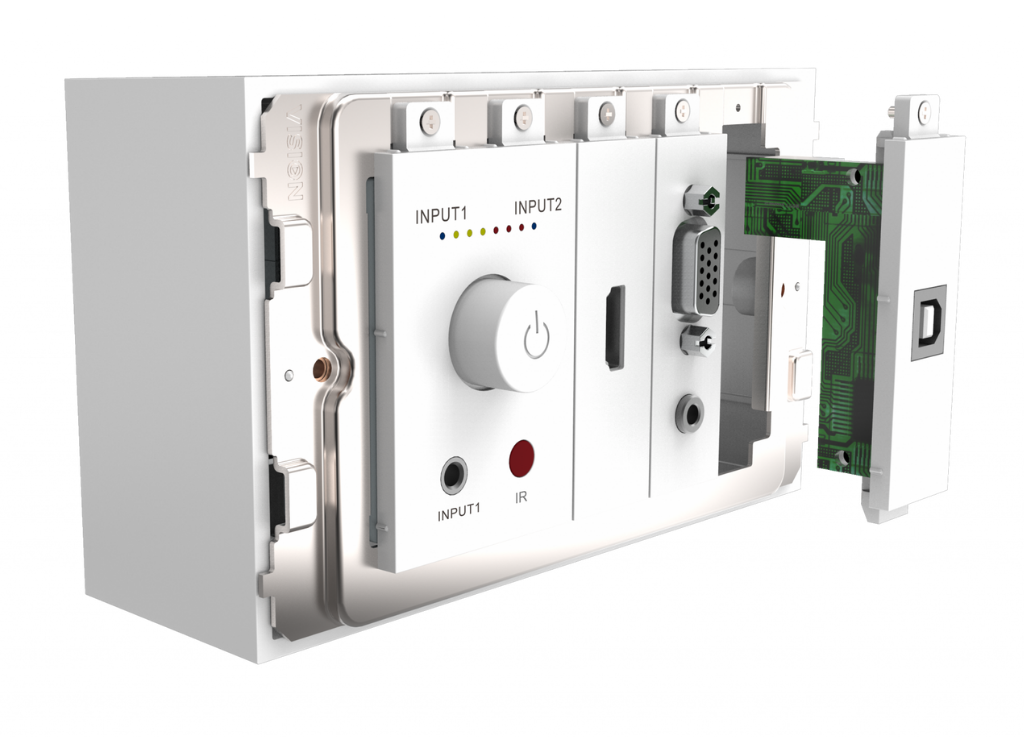

The modules have a tab that hooks into the surround at the bottom, then a couple of turns of the pre-installed screws locks the modules into place.
Passive and Active Modules
Vision offer pass-through modules for AV, IT, and pro-audio applications, and active modules which boost signals. You can even install a powerful audio amplifier module or a universal controller module right next to the connectivity modules. The faceplate is close at hand and securely fastened in place.
No Soldering
Faceplates that require soldering take time build onsite, and – even for experts – create a possible point of failure in the system. Techconnect de-risks an installation.
Optional DDA Sticker
Laser-cut thin vinyl stickers are available that stick to the front of the surround, making it Disability Discrimination Act (replaced by UK Equalities Act 2010) compliant. Part number: TC3 SURR2G_DDA.
| Feature | Description |
|---|---|
| Carton Dimensions | 160 x 95 x 60 mm (6.3" x 3.74" x 2.36") |
| Packaged Weight | 0.3 kg / 0.66 lb |
| Material – Backbox | ABS |
| Material – Surround & Modules | PC |
| Module Compliances | RoHS, WEEE, CE |
| Order Part Code | TC3-PK [SAP: 3446594] |
| Country of Origin | China |
| ISO Certification | ISO 9001:2015 |
| Description | Download |
|---|---|
| Datasheet | Download |
