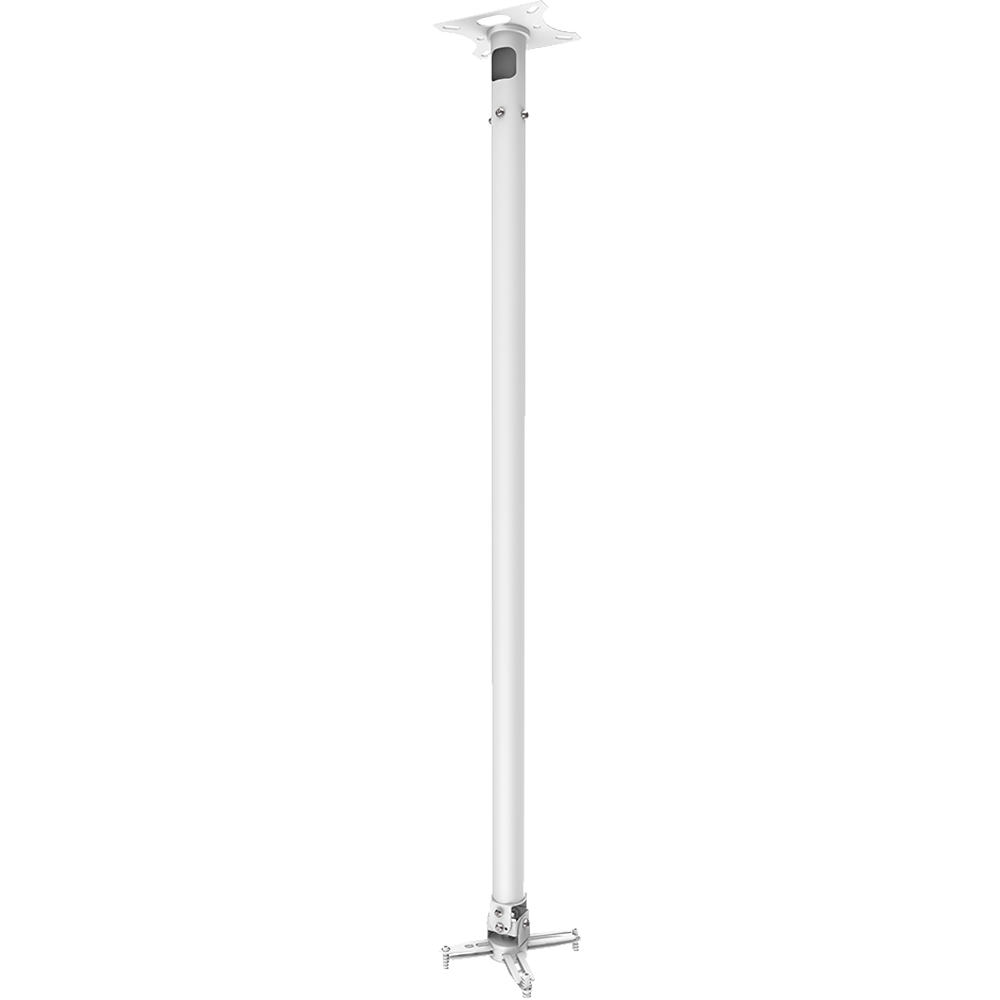

The Techmount is a universal projector ceiling bracket designed to secure 99% of data projectors safety and sturdily to ceilings. It has built in flexibility allowing quick assembly in a number of different configurations, including “flush-mount” where the projector is as close to the ceiling as possible.

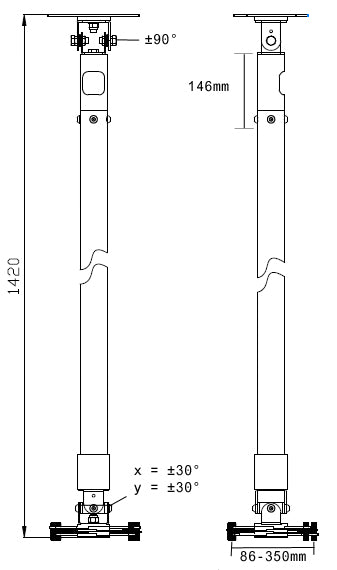

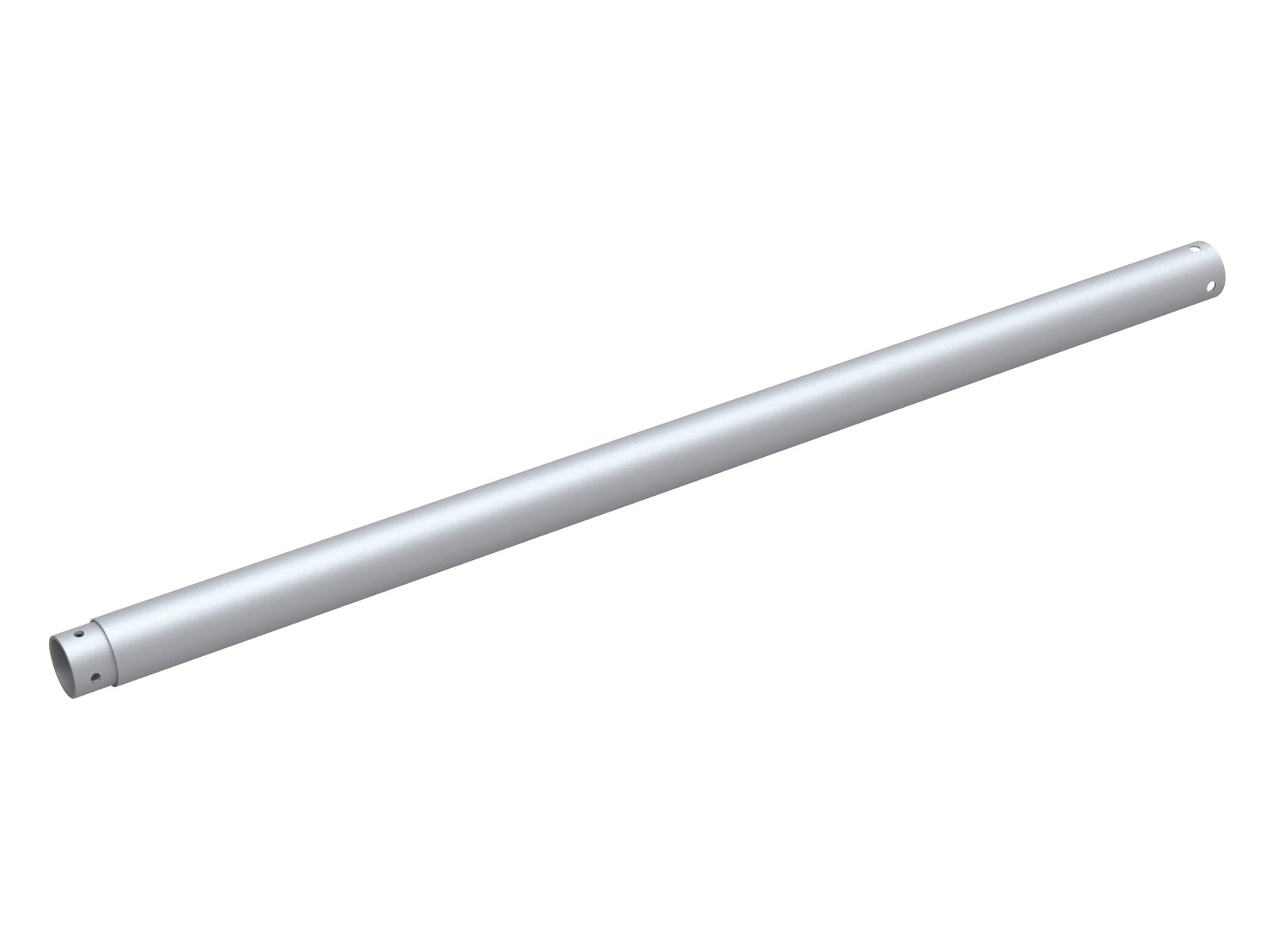

The fixed pole has greater rigidity than telescopic mounts and because it is cut it to length onsite it has an infinitely variable length. The overall length when the tilting mechanism is in place is 1420mm. A 1m male-to-female extension pole is available which can be daisy-chained. Order Code: TM-1200 EXT1M [SAP: 1562436]
Sloping Ceilings?

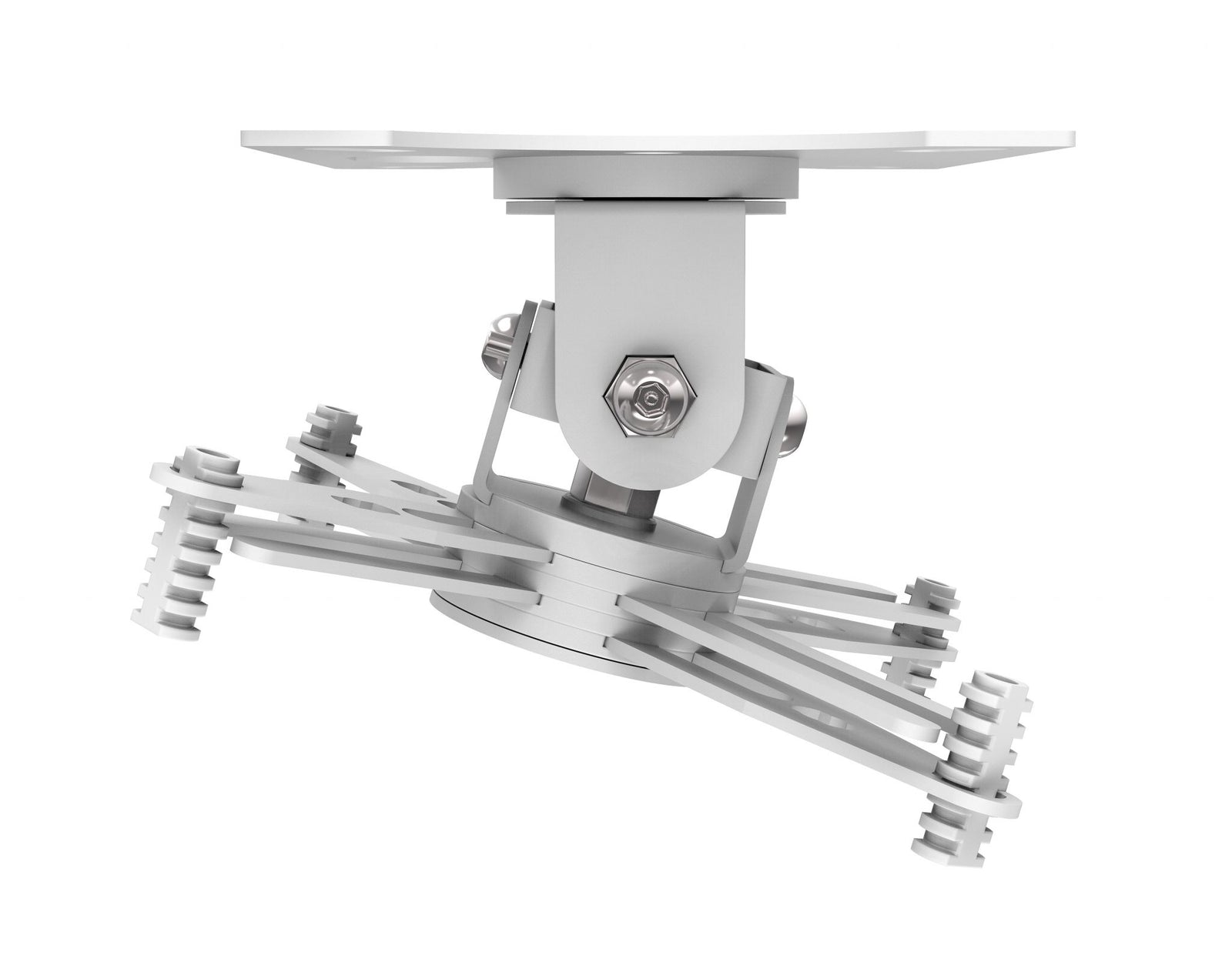

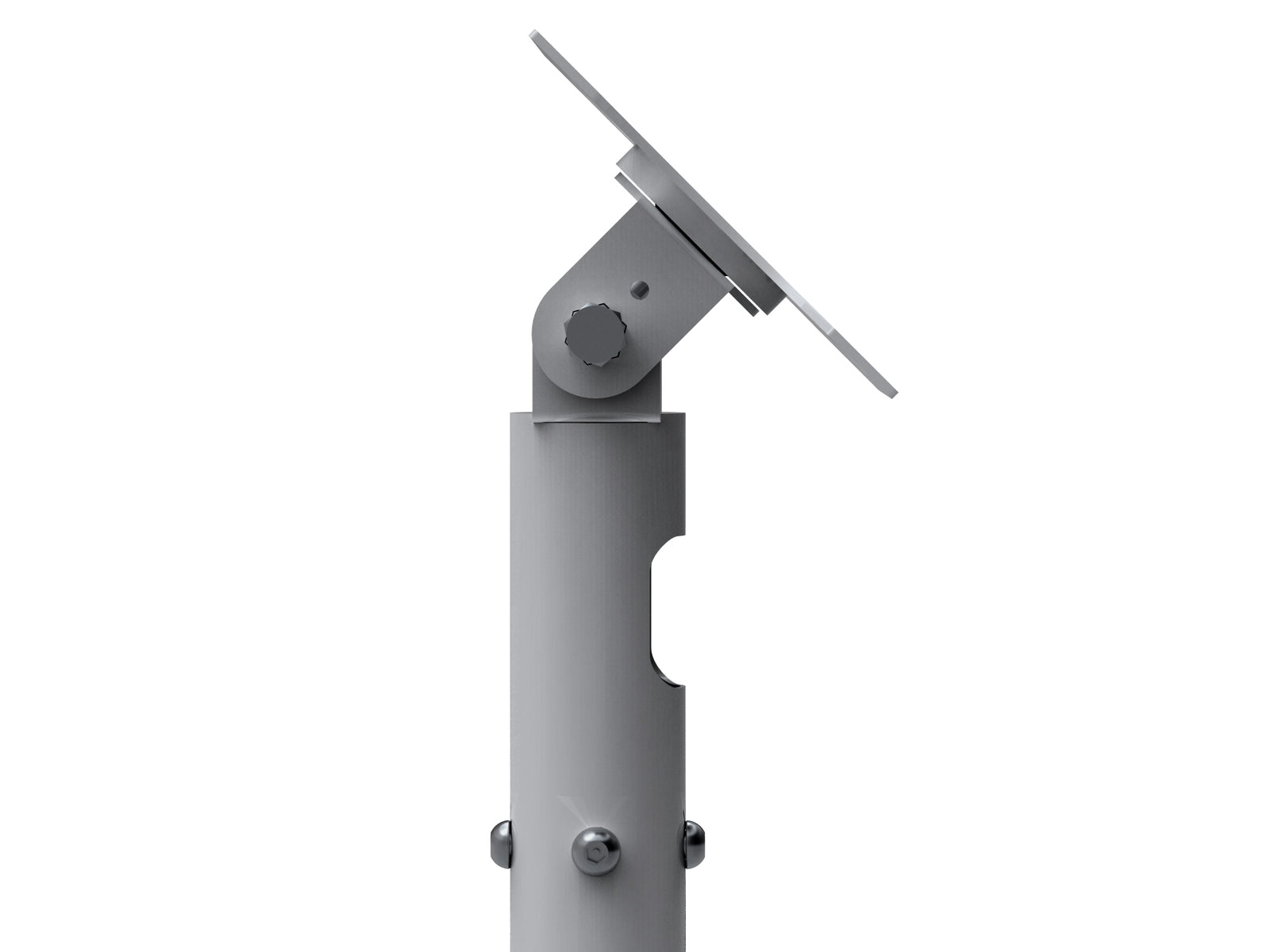

A tilting mechanism is included which tilts to a full 90 degrees, allowing you to use the bracket as a boom if need be.
Safety Approved
In line with best-practise a safety fall-arrest tether is included which secures the projector to your bracket. Independent testing on calibrated test equipment measured a breaking-strain of half a ton! We recommend a maximum safe working load of 10kg which is well within the limits of the product and up to BSi installation standard specification (PAS122:2009).
Easy fit

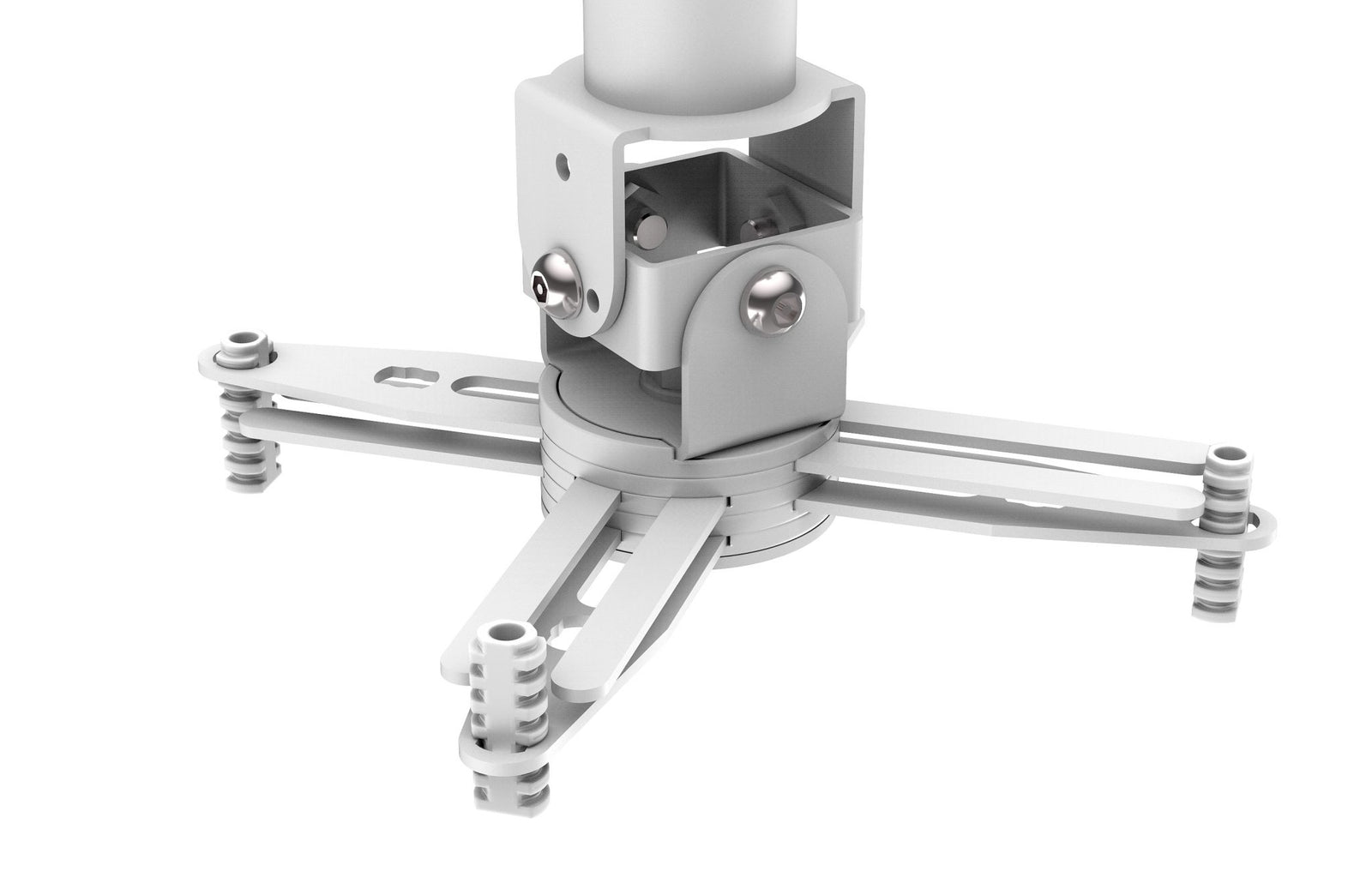

Fitting the bracket to the projector is simple; most projectors have threaded inserts in the bottom for attachment. Not all use the same diameter screws we provide a selection to suit almost all projectors. Simply adjust the arms on our bracket over the attachment holes, and insert a screw into the projector.
Obstruction-free Cable Management
Rather than having a bolt that runs through the pipe and blocks cable access, we use our unique quad-bolt ‘chute-through’ system which leaves cable access clear – even for a big VGA connector.
Tools Included

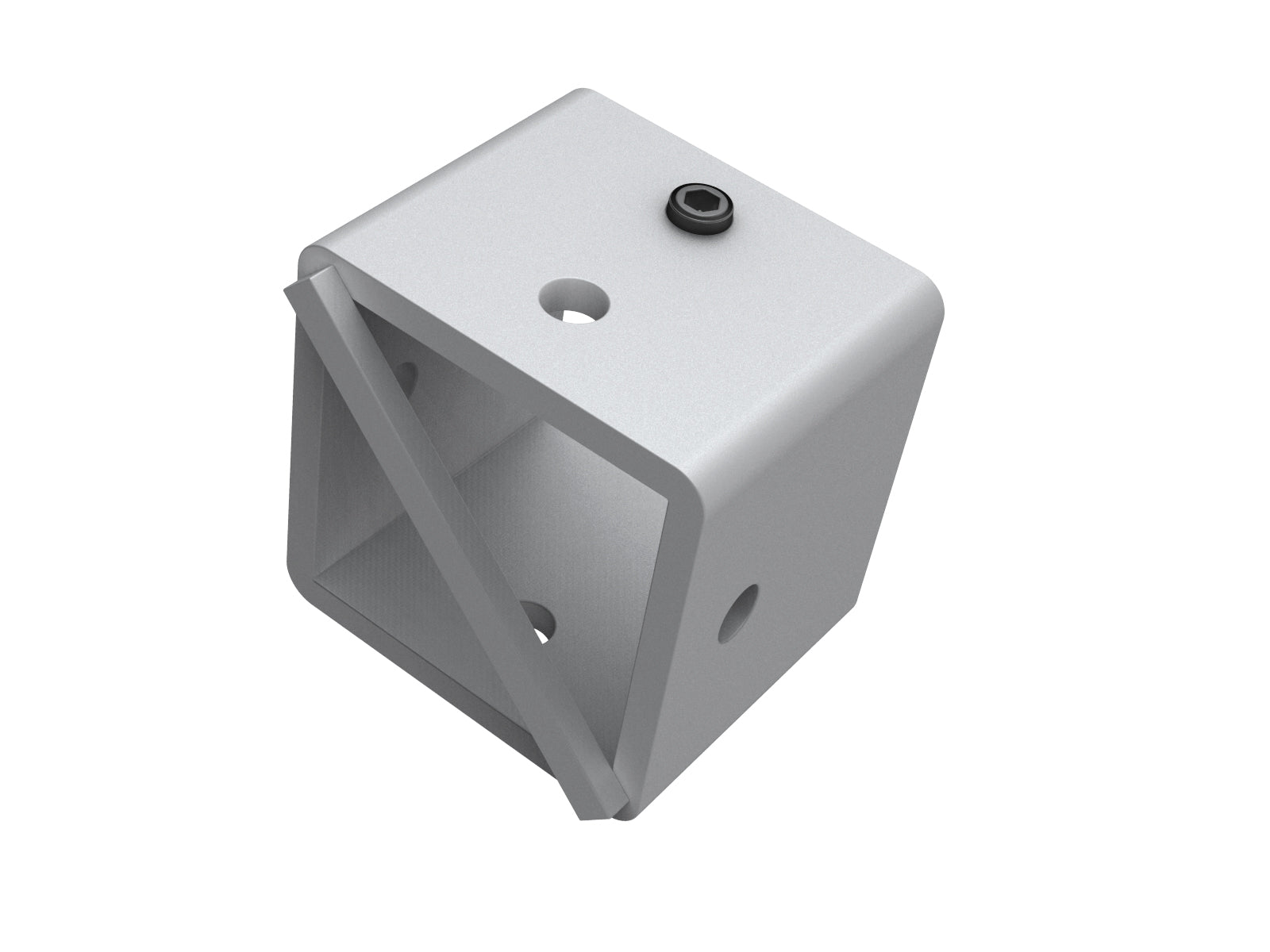

A spanner and pin-hex key are included. The only tool you’ll need is a 2″ pipe cutter (ask your tool supplier for a cutter with a 6-67mm (0.24″ – 2.64″) range, and a metal cutting disk). We’ve also included a drilling jig so you can easily and accurately drill 9mm (0.35″) holes into the pole.
Secure
Quick-release mechanisms make life easier for thieves, so the TM-1200 is secure and features security bolts.
Finish the job properly!

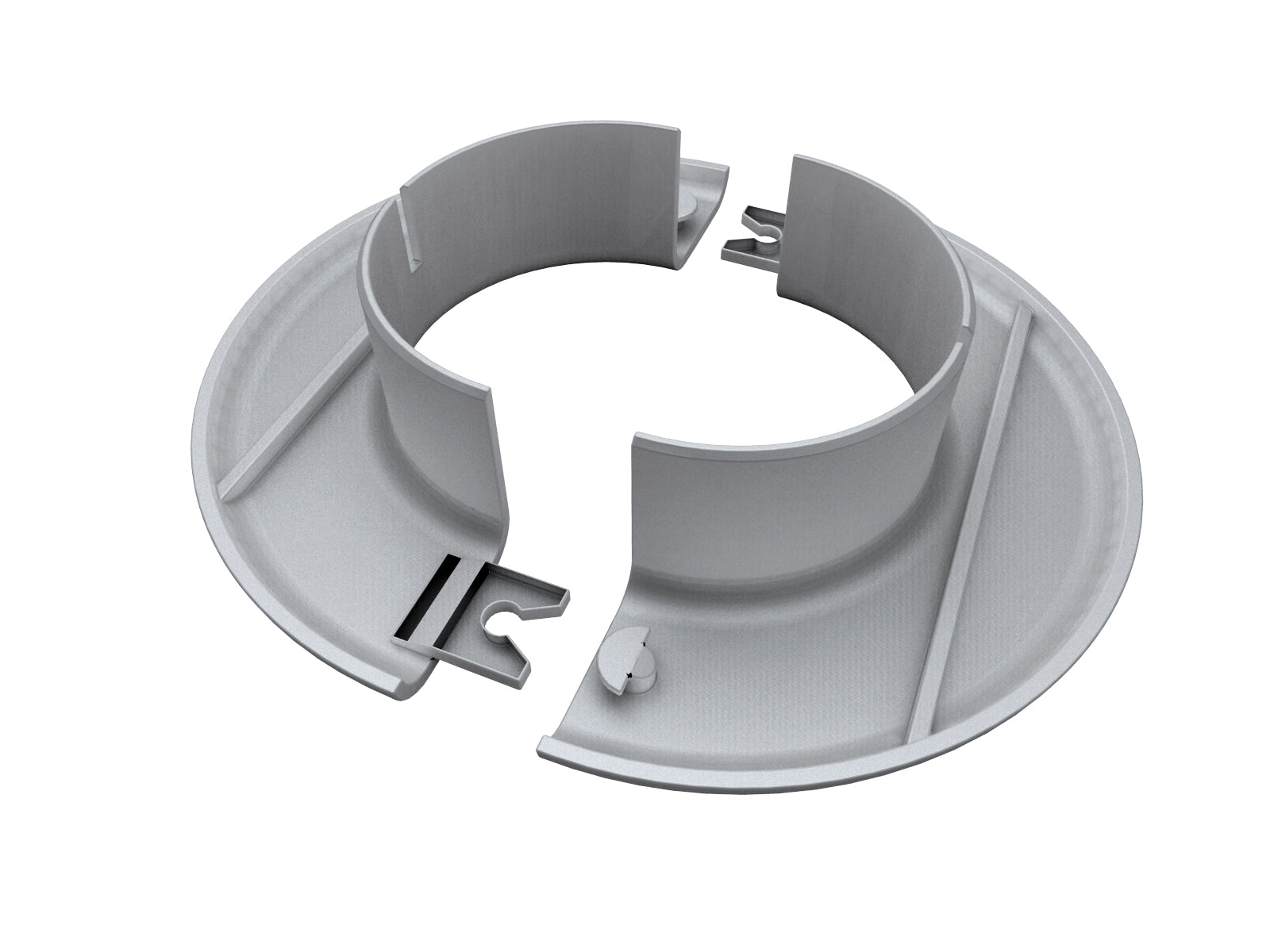

Enhance aesthetics with the retrofittable trim disk which is fitted in false-ceiling environments to properly finish the installation.
| Category | Details |
|---|---|
| Box Dimensions | 1300 x 160 x 90mm / 51.18″ x 6.3″ x 3.54″ |
| Packaged Weight | 5.5 kg (12.13 lbs) |
| Safe Working Load | 10kg / 22.05 lbs |
| Colour | Satin White |
| Accessories Included | 1 x H50 Pin-Hex key, 1 x H50 power drill hex bit, 1 x 17mm Spanner, 4 x M3 40mm screws, 4 x M4 40mm screws, 4 x M5 40mm screws, 4 x M6 40mm screws, 4 x M2.5 40mm pan slot for Optoma and Acer, 1 x Drilling Jig, 1 x Safety Tether, 1 x Ceiling Trim Disc |
| Warranty | Lifetime return-to-base |
| Compliances | RoHS, TUV-GS Certification |
| Optional 1M Extension Pole | TM-1200 EXT1M [EU SAP:1562436 / US SAP: 12939543] |
| Order Part Code | TM-1200 [SAP: 1562435] |
| Country of Origin | China |
| Description | Downloads |
|---|---|
| Manual | Downloads |
