Enter your screen SKU and we will instantly check whether this mount is suitable for your display based on VESA pattern compatibility.

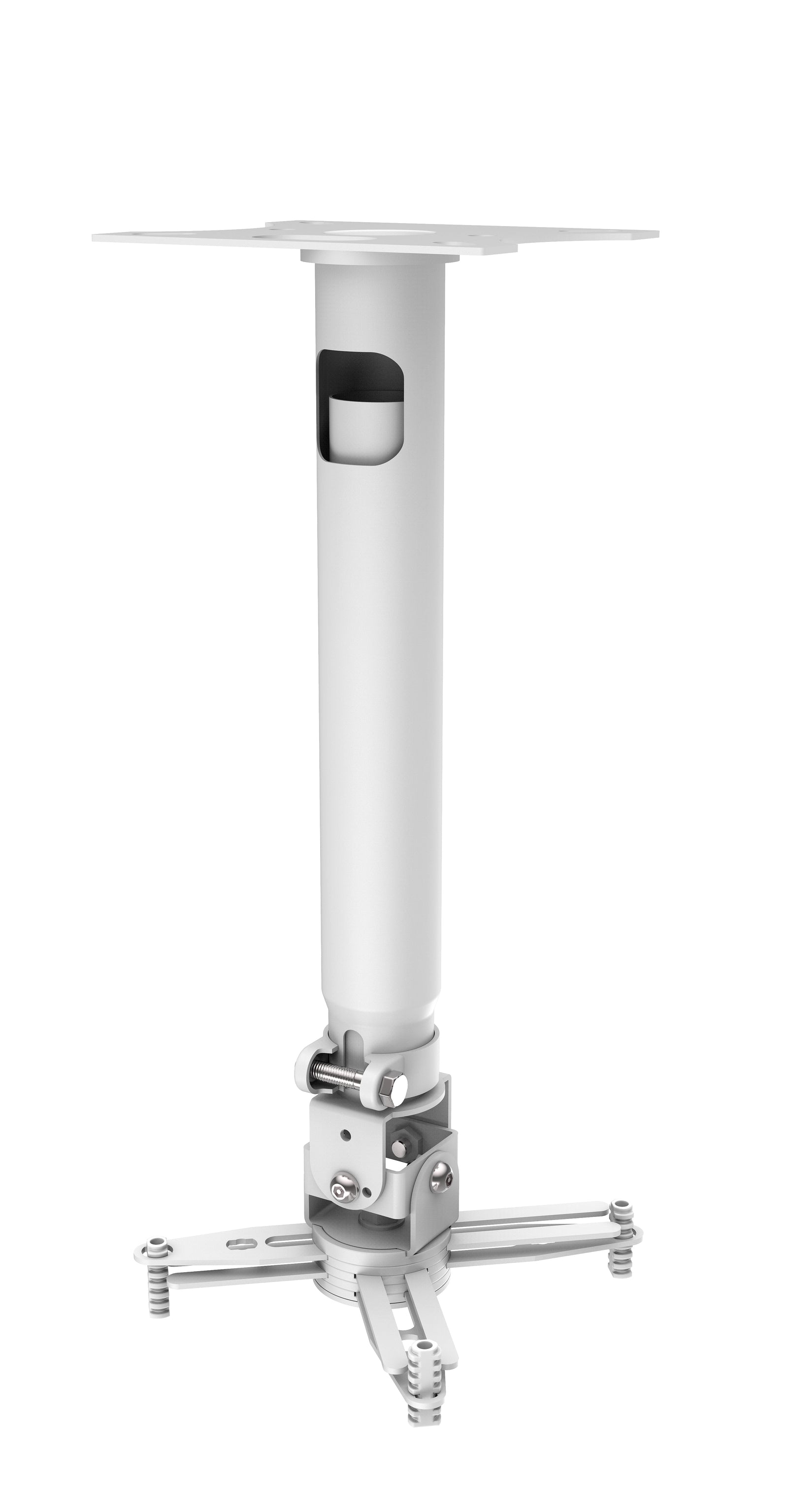

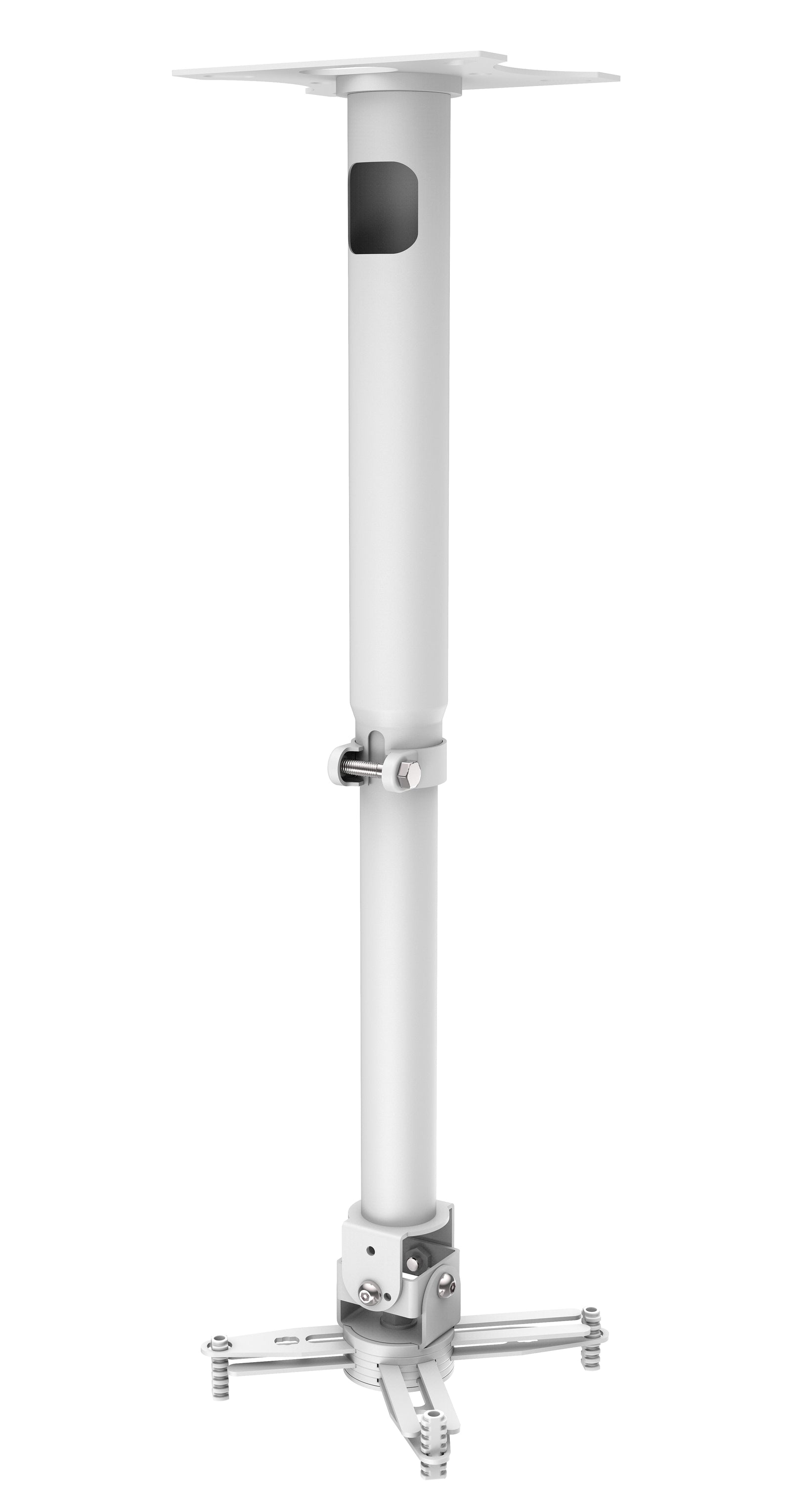

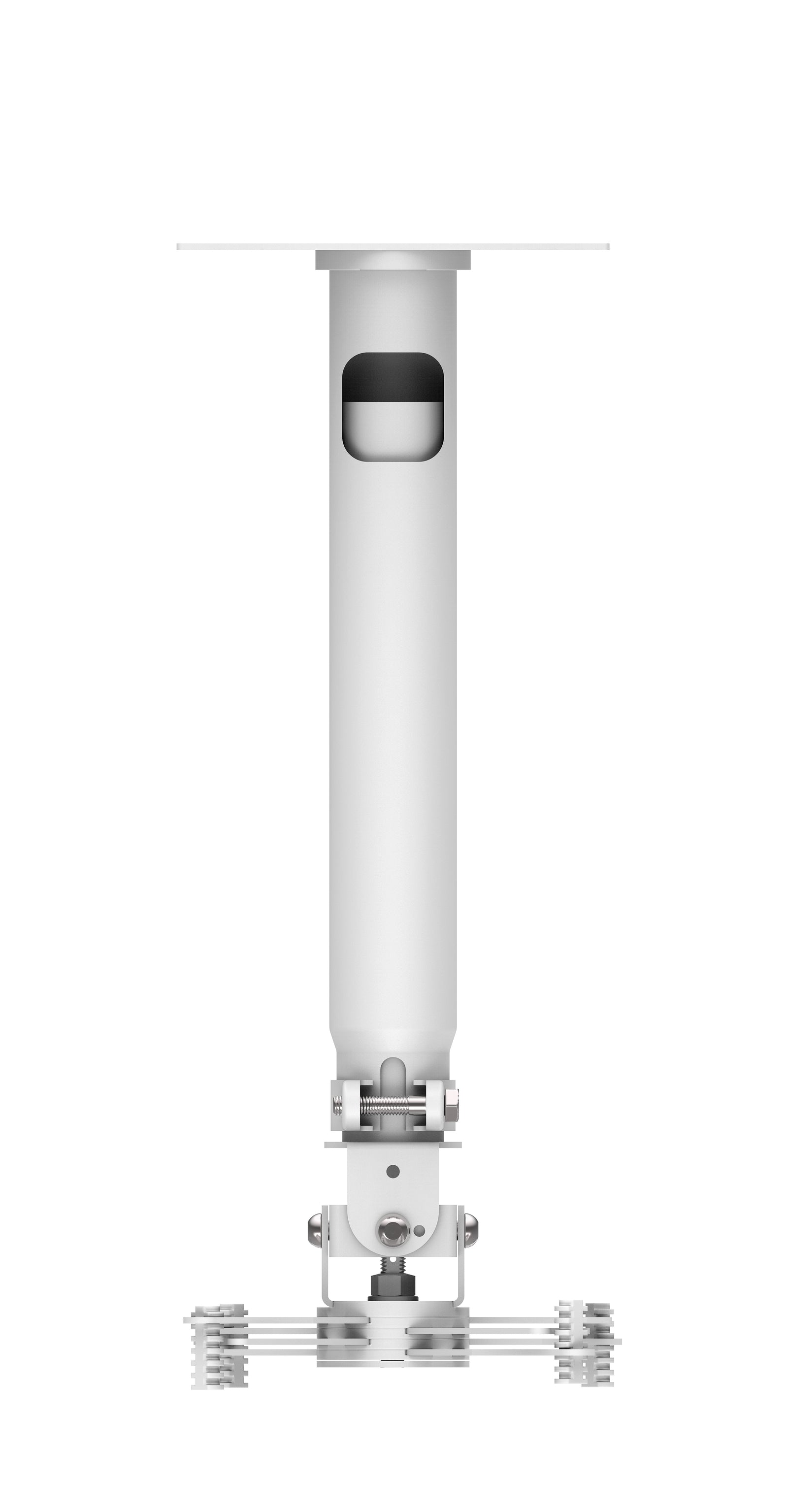

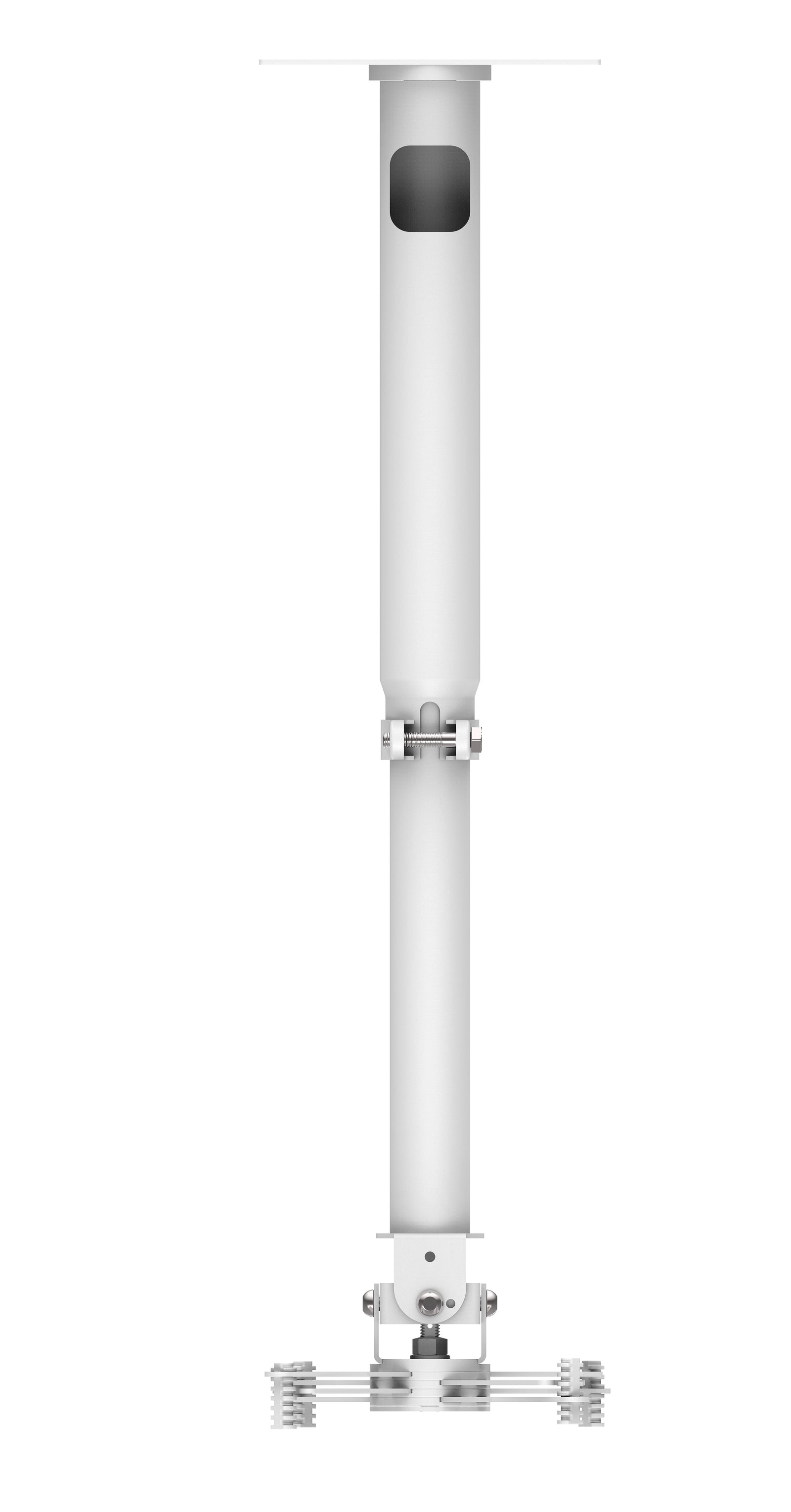

The TM-TELE Techmount is a projector ceiling bracket for anchoring any data projector safely to a ceiling. The telescopic design allows fast deployment and adjustment without the need cut and drill the pole. It has a greater range than most other telescopic mounts and the pole can be removed for “flush-mounting” the projector as close to the ceiling as possible. Note: unlike the TM-1200 the length of this bracket cannot be extended.
Webcam Adaptor Included
This mount now includes a universal webcam bracket for mounting a USB camera safely to a ceiling. Just replace the spider assembly at the bottom with the adaptor included. It has a standard tripod mount screw that fits any webcam, including Logitech Brio, MeetUp, Rally, or any Huddly cameras.
One-Man Installation
Thoughtful design detail include a length adjustment clamp system which requires only one hand.
Sloping Ceilings
A tilting mechanism is included which tilts to a full 90 degrees, allowing you to use the bracket as a boom if need be.
Safety Approved
A back-up fall-arrest tether is included which secures the projector to your bracket, and the pole has a mechanical stop so that the two parts of the pole cannot be separated. Vision recommends a maximum safe working load of 10kg which is well within the limits of the product and meets the BSi installation standard specification (PAS122:2009).
Easy fit
Projectors have threaded inserts in the bottom for attachment – but not all use the same diameter screws so Vision includes a selection to suit most projectors. Simply locate the “spider” arms on our bracket over the attachment holes, and insert a screw into the projector.
Cable Management
Vision’s clever system leaves cable access clear – even for big VGA connectors.
Tools Included
A spanner and pin-hex key are included. Vision also includes a hex-key bit for a power drill to speed up installation.
Secure
Quick-release mechanisms make life easier for thieves, so the TM-TELE is secure and features security bolts.
Flush-Mount Option
The pole can be removed for “flush-mounting” the camera as close to the ceiling as possible.
Telescopic

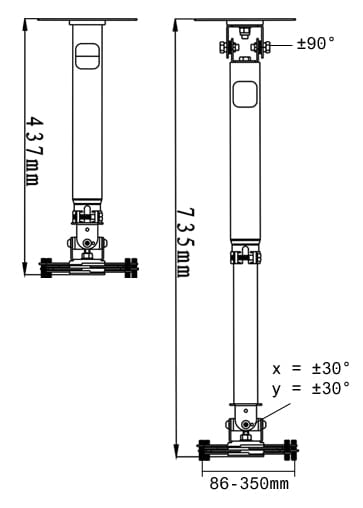

The overall length is between 440-735 mm (17.3″ – 28.9″). Note: the length of this bracket cannot be extended.
Ceiling Trim Disc
For applications where the pole drops down through a hole in a false ceiling, a plastic trim disc is included to tidy the hole.
| Category | Details |
|---|---|
| Box Dimensions | 395 x 155 x 85 mm / 15.6″ x 6.1″ x 3.3″ |
| Packaged Weight | 3 kg / 6.6 lbs |
| Product Weight | 2.7 kg / 6.0 lb |
| Safe Working Load | 10 kg / 22.05 lbs |
| Colour | Satin White |
| Accessories Included | 1 x H50 Pin-Hex key, 1 x H50 power drill hex bit, 1 x 17mm Spanner, 4 x M3 40mm screws, 4 x M4 40mm screws, 4 x M5 40mm screws, 4 x M6 40mm screws, 4 x M2.5 40mm pan slot screws, 1 x Safety Tether, 1 x Ceiling Trim Disc, 1 x Webcam adaptor |
| Warranty | Lifetime return-to-base |
| Compliances | RoHS |
| Order Part Code | TM-TELE [SAP: 2418655] |
| Country of Origin | China |
| Description | Downloads |
|---|---|
| Manual | Downloads |
