Enter your screen SKU and we will instantly check whether this mount is suitable for your display based on VESA pattern compatibility.

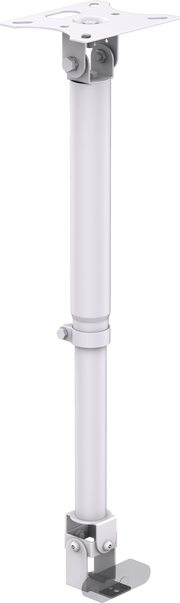

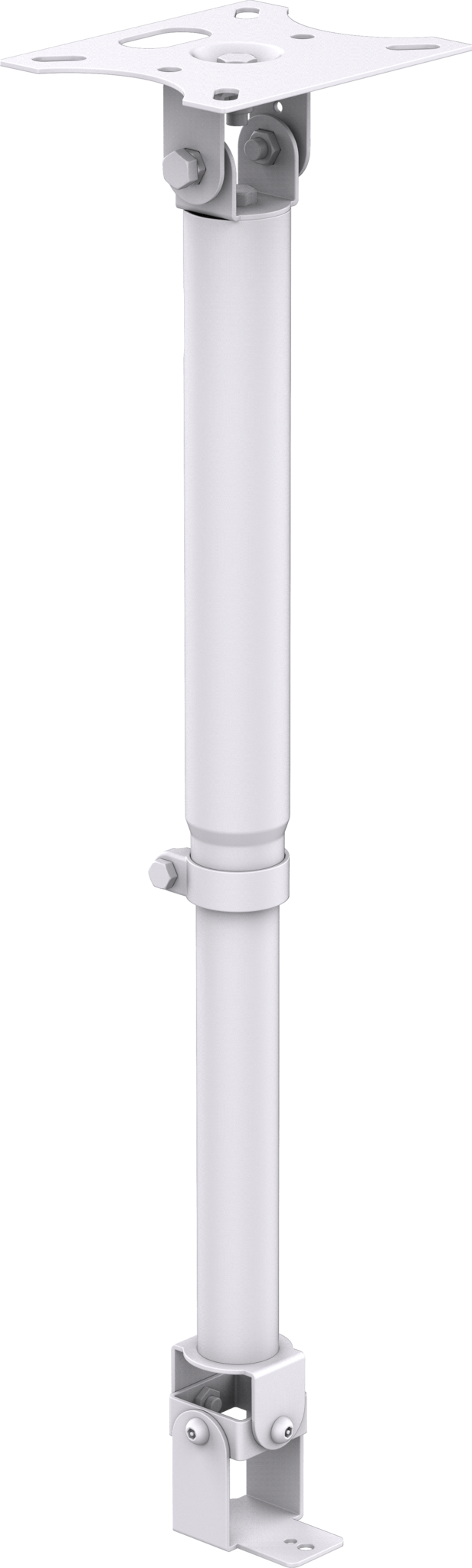

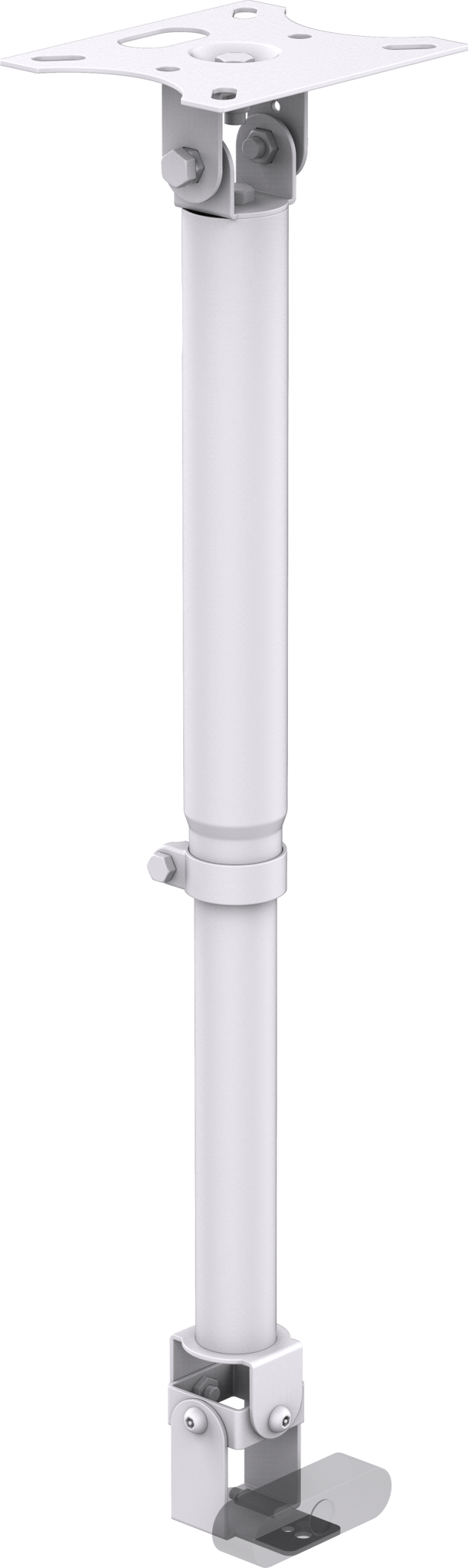

The TM-WEBCAM is a universal webcam ceiling bracket for mounting a USB camera safely to a ceiling. The telescopic design allows fast deployment and adjustment. It has a greater range than most other telescopic mounts.
There is a growing demand to mount USB cameras in the ceiling for meeting applications. For example Microsoft Whiteboard uses a ceiling-mounted camera to digitize writing on a physical whiteboard for collaboration.
One-Person Installation
An example of thoughtful design is the length adjustment clamp system which requires only one hand.
Flush-Mount Option
The pole can be removed for “flush-mounting” the camera as close to the ceiling as possible.
Sloping Ceilings
A top tilting mechanism is included which tilts to a full 90 degrees, allowing it to fix to the side of a ceiling joist. Or you can use the bracket as a boom fixed to a wall if need be.
Wall Boom Applications
The bracket can alternatively be fixed horizontally to a wall to be used as a boom.
Telescopic

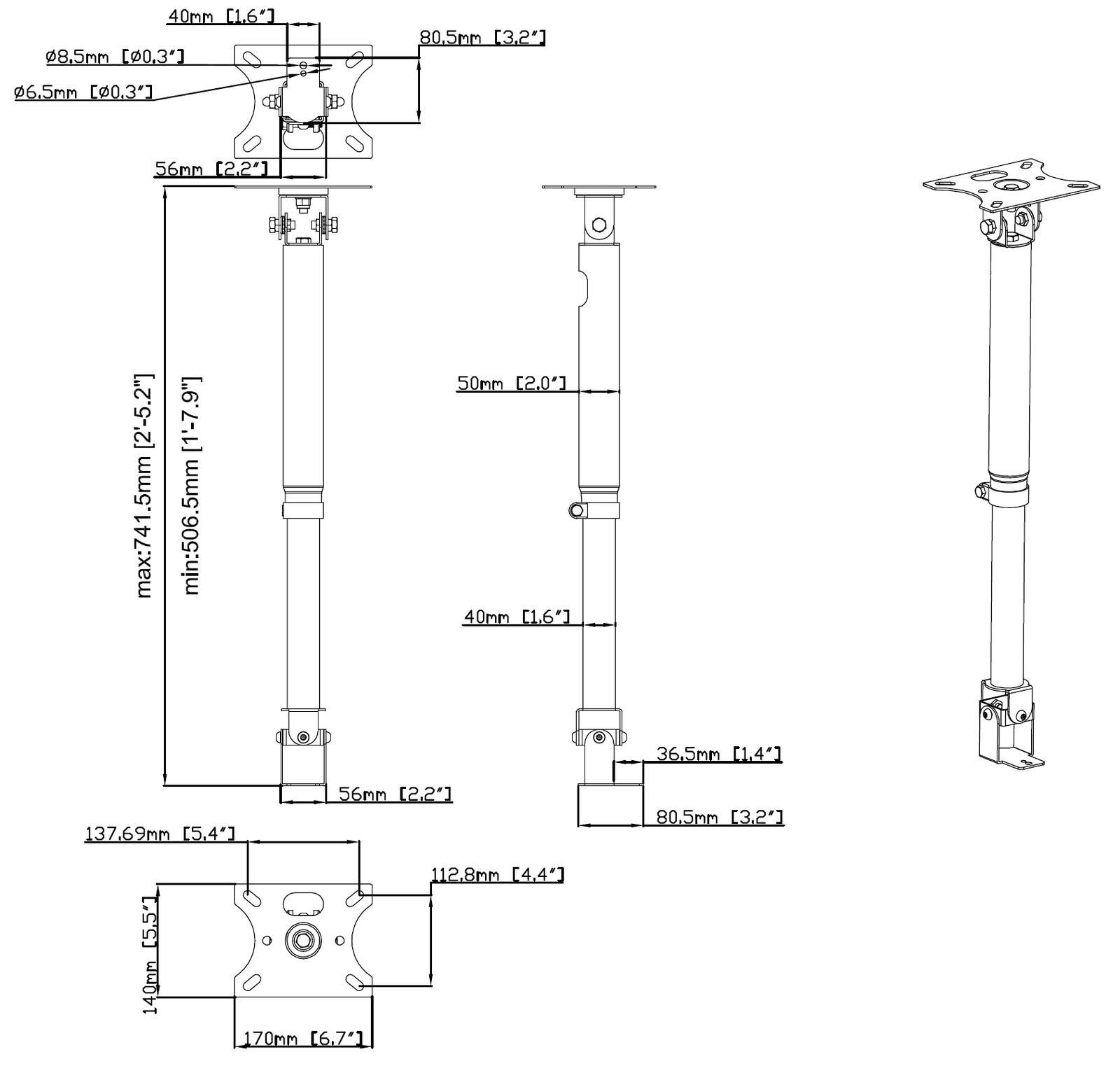

The overall length is between 440-735 mm (17.3″ – 28.9″). Note: the length of this bracket cannot be extended.
Easy fit
The webcam fixes using the standard tripod screw which is included.
Cable Management
Just drop the cables down through the pole to terminate to the camera for a professional look. Cables are out of sight.
Tools Included
A spanner and pin-hex key are included. Vision also includes a hex-key bit for a power drill to speed up installation.
Secure
Quick-release mechanisms make life easier for thieves, so the TM-WEBCAM is secure and features security bolts.

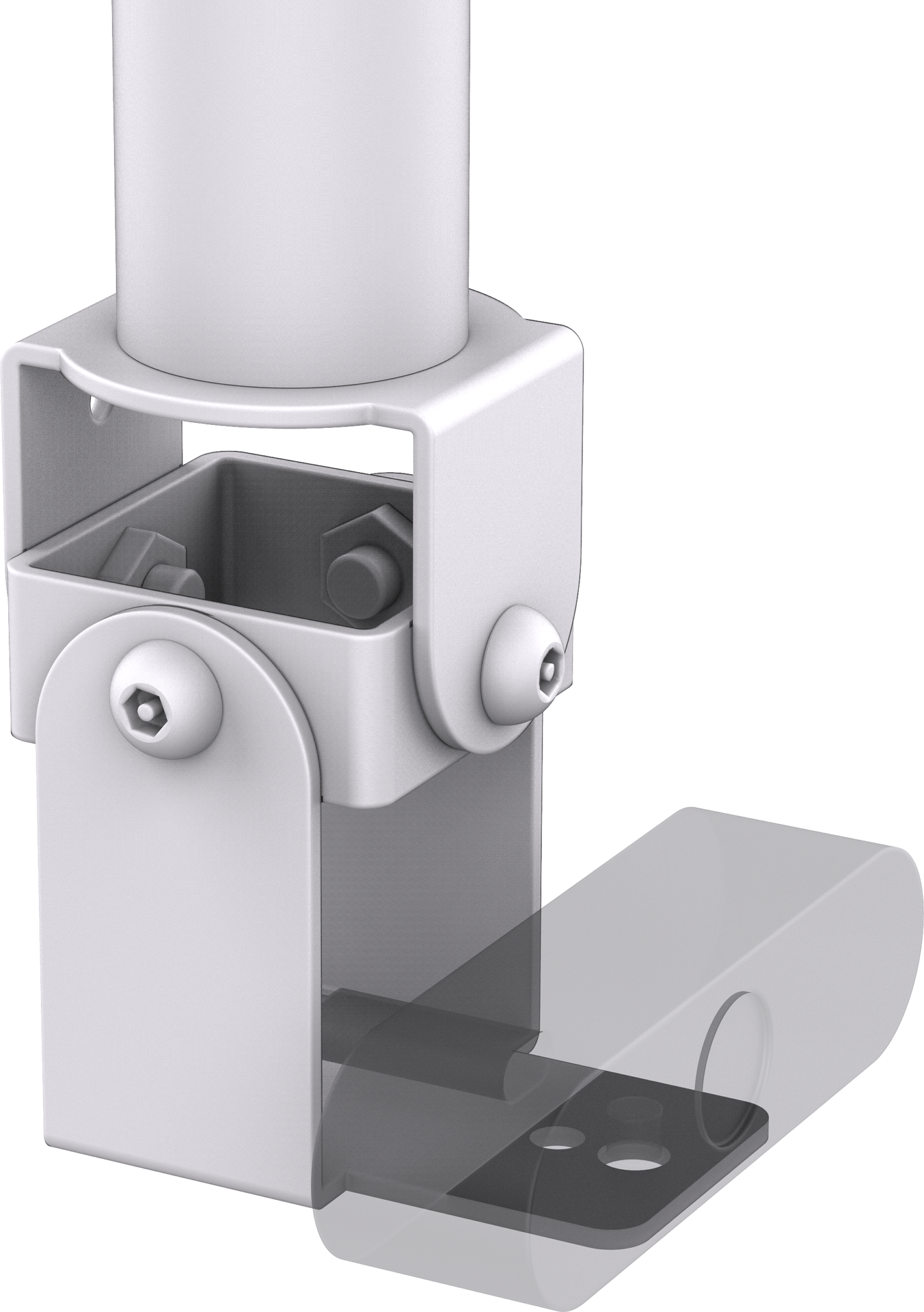

Camera Tilt
The bottom bracket is adjustable so you can direct the camera where you need to.
Ceiling Trim Disc
For applications where the pole drops down through a hole in a false ceiling, a plastic trim disc is included to tidy the hole.
| Category | Feature | Details |
|---|---|---|
| Box Dimensions | Length | 393 mm / 15.47″ |
| Width | 150 mm / 5.91″ | |
| Height | 80 mm / 3.15″ | |
| Packaged Weight | 3 kg / 6.6 lbs | |
| Safe Working Load | 10 kg / 22.1 lbs | |
| Colour | Satin White | |
| Accessories Included | H50 Pin-Hex key | 1 x |
| H50 power drill hex bit | 1 x | |
| 17mm (0.7″) Spanner | 1 x | |
| M8 50mm (2.0″) Ceiling Fixtures | 4 x (with rawl plugs) | |
| Ceiling Trim Disc | 1 x | |
| 1/4-20 UNC Screw 9 mm long | 1 x | |
| M6 12mm (0.47″) Screw | 1 x | |
| Warranty | Lifetime Return-to-Base | |
| Compliances | RoHS | |
| Order Part Code | TM-WEBCAM [SAP: 5708369] | |
| Country of Origin | China | |
| ISO | ISO 9001:2015 |
| Description | Downloads |
|---|---|
| User Manual | Downloads |
