From meeting room to presentations anywhere on the road

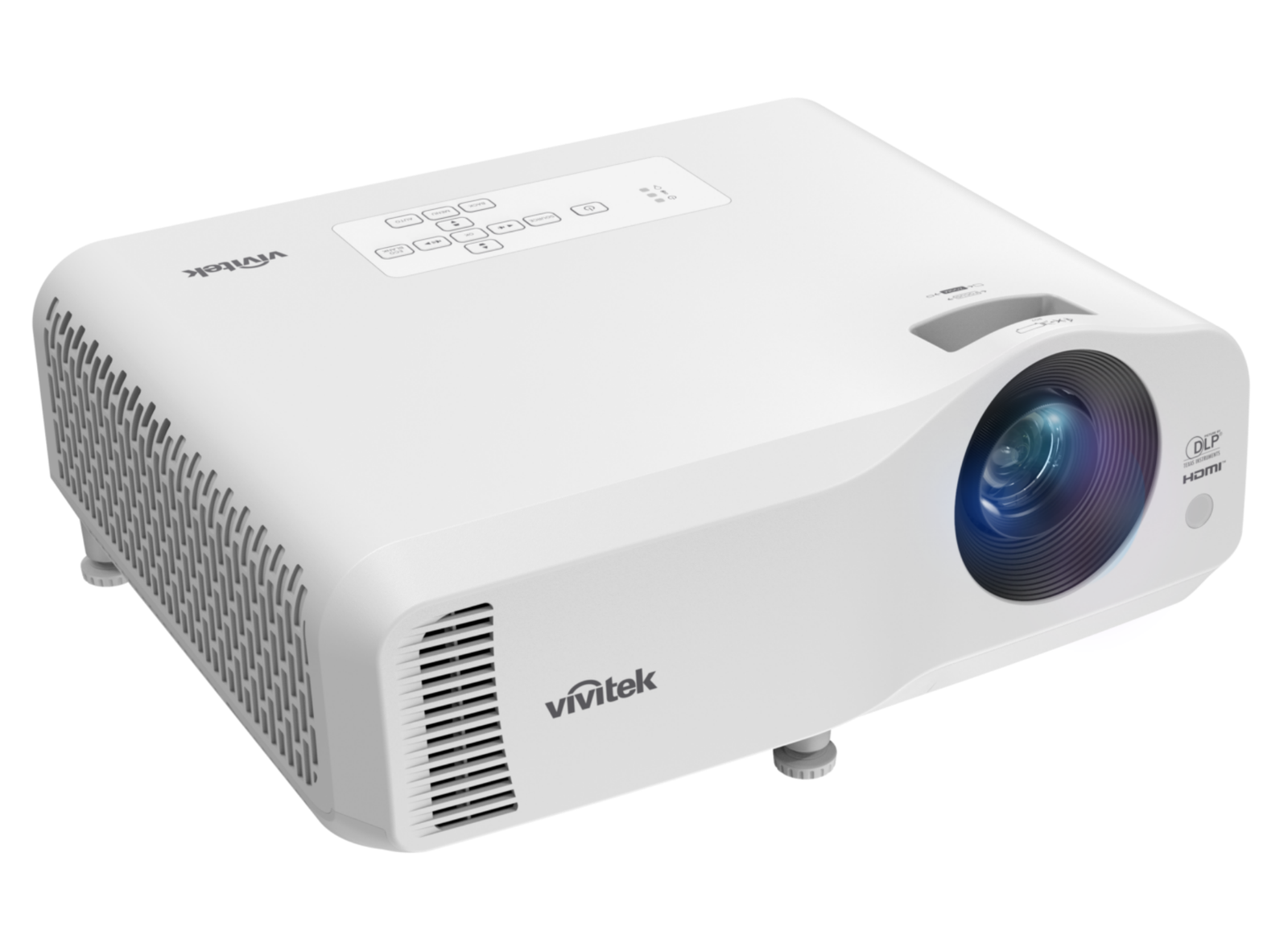

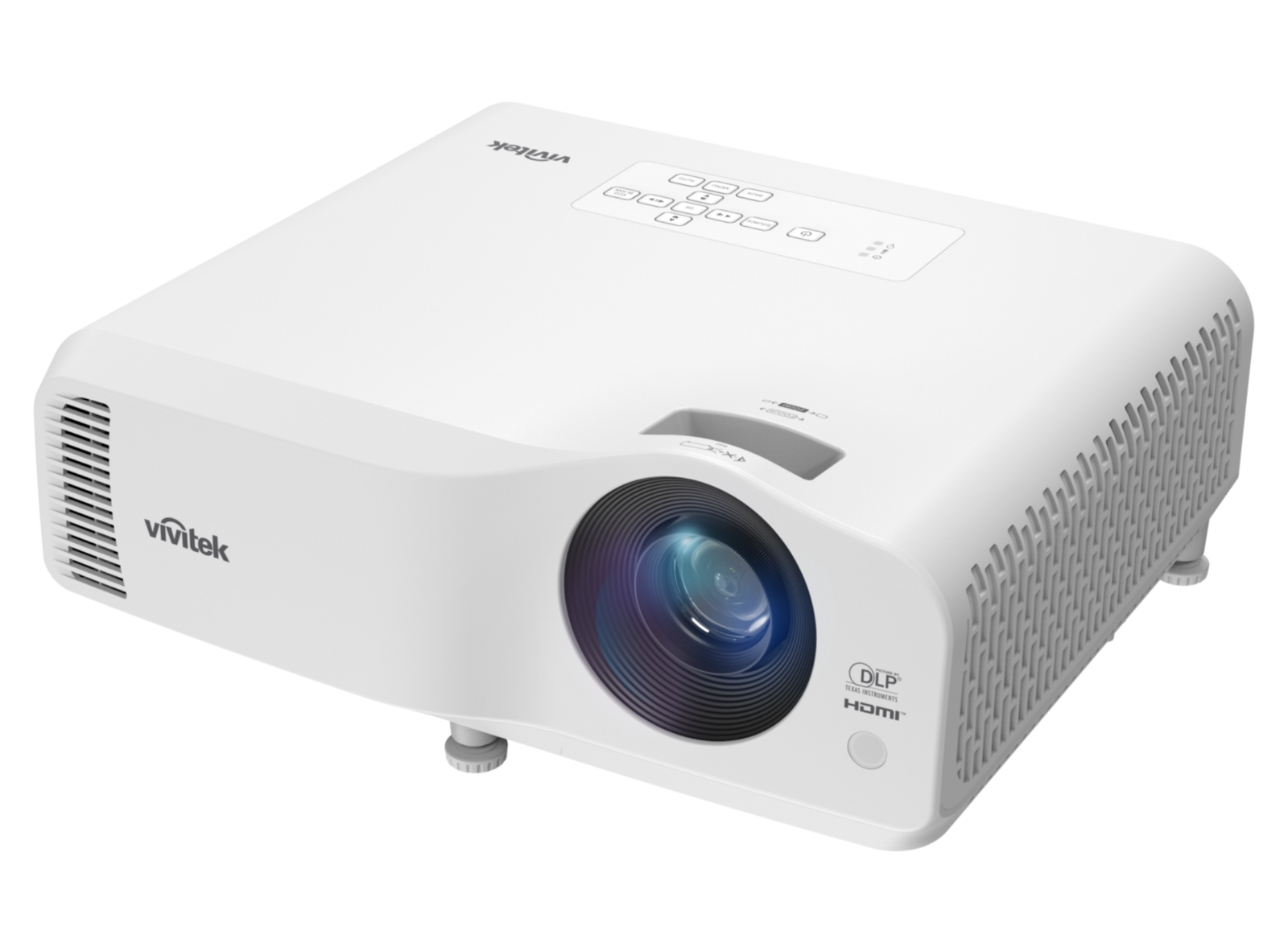

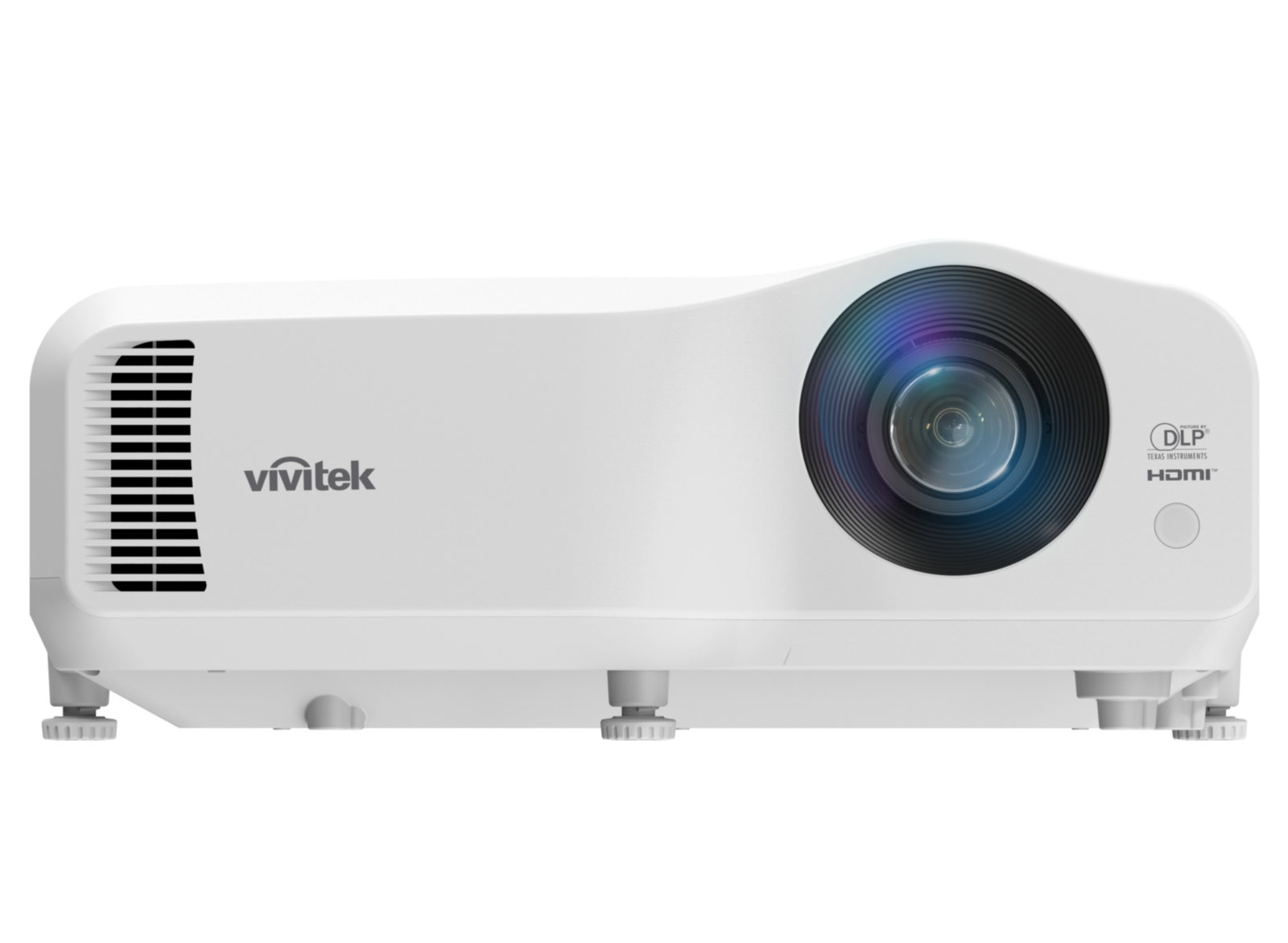

The DH2661Z is a native 1080p projector that integrates advanced DLP® and BrilliantColor™ technologies, delivering striking, vibrant images in a widescreen format. It provides an array of connectivity options, including two HDMI v2.0 ports, and boasts a brightness level of 4,000 ANSI Lumens with a remarkable 30,000:1 contrast ratio. Its lightweight and compact design facilitates effortless installation that will fit any budget.
Key Features
DLP® technology with BrilliantColor™ for vibrant and rich picture quality
4000 ANSI lumens of brightness and 30,000:1 contrast ratio for clear, crisp and bright presentations
1080p (1920 x 1080) native resolution scalable up to a maximum 4K UHD (3840 x 2160) resolution
4K compatible in 1080p resolution
Dual-HDMI inputs for high definition content with the same high quality
Auto H/V keystone geometric and 4-corner adjustment
Diverse connectivity, HDMI 2.0, USB-A power
Compact and lightweight at 4.8kg for easy portability
3D ready and support various forms
A long life up to 30,000 hrs. (Eco Mode) for low Total Cost of Ownership (TCO)
Audio ready with built-in 10 watt audio speaker, audio-in and audio-out ports
Smart Control: quick cooling, instant restart, auto power off, reminder message, Security settings, 0.5W in standby mode and more…
Environmentally friendly design and compliance
| Native Resolution | 1080p (1920 x 1080) | Brightness | 4000 ANSI Lumens |
| Contrast Ratio | 3,000,000: 1 | Max. Supported Resolution | 4K UHD (3840 x 2160) |
| Native Aspect Ratio | 16:9 | Lamp Life and Type | 20,000 / 30,000 hours (Normal / Eco) |
| Display Type | Single chip DLP® Technology by Texas Instruments | Chip Size | 0.65” DMD |
| Throw Ratio | 1.475-1.753 | Image Size (Diagonal) | 40" – 300" |
| Projection Distance | 1.32 – 9.9m | Zoom Ratio | 1.2x |
| Offset | 107% ±5% | Keystone Correction | Horizontal ±30°, Vertical ±30°/ 4-Corner |
| Speakers | 10W (Mono) | Video Compatibility | NTSC, PAL, SECAM / 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |

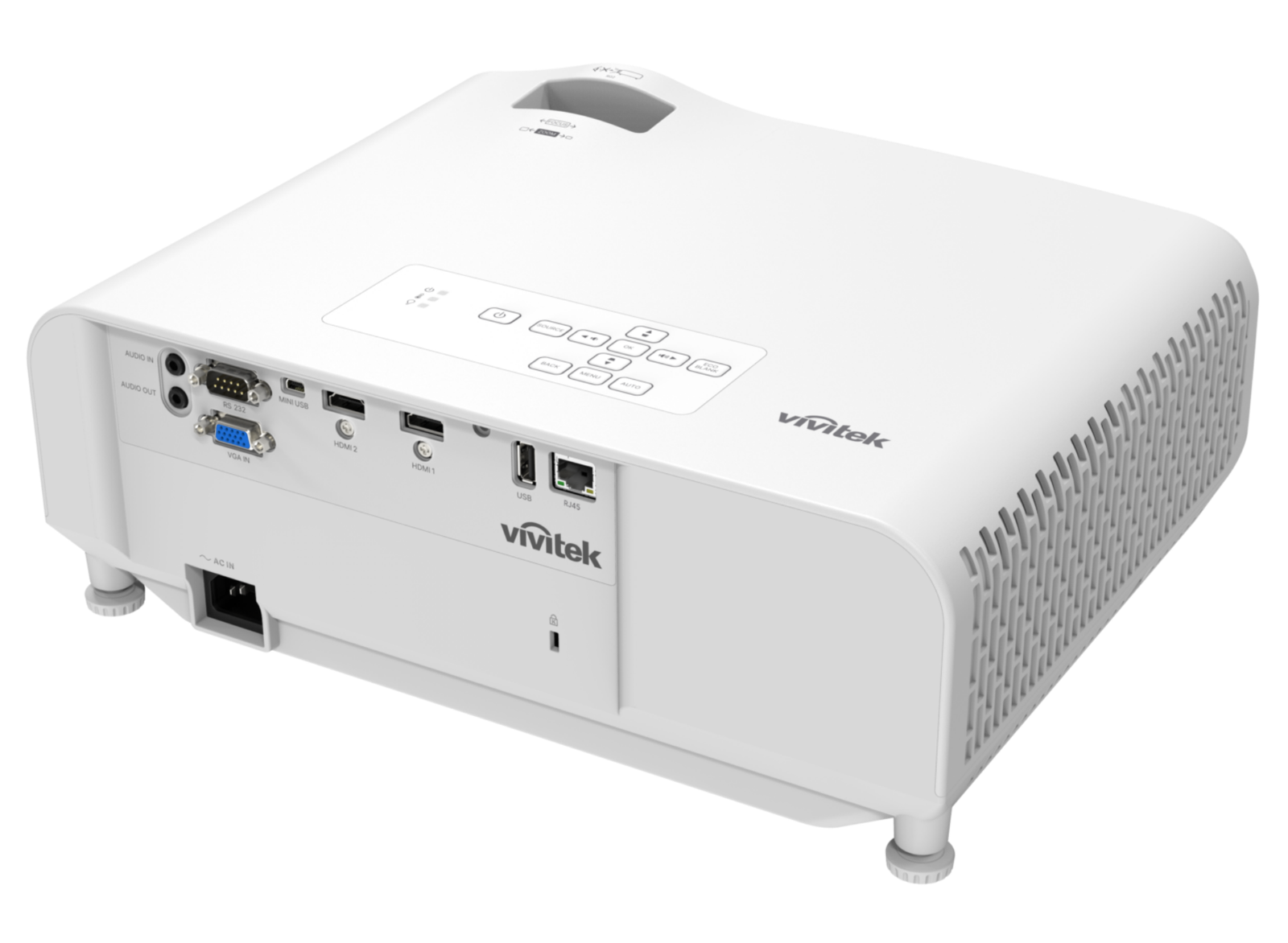

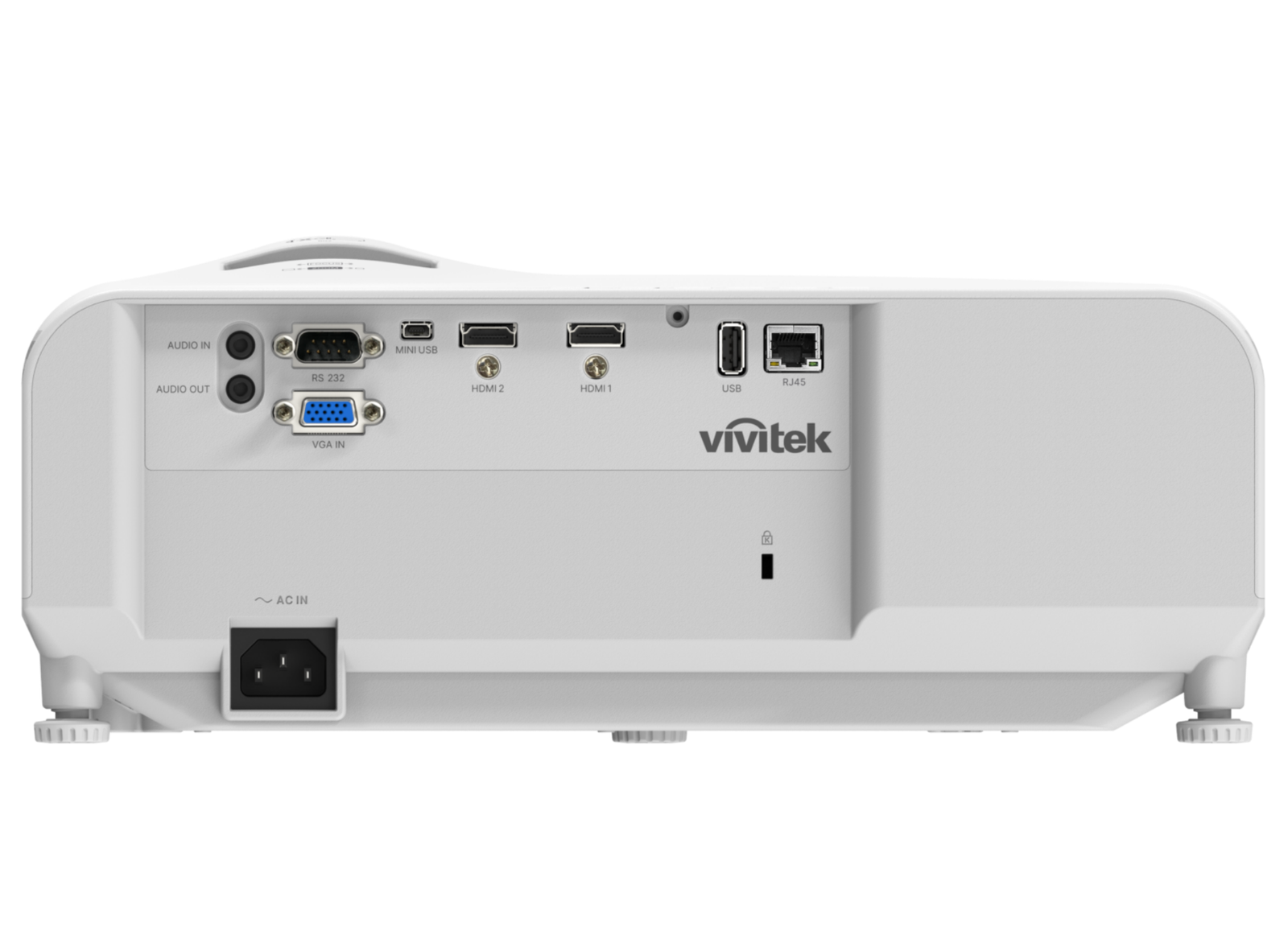

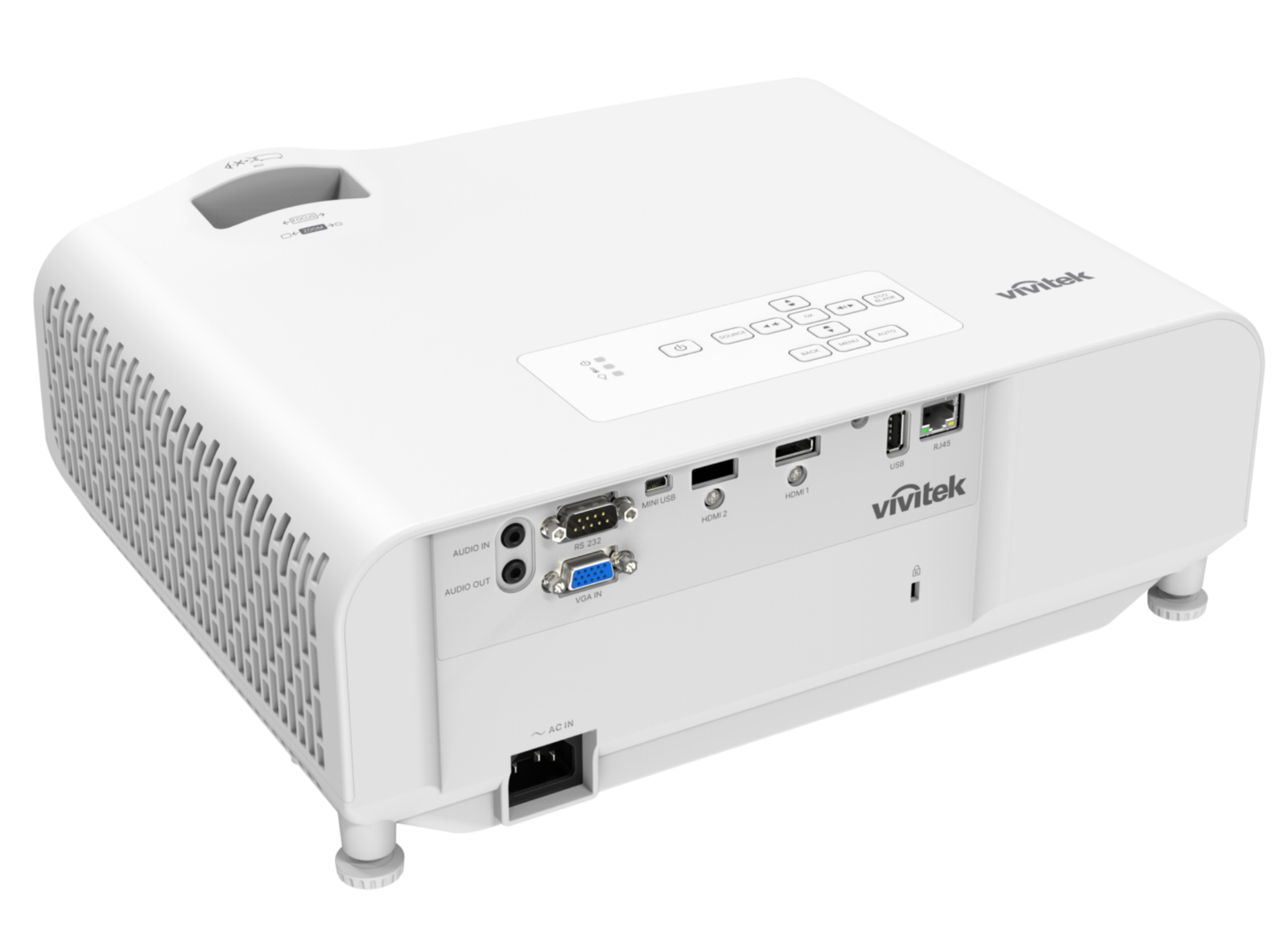

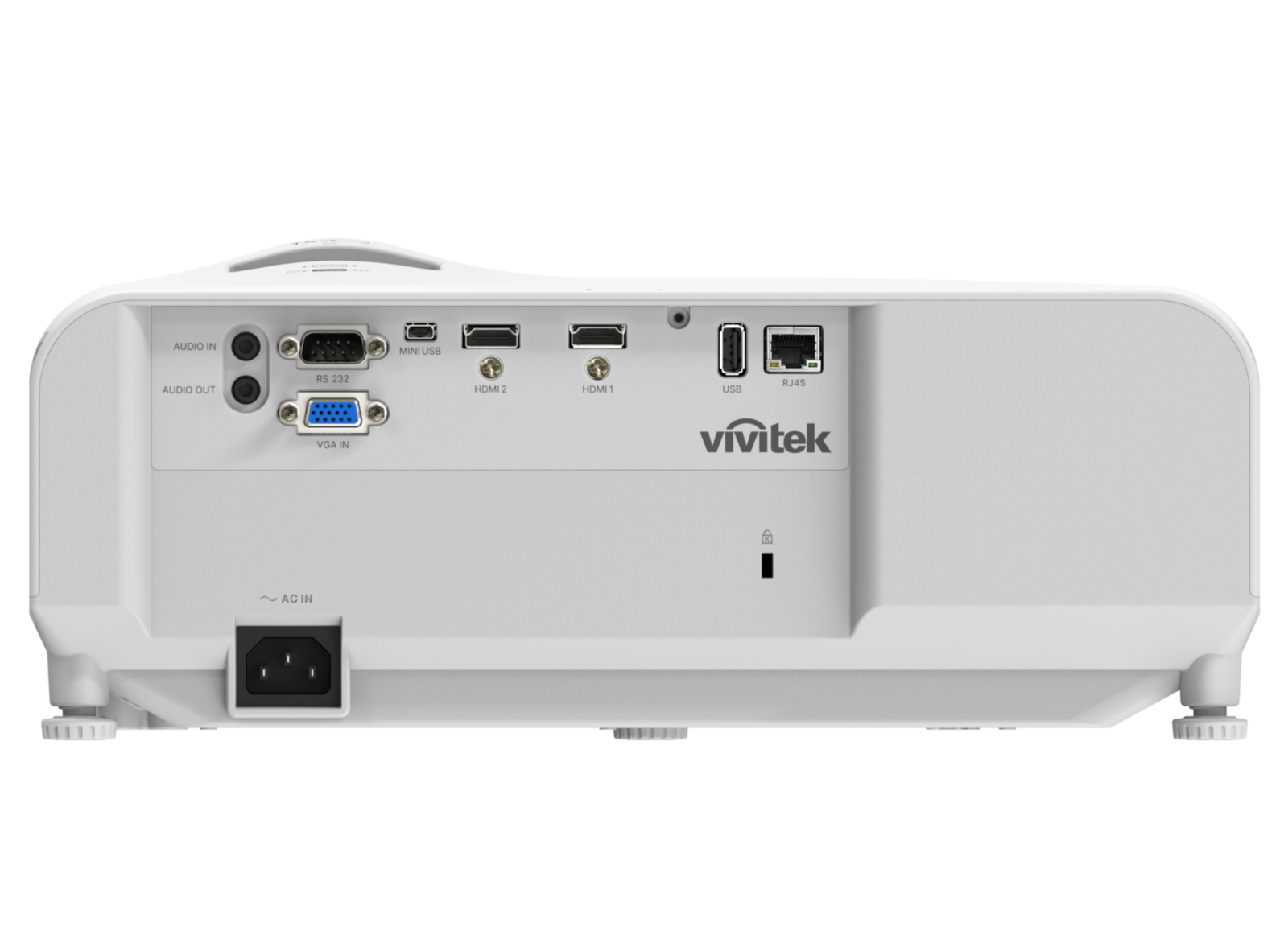

| I/O Connection Ports | VGA-In (15pin D-Sub) (x1), HDMI Number of Ports 2.0 (x2), RS-232 , USB A 2.0 (Power 5V/1.5A), USB miniB (Service), Audio-Out (Mini-Jack) , RJ45 , Audio-In (RCA) , Audio-In (Mini-Jack) | Dimensions (W x D x H) | 353 x 290 x 144mm |
| Weight | 4.8 kg | Noise Level | 33dB/31dB (Normal/Eco Mode) |
| Power | Supply: AC 100-240V, 50/60Hz Consumption: 230W (Normal Mode), 180W (Eco Mode), <0.5W (Standby) | Remote Control P/N | XX5040005400 |
| Standard Accessories | VGA Cable , AC Power Cord , Quick Start Guide , Warranty Card (by region) , Remote Controller (with battery) | Optional Accessories | Remote Control P/N (XX5040005400), 3D Ready(DLP link, PC+Video) , Direct 3D (HDMI 1.4a) , 3D Mandatory Formats supported (top/bottom, right/left, frame sequential) |
| Description | Downloads |
|---|---|
| Datasheet | Download |
