Ultra Short Throw with up to 150 inch screen size at Full HD 1080p

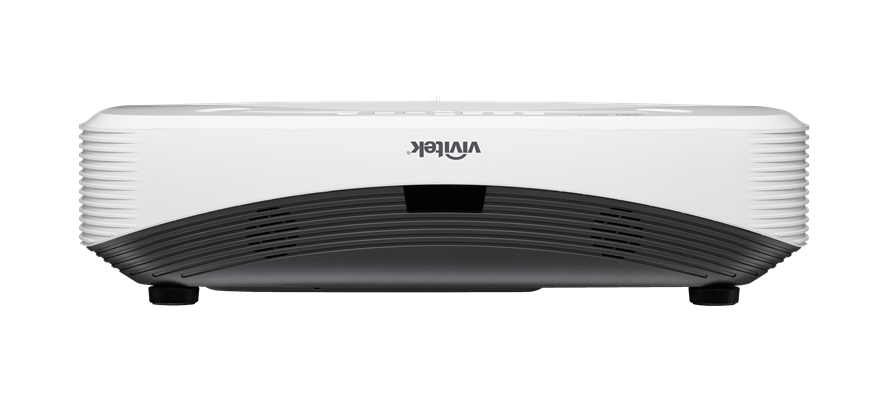

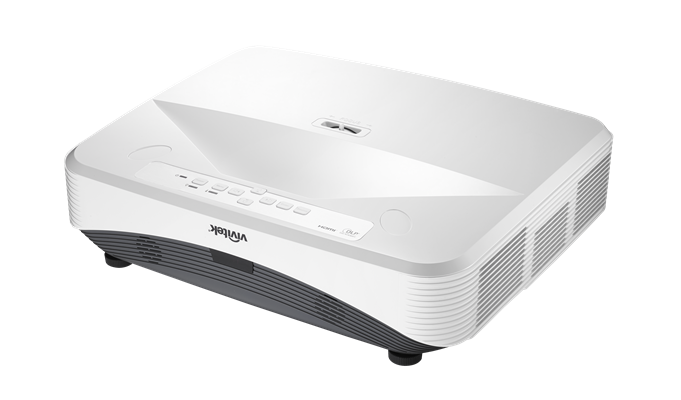

The DH765Z-UST is designed for large screen displays at museum, in education or showroom applications where installation space is a constraint. Features a FullHD 1080p, an amazing 4,000 Ansi Lumens and 12,000:1 contrast ratio for a clear and bright projection. In addition to this, the device is maintenance free, thanks to their lampless laser light source design, which delivers up to 20,000 hours of operational time. The DH765Z-UST offers a wide array of connectivity options, including two HDMI, component, composite video, s-video and VGA-in/out, while the embedded 10W audio speaker and multiple audio-in and audio-out ports provide plenty of options for external device connection.Vivitek DH765Z UST and DW763Z UST Front

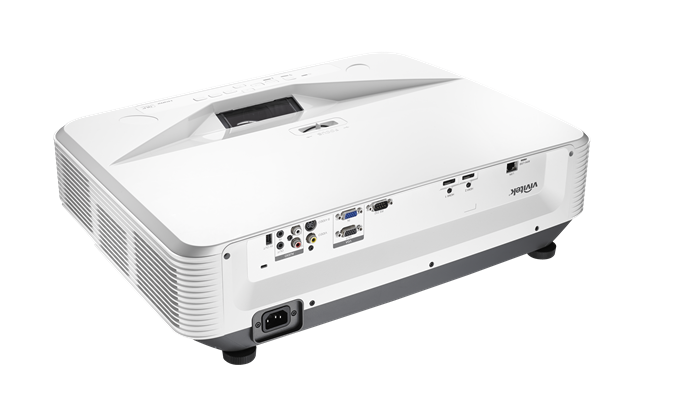

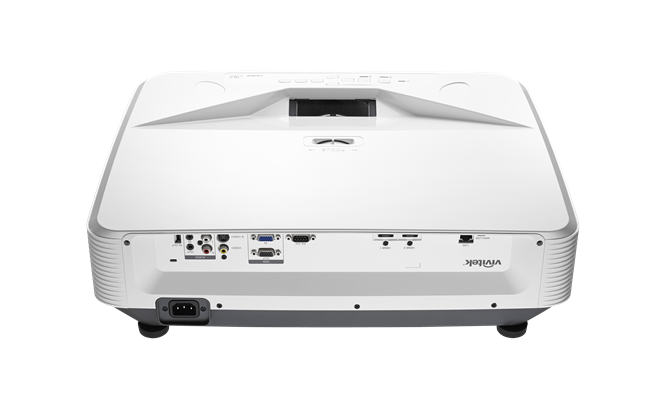

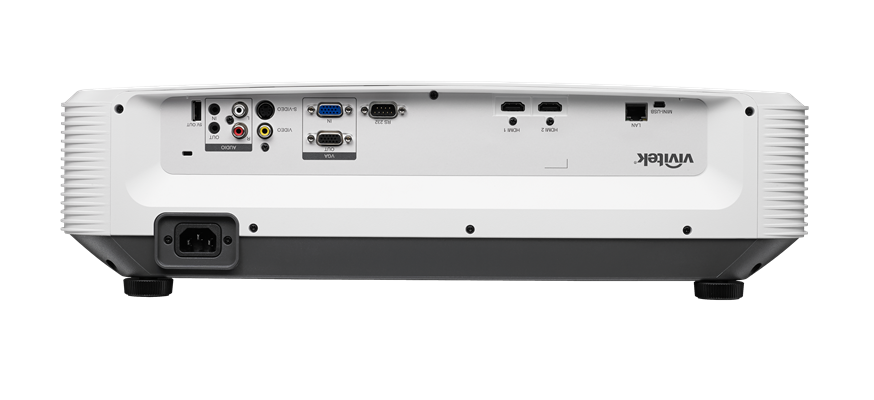

Vivitek DH765Z UST and DW763Z UST IO
Key features
Ultra short throw lens delivers 150'' diagonal image from a mere 40cm away from the screen
Full HD 1080p resolution to show every details from your computer
4,000 ANSI lumens of brightness, and 12,000:1 contrast ratio for clear, crisp and bright projection
Maintenance-free laser light source, which delivers up to 20,000 hours of operational time
10W speaker and multiple audio ports for external sound device
Image adjustment with 4 corner correction
Network ready for integration and system administration via RJ45
| Feature | Specification |
|---|---|
| Native Resolution | 1080p (1920x1080) |
| Brightness | 4000 ANSI Lumens |
| Contrast Ratio | 12,000:1 |
| Max. Supported Resolution | WUXGA (1920 x 1200) @60Hz |
| Native Aspect Ratio | 16:9 |
| Lamp Life and Type | Lamp-free design. Laser light source lasts up to 20,000 hours |
| Display Type | Single chip DLP® Technology by Texas Instruments |
| Chip Size | 0.65” DMD |
| Throw Ratio | 0.23:1 |
| Image Size (Diagonal) | 80" - 150" |
| Projection Distance | 4 - 41 cm (from the screen to the projector) |
| Zoom Ratio | Fixed 1x |
| Offset | 119% from the lens center; 126% from the bottom of the projector |
| Keystone Correction | Vertical: +/- 30°; Horizontal: +/- 30° |
| Speakers | 10W |
| Video Compatibility | SDTV (480i, 576i) / EDTV (480p, 576p) / HDTV (720p, 1080i, 1080p), NTSC (M, 3.58/4.43 MHz), PAL (B,D,G,H,I,M,N) SECAM (B,D,G,K,K1,L) |
| I/O Connection Ports | VGA-In (15pin D-Sub), HDMI (x2), S-Video, Composite Video, Audio-In (RCA), Audio-In (Mini-Jack), VGA-Out (15pin D-Sub), Audio-Out (Mini-Jack), RJ45, RS-232, USB A (Power Only), USB miniB (Service) |
| Dimensions (W x D x H) | 509 x 390 x 145 mm |
| Weight | 10.5 kg |
| Noise Level | 31dB / 28dB (Normal / Eco. Mode) |
| Power | Supply: AC 100-240V, 50/60Hz Consumption: 315W (Eco. Mode), 380W (Normal Mode), <0.5W (Standby) |
| 3D Ready (DLP link, PC+Video) | Yes |
| Standard Accessories | VGA Cable, User Manual (CD), Quick Start Guide, Warranty Card (by region), Remote Controller (with battery), AC Power Cord |
| Optional Accessories | Remote Control P/N: XX5040005400, Optional Wall Mount: LT30C-F |
| Warranty | Laser Phosphor Warranty: 3-Year warranty on projector/ 3-year or 10,000h on the Laser Phosphor illumination source. (Whichever comes first) |
| UPC Code | 813097022615 |
| Item | Type |
|---|---|
| Vivitek DataSheet | Download |
| Vivitek User Manuals | Download |
