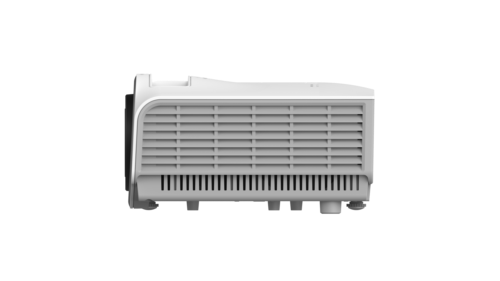

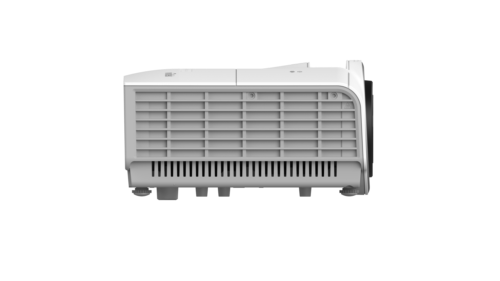

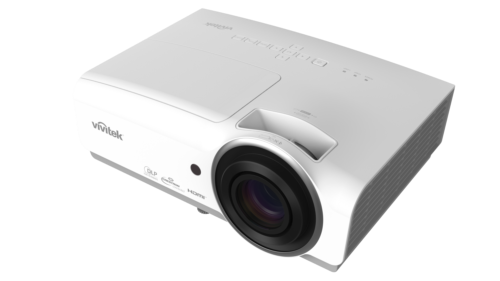

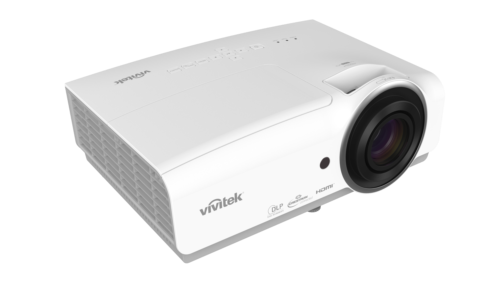

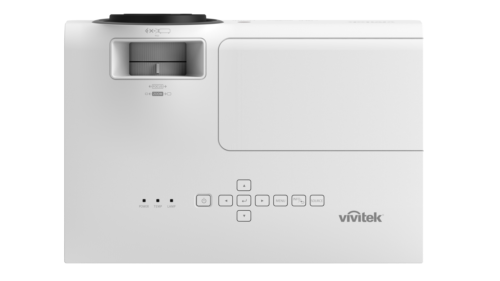

Vivitek DH858N

NovoProjector - 4800 Lumens 1080P

• Description
• Specifications
• Downloads

•
  Powerful All-in-One Projector with Embedded NovoConnect Wireless Collaboration
  Vivitek’s NovoProjector is an All-in-One innovative projection solution with built-in NovoConnect wireless collaboration capabilities. The image is superb and offers 4,800 lumen of brightness in 1080p resolution. The NovoConnect embedded collaboration tools offer wireless presenting and screen mirroring, annotation and moderation functions combined with the ability to display four users simultaneously and host multiple participants. Its cross-platform compatibility assures smooth connection with Windows, macOS, Ubuntu, Android, Chromebook and iOS devices. The NovoProjector DH858N works seamlessly with the optional Launcher modules for guests in order to enable direct wireless connection from laptops to the NovoProjector, while the NovoConnect app can be used for employees and recurring users for both laptop as well as mobile devices. The DH858N is ideally suited for medium-sized meeting rooms.Vivitek DH858N
  Vivitek DH858N

  Key features
  Embedded NovoConnect Wireless Collaboration solution, available in corporate and education edition Wireless presenting and screen mirroring; Annotation and moderation ; Display up to four screens simultaneously; Easy to use NovoConnect SW/App, Launcher, Web portal to share the content from any device (BOYD); Receive duplicate screen over the network; Dual networks to separate guest and employee networks with password-protected configuration.
  Offers up to 300" image with 4,800 lumens of brightness, 1080p native resolution and 15,000:1 contrast ratio
  DLP® and BrilliantColor™ technology
  Lamp life time up to 4,000 hours in Eco mode
  Horizontal and Vertical keystone with 4 corner geometric adjustment
  1.5x zoom ratio for installation flexibility
  New On-screen display (OSD) control menu for ease of use and improved control over viewing options
  viviBlack enhances black level for higher contrast ratio
  Environmental friendly design and compliance

• Specification	Details
  Native Resolution	1080p (1920 x 1080)
  Brightness	4800 ANSI Lumens
  Contrast Ratio	15,000:1
  Max. Supported Resolution	WUXGA (1920x1200) @60Hz
  Native Aspect Ratio	16:9
  Lamp Life and Type	1,500 / 3,500 Hours (Normal / Eco. Mode), 370W/280W
  Display Type	Single Chip 0.65" DLP Technology by TI
  Throw Ratio	1.39 - 2.09
  Image Size (Diagonal)	26.7” - 334"
  Projection Distance	1.2 - 10m
  Projection Lens	F=2.42 - 2.97 , f=20.70 - 31.05mm
  Zoom Ratio	1.5x
  Focus	60 cm@80”
  Offset	114.9% ±5%
  Keystone Correction	±30 Degree; ±30 Steps
  Speakers	10W (Mono)
  Vertical Scan Rate	24 - 30Hz, 47 - 120Hz
  Horizontal Scan Rate	15, 31 – 91.4kHz
  Video Compatibility	SDTV (480i, 576i) / EDTV (480p, 576p) / HDTV...

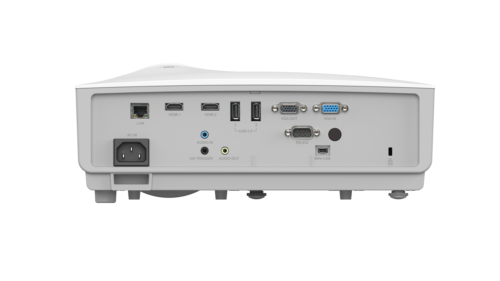

  I/O Connection Ports	VGA-In, HDMI (x2), Audio-In, VGA-Out, Audio-Out...
  Dimensions (W x D x H)	314 x 213 x 126mm
  Weight	3.4 kg
  Noise Level	36dB/31dB (Normal/Eco. Mode)
  Power	340W (Normal Mode), 270W (Eco. Mode), <0.5W...
  Control Software	PJ- Control V3.0.0.4
  3D Ready	Yes
  Wireless	Yes
  Standard Accessories	VGA Cable, User Manual (CD), Quick Start Guide...
  Optional Accessories	Spare Lamp, Remote Control
  Warranty	Standard Warranty: 3 years projector / 1 year...
  UPC Code	813097024756

• Item	Type
  Vivitek DataSheet	Download
  Vivitek User Manuals	Download
