Vivitek DK553 NovoDisplay 55" 4K Digital Signage Display
Description
Specifications
Warranty
Downloads

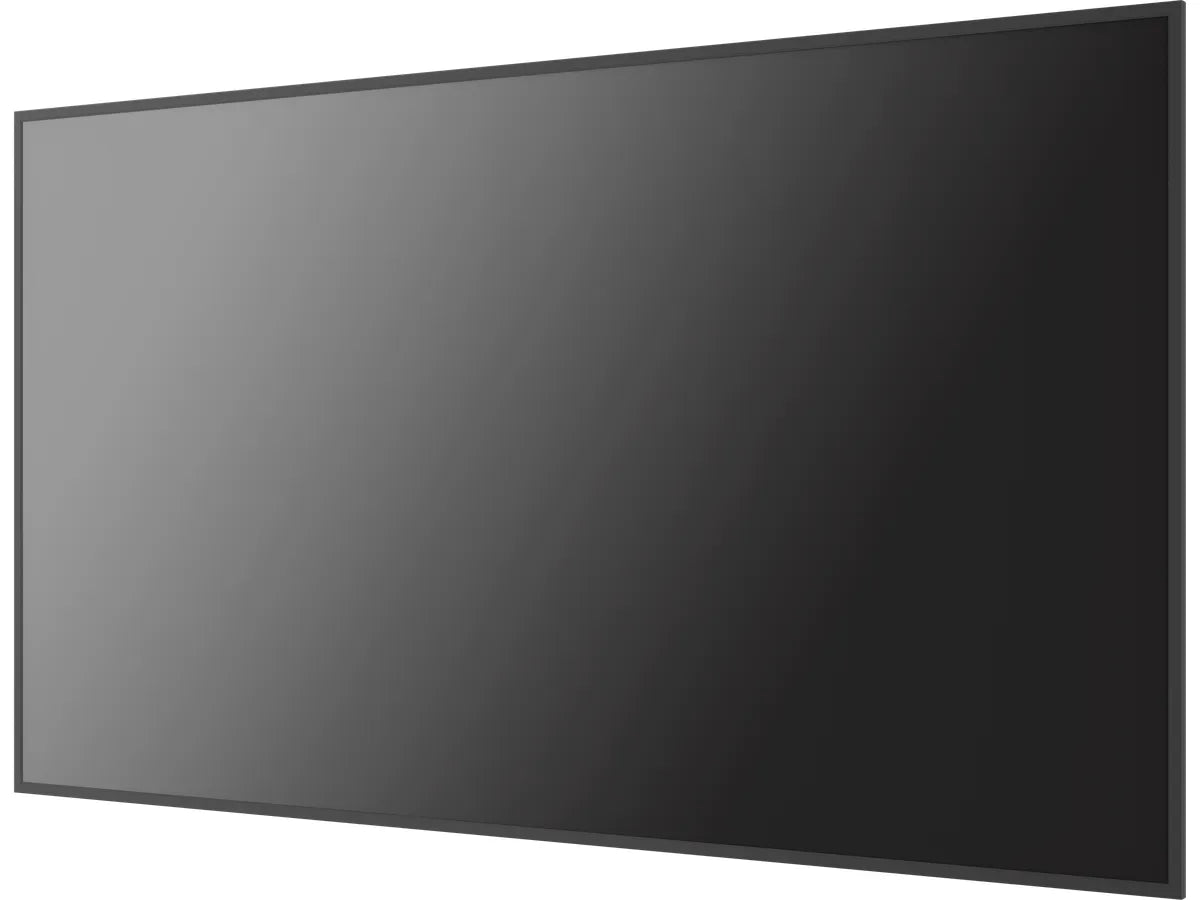

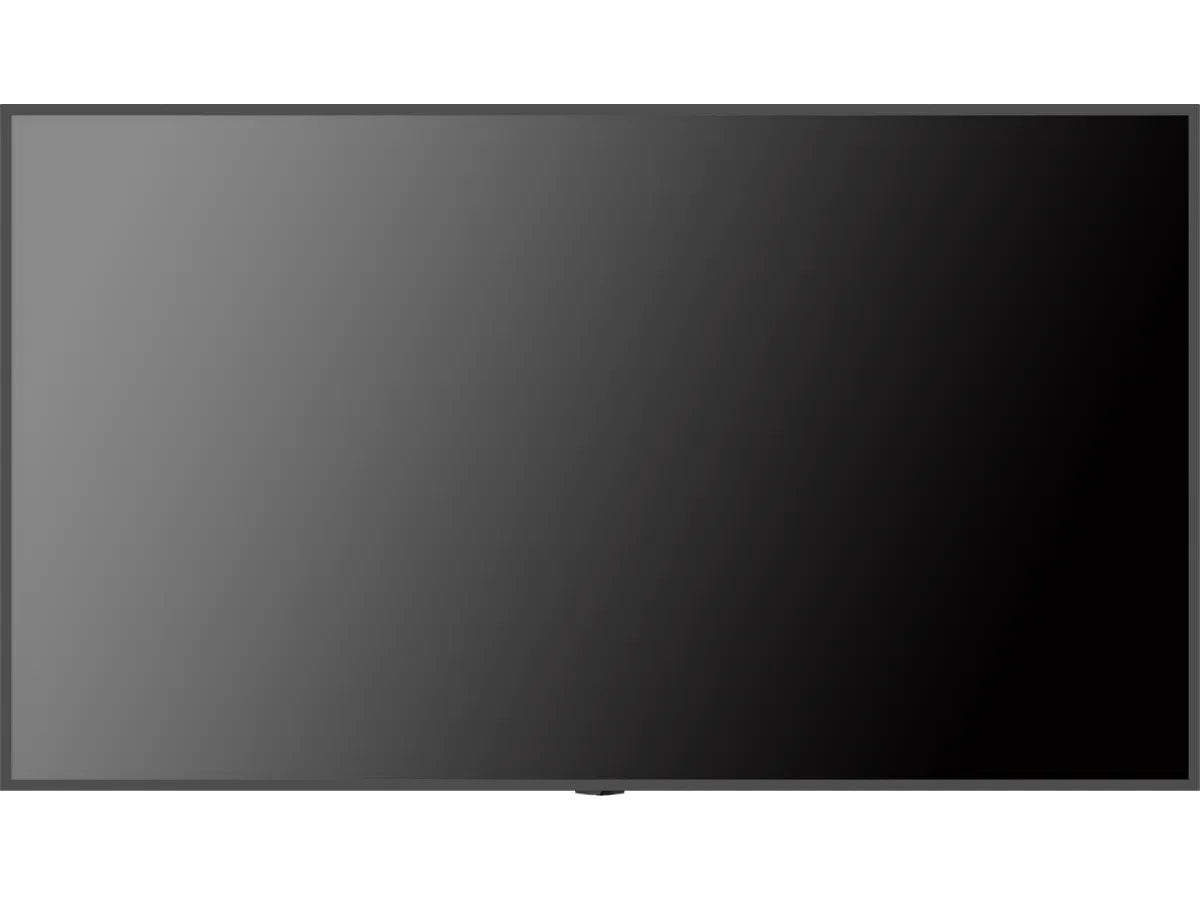

NovoDisplay DK Digital Signage Display with Collaboration Functionality The NovoDisplay DK offers 4K Ultra-HD (3,840 x 2,160) resolution. With the included NovoDS Digital Signage software you will create, publish and manage content ranging from promotional announcements to company messages. With the added NovoConnect Wireless Collaboration solution, the NovoDsiplay can easily be switched to presentation mode. The NovoDisplay DK is suitable for commercial applications such as hospitality, retail, education and business. 4K Ultra-HD (3,840 x 2,160). In-plane switching (IPS-ADS) panel technology offers outstanding details and stunning visuals with Hyper-Viewing Angle. Support Landscape & Portrait Installation.
Wireless Collaboration Wireless content sharing from laptop, tablet or smartphone to the central screen.
Video Conferencing compatible with preloaded popular conferencing Apps. Up to 8 participants can be connected and up to 2 can share their screen simultaneously.
Digital Signage The embedded NovoDS digital signage allows to create, publish and manage promotional announcements and company messages.
The optional NovoDS Cloud offers a Bulletin board template that allows for easy creation of a pin board layout and interactivity with documents. Design, publish and manage, 3 simple steps to create digital signage.
People counting widget to monitor and manage real time occupancy for use in public spaces.
Built for 24/7 operation.
Attribute
Specification
Screen Size
55"
Resolution
4K
Panel Surface
NA
Brightness cd/m² (typ.)
500
Installation Orientation
Portrait / Landscape
Viewing Angle (H/V)
178° / 178°
Daily Operation
24/7
Memory
DDR3 4G
Storage
eMMC 32GB
Speaker
10W x2 (stereo)
Ambient Light Sensor
Yes
Wireless
WiFi 5 / Bluetooth 4.2
Interactivity
NA
Internet
LANx1
Low Blue Light & Flicker Free
NA
OPS expansion
Android 80pin, VKG-G1 (option)
Bezel Even
Yes
USB C
NA
Software - Remote Management Tool
Yes
Google Play Store
NA
Novo Stage
NA
Software - Wireless Collaboration
Yes (2 splits / 4 splits w OPS)
Screen Recording
NA
Screen Sharing
NT LiveReceiver Only (w OPS)
On-Screen Annotation
NA
White Board
NA
Miracast
Yes (w OPS)
Google Cast
Yes
AirPlay
Yes
BYOM
NA
USB plug-and-play
Yes (w LauncherPlus)
Software - Digital Signage
Creating / Edit Playlist
Yes
Publish Content
Yes
Scheduling Playback
Yes
Content Management System
Yes
Screen Orientation
Portrait / Landscape
Announced Board
Yes
Social Media Integration
Yes (Twitter, Instagram, Facebook)
YouTube/IP Streaming
Yes
Calendar
Yes
System
Power Supply
AC 100 - 240V, 50/60Hz
Power Consumption
≤198W
Dimension
1,241.7 x 729.3 x 76.5mm
Weight
14.2kg
Vivitek aims for the utmost level of satisfaction and offers a warranty scheme for the EMEA region where all Vivitek’s projectors are warranted against failure for a period of two, three or five years depending on the model and number of hours operated.
Standard warranty 3-Year warranty on projector, 1-year or 1,000h on lamp (whichever comes first)
Entry level models warranty 2-Year warranty on projector, 1-year or 1,000h on lamp (whichever comes first).
Education models warranty 5-Year warranty on projector, 3-year or 2,000h on lamp (whichever comes first). ST/UST models and projectors listed in the education portfolio and where end customer is a school or university. Education product registration required within 90 days of purchase for extended warranty to be valid.
Ultra Short Throw Laser Phosphor warranty 3-Year warranty on projector/ 3-year or 10. 000h on the Laser Phosphor illumination source (whichever comes first).
Large Venue projector warranty for UHP lamp based models 5-Year warranty on projector, 1-year or 1,000h on lamp (whichever comes first).
Large Venue projector warranty for Laser Phosphor models 5-Year warranty on projector, 5-year or 20,000h on the Laser Phosphor illumination source.(Whichever comes first)
Standard Laser Phosphor Projector Warranty 5 -Year warranty on the projector; 5 -year or 10,000h on the Laser Phosphor illumination source (whichever comes first)
Vivitek is commited to deliver products of high reliability to the market to meet customer requirements, as well as a high-level of satisfaction and enjoyment
