From meeting room to presentations anywhere on the road

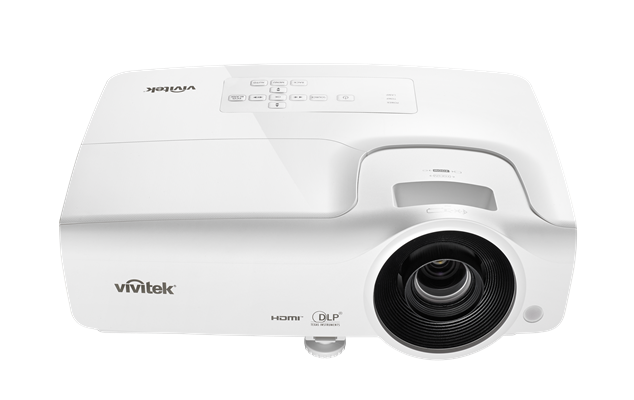

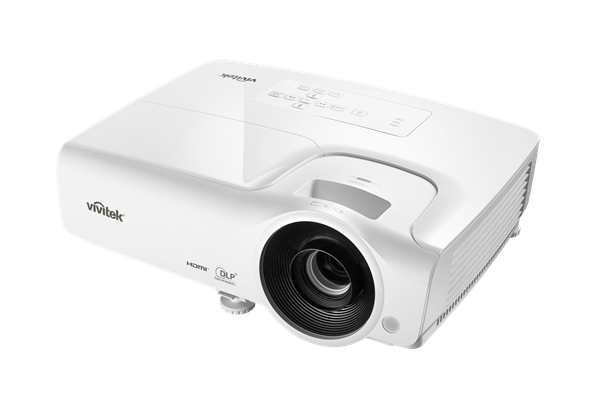

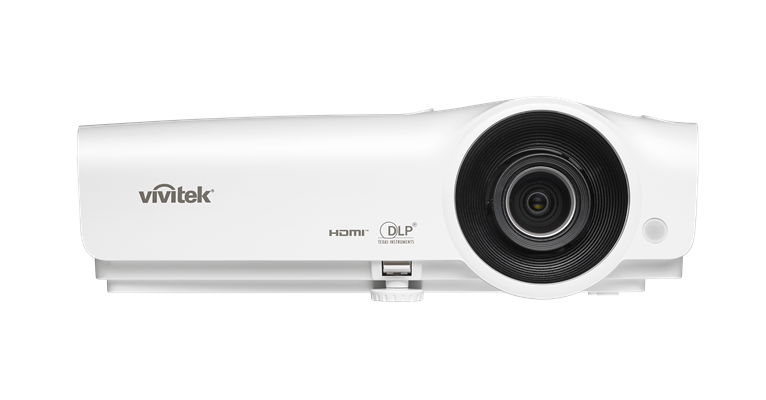

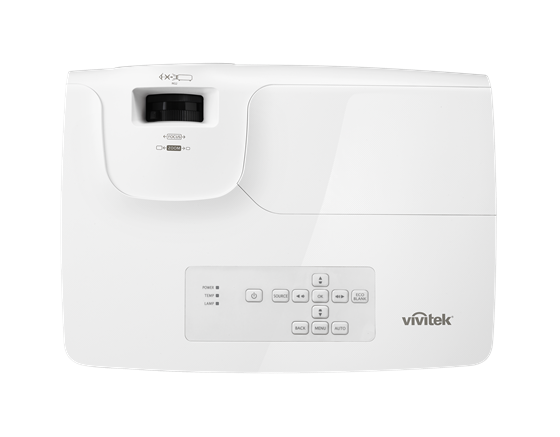

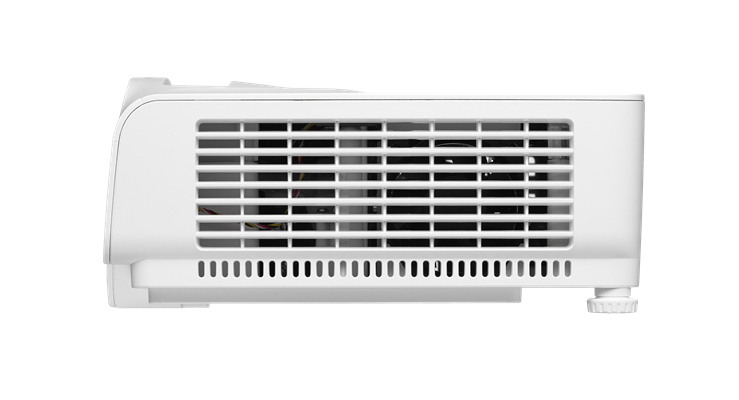

The DS262 is a native SVGA digital projector from Vivitek. It features DLP® and BrilliantColor™ technologies to display distinct, vibrant images in a widescreen format. The Vivitek DS262 features numerous connectivity options including two HDMI v1.4, a brightness level of 3,500 ANSI Lumens, and a 15000:1 contrast ratio. With its lightweight and compact form, this is a short throw projector for easy installation that will fit any budget.Vivitek DS262 DX263 DW265 DH268 Hero Right Front

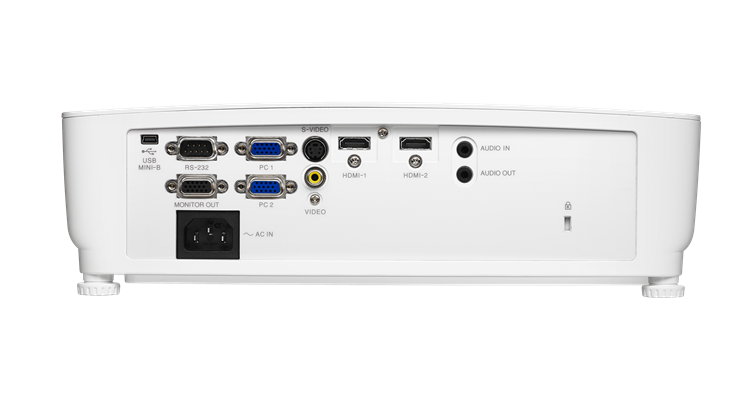

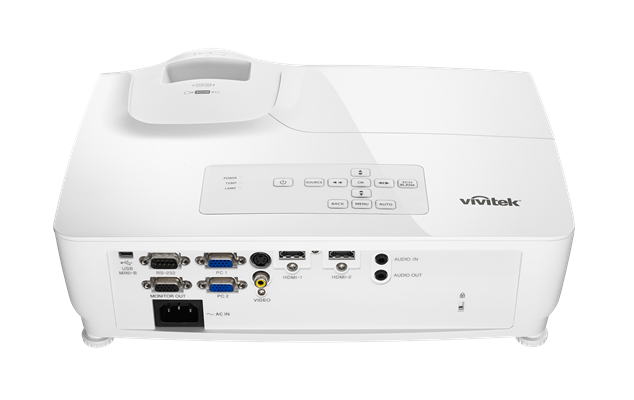

Vivitek DS262 DX263 DW265 DH268 IO Port 1
Key features
DLP® technology with BrilliantColor™ for vibrant picture quality
3,500 ANSI lumens of brightness and a 15,000:1 contrast ratio for clear, crisp, and bright presentations
SVGA (800 x 600) native resolution scalable up to a maximum WUXGA (1920 x 1200) resolution
Dual-HDMI inputs for high-definition content with the same high-quality
Compact and lightweight at 2.6kg for easy portability
A long lamp life of up to 10,000 hours for a low Total Cost of Ownership (TCO)
Audio ready with built-in 2-watt audio speaker, audio-in and audio-out ports
| Feature | Specification |
|---|---|
| Native Resolution | SVGA (800 x 600) |
| Brightness | 3500 ANSI Lumens |
| Contrast Ratio | 15,000:1 |
| Max. Supported Resolution | WUXGA (1920 x 1200) @60Hz |
| Native Aspect Ratio | 4:3 |
| Lamp Life and Type | 5,000 / 7,000 / 10,000 Hours (Normal / Eco. / Dynamic Eco. Mode), 203W |
| Display Type | Single chip DLP® Technology by Texas Instruments |
| Chip Size | 0.55” DMD |
| Throw Ratio | 1.94 - 2.32 : 1 |
| Image Size (Diagonal) | 40" - 240" |
| Projection Distance | 1.6 - 11.3 m |
| Projection Lens | F = 2.46 - 2.66, f = 21.8 - 25.6 mm |
| Zoom Ratio | 1.2x |
| Offset | 105.7% |
| Keystone Correction | Vertical: +/-40° |
| Speakers | 2W |
| I/O Connection Ports | VGA-In (15pin D-Sub) (x2), HDMI (x2), S-Video, Composite Video, Audio-In (Mini-Jack), VGA-Out (15pin D-Sub), Audio-Out (Mini-Jack), RS-232, USB miniB (Service) |
| Dimensions (W x D x H) | 332 x 243 x 107 mm |
| Weight | 2.6 kg |
| Noise Level | 31dB / 28dB (Normal / Eco. Mode) |
| Power | Supply: AC 100-240V, 50/60Hz Consumption: 203W (Eco. Mode), 240W (Normal Mode), <0.5W (Standby) |
| 3D Ready (DLP link, PC+Video) | Yes |
| Standard Accessories | VGA Cable, User Manual (CD), Quick Start Guide, Warranty Card (by region), Remote Controller (with battery), AC Power Cord |
| Optional Accessories | Spare Lamp P/N: XX5050002200, Remote Control P/N: XX5040005400, Carrying Case P/N |
| Warranty | Entry Warranty: 2 years projector / 1 year on lamp or 1,000 hours whichever comes first |
| UPC Code | 813097023315 |
| Item | Type |
|---|---|
| Vivitek DataSheet | Download |
| Vivitek User Manuals | Download |
