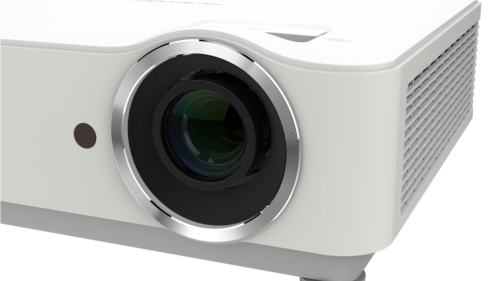

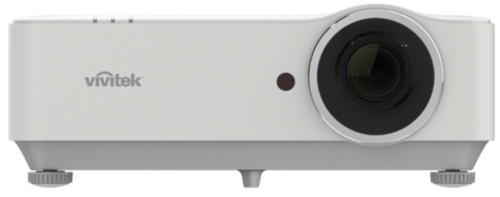

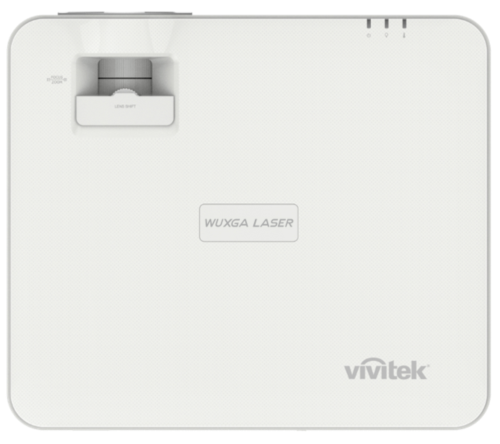

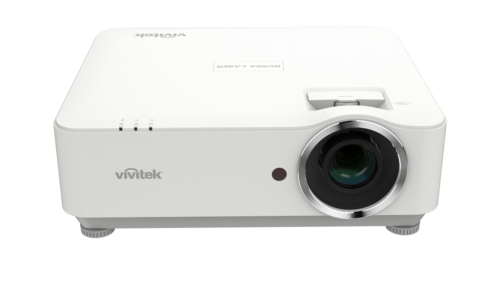

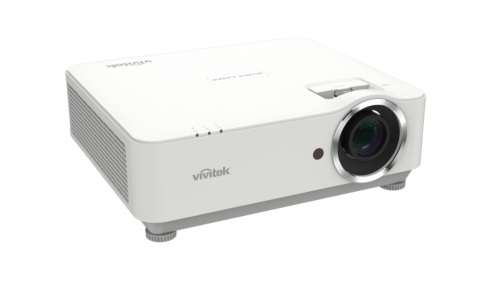

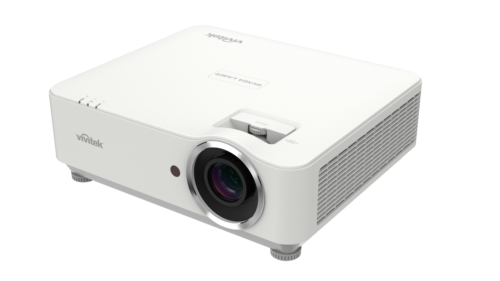

Vivitek DU3661Z
Laser Projector Ideal for Corporate Meeting Room - 5000 Lumens
Low Maintenance Laser Lightsource for Constant Brightness Level and Color Performance for up to 20,000 hours
The DU3661Z laser projector will appeal to any business owner, and is of equal interest to System Integrators looking for compact laser projectors for simulation or display projects. Compact in size and weighing only 7kg, the DU3661Z offers 5,000 Lumens of brightness and WUXGA resolution to deliver the high performance. The projector comes with smart features to facilitate meetings and to increase productivity before, during and after its use. In addition, the model come with three HDMI ports, HDBaseT, flexible installation features for easy set up.
Key features
Compact sized, laser projector series weighted only at 7kg, designed for meeting room installation without unnecessary bulk burden. which can be a factor in full and busy rooms where space is at a premium.
5,000 lumens of brightness, WUXGA resolution, and 20,000:1 contrast ratio for clear, crisp and bright projection
Smart features to facilitate meetings and to increase productivity before, during and after its use
Anti-dust sealed optical engine design and advanced thermal management with optimized cooling and air flow
Built-in 10W audio speaker to ensure your message is well heard
Very silent projector at only 29dB in eco mode thanks to its smart fan management, which automatically and dynamically adapts the fan speed according to customized brightness level
HDBaseT interface ensure robust long signal transmission up to 100 meters
DICOM Simulation Mode ideal for medical training and seminars
| Native Resolution | WUXGA (1920 x 1200) |
| Brightness | 5000 ANSI Lumens |
| Contrast Ratio | 20,000:1 |
| Max. Supported Resolution | WUXGA (1920 x 1200) @60Hz |
| Native Aspect Ratio | 16:10 |
| Lamp Life and Type | Lamp free design. Laser light source lasts up to 20,000 hours |
| Display Type | Single chip DLP® Technology by Texas Instruments |
| Throw Ratio | 1.39 - 2.09 : 1 |
| Projection Lens | F = 2.42 - 2.97, f = 20.7 - 31.05 mm |
| Zoom Ratio | 1.5x |
| Lens Shift Range | Vertical: +11.7% |
| Offset | 108.5% - 120.2% with Manual Lens Shift |
| Keystone Correction | Vertical: +/-30 Steps; Horizontal: +/-30 Steps |
| Speakers | 10W x 1 |
| Video Compatibility | SDTV (480i, 576i) / EDTV (480p, 576p) / HDTV (720p, 1080i, 1080p), NTSC (M, 3.58/4.43 MHz), PAL (B,D,G,H,I,M,N) SECAM (B,D,G,K,K1,L) |

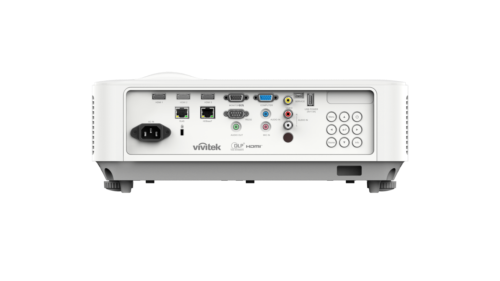

| I/O Connection Ports | VGA-In (15pin D-Sub), HDMI (x3), Composite Video, Audio-In (RCA) , Audio-In (Mini-Jack), VGA-Out (15pin D-Sub), Audio-Out (Mini-Jack), RJ45 (x2: HDBaseTx1, LANx1), RS-232, USB A (Power Only), USB miniB (Service), Microphone (Mini-Jack) |
| Dimensions (W x D x H) | 395 x 341 x 136 mm |
| Weight | 7 kg |
| Noise Level | 35dB / 29dB (Normal / Eco. Mode) |
| Power | Supply: AC 100-240V, 50/60Hz. Consumption: 270W (Eco. Mode), 340W (Normal Mode), <0.5W (Standby) |
| Control Software | PJ- Control V3.0.0.4 |
| 3D Ready(DLP link, PC+Video) | Yes |
| Standard Accessories | VGA Cable, Quick Start Guide, Warranty Card (by region), Remote Controller (with battery), AC Power Cord |
| Optional Accessories | Remote Control P/N: 5041846401 |
| Warranty | Standard Laser Phosphor Projector Warranty: 5-Year warranty on projector/ 5-year or 10000h on the Laser Phosphor illumination source (whichever comes first) |
| UPC Code | 813097024510 |
| Item | Type |
|---|---|
| Vivitek DataSheet | Download |
| Vivitek User Manuals | Download |
