Vivitek DU4381Z-ST High Performance Short Throw Laser Projector - 6100 Lumens
The DU4381Z-ST projector is the ideal for a wide range of applications, including corporate, education, as well as galleries and museum.
Experience the difference with the ultimate short-throw projector DU4381Z-ST that provides effortless and discreet positioning options in close proximity to the projected surface. This versatile WUXGA laser projector offers an impressive picture with a brightness of 6100 lumens. Along with 0.5 short throw lens, 360-degree positioning option and optimal thermal management allow for a picture perfect installation both in single set up as well as in mapping applications.

Key features
DLP® DarkChip3™ and BrilliantColor™ technologies for optimal black levels and vibrant colorful images
6100lm high brightness with 30,000 hrs (Eco) laser life
0.50:1 Short Throw Ratio
IP6X high standard Anti-Dust compliant
Delivers up to a 300” image from a distance close to the projection surface
Rec 709 excellent color performance-coverage 95%
Constant Brightness to keep the brightness constant
360° (degree) positioning for flexible installation
H/V keystone / 4 corner geometric adjustment
HDBaseT™ interface for the transmission of high-quality audio and video data over 100M
Crestron® RoomView™ integration for network monitoring and management
Power USB-A (5V/1.5A)
Support 24/7 operation

-
Category |
Details |
Native Resolution |
WUXGA (1920x1200) |
Brightness |
6100 ANSI Lumens |
Contrast Ratio |
30,000 :1 |
Max. Supported Resolution |
WUXGA (1920x1200) |
Native Aspect Ratio |
16:10 |
Display Type |
Single chip DLP® Technology by Texas Instruments |
Chip Size |
0.67" S600HB |
Throw Ratio |
0.5:1 |
Image Size (Diagonal) |
60" - 325" |
Projection Distance |
0.65 - 3.5 m |
Projection Lens |
F/2.8 , f=7.46 mm |
Zoom Ratio |
Fixed |
Focus |
Manual |
Offset |
121%(Full) / 110.5%(Half) |
Keystone Correction |
Vertical: +/-15°, Horizontal +/-15° |

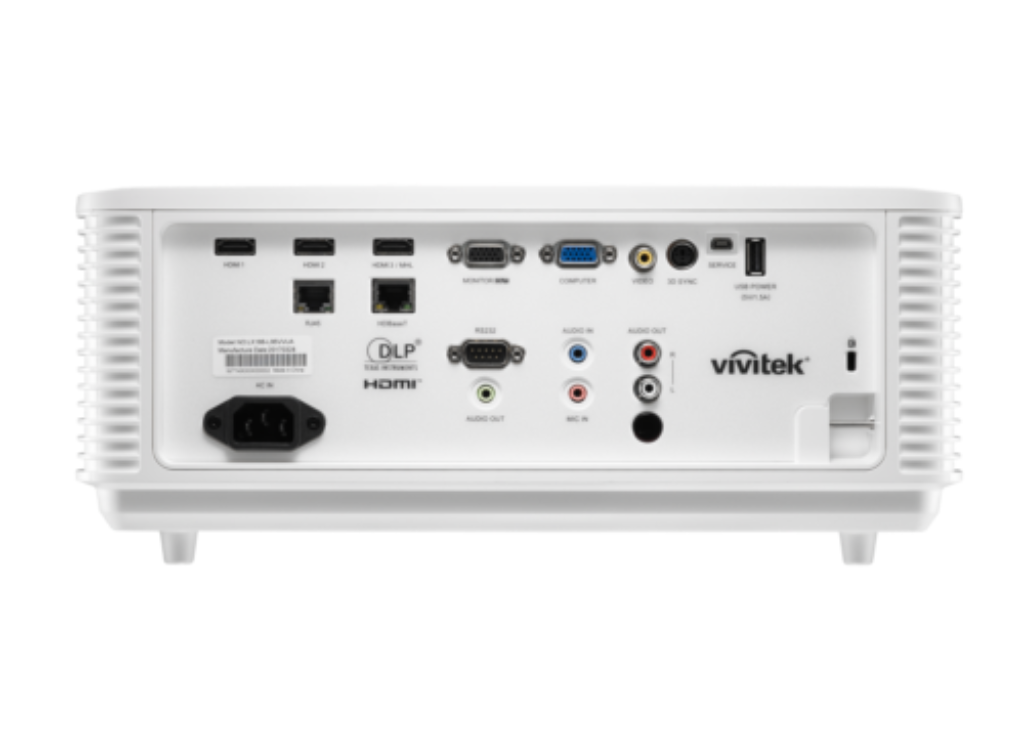

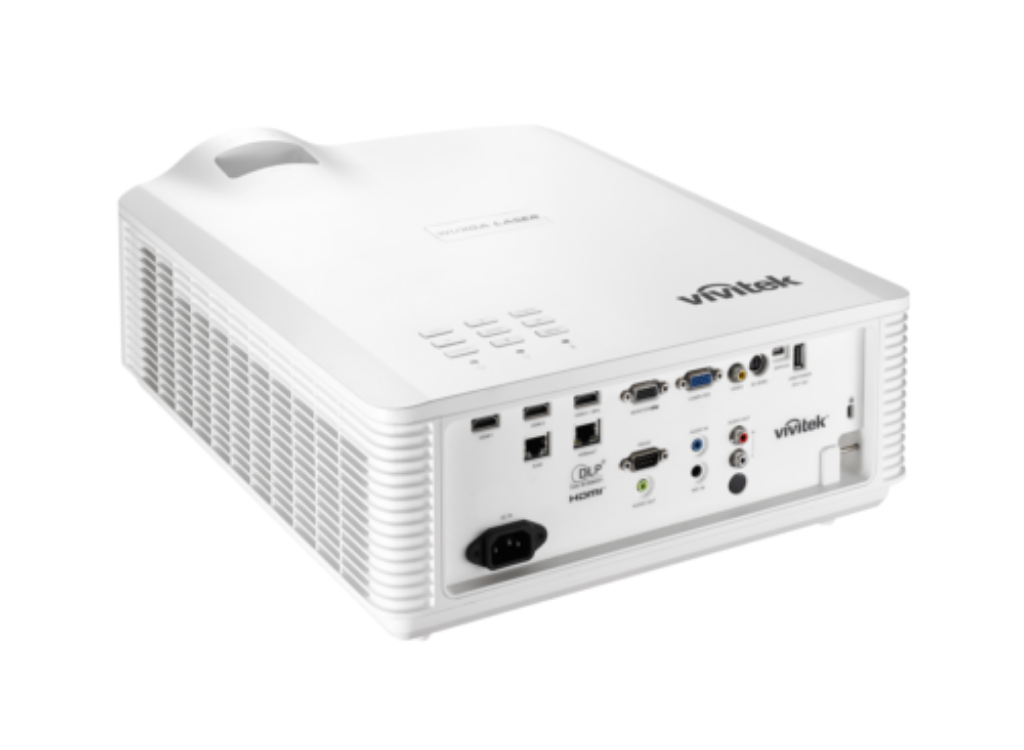

I/O Connection Ports |
VGA-In (15pin D-Sub) (1x), HDMI (3x), Composite Video (1x), Audio-In (RCA) (1x), Audio-In (Mini-Jack) (1x), VGA-Out (15pin D-Sub) (1x), RJ45 (2x LAN / HDBaseT), IP Telnet Capable Over RJ-45, RS-232 (1x), 3D-Sync (1x 3D Sync out), USB A (1x 5V 1.5A), USB miniB (Service), Microphone (Mini-Jack) (1x), Remote Jack(wire remote) |
Dimensions (W x D x H) |
360 x 440 x 186.3 mm |
Weight |
10.5 kg |
Noise Level |
36dB/34dB (Normal/Eco. Mode) |
Power |
AC 100-240V, 50/60Hz |
Control Software |
PJ - Control V3.0.0.4 |
3D Ready(DLP link, PC+Video) |
Yes |
Standard Accessories |
Quick Start Guide, Warranty Card (by region), Remote Controller (with battery), R/C Wire 3.5mm Jack, AC Power Cord |
Optional Accessories |
Remote Control P/N: 5041846603 |
Warranty |
5-Year warranty on projector / 5-year or 10,000 hours on the Laser Phosphor illumination source (whichever comes first) |
UPC Code |
813097025708 |
-
