DU5053Z-BK is a Versatile Application for Conferences, Learning, Entertainment, and More

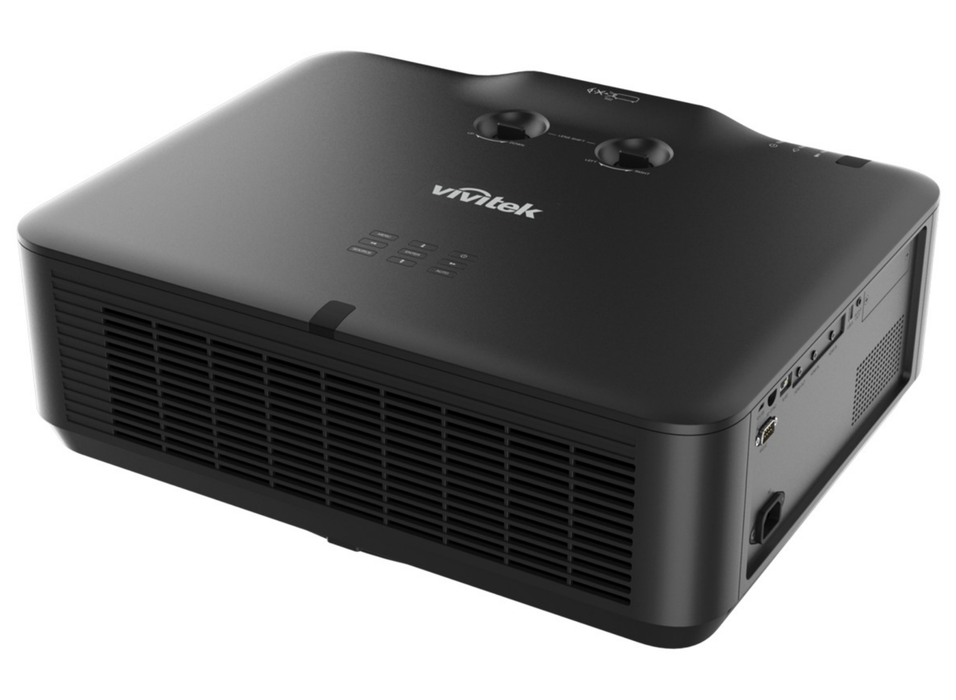

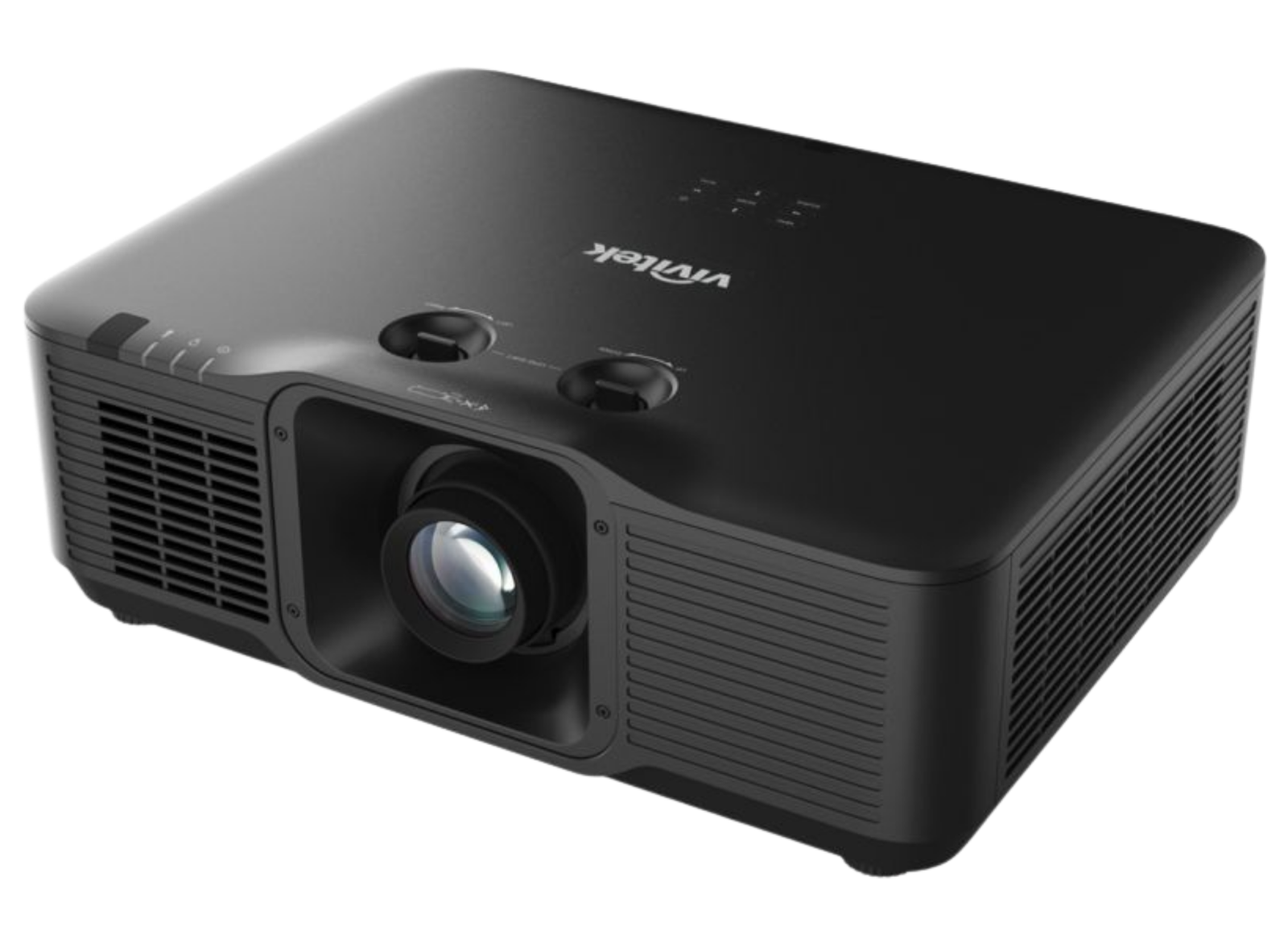

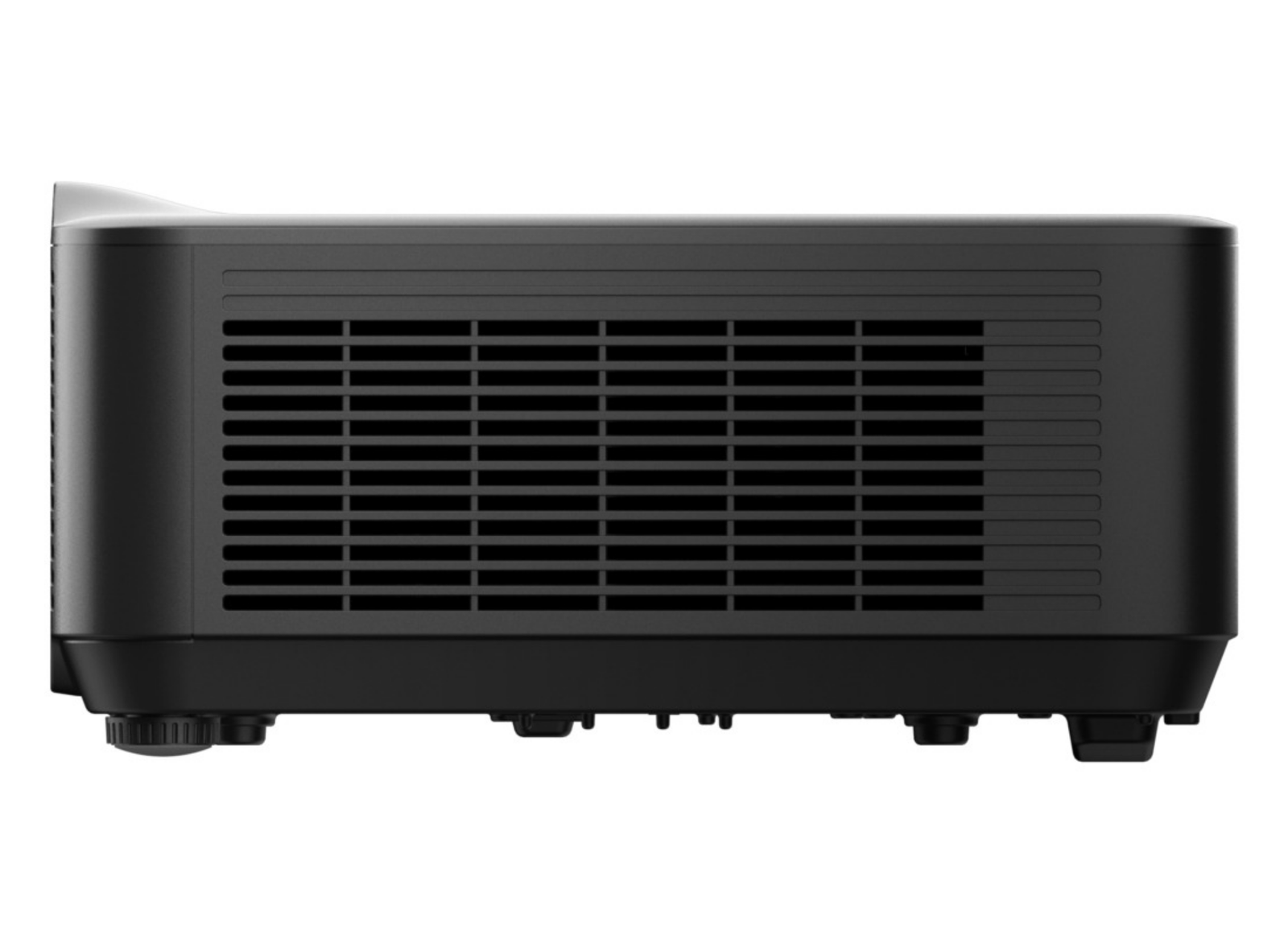

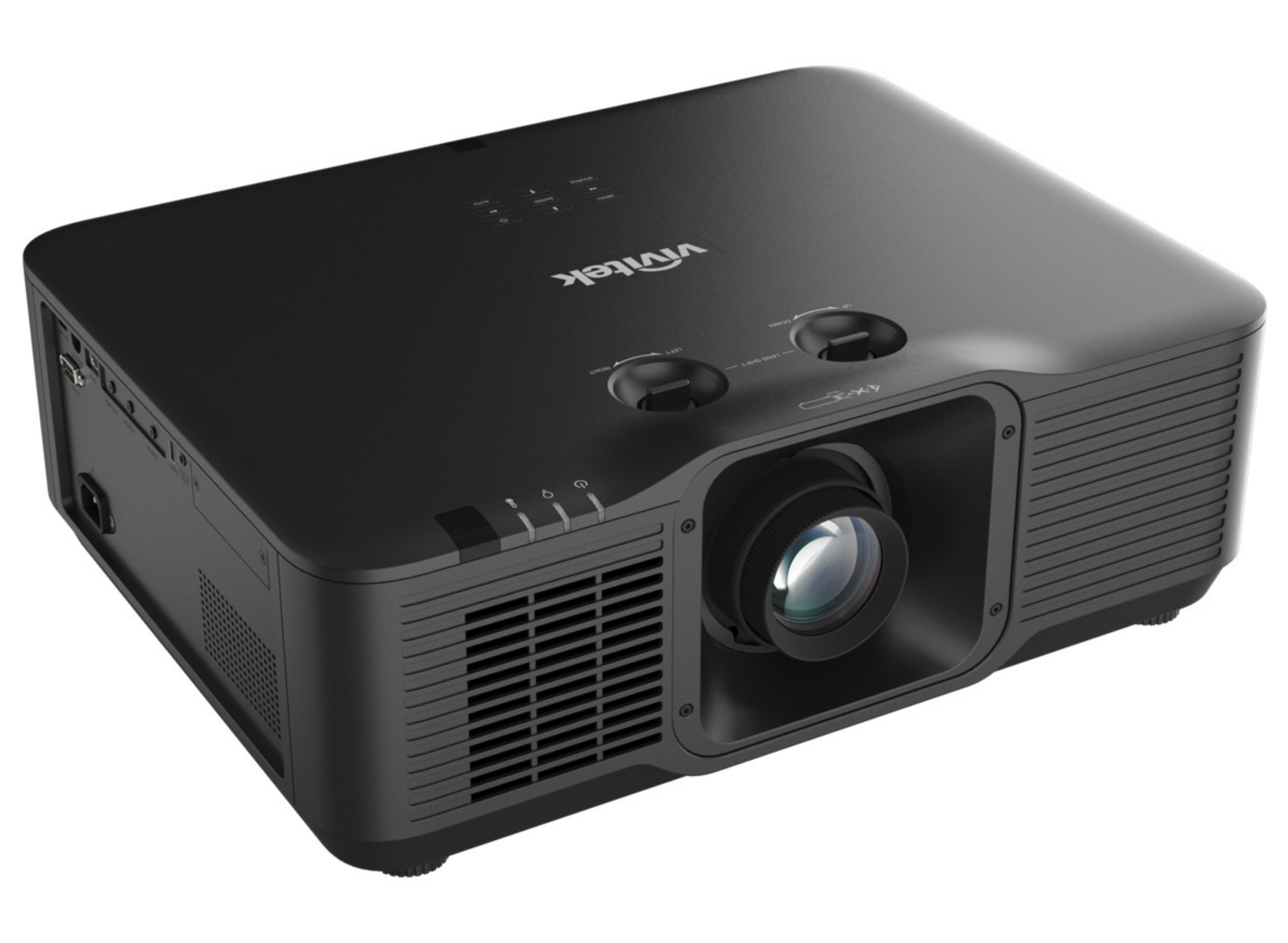

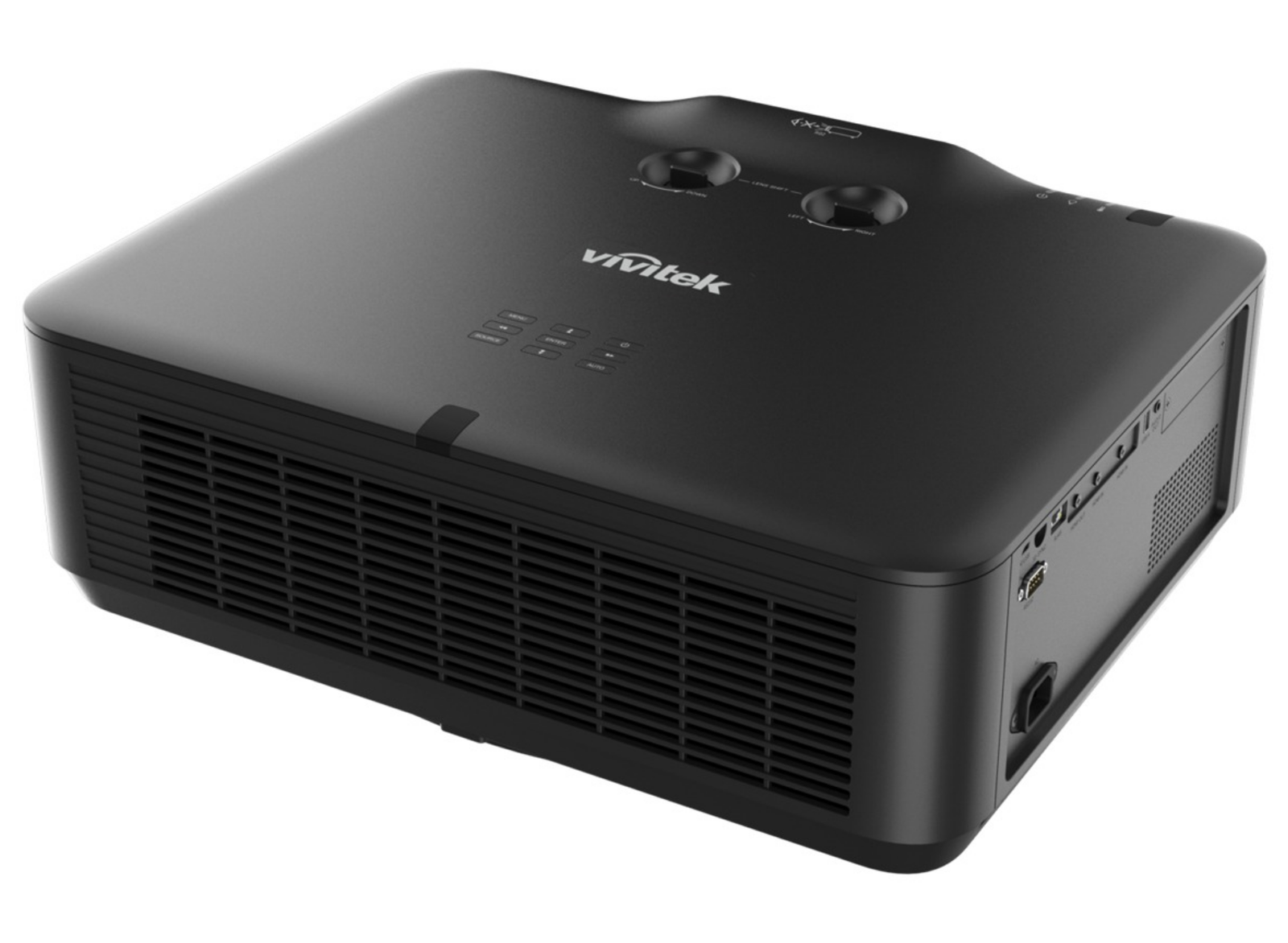

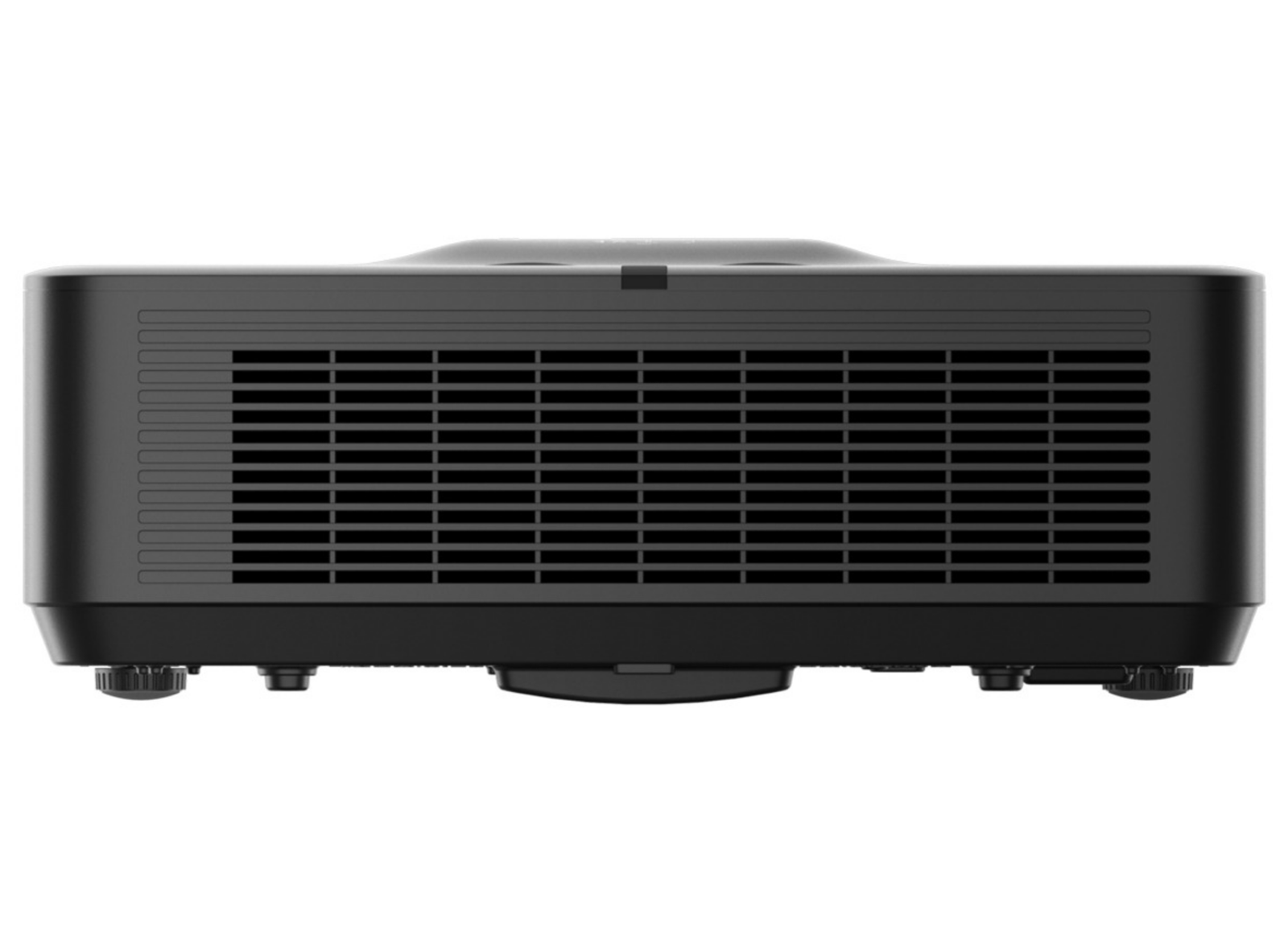

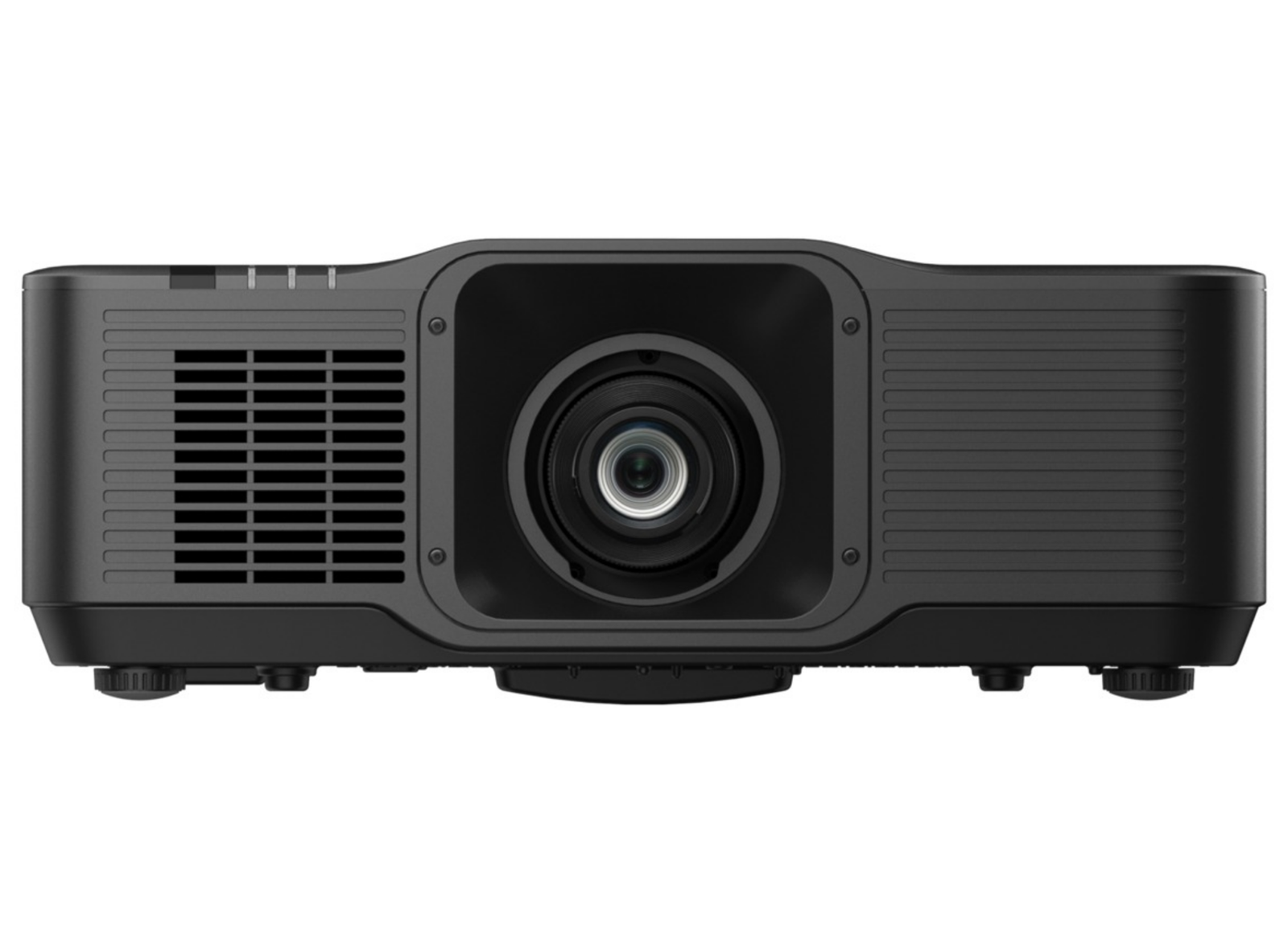

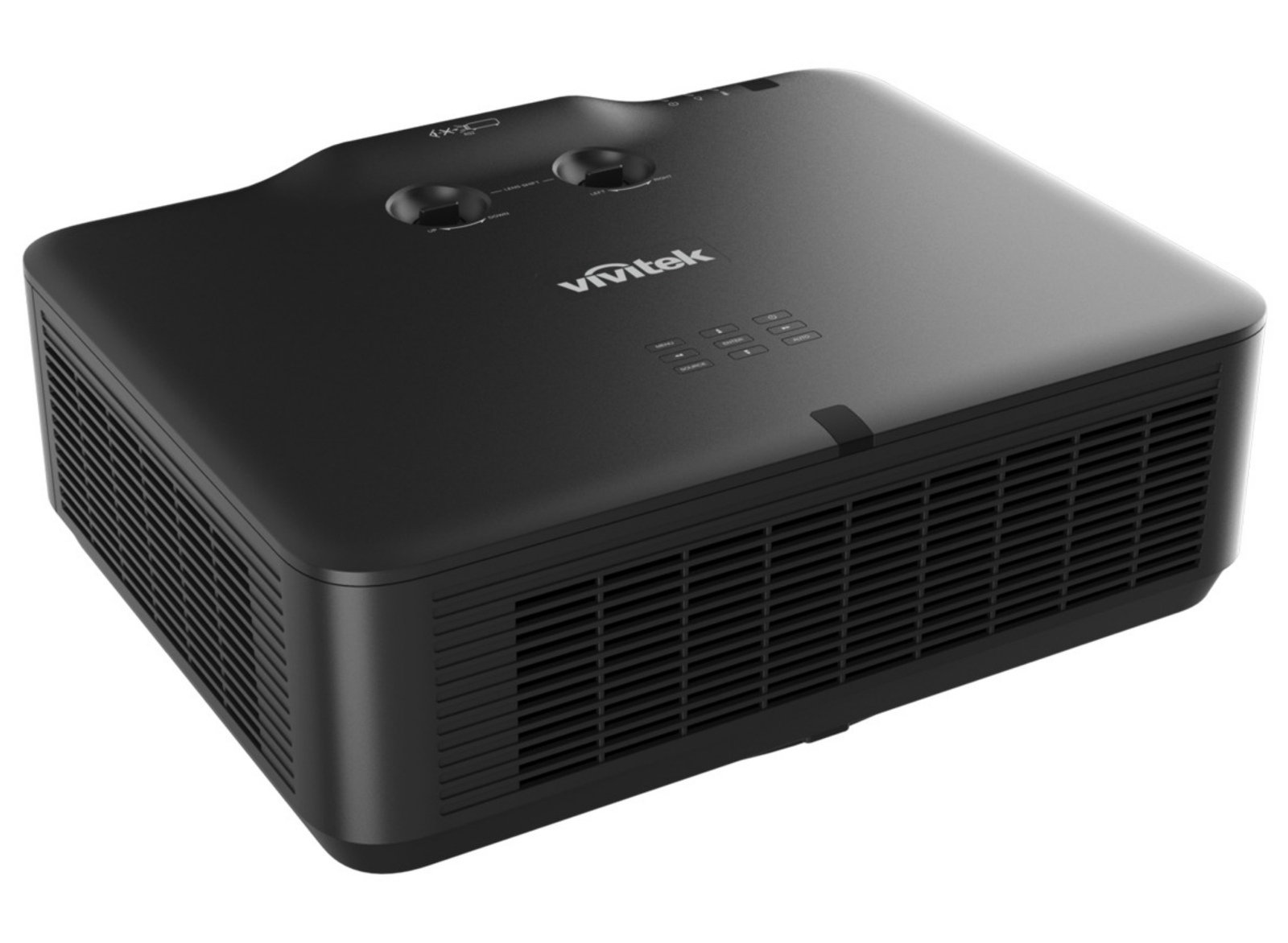

The DU5053Z-BK WUXGA is a highly efficient 7700 ANSI lumens laser projector designed for large spaces, such as lecture halls and conference rooms, even in high ambient lighting. With next-generation laser light source technology, it delivers vibrant, true-to-life colors, exceptional brightness, and high contrast, ensuring excellent color performance and visual clarity. Its versatile connectivity options make it a reliable solution for various applications.
Key Features
Powered by DLP® technology and BrilliantColor™, delivering up to 7700 ANSI lumens for vibrant visuals.
Enjoy up to 30,000 hours of reliable performance in Eco mode.
REC.709 (>95%), and Red Ratio (>5.9%) ensure stunning color accuracy.
Includes short-throw lens options and supports 360° projection from any angle.

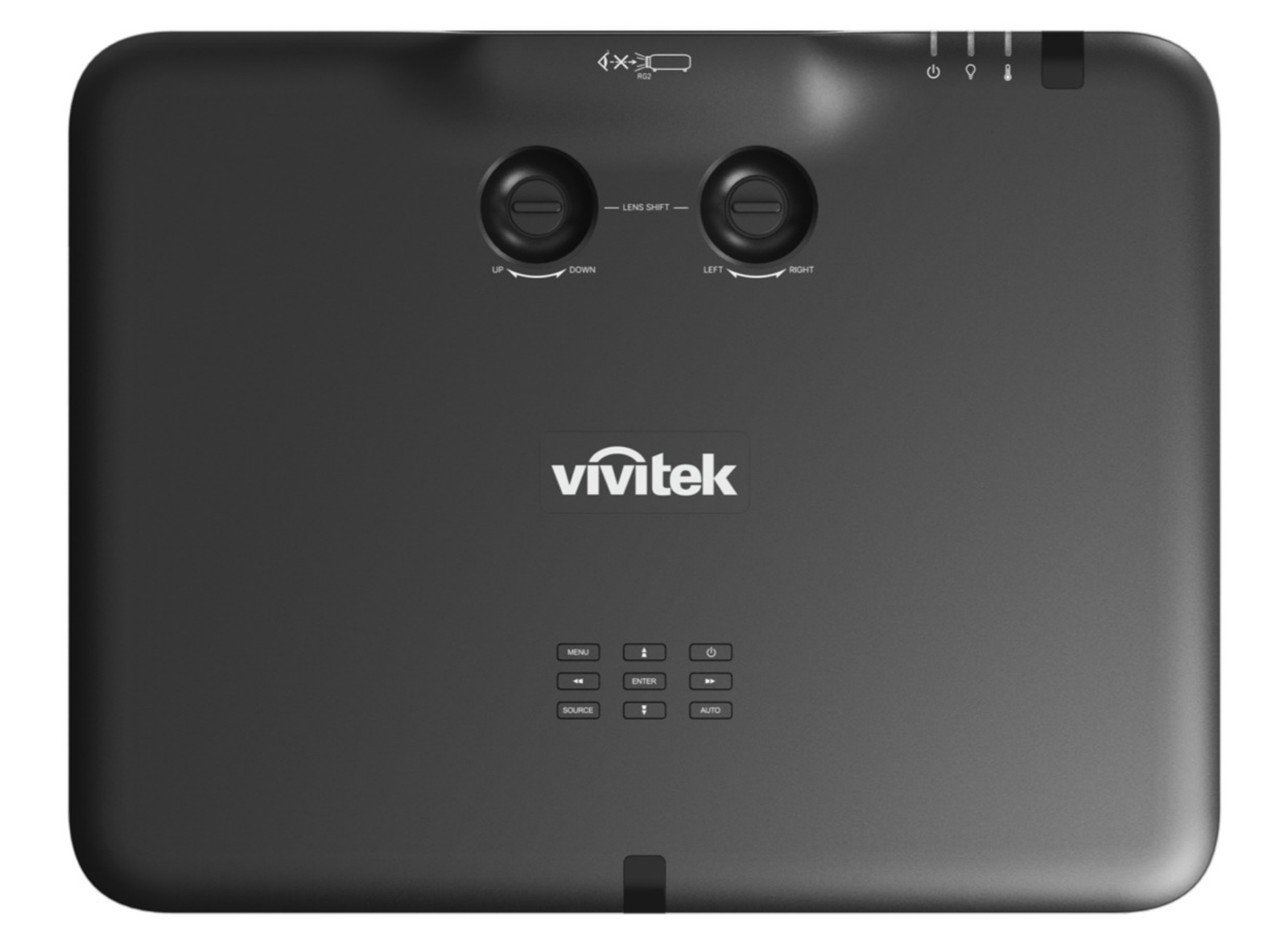

Wide-range lens shift ensures flexible installation and accurate image alignment in any setting
Power USB-A (5V/1.5A) for wireless device
IP6X-rated design provides high-standard anti-dust protection for long-term performance.
Optional HDBaseT™ interface for high-quality content transmission and full network control compatibility.
Developed with energy efficiency and environmental sustainability in mind.
Compact size laser projector ideal for corporate meeting room
| Native Resolution | WUXGA (1920 x 1200) | Brightness | 7700 ANSI Lumens |
| Contrast Ratio | 3,000,000:1 (Full On/Off) | Max. Supported Resolution | 4K-UHD (3840×2160) @60Hz |
| Native Aspect Ratio | 16:10 | Lamp Life and Type | 20,000 hrs (Normal) |
| Display Type | Single Chip 0.67" DLP Technology | Throw Ratio | 1.15 – 1.9 :1 (Std.) |
| Image Size (Diagonal) | 36.7” – 322" | Projection Distance | 1.5m – 8m |
| Zoom Ratio | 1.65x | Offset | +90%~+115% |
| Speakers | 10W x 1 | Lens Shift Range | V: 25% / H: Left 4% to Right 4% |

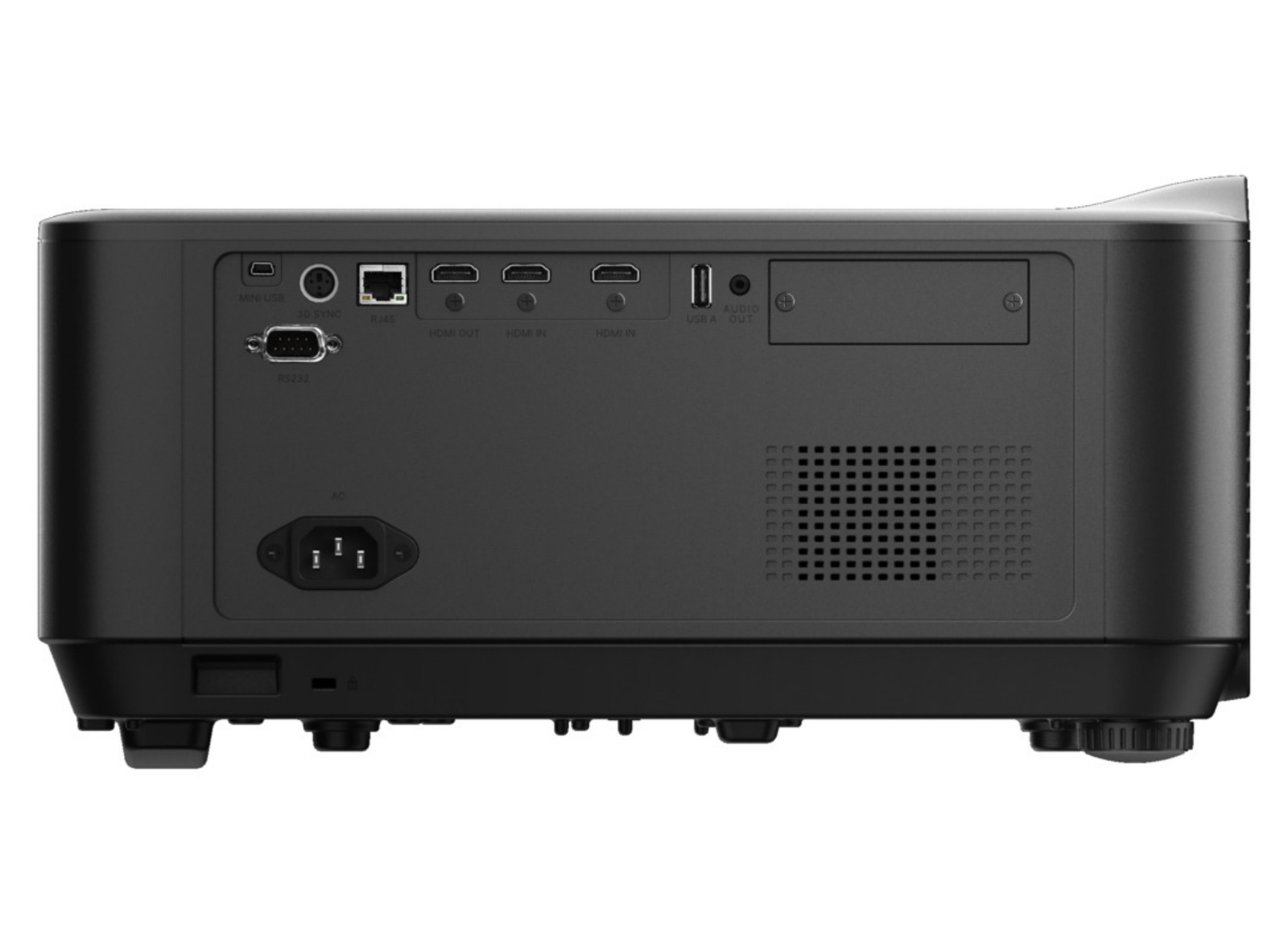

| Video Compatibility | VGA, SVGA, XGA, WXGA, SXGA, SXGA+, UXGA, 1080P, WUXGA, 4K@60hz, Mac | I/O Connection Ports | HDMI (2.0 In x2 / Out x1), RS-232, 3D-Sync (Out x1), USB A (Power Only), USB miniB (Service), RJ45 (HDBaseT Optional x1, LAN x1), Audio-In (Mini-Jack) |
| Dimensions (W x D x H) | 496 x 380 x 160 mm | Weight | 12 kg |
| Noise Level | 36dB / 31dB (Normal / Eco Mode) | Remote Control P/N | 5041846603 |
| Standard Accessories | AC Power Cord, Warranty Card (by region), Remote Controller (with battery) | Optional Accessories | Optional Module DHS-01 (SS-5811141573-VV), Remote Control P/N (5041846603), 3D Ready (DLP link, PC+Video), Direct 3D (HDMI 1.4a) |
| Warranty | Large Venue Laser Phosphor Warranty: 5 Year projector / 5 years or 20,000h on the Laser Phosphor illumination source |
| Description | Downloads |
|---|---|
| Datasheet | Download |
