Vivitek DU7098Z

Meeting Room Laser Projector - 7000 Lumens

• Description
• Specifications
• Downloads

• Corporate laser projector
  A smart choice for mid to large corporate meeting rooms thanks to its low total cost of ownership, the DU7098Z laser projector packs tremendous value for companies seeking maintenance-free durability up to 20,000 hours with easy installation and management. The DU7098Z ensures superior visibility with 7,000 ANSI lumen brightness and vibrant true-to-life colors with Rec. 709 color space, along with exceptionally quiet 33dB operation. Engineered with advanced thermal technology that aids its performance and durability, this projector perfectly combines an extraordinary viewing experience with top-cost efficiency. Furthermore, the DU7098Z can be complemented with Vivitek’s NovoConnect Solution for wireless presentation and collaboration.Vivitek DU7098Z Vivitek DU7098Z WH Left Hero
  Vivitek DU7098Z Vivitek DU7098Z WH IO Port Right

  Key features
  DLP® technology for vibrant picture quality
  Impressive 7,000 ANSI lumens of brightness, WUXGA resolution, and 20,000:1 contrast ratio for clear, crisp, and bright projection
  Long-lasting laser light source for constant brightness level and color performance for up to 20,000 hours of operations
  Exquisitely vivid colors and natural picture with Rec. 709 color space capacity and HDR support
  Nearly silent operation at just 33dB in normal full 7,000-lumen mode thanks to the advanced thermal cooling technology
  Installation flexibility is ensured with 7 optional lenses and easy image adjustment
  The loud and clear sound delivered by built-in 2x10W speakers
  Simple one-cable connection thanks to HDBaseT with up to 4K-UHD signal support
  DICOM Simulation Mode for medical training and seminars
  Full compatibility with NovoConnect Solution for wireless presentation and collaboration



• Feature	Specification
  Native Resolution	WUXGA (1920 x 1200)
  Brightness	7000 ANSI Lumens
  Contrast Ratio	20,000:1
  Max. Supported Resolution	4K-UHD (3840 x 2160) @60Hz
  Native Aspect Ratio	16:10
  Lamp Life and Type	Lamp free design. Laser light source lasts up to 20,000 hours
  Display Type	Single chip DLP® Technology by Texas Instruments
  Chip Size	0.67” DMD
  Throw Ratio	7 optional lenses from 0.78:1 to 3.0-5.0:1 throw ratio range
  Zoom Ratio	Manual Zoom & Focus
  Lens Shift Range	Manual; Vertical +55%, -15%; Horizontal +/-5%
  Offset	Manual Lens Shift
  Keystone Correction	Vertical +/-30°; Horizontal +/-25°
  Speakers	10W x 2
  Video Compatibility	SDTV (480i, 576i) / EDTV (480p, 576p) / HDTV (720p, 1080i, 1080p), NTSC (M, 3.58/4.43 MHz), PAL (B,D,G,H,I,M,N) SECAM (B,D,G,K,K1,L), 4K-UHD

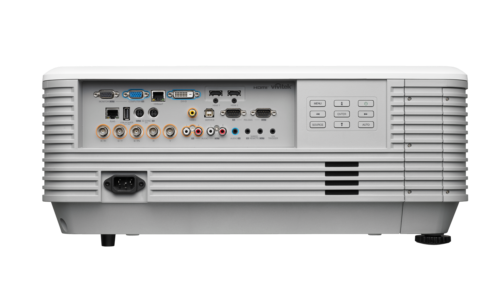

  I/O Connection Ports	VGA-In (15pin D-Sub), HDMI (x2), DVI-D, Component (5 BNC) (RGBHV), Composite Video, Audio-In (RCA), Audio-In (Mini-Jack), VGA-Out (15pin D-Sub), Audio-Out (RCA), RJ45 (x2: LANx1, HDBaseTx1), 12v Trigger, RS-232 (x2: In and Out), 3D-Sync (x2: In and Out), USB A (Power Only), USB B (Service), Remote Jack(wire remote)
  Dimensions (W x D x H)	470 x 517 x 202 mm
  Weight	25 kg
  Noise Level	33dB/30dB (Normal/Eco. Mode)
  Power	Supply: AC 100-240V, 50/60Hz Consumption: 520W (Eco. Mode), 630W (Normal Mode), <0.5W (Standby)
  3D Ready (DLP link, PC+Video)	Yes
  Standard Accessories	VGA Cable, Quick Start Guide, Warranty Card (by region), Remote Controller (with battery), AC Power Cord
  Optional Accessories	Remote Control P/N: 5041846600
  Warranty	Large Venue Laser Phosphor Warranty: 5 Year projector / 5 years or 20,000h on the Laser Phosphor illumination source (Whichever comes first), Standard Laser Phosphor Projector Warranty: 5-Year warranty on projector/ 5-year or 10,000h on the Laser Phosphor illumination source (whichever comes first)
  UPC Code	DU7098Z-WH: 813097024350; DU7098Z-BK: 813097024367

• Item	Type
  Vivitek DataSheet	Download
  Vivitek User Manuals	Download
