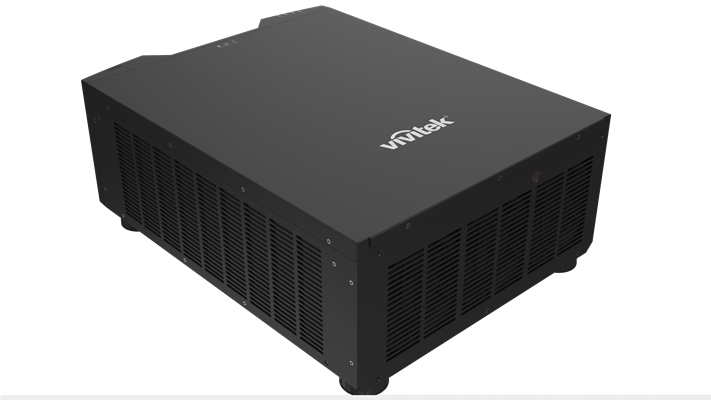

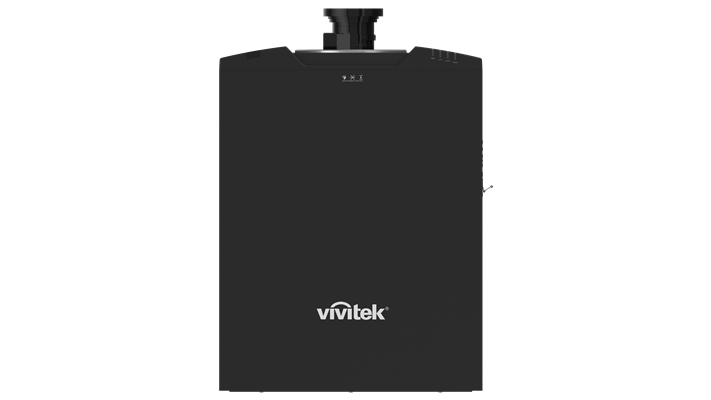

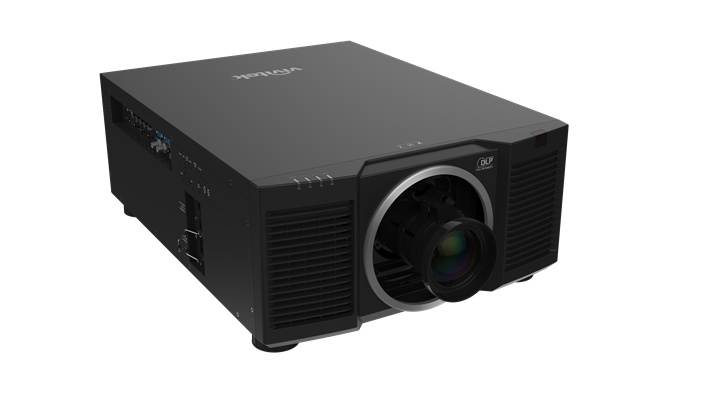

Vivitek DU9800Z-BK Low Maintenance Laser Projector - 18000 Lumens
SKU: DU9800Z-BK
£18,991.00 (Excl. VAT)
- Brightness (Lumens) 16000 - 20000
- Contrast Ratio 3,000,000:1
- Native Resolution WUXGA
- Throw Ratio 0.84:1 - 7.00:1
- Light Source Laser
- Native Aspect Ratio 16:10 Widescreen
- Description
- Specifications
- Downloads
-
Vivitek DU9800Z
Low Maintenance Laser Projector - 18000 Lumens
Bright 18,000 Lumens Projector with Single Chip DLP

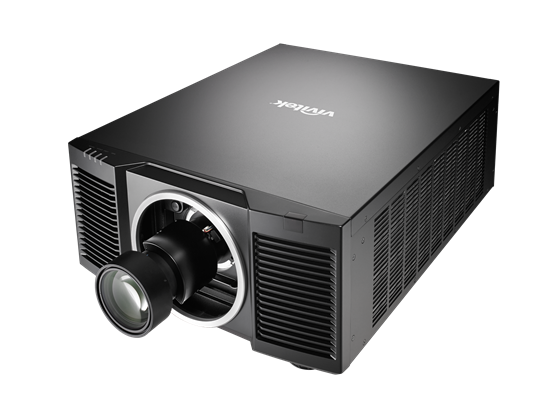

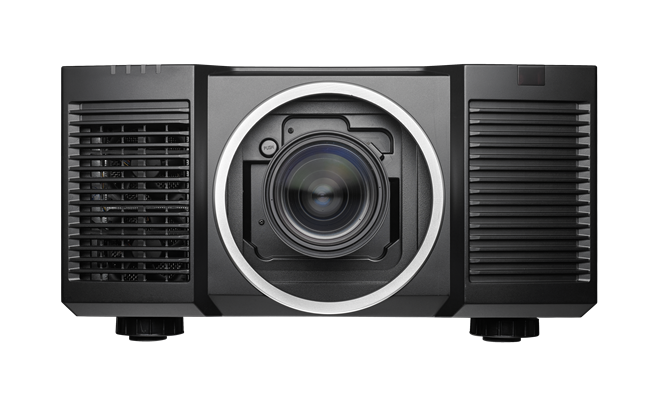

The DU9800Z Single Chip WUXGA Laser Projector delivers 18,000 ANSI Lumens with its laser light source, the DU9800Z delivers up to 20,000 hours of operation. Additionally, the projector presents many benefits to System Integrators due to its small form factor and light weight that enables simple and swift installation. Vivitek offers a new Constant Brightness feature to help reduce blending maintenance and customise brightness with a built-in light sensor inside the projector monitors the level of light. The DU9800Z is very stable projector and is ideally suited to 24/7 operation with low user intervention.Vivitek DU9800Z Front

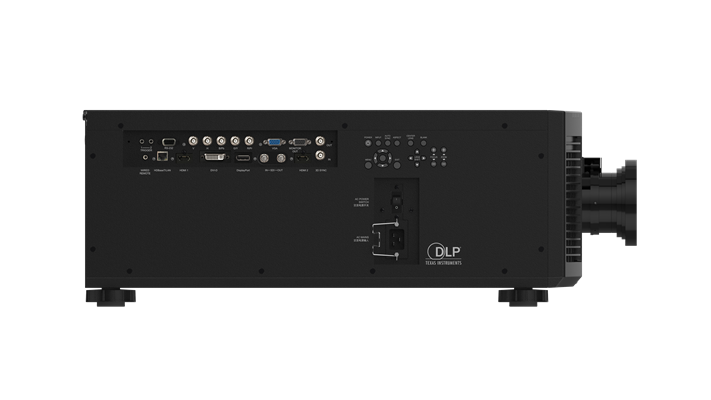

Vivitek DU9800Z Right 01
Key features
Extraordinarily high brightness at 18,000 ANSI lumens with only one DLP chip system to achieve outstanding performance
WUXGA resolution and 10,000:1 contrast ratio for clear, crisp and bright projection
Long lasting laser light source for up to 20,000 hours operations
Installation flexibility is ensured with 5 optional lenses from 0.84:1 to 7.00:1 throw ratio range
Designed for heavy duty 24/7 operations with 360° installation angle flexibility
3G-SDI & HDBaseT for robustness for long signal transmission
Built-in multi-screen edge-blending and warping features
Motorized and wide lens shift range allows easy placement of the projector without distorting the image
Lens Position Memory to facilitate set up
New Constant Brightness feature helps reduce blending maintenance with a smart sensor continuously measuring and adjusting the illumination output
DLP® TechnologyDLP (Digital Light Processing) is a display technology from Texas Instruments (TI). The technology inside is often referred to as DMD (Digital Micro-Mirrors). It consists of an array of mirrors where each mirror represents a pixel element. For example, a high-definition DLP projector or rear projector with 1920 x 1080 pixel resolution would have over 2 million tiny mirrors. Each mirror is attached to an electronically driven hinge that controls the amount of colored light that is reflected from
-
Native Resolution WUXGA (1920 x 1200) Brightness 18000 ANSI Lumens Contrast Ratio 3,000,000 : 1 Max. Supported Resolution WUXGA (1920 x 1200) @60Hz Native Aspect Ratio 16:10 Lamp Life and Type Lamp free design. Laser light source lasts up to 20,000 hours Display Type Single chip DLP® Technology by Texas Instruments Chip Size 0.96” DMD Throw Ratio 5 optional lenses from 0.84:1 to 7.00:1 throw ratio range Image Size (Diagonal) depending on lens selection Projection Distance depending on lens selection Zoom Ratio Motorized Zoom & Focus Lens Shift Range Vertical: +/-50%; Horizontal: +/-15% Offset Motorized Lens Shift Keystone Correction Vertical: +/-40°; Horizontal: +/-60° Video Compatibility SDTV (480i, 576i) / EDTV (480p, 576p) / HDTV (720p, 1080i, 1080p), NTSC (M, 3.58/4.43 MHz), PAL (B,D,G,H,I,M,N) SECAM (B,D,G,K,K1,L) I/O Connection Ports VGA-In (15pin D-Sub), HDMI (x2), Display Port, DVI-D, Component (5 BNC) (RGBHV) , VGA-Out (15pin D-Sub), RJ45 (1: HDBaseT/LAN), 12v Trigger (x2), RS-232, 3D-Sync (x2: In and Out), 3G-SDI (x2: In and Out), Remote Jack(wire remote) Dimensions (W x D x H) 530 x 693 x 248 mm Weight 48 kg Noise Level 43dB (Normal Mode) Power Supply: AC 100-240V, 50/60Hz Consumption: 1800W (Normal Mode), <0.5W (Standby) Control Software PJ - Control V3.0.0.4 3D Ready(DLP link, PC+Video) Yes Standard Accessories HDMI Cable, User Manual (CD), Lens Cap, Warranty Card (by region), Remote Controller (with battery), AC Power Cord Optional Accessories Remote Control P/N: 5041848301 Warranty Large Venue Laser Phosphor Warranty: 5 Year projector / 5 years or 20.000h on the Laser Phosphor illumination source.(Whichever comes first) UPC Code DU9800Z-BK: 813097023377 -
Item Type Vivitek DataSheet Download Vivitek User Manuals Download Vivitek Control Protocols Download
