Vivitek DW275-EDU
Versatile Portable Projector - 4000 Lumens
From meeting room to presentations anywhere on the road
The DW275 is a native WXGA digital projector from Vivitek. It features DLP® and BrilliantColor™ technologies to display distinct, vibrant images in a widescreen format. The Vivitek DW275 features numerous connectivity options including two HDMI v1.4, a brightness level of 4000 Lumens and a 20,000:1 contrast ratio. With its light weight and compact form, the DW275 projector is easy to install and will fit into any budget.
Key features
DLP® technology with BrilliantColor™ for vibrant and rich picture quality
4000 lumens of brightness and 20,000:1 contrast ratio for clear, crisp and bright presentations
WXGA (1280 x 800) native resolution scalable up to a maximum WUXGA (1920 x 1200) resolution
Dual-HDMI inputs for high definition content with the same high quality
Compact and lightweight at 2.6kg for easy portability
A long lamp life up to 10,000 hours for low Total Cost of Ownership (TCO)
Audio ready with built-in 2 watt audio speaker, audio-in and audio-out ports
| Native Resolution | WXGA (1280 x 800) |
| Brightness | 4000 ANSI Lumens |
| Contrast Ratio | 20,000:1 |
| Max. Supported Resolution | WUXGA (1920 x1200) @60Hz |
| Native Aspect Ratio | 16:10 |
| Lamp Life and Type | 5,500 / 7,000 / 10,000 Hours (Normal / Eco. / Dynamic Eco. Mode), 210W |
| Display Type | Single chip DLP® Technology by Texas Instruments |
| Chip Size | 0.65” DMD |
| Throw Ratio | 1.55 - 1.86 : 1 |
| Image Size (Diagonal) | 40" - 300" |
| Projection Distance | 1.3m -10.2m |
| Projection Lens | F = 2.42 - 2.62, f = 22.5 - 25.79 mm |
| Zoom Ratio | 1.2x |
| Offset | 1,04 |
| Keystone Correction | Vertical: +/-40° |
| Speakers | 2W |

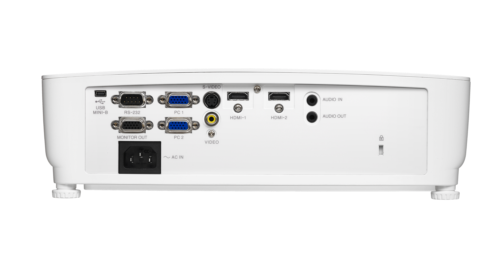

| I/O Connection Ports | VGA-In (15pin D-Sub) (x2), HDMI (x2), S-Video, Composite Video, Audio-In (Mini-Jack), VGA-Out (15pin D-Sub), Audio-Out (Mini-Jack), RS-232, USB miniB (Service) |
| Dimensions (W x D x H) | 331 x 244 x 105 mm |
| Weight | 2.6 kg |
| Noise Level | 32dB / 29dB (Normal / Eco. Mode) |
| Power | Supply: AC 100-240V, 50/60Hz Consumption: 210W (Eco. Mode), 250W (Normal Mode), <0.5W (Standby) |
| 3D Ready(DLP link, PC+Video) | Yes |
| Standard Accessories | VGA Cable, User Manual (CD), Quick Start Guide, Warranty Card (by region), Remote Controller (with battery), AC Power Cord |
| Optional Accessories | Spare Lamp P/N: XX5810005600, Remote Control P/N: XX5040005400, Carrying Case P/N |
| Warranty | Entry Warranty: 2 years projector / 1 year on lamp or 1.000 hours whichever comes first, Education Warranty: 5 years projector / 3 years on lamp or 2.000 hours whichever comes first |
| Item | Type |
|---|---|
| Vivitek DataSheet | Download |
| Vivitek User Manuals | Download |
